Panasonic ET-D3QW300 User manual

Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
Commercial Use
Model No. ET-D3LEW300
DPQX1664ZA/X1
Zoom Lens
Operating Instructions
ENGLISH
FRANÇAIS
日本語

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Preparation............................................................................................5
Before replacing the projection lens........................................................ 5
Attaching and Detaching the Lens .......................................................... 5
Peripheral focus adjustment function ...................................................... 5
Lens calibration ....................................................................................... 5
Projection relationships.......................................................................6
Lens shift ranges..................................................................................9
Specications .....................................................................................11
Dimensions .........................................................................................11
Projected image size and Projection distance.......Appendix / Annexe / 付録 1
The "Appendix" can be found after the Japanese language section ( 日本語 ).
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
■Supported projectors
PT-RQ35K / PT-RZ34K / PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RQ25K / PT-RZ24K /
PT-RQ22K / PT-RZ21K / PT-RS20K / PT-RQ18K / PT-RZ17K / PT-RZ16K / PT-RZ14K
Note
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
zModels other than the above may also be supported. Refer to the operating instructions for
your projector or the following website.
https://panasonic.net/cns/projector/
z
If the projector you are using is PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RZ21K / PT-RS20K,
you may not be able to use the projection lens depending on main version of the firmware.
If main version of the firmware is the version number shown below, update to the latest
firmware before use.
- PT-RQ32K / PT-RZ31K / PT-RS30K: Earlier than 3.00
- PT-RZ21K / PT-RS20K: Earlier than 2.00
For details on the update procedure, refer to the latest firmware information on the
following website.
https://panasonic.net/cns/projector/pass/
zThe main version of the firmware version can be checked in the [STATUS] screen.

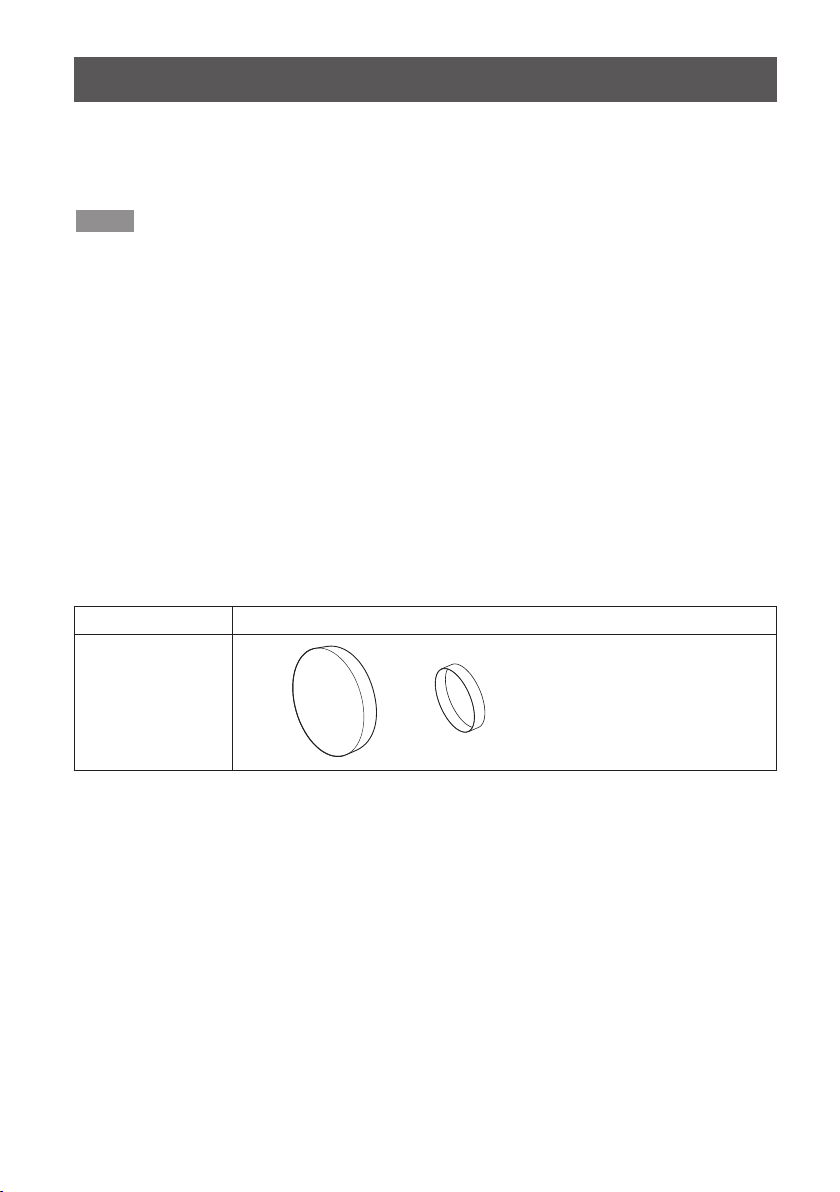

■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance
Lens cover
1 each for front and rear
zThe product is delivered
with a lens cover attached.
Before Use

ENGLISH-5
Preparation
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating instructions
of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
zDo not touch the electrical contacts of the projection lens with your fingers. Dust and dirt on
the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnified by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens could be damaged if brought into contact with or rubbed against hard objects.
Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use fluffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching and Detaching the Lens
For details on attaching and detaching the projection lens, refer to the operating instructions
of the projector.
Peripheral focus adjustment function
When yo u change the size of the projected image, the focal balance between the center
and peripheral areas of the screen may shift. This shift in balance tends to increase
proportionally with smaller throw ratios.
The ET-D3LEW300 is equipped with a peripheral focus adjustment function to correct
the shift in focal balance between the center and peripheral areas of the screen.
For instructions on adjusting the peripheral focus, refer to “Projecting” in the operating
instructions for the projector.
Lens calibration
Perform lens calibration after attaching the lens.
For instructions on the lens calibration, refer to “Projecting” in the operating instructions
for the projector.

6-ENGLISH
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
SD
L (LW/LT)
L1
L (LW/LT)
SW SH
SH
SW
L1
Projected image
Screen
Screen
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image fills the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Projected image height
SW Projected image width
SD Projected image size
zDimension for L1 (approximate values) (Unit: m)
Projector model Dimension for L1
(approximate value)
PT-RQ35K / PT-RZ34K 0.273
PT-RQ32K / PT-RZ31K / PT-RS30K 0.242
PT-RQ25K / PT-RQ18K / PT-RZ24K / PT-RZ17K / PT-RZ14K 0.272
PT-RQ22K / PT-RZ21K / PT-RS20K / PT-RZ16K 0.270
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specific projector model. Configurations may vary with the model.
Attention
zTo prevent obstruction of the intake and exhaust vents, install the projector with a
clearance from walls and objects. For details about the required distance from surrounding
walls and objects, refer to the operating instructions for your projector.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufficient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).

ENGLISH-7
Projection relationships (continued)
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.

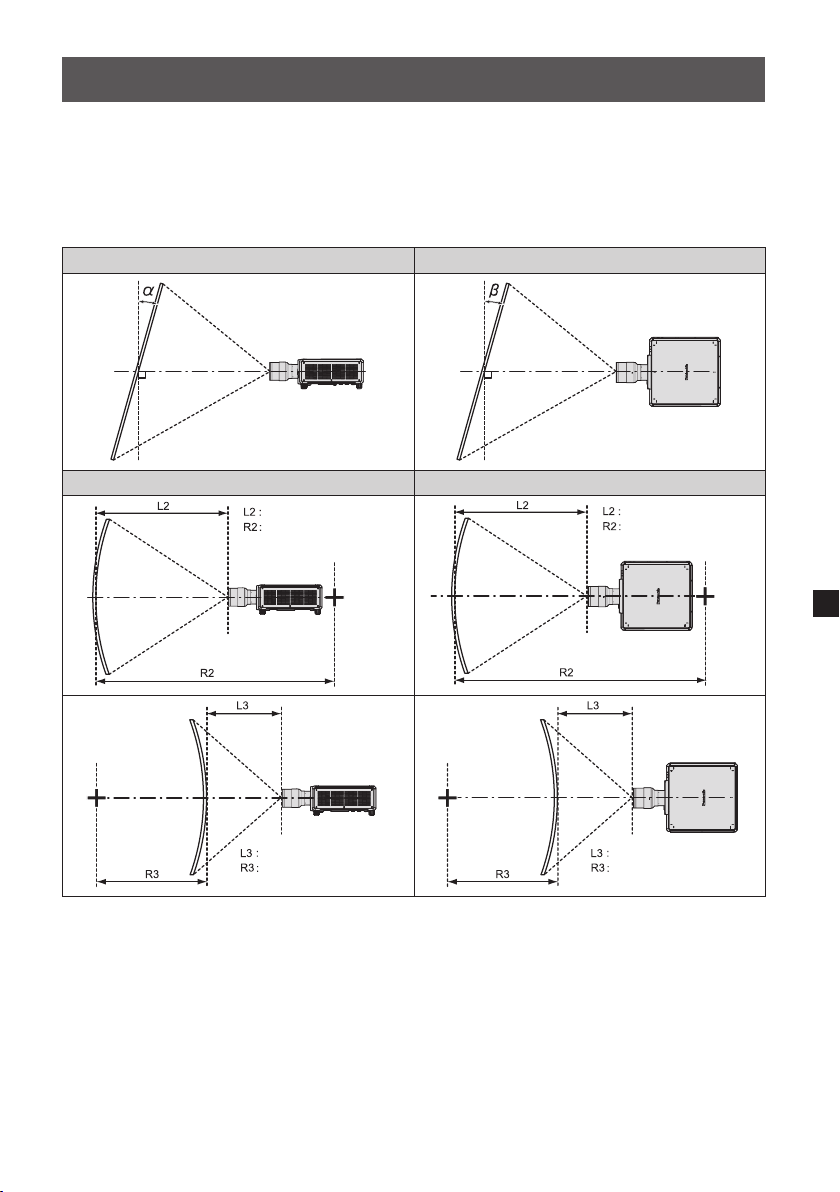

■[GEOMETRY] projection range
[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Screen Screen
Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
Screen
Projection distance
Arc radius
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius

8-ENGLISH
Projection relationships (continued)
Projector
Model No.
Only [KEYSTONE]
used
[KEYSTONE] and [CURVED CORRECTION]
used together
Only [CURVED
CORRECTION] used
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Min. value
of R2/L2
Min. value
of R3/L3
Min. value
of R2/L2
Min. value
of R3/L3
PT-RQ35K /
PT-RZ34K /
PT-RQ32K /
PT-RZ31K /
PT-RS30K /
PT-RQ22K /
PT-RZ21K /
PT-RS20K /
PT-RZ16K
±15 ±5 ― ― ― ― ― ―
PT-RQ25K /
PT-RZ24K /
PT-RQ18K /
PT-RZ17K /
PT-RZ14K
±28 ±15 ±10 ±10 1.2 3.0 0.7 1.7
Note
zWhen [GEOMETRY] is used, the focus of the entire screen may be lost as correction
increases.

ENGLISH-9

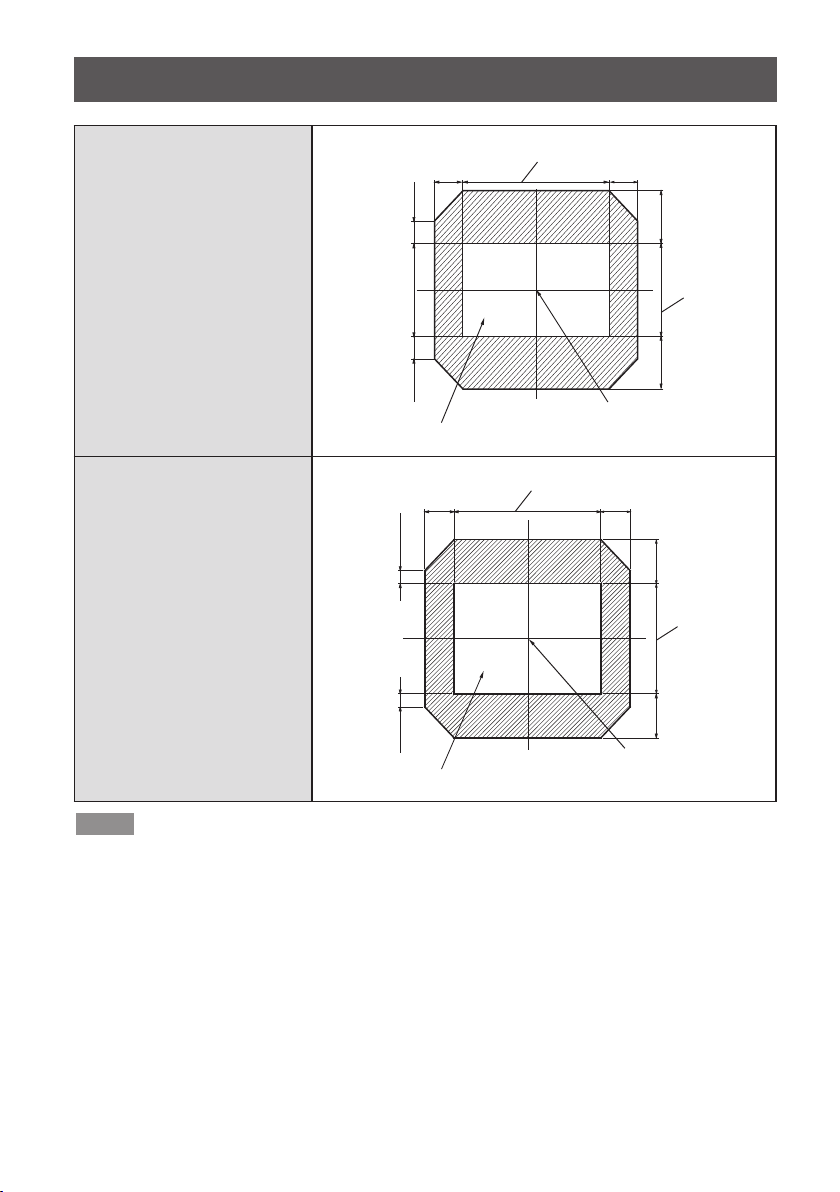

Perform the lens position shift within the adjustment range.
Perform lens shift adjustment within the ranges shown in the following illustrations.
The focus may change when the lens position is shifted out of the adjustment range.
This is because the movement of the lens is restricted to protect the optical parts.
Projection position can be adjusted with the optical axis shift based on the home position
in the respective range.
PT-RQ35K /
PT-RZ34K /
PT-RZ31K /
PT-RZ21K /
PT-RZ16K
0.12 V
0.44 V0.44 V
0.15 H 0.15 H
0.12 V
Projected image width H
Projected image height V
Standard projection position
Optical axis center
PT-RQ25K /
PT-RZ24K /
PT-RQ18K /
PT-RZ17K /
PT-RZ14K
0.18 H
0.14 V
0.14 V
0.52 V 0.52 V
0.18 H
Projected image width H
Projected image height V
Standard projection position Optical axis center
Lens shift ranges

10-ENGLISH
Lens shift ranges (continued)
PT-RQ32K /
PT-RQ22K
0.19 H 0.19 H
0.24 V
0.56 V 0.56 V
0.24 V
Projected image width H
Projected image height V
Optical axis center
Standard projection position
PT-RS30K /
PT-RS20K
0.2 H 0.2 H
0.12 V
0.4 V 0.4 V
0.12 V
Projected image width H
Projected image height V
Standard projection position
Optical axis center
Note
zThe home position of the projector is a point of origin position for the lens shift (i.e., vertical
and horizontal positions of the lens) based on the results of lens calibration. It is not
theoptical center position of the screen.

ENGLISH-11
Dimensions
Specications
(Unit: mm)
Ø 166 (6-17/32")
170 (6-11/16") 100 (3-15/16")
411 (16-3/16")
183 (7-7/32")
83 (3-9/32")
Model No. ET-D3LEW300
F value 2.5
Focal Length (f) 16.36 mm (21/32") - 19.63 mm (25/32")
Supported screen size 70" to 1 000"
Dimensions
Width 183 mm (7-7/32")
Height 170 mm (6-11/16")
Depth 411 mm (16-3/16")
Net Weight Approx. 8.0 kg(17.6 lb)

12-ENGLISH
English
Manufactured by:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importer:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Germany
Authorized Representative in EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Importer for UK;
Panasonic Connect UK,
a branch of Panasonic Connect
Europe GmbH,
Maxis 2, Western Road, Bracknell,
Berkshire, RG12 1RT
Français
Fabriqué par:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japon
Importateur :
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Allemagne
Représentant autorisé dans l’UE :
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hambourg, Allemagne
Español
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japón
Importador:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Alemania
Representante Autorizado para la UE:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemania
Deutsch
Hergestellt von:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden,
Deutschland
Vertretungsberechtigter in der EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Deutschland
Italiano
Fabbricato da:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Giappone
Importatore:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Germania
Rappresentante autorizzato nell’UE:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Amburgo, Germania
Български
Производител:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Япония
Вносител:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Германия
Упълномощен представител в ЕС:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Германия

ENGLISH-13
Čeština
Vyrobil:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozce:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Německo
Oprávněný zástupce v EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburk, Německo
Dansk
Fremstillet af:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Tyskland
Autoriseret repræsentant i EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland
Eesti
Tootja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Jaapan
Maaletooja:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Saksamaa
Volitatud esindaja ELis:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Saksamaa
Ελληνικά
Κατασκευάστηκε από:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Ιαπωνία
Εισαγωγέας:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Γερμανία
Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Γερμανία
Hrvatski
Proizvodi:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Uvoznik:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Njemačka
Ovlašteni zastupnik u EU-u:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Njemačka
Latviešu
Ražotājs:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japāna
Importētājs:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Vācija
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Vācija
Lietuvių
Gamintojas:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonija
Importuotojas:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Vokietija
Įgaliotasis atstovas ES:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgas, Vokietija
Magyar
Gyártotta:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japán
Importőr:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Németország
Hivatalos képviselő az EU-ban:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Németország

14-ENGLISH
Nederlands
Geproduceerd door:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Duitsland
Bevoegde vertegenwoordiger in de EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Duitsland
Norsk
Produsert av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Tyskland
Autorisert representant i EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland
Polski
Wyprodukowano przez:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importer:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Niemcy
Upoważniony przedstawiciel w UE:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Niemcy
Português
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japão
Importador:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Alemanha
Representante Autorizado na UE:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemanha
Română
Fabricat de:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importator:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Germania
Reprezentant autorizat în UE:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germania
Slovenčina
Výrobca:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozca:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Nemecko
Autorizovaný zástupca v EÚ:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemecko
Slovenščina
Proizvaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonska
Uvoznik:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Nemčija
Pooblaščeni zastopnik v EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemčija
Türkçe
Tarafından Üretilmiştir:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonya
İthalatçı:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Almanya
AB Yetkili Temsilcisi:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Almanya

ENGLISH-15
Suomi
Valmistaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japani
Maahantuoja:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Saksa
Valtuutettu edustaja EU:ssa:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hampuri, Saksa
Svenska
Tillverkad av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importör:
Panasonic Connect Europe GmbH
Hagenauer Strasse 43, 65203 Wiesbaden, Tyskland
Auktoriserad representant i EU:
Panasonic Connect Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

Panasonic Connect North America
Two Riverfront Plaza, Newark, NJ 07102
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
Panasonic Connect Co., Ltd.
Web Site : https://panasonic.net/cns/projector/
FJ0423JG1073 -PT
Printed in Japan
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Environment care information for users in China
This symbol is only valid in China.

1
Appendix / Annexe / 付録
Appendix / Annexe / 付録（continued / suite / つづき）
Appendix / Annexe / 付録
■Projected image size and Projection distance
■Taille de l'image projetée et Distance de projection
■ 投写画面サイズと投写距離
（Unit / Unités / 単位 :m）
When the screen aspect ratio is 16:10
Lorsque le rapport dʼaspect de l'écran est 16:10
アスペクト比 16:10
PT-RQ32K / PT-RQ22K
PT-RQ35K / PT-RZ34K /
PT-RZ31K / PT-RZ21K /
PT-RZ16K
PT-RQ25K / PT-RZ24K /
PT-RQ18K / PT-RZ17K /
PT-RZ14K
Throw ratio /
Rapport de projection /
スローレシオ :
[0.825 - 1.00:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.770 - 0.933:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.924 - 1.12:1]
SD SH SW LW LT LW LT LW LT
1.78 (70") 0.942 1.508 1.23 1.50 1.15 1.40 1.38 1.68
2.03 (80") 1.077 1.723 1.41 1.71 1.31 1.60 1.58 1.92
2.29 (90") 1.212 1.939 1.59 1.93 1.48 1.80 1.79 2.17
2.54 (100") 1.346 2.154 1.77 2.15 1.65 2.00 1.98 2.41
3.05 (120") 1.615 2.585 2.13 2.58 1.98 2.41 2.39 2.90
3.81 (150") 2.019 3.231 2.66 3.23 2.49 3.02 2.99 3.63
5.08 (200") 2.692 4.308 3.56 4.32 3.32 4.03 4.00 4.85
6.35 (250") 3.365 5.385 4.46 5.41 4.16 5.04 5.00 6.06
7.62 (300") 4.039 6.462 5.36 6.49 5.00 6.05 6.01 7.28
8.89 (350") 4.712 7.539 6.25 7.58 5.83 7.07 7.01 8.50
10.16 (400") 5.385 8.616 7.15 8.66 6.67 8.08 8.02 9.72
12.70 (500") 6.731 10.77 8.95 10.84 8.35 10.11 10.03 12.15
15.24 (600") 8.077 12.923 10.74 13.01 10.02 12.13 12.04 14.58
17.78 (700") 9.423 15.077 12.54 15.18 11.70 14.16 14.05 17.02
20.32 (800") 10.770 17.231 14.33 17.35 13.37 16.18 16.06 19.45
22.86 (900") 12.116 19.385 16.13 19.52 15.05 18.21 18.08 21.89
25.40 (1000") 13.462 21.539 17.92 21.69 16.72 20.24 20.09 24.32

2Appendix / Annexe / 付録
Appendix / Annexe / 付録（continued / suite / つづき）
（Unit / Unités / 単位 : m）
When the screen aspect ratio is
16:9
Lorsque le rapport dʼaspect de
l'écran est 16:9
アスペクト比 16:9
PT-RQ32K / PT-RQ22K
PT-RQ35K / PT-RZ34K /
PT-RZ31K / PT-RZ21K /
PT-RZ16K
PT-RQ25K / PT-RZ24K /
PT-RQ18K / PT-RZ17K /
PT-RZ14K
PT-RS30K / PT-RS20K
Throw ratio /
Rapport de projection /
スローレシオ :
[0.825 - 1.00:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.770 - 0.933:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.924 - 1.12:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.834 - 1.01:1]
SD SH SW LW LT LW LT LW LT LW LT
1.78 (70") 0.872 1.550 1.27 1.54 1.18 1.44 1.42 1.73 1.28 1.56
2.03 (80") 0.996 1.771 1.45 1.76 1.35 1.64 1.63 1.98 1.46 1.78
2.29 (90") 1.121 1.992 1.64 1.99 1.52 1.85 1.84 2.23 1.65 2.01
2.54 (100") 1.245 2.214 1.82 2.21 1.69 2.06 2.04 2.48 1.84 2.23
3.05 (120") 1.494 2.657 2.19 2.66 2.04 2.48 2.46 2.98 2.21 2.69
3.81 (150") 1.868 3.321 2.74 3.33 2.55 3.10 3.07 3.73 2.77 3.36
5.08 (200") 2.491 4.428 3.66 4.44 3.42 4.14 4.11 4.98 3.70 4.49
6.35 (250") 3.113 5.535 4.58 5.56 4.28 5.18 5.14 6.23 4.63 5.62
7.62 (300") 3.736 6.641 5.51 6.67 5.14 6.22 6.17 7.48 5.56 6.74
8.89 (350") 4.358 7.748 6.43 7.79 6.00 7.26 7.21 8.74 6.50 7.87
10.16 (400") 4.981 8.855 7.35 8.91 6.86 8.31 8.24 9.99 7.43 9.00
12.70 (500") 6.226 11.069 9.20 11.14 8.58 10.39 10.31 12.49 9.29 11.25
15.24 (600") 7.472 13.283 11.04 13.37 10.30 12.47 12.38 14.99 11.16 13.51
17.78 (700") 8.717 15.497 12.89 15.60 12.02 14.55 14.44 17.49 13.02 15.77
20.32 (800") 9.962 17.710 14.73 17.83 13.74 16.63 16.51 20.00 14.88 18.02
22.86 (900") 11.207 19.924 16.58 20.07 15.47 18.72 18.58 22.50 16.75 20.28
25.40 (1000") 12.453 22.138 18.42 22.30 17.19 20.80 20.65 25.00 18.61 22.53
（Unit / Unités / 単位 : m）
When the screen aspect ratio is
4:3
Lorsque le rapport dʼaspect de
l'écran est 4:3
アスペクト比 4:3
PT-RQ32K / PT-RQ22K
PT-RQ35K / PT-RZ34K /
PT-RZ31K / PT-RZ21K /
PT-RZ16K
PT-RQ25K / PT-RZ24K /
PT-RQ18K / PT-RZ17K /
PT-RZ14K
PT-RS30K / PT-RS20K
Throw ratio /
Rapport de projection /
スローレシオ :
[0.992 - 1.20:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.925 - 1.12:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[1.11 - 1.35:1]
Throw ratio /
Rapport de projection /
スローレシオ :
[0.834 - 1.01:1]
SD SH SW LW LT LW LT LW LT LW LT
1.78 (70") 1.067 1.422 1.40 1.70 1.30 1.58 1.57 1.91 1.17 1.43
2.03 (80") 1.219 1.626 1.60 1.94 1.49 1.81 1.79 2.18 1.34 1.63
2.29 (90") 1.372 1.829 1.80 2.19 1.68 2.04 2.03 2.46 1.52 1.84
2.54 (100") 1.524 2.032 2.00 2.44 1.87 2.27 2.25 2.73 1.68 2.05
3.05 (120") 1.829 2.438 2.41 2.93 2.25 2.73 2.71 3.29 2.03 2.46
3.81 (150") 2.286 3.048 3.02 3.66 2.82 3.42 3.39 4.11 2.54 3.08
5.08 (200") 3.048 4.064 4.04 4.89 3.77 4.56 4.53 5.49 3.39 4.12
6.35 (250") 3.810 5.080 5.05 6.12 4.71 5.71 5.67 6.87 4.25 5.15
7.62 (300") 4.572 6.096 6.07 7.35 5.66 6.86 6.80 8.25 5.10 6.19
8.89 (350") 5.334 7.112 7.08 8.58 6.61 8.00 7.94 9.62 5.96 7.22
10.16 (400") 6.096 8.128 8.10 9.81 7.56 9.15 9.08 11.00 6.82 8.26
12.70 (500") 7.620 10.160 10.13 12.27 9.45 11.44 11.36 13.76 8.53 10.33
15.24 (600") 9.144 12.192 12.16 14.73 11.35 13.74 13.64 16.51 10.24 12.40
17.78 (700") 10.668 14.224 14.20 17.19 13.25 16.03 15.91 19.27 11.95 14.47
20.32 (800") 12.192 16.256 16.23 19.64 15.14 18.32 18.19 22.03 13.66 16.54
22.86 (900") 13.716 18.288 18.26 22.10 17.04 20.62 20.47 24.78 15.37 18.61
25.40 (1000") 15.240 20.320 20.29 24.56 18.93 22.91 22.74 27.54 17.08 20.68

3
Appendix / Annexe / 付録
Appendix / Annexe / 付録（continued / suite / つづき）
Not e
zA ±5 % error in listed projection distances may occur.
In addition, when [KEYSTONE] is used, distance is corrected to become smaller than the specied screen size.
zThe throw ratio is based on the value during projection with the projected image size of 3.81 m (150").
zThe periods used in the numbers in the tables are decimal points.
Remarque
zUne erreur de ±5 % dans des distances de projection énumérées peut se produire.
En outre, lorsque [CORRECTION DE TRAPÈZE] est utilisé, la distance est corrigée pour devenir inférieure à
la taille d’écran spéciée.
zLe rapport de projection est basé sur la valeur en cours de projection avec une taille de l’image projetée de
3,81 m (150").
zLes points utilisés dans les nombres dans les tableaux sont des points décimaux.
お知らせ

z記載の投写距離は± 5％以下の範囲内で誤差が発生します。
また、［台形補正］使用時は、所定の画面サイズよりも小さくなる方向で補正されます。

zスローレシオは、投写画面サイズ 150 型投写時の値を基準にしています。
Setting-up dimensions which are not given in the above table can be calculated using the formulas below.
Check the projected image size SD (m) and use the following formula to determine projection distance (L).
La configuration des dimensions qui ne sont pas données dans le tableau ci-dessus peut être calculée à
l’aide des formules suivantes. Vérifiez la taille de l’image projetée SD (m) et utilisez la formule suivante
pour déterminer la distance de projection (L).
上記の表以外の投写寸法は次の計算式で求めることができます。画面対角サイズ SD（m）をご確認のうえ、
それぞれの計算式で投写距離（L）を求めてください。

4Appendix / Annexe / 付録
Appendix / Annexe / 付録（continued / suite / つづき）
zProjection distance formulas
zFormules de distance de projection

z投写距離計算式
The dimensions of the following table contain a slight error.
Periods are used to represent decimal points in the calculation formulas in the following table.
Les dimensions du tableau suivant peuvent présenter un léger écart.
Les points sont utilisés pour indiquer les décimales dans les formules de calcul dans le tableau suivant.
次の表内の寸法は若干の誤差があります。
（Unit / Unités / 単位 :m）
LW LT
PT-RQ32K /
PT-RQ22K
When the screen aspect ratio is 16:10
Lorsque le rapport dʼaspect de l'écran est 16:10
アスペクト比 16:10 のとき
=0.7066 ×SD - 0.0272 =0.8550 ×SD - 0.0231
When the screen aspect ratio is 16:9
Lorsque le rapport dʼaspect de l'écran est 16:9
アスペクト比 16:9 のとき
=0.7263 ×SD - 0.0272 =0.8788 ×SD - 0.0231
When the screen aspect ratio is 4:3
Lorsque le rapport dʼaspect de l'écran est 4:3
アスペクト比 4:3 のとき
=0.8000 ×SD - 0.0272 =0.9679 ×SD - 0.0231
PT-RQ35K /
PT-RZ34K /
PT-RZ31K /
PT-RZ21K /
PT-RZ16K
When the screen aspect ratio is 16:10
Lorsque le rapport dʼaspect de l'écran est 16:10
アスペクト比 16:10 のとき
=0.6594 ×SD - 0.0272 =0.7976 ×SD - 0.0231
When the screen aspect ratio is 16:9
Lorsque le rapport dʼaspect de l'écran est 16:9
アスペクト比 16:9 のとき
=0.6777 ×SD - 0.0272 =0.8197 ×SD - 0.0231
When the screen aspect ratio is 4:3
Lorsque le rapport dʼaspect de l'écran est 4:3
アスペクト比 4:3 のとき
=0.7465 ×SD - 0.0272 =0.9029 ×SD - 0.0231
PT-RQ25K /
PT-RZ24K /
PT-RQ18K /
PT-RZ17K /
PT-RZ14K
When the screen aspect ratio is 16:10
Lorsque le rapport dʼaspect de l'écran est 16:10
アスペクト比 16:10 のとき
=0.7919 ×SD - 0.0272 =0.9585 ×SD - 0.0231
When the screen aspect ratio is 16:9
Lorsque le rapport dʼaspect de l'écran est 16:9
アスペクト比 16:9 のとき
=0.8139 ×SD - 0.0272 =0.9852 ×SD - 0.0231
When the screen aspect ratio is 4:3
Lorsque le rapport dʼaspect de l'écran est 4:3
アスペクト比 4:3 のとき
=0.8965 ×SD - 0.0272 =1.0851 ×SD - 0.0231
PT-RS30K /
PT-RS20K
When the screen aspect ratio is 16:9
Lorsque le rapport dʼaspect de l'écran est 16:9
アスペクト比 16:9 のとき
=0.7338 ×SD - 0.0272 =0.8880 ×SD - 0.0231
When the screen aspect ratio is 4:3
Lorsque le rapport dʼaspect de l'écran est 4:3
アスペクト比 4:3 のとき
=0.6735 ×SD - 0.0272 =0.8151 ×SD - 0.0231
