Panasonic ET-D3QW300 User manual

Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
Commercial Use
Model No. ET-D3QW300
ET-D3QS400
ET-D3QT500
ET-D3QT600
ET-D3QT700
ET-D3QT800
DPQX1392ZB/X1
Zoom lens
Operating Instructions
ENGLISH
FRANÇAIS
日本語
ET-D3QW300 ET-D3QS400
ET-D3QT500
ET-D3QT700 ET-D3QT800
ET-D3QT600

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Preparation............................................................................................4
Before replacing the projection lens........................................................ 4
Attaching and Detaching the Lens .......................................................... 4
Peripheral focus adjustment function ...................................................... 5
Lens calibration ....................................................................................... 6
Projection relationships.......................................................................7
Lens shift ranges..................................................................................8
Specications .......................................................................................9
Dimensions .........................................................................................10
Projected image size and Projection distance.......Appendix / Annexe / 付録 1
The "Appendix" can be found after the Japanese language section ( 日本語 ).
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
This zoom lens is a projection lens equipped with an EEPROM*1 and stepping motor.
*1 EEPROM: Electrically erasable programmable read-only memory
■Supported projectors
PT-RQ50K
Note
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
zModels other than the above may also be supported. Refer to the operating instructions for
your projector or the website (https://panasonic.net/cns/projector/).
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance
Lens cover
1 each for front and rear
zThe product is delivered
with lens covers attached.
zThe shape and size of the
lens covers are different for
each product.
Before Use
Preparation
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating
instructions of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
z Do not touch the electrical contacts of the projection lens with your ngers. Dust and dirt on
the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnied by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens is made of glass. The lens could be damaged if brought into contact with or
rubbed against hard objects. Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use uffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching and Detaching the Lens
For details on attaching and detaching the projection lens, refer to the operating
instructions of the projector.

ENGLISH-5
Preparation (continued)
Peripheral focus adjustment function
When you change the size of the projected image, the focal balance between the center
and peripheral areas of the screen may shift. This shift in balance tends to increase
proportionally with smaller throw ratios.
The ET-D3QW300 / ET-D3QS400 / ET-D3QT500 is equipped with a peripheral focus
adjustment function to correct the shift in focal balance between the center and
peripheral areas of the screen.
1) Loosen the lock screw by
turning it counterclockwise.
2) Turn the lens barrel tip or
peripheral focus adjustment
ring in the direction of the
arrow to match the projection
distance displayed on the lens
to the actual distance from the
lens to the screen.
3) Tighten the lock screw by
turning it clockwise.
4) Operate the projector to align
the focus of the center of the
projected image.
Note
zThe projection distances displayed on the lens are approximate guides.
The illustrations in this procedure depict
attachment of the ET-D3QW300 onto the
PT-RQ50K.
zThe structure of the peripheral focus
adjustment part differs depending on the
projection lens type.
Peripheral focus adjustment ring
Lock screw
■Adjusting the focus

6-ENGLISH
Lens calibration
Perform lens calibration after attaching the lens.
The illustrations in this procedure depict
use of the ET-D3QW300 as an example.
1) Press the <MENU> button.
2) Use the ▲ and ▼ buttons to
select [PROJECTOR SETUP],
and press the <ENTER>
button.
zThe [PROJECTOR SETUP] screen
appears.
3) Use the ▲ and ▼ buttons to
select [LENS], and press the
<ENTER> button.
zThe [LENS] screen appears.
4) Use the ▲ and ▼ buttons to
select [LENS CALIBRATION],
and press the <ENTER>
button.
zThe [LENS CALIBRATION] screen
appears.
5) Use the ▲ and ▼ buttons to
select [SHIFT/FOCUS/ZOOM],
and press the <ENTER>
button.
zThe conrmation screen appears.
6) Use the and buttons to
select [OK], and press the
<ENTER> button.
zLens calibration starts.
zThe projection lens moves to the
home position after adjustment range
calibration is complete.
1/2
PROJECTOR SETUP
PROJECTOR ID ALL
PROJECTION METHOD
LENS
OPERATION SETTING NORMAL
LIGHT OUTPUT 100.0%
BRIGHTNESS CONTROL AUTO
NO SIGNAL SETTING
LAST MEMORY
LAST USED
INITIAL STARTUP
STARTUP INPUT SELECT
OFF
DATE AND TIME
SCHEDULE
MULTI PROJECTOR SYNC
MENU SELECT
ENTER
SUB MENU
SUB MENU
MENU SELECT
ENTER
LENS
LENS INFORMATION SETTING
LENS MEMORY
LENS HOME POSITION
ACTIVE FOCUS OPTIMIZER
LENS CALIBRATION
EXECUTE
MENU SELECT
ENTER
LENS CALIBRATION : ET-D3QW300
SHIFT/FOCUS/ZOOM
SHIFT/FOCUS
ZOOM
LENS CALIBRATION : ET-D3QW300
OK
Proceed LENS CALIBRATION,
and return to HOME POSITION.
EXECUTE
CHANGE
ENTER
CANCEL
Note
zIf lens calibration is not performed, the available zoom range will be narrowed.
Preparation (continued)

ENGLISH-7
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image lls the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Projected image height
SW Projected image width
SD Projected image size
zDimension for L1 (approximate values) (Unit: m)
ET-D3QW300 ET-D3QS400 ET-D3QT500 ET-D3QT600 ET-D3QT700 ET-D3QT800
0.246 0.232 0.208 0.149 0.221 0.267
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specic projector model. Congurations may vary with the model.
Attention
zTo prevent obstruction of the intake and exhaust vents, install the projector with a
clearance at least 500 mm (1 ft. 7 in.) from walls and objects.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufcient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
SH
SW
投写画面
スクリーン
スクリーン
Projected image
Screen
Screen

8-ENGLISH
After moving the lens to the home position according to “Lens calibration” on page 6,
you can use the lens shift adjustment function on the projector to adjust the position of
the projected image within the respective lens shift ranges based on the optical screen
center position (standard projection position). The optical screen center position is the
screen position using the optical center of the projector as the base.
Perform lens shift adjustment within the ranges shown in the following illustrations.
Moving the lens outside of the adjustment ranges may alter the focus. This occurs due
to limitations in lens movement that are intended to protect the optical components.
The following illustrations depict lens shift ranges for oor installations of the projector.
ET-D3QW300
0.4V
0.14H0.14H
0.4V
Standard
projection position
Projected image
width H
Projected
height V
Optical center
ET-D3QS400 / ET-D3QT500
0.45V
0.16H0.16H
0.45V
Projected
height V
Projected image
width H
Standard
projection position
Optical center
ET-D3QT600
0.08H0.08H
0.25V 0.25V
Projected image
width H
Projected
height V
Standard
projection position
Optical center
Lens shift ranges

ENGLISH-9
Lens shift ranges (continued)
ET-D3QT700 / ET-D3QT800
0.1H0.1H
0.3V 0.3V
Projected image
width H
Projected
height V
Standard
projection position
Optical center
Note
zThe home position of the projector a point of origin position for the lens shift (i.e., vertical and
horizontal positions of the lens) based on the results of lens calibration. It is not the optical
center position of the screen.
Specications
Check the specications of each projection lens, and use the appropriate lens for your
intended use.
Model No. ET-D3QW300 ET-D3QS400 ET-D3QT500
F value 2.5 2.5 2.5
Focal Length (f) 35.2 mm (1-3/8") -
53.7 mm (2-1/8")
45.3 mm (1-25/32") -
65.6 mm (2-19/32")
61.4 mm (2-13/32") -
105.2 mm (4-5/32")
Dimensions
Width 187 mm (7-3/8") 187 mm (7-3/8") 198 mm (7-25/32")
Height 192 mm (7-9/16") 192 mm (7-9/16") 203 mm (8")
Depth 466 mm (18-11/32") 450 mm (17-23/32") 420 mm (16-17/32")
Net Weight 9.3 kg (20.50 lb) 8.5 kg (18.74 lb) 9.6 kg (21.16 lb)
Model No. ET-D3QT600 ET-D3QT700 ET-D3QT800
F value 2.5 2.5 2.5
Focal Length (f) 85.0 mm (3-11/32") -
121.6 mm (4-25/32")
122.8 mm (4-27/32") -
172.3 mm (6-25/32")
156.5 mm (6-5/32") -
243.1 mm (9-9/16")
Dimensions
Width 187 mm (7-3/8") 187 mm (7-3/8") 187 mm (7-3/8")
Height 192 mm (7-9/16") 192 mm (7-9/16") 192 mm (7-9/16")
Depth 370 mm (14-9/16") 442 mm (17-13/32") 486 mm (19-1/8")
Net Weight 6.4 kg (14.11 lb) 7.3 kg (16.09 lb) 8.0 kg (17.64 lb)

10-ENGLISH
Dimensions
■ET-D3QW300
(Unit: mm)
Ø155 (6-3/32")
466 (18-11/32")
187 (7-3/8")
192 (7-9/16")
Ø155 (6-3/32")
■ET-D3QS400
(Unit: mm)
450 (17-23/32")
192 (7-9/16")
Ø139 (5-15/32")
187 (7-3/8")
Ø155 (6-3/32")
■ET-D3QT500
(Unit: mm)
Ø155 (6-3/32")
420 (16-17/32")
Ø178 (7")
203 (8")
198 (7-25/32")

ENGLISH-11

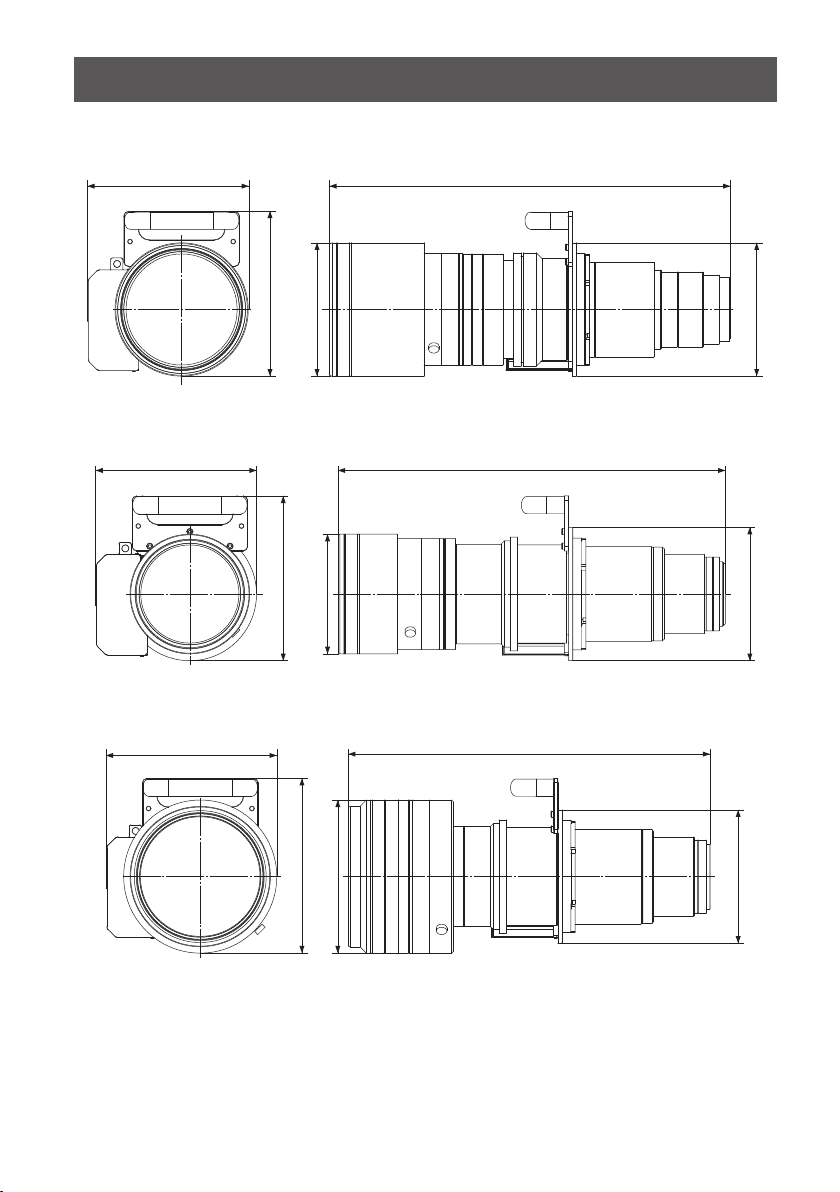

Dimensions (continued)
■ET-D3QT600
(Unit: mm)
Ø155 (6-3/32")
Ø139 (5-15/32")
370 (14-9/16")
192 (7-9/16")
187 (7-3/8")
■ET-D3QT700
(Unit: mm)
Ø139 (5-15/32")
192 (7-9/16")
187 (7-3/8")
Ø155 (6-3/32")
442 (17-13/32")
■ET-D3QT800
(Unit: mm)
Ø144 (5-21/32")
Ø155 (6-3/32")
486 (19-1/8")
187 (7-3/8")
192 (7-9/16")

12-ENGLISH
English
Manufactured by:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importer:
Panasonic Connect Europe GmbH
Authorized Representative in EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Importer for UK;
Panasonic Connect UK,
a branch of Panasonic Connect
Europe GmbH,
Maxis 2, Western Road, Bracknell,
Berkshire, RG12 1RT
Français
Fabriqué par:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japon
Importateur :
Panasonic Connect Europe GmbH
Représentant autorisé dans l’UE :
Panasonic Testing Centre
Winsbergring 15, 22525 Hambourg, Allemagne
Español
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japón
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado para la UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemania
Deutsch
Hergestellt von:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Vertretungsberechtigter in der EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Deutschland
Italiano
Fabbricato da:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Giappone
Importatore:
Panasonic Connect Europe GmbH
Rappresentante autorizzato nell’UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Amburgo, Germania
Български
Производител:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Япония
Вносител:
Panasonic Connect Europe GmbH
Упълномощен представител в ЕС:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Германия
Čeština
Vyrobil:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozce:
Panasonic Connect Europe GmbH
Oprávněný zástupce v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburk, Německo
Dansk
Fremstillet af:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autoriseret repræsentant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-13
Eesti
Tootja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Jaapan
Maaletooja:
Panasonic Connect Europe GmbH
Volitatud esindaja ELis:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Saksamaa
Ελληνικά
Κατασκευάστηκε από:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Ιαπωνία
Εισαγωγέας:
Panasonic Connect Europe GmbH
Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Γερμανία
Hrvatski
Proizvodi:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Uvoznik:
Panasonic Connect Europe GmbH
Ovlašteni zastupnik u EU-u:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Njemačka
Latviešu
Ražotājs:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japāna
Importētājs:
Panasonic Connect Europe GmbH
Ociālais pārstāvis ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Vācija
Lietuvių
Gamintojas:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonija
Importuotojas:
Panasonic Connect Europe GmbH
Įgaliotasis atstovas ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgas, Vokietija
Magyar
Gyártotta:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japán
Importőr:
Panasonic Connect Europe GmbH
Hivatalos képviselő az EU-ban:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Németország
Nederlands
Geproduceerd door:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Bevoegde vertegenwoordiger in de EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Duitsland
Norsk
Produsert av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autorisert representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

14-ENGLISH
Polski
Wyprodukowano przez:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importer:
Panasonic Connect Europe GmbH
Upoważniony przedstawiciel w UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Niemcy
Português
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japão
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado na UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemanha
Română
Fabricat de:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importator:
Panasonic Connect Europe GmbH
Reprezentant autorizat în UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germania
Slovenčina
Výrobca:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozca:
Panasonic Connect Europe GmbH
Autorizovaný zástupca v EÚ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemecko
Slovenščina
Proizvaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonska
Uvoznik:
Panasonic Connect Europe GmbH
Pooblaščeni zastopnik v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemčija
Türkçe
Tarafından Üretilmiştir:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonya
İthalatçı:
Panasonic Connect Europe GmbH
AB Yetkili Temsilcisi:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Almanya
Suomi
Valmistaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japani
Maahantuoja:
Panasonic Connect Europe GmbH
Valtuutettu edustaja EU:ssa:
Panasonic Testing Centre
Winsbergring 15, 22525 Hampuri, Saksa
Svenska
Tillverkad av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importör:
Panasonic Connect Europe GmbH
Auktoriserad representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-15
MEMO

Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve
elektronik ürünlerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin toplanması ve geri kazanılması için bu atıklar lütfen yasayla belirlenmiş olan
uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve
çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunuz yerel
yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir.
Environment care information for users in China
This symbol is only valid in China.
Panasonic Connect North America
Two Riverfront Plaza, Newark, NJ 07102
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
Panasonic Connect Co., Ltd.
Web Site : https://panasonic.net/cns/projector/
© Panasonic Connect Co., Ltd. 2022
HS1119AM1042 -PS
Printed in Japan
