Installation Instructions
Cloud adaptor
Model No. CZ-CFUSCC1
Please Read Before Starting
This controller must be installed by the sales dealer or installer.
These instructions are all you need for most installation sites
and maintenance conditions. If you require help for a special
problem, contact our sales/service outlet or your certified dealer
for additional instructions.
WARNING
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
CAUTION
This symbol refers to a hazard or unsafe
practice which can result in personal injury
or product or property damage.
We assume no responsibility for accidents or damages
resulting from methods other than those described in the
installation instructions or methods without using specified
parts. Malfunctions that occurred due to the unauthorised
installation methods are not covered by the product warranty.
This controller shall be installed in accordance with National
Wiring Regulations.
After the installation is complete, perform test operation to
confirm that no abnormality is present.

Read the installation instructions of devices to be connected as well.
When relocating or repairing this controller, provide the
Installation Instructions to the servicing personnel.
WARNING
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR DEATH.
ONLY A QUALIFIED, EXPERIENCED
ELECTRICIAN SHOULD ATTEMPT TO
WIRE THIS SYSTEM.
Highly dangerous electrical voltages are used
in this system. Carefully refer to the wiring
diagram and these instructions when wiring.
Improper connections and inadequate
grounding can cause accidental injury or
death.
This controller is strongly recommended to be
installed with Earth Leakage Circuit Breaker
(ELCB) or Residual Current Device (RCD).
Otherwise, it may cause electrical shock
and fire in case of equipment breakdown or
insulation breakdown.
Earth Leakage Circuit Breaker (ELCB)
must be incorporated in the fixed wiring
in accordance with the wiring regulations.
The Earth Leakage Circuit Breaker (ELCB)
must be an approved 10 A, having a contact
separation by 3 mm in all poles.
Provide a power outlet to be used exclusively
for this controller.
Turn offthe circuit breaker of the controllers
before installation.
 Do not supply power to the controller until all
wiring is completed or reconnected and checked.
Fix the power supply wiring securely with the
clamper so that the power supply terminal
board is free of tension (external force) when
pulled. Loose connection of the terminal
board may occur fire.
 To prevent possible hazards from insulation
failure, the controller must be grounded.
 Select an installation location which is rigid and
strong enough to support or hold the controller,
and select a location for easy maintenance.
This product must not be modified or
disassembled under any circumstances.
Modified or disassembled controller may
cause fire, electric shock or injury.
 Do not clean inside the controller by users. Engage
authorized dealer or specialist for cleaning.
Do not operate with wet hands.
CAUTION
Ground yourself to discharge static electricity
before performing any wiring.
Do not use the controller at the following
locations.
• Areas where leakage of flammable gas may
be expected
• Places where large amounts of oil mist exist
•
Locations where external air may enter the
room directly (This may cause “condensation”.)
• Locations where high-frequency emissions
are generated
• Locations where voltage fluctuation frequently
occurs
 This equipment is not suitable for use in
locations where children are likely to be present.
Do not wash with water.
Safety Precautions

2
Specifications
Model No. CZ-CFUSCC1
Dimensions (mm) <H> 255 × <W> 275 × <D> 80
Weight 1.9 kg
Temperature/
Humidity range
0 °C to 40 °C /
20 % to 80 % (no condensation)
Rated voltage/
Rated frequency
Single phase
100-240 V ~ 50-60 Hz
Power consumption Max. 15 W
Number of connectable
units
Indoor unit - Up to 64 units per link*
Outdoor unit - Up to 30 units per link
*: The number of indoor units includes the Interface Adaptor and
RAC Interface Adaptor.
Supplied accessories
Installation Instructions
(1)
Installation Instructions
(German),
License List,
Source Code (DVD)
(1)
* Wiring are not included (field supplied item).

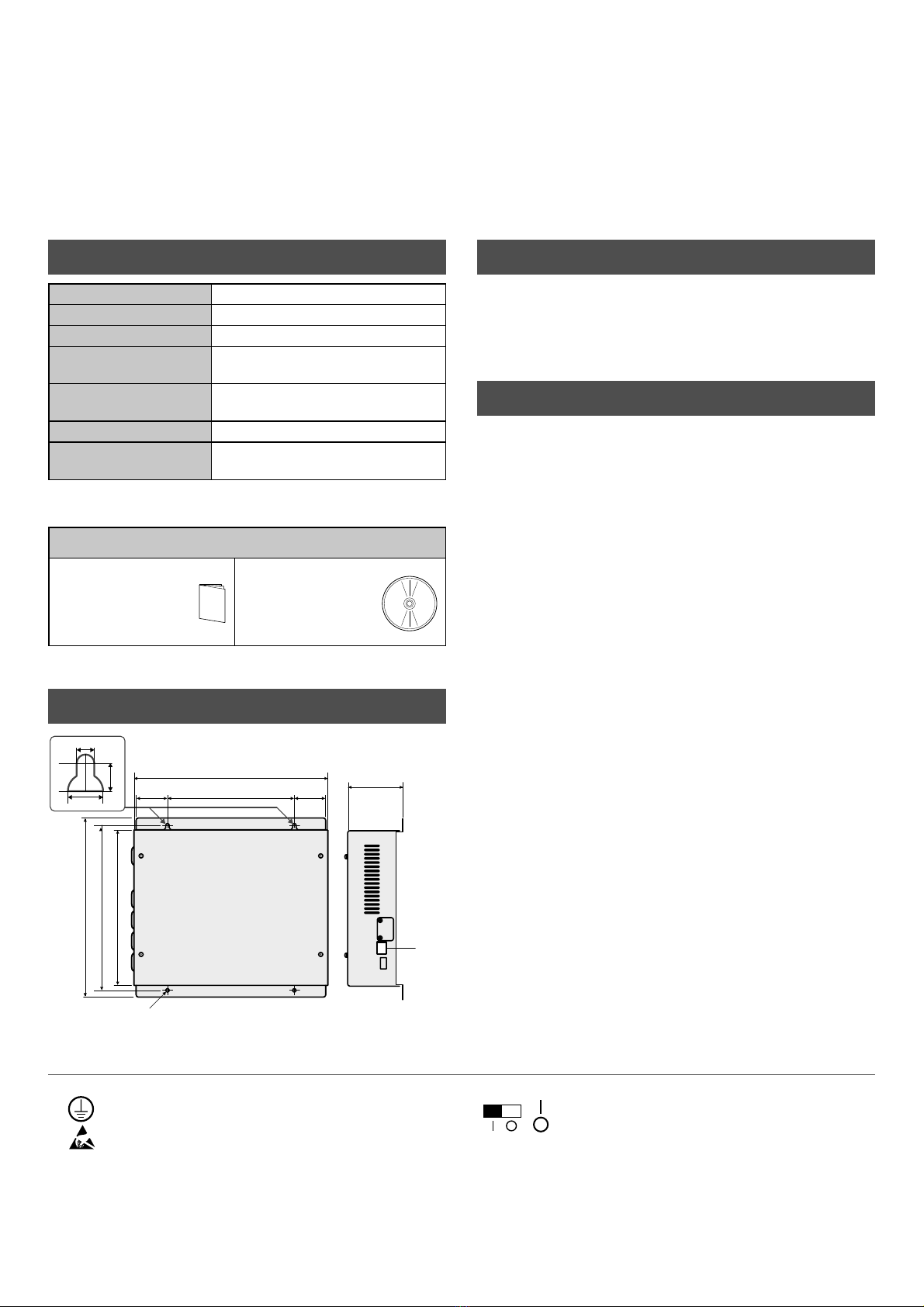

Dimensions (Part Names)
180 44.544.5
221
275
255
(mm)
80
235
2-䃥5
5
10
8
LAN
Caution for Network Connection
When connecting to Internet, implement security
measures against illegal access from outside.
For detailed connection and setup method, consult the
network administrator.
Installation Precautions
Installation Location
Avoid the following locations for installation.
• Under direct sunlight
• Location near heat source
• Location where the controller will be splashed with water or
affected by dampness or humidity
• Uneven surface
• Location that is subject to excessive vibration or physical
impacts. (Fixing screws may come off, and the controller
may drop.)
Install the controller away from any sources of
electrical noise.
Install the controller at a location with suitable
temperature and humidity for using.
General Precautions on Wiring
Regulations on wire diameters differ from locality to
locality.
For field wiring rules, please refer to your LOCAL
ELECTRICAL CODES before beginning.
You must ensure that installation complies with all
relevant rules and regulations.
Use the field supplied wiring with at least 1 mm in
thickness of insulation part including the sheath.
Connect all wiring tightly to prevent the terminal
board from loosening when the wiring connection
part is pulled by an external force. (Otherwise, fire or
overheating may occur.)
Do not bury the wiring in the ground.
Do not store the power supply wiring and other wiring
in the same metal tube or bundle them together.
(An operational error from noise may occur.)
Do not turn the power offimmediately after power-on.
The internal data may be damaged.
Symbols on the controller
This symbol refers to “Protective earth”.
This symbol refers to “Caution of Electrostatic”.
This symbol refers to “ON (power)”.
This symbol refers to “OFF (power)”.
CONTENTS
Safety Precautions ................................................Cover
Specifications ............................................................... 2
Dimensions (Part Names) ............................................ 2
Caution for Network Connection ..........................................2
Installation Precautions ................................................ 2
Mounting....................................................................... 3
Wiring ........................................................................... 3
Connecting to External Equipment............................... 4
Settings.............................................................................................5
Simple Settings..............................................................................5
Advanced Settings.......................................................................8
Connecting to Cloud Server.................................................. 13

3
Mounting Position
Secure space as shown below when mounting 2 or more
of this controller or mounting other devices side by side.
Up, down, left and right direction:
100 mm or more Front: 50 mm or more
100 mm100 mm
100 mm100 mm
100 mm100 mm
100 mm100 mm
50 mm50 mm
Screw (field supply)
Screw diameter 4 mm
Head style Truss
Note
• Select a screw type and length according to the mounting location.
How to Mount (Control Box)
1. Attach the controller to the control box so that the
wiring can be taken out from the left side. (See the
illustration below.) (Screws (field supply): 4)
• Tighten the screw securely.
2. Remove the upper cover. (Cover-fixing screws: 4)
After the connection and setting (pages 4 to 13) are
complete, attach the upper cover.
(Cover-fixing screws: 4)
Screw (field supply)
Upper cover
Screw (field supply)
Control
box
Cover-fixing screw
Power Supply Wiring
• Be sure to use a dedicated line for power source.
• Be sure to earth this controller.
• Do not connect the earth wiring to those of gas pipe, water
pipe, lighting rod, telephone, etc.
Type of wiring
• Use a flexible wiring of 2 mm2 (Recommended).
• Use the standard power supply wiring for Europe (such as
H05RN-F or H07RN-F which conform to CENELEC (HAR)
rating specifications) or use the wiring based on IEC
standard (60245 IEC57, 60245 IEC66).
Total Wire Length
30 m or less
Inter-Unit Control Wiring
Type of wiring
• Use a flexible shield wiring of 0.5 to 2 mm2.
Total Wire Length
1000 m or less
Number of connectable units and devices*1
(Up to total of 100 units and devices can be connected
per link.)
Indoor unit Up to 64 units per link *2
Outdoor unit Up to 30 units per link
Central control
device Up to 10 units
*1: The maximum number of connectable units are
shown below. (Up to 2 links connectable).
128 indoor units, 60 outdoor units
*2: The number of indoor units includes the Interface
Adaptor and RAC Interface Adaptor.
External I/O Wiring
Type of wiring
• Use a flexible wiring of 0.5 to 2 mm2.
Attention
• When using the controller at a location susceptible to
noise, use a shield wiring.
Total Wire Length
20 m or less
LAN Cable
Type of wiring
• Category 5 or above straight cable
Total Wire Length
100 m or less
Basic Wiring Diagram
When connecting the S-LINK adaptor, Interface
Adaptor and RAC Interface Adaptor, refer to the
“Installation Instructions (Electrical)” supplied with each
product as well.
*: The Interface Adaptor and RAC Interface Adaptor
are registered as system address 31.
U2
U1
N
L
U2
U1
U1 U2
1 - 11 - 2
U1 U2
U1 U2
1 - 11 - 2
U1 U2
U1 U2
U1 U2
LN
Power source
100-240 V ~ 50-60 Hz
Outdoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
LAN cable
LINK 1
Power
supply
wiring
Inter-unit
control wiring
• No polarity
LINK 2
Mounting
Wiring

4
20
21
22
23 Contact C
Connecting to External Equipment
Wiring (continued)
Before connecting the wiring, be sure to turn the circuit breaker off. After all wiring arrangements are complete, turn the circuit breaker on.
If the power supply wiring is mistakenly connected to a terminal board other than the power supply terminal board, the devices to
be connected to this controller or this controller will malfunction. After connecting the wiring, confirm that the power supply wiring is
properly connected.
Attention
• Ground the shield on both sides of shield
wiring, otherwise an operation error from noise
may occur.
shield wiring
Ground Ground
• Do not run the inter-unit control wiring through the same conduit as the power supply wiring, or
run close to the power supply wiring (maintain at least 30 cm separation).
• Use different inter-unit control wiring and power supply wiring so they can be differentiated
visually.
How to Attach the Ring
Pressure Terminal
For power supply wiring
• Process the end of each wiring, and attach
the ring pressure terminal (field supplied
item).
Strip
Ring
pressure
terminal
For shield wiring
• Process the end of the each wiring, and
attach the ring pressure terminal (field
supplied item).
①Remove wiring coat.
Shield mesh
②Cover with the tape. Strip
Insulation
tape
Shield
mesh
③Attach ring pressure
terminal.
Connecting Wiring
• When connecting external equipment, refer to “Connecting to External
Equipment”. (P.4)
U1
U2
0
1
2
3
4
5
6
20
U1
U2
TB1
TB2
Power supply wiring
Power supply terminal board (TB1)
Fix the wiring by using the clamper.
The earth wiring for protection should be longer than
the power line (L, N).
Power switch
L
ON
OFF
N
LAN terminal
LAN cable
Signal
terminal
board (TB2)
Connect to inter-unit control wiring (LINK1)
Connect to inter-unit control wiring (LINK2)
Inter-unit
control wiring
Use this screw when connecting the shield
for the inter-unit control wiring to ground. (FG*)
*: Functional Ground
Earth terminal
(protective earth)
Non-voltage contact "a"
Keep the external I/O wiring lengths of 20 meters or less. If a longer
length is needed, use a Communication Adaptor or relay.
A voltage of DC5 V (approx. 10 mA) is applied to the contact to detect
the input signal.
Do not apply an external voltage to the input terminal.
The contact allowable voltage and current for the output signal terminal
are max. DC30 V and 0.5 A respectively.
Signal terminal board (TB2)
0
1
2
3
4
5
6
7
8
9
10
14
15
16
17
18
19
20
21
22
23
Note
• The unit will not operate only by connecting the external equipment.
The event control setting on the cloud server screen is required.
Common (COM3)
Digital input1 (Di1)
Digital input2 (Di2)
Digital input3 (Di3)
When connecting the demand
controller
(Connect the load control output
to the external input of this unit)
Connecting the demand controller enables
demand control.
Note
• The demand setting on the cloud server
screen is required.
Demand controller side
Load control output
(demand output)
Contact A
Contact B
Pulse meter input
(Non-voltage contact “a” Pulse)
7
8
9
10
Pulse meter input (Pi1)
Common (COM1)
Pulse meter input (Pi2)
Pulse meter input (Pi3)
Equipment
side
• Minimum pulse width:
30 ms or more, or 100 ms or more
(selectable by setting) (P.11)
• Minimum pulse interval:
1000 ms
External output
(Non-voltage contact “a” Static)
19
17
18
Common (COM2)
Digital output1 (DO1)
Digital output2 (DO2)
Equipment
side
Digital input
External input*
(Non-voltage contact “a” Static)
20
21
22
23
20
21
22
23
Common (COM3)
Digital input1 (Di1)
Digital input2 (Di2)
Digital input3 (Di3)
Equipment
side
*: Refer to “When connecting the demand
controller” on the right

5
Two types of settings are available for the cloud adaptor:
Simple setting and Advanced setting.
Refer to the following descriptions to select a setting method
appropriate for the purpose.

Refer to the figure on the right for switches, etc. used for the setting.
• Simple settings:
When the switch inside the product is pressed at startup of the
product, “Adaptor Setting” (P.11) and “Air Conditioner Setting” (P.12)
are automatically set.
The procedures for the simple setting vary depending on the IP address
acquisition method for the network to which this product is connected.
*For the IP address acquisition method for the network, ask the network
administrator.
a)When acquiring the IP address from DHCP
→Follow the procedure in “Simple Settings (DHCP)”. (P.5)
b)When using the static IP address
→Follow the procedure in “Simple Settings (Static IP Address)” (P.6)
• Advanced settings:
Start up the browser on the PC connected to this unit, and configure all
settings from the PC. (P.8)
Confirm the following ports are permitted in the firewall of the
network to be installed.
*Confirm with the network administrator.
TCP: 80, 3567
UDP: 53, 123
SW7 SW5 SW6
LED
18
LED
16
LED
17
LED
15
ON
Power Switch
Self-diagnostics function LED
•
The product status is shown with blinking and
lighting patterns of LED 15 to 17. (See P.14)
Power LED
DIP switch
• Operate these switches during
setting as needed.
Cloud adaptor
Settings
Simple Settings
Simple Settings (DHCP)
1Confirm the power is turned off.
LED
18
Power Switch
OFF
Off
2Using the DIP switch, set the mode of the cloud adaptor
to the operation mode.
Operation mode
Do not change the setting
of switch 1 from the ON
position.
1234
SW7
OFF
ON 2
Change the setting of
switch 2 to OFF position.
3Connect the cloud adaptor to the network.
LAN Cable
network
4Turn the power on.
Confirm that the Green LED (LED 18) lights up and after a while,
the Orange LED (LED 17) blinks at high speed.
SW7 SW5 SW6
LED
18
LED
16
LED
17
LED
15
ON
Power Switch
Lighting
(Green)
Off
Blinking
(Orange) Off
ON
If the Orange LED (LED 17) does not blink at high speed even after a
while, refer to “Self-diagnostics table and detected contents”. (P.14)
5Start up the unit in simple setting mode.
• While the Orange LED (LED 17) is blinking at high speed, the unit
is in simple setting mode selection standby. Press and hold the
SW6 switch for at least 1 second within 10 seconds. When the
LED changes to the simple setting mode, release the switch.
Simple setting mode:
The Orange LED (LED 17) lights up and the Green LED
(LED 16) and Red LED (LED 15) blink at low speed.
• If the SW6 switch is not pressed within 10 seconds, the simple
setting mode is not performed and the unit starts up in operation
mode. In this case, perform the procedure from step 1 again.
SW7 SW6
LED
16
LED
17
LED
15
Lighting
(Orange)
Blinking
(Red)
Blinking
(Green)
Simple setting
mode
Off
Off
Blinking
(Orange)
Simple setting mode
selection standby
• If the simple setting fails halfway, an error status is displayed on
LEDs and the setting is canceled.
• Refer to “Self-diagnostics table and detected contents” (P.14) and
check the error status.
• When the simple setting has finished normally, the unit
automatically restarts in operation mode and is connected to the
cloud server.

6
Simple Settings (continued)
Simple Settings (Static IP Address)
1Confirm the power is turned off.
LED
18
Power Switch
OFF
Off
2Using the LAN cable, connect the PC for maintenance
directly to the cloud adaptor.
LAN cable
Recommended PC
specifications
• CPU: Core i5 2.0 GHz
• Memory: 4G
• OS: Windows 8.1/10
Cloud adaptor PC for maintenance
3UsingtheDIPswitch,setthemodeofthecloudadaptor
tothemaintenancemode.
Do not change the setting of
switch 1 from the ON position.
Change the setting of switch 2 to ON position.
Maintenance mode
1234
SW7
OFF
ON 3
4Turn the power on.
• Confirm that the Orange LED (LED 17) is lighting, Green LED
(LED 16) is blinking at a slow speed, and the Green LED (LED
18) is lighting.
SW7 SW5
LED
18
LED
16
LED
17
LED
15
ON
Power Switch
Lighting
(Green)
Blinking
(Green)
Lighting
(Orange) Off
ON
If the Orange LED (LED 17) does not light and the Green
LED (LED 16) does not blink at a slow speed.
Refer to the “Self-diagnostics table and detected contents”. (P.14)
5Start up the PC, and set if the network settings as
follows.
IP address 192. 168. 1. 100
Subnet mask 255. 255. 255. 0
Default gateway 192. 168. 1. 254
6Enter the following URL in the Web browser, and
access the cloud adaptor. http://192. 168. 1. 1/
Recommended Web browser specifications
• Internet Explorer (IE) 11, Edge, Chrome
• The login screen appears.
If the login screen does not appear
Check if the LAN port LED on the PC is blinking.
Not blinking
→Connect the LAN cable correctly.
Blinking
→Check the settings in step 5.
7Enter the user name and password.
The user name and password as factory default are shown below.
• user : ca_user
• password : KYJN2015ca
8Press .
7 8
Note
• If you fail to login 10 consecutive times, login operation will be
disabled for 30 minutes.
• If no operation is performed for 30 minutes, the session will time
out. Press to display the login screen.
9Enter the current (old) password and new password
(twice).
• Change the
password to
the one actually
used.
9 10
10
Press .
To cancel
Press .
11
Select
in the [Settings Mode Selection] menu.
11

7
12
Remove the check mark from [DHCP Enabled], and
enter the IP address, subnet mask and default gateway
specified on the network to be install.
12
13
Remove the check mark from [Obtain DNS server
address automatically], and enter the IP addresses of
the DNS server 1 and DNS server 2.
To cancel
Press .
13
1415
14
Press .
• Press [Yes] on the confirmation screen to save the setting items.
Press [No] to cancel the settings and return to the network setting
screen.
15
Press .
(The setting mode selection menu is displayed.)
16
Turn the power off.
LED
18
Power Switch
OFF
Off
17
Using the DIP switch, set the mode of the cloud adaptor
to the operation mode.
Operation mode
Do not change the setting
of switch 1 from the ON
position.
1234
SW7
OFF
ON
17
Change the setting of
switch 2 to OFF position.
18
Remove the LAN cable from the cloud adaptor, and
connect the other to the network.
LAN Cable
PC
network
19
Turn the power on.
• Confirm the Green LED (LED 18) lights up and after a while, the
Orange LED (LED 17) blinks at high speed.
SW7 SW5 SW6
LED
18
LED
16
LED
17
LED
15
ON
Power Switch
Lighting
(Green)
Off
Blinking
(Orange) Off
ON
20
Start up the unit in simple setting mode.
• While the Orange LED (LED 17) is blinking at high speed, the unit
is in simple setting mode selection standby. Press and hold the
SW6 switch for at least 1 second within 10 seconds. When the
LED changes to the simple setting mode, release the switch.
Simple setting mode:
The Orange LED (LED 17) lights up and the Green LED
(LED 16) and Red LED (LED 15) blink at low speed.
• If the SW6 switch is not pressed within 10 seconds, the simple
setting is not performed and the unit starts up in operation mode.
In this case, perform the procedure from step 16 again.
SW7 SW6
LED
16
LED
17
LED
15
Lighting
(Orange)
Blinking
(Red)
Blinking
(Green)
Simple setting
mode
Off
Off
Blinking
(Orange)
Simple setting mode
selection standby
• If the simple setting fails halfway, an error status is displayed on
LEDs and the setting is canceled.
• Refer to “Self-diagnostics table and detected contents” (P.14) and
check the error status.
• When the simple setting has finished normally, the unit
automatically restarts in operation mode and is connected to the
cloud server.

8
1Confirm the power is turned off.
LED
18
Power Switch
OFF
Off
2Using the LAN cable, connect the PC for maintenance
directly to the cloud adaptor.
LAN cable
Recommended PC
specifications
• CPU: Core i5 2.0 GHz
• Memory: 4G
• OS: Windows 8.1/10
Cloud adaptor PC for maintenance
3Using the DIP switch, set the mode of the cloud adaptor
to the maintenance mode.
Do not change the setting of
switch 1 from the ON position.
Change the setting of switch 2 to ON position.
Maintenance mode
1234
SW7
OFF
ON 3
4Turn the power on.
• Confirm that the Orange LED (LED 17) is lighting, Green LED
(LED 16) is blinking at a slow speed, and the Green LED (LED
18) is lighting.
SW7 SW5
LED
18
LED
16
LED
17
LED
15
ON
Power Switch
Lighting
(Green)
Blinking
(Green)
Lighting
(Orange) Off
ON
If the Orange LED (LED 17) does not light and the Green
LED (LED 16) does not blink at a slow speed.
Refer to the “Self-diagnostics table and detected contents”. (P.14)
5Start up the PC, and set if the network settings as
follows.
IP address 192. 168. 1. 100
Subnet mask 255. 255. 255. 0
Default gateway 192. 168. 1. 254
6Enter the following URL in the Web browser, and
access the cloud adaptor. http://192. 168. 1. 1/
Recommended Web browser specifications
• Internet Explorer (IE) 11, Edge, Chrome
• The login screenappears.
If the login screen does not appear
Check if the LAN port LED on the PC is blinking.
Not blinking
→Connect the LAN cable correctly.
Blinking
→Check the settings in step 5.
7Enter the user name and password.
The user name and password as factory default are shown below.
• user : ca_user
• password : KYJN2015ca
8Press .
7 8
Note
• If you fail to login 10 consecutive times, login operation will be
disabled for 30 minutes.
• If no operation is performed for 30 minutes, the login screen will
appear at the next operation.
9Enter the current (old) password and new password
(twice).
• Change the
password to the
one actually used.
9 10
10
Press .
To cancel
Press .
11
Select
in the [Settings Mode Selection] menu.
11
Advanced Settings
Preparation for the Setting

9
Indoor unit (I/D) and Outdoor (O/D) unit are included in Air conditioner (A/C unit).
The setting contents described on pages 9 to 13 can be set on the main menu.
Air Conditioner Setting
(P.12)
Adaptor Setting
(P.11)
Firmware Updating
(P.9)
Network Setting
(P.10)
Firmware Updating
If the latest firmware of the cloud adaptor is available, store the FW (firmware) file on the PC for maintenance and update the cloud adaptor.
1Press .
1
2Press .
• Select the FW (firmware) file on the PC using the file selection
dialogue. Its path is displayed in the text box.
32
3Press .
(The adaptor updating is started.)
• To cancel it during update, press on the progress screen.
• Approx. 2 minutes after completing update, the login screen is
automatically displayed. Log in again to move to the next step.

10
Network Setting
1Press .
• Make the setting according to the cloud adaptor setting
instructions. 1
2When DHCP is used in the network environment
Add a check mark for [DHCP Enabled].
When other than the above
Remove the check mark for [DHCP Enabled], and enter IP
address, Subnet mask and Default gateway of the cloud adaptor.
2
3When the DNS server information can be
automatically obtained in the current environment
Add a check mark for [Obtain DNS server address automatically].
When other than the above
Remove the check mark for [Obtain DNS server address
automatically], and enter the IP address of DNS server 1 and
DNS server 2.
• If the check mark for [DHCP Enabled] is removed, a check mark
cannot be put to [Obtain DNS server address automatically].
• Do not change the settings of [Connection server] and [A/C
server].
5 4
3
4Press .
(The setting items are stored.)
5Press .
(The main menu is displayed.)
Advanced Settings (continued)

11
Adaptor Setting
1Press . 1
2Enter [Communication error threshould time with A/C
unit].
(Possible input range: 10 to 99 minutes)
7 6
3
4
5
2
3Enter [Communication interval with A/C unit].
(Possible input range: 10 to 99 minutes)
4Select either [enable] or [disable] for [Link No.1] and
[Link No.2] respectively.
[Link No.1] - [A/C Connection]
- [Local Adaptor Detection]
[Link No.2] - [A/C Connection]
- [Local Adaptor Detection]
5Select [Minimum pulse input detection time setting].
(30ms,100ms)
6Press .
(The adaptor setting is stored.)
7Press .
(The main menu is displayed.)

12
Air Conditioner Setting
1Press .
When “Now initializing. Please wait.” is displayed, wait for the A/C
unit list to be displayed.
1
2Press .
• Air conditioners connected to the cloud adaptor are detected, and
the A/C unit list is updated.
• The following message is displayed if abnormality is found on the
air conditioner.
Confirm the message, and press [Close].
• Scan the A/C units again after fixing the abnormality.
Message Meaning
Central address duplicate Central address is duplicated.
Scan Time Out Error A time-out occurred while
scanning.
If the red characters are displayed, confirm and adjust the connections/
settings of the air conditioner.
3
An alarm that has occurred on the indoor unit is displayed.
(This screen is updated every 10 seconds.)
If the alarm code is related to the configuration error, check and
fix the connections/settings of the air conditioners.
4 52
4
3Check if the connected indoor units are all displayed,
and confirm that the number of the connected outdoor
units and the number of detected units correspond
with each other.
If some of the indoor units are not displayed/
unexpected indoor units are displayed.
Check if wiring is properly done, or the address setting for air
conditioners is correct.
→After correction, redo from step 2.

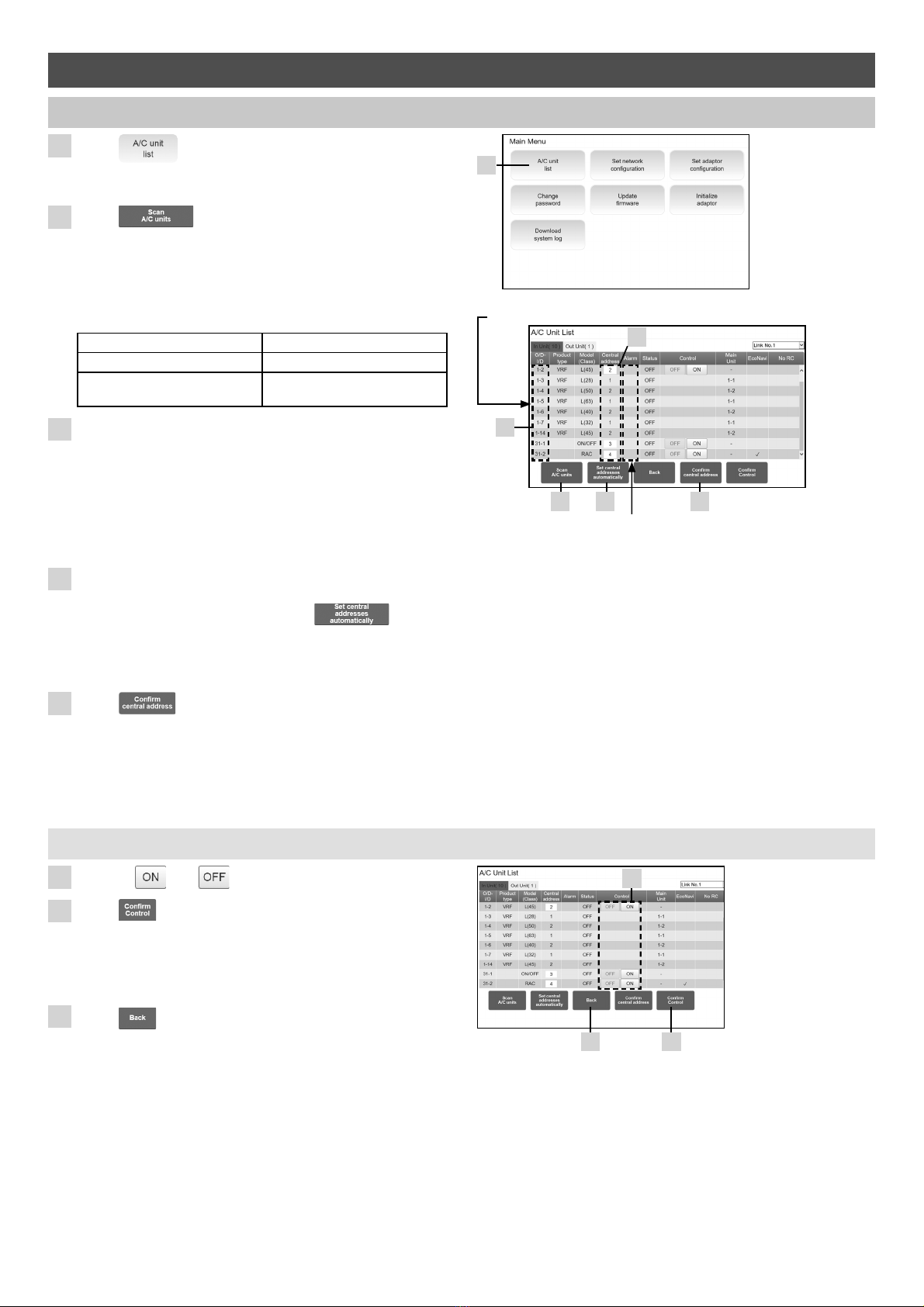

4Enter the central address.
To assign manually
Select the central address
text box of the indoor unit on
the [A/C Unit List] screen,
and enter it.
To assign automatically
Press .
(Values that have been unused
within the same link no. are
input in the blank field in
ascending order.)
5Press .
• The input central address is applied to all the indoor units.
• If the text box is blank or any duplication is present between
main indoor units, an alarm is displayed.
Attention
• Be sure to set the central address for the indoor unit to control
and monitor using the cloud adaptor.
Air Conditioner Test Operation
1Check if and properly work. 1
3 2
2Press .
• Check if pressing the button switches the ON/OFF display in the
control field of the corresponding indoor units and the ON/OFF
operation of the actual indoor units.
• Check all the indoor units for proper operation.
• Check the status while communicating with the PC operator.
3Press .
• The main menu is displayed.
• If [Confirm central address] button is not pressed after changing
the central address, a confirmation screen is displayed.
→Selecting [YES] discards the changed contents.
Advanced Settings (continued)

13
Preparation before Operation

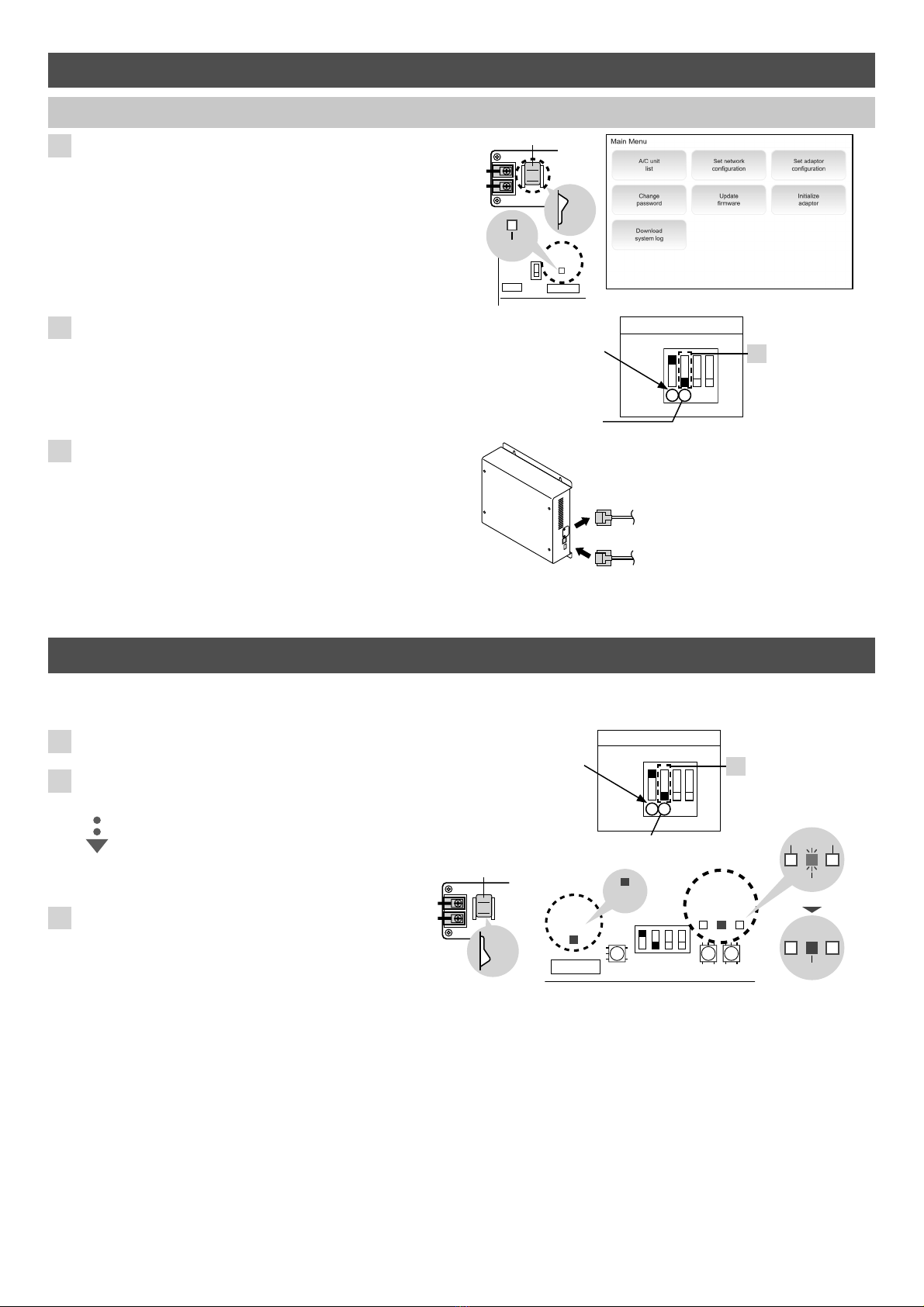

1Turn offthe power switch while the main menu is
displayed.
LED
18
Power Switch
OFF
Off
2Using the DIP switch, set the mode of the cloud adaptor
to the operation mode.
Operation mode
Do not change the setting
of switch 1 from the ON
position.
1234
SW7
OFF
ON 2
Change the setting of
switch 2 to OFF position.
3Remove the LAN cable from the cloud adaptor, and
connect the other to the network.
LAN Cable
PC
network
Note
• Perform registration for the cloud adaptor on the cloud server screen
beforehand.
1Confirm that the DIP switch is in the
operation mode.
LED
15
LED
16
LED
17
LED
18
SW7 SW5
Blinking
(Green)
Lighting
(Green)
OffOff
Lighting
(Green)
Change the setting of Switch 2 to OFF position.
Operation mode
1234
SW7
OFF
ON
Do not change the setting of
switch 1 from the ON position. 1
Power Switch
ON
2Turn the power on.
• Make sure at least 30 seconds have passed
after power-off. Then, turn the power on.
When the green LED (LED16) changes from
blinking to lighting,
the set up procedures are complete.
3
Attach the upper cover to the cloud adaptor. (P.3)
Connecting to Cloud Server

14
Self-diagnostics table and detected contents
Blinking or lighting pattern table (LED 15 to 17)
Check the table below and Service Manual.
LED
15
LED
16
LED
17
SW7 SW5
Orange Red
Green
Lighting
Blinking slow (once per about 2 seconds)
Blinking fast (once per about 1 second)
Off
In simple setting mode
LED Status and Solution
Simple setting mode selection standby
→Pressing the SW6 switch within 10 seconds
will enter the simple setting mode.
Simple setting mode executing
→After the execution is complete, the unit
restarts in operation mode.
Network connection failure
→Check the network setting and the LAN
cable connection.
LED Status and Solution
Firewall passing failure
→Check the port permitted in the firewall. (P.5)
Configuration error
→ Check the connection with the air conditioner.
Ensure that the central control address of the
air conditioner is not duplicated.
Internal error
→Turn the cloud adaptor off, and contact our
sales/service dealer or a certified dealer.
In operation mode
LED Status and Solution
The cloud adaptor is in the maintenance
mode. (P.6, P.8)
→After maintenance, change it to the
operation mode.
Communication failure (Both Link 1 and 2)
→Check if the inter-unit control wiring between
the air conditioners and the cloud adaptor is
correct. (Both Link 1 and 2)
Communication failure (Link 1 only)
→Check if the inter-unit control wiring between
the air conditioners and the cloud adaptor is
correct. (Link 1 only)
Communication failure (Link 2 only)
→Check if the inter-unit control wiring between
the air conditioners and the cloud adaptor is
correct. (Link 2 only)
Network connection failure
→Restart the cloud adaptor in the
maintenance mode, and check if the
network settings are correct. (P.10)
LED Status and Solution
Internal error
→Turn the cloud adaptor off, and contact our
sales/service outlet or your certified dealer
for additional instructions.
Memory card error
→Turn the cloud adaptor off, and contact our
sales/service outlet or your certified dealer
for additional instructions.
Initializing.
→Wait until the initialization is completed.
When the initialization is not completed by
40 minutes after connecting the network,
contact our sales/service outlet or your
certified dealer for additional instructions.
Remote A/C scan is in progress from the
cloud server.
→When only the Green LED lights up,
the remote A/C scan has finished.

15
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and
batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the
environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the
chemical involved.

This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software
licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL
V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the attached License List (License
List Disc).
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more
than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1
or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
For details of the source code, refer to the supplied License List Disc.
© Panasonic Corporation 2016-2022
Printed in Japan
