Operating Guide
Remote Operation Panel
Model No. AK-HRP1015G

Connecting the Unit to AG-CX350 Cameras 3
Connections 3
Compatible Functions List 4
ROP Menu (during AG-CX350 Connection) 8
ROP menu list 8
01 SCENE 13
02 SHUTTER SPEED 14
03 FILTER 14
04 PEDESTAL 15
05 CHROMA 15
06 GAIN 16
07 COLOR TEMP 16
08 WHITE BALANCE 17
09 GAMMA 18
10 KNEE 19
11 WHITE CLIP 20
12 DRS 20
13 DETAIL 21
14 SKIN TONE DTL 22
15 MATRIX 23
16 COLOR CORRECTION 24
17 IRIS RELATIVE 26
18 SYSTEM CAM 27
19 CAMERA MENU CONTROL 27
20 ROP SETTING 28
21 CONNECT SETTING 28
22 ROP IP SETTING 29
23 CAMERA IP SETTING 29
24 AUTO IRIS SETTING 29
25 SWITCHER LINK 29
26 AW CONTROLLER LINK 29
- 2 -
Table of Contents

Connecting the Unit to AG-CX350 Cameras
Connections
Use a LAN cable to connect the <REMOTE> connector at the rear of the AG-CX350 to the <LAN> connector of the AK-
HRP1015G.
Set the connection setting to “LAN(AG)” in the [CONNECT SETTING] menu.
ヒチバチヒヘ
ヤヰワワユヤヵチヴユヵヵリワヨロモワドモヨナワヰワワヰワワヰワワヰワワヰワヤモヮヒヤモヮピヤモヮプヤモヮフヤモヮブヤモヮビヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナ
- 3 -
Connecting the Unit to AG-CX350 Cameras

Compatible Functions List
When the unit is used in conjunction with an AG-CX350 Memory Card Camera-Recorder, a portion of the unit’s button, dial, and other con-
trol functions will be limited or disabled. Be sure to refer to the following table.

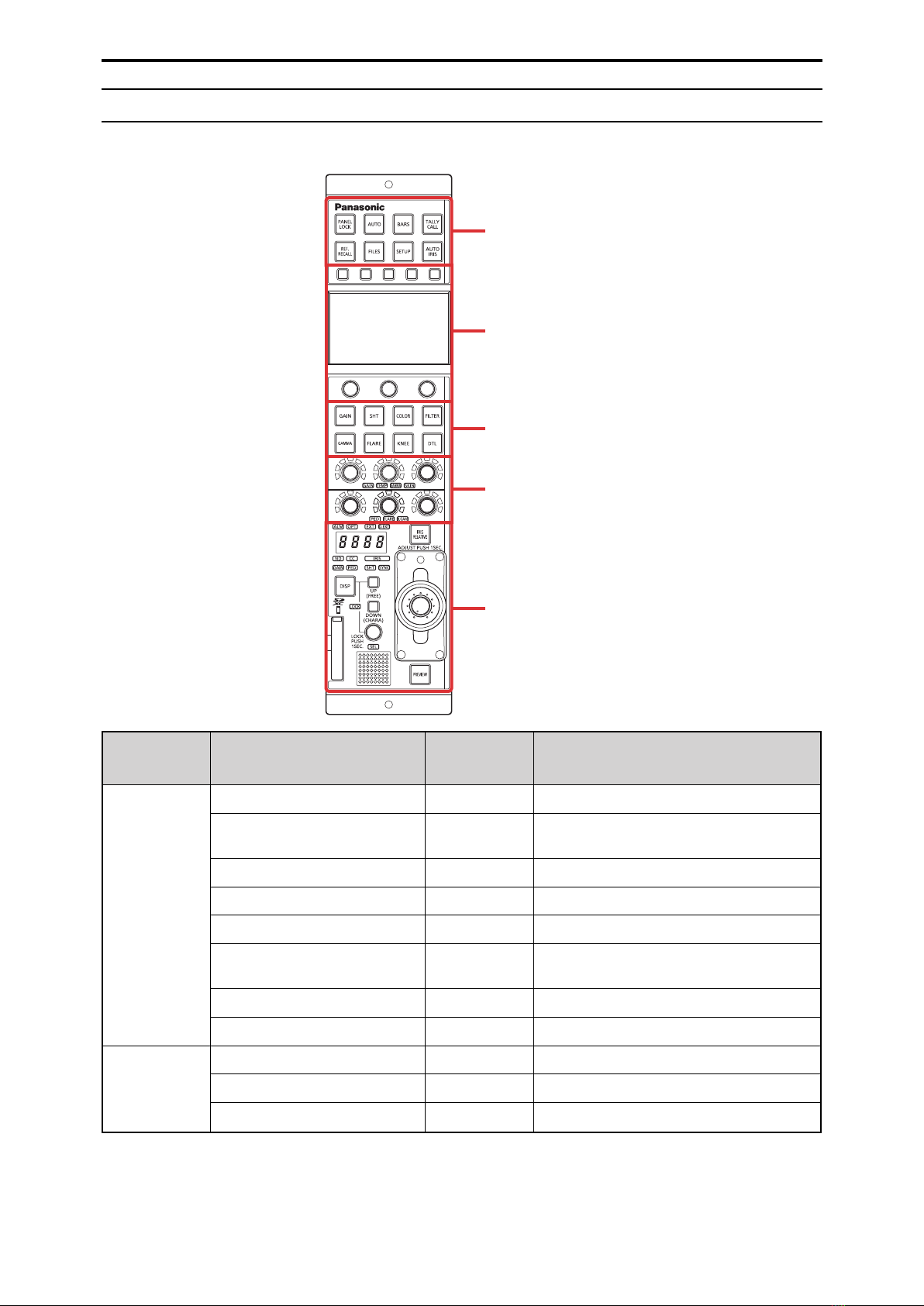

Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[PANEL LOCK] button ✓
[AUTO] button ✓This does not function when the auto setup setting
is enabled.
[BARS] button ✓Controls ON/OFF of color bar signal output.
[TALLY/CALL] lamp/button ✓Tally only operation is possible.
[REF. RECALL] button ✓Press and hold this to start/stop recording.
[FILES] button ✓Press and hold this to switch to the scene selection
menu.
[SETUP] button ✓
[AUTO IRIS] button ✓
Front panel 2
Function buttons ✓
LCD panel ✓
Menu operation dials ✓
- 4 -
Connecting the Unit to AG-CX350 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 3
[GAIN] button ✓When this is set to ON, the [GAIN] menu is dis-
played on the LCD panel.
[SHT] button ✓When this is set to ON, the [SHUTTER SPEED]
menu is displayed on the LCD panel.
[COLOR] button ✓The menus will switch with each press of the button.
[WHITE BALANCE] > [CHROMA] > [MATRIX] >
[COLOR CORRECTION] > Menu OFF (status
screen)
[FILTER] button ✓When this is set to ON, the [FILTER] menu is dis-
played on the LCD panel.
[GAMMA] button ✓When this is set to ON, the [GAMMA] menu is dis-
played on the LCD panel.
[FLARE] button ×
[KNEE] button ✓The menus will switch with each press of the button.
[KNEE] > [WHITE CLIP] > Menu OFF (status
screen)
[DTL] button ✓The menus will switch with each press of the button.
[DETAIL] > [SKIN TONE DTL] > Menu OFF (status
screen)
- 5 -
Connecting the Unit to AG-CX350 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 4
[GAIN], [TEMP], [GAMMA], [SKIN]
adjustment block
✓ When [GAIN] is lit
Adjusts the following.
Red (R) adjustment dial
[WHITE BALANCE] > [GAIN R]
Blue (B) adjustment dial
[WHITE BALANCE] > [GAIN B]
When [TEMP] is lit
Adjusts the following.
Red (R) adjustment dial
[COLOR TEMP] > [GAIN R]
Green (G) adjustment dial
[COLOR TEMP] > [AXIS G]
Blue (B) adjustment dial
[COLOR TEMP] > [GAIN B]
When [GAMMA] is lit
Adjusts the following.
Green (G) adjustment dial
[GAMMA] > [MASTER GAMMA]
When [SKIN] is lit
Adjusts the following.
Red (R) adjustment dial
[SKIN TONE DTL] > [I CENTER]
Green (G) adjustment dial
[SKIN TONE DTL] > [Q WIDTH]
[PED], [FLARE], [B.GAM] adjustment
block
✓ When [PED] is lit
Adjusts the following.
Red (R) adjustment dial
[PEDESTAL] > [PED R]
Green (G) adjustment dial
[PEDESTAL] > [MASTER PED]
Blue (B) adjustment dial
[PEDESTAL] > [PED B]
When [FLARE] is lit
FLARE cannot be controlled. “-” is displayed.
When [B.GAM] is lit
Adjusts the following.
Green (G) adjustment dial
[GAMMA] > [BLACK GAMMA]
Blue (B) adjustment dial
[GAMMA] > [B.GAMMA RANGE]
- 6 -
Connecting the Unit to AG-CX350 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 5
[ALM] indicator ✓
[OPT] indicator ×
[EXT] indicator ×
[D.EXT] indicator ×
Adjustment value display ✓Displays the adjustment values except for CC.
When the [SHT] indicator and [SYNC] indicator
are lit
Displays the following.
Fixed shutter is selected (dot lights at bottom
right)
Numerical value for the denominator of the
shutter speed
Synchro scan (time display) is selected
Numerical value for the denominator of the
shutter speed (when the value is four or
more digits, the digits after the decimal point
are not displayed)
Synchro scan (shutter open angle display) is
selected
Setting value of shutter open angle
[ND] indicator ✓Displayed only. Cannot be adjusted.
[CC] indicator ✓Lights but “-” is displayed. Cannot be adjusted.
[IRIS] indicator ✓
[GAIN] indicator ✓
[PED] indicator ✓
[SHT] indicator ✓
[SYNC] indicator ✓
[DISP] button ✓
[UP (FREE)] button ✓
[DOWN (CHARA)] button ✓
[LOCK] indicator ✓
[SEL] dial ✓
Front panel 6
Memory card slot ✓
Memory card access indicator ✓
Camera number/tally display ✓
[IRIS RELATIVE] button ✓
Torque adjustment screw ✓
IRIS lever ✓
Master pedestal dial ✓
[PREVIEW] button ×
- 7 -
Connecting the Unit to AG-CX350 Cameras

ROP Menu (during AG-CX350 Connection)
ROP menu list
When an AG-CX350 Memory Card Camera-Recorder is connected, the ROP menu will be as follows. For setting values related to the cam-
era, refer to the Operating Instructions for the camera.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
NOTE
To perform menu operations, upgrade the version of the unit system to 2.10-00-0.00 or later.
The setting values of functions that are not supported are indicated as “－”.
01 SCENE
SCENE1 “SCENE1” (see page 13)
SCENE2 “SCENE2” (see page 13)
SCENE3 “SCENE3” (see page 13)
SCENE4 “SCENE4” (see page 13)
SCENE5 “SCENE5” (see page 13)
SCENE6 “SCENE6” (see page 13)
02 SHUTTER SPEED
SHUTTER “SHUTTER” (see page 14)
SPEED MODE “SPEED MODE” (see page 14)
SYNC TYPE “SYNC TYPE” (see page 14)
SPEED “SPEED” (see page 14)
AUTO SHUTTER “AUTO SHUTTER” (see page 14)
AUTO SHUTTER LIMIT “AUTO SHUTTER LIMIT” (see page 14)
AUTO SHUTTER POINT “AUTO SHUTTER POINT” (see page 14)
03 FILTER
ND “ND” (see page 14)
CC “CC” (see page 14)
04 PEDESTAL
M.PED “M.PED” (see page 15)
OFFSET “OFFSET” (see page 15)
PED R “PED R” (see page 15)
PED G “PED G” (see page 15)
PED B “PED B” (see page 15)
05 CHROMA
LEVEL % “LEVEL %” (see page 15)
PHASE “PHASE” (see page 15)
06 GAIN
GAIN “GAIN” (see page 16)
AGC “AGC” (see page 16)
AGC LIMIT “AGC LIMIT” (see page 16)
AGC POINT “AGC POINT” (see page 16)
07 COLOR TEMP
COLOR TEMP “COLOR TEMP” (see page 16)
GAIN R “GAIN R” (see page 16)
AXIS G “AXIS G” (see page 16)
GAIN B “GAIN B” (see page 16)
- 8 -
ROP Menu (during AG-CX350 Connection)

08 WHITE BALANCE
W.BAL SELECT “W.BAL SELECT” (see page 17)
GAIN OFFSET “GAIN OFFSET” (see page 17)
GAIN R “GAIN R” (see page 17)
GAIN B “GAIN B” (see page 17)
ATW SPEED “ATW SPEED” (see page 17)
ATW TARGET R “ATW TARGET R” (see page 17)
ATW TARGET B “ATW TARGET B” (see page 17)
09 GAMMA
MODE “MODE” (see page 18)
GAMMA “GAMMA” (see page 18)
F-REC DYNMC LV “F-REC DYNMC LV” (see page 18)
F-REC BLK.S LV “F-REC BLK.S LV” (see page 18)
V-REC K.SLOPE “V-REC K.SLOPE” (see page 18)
V-REC K.POINT “V-REC K.POINT” (see page 18)
BLACK GAMMA “BLACK GAMMA” (see page 18)
B.GAMMA RANGE “B.GAMMA RANGE” (see page 18)
10 KNEE
MODE “MODE” (see page 19)
POINT “POINT” (see page 19)
SLOPE “SLOPE” (see page 19)
A.KNEE RSPNS “A.KNEE RSPNS” (see page 19)
HLG KNEE SW “HLG KNEE SW” (see page 19)
HLG KNEE POINT “HLG KNEE POINT” (see page 19)
HLG KNEE SLOPE “HLG KNEE SLOPE” (see page 19)
H.COLOR SW “H.COLOR SW” (see page 19)
11 WHITE CLIP
WHITE CLIP SW “WHITE CLIP SW” (see page 20)
WHITE CLIP LEVEL(%) “WHITE CLIP LEVEL(%)” (see page 20)
12 DRS
DRS “DRS” (see page 20)
EFFECT DEPTH “EFFECT DEPTH” (see page 20)
13 DETAIL
DTL “DTL” (see page 21)
CORING “CORING” (see page 21)
V.DTL LEVEL “V.DTL LEVEL” (see page 21)
FREQ. “FREQ.” (see page 21)
LEVEL DEPEND. “LEVEL DEPEND.” (see page 21)
KNEE APE LV “KNEE APE LV” (see page 21)
GAIN(+) “GAIN(+)” (see page 21)
GAIN(-) “GAIN(-)” (see page 21)
DTL SW “DTL SW” (see page 21)
14 SKIN TONE DTL
SKIN TONE DTL A “SKIN TONE DTL A” (see page 22)
SKIN TONE DTL B “SKIN TONE DTL B” (see page 22)
SKIN TONE DTL C “SKIN TONE DTL C” (see page 22)
DETECT TBL “DETECT TBL” (see page 22)
EFFECT “EFFECT” (see page 22)
I CENTER “I CENTER” (see page 22)
I WIDTH “I WIDTH” (see page 22)
Q WIDTH “Q WIDTH” (see page 22)
Q PHASE “Q PHASE” (see page 22)
- 9 -
ROP Menu (during AG-CX350 Connection)

15 MATRIX
TYPE “TYPE” (see page 23)
ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 23)
R-G “R-G” (see page 23)
R-B “R-B” (see page 23)
G-R “G-R” (see page 23)
G-B “G-B” (see page 23)
B-R “B-R” (see page 23)
B-G “B-G” (see page 23)
16 COLOR CORRECTION
SAT R “SAT R” (see page 25)
PHASE R “PHASE R” (see page 25)
SAT R-R-Mg “SAT R-R-Mg” (see page 25)
PHASE R-R-Mg “PHASE R-R-Mg” (see page 25)
SAT R-Mg “SAT R-Mg” (see page 25)
PHASE R-Mg “PHASE R-Mg” (see page 25)
SAT Mg “SAT Mg” (see page 25)
PHASE Mg “PHASE Mg” (see page 25)
SAT Mg-B “SAT Mg-B” (see page 25)
PHASE Mg-B “PHASE Mg-B” (see page 25)
SAT B “SAT B” (see page 25)
PHASE B “PHASE B” (see page 25)
SAT B-Cy “SAT B-Cy” (see page 25)
PHASE B-Cy “PHASE B-Cy” (see page 25)
SAT Cy “SAT Cy” (see page 25)
PHASE Cy “PHASE Cy” (see page 25)
SAT Cy-G “SAT Cy-G” (see page 25)
PHASE Cy-G “PHASE Cy-G” (see page 25)
SAT G “SAT G” (see page 25)
PHASE G “PHASE G” (see page 25)
SAT G-Yl “SAT G-Yl” (see page 25)
PHASE G-Yl “PHASE G-Yl” (see page 26)
SAT G-Yl-Yl “SAT G-Yl-Yl” (see page 26)
PHASE G-Yl-Yl “PHASE G-Yl-Yl” (see page 26)
SAT Yl “SAT Yl” (see page 26)
PHASE Yl “PHASE Yl” (see page 26)
SAT Yl-Yl-R “SAT Yl-Yl-R” (see page 26)
PHASE Yl-Yl-R “PHASE Yl-Yl-R” (see page 26)
SAT Yl-R “SAT Yl-R” (see page 26)
PHASE Yl-R “PHASE Yl-R” (see page 26)
SAT Yl-R-R “SAT Yl-R-R” (see page 26)
PHASE Yl-R-R “PHASE Yl-R-R” (see page 26)
17 IRIS RELATIVE
SENSE Refer to the following section in the Operating Instructions.
“29 IRIS RELATIVE”
COARSE
RELATIVE
18 SYSTEM CAM
TALLY CONTROL “TALLY CONTROL” (see page 27)
TALLY INPUT “TALLY INPUT” (see page 27)
TALLY SIGNAL “TALLY SIGNAL” (see page 27)
TALLY CONT MD “TALLY CONT MD” (see page 27)
- 10 -
ROP Menu (during AG-CX350 Connection)

19 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 27)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 27)
EXECUTE “EXECUTE” (see page 27)
MENU EXIT “MENU EXIT” (see page 27)
20 ROP SETTING
IRIS LEV MODE “20 ROP SETTING” (see page 28)
M.PED CONT Refer to the following section in the Operating Instructions.
“37 ROP SETTING”
LOCK SELECT
AUTO BUTTON
G/M PED VOL
FREE+LOCK
CAM SEL
DTL BUTTON
SKIN VOL
LCD BRIGHT
PANEL BRIGHT
B.GAMMA VOL
BUZZER
PERIOD
CYCLE
STD POSITION M.GAIN
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
SD CARD FORMAT
INITIAL with NW
INITIAL
UPGRADE
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
SYSTEM VERSION
SOFT VERSION
FPGA VERSION
21 CONNECT SETTING
CONNECT MODE(push) CAM1 “CONNECT MODE(push) CAM1” (see page 28)
CONNECT MODE(push) CAM2 to
CAM99
“CONNECT MODE(push) CAM2 to CAM99” (see
page 28)
- 11 -
ROP Menu (during AG-CX350 Connection)

22 ROP IP SETTING
IP ADDRESS 1 Refer to the following section in the Operating Instructions.
“39 ROP IP SETTING”
IP ADDRESS 2
IP ADDRESS 3
IP ADDRESS 4
IP ADDRESS PORT
IP ADDRESS UPLOAD
SUBNET MASK 1
SUBNET MASK 2
SUBNET MASK 3
SUBNET MASK 4
SUBNET MASK UPLOAD
DEFAULT GATEWAY
DEFAULT GATEWAY UPLOAD
MAC ADDRESS
23 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“40 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 INF UPLOAD
24 AUTO IRIS SETTING
AUTO IRIS LEVEL “AUTO IRIS LEVEL” (see page 29)
AUTO IRIS SPEED “AUTO IRIS SPEED” (see page 29)
AUTO IRIS WINDOW “AUTO IRIS WINDOW” (see page 29)
25 SWITCHER LINK
SWITCHER IP ADDRESS Refer to the following sections in "Linking the Unit to the
AV-HS6000".
“47 SWITCHER LINK”
SWITCHER UDP PORT
INFO UPLOAD
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
26 AW CONTROLLER LINK
RECEIVE PORT Refer to the following section in the Operating Instructions.
“47 AW CONTROLLER LINK”
INFO UPLOAD
AW CONT LINK
- 12 -
ROP Menu (during AG-CX350 Connection)

01 SCENE
ヒチバチヒ
ヴヤユワユヰワヰョョヰョョヰョョヰョョヰョョヴヤユワユヒドㄑㄖㄔㄉナヴヤユワユピドㄑㄖㄔㄉナヴヤユワユプドㄑㄖㄔㄉナヴヤユワユフドㄑㄖㄔㄉナヴヤユワユブドㄑㄖㄔㄉナヴヤユワユビドㄑㄖㄔㄉナ
Item Setting details
SCENE1 Sets a scene file to ON/OFF.
When a scene file is set to ON, the other scene files are set to OFF.
SCENE2
SCENE3
SCENE4
SCENE5
SCENE6
- 13 -
ROP Menu (during AG-CX350 Connection)

02 SHUTTER SPEED
ヒチバチビ
ヴラヶヵヵユンチヴヱユユュヰワヒパパョリヹヴユヤヴラヶヵヵユンヴヺワヤヵヺヱユヴヱユユュヴヱユユュヮヰュユ
ビチバチビ
ヴラヶヵヵユンチヴヱユユュヰョョヒバビブパョベハパヴラヶヵヵユンヱヰリワヵロリヮリヵモヶヵヰチヴラヶヵヵユン
Item Setting details
SHUTTER Switches the shutter function ON/OFF.
SPEED MODE Switches between fixed shutter and synchro scan.
SYNC TYPE Switches the unit of the shutter setting.
SPEED Sets the shutter speed in the unit selected in [SYNC TYPE].
AUTO SHUTTER Switches the auto shutter function ON/OFF.
AUTO SHUTTER LIMIT Sets the maximum level of the auto shutter speed.
AUTO SHUTTER POINT Sets the F value to switch control from auto iris to auto shutter during the auto shutter operation.
03 FILTER
ヒチバチヒ
ョリロヵユンヒ
ノ
ワュヤヤ
Item Setting details
ND Displays the information for the ND filter (the settings cannot be changed).
CC Displays the information for the CC filter (the settings cannot be changed). “-” is displayed.
- 14 -
ROP Menu (during AG-CX350 Connection)

04 PEDESTAL
ヒチバチヒ
ヱユュユヴヵモロヌヒプヰョョヮハヱユュヰョョヴユヵンヨャパパパヱユュ
Item Setting details
M.PED Adjusts the black level (master pedestal level adjustment).
OFFSET Sets the R channel, G channel, and B channel pedestal levels when the auto black balance is adjusted.
PED R Adjusts the R channel pedestal.
PED G Adjusts the G channel pedestal.
PED B Adjusts the B channel pedestal.
05 CHROMA
ヒチバチヒ
ヤランヰヮモロユヷユロチテヱラモヴユパパ
Item Setting details
LEVEL % Sets the color intensity of images.
PHASE Finely adjusts the color phase of images.
- 15 -
ROP Menu (during AG-CX350 Connection)

06 GAIN
ヒチバチヒ
ヨモリワヒビㄅャヰョョプㄅャョフハパヨモリワヱヰリワヵモヨヤロリヮリヵモヨヤ
Item Setting details
GAIN Adjusts the gain of video.
AGC Enables or disables the auto gain function.
AGC LIMIT Sets the maximum gain-up amount when [AGC] is set to “ON”.
AGC POINT Sets the F value to switch control from auto iris to auto gain when [AGC] is “ON”.
07 COLOR TEMP
ヒチバチヒ
ヤヰロヰンチヵユヮヱピビパパヤヰロヰンヵユヮヱヨモリワヨモリワモヹリヴンヨャパパパ
Item Setting details
COLOR TEMP Sets the color temperature.
GAIN R Sets the red correction level for the color temperature.
AXIS G Sets the green correction level for the color temperature.
GAIN B Sets the blue correction level for the color temperature.
- 16 -
ROP Menu (during AG-CX350 Connection)

08 WHITE BALANCE
ヒチバチビ
ヸラリヵユチャモロモワヤユピビパパレヰョョヸハャモロヴユロユヤヵヨモリワヰョョヴユヵンャパパヨモリワ
ビチバチビ
ヸラリヵユチャモロモワヤユワヰンヮモロパパヴヱユユュヵモンヨユヵチャヵモンヨユヵチンモヵヸ
Item Setting details
W.BAL SELECT Sets the mode for the white balance.
GAIN OFFSET Sets the value of the R channel gain and B channel gain for when [W.BAL SELECT] is set to A (AWB A) or B
(AWB B) and automatic white balance is performed.
GAIN R Adjusts the R channel gain.
GAIN B Adjusts the B channel gain.
ATW SPEED Sets the control speed of the ATW function.
ATW TARGET R Finely adjusts the R channel output when converged in the auto tracking white balance operation.
ATW TARGET B Finely adjusts the B channel output when converged in the auto tracking white balance operation.
- 17 -
ROP Menu (during AG-CX350 Connection)

09 GAMMA
ヒチバチビ
ヨモヮヮモラュパハフブプパパパヮヰュユュヺワヮヤチロヷャロレハヴチロヷヨモヮヮモョノンユヤ
ビチバチビ
ヨモヮヮモブパパピパレハヴロヰヱユレハヱヰリワヵパヒャロモヤレヨモヮヮモャハヨモヮヮモンモワヨユヷノンユヤ
Item Setting details
MODE Selects the type of gamma curve.
GAMMA Adjusts the gamma correction level. This is enabled when [MODE] is other than “HLG”.
F-REC DYNMC LV Sets the dynamic range. This is enabled when [MODE] is “F-REC” (FILM REC).
F-REC BLK.S LV Sets the black stretch. This is enabled when [MODE] is “F-REC” (FILM REC).
V-REC K.SLOPE Sets the knee slope. This is enabled when [MODE] is “V-REC” (VIDEO REC).
V-REC K.POINT Sets the knee point. This is enabled when [MODE] is “V-REC” (VIDEO REC).
BLACK GAMMA Sets the gamma curve for dark areas.
B.GAMMA RANGE Sets the maximum level for compression/expansion.
- 18 -
ROP Menu (during AG-CX350 Connection)

10 KNEE
ヒチバチビ
レワユユモヶヵヰペピハパペペフヮヰュユヴロヰヱユモハレワユユンヴヱワヴヱヰリワヵ
ビチバチビ
レワユユヰョョヰョョブブヒパヴヸヴロヰヱユラハヤヰロヰンヴヸヱヰリワヵラロヨチレワユユ
Item Setting details
MODE Sets the operating mode for gradation compression (knee).
POINT Sets the compression level (knee point) position for high-brightness video signals.
This is enabled when [MODE] in the [GAMMA] menu is other than “HLG”, and [MODE] is “MANUAL”.
SLOPE Sets the knee slope.
This is enabled when [MODE] in the [GAMMA] menu is other than “HLG”, and [MODE] is “MANUAL”.
A.KNEE RSPNS Sets the auto knee response speed.
This is enabled when [MODE] in the [GAMMA] menu is other than “HLG”.
HLG KNEE SW Enables or disables knee operation for HLG.
This is enabled when [MODE] in the [GAMMA] menu is “HLG”.
HLG KNEE POINT Sets the knee point position for HLG.
This is enabled when [MODE] in the [GAMMA] menu is “HLG”.
HLG KNEE SLOPE Sets the knee slope for HLG.
This is enabled when [MODE] in the [GAMMA] menu is “HLG”.
H.COLOR SW This does not function with AG-CX350.
- 19 -
ROP Menu (during AG-CX350 Connection)

11 WHITE CLIP
ヒチバチヒ
ヸラリユチヤロリヱヰョョヒパペヴヸロユヷユロドテナヸラリヵユチヤロリヱ
Item Setting details
WHITE CLIP SW Enables or disables the white clip function.
This is enabled when [MODE] in the [GAMMA] menu is other than “HLG”.
WHITE CLIP LEVEL(%) Sets the white clip level.
This is enabled when [WHITE CLIP SW] is “ON” and when [MODE] in the [GAMMA] menu is other than “HLG”.
12 DRS
ヒチバチヒ
ュンヴヰョョュンヴユョョユヤヵュユヱヵラヒ
Item Setting details
DRS Switches the dynamic range stretcher function, which performs correction appropriately when video with high
light/dark contrast is displayed, ON/OFF.
EFFECT DEPTH Sets the compression level for high-brightness areas of the dynamic range stretcher function.
- 20 -
ROP Menu (during AG-CX350 Connection)
