Panasonic EASA-PHONE KX-T123210 User manual

INSTALLATION MANUAL
ELECTRONIC MODULAR SWITCHING SYSTEM
KX-T123210
EASA-PHONE
Panasonic
Please read this manual before connecting the KX-T123210

Thank you for purchasing the Panasonic Model KX-T123210,
Electronic Modular Switching System (EMSS).
SYSTEM COMPONENT
Service unit
Telephone
Optional
equipment
Model No. Description
KX-Tl23210 Electronic Modular Switching System
KX-T123220 EMSS Proprietary Telephone (12CO’s)
KX-Tl23230 EMSSProprietaryTelephonewithLCD(12CO’s)
KX-Tl23250 EMSSProprietaryTelephone (12CO’s)
KX-T61620 EMSSProprietaryTelephone (6CO’s)
KX-T61630 EMSSProprietary Telephone with LCD (6CO’s)
KX-T61631 EMSS Proprietary Telephone with LCD (6 CO’s)
KX-T61650 EMSSProprietaryTelephone (6CO’s)
KX-T30820 EMSS ProprietaryTelephone (3CO’s)
KX-T30830 EMSSProprietaryTelephonewithLCD(3CO’s,8DSS’s)
KX-T30850 EMSSProprietaryTelephone (3CO’s)
KX-Tl23240 DSS Console (32 DSS’s, 16 Feature buttons)
KX-T61640 DSS Console (16 DSS’s, 16 Feature buttons)
KX-T123241 DSS Console Card
KX-Tl23270 Expansion Card (up to eight extension lines)
KX-T123271 Expansion Card (up to four extension lines)
KX-T123280 Expansion Card (up to four CO lines)
KX-T123281 Expansion Card (up to two CO lines)
KX-T30860D(only) Doorphone Adaptor
KX-T30865 Doorp hone
KX-T30890 Headset
KX-A26 Battery Adaptor
1-l

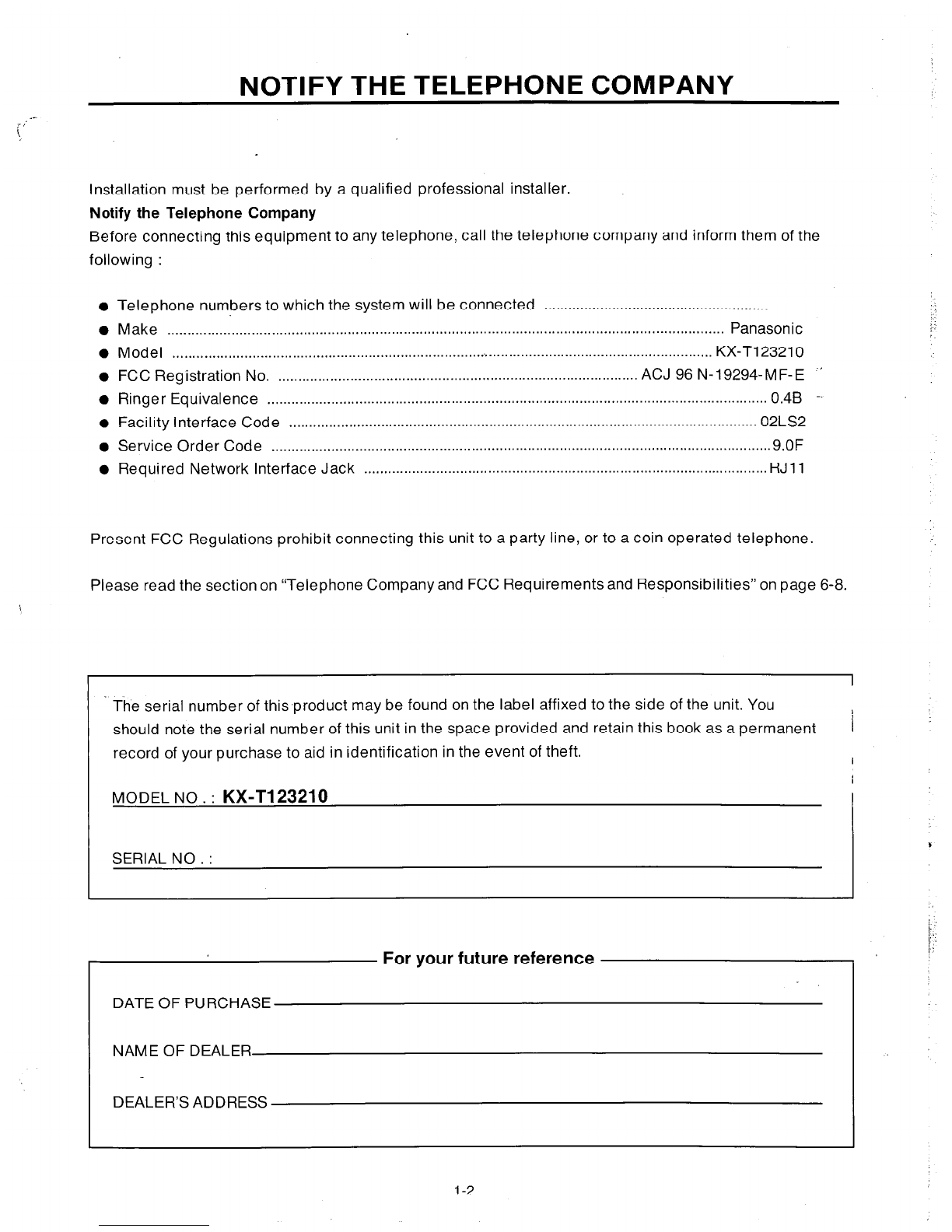

NOTIFY THE TELEPHONE COMPANY
Installation must be performed by a qualified professional installer.
Notify the Telephone Company
Before connecting this equipment to any telephone, call the telephone company and inform them of the
following :
Telephone numbers to which the system will be connected ........................................................
Make ............................................................................................................................................ Panasonic
Model ........................................................................................................................................ KX-T123210
-’FCC Registration No. .......................................................................................... ACJ 96 N-19294-M F- E
Ringer Equivalence --............................................................................................................................. 0.4B
Facility Interface Code ..................................................................................................................... 02LS2
Service Order Code ............................................................................................................................. 9.OF
Required Network Interface Jack ..................................................................................................... RJ 11
Present FCC Regulations prohibit connecting this unit to a party line, or to a coin operated telephone.
Please read the section on “Telephone Company and FCC Requirements and Responsibilities” on page 6-8.
The serial number of this-product may be found on the label affixed to the side of the unit. You L
should note the serial number of this unit in the space provided and retain this book as a permanent 1
record of your purchase to aid in identification in the event of theft. I
MODEL NO . : KX-Tl23210
SERIAL NO. :
For your future reference
DATE OF PURCHASE
NAME OF DEALER
DEALER’S ADDRESS
l-2

PROGRAMMING FEATURE OUTLINE
E-
Date and Time . . . . . . . . . , . . . .
System Speed Dialing . . . . . . . .
Extension Number . . . . . . . . . .
Operator . . . . . . . . . . . . . . . . . .
DSS Console . . . . . . . . . . . . . . . .
k
Day/Night Service .................
Call Hunting .....................
Toll Restriction ...................
Hold ...........................
Transfer Recall Time ..............
Call Forwarding Starting Time .......
Pickup Dial Delay Time ............
CO-to-CO Duration Time Limit ......
Station Message Detail Recording ...
Duration Time Count Start Mode ....
External Paging Access Tone .......
CO Connection ...................
Dial Mode (DTMF/Pulse) ...........
Host PBX Access Codes ...........
Trunk Group .....................
Outward Dialing ..................
Ringing .........................
Delayed Ringing ..................
CO Direct In Line .................
Pause Time ......................
Hookswitch Flash Timing ............
Calling Party Control Signal .........
Disconnect Time ..................
Extension Group ..................
Service Class of Toll Restriction .....
System
---E
E
I
t
---E
Extension
t
) Doorphone ” ” ” ’
Extension Name . . . . . . . .
Account Code . . . . . . . .
Call Transfer/Call Forwarding
Executive Override . . . . .
Do not Disturb Override . .
. . . . . . . . . . . . . . . . . . . . . . . . .
........
........
.......
........
........
........
Call on Hold for Standard Telephone .
System Data Clear . . . . . . . . . . . .
Page
3-4
3-5
3-8
3-9
3-10, 3-11
3-l 2
3-l 5
3-l 7
3-25, 3-26
3-27
3-28
3-29
3-30
3-31
3-40
3-41
3-42
3-43
3-45
3-46
3-47
3-49
3-52
3-54
3-59
3-60
3-61
3-62
3-63
3-64
3-68
3-70
3-71, 3-72
3-73
3-74
3-75
3-77
3-78
.
,
1-3

TABLE OF CONTENTS
Quick Reference
Name and Location’:::::::::::::::::::::::::::::::::::
Installation
Connection ‘:::::::::::::::::::::::::::::::::::::::::::
Central Office Line Connection (CO1 through 6) .............
Extension Connection ..................................

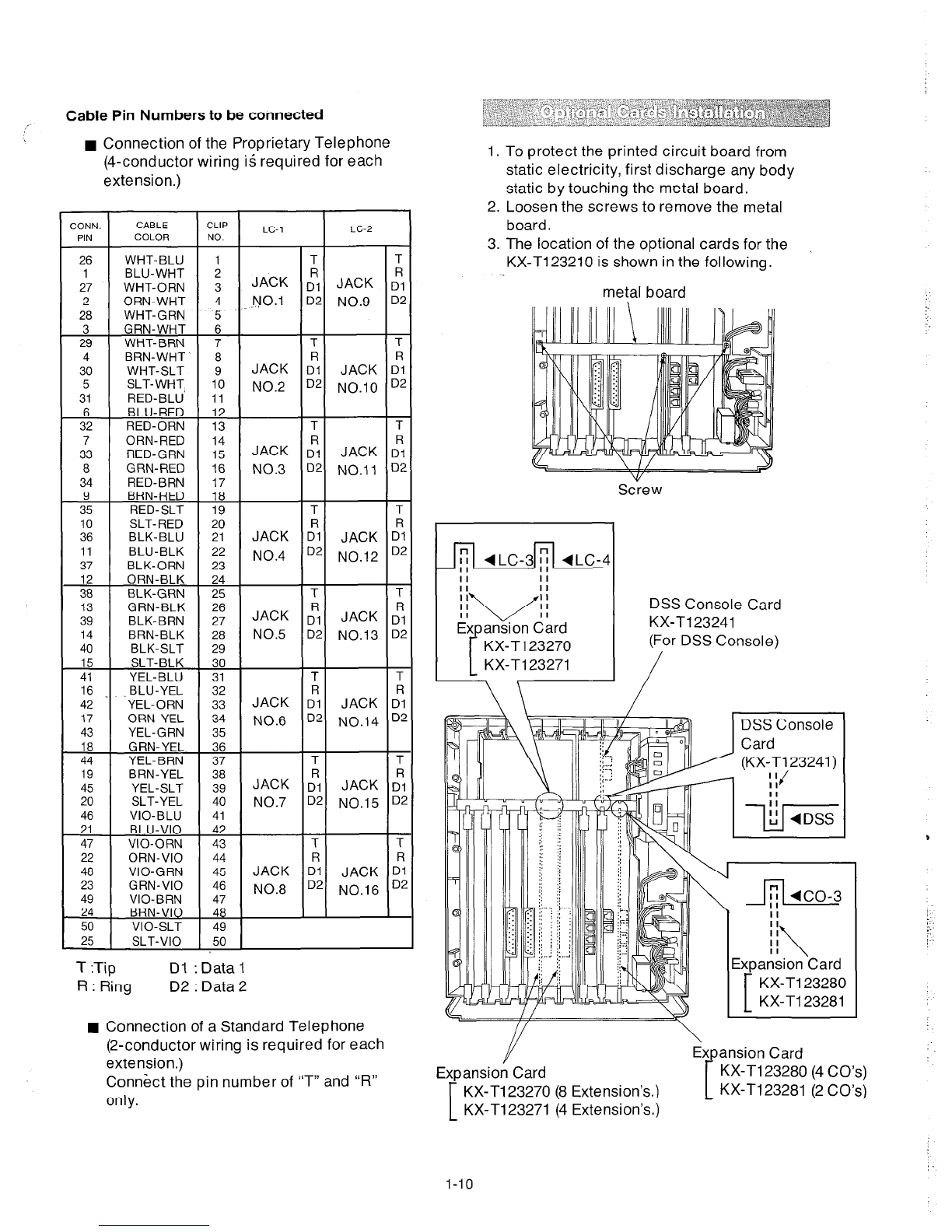

Optional Cards Installation ...............................
Extension Connection Option ............................
Central Office Line Connection Option .....................
Optional DSS Console Connection (KX-T123240/KX-T61640) .

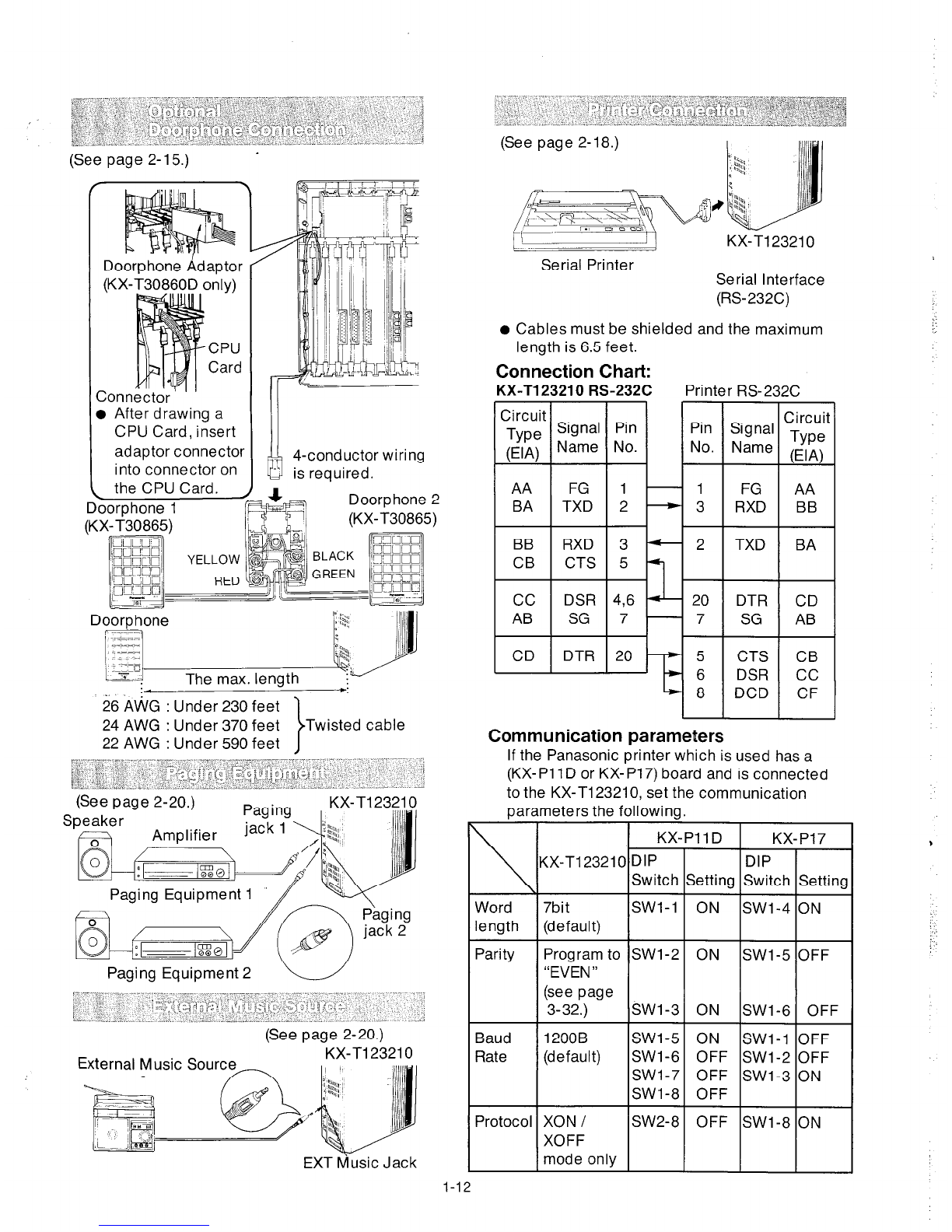

Optional Doorphone Connection ..........................
Polarity Sensitive Telephone Connection ...................
Battery Connection ................
Printer Connection ................ ....................
Paging Equipment ................ ....................
External Music Source ............. ....................

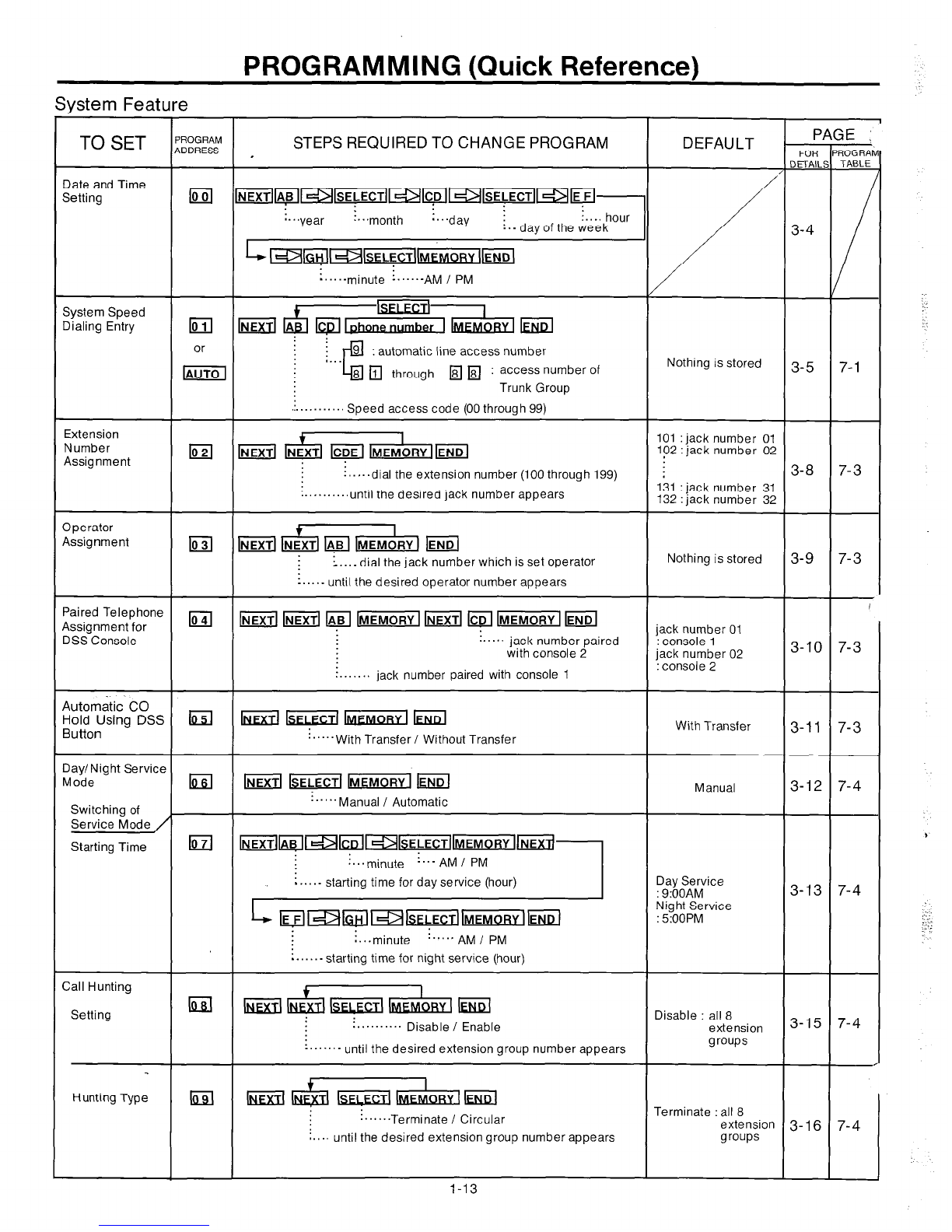

Programming
Programming Instructions ..........
Example of Programming .......... . . . . . . . . . . . . . . . . . . . .
. .
. .
. .
.
. .
.
.
.
. .
System Feature
Date and Time Setting ............. . . . . . . . . . . . . . . . . . . .
System Speed Dialing Entry ........
has not been stored
Extension Number Assignment ......
(see page)
Operator Assignment ..............
has not been stored
Paired Telephone Assignment
for DSS Console ............
Console 1 : Jack no. 01
Console 2 : Jack no. 02
Automatic CO Hold Using DSS Button ...
Automatic Hold
Day/Night Service Mode
Switching of Service Mode .......
manual mode
Starting Time ..................
day service 9 : AM
night service 5 : PM
Call Hunting
Setting .......................
Disable
Hunting Type. ..................
Terminate
.
Toll Restriction ....................
Area Type Selection ............
CO Operator Call-Boundary Class. ..
Toll Restriction of Speed Dialing .
Exchange Code Selection .......
Area Code Entry For Class 3 ....
1-4
. . . . . . . . . . . . . . . . . . . . . . .
Type A
Class 1
Restriction
has not been stored
has not been stored
. . . .
. . . . .
. . . . .
’ ’
’ . . . .
l-9
2-l
2-l
2-5
2-7
2-8
2-9
2-l 0
2-l 2
2-l 4
2-l 5
2-l 7
2-l 7
2-l 8
2-20
2-20
3-l
3-3
3-4
3-5
3-8
3-9
3-l 0
3-l 1
3-l 2
3-13
3-l 5
3-l 6
3-l 7
3-l 8
3-19
3-20
3-21
3-22

Exchange Code Entry For Class 5
Exchange Code Entry For Class 7 .
Hold Time Reminder . . . . . . . . .
Hold Recall Time Set ..............
Transfer Recall Time ..............
Call Forwarding Starting Time ......
Pickup Dial Delay Time ............
CO-to-CO Duration Time Limit ......
has not been stored
has not been stored
after 3 minutes
after 30 seconds
after 30 seconds
3 rings delay
dial after 3 seconds
10 minutes
Station Message Detail Recording (SMDR) . . . . . . . . .
RS-232C Communication
Parameters . . . . . . . .
SMDR Parameters . . . .
Incoming/Outgoing Call
Selection for printing . .
Secret Speed Dial/One Touch
Dial Printing . . . . . .
System Data Dump . . .
Duration Time Count Start Mode
. . . .
. .
.
.
. .
.
External Paging Access Tone . . . . . .
has been added

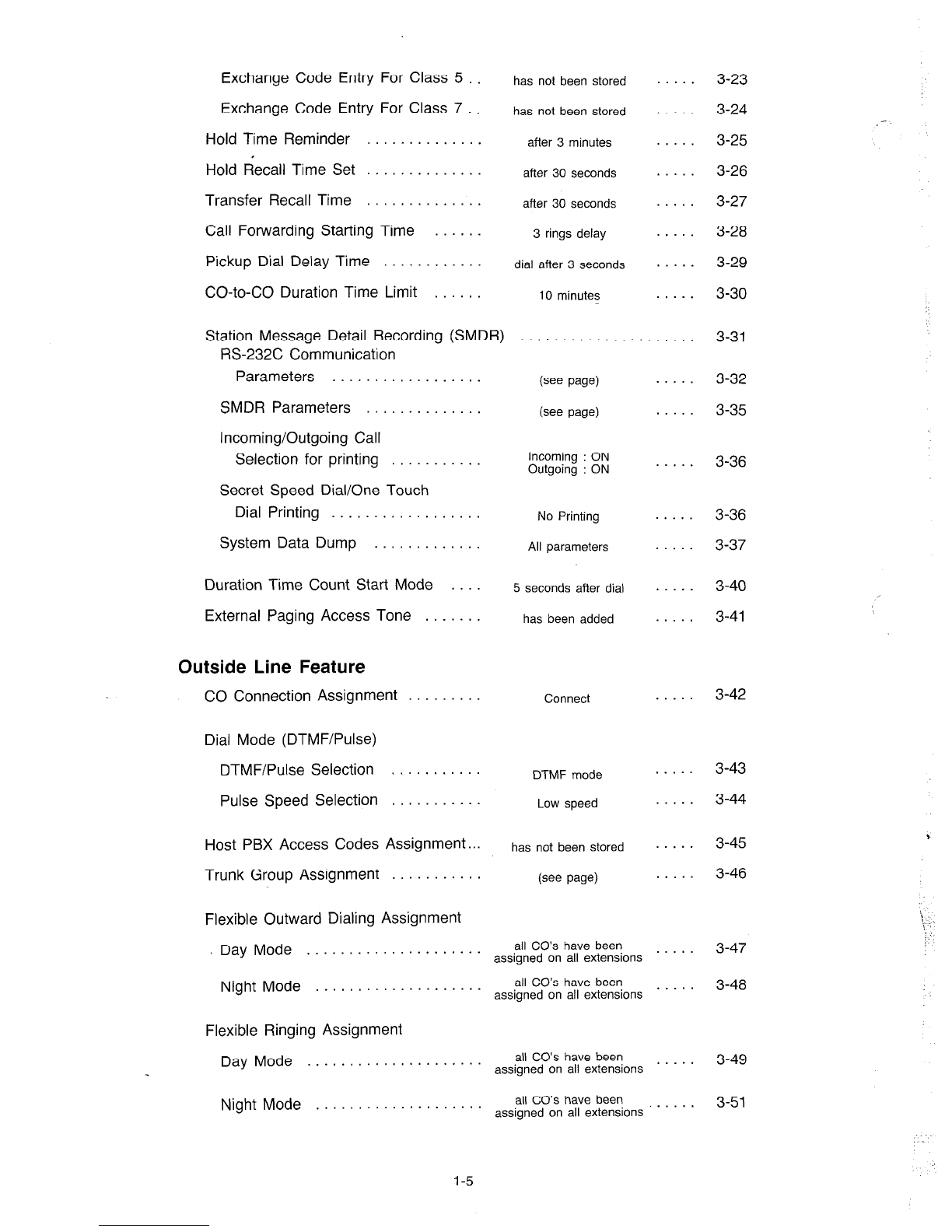

Outside Line Feature
CO Connection Assignment . . . . . .
Dial Mode (DTMF/PuIse)
DTMF/Pulse Selection
Pulse Speed Selection
DTMF mode
Low speed
Host PBX Access Codes Assignment..
has not been stored
Trunk Group Assignment
(see page)
Flexible Outward Dialing Assignment
Day Mode . . . . . . . . . . . . . . . . . . . . .
Night Mode . . . . . . . . .
Flexible Ringing Assignment
Day Mode . . . . . . . . . . . . . . . . . . . . .
Night Mode . . . . . . .
(seepage)
(seepage)
Incoming : ON
Outgoing : ON
No Printing
All parameters
5 seconds after dial
Connect
all CO’s have been
assigned on all extensions
all CO’s have been
assigned on all extensions
all CO’s have been
assigned on all extensions
all CO’s have been
assigned on all extensions
. . .
. . . .
.
.
. . . .
. .
. . .
. . . .
. . .
. . .
. . .
. . .
. . .
. . . .
. . .
. . .
. . .
. . .
. . .
. . . .
. . .
. .
. . . .
. . . . .
. . .
3-23
3-24
3-25
3-26
3-27
3-28
3-29
3-30
3-31
3-32
3-35
3-36
3-36
3-37
3-40
3-41
3-42
3-43
3-44
3-45
3-46
3-47
3-48
3-49
3-51
\:..
!
i :’ :
1-5

Delayed Ringing Assignment
Day ‘Mode . . . . . . . . . . . . . . .
Night Mode . . . . .
CO Direct In Line Assignment
Day Mode . . . . . . . . . . . . . . . . . . . . .
Night Mode . . . . . . . . . .
Pause Time Assignment . .
Hookswitch Flash Timing . . . . .
Calling Party Control (CPC) Signal .
Disconnect Time . .
Extension Feature
Extension Group Assignment . . .
Day Mode . . . . . . . . . . . . . . . . . . . . .
Night Mode . . . .
Extension Name . . . . . . . . .
Account Code input Mode . . . . .
Call Transfer to Outside Line . .
Call Forwarding to Outside Line .
Executive Override . . .
Do not Disturb Override . . . . . .
Class 1
Class 1
has not been stored
Option
Disable
Disable
Disable
Disable
...... 3-64
...... 3-66
...... 3-68
...... 3-70
...... 3-71
...... 3-72
...... 3-73
...... 3-74
Doorphone Feature
Ringing Assignment from Doorphone
Day Mode . . . . . . . . . . . . . . . . . . . . .
Night Mode . . . .
Call on Hold for Standard Telephone . . . . .
all extensions can
be received call
all extensions can
be received call
Hold-l mode
System Data Clear . . . . . . . .
All parameters
...... 3-75
...... 3-76
...... 3-77
..... 3-78
Example of Flexible CO Button . . . . . . . . . . . . . . . . . . . . . . . . . 3-81
lmmdtly
lmmdtly
Normal mode
Normal mode
3.5 seconds
600 m seconds
400 m seconds
1.5 second
Service Class Assignment of Toll Restriction
all CO’s have been
assigned on group 1
...... 3-52
...... 3-53
...... 3-54
...... 3-57
...... 3-59
...... 3-60
...... 3-61
...... 3-62
. . . . 3-63
1-6

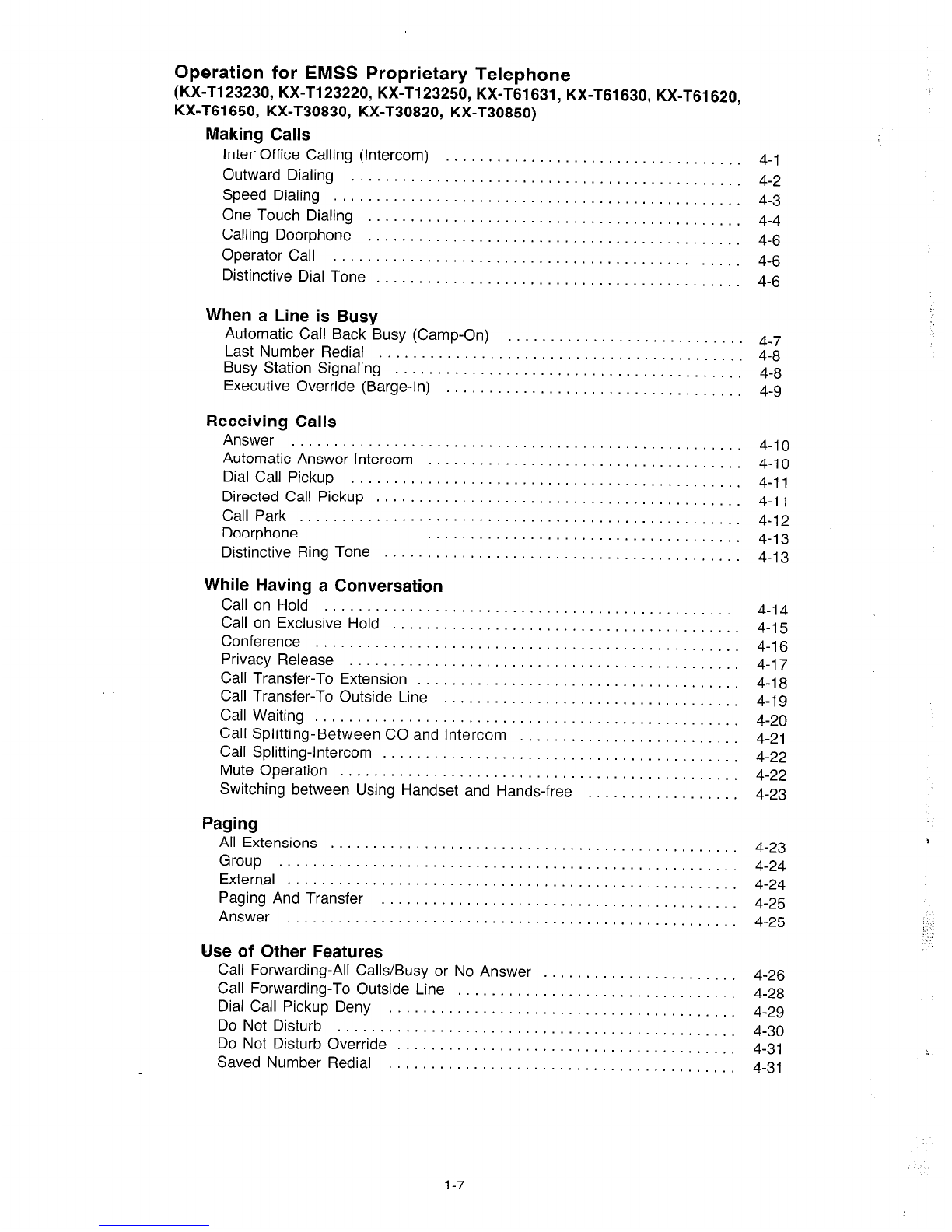

Operation for EMSS Proprietary Telephone
(KX-T123230, KX-T123220, KX-Tl23250, KX-T61631, KX-T61630, KX-T61620,
KX-T61650, KX-T30830, KX-T30820, KX-T30850)
Making Calls
Inter Office Calling (Intercom) . . . . . . . . . . . . . . . . . . . 4-1
Outward Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
One Touch Dialing . . . . . . . . . . . . . . . . . . . . . . . 4-4
Calling Doorphone . . . . . . . . . . . . . . . . . . . . . . 4-6
Operator Call . . . . . . . . . . . . . . . . . . . . . . . 4-6
Distinctive Dial Tone . . . . . . . . . . . . . . . . . . . . . . . 4-6
When a Line is Busy
Automatic Call Back Busy (Camp-On)
Last Number Redial . . . . . . . . . .
Busy Station Signaling . . . . . . . .
Executive Override (Barge-In) . .
Receiving Calls
Answer . . .
Automatic Answer-Intercom
Dial Call Pickup . . .
Directed Call Pickup . . . . .
Call Park . . .
Doorphone . . . . . . . . . .
Distinctive Ring Tone . . .
. . .
. .
. .
.
. . . . .
.................... ...... 4-7
.................... ...... 4-8
.................... ...... 4-8
.................... ...... 4-9
. .
.
.
. .
. . .
. .
. .
. .
. .
.
. . .
.
. . . 4-10
. 4-10
. 4-11
. . 4-l 1
. . 4-12
. . . 4-13
. . 4-13
While Having a Conversation
Call on Hold ................................................. 4-14
Call on Exclusive Hold ......................................... 4-15
Conference .................................................. 4-16
Privacy Release .............................................. 4-17
Call Transfer-To Extension ...................................... 4-l 8
Call Transfer-To Outside Line ................................... 4-19
Call Waiting .................................................. 4-20
Call Splitting-Between CO and Intercom .......................... 4-21
Call Splitting-Intercom .......................................... 4-22
Mute Operation ............................................... 4-22
Switching between Using Handset and Hands-free .................. 4-23
Paging
All Extensions . . . . .
Group . . . . . . . . . . . . . . . .
External . . . . . . . . .
Paging And Transfer .
Answer . . .
. .
......
......
......
......
Use of Other Features
Call Forwarding-All Calls/Busy or
Call Forwarding-To Outside Line
Dial Call Pickup Deny . . .
Do Not Disturb . . . . . .
Do Not Disturb Override . . .
Saved Number Redial . . .
No Answer .
............
............
............
............
............
..............
..............
..............
..............
..............
. .
. . .
. . .
. . .
. .
...... 4-23
...... 4-24
...... 4-24
...... 4-25
...... 4-25
. . . 4-26
. . . 4-28
. . . . 4-29
. . . 4-30
. 4-31
. . . . 4-31
1-7

Executive Override Deny .....................................
Switching to Tone Alerting ....................................
Background Music ..........................................
Absent Message Capability ...................................
Message Waiting ...........................................
Flexible Night Service .......................................
External Feature Access .....................................
Account Code ..............................................
Data line Security ...........................................
Call Waiting Tone-From CO/Extension Deny ......................
DSS Console (KX-T123240 or KX-T61640) ......................
Pulse/Tone Conversion ......................................
Station Feature Clear .......................................
Busy Lamp Field ...........................................
Power Failure Transfer .......................................
Duration Time of Call Display .................................
Lockout ...................................................
Mixed Station Dialing ........................................
. 4-32
. 4-33
4-33
4-34
. 4-36
. 4-37
. 4-38
4-39
. 4-41
. 4-42
. 4-43
. 4-45
. 4-45
. 4-46
. 4-47
. 4-47
. 4-47
4-47
Station Programming
One Touch Access for System Features
Auto CO Hunting ..................
Automatic Answering Selection .......
Flexible CO Button .................
Intercom Voice Alerting Mode ........
Flexible DSS Button ................
CO Line Ringing Selection ..........
Date and Time Setting ..............
Station Number Check ..............
F3-One Touch Button Mode Selection .
Call Waiting Tone Selection .........
Station Program Clear ..............
. . . . 4-48
. 4-49
. 4-51
. . . . 4-53
. . . . 4-56
. . . 4-57
. . 4-58
. . 4-59
. . . . 4-60
. . . 4-60
. . . 4-61
. . . 4-61
. .
. . .
. .
. . .
. . .
. .
.
. . .
. . . . . .
. . . .
. .
. .
.
. . . . . . .
. .
Operation for a Standard Telephone
Making Calls ........................
When a Line is Busy .................
Receiving Calls ......................
While Having a Conversation ..........
Paging .............................
Use of Other Features ................
. . 5-l
. . 5-2
. . . . . 5-3
. . . . 5-4
. . . . 5-7
. . . 5-8
. . . . . . . .
. . .
. .
. .
. .
. . . .
. . . .
. . . .
Troubleshooting ......................
Table of System Features ..............
List of Tones .........................
List of Ring Tones ....................
Specification .........................
Telephone Company and
FCC Requirements and Responsibilities
Others ..............................
Warranty ............................
Servicenter List .......................
Phone Number Directory ...............
Programming Table ...................
Index ...............................
. . . . .
. . . . 6-1
. 6-5
6-6
6-6
6-7
,
. . .
. . . .
. .
.
. . .
. .
. .
.
. 6-8
. 6-9
. 6-10
. . 6-11
. 7-l
. 7-3
. . 7-26
. . . .
. . .
. . .
.
. .
. .
. . .
. .
. . .
. .
. .
.
. . . . . .
. . . . . .
. .
1-8

INSTALLATION (Quick Reference)
(See page 2-2)
For earth ground, see page 2-2.
(See page 2-3)
1. Place the templet (included) on the wall
to mark the 3 screw positions.
2. Install the 3 screws into the wall.
3. Hook the unit on the screw heads.
b . _ . . . +
- . . . . . . . . . --__A
templet
El
b___ ____*
(See page 2-4)
1. Unscrew the front cover of the unit.
There are four screws.
2. Open the front cover in the direction of
the arrow @.
(See page 2-7)
modul
Use 2.
wiring
\ CC6
l To Terminal Board or Modular Jacks from
the Central Office (CO).
(See page 2-8)
To Extensions (jack number 9 through 16)
To Extensions (jack number 1 through 8)
(See page 2-4)
Proprietary Telephone
26 AWG: Under 460 feet
24 AWG: Under 750 feet Twisted cable
22 AWG: Under 1180 feet
1
Standard Telephone
26 AWG: Under 2290 feet
24 AWG: Under 3700 feet Twisted cable
22 AWG: Under 5900 feet
1
I

Cable Pin Numbers to be connected
n Connection of the Proprietary Telephone
(4-conductor wiring is required for each
extension.)
2ONN.
CABLE
PIN COLOR
26 WHT-BLU
1 BLU-WHT
27 WHT-ORN
2 ORN-WHT
28 WHT-GRN
3 GRN-WHT
29 WHT-BRN
4 BRN-WHT‘
30 WHT-SLT
5 SLT-WHT
31 RED-BLU’
6 BLU-RED
32 RED-ORN
7 ORN-RED
33 RED-GRN
8 GRN-RED
34 RED-BRN
42 - YEL-ORN
17 ORN-YEL
43 YEL-GRN
19 BRN-YEL 38
45 YEL-SLT 39
20 SLT-YEL 40
46 VIO-BLU 41
CLIP
NO.
7
8
9
10
11
1213
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
42
43
LC-1 I LC-2
ORN-VI0 44
VIO-GRN 45
GRN-VI0 46
I
T T
JACK D”1 JACK D?
NO.8 D2 NO.16 D;
R : Ring D2 : Data 2
T T
JACK ;l JACK ;A
NO.1 D2 NO.9 D2
T T
JACK 4 JACK D”1
NO.2 D2 NO.10 D2
T T
JACK D”1 JACK D”1
NO.3 D2 NO.11 Dz
T T
JACK : JACK :
NO.4 D2 NO.12 D4
T T
JACK Dy JACK D”1
NO.5 D2 NO.13 D4
T T
JACK : JACK ti
NO.6 D2 NO.14 D4
T T
JACK ;I JACK c1”1
NO.7 D2 NO.15 D;
Connection of a Standard Telephone
(2-conductor wiring is required for each
extension.)
Connect the pin number of “T” and “R”
only.
1.
2.
3.
To protect the printed circuit board from
static electricity, first discharge any body
static by touching the metal board.
Loosen the screws to remove the metal
board.
The location of the optional cards for the
KX-T123210 is shown in the following.
metal board
Screw
I
DSS Console Card
KX-T123241
(For DSS Console)
/
A
// \
Y
Expansion Card
Expansion Card
[
KX-T123270 (8 Extension’s) 1
KX-I123280 (4 CO’s)
KX-Tl23281 (2 CO’s)
KX-T123271 (4 Extension’s)
l-10

(See page 2-10)
50 pin
(Amphenol 57JE
series)
(See page 2-14)
Optional DSS Console Card
Extensions (jack number 25 through
, or 25 through 32)
optional Expansion Card
II KX-T123270 (8 Extension’s)
KX-T123271 (4 Extension’s)
Jack no. -ii
17 through 24 ’ ’
To Extensions (jack number 17 through
20, or 17 through 24)
(See page 2-12) Optional Expansion Card
KX-Tl23280 (4 CO’s)
KX-Tl23281 (2 CO’s)
Use 2-conductor
To Terhinal Board or Modular Jacks
from the Central Office (CO).
Pair Telephone DSS Console
v
pair
l The DSS Console (KX-Tl23240 or
KX-T61640) needs a paired Telephone (EMSS
Proprietary Telephone) for proper operation,
because the DSS console cannot work by
itself.
l When using the DSS Console, program must
be done. See page 3-10. t
(See page 2-17)
KX-T123210 Battery Adaptor (KX-A26) option
Car type batteries
l Consisting of two 12 VDC (24 VDC)
l 16 amp / hour maximum rating
I-11

(See page 2-l 5.) ’
1 Doorphone Adaptor
(KX-i30860D only)
CPU
Card
After drawing a
CPU Card, insert
adaptor connector
into connector on
the CPU Card. .
4-conductor wiring
Doorphone
The max. length
4 *
26 AWG : Under 230 feet
24 AWG : Under 370 feet Twisted cable
22 AWG : Under 590 feet
Paging Equipment 2 u
(See page 2-20.)
KX-Tl23210
EXT dusic Jack
l-l
(See page 2-18.)
KX-Tl23210
Serial Printer Serial Interface
(RS-232C)
l Cables must be shielded and the maximum
length is 6.5 feet.
Connection Chart:
KX-Tl23210 RS-232C
Printer RS-232C
CD DTR
I
I I
I
Communication parameters
If the Panasonic printer which is used has a
(KX- Pl 1 D or KX- P17) board and is connected
to the KX-Tl23210, set the communication
parameters the following.
\
KX-PI 1D KX-P17
KX-Tl23210 DIP DIP
ISwitch Setting Switch Setting
ON SWl-4 ON
Word
length 7bit SWl-1 (default)
Pin
No.
1
2
3
5
46
7
20
Circuit
!ror, zirmai Type
(ElA)
-1 FG AA
-3 RXD BB
-2 TXD BA
20 DTR CD
-7 SG AB
5 CTS CB
6 DSR CC
7 8 1 DCD 1 CF 1
Parity
Baud
Rate
Protocol
Program to SWl-2
“EVEN”
(see page
3-32.) SWl-3
1200B SWl-5
(default) SWl-6
SWl-7
SWl-8
XON I SW2-8
XOFF
mode only
ON SWl-5 OFF
ON SWl-6 OFF
ON SWl-1 OFF
OFF SWl-2 OFF
OFF SWl-3 ON
OFF
OFF SWl-8 ON
I
I I
I

PROGRAMMING (Quick Reference)
System Feature
AGE
TO SET
Iate and Time
jetting
PROGRAM
ADDRESS ,
STEPS REQUIRED TO CHANGE PROGRAM
n..‘year !...month
:...,-jay :....
hour
:.-day of the week
DEFAULT P,
FOR
DETAIL’
/
3-4
System Speed
Iialing Entry
i .._minute i .....-AM / PM
Extension
Number
Assignment
qq : access number of
Trunk Group
............. Speed access code (00 through 99)
1
~ IMEMOBY]~END
Nothing is stored
3-5
:.....dial the extension number (lOOthrough 199)
:.........,until the desired jack number appears
101 : jack number 01
102 :jack number 02
3-8
131 : jack number 31
132 : jack number 32
Iperator
qssignment lo _..._ dial the jack number which is set operator Nothing is stored
3-9
_.....
until the desired operator number appears
‘aired Telephone
jssignment for
ISS Console !..... jack number paired jack number 01
: console 1
with console 2 jack number 02
3-10
:. jack number paired with console 1
: console 2
Uomatic CO
M&king DSS bd kkd kk@ m hd
With Transfer
3-11
“““With Transfer / Without Transfer
lay/Night Service
vlode
Switching of
Service Mode
’
Starting Time
‘.““Manual / Automatic Manual
3-12
n...minute ...... AM I PM
:. - starting time for night service (hour)
Zall Hunting
Setting Ga = Disable
: all 8
:.......... Disable / Enable extension
3-15
-......- until the desired extension group number appears groups
Hunting Type lzl La .......Terminate / Circular Terminate
: all 8
extension 3- 16
....
until the desired extension group number appears groups
2
?RAb
BLE
-
1
-
3
3
- I
3
3
-
4
-
4
4
4
-
1-13

l- 1
DEFAULT P/
FOR
DETAIL:
3-18
SE
FiOGRAh
TABLE
Type A 7-4
Class 1
3-19 7-4
Restriction
3-20 7-5
Nothing is stored
3-21 7-5
Nothing is stored
3-22 7-5
Nothing is stored
3-23 7-5
Nothing is stored
3-24 7-6
STEPS REQUIRED TO CHANGE PROGRAM
,
[NEXTIkiyiKmm
.......Type A/ Type B I Type C
lNEXTll$lKiFlllhnEMORY
‘.........dial the boundary class number (1 through 8)
lNEXTl~llYlEMORYI
....... Restriction / No restriction
I
~ IMEM~R~I lENDl
:.....exchange code with 3 digits
:......... until the desired memory code number appears
I
&id IMEMORY I lEND
-‘.... area code with 3 digits
:........., until the desired memory code number appears
-....- exchange code with 3 digits
:........., until the desired memory code numberappears
I
lCDE IMEMORY I lEND
i.....exchange code with 3 digits
:........., until the desired memorycode number appears
TO SET
Toll Restriction
Area Type
Selection
‘ROGRAM
DDRESS
CO Operator
Call-Boundary
Class
Toll Restriction
of Speed Dialing
Exchange
Code Selection
Area Code Entry
for class 3
Exchange Code
Entry for Class 5
Exchange Code
Entry for Class 7
TO SET l;;;;g ( PROGRAMMINGIpyBEM
‘ROGRAM
TABLE
TO SET ;“,“,;;;; PRO GRAM MINC
i I
Hold Time
Reminder
I I
El
Refer to page 3-25
7-6
Hold Recall
Time Set
I I
IEI
Refer to page 3-26 7-6 7-8
7-8
Incoming/
Outgoing call
Selection for 12
printing
Refer to page 3-36
Secret Speed
dial/One Touch m
Dial Printino
Pickup Dial
Delay Time Refer to page 3-36
7-8
7-8
Refer to 3-29 7-6
page
System Data
Dump
I I
12
Refer to page 3-37
co-to-co
Duration Time
Limit
El
Refer to page 3-30
7-7
Duration Time
Count Start Mode 12
External Paging
Access Tone Refer to page 3-41
7-9
Refer to page 3-40
l-14

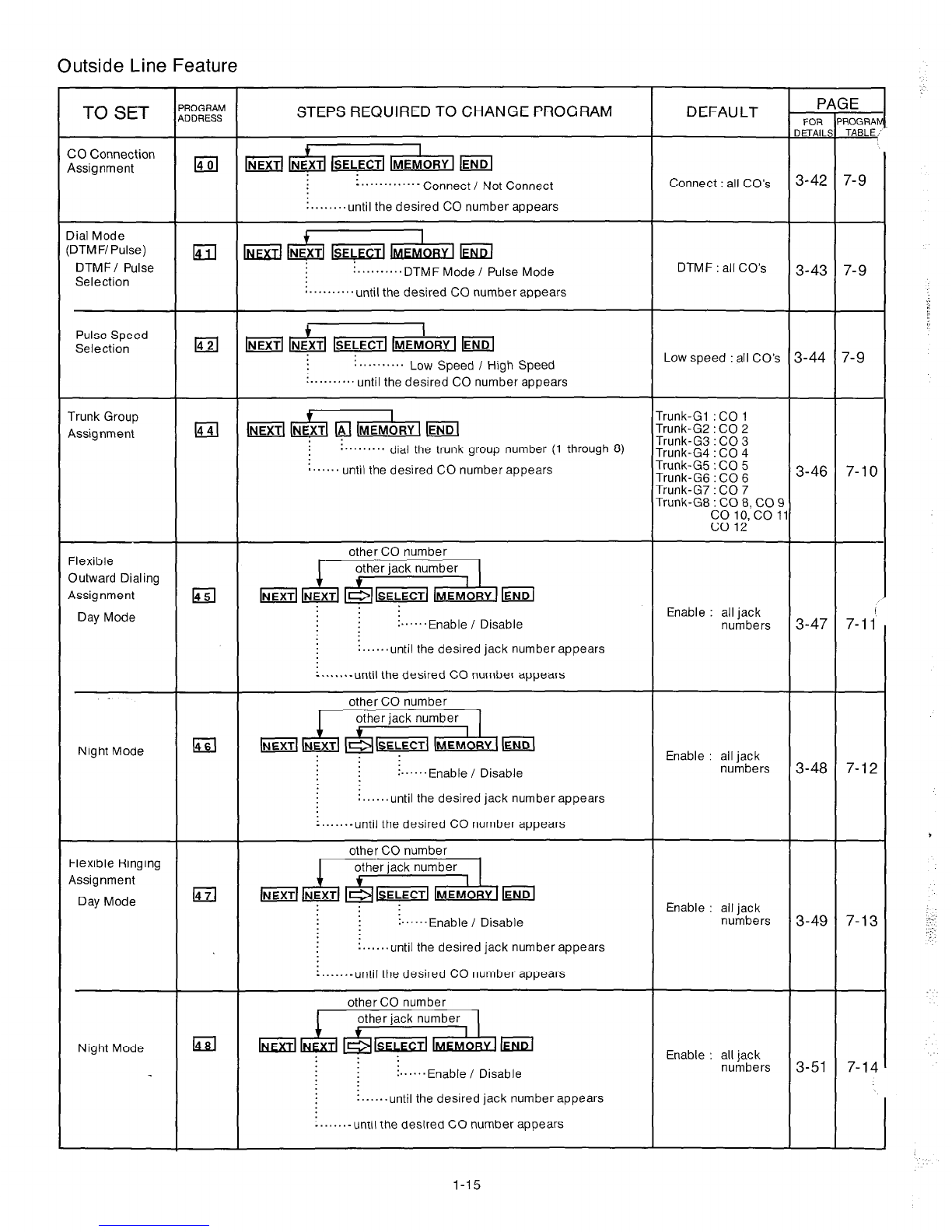

Outside Line Feature
T
STEPS REQUIRED TO CHANGE PROGRAM DEFAU LT
TO SET
ROGRAM
ODRESS
PAGE
FOR
m
Connect : all CO’s
3-42
DTMF : all CO’s
3-43
ROGRA
w
7-9
7-9
CO Connection
Assignment
I
-1 IMEMORY I /EiEl
‘..“.‘....‘.- Connect / Not Connect
i........until the desired CO number appears
14
Iid
I
@KZl IMFMORY I kcd
!..........DTMF Mode / Pulse Mode
Iial Mode
DTM F/ Pulse)
DTMF / Pulse
Selection o..........until the desired CO number appears
Pulse Speed
Selection
14
Low speed : all CO’s
3-44 7-9
: .......... Low Speed / High Speed
:.......... until the desired CO number appears
Trunk Group
Assignment ‘runk-Gl co1
‘runk-G2 co2
‘runk-G3 co3
‘runk-G4 co4
‘runk-GS co5
.runk-G6 CO6
.runk-G7 : CO 7
‘runk-G8 : CO 8, CO 5
co 10, co 1
co 12
(4
;......... dial the trunk group number (1 through 8)
....... until the desired CO number appears
3-46 7-1c
3-47 /
7-11
other CO number
Flexible
Outward Dialing
Assignment
Day Mode
la
Enable : all jack
numbers
:......Enabl e / Disable
:......unti I the desired jack number appears
:-.....-until the desired CO number appears
other CO number
i......Enabl e / Disable
:......unti I the desired jack number appears
:......-unti I the desired CO number appears
La
(4
Night Mode Enable all jack
numbers
3-48 7-12
7-13
3-49
other CO number
other jack number
*
w /NEXTI Ia
:......Enable / Disable
:......until the desired jack number appears
i......-until the desired CO number appears
other CO number
other jack number
t
I
m F UT [MFMoRY’IFJJKJ
:......Enable / Disable
:......until the desired jack number appears
Flexible Ringing
Assignment
Day Mode Enable
: all jack
numbers
Night Mode Enable
: all jack
numbers
3-51 7-14
:......-until the desired CO number appears

l-
T
‘ROGRAM
,DDRESS
PI
STEPS REQUIRED TO CHANGE PROGRAM DEFAULT
FOR
IETAILE
;E
ROGRAh
TABLE
Normal : all CO’s
3-54 7-19
TO SET
CO Direct In Line
Assignment
Day Mode
1511
l Selecting “Normal” mode
+
I
lNEXTl&lSELECTllNlEMORYI
:............. Norma,
:........until the desired CO number appears
l Selecting “DIL” mode
lsELECTl ICDI IMEMORY I Eid
!. DIL !. . . . Dial jack number
:.......... until the desired CO number appears
Night Mode
El
o Selecting “Normal” mode
:............. Norma,
:........until the desired CO number appears
. Selecting “DIL” mode Normal
: all CO’s
3-57 7-19
:.. DIL :.......... Dial jack number
........... until the desired CO number appears
Host PBX Access
PROGRAMMING
‘ROGRAM
TABLE
7-10
Pause Time
Assignment Refer to page 3-59
I 7-20
Refer to page 3-45
Delayed Ringing
Assignment 14
Day Mode
Hookswitch Flash
Timing
I I
15
Refer to page 3-60
7-20
7-15
7-16
7-17
7-18
Refer to page 3-52
Calling Party
Control (CPC) w
Signal
Refer to page 3-61
7-20
Night Mode 15 Refer to page 3-53
Disconnect Time lss]
I I
Refer to page 3-62
7-20
Extension Fea ure
1
‘ROGRAM
,DDRESS
STEPS REQUIRED TO CHANGE PROGRAM DEFAULT PI
FOR
DETAIL:
SE
‘ROG RAP
TABLE
3-63 7-21
TO SET
El
i....- dial the extension group number (1 through 8)
i.......until the desired jack number appears
Extension
Group
Assignment
Call Transfer _
TO Outside Line
EXT GRP- 1 : all
jack numbers
f
I
‘““‘yTMm
:- Enable / Disable
i.......until the desired jack number appears
1-16
kzil
Disable : all jack
numbers
3-71 7-23
I

T
TO SET
ROGRAM
DDRESS
STEPS REQUIRED TO CHANGE PROGRAM
pa+ii&lm i....
dial the service class number (1 through 8)
;-......until the desired jack number appears
++z&lW
:....-dial the service class number (1 through 8)
;.......until the desired jack number appears
6lb-m
:- Enable / Disable
;.......until the desired jack number appears
I
ml IMEM~RY 1EiiiZl
i- Enable / Disable
;.......until the desired jack number appears
I
1-1 IP.~EMoRY I @El
:......- Enable / Disable
*.....’ until the desired jack number appears
DEFAULT
Class 1 : all jack
numbers
Class 1 : all jack
numbers
Disable : all jack
numbers
Disable : all jack
number?
Disable : all jack
number!
FOR
IETAIL’
A
3-64
3-66
Service Class
Assignment of
Toll Restriction
Day Mode
t
7-21
7-22
3-72 7-23
3-73
3-74
7-23
( TO SET I;“,;;:&! 1 PROGRAMMING 1pyBy I( TO SET I;;“,;;;: 1 PROGRAMMING
7-24
‘ROGRAM
TABLE
1611
El
Night Mode
Call Forwarding
To Outside Line
IGil
Excecutive
Override
la
Ed
Do not Disturb
Override
I
TO SET
STEPS REQUIRED TO CHANGE PROGRAM DEFAULT
‘ROGRAM
,DDRESS FOR
,ETAILI
3-78
ROGRAI
aku
System Data
Clear
l All Parameters
0 System Parameter
l Speed Call
~ &+&l lEND
..““” All Para I System Para I CO Para I EXT Para I
DSS Parai Speed Call
0 CO Parameter
=I-_ n.....dial CO number
.........- until the CO Para appears
o EXT Parameter
I
~ F liiiiza g bFMORYl kJ!d
:.,.,-dial jack number
:..........until the EXT Para appears
l DSS Parameter +
I
~~~tt$hWdEl!d
:....-dial DSSnumber (1 or 2)
:........- until the DSS Para appears
All Parameters
1-17

OPERATION FOR EMSS PROPRIETARY TEbEPHONE
(Quick Reference)
MAKING CALLS
l Lift the handset or press the SP-PHONE button first.
l After finishing your conversation, hang up the handset or
press the SP-PHONE button.
INTER OFFICE CALLING
(Intercom) Dial extension no. (100 through 199)
OUTWARD DIALING
Individual Line Access m-1
Automatic Line Access mm
Individual Trunk
TUV
Group Access lo 8 Dial Trunk
I
Group number v
(1 through 8)
For further
details, see
page
below
4- 1
4-2
4-2
4-3
SPEED DIALING
ONE TOUCH DIALING
l”iD
01
Q Dial speed access code (00 through 99)
0
[,, (Press the PROGRAMMABLE
FEATURE button.)
4-3
4-4
WHEN A LINE IS BUSY
AUTOMATIC CALL BACK
BUSY
For Outside Calls HW@JV/
4-7
For Intercom Calls mmB-1
BUSY STATION
SIGNALING mvp 4-8
LAST NUMBER REDIAL pj$$qm 4-8
EXECUTIVE OVERRIDE
(Barge-in) 4-9
ANSWER
DIAL CALL PICKUP
RECEIVING CALLS
m or q 4- 10;;;;K’;;ssthe CO or
I-18

WHILE HAVING A CONVERSATION
CALL PARK
CALL ON HOLD
CONFERENCE
CALL TRANSFER-
TO EXTENSION
To Transfer after the
Other Extension Answers
‘TO OUTSIDE LINE
To transfer after the
Other Outside party
Answers
CALL WAITING
To place the Original
Call on Hold and Talk to
the New Caller
To retrieve a parked call at any extension
m-1
To place call on hold
i
To retrieve I
(Outside calls on hold) i (Intercom call on hold)
I
l at the holdina extension :
l at the holding extension 4- 14
! l from another extension
a from another extension
l To terminate the original call and talk to the new caller,
you need not to press the HOLD button.
4- 12
4- 16
4- 18
4- 19
4- 20
PAGING
Lift the handset or press the SP-PHONE button first.
PAGING ALL
EXTENSIONS
To Access 4 - 23
PAGING GROUP
_ To Access
ANSWER
To Paging through
Built-in Speaker _./....
.:..
