Panasonic KX-TSC11 User manual

Useful InformationBasic OperationPreparation Advanced Operation
PLEASE READ BEFORE USE AND SAVE.
Panasonic World Wide Web address: http://www.panasonic.com
for customers in the USA or Puerto Rico
Caller ID Compatible
Integrated Telephone System
Operating Instructions
Model No. KX-TSC11W
KX-TSC11B
Pulse-or-tone dialing capability
KX-TSC11W
E-PQQX14369ZA.book 1 ページ ２００４年１２月１７日 金曜日 午後３時１９分

2
Before Initial Use
Please read IMPORTANT SAFETY INSTRUCTIONS on page 37
before use. Read and understand all instructions.
Thank you for purchasing your new Panasonic integrated
telephone.
For your future reference
Serial No. Date of purchase
(found on the rear of the unit)
Name and address of dealer
Accessories (included)
To order replacement accessories, call 1-800-332-5368.
TTY users (hearing or speech impaired users) can call 1-866-605-1277.
Caller ID, Call Waiting and Voice Mail Service, where available, are
telephone company services. After subscribing to Caller ID, this phone
will display a caller’s name and phone number. Call Waiting Caller ID,
which displays a second caller’s name and phone number while the user
is on another call, requires a subscription to both Caller ID and Call
Waiting. After subscribing to Voice Mail Service, this phone’s message-
waiting display will be shown when there are messages in the mail box.
Handset (p. 6)
Order No.
PQJXE0411Z (White)
PQJXE0401Z (Black)
one
Handset Cord (p. 6)
Order No.
PQJA212M (White)
PQJA212N (Black)
one
Telephone Line
Cord (p. 6)
Order No.
PQJA10075Z
one
Attach your purchase receipt here.
E-PQQX14369ZA.book 2 ページ ２００４年１２月８日 水曜日 午後５時１分

3
Useful InformationBasic OperationPreparation Advanced Operation
For assistance, please call: 1-800-211-PANA(7262)
Location of Controls . . . . . . . . . 4
Display . . . . . . . . . . . . . . . . . . . . 5
Settings . . . . . . . . . . . . . . . . . . . . 6
Installing the Batteries . . . . . . . . 6
Connecting the Handset/
Telephone Line Cord . . . . . . . . 6
Programming Summary . . . . . . . 7
Time and Date . . . . . . . . . . . . . . 8
Dialing Mode . . . . . . . . . . . . . . 10
LCD Contrast . . . . . . . . . . . . . . 11
Ringer Volume . . . . . . . . . . . . . 11
Caller ID Number Auto Edit . . . 12
Voice Mail Tone . . . . . . . . . . . . 13
Display Language . . . . . . . . . . 14
Making Calls . . . . . . . . . . . . . . . 15
Answering Calls . . . . . . . . . . . . 16
Caller ID Service . . . . . . . . . . . 16
Using the Caller List . . . . . . . . 17
Viewing the Caller List . . . . . . . 17
Calling Back from the Caller
List . . . . . . . . . . . . . . . . . . . . . 19
Editing the Caller’s Phone
Number . . . . . . . . . . . . . . . . . 19
Storing Caller List Information in
the Phone Book List . . . . . . . 20
Erasing Caller List
Information . . . . . . . . . . . . . . 21
Phone Book . . . . . . . . . . . . . . . 22
Storing Names and Phone
Numbers in the Phone Book
List . . . . . . . . . . . . . . . . . . . . . 22
Dialing from the Phone Book . . 25
Chain Dial . . . . . . . . . . . . . . . . 26
Editing . . . . . . . . . . . . . . . . . . . 27
Erasing . . . . . . . . . . . . . . . . . . . 28
Voice Mail Service . . . . . . . . . . 28
Listening to Voice Mail
Message(s) . . . . . . . . . . . . . . 28
Special Features . . . . . . . . . . . . 29
Temporary Tone Dialing
(For Rotary or Pulse Service
Users) . . . . . . . . . . . . . . . . . . 29
How to Use the PAUSE Button
(For PBX Line/Long Distance
Calls) . . . . . . . . . . . . . . . . . . . 29
For Call Waiting Service
Users . . . . . . . . . . . . . . . . . . . 29
Mute . . . . . . . . . . . . . . . . . . . . . 30
FLASH Button . . . . . . . . . . . . . 30
Setting the Password . . . . . . . . 31
Call Restriction . . . . . . . . . . . . . 32
Wall Mounting . . . . . . . . . . . . . . 33
Battery Replacement . . . . . . . . 34
Troubleshooting . . . . . . . . . . . . 35
Important Safety Instructions . 37
Specifications . . . . . . . . . . . . . . 39
FCC and Other Information . . . 40
Index . . . . . . . . . . . . . . . . . . . . . 42
Warranty . . . . . . . . . . . . . . . . . . 43
Customer Services . . . . . . . . . . 45
Preparation
Basic Operation
Advanced Operation
Useful Information
Contents
E-PQQX14369ZATOC.fm 3ページ ２００４年１２月１７日 金曜日 午後３時５１分

4
Location of Controls
How to use the Navigator key
This key has four active areas that are indicated by arrows.
• Pressing the up and down arrows allows you to enter the
Caller List and select the function menu, the Caller List and
the Phone Book List. The up and down arrows are also used
to adjust the receiver volume while talking.
• Pressing the right and left arrows allows you to enter the
Phone Book List and move the cursor when entering items.
Throughout these Operating Instructions, the navigator key is indicated by
the arrows [] , [] , [] or [] .
CLEAR
EXIT
FUNCTION
2
ABC
3
DEF
1
5
JKL
6
MNO
4
GHI
8
TUV
9
WXYZ
7
PQRS
0
TONE
FLASH
REDIAL
PAUSE
LOUD/
SEARCH
ENTER
EDIT
MUTE
OPER
[ENTER] Button (p. 7, 20, 22)
[CLEAR] Button (p. 21, 22, 28)
[FUNCTION/EXIT] Button (p. 7, 17, 22)
[TONE] Button (p. 29)
RINGER Selector (p. 11) Display (p. 5)
Navigator Key
([ ], [],[], [])
▼
▼
▼
▼
[MUTE] Button
(p. 30)
[REDIAL] Button (p. 15)
[FLASH] Button (p. 30)
[PAUSE] Button (p. 29)
▼
▼
▼
▼
E-PQQX14369ZA.book 4 ページ ２００４年１２月１０日 金曜日 午後４時１分

5
Preparation
For assistance, please call: 1-800-211-PANA(7262)
Display
(This display shows all of the possible
configurations.)
While the unit is not in use, the display
shows the current time and date, and the
number of new calls.
If the display continuously shows “ 12:00
AM
12/31 ” or “ 0:00 12/31 ”, the clock needs
adjustment (p. 8, 9).
During a conversation, the display shows
the length of the call (Ex. 1 hour, 6 minutes
and 35 seconds).
This is a display from the Caller List. The
display shows:
— the caller’s name and number,
— the time and date of the last call
(Ex. Nov. 23, 11:50 AM),
— the caller’s information is new and has
not been viewed (“ NEW ” is displayed),
and
— the number of times called (Ex. 3 times).
: [MUTE] was pressed during a conversation (p. 30).
: The second call has been received while talking (p. 29).
: The unit enters in the Phone Book List (p. 20).
: [REDIAL] was pressed while the handset is on the cradle (p. 15).
: This display flashes, when the battery power is low. Replace the
batteries (p. 34).
: The voice mail message(s) is/are recorded (p. 28).
: [PAUSE] was pressed while dialing or storing phone numbers.
: [FLASH] was pressed while storing phone numbers.
1234567890123456
10 MISSED CALLS
12:34
AM
11/24
12:00
AM
12/31
01-06-35
12:34
AM
11/24
SMITH,JOHN
11:50
AM
11/23 NEW x3
P
F
E-PQQX14369ZA.book 5 ページ ２００４年１２月１７日 金曜日 午後３時１９分

6
Settings

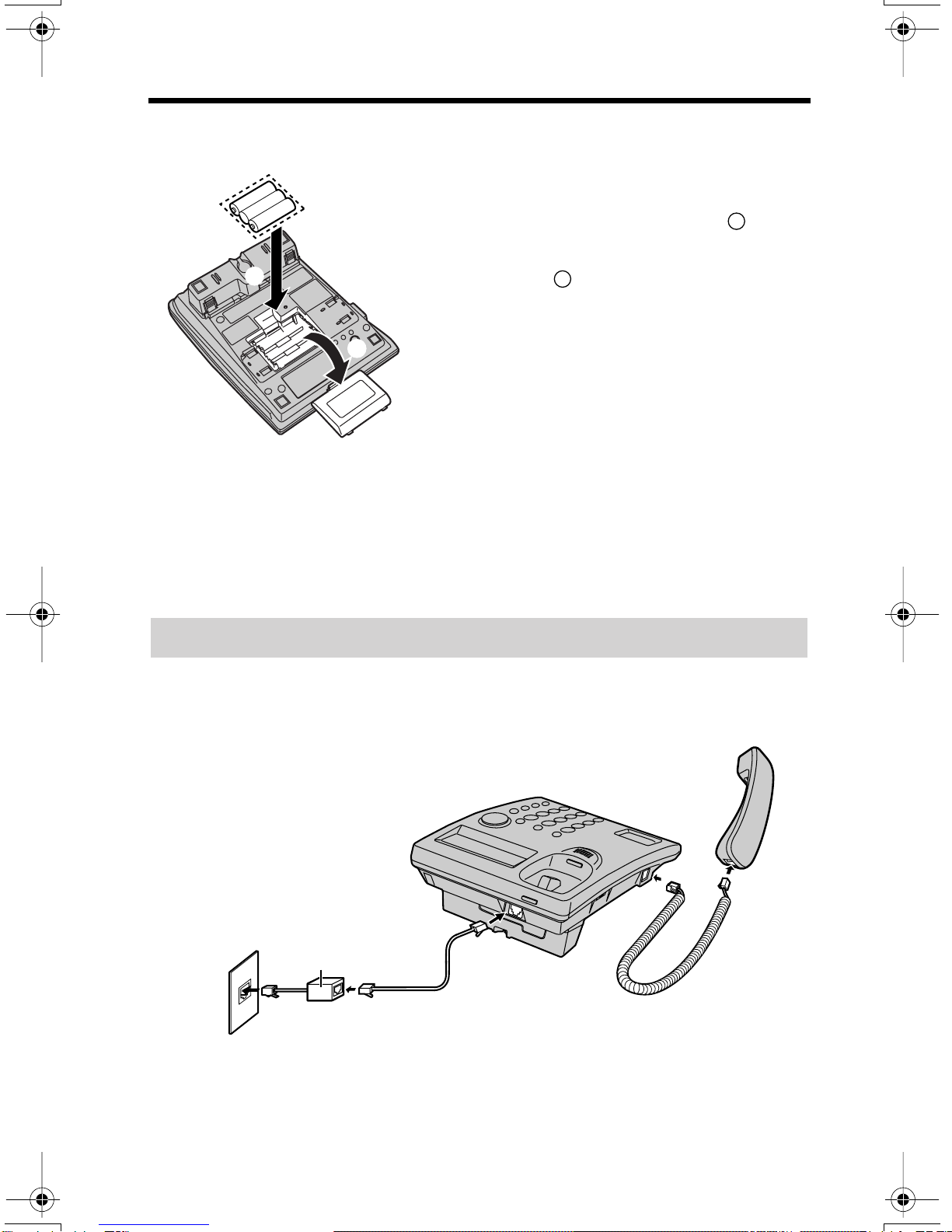

Installing the Batteries
1
Press down in the direction of the arrow
and remove the battery cover ( ).
2
Install the batteries in the proper order
as shown ( ), matching the correct
polarity.
3
Close the battery cover.
• Batteries are not included in the unit.
• Install three high quality “AA” size Alkaline (LR6) or Manganese (R6, UM-3)
batteries. We recommend to use Panasonic Alkaline batteries.
Battery life is: —about six months in use of Alkaline batteries.
—about three months in use of Manganese batteries.
Battery life may depend on usage conditions and ambient temperature.
• Make sure batteries were inserted properly to ensure the functionality of this unit.
Connecting the Handset/Telephone Line Cord
After connection, lift the handset to check for a dial tone.
If you subscribe to an xDSL service
Please attach a noise filter (contact your xDSL provider) to the telephone line
between the base unit and the telephone line jack in the event of the following:
— Noise is heard during conversations.
— Caller ID features (p. 16) do not function properly.
THE UNIT MAY NOT WORK PROPERLY WITHOUT BATTERIES.
1
+
-
-
+
+
-
2
1
2
Telephone Line
Cord
To Single-Line
Telephone Jack
(RJ11C)
Handset Cord
Handset
Noise filter
(For xDSL users)
E-PQQX143691.fm 6ページ ２００５年２月２５日 金曜日 午後５時９分

7
Preparation
For assistance, please call: 1-800-211-PANA(7262)
• Use only a Panasonic Handset for the KX-TSC11W or KX-TSC11B.
• Use only a telephone line cord included in the unit.
• If your unit is connected to a PBX which does not support Caller ID services,
you cannot access those services.
Programming Summary
You can program the following functions. The display shows the
programming instructions. See the corresponding pages for function
details.
Make sure that the handset is on the cradle.
During programming
* To select a desired function item, scroll through the items by pressing []
or [] . Then press [ENTER] to go to the next step.
• You can exit the programming mode any time by pressing [FUNCTION/EXIT] .
• If you do not press any buttons for 60 seconds, the unit will exit the programming
mode.
Press [FUNCTION/EXIT] .
<Function menu>*
SAVE PHONEBOOK ? . . . . .To store names and phone numbers in
memory (p. 22).
SET CLOCK ? . . . . . . . . . .To adjust the time and date (p. 8).
CHANGE PASSWORD? . . . . .To change the password for the call
restriction (p. 31).
CALL RESTRICT ? . . . . . .To set the call restriction (p. 32).
SET FLASH TIME ? . . . . .To select the flash time (p. 30).
SET DIAL MODE ? . . . . . .To select the dialing mode (p. 10).
LCD CONTRAST ? . . . . . . .To select the LCD contrast (p. 11).
SET AUTO EDIT ? . . . . . .To set the Auto Edit (p. 12)
VM TONE DETECT ? . . . . .To select the Voice Mail Tone detect (p. 13).
CHANGE LANGUAGE? . . . . .To select the display language (p. 14).
▼
▼
E-PQQX14369ZA.book 7 ページ ２００４年１２月１０日 金曜日 午後４時１分

Settings
8
Time and Date
You can select AM/PM or 24-hour clock by programming.
Make sure that the handset is on the cradle.
1
Press [FUNCTION/EXIT] .
2
Scroll to “ SET CLOCK ? ” by
pressing [] or [] .
3
Press [ENTER] .
4
Enter the current year.
(Ex. To set 2004, enter “04”.)
• You can set the year 2000 to 2099.
5
Press [ENTER] .
6
Enter the current time (hour and
minute) using a 4-digit number.
(Ex. To set 9:30, enter “0930”.)
• For AM/PM setting: Enter numbers
between 0100 and 1259.
• For 24-hour clock: Enter numbers
between 0000 and 2359.
7
Press [ENTER] .
• If numbers between 0000 and 0059, or
1300 and 2359 are entered, the time will
automatically be set using the
24-hour clock. Go to the step 10.
SET CLOCK ?
▼
▼
ENTER YEAR 2004
12:00
AM
12/31
ENTER YEAR 2004
12:00
AM
12/31
ENTER TIME
12:00
AM
12/31
ENTER TIME
09:30
AM
12/31
#=AM/PM
09:30
AM
12/31
E-PQQX14369ZA.book 8 ページ ２００４年１２月１０日 金曜日 午後４時１分

9
Preparation
For assistance, please call: 1-800-211-PANA(7262)
8
Press [#] to select “AM”, “PM” or 24-
hour clock.
(Ex. You select “PM”.)
• Each time you press [#] , the selection will
change on the display.
9
Press [ENTER] .
10
Enter the current day and month using
a 4-digit number.
(Ex. To set Dec. 27, enter “1227”.)
11
Press [ENTER] .
• The clock starts working.
• The display will return to step 2. To exit
the programming mode, press
[FUNCTION/EXIT] or wait for 60
seconds.
• If the time and date entered are not correct, “ ERROR ” will be displayed and you
cannot continue with setting. Enter the correct time and date.
If the batteries installed in the unit expired, the time and date will be shown as
“
12:00
AM
12/31
” or “
0:00 12/31
” while talking or after the battery
replacement. Readjust the time/date.
For Caller ID service users (p. 16)
If a time display service is available with the Caller ID service:
The Caller ID information will re-set the clock after the ring if the adjusted time
and/or date is incorrect. However, if the time/date has not previously been set,
the Caller ID information will not adjust the clock.
#=AM/PM
09:30 PM 12/31
Display
AM
PM
24-hour clock
AM
(Blank display)
PM
Option
ENTER MONTH/DAY
09:30 PM 12/31
ENTER MONTH/DAY
09:30 PM 12/27
SAVED
E-PQQX14369ZA.book 9 ページ ２００４年１２月１０日 金曜日 午後４時１分

Settings
10
Dialing Mode
You can select the dialing mode by programming. If you have touch tone
service, set to Tone. If rotary or pulse service is used, set to Pulse. Your
phone comes from the factory set to Tone.
Make sure that the handset is on the cradle.
1
Press [FUNCTION/EXIT] .
2
Scroll to “ SET DIAL MODE ? ”
by pressing [] or [] .
3
Press [ENTER] .
4
Select “ PULSE ” or “ TONE ” by pressing
[] or [] .
5
Press [ENTER] .
• The display will return to step 2. To exit
the programming mode, press
[FUNCTION/EXIT] or wait for
60 seconds.
• You can exit the programming mode any time by pressing [FUNCTION/EXIT] .
SAVE PHONEBOOK ?
SET DIAL MODE ?
▼
▼
:TONE
▼
▼
SAVED
E-PQQX14369ZA.book 10 ページ ２００４年１２月１０日 金曜日 午後４時１分
