KX-TCD530AXM
KX-TCA151AXM
Digital Cordless Phone
Metallic Grey Version
(for Asia, Middle Near East and Other areas)
Telephone Equipment
ORDER NO. KM40311304C3

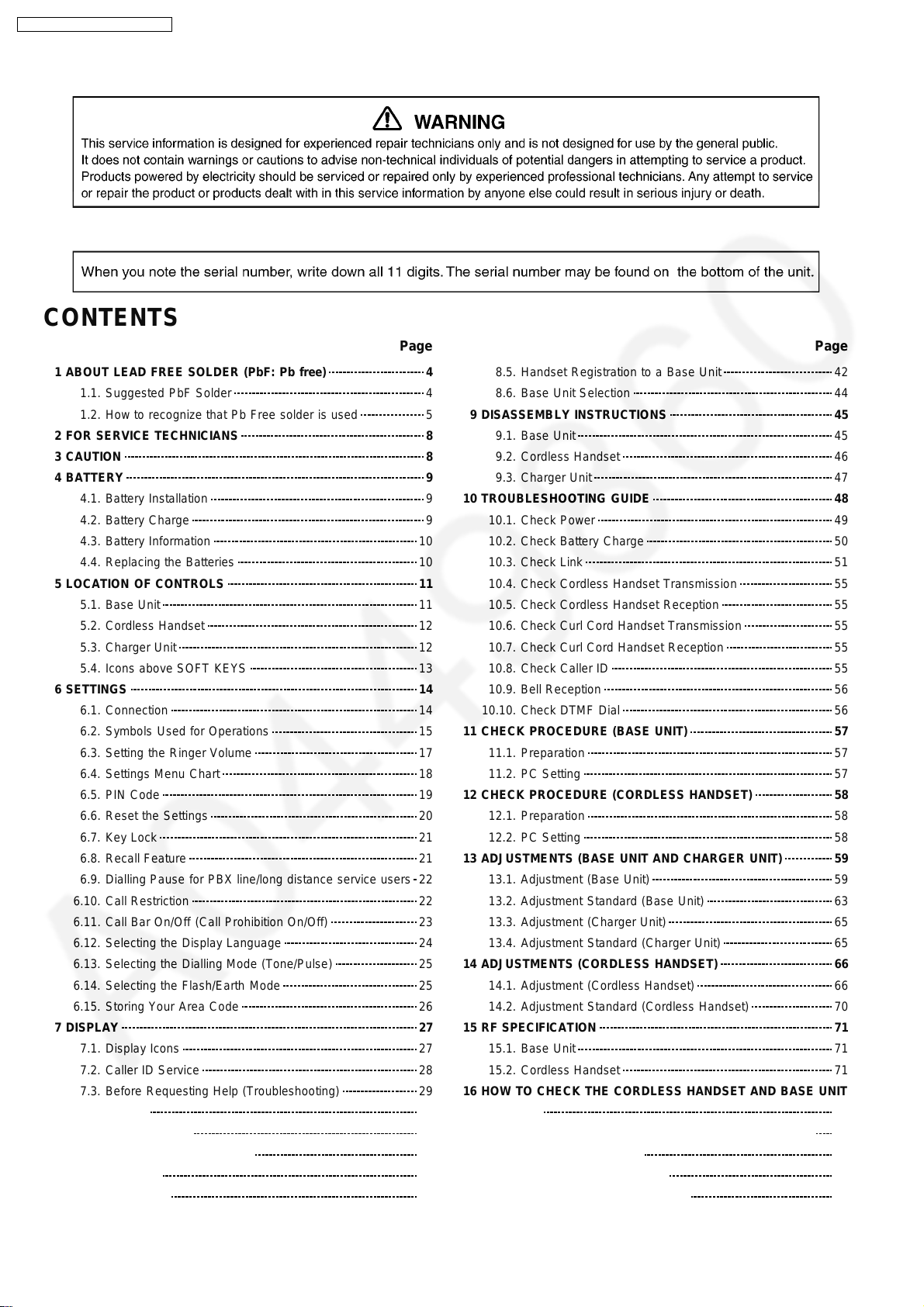

1 ABOUT LEAD FREE SOLDER (PbF: Pb free) 4
1.1. Suggested PbF Solder 4
1.2. How to recognize that Pb Free solder is used 5
2 FOR SERVICE TECHNICIANS 8
3 CAUTION 8
4 BATTERY 9
4.1. Battery Installation 9
4.2. Battery Charge 9
4.3. Battery Information 10
4.4. Replacing the Batteries 10
5 LOCATION OF CONTROLS 11
5.1. Base Unit 11
5.2. Cordless Handset 12
5.3. Charger Unit 12
5.4. Icons above SOFT KEYS 13
6 SETTINGS 14
6.1. Connection 14
6.2. Symbols Used for Operations 15
6.3. Setting the Ringer Volume 17
6.4. Settings Menu Chart 18
6.5. PIN Code 19
6.6. Reset the Settings 20
6.7. Key Lock 21
6.8. Recall Feature 21
6.9. Dialling Pause for PBX line/long distance service users
22
6.10. Call Restriction 22
6.11. Call Bar On/Off (Call Prohibition On/Off) 23
6.12. Selecting the Display Language 24
6.13. Selecting the Dialling Mode (Tone/Pulse) 25
6.14. Selecting the Flash/Earth Mode 25
6.15. Storing Your Area Code 26
7 DISPLAY 27
7.1. Display Icons 27
7.2. Caller ID Service 28
7.3. Before Requesting Help (Troubleshooting) 29
8 OPERATIONS 32
8.1. Power ON/OFF 32
8.2. Setting the Date and Time 32
8.3. Redialling 33
8.4. Phonebook 34
8.5. Handset Registration to a Base Unit 42
8.6. Base Unit Selection 44
9 DISASSEMBLY INSTRUCTIONS 45
9.1. Base Unit 45
9.2. Cordless Handset 46
9.3. Charger Unit 47
10 TROUBLESHOOTING GUIDE 48
10.1. Check Power 49
10.2. Check Battery Charge 50
10.3. Check Link 51
10.4. Check Cordless Handset Transmission 55
10.5. Check Cordless Handset Reception 55
10.6. Check Curl Cord Handset Transmission 55
10.7. Check Curl Cord Handset Reception 55
10.8. Check Caller ID 55
10.9. Bell Reception 56
10.10. Check DTMF Dial 56
11 CHECK PROCEDURE (BASE UNIT) 57
11.1. Preparation 57
11.2. PC Setting 57
12 CHECK PROCEDURE (CORDLESS HANDSET) 58
12.1. Preparation 58
12.2. PC Setting 58
13 ADJUSTMENTS (BASE UNIT AND CHARGER UNIT) 59
13.1. Adjustment (Base Unit) 59
13.2. Adjustment Standard (Base Unit) 63
13.3. Adjustment (Charger Unit) 65
13.4. Adjustment Standard (Charger Unit) 65
14 ADJUSTMENTS (CORDLESS HANDSET) 66
14.1. Adjustment (Cordless Handset) 66
14.2. Adjustment Standard (Cordless Handset) 70
15 RF SPECIFICATION 71
15.1. Base Unit 71
15.2. Cordless Handset 71
16 HOW TO CHECK THE CORDLESS HANDSET AND BASE UNIT
SPEAKER 71
17 HOW TO CHECK THE CORDLESS HANDSET RECEIVER 72
18 FREQUENCY TABLE (MHz) 73
19 BLOCK DIAGRAM (BASE UNIT) 74
20 CIRCUIT OPERATION (BASE UNIT) 75
CONTENTS
Page Page
2
KX-TCD530AXM / KX-TCA151AXM

20.1. Outline 75
20.2. Power Supply Circuit 76
20.3. Telephone Line Interface 77
20.4. Transmitter/Receiver 77
20.5. Pulse Dialing 77
21 BLOCK DIAGRAM (CORDLESS HANDSET) 78
22 CIRCUIT OPERATION (CORDLESS HANDSET) 79
22.1. Outline 79
22.2. Power Supply Circuit/Reset Circuit 79
22.3. Charge Circuit 79
22.4. Battery Low/Power Down Detector 79
22.5. Speakerphone and Headset Jack 79
23 CIRCUIT OPERATION (CHARGER UNIT) 80
23.1. Power Supply Circuit 80
24 SIGNAL ROUTE 81
25 CPU DATA (BASE UNIT) 82
25.1. IC2 (BBIC) 82
26 CPU DATA (CORDLESS HANDSET) 84
26.1. IC1 (BBIC) 84
27 EEPROM LAYOUT (BASE UNIT) 86
27.1. Scope 86
27.2. Introduction 86
27.3. EEPROM Layout 86
28 EEPROM LAYOUT (CORDLESS HANDSET) 91
28.1. Scope 91
28.2. Introduction 91
28.3. EEPROM contents 91
29 HOW TO REPLACE FLAT PACKAGE IC 93
29.1. Preparation 93
29.2. Procedure 93
29.3. Modification Procedure of Bridge 93
30 CABINET AND ELECTRICAL PARTS LOCATION (BASE UNIT)
94
31 CABINET AND ELECTRICAL PARTS LOCATION (CORDLESS
HANDSET) 95
32 CABINET AND ELECTRICAL PARTS LOCATION (CHARGER
UNIT) 96
33 ACCESSORIES AND PACKING MATERIALS 97
33.1. KX-TCD530AXM 97
33.2. KX-TCA151AXM 98
34 TERMINAL GUIDE OF THE ICs, TRANSISTORS AND DIODES
99
34.1. Base Unit 99
34.2. Cordless Handset 99
34.3. Charger Unit 99
35 REPLACEMENT PARTS LIST 100
35.1. Base Unit 100
35.2. Cordless Handset 102
35.3. Charger Unit 104
35.4. Accessories and Packing Materials 104
35.5. Fixtures and Tools 105
36 FOR SCHEMATIC DIAGRAM 106
36.1. Base Unit (SCHEMATIC DIAGRAM (BASE UNIT)) 106
36.2. Cordless Handset (SCHEMATIC DIAGRAM (CORDLESS
HANDSET)) 106
36.3. Memo 107
37 SCHEMATIC DIAGRAM (BASE UNIT) 108
37.1. Main 108
37.2. Operation 110
37.3. Memo 111
38 SCHEMATIC DIAGRAM (CORDLESS HANDSET) 112
39 SCHEMATIC DIAGRAM (CHARGER UNIT) 114
40 CIRCUIT BOARD (BASE UNIT) 115
40.1. Main 115
40.2. Operation 117
41 CIRCUIT BOARD (CORDLESS HANDSET) 119
41.1. Component View 119
41.2. Flow Solder Side View 120
42 CIRCUIT BOARD (CHARGER UNIT) 121
42.1. Component View 121
42.2. Flow Solder Side View 121
3
KX-TCD530AXM / KX-TCA151AXM

1 ABOUT LEAD FREE SOLDER (PbF: Pb free)
Note:
In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that
contains lead.
We will use PbF solder when discussing the lead free solder used in our manufacturing process which is made from Tin (Sn),
Silver (Ag), and Copper (Cu).
This model, and others like it, manufactured using lead free solder will have PbF stamped on the PCB. For service and repair
work we suggest using the same type of solder although, with some precautions, standard Pb solder can also be used.
Caution
• ••
• PbF solder has a melting point that is 50°F ~70°F (30°C ~ 40°C) higher than Pb solder. Please use a soldering iron with
temperature control and adjust it to 700°F ± 20°F (370°C ± 10°C). In case of using high temperature soldering iron, please
be careful not to heat too long.
• ••
• PbF solder will tend to splash if it is heated much higher than its melting point, approximately 1100°F (600°C).
• ••
• If you must use Pb solder on a PCB manufactured using PbF solder, remove as much of the original PbF solder as possible
and be sure that any remaining is melted prior to applying the Pb solder.
• ••
• When applying PbF solder to double layered boards, please check the component side for excess which may flow onto the
opposite side (See the figure below).
1.1. Suggested PbF Solder
There are several types of PbF solder available commercially. While this product is manufactured using Tin, Silver, and Copper
(Sn+Ag+Cu), you can also use Tin and Copper (Sn+Cu) or Tin, Zinc, and Bismuth (Sn+Zn+Bi). Please check the manufac
turer’s specific instructions for the melting points of their products and any precautions for using their product with other
materials.
The following lead free (PbF) solder wire sizes are recommended for service of this product: 0.3mm, 0.6mm and 1.0mm.
4
KX-TCD530AXM / KX-TCA151AXM

1.2. How to recognize that Pb Free solder is used
1.2.1. Base Unit PCB
1.2.1.1. Main
48 25
IC7
IC2
RFM1
IC6
22
1
1
1
24
38
39
65
66
102
103
128 44
23
18 28
11 1
PbF
Marked
(Component View)
1
PbF
TP14
ANT1
TP49
TP5
TP4
4 2
5
6
TP9
TP222
TP7
TP19
TP21
TP20
TP29
TP24 TP22
TP15
TP3
TP200
TP100
TP108
TP109 HSSP
SP
URXUTXGND
MIC1
TP101
TP102
TP103
TP223
TP224
MIC
Marked
(Flow Solder Side View)
5
KX-TCD530AXM / KX-TCA151AXM

1.2.1.2. Operation
SW531
PbF
Marked
(Component View)
1
4
7
2
5
8
0SP
3
6
9
#
X1
X2
X3
MUTE
EXIT GREET
ING
ANSWER
STOP
CLEAR
LEFT
TALK
STOP
DOWN
RIGHT
UP
M1 M2 M3
PbF
Marked
(Flow Solder Side View)
Note:
The location of the “PbF“ mark is subject to change without notice.
6
KX-TCD530AXM / KX-TCA151AXM

1.2.2. Cordless Handset PCB
IC3
IC2
IC1
IC10
PbF
Marked
(Component View)
MIC
INT # 9 6 3 MAIL
SP
SW1
SOFT_A
CLEAR
TALK
S1
08 5 2
741
R
LED7 LED4
LED9
IC4
IC5
LED6 LED5
PbF
Marked
(Flow Solder Side View)
Note:
The location of the “PbF“ mark is subject to change without notice.
1.2.3. Charger Unit PCB
PbF
D1
J1
Marked
PbF
R1 R2
TP4
TP1
TP2
TP3
Marked
(ComponentView) (Flow Solder SideView)
Note:
The location of the “PbF“ mark is subject to change without notice.
7
KX-TCD530AXM / KX-TCA151AXM

2 FOR SERVICE TECHNICIANS
ICs and LSIs are vulnerable to static electricity.
When repairing, the following precautions will help prevent recurring malfunctions.
1.Cover the plastic parts boxes with aluminum foil.
2.Ground the soldering irons.
3.Use a conductive mat on the worktable.
4.Do not touch IC or LSI pins with bare fingers.
3 CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommendenced by the
manufacturer.
Dispose of used batteries according to the manufacture’s Instructions.
8
KX-TCD530AXM / KX-TCA151AXM

4 BATTERY
4.1. Battery Installation
Please ensure the batteries are inserted as shown. part should be inserted first.
Close the cover as indicated by the arrow.
• ••
• When you replace the batteries, part should be removed first.
4.2. Battery Charge
At the time of shipment, the batteries are not charged. To charge, place the cordless handset on the charger.
Please charge the batteries for about 7 hours before initial use. During charging, the charge LED will light as shown below.
The cordless handset, even when switched off, will be turned on automatically when it is placed on the charger.
The cordless handset will not operate while it is on the charger.
If the handset display flashes when the cordless handset is lifted off the charger, please charge the cordless handset
batteries at least 15 minutes.
Note for Service:
• ••
• The battery strength may not be indicated correctly if the battery is disconnected and connected again, even after it is fully
charged.
In that case, by recharging the battery as mentioned above, you will get a correct indication of the battery strength.
• ••
• Confirmation of Antenna Pict ( ) indication:
If Antenna Pict is indicated, charge time is about 7 hours.
However, if Antenna Pict is flashing, charge time becomes long.
9
KX-TCD530AXM / KX-TCA151AXM

4.3. Battery Information
After your Panasonic battery is fully charged:
Ni-MH Batteries (typical 700 mAh)
Operation Operating Time
While in use (TALK) 10 hrs approx.
While not in use (Standby) 120 hrs approx.
Ni-Cd Batteries (typical 250 mAh)
Operation Operating Time
While in use (TALK) 4 hrs approx.
While not in use (Standby) 40 hrs approx.
• ••
• Times indicated are for peak performance.
• ••
• The battery operating time may be shortened depending on usage conditions and ambient temperature.
• ••
• Clean the charge contacts of the cordless handset and the charger with a soft, dry cloth. Clean if the unit is subject to
grease, dust or high humidity.
Otherwise the battery may not charge properly.
• ••
• The batteries cannot be overcharged unless they are repeatedly removed and replaced.
• ••
• For maximum battery life, it is recommended that the cordless handset not be recharged until the battery icon flashes .
4.4. Replacing the Batteries
If the icon flashes after a few telephone calls even when the cordless handset batteries have been fully charged, both
batteries must be replaced.
• ••
• Charge new batteries for approximately 7 hours before initial use.
• ••
• When replacing the batteries, be sure to set up the battery type even if you install the same type of batteries to
initialise battery remaining memory of your cordless handset.
• ••
• Do not use non-rechargeable batteries. If non-rechargeable batteries are installed and start charging, battery
electrolyte may leak from the unit.
• ••
• Open the battery cover by pressing down firmly on the notch and sliding it as indicated by the arrow below.
Replace both batteries and close the cover. Charge the cordless handset for about 7 hours.
Please order Panasonic HHR-4EPT (Ni-MH) or P-4NPT (Ni-Cd) batteries.
Note for Service:
• ••
• When Ni-Cd batteies are littled with the setting in ,icon might disappear and stop
charging even if the handset is on the cradle for avoiding overcharge.
10
KX-TCD530AXM / KX-TCA151AXM

5 LOCATION OF CONTROLS
5.1. Base Unit
11
KX-TCD530AXM / KX-TCA151AXM

5.2. Cordless Handset
5.3. Charger Unit
12
KX-TCD530AXM / KX-TCA151AXM

5.4. Icons above SOFT KEYS
5.4.1. Base Unit
5.4.2. Cordless Handset
13
KX-TCD530AXM / KX-TCA151AXM

6 SETTINGS
For your Information
Throughout these Service Manuals, Cordless Handset and Base Unit are used to indicate with which unit an operation can be
performed.
Cordless Handset: Perform with cordless handset.
Base Unit: Perform with the base unit.
Cordless Handset/Base Unit: perform with the cordless handset or base unit separately.
Cordless Handset and Base Unit: Perfrom with the cordless handset and base unit together.
Enviroment
Do not use this unit near water. This unit should be kept away from heat sources such as radiators, cookers, etc. It should also
not be placed in rooms where the temperature is less than 5°C or greater than 40°C.
The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is located/installed near the unit and is
accessible.
Location
• ••
• For maximum distance and noise-free operation, place your base unit:
− −−
− Away from electrical appliances such as TVs, radios, personal computers or other phones.
− −−
− In a convenient, high, and central location.
6.1. Connection
The unit will not work during a power failure. We recommend you connect a standard telephone on the same line for power
protection.
6.1.1. Base Unit
Plug in the AC adaptor and the telephone line cord in order 1,2,3,4.
The cords can be hidden from view when using the base unit on a desktop by tucking them under the wall mounting adaptor.
• ••
• The AC adaptor must remain connected at all times (It is normal for the adaptor to feel warm during use).
• ••
• Never install telephone wiring during a lightning storm.
• ••
• USE ONLY WITH Panasonic AC ADAPTOR PQLV19BXZ.
14
KX-TCD530AXM / KX-TCA151AXM

6.1.2. Charger Unit
The batteries must be fully charged before initial use of the cordless handset.
• ••
• The AC adaptor must remain connected at all times (It is normal for the adaptor to feel warm during use).
• ••
• USE ONLY WITH Panasonic AC ADAPTOR PQLV200BXZ.
6.1.3. Optional Headset
Plugging an optional headset into the cordless handset allows hands-free phone conversations. Please use only the Panasonic
KX-TCA89BX headset. While using the headset, speakerphone is not available. To switch to speakerphone, disconnect the
headset.
Connecting the Optional Headset to the Cordless Handset
Open the headset jack cover, and connect the optional headset to the headset jack as shown.
6.2. Symbols Used for Operations
6.2.1. Base Unit/Cordless Handset
15
KX-TCD530AXM / KX-TCA151AXM

6.2.2. Base Unit
6.2.3. Cordless Handset
16
KX-TCD530AXM / KX-TCA151AXM

6.3. Setting the Ringer Volume
6.3.1. Base Unit
6.3.2. Cordless Handset
17
KX-TCD530AXM / KX-TCA151AXM

6.4. Settings Menu Chart
6.4.1. Base Unit
6.4.2. Cordless Handset
18
KX-TCD530AXM / KX-TCA151AXM

6.5. PIN Code
6.5.1. Base Unit
For Service Hint:
* : If the current 4-digit Base Unit PIN is forgotten, follow the procedures below.
1.If Base Unit and Handset are not linked with, first, follow the steps in Handset Registration to a Base Unit (P.42).
2.Follow the steps above in Base Unit (P.19) of PIN Code. At step 3, enter , and you will able to enter new
Base Unit PIN.
6.5.2. Handset
For Service Hint:
* : If the current 4-digit PIN is forgotten, press and you will be able to enter new Handset PIN.
This password is useful whether Base Unit and Handset are linked with or not.
19
KX-TCD530AXM / KX-TCA151AXM

6.6. Reset the Settings
6.6.1. Base Unit
You can reset all of the base unit settings to their initial settings.
Initial Settings for Base Unit
Function Initial Setting Remarks (selectable options)
4-Digit Base Unit PIN 0000 -
Base Unit External Ringer Pattern 11to6
Base Unit Receiver Volume Medium High / Low / Medium / OFF
Call Bar Mode OFF ON / OFF
Display Language English -
Redial Memory Delete All -
Phonebook List Remain -
Caller ID List Delete All -
Area Code Delete All -
Date/Time 31-12-03/00:00 -
• ••
• All of the other base unit settings are cleared or turned to their factory preset when you reset the base unit settings.
6.6.2. Cordless Handset
You can reset all of the handset settings to their initial settings.
20
KX-TCD530AXM / KX-TCA151AXM
