Panasonic PAN9026 User manual

Wireless Connectivity
PAN9026
Wi-Fi Dual Band 2.4 GHz/5 GHz and Bluetooth®Module
Quick Start Guide
Rev. 1.2

PAN9026 Wi-Fi/Bluetooth Module
Quick Start Guide Rev. 1.2 Page 2 of 34
By purchase of any of the products described in this document the customer accepts the document's
validity and declares their agreement and understanding of its contents and recommendations. Panasonic
Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time
without notification.
© Panasonic Industrial Devices Europe GmbH 2021.
This document is copyrighted. Reproduction of this document is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not
disclose it to a third party.
All rights reserved.
This Quick Start Guide does not lodge the claim to be complete and free of mistakes.
The information contained herein is presented only as guidance for Product use. No responsibility is
assumed by Panasonic for any infringement of patents or any other intellectual property rights of third
parties that may result from the use of Product. No license to any intellectual property right is granted by
this document, whether express or implied, by estoppel or otherwise.
Description of hardware, software, and other information in this document is only intended to illustrate the
functionality of the referred Panasonic product. It should not be construed as guaranteeing specific
functionality of the product as described or suitable for a particular application.
Any provided (source) code shall not be used or incorporated into any products or systems whose
manufacture, use or sale is prohibited under any applicable laws or regulations.
Any outlined or referenced (source) code within this document is provided on an “as is” basis without any
right to technical support or updates and without warranty of any kind on a free of charge basis according
to § 516 German Civil Law (BGB) including without limitation, any warranties or conditions of title, non
infringement, merchantability, or fitness for a particular purpose. Customer acknowledges that (source)
code may bear defects and errors.
The third party tools mentioned in this document are offered by independent third party providers who are
solely responsible for these products. Panasonic has no responsibility whatsoever for the performance,
product descriptions, specifications, referenced content, or any and all claims or representations of these
third party providers. Panasonic makes no warranty whatsoever, neither express nor implied, with respect
to the goods, the referenced contents, or any and all claims or representations of the third party providers.
To the maximum extent allowable by Law Panasonic assumes no liability whatsoever including without
limitation, indirect, consequential, special, or incidental damages or loss, including without limitation loss of
profits, loss of opportunities, business interruption, and loss of data.

PAN9026 Wi-Fi/Bluetooth Module
Quick Start Guide Rev. 1.2 Page 3 of 34
Table of Contents
1About This Document......................................................................................................................... 4
1.1 Purpose and Audience................................................................................................................4
1.2 Revision History..........................................................................................................................4
1.3 Use of Symbols...........................................................................................................................4
1.4 Related Documents ....................................................................................................................5
2Overview.............................................................................................................................................. 6
2.1 Wi-Fi Features ............................................................................................................................6
2.2 Bluetooth Features......................................................................................................................6
3Installation........................................................................................................................................... 8
3.1 Setup Boot Card .........................................................................................................................8
3.2 Using Device for Remote Control ...............................................................................................9
4Basic Usage....................................................................................................................................... 10
4.1 Setup (Basic) ............................................................................................................................10
4.2 Connecting to the Access Point................................................................................................11
4.3 Remote Controlling the PAN9026-IMX.....................................................................................12
4.4 Exploring the Wi-Fi Features ....................................................................................................12
4.5 Exploring Bluetooth Features....................................................................................................16
5Full Usage.......................................................................................................................................... 20
5.1 Setup (Full) ...............................................................................................................................20
5.2 Login.........................................................................................................................................21
5.3 Configuring Audio .....................................................................................................................22
5.4 Configuring Wi-Fi......................................................................................................................22
5.5 Accessing Network ...................................................................................................................23
5.6 Using Wi-Fi Location Demo......................................................................................................24
6Managing Software Package............................................................................................................ 27
6.1 Recreating SD Card Image.......................................................................................................27
6.2 Updating Installation .................................................................................................................28
7Troubleshooting................................................................................................................................ 31
7.1 Resizing the Root Partition to Maximum Size...........................................................................31
7.2 Fixing a Non-Booting System ...................................................................................................31
7.3Updating the System.................................................................................................................32
8Restricted Use................................................................................................................................... 33
8.1 Life Support Policy....................................................................................................................33
8.2 Restricted End Use...................................................................................................................33
9Contact Details.................................................................................................................................. 34
9.1 Contact Us................................................................................................................................34
9.2 Product Information...................................................................................................................34


PAN9026 Wi-Fi/Bluetooth Module 1 About This Document
Quick Start Guide Rev. 1.2 Page 4 of 34
1 About This Document
1.1 Purpose and Audience
This Quick Start Guide explains how to setup the PAN9026-IMX which consists of a Wandboard
Dual (WB-IMX6U-BW) and PAN9026-MSD.
It describes the basic usage modes and gives an introduction to the software that is provided.
The document is intended for software engineers.
1.2 Revision History
Revision
Date
Modifications/Remarks
1.0
2018-05-31
Initial version
1.1
2018-07-19
Formal and structure changes
1.2
2021-05-10
Added Fine Time Measurement features (chapter “Wi-Fi RTT
Measurement”) and added chapter “Wi-Fi Location Demo”. Formal and
structure changes.
1.3 Use of Symbols
Symbol
Description
Note
Indicates important information for the proper use of the product.
Non-observance can lead to errors.
Attention
Indicates important notes that, if not observed, can put the product’s functionality
at risk.
Tip
Indicates useful information designed to facilitate working with the software.
[chapter number]
[chapter title]
Cross reference
Indicates cross references within the document.
Example:
Description of the symbols used in this document 1.3 Use of Symbols.
✓
Requirement
Indicates a requirement that must be met before the corresponding tasks can be
completed.
➔
Result
Indicates the result of a task or the result of a series of tasks.


PAN9026 Wi-Fi/Bluetooth Module 1 About This Document
Quick Start Guide Rev. 1.2 Page 5 of 34
Symbol
Description
This font
GUI text
Indicates fixed terms and text of the graphical user interface.
Example:
Click Save.
Menu > Menu item
Path
Indicates a path, e.g. to access a dialog.
Example:
In the menu, select File > Setup page.
This font
File names, userinput
Indicates file names or messages and information displayed on the screen or to
be selected or entered by the user.
Examples:
pan1760.c contains the actual module initialization.
Enter the value Product 123.
This font
Systemoutput
Indicates messages and information displayed on the screen.
Example:
The message Failed to save your data is displayed.
Key
Key
Indicates a key on the keyboard.
Example:
Press F10.
1.4 Related Documents
For related documents please refer to the Panasonic website 9.2 Product Information.


PAN9026 Wi-Fi/Bluetooth Module 2 Overview
Quick Start Guide Rev. 1.2 Page 6 of 34
2 Overview
The PAN9026-IMX is a development platform for the Wi-Fi/Bluetooth®PAN9026.
The PAN9026 requires a fairly powerful host processor that executes the low-level Wi-Fi driver
as well as some high-level Wi-Fi application software. Because of this, the Wandboard was
chosen as the hardware platform. It is based on the well-known and powerful
NXP®i.MX6 processor and provides a separate µSD card slot for attaching peripheral devices
like the PAN9026-MSD.
A Linux®-based installation was chosen as the software platform. The Linux kernel provides an
established environment for running a Wi-Fi driver and the available Wi-Fi applications make it
possible to use the PAN9026 to its full extend.
Two different software environments are available for the PAN9026-IMX: Ubuntu Linux and
Yocto Project Linux.
The Ubuntu Linux based environment is available to showcase all the different possibilities of
the PAN9026 which also allows the user to experiment with the system, using a
graphical user interface (GUI). This environment is described in this Quick Start Guide.
The Yocto Project Linux based environment is available to showcase the easy integration into a
customer-specific build environment. This environment is described in the “Development Guide”
which is available separately.
Both environments provide access to the Wi-Fi and Bluetooth features of the PAN9026 by
supplying a web server running on a Wi-Fi access point. After a connection to that access point
has been established, it is possible to interact with the PAN9026 with the browser.
The Ubuntu Linux based environment additonally provides a GUI that many are familiar with
and that allows the user to explore the PAN9026 using a full-featured Linux desktop
environment.
For related documents please refer to 9.2 Product Information.
2.1 Wi-Fi Features
The PAN9026 provides a web server interface through a Wi-Fi access point that devices can
connect to. It can simultaneously connect to another Wi-Fi access point and relay any internet
connectivity from there.
All Wi-Fi features can be controlled from the GUI as well.
2.2 Bluetooth Features
It is possible to select different Bluetooth applications through the user interface, provided by
the web server. The Bluetooth Basic Rate A2DP profile allows the PAN9026-IMX to become a
Bluetooth audio sink. It is possible to playback audio from a remote device that is connected via
Bluetooth Basic Rate.


PAN9026 Wi-Fi/Bluetooth Module 2 Overview
Quick Start Guide Rev. 1.2 Page 7 of 34
Alternatively, the PAN9026-IMX may become a Bluetooth Low Energy proximity beacon, using
the AltBeacon Protocol, which may be used for indoor navigation.
All Bluetooth use cases have been implemented, using Blue SDK from OpenSynergy.


PAN9026 Wi-Fi/Bluetooth Module 3 Installation
Quick Start Guide Rev. 1.2 Page 8 of 34
3 Installation
The PAN9026-IMX consists of the following components:
•PAN9026-MSD (µSD card form factor)
•Wandboard Dual (WB-IMX6U-BW)
•USB power cable as power supply
•µSD card with Ubuntu Linux image (already inserted)
The following additional components are not included, but may be required depending on the
use case:
•USB hub (the Wandboard only has a single USB connector)
•RS232 serial connection cable (interface the built-in UART port to a control PC)
•HDMI cable and HDMI monitor or TV set (show the GUI of the Ubuntu Linux)
•USB mouse and USB keyboard (interface with Ubuntu Linux)
•USB memory stick (transfer data to and from the PAN9026-MSD)
•Headphones with 3.5 mm jack (listen to Bluetooth audio)
•Some Wi-Fi capable device like a mobile phone or a tablet
3.1 Setup Boot Card
The Wandboard consists of two separate parts:
•the Baseboard that contains all the connectors and
•the system-on-module that contains the i.MX6 processor.
The system-on-module is located on the back of the Wandboard and may have a heat-spreader
covering the processor.
The Wandboard has two µSD card slots:
•one for the boot medium which is located on the system-on-module and
•one for peripheral devices which is located on the Baseboard.


PAN9026 Wi-Fi/Bluetooth Module 3 Installation
Quick Start Guide Rev. 1.2 Page 9 of 34
Inserting µSD
Ideally the µSD card with the Ubuntu Linux image is already inserted in the µSD card slot on the
system-on-module, so that the Wandboard will boot from it, if not:
1. Turn around the Wandboard. The audio connectors are facing downwards.
2. The µSD card slot of the system-on-module can be found on the left side.
3. Gently press the connector.
➔The µSD card will spring out.
Remember the orientation of the contacts. The contacts must face upwards
when the µSD card is inserted.
3.2 Using Device for Remote Control
Certain functions of the PAN9026-IMX can be remote controlled via Wi-Fi. A Wi-Fi capable
device for controlling is needed.
Disabling a Mobile Data Plan
If a mobile device is used that has a SIM card, which supports a mobile data plan for accessing
the internet, it is recommended to switch off the mobile data plan while working with the
PAN9026-IMX. The Wi-Fi access point, provided by the PAN9026 initially, does not provide
access to the internet.
If a mobile plan is available, Android may route any network traffic through the mobile data plan
to the internet, instead of using the seemingly non-functional access point.
To avoid confusion and force Android to route the network traffic through the access point of the
PAN9026, it is recommended that the mobile data plan is switched off.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 10 of 34
4 Basic Usage
The basic usage includes all features that can be accessed with the remote device connecting
to the Wi-Fi access point only. It does not need any additional peripherals.
4.1 Setup (Basic)
The following components are needed:
✓Wandboard with µSD card with Ubuntu Linux image
✓PAN9026-MSD with µSD card form factor
✓Headphones with 3.5 mm jack
✓Power supply
1. Insert the PAN9026-MSD into the µSD card slot of the Baseboard (1).
2. Insert the headphones with 3.5 mm jack into the green audio socket (2).
3. Insert the power supply (3).
➔The system will boot up. This takes approximately one minute.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 11 of 34

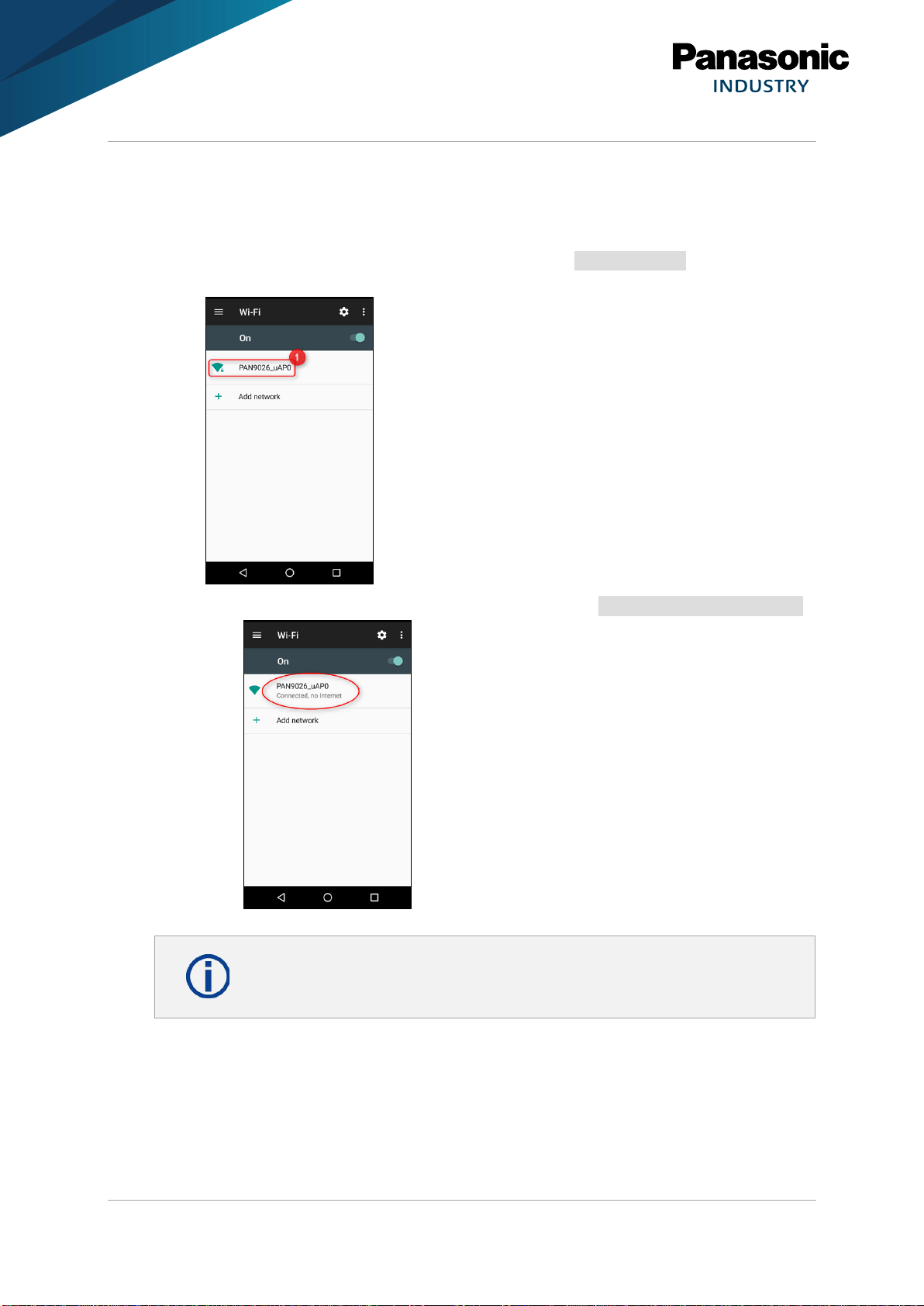

4.2 Connecting to the Access Point
1. Navigate to the Wi-Fi configuration settings of the device and enable Wi-Fi.
2. Press PAN9026_uAP0 to connect to this access point.
The access point provided by the PAN9026 is named PAN9026_uAP0 and will be
founded automatically.
➔The connection will be established and is shown as Connected, no Internet.
At this point it is possible to access the PAN9026, but not to use any features
that required internet access.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 12 of 34
4.3 Remote Controlling the PAN9026-IMX
On the PAN9026-IMX a web server is running which provides the user interface for remote
controlling the system.
1. Open the web browser.
2. Navigate to the address 192.168.33.1 (1) to access.
4.4 Exploring the Wi-Fi Features
4.4.1 Connecting to the Internet
The Wi-Fi features of the PAN9026 can be controlled using the section Station (1) on the
web page.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 13 of 34
The PAN9026 is capable of connecting to an existing access point while acting as an
access point itself.
The user interface is intuitive and will guide through the possible use cases.
1. Press Refresh to refresh the list of found access points.
2. Press Network SSID to select an access point.
3. Enter the matching password into the Network Password field.
4. Press Create Connection to create the connection.
➔The PAN9026 will connect to it. This takes approximately a couple of seconds.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 14 of 34

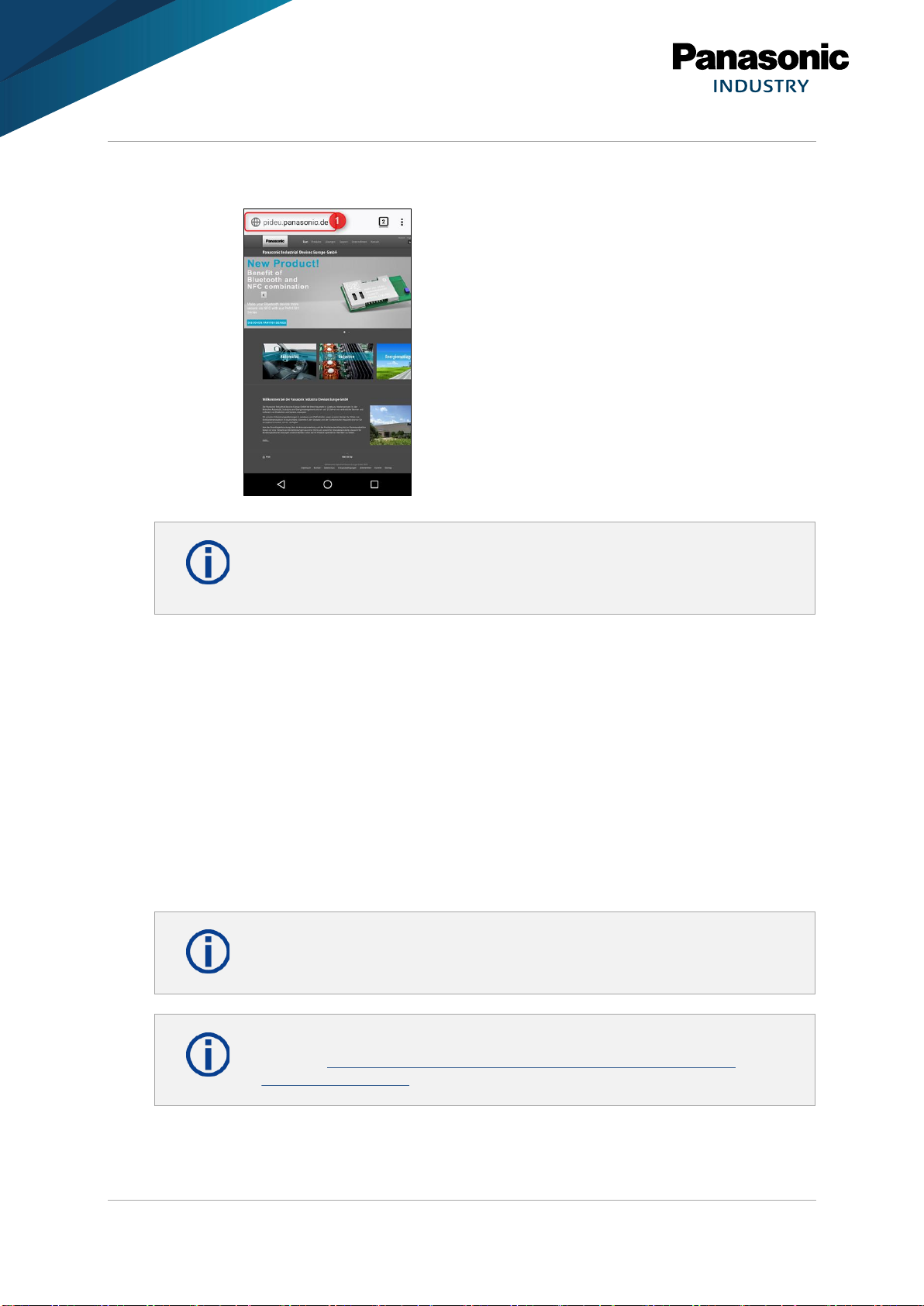

➔Now another browser window can be used to access any page in the internet,
for example pideu.panasonic.de (1).
Because the PAN9026 is connected to an access point with internet
connection, the device is now able to access the internet through the access
point of PAN9026-IMX as well.
4.4.2 Measuring Wi-Fi RTT
The Fine Time Measurement (FTM) capabilities of the PAN9026 can be used to make Round
Trip Time (RTT) measurements. This is done by having a Wi-Fi station device initiate the
measurement by sending a FTM request to an access point which acts as a responder. One
way of testing those RTT measurements is, using the “WifiRttScan” application from Google on
an Android smartphone, which will be described in this section.
The following requirement must be met:
✓The application “WifiRttScan” is installed on a smartphone that supports the Android “Wi-Fi
RTT API”.
The application “WifiRttScan” can be downloaded from the Google Play Store
with a capable smartphone.
To see a list of smartphones that currently support the Android “Wi-Fi RTT
API” visit https://developer.android.com/guide/topics/connectivity/wifi-
rtt#supported-phones.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 15 of 34
Measuring RTT
1. Enable Wi-Fi and location services on the smartphone (used for the RTT measurement).
2. Open the application WifiRttScan.
3. Press Scan WiFi (1).
➔The application will scan for all access points supporting FTM and list them.
4. Select the access point PAN9020_uAP0 (1).


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 16 of 34

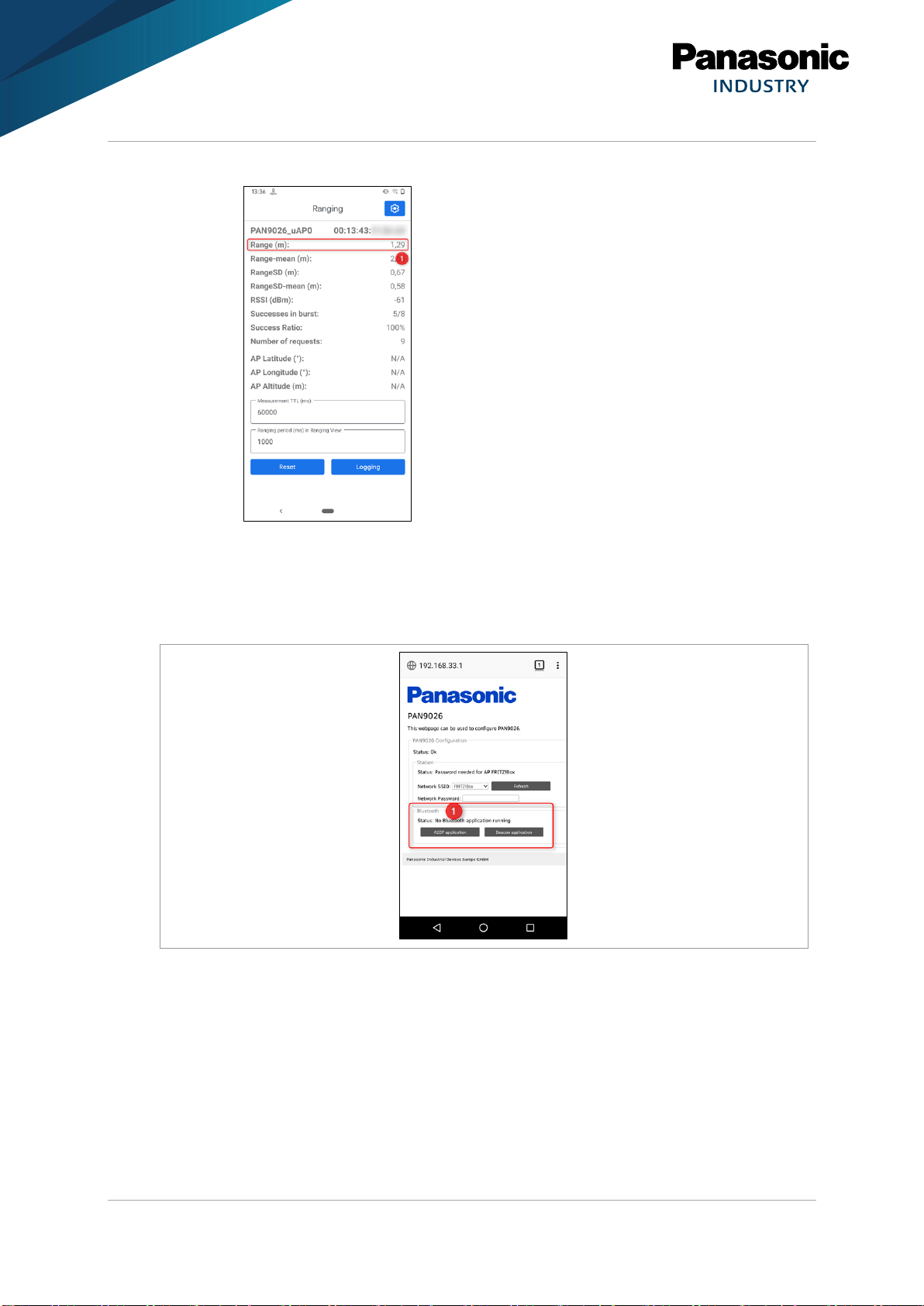

➔The application displays the measured RTT range in meters (1).
4.5 Exploring Bluetooth Features
The Bluetooth features of the PAN9026 can be controlled using the section Bluetooth (1) on
the web page.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 17 of 34

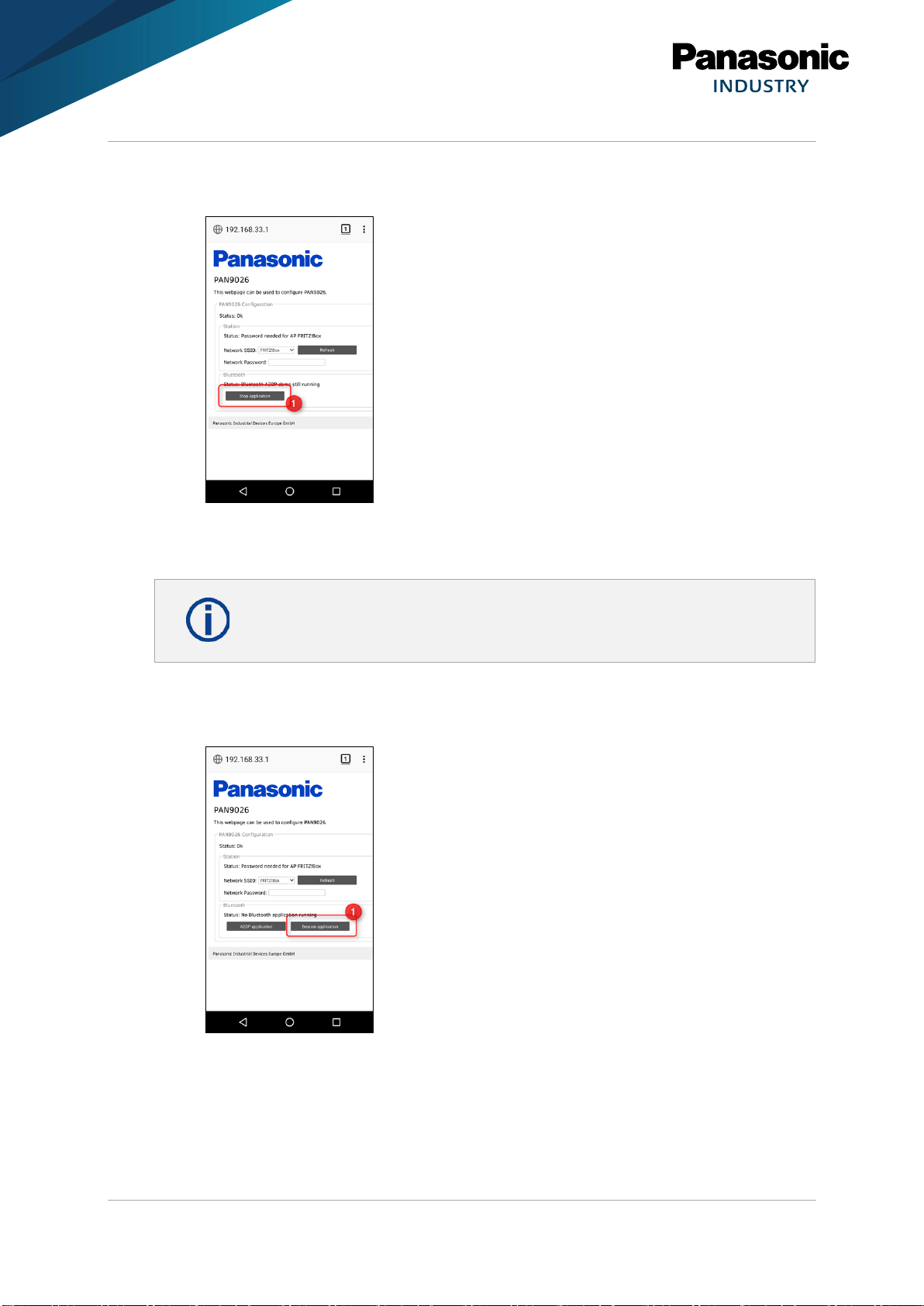

Stopping Application
1. Press Stop application (1) to stop the currently running Bluetooth application.
4.5.1 Bluetooth Low Energy AltBeacon
The application Locate Beacon can be used from Radius Networks, Inc. to
discover the PAN9026.
Starting AltBeacon
1. Press Beacon application (1) to start the application Bluetooth Low Energy AltBeacon.
➔The device advertises according to the AltBeacon specification.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 18 of 34
➔In the application Locate Beacon,the PAN9026 will show up as a regular
AltBeacon (1).
4.5.2 Bluetooth Basic Rate A2DP Audio Sink
Starting A2DP
1. Press A2DP application (1) to start the Bluetooth Basic Rate A2DP audio sink
application.
➔The device will be available as an A2DP audio sink.
2. Navigate to the Bluetooth settings of the device and enable Bluetooth.


PAN9026 Wi-Fi/Bluetooth Module 4 Basic Usage
Quick Start Guide Rev. 1.2 Page 19 of 34
3. Press on the entry to connect to the PAN9026 (1).
Usually the PAN9026 will show up as OpenSynergy A2DP Application.
➔The connection will be established and is shown as Connected (1). This takes
approximately a couple of seconds.
➔Now any audio that is played back on the Android device, will be routed to the
PAN9026 instead and output on the audio jack of the PAN9026-IMX.
To verify the correct operation, start an application that will output sound, for
example, an audio player, a video stream, a web radio, or video from the
internet.
➔The sound will be outputted, when some headphones to the green audio
jack of the Wandboard are connected.
If the Android device is still connected to the access point of the PAN9026,
make sure that the PAN9026 itself is connected to an access point with
internet access; otherwise no playback from the internet is possible.


PAN9026 Wi-Fi/Bluetooth Module 5 Full Usage
Quick Start Guide Rev. 1.2 Page 20 of 34
5 Full Usage
The main difference between the basic usage and the full usage is that the full usage
additionally allows the user to control some of the features PAN9026, using the
graphical user interface of the Ubuntu system.
The same functionality as in the basic setup is available. May a Wi-Fi capable device for
controlling as well is needed.
5.1 Setup (Full)
The following components are needed:
✓Wandboard with µSD card with Ubuntu Linux image
✓PAN9026-MSD with µSD card form factor
✓USB hub
✓USB keyboard
✓USB mouse
✓Serial port cable
✓Headphones with 3.5 mm jack
✓HDMI cable and matching monitor or TV set
✓Power supply
1. Insert the PAN9026-MSD into the µSD card slot of the Baseboard (1).
2. Insert the USB hub into the USB port of the Wandboard (2).
