Panduit CT-2980/L User manual

CT-2980/L and CT-2980/LE
PA26011A01
Rev. 02 3-2012
© Panduit Corp. 2012
ENGLISH
Pg. 1
DEUTSCH
Pg. 9
FRANÇAISE
Pg. 14
ITALIANA
Pg. 19
ESPAÑOL
Pg. 24
ÈESKÝ
Pg. 29
NEDERLANDSE
Pg. 34
DANSKE
Pg. 40
SVENSKA
Pg. 44
SUOMEN
Pg. 49
NORSK
Pg. 54
Website: www.panduit.com
Email: [email protected]
EU Website:
www.panduit.com/emea
EU Email: emeatoolservicecenter
@panduit.com
Panduit Corp. • Tinley Park, IL USA
Technical Support
Tel: [phone], ext. 83255
Panduit Europe • EMEA Service Center
Almelo, Netherlands
Tel: [phone] • Fax: [phone]

CT-2980/L and CT-2980/LE ENGLISH
CT-2980/L & CT-2980/LE_ENGL PA26011A01_02 Page: 1 of 58 3-2012
SYSTEM SPECIFICATIONS................................................................................................................1
OPTIONAL ACCESSORIES (sold separately) ...................................................................................2
PRECAUTIONS AND GENERAL GUIDELINES..................................................................................3
MAINTENANCE...................................................................................................................................5
TOOL OPERATION .............................................................................................................................6
SYSTEM SPECIFICATIONS
Output:
6.2 tons / 5.6 (metric tons)
NOTE: CONNECTIONS UTILIZING THIS TOOL ARE U.L. LISTED AND C.S.A.
CERTIFIED ONLY WHEN PANDUIT COPPER COMPRESSION CONNECTORS
ARE USED. USE OF ANY OTHER BRAND OF COMPRESSION CONNECTORS
IS NOT RECOMMENDED.
Consult product packaging, Panduit catalog or website for information on
recommended connectors.
11.75 lbs. / 5.3 kg ( + )

CT-2980/L and CT-2980/LE ENGLISH

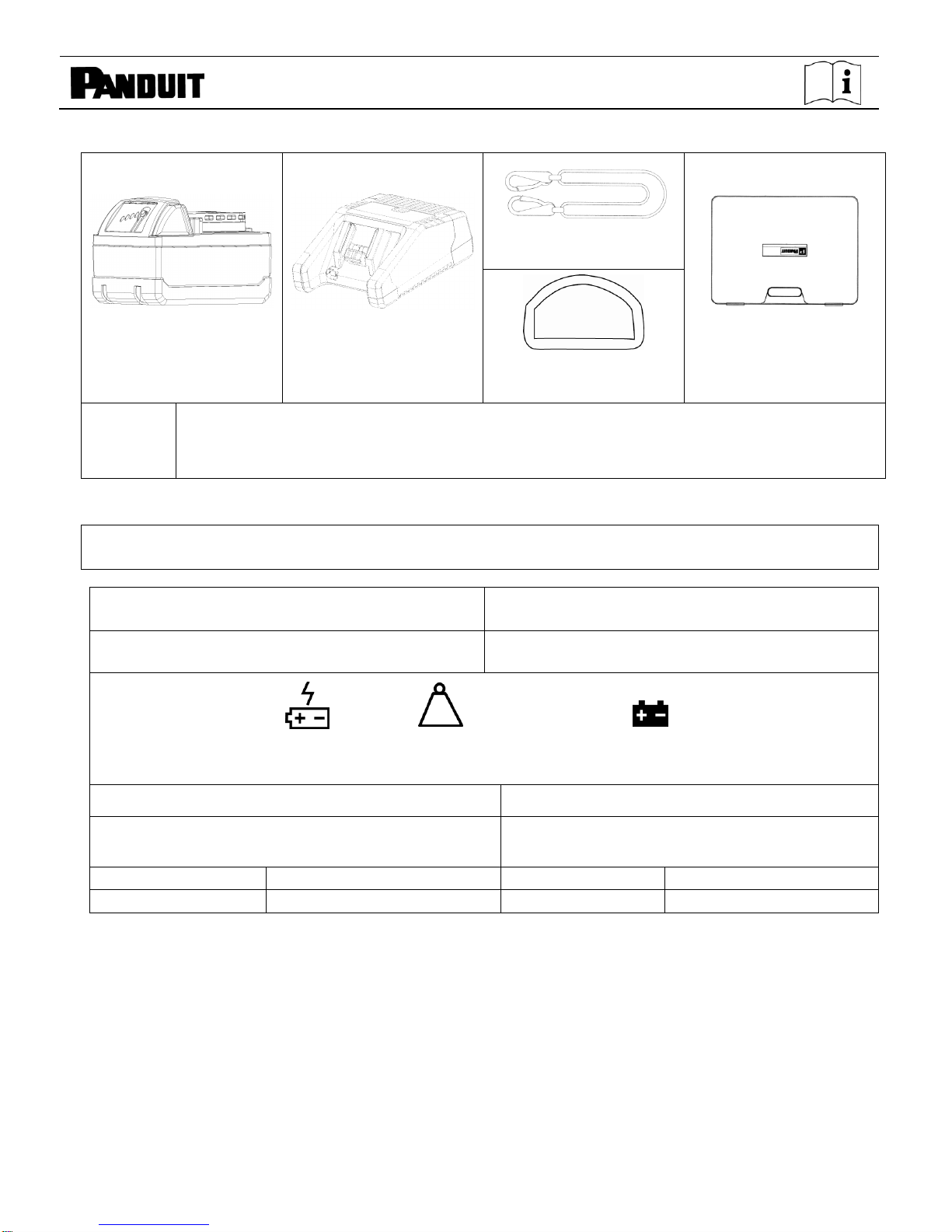

CT-2980/L & CT-2980/LE_ENGL PA26011A01_02 Page: 2 of 58 3-2012
CA21414B01
Shoulder Strap
CA21415A01
Shoulder Strap Ring
MILWAUKEE®Li-Ion 18V,
Battery Packs (2)
MILWAUKEE®Li-ion 18V
Battery Charger
Carrying Case
NOTE: In the interest of higher quality and value, Panduit products are continually
being improved and updated.
Consequently, pictures may vary from the enclosed product.
OPTIONAL ACCESSORIES (sold separately)
CG-980 Compression Gauge
Verifies the compression force of the CT-2980/L
and CT-2980/LE tools.
CT-2980/L
Lithium Ion (Li-Ion) Battery Pack
CT-2980/LE EUR
Lithium Ion (Li-Ion) Battery Pack
Milwaukee®18V Battery Pack
Part No.: 48-11-1828 18 V DC, 3.0 Ah
Milwaukee®18V Battery Pack
Part No.: C18BX 18 V DC, 3.0 Ah
45 min.
0.84 kg / 1.85 lbs. (+ )
Refer to Milwaukee® Operator’s Manuals which are supplied with battery pack and charger.
CT-2980/L Battery Charger
CT-2980/LE EUR Battery Charger
Milwaukee®Battery Charger
Part No.: 48-59-1801
Milwaukee®Battery Charger
Part No.: C18C
Input:
120 V AC; 60 Hz, 2.1A
Input:
230 V AC; 50-60 Hz, 1.2A
Output:
18 V DC, 3.5A
Output:
18 V DC, 3.5A
Replacement Milwaukee®Batteries and Battery Chargers are available for purchase from local
Milwaukee®products distributors or resellers.
Milwaukee® is a registered trademark of Milwaukee Electric Tool Corporation
The information contained in this literature is based on our experience to date and is believed to be reliable. It is intended
as a guide for use by persons having technical skill at their own discretion and risk. We do not guarantee favorable results
or assume any liability in connection with its use. Dimensions contained herein are for reference purposes only. For
specific dimensional requirements consult the factory. This publication is not to be taken as a license to operate under, or
a recommendation to infringe any existing patents. This supersedes and voids all previous literature, etc.

CT-2980/L and CT-2980/LE ENGLISH
CT-2980/L & CT-2980/LE_ENGL PA26011A01_02 Page: 3 of 58 3-2012
PRECAUTIONS AND GENERAL GUIDELINES
This symbol is used to call your attention to hazards or unsafe practices which could result in an
injury or property damage. The signal word, defined below, indicates the severity of the hazard.
The message after the signal word provides information for preventing or avoiding the hazard.
WARNING
Hazards which, if not avoided, COULD result in severe injury or death.
CAUTION
Hazards or unsafe practices which, if not avoided, MAY result in injury or
property damage.
WARNING
Read and understand all of the instructions and safety information in this manual before
operating or servicing this tool.
WARNING
Electric Shock Hazard:
This tool is not insulated. When using this unit on or near energized electrical lines, use proper
personal protective equipment.
WARNING
Wear eye protection when operating or servicing this tool.
Failure to wear eye protection can result in serious eye injury from flying debris or hydraulic oil.
WARNING
Skin Injection Hazard:
Oil under pressure easily punctures skin causing serious injury, gangrene, or death. If you are
injured by escaping oil, seek medical attention immediately.
Do not use hands to check for leaks.
Depressurize the hydraulic system before servicing.
WARNING
Do not use solvents or flammable liquids to clean this tool. Solvents or flammable liquids could
ignite and cause serious injury or property damage. During the operation of electric motors,
sparks can occur which might ignite highly flammable or explosive liquids and materials.
Do not use tool in or near a highly flammable or explosive atmosphere and/or materials.
WARNING
Keep hands away from the tool head when crimping.

CT-2980/L and CT-2980/LE ENGLISH
CT-2980/L & CT-2980/LE_ENGL PA26011A01_02 Page: 4 of 58 3-2012
WARNING
An incomplete crimp can cause a fire.
Use proper connector and cable combinations. Improper combinations can result in an incomplete
crimp.
The relief valve will sound to indicate a completed crimp. If you do not hear the sound of the relief
valve, the crimp is not complete.
Inspect tool before use. A worn or damaged tool may result in breakage striking the operator or
nearby personnel.
CAUTION
Do not perform any service or maintenance other than as described in this manual.
Injury or damage to the tool may result.
Do not place the tool in a vise. The tool is designed for hand-held operation.
Protect the tool from rain and moisture.
Use this tool for the manufacturer’s intended purpose only.
CAUTION
Before crimping a connection, verify that the tool top on the tool head is locked in the closed position.
The lockout pin must be engaged completely through the tool head and both surfaces of the tool top.
Failure to lock the tool top in the closed position may result in damage to the tool and personal injury.
OPEN
POSITION
CLOSED
POSITION

CT-2980/L and CT-2980/LE ENGLISH
CT-2980/L & CT-2980/LE_ENGL PA26011A01_02 Page: 5 of 58 3-2012
IMPORTANT INFORMATION
Keep the tool head and tool body portion clean and free from debris. Soap and a damp cloth should
be used to clean the tool body.
Always store the tool in its clean, dry carrying case when not in use.
DO NOT press trigger and release button simultaneously. Damage to trigger linkage may result.
Always point tool away from others.
If the tool is kept in cold temperatures below 23oF/-5oC for any extended time, it is advisable to return
the tool to room temperature for 1 hour before using.
Avoid dropping the tool. Extreme shock may damage the hydraulic circuit and result in malfunction
of the tool.
Always verify the proper size connector for the conductor, by checking the color code and the
printing on the connector.
NOTE: CONNECTIONS UTILIZING THIS TOOL ARE U.L. LISTED AND C.S.A. CERTIFIED ONLY WHEN PANDUIT
COPPER COMPRESSION CONNECTORS ARE USED. USE OF ANY OTHER BRAND OF COMPRESSION
CONNECTORS IS NOT RECOMMENDED.
Consult product packaging, Panduit catalog or website for information on recommended
connectors.
MAINTENANCE
It is recommended that the hydraulic fluid be changed every 24 months. The tool should be returned to
Panduit Tool Solutions Division for proper oil changing.
Panduit Tool Solutions Division (USA)
1350 Lakeside Drive
Romeoville, IL 60446
Tel.: [phone], ext. 83255
Panduit Europe • EMEA Service Center
Almelo, Netherlands
Tel.: + 31 546 580 451

CT-2980/L and CT-2980/LE
CT-2980/L & CT-2980/LE PA26011A01_02 Page: 6 of 58 3-2012
ENGLISH
TOOL OPERATION
DEUTSCH
BEDIENUNG DES WERKZEUGS
FRANÇAISE
FONCTIONNEMENT DE L’OUTIL
ITALIANA
AVVIAMENTO DELL'ATTREZZO
ESPAÑOL
OPERACIÓN DE LA HERRAMIENTA
ÈESKÝ
OBSLUHA NÁSTROJE
NEDERLANDSE
GEBRUIK VAN HET GEREEDSCHAP
DANSKE
BETJENING AF VÆRKTØJET
SVENSKA
VERKTYG MANÖVRERING
SUOMEN
TYÖKALUN KÄYTTÖ
NORSK
BETJENING AV MASKINEN
ENGLISH
CAUTION:
Do not crimp connector
DEUTSCH
ACHTUNG:
Vercrimpen Sie nicht den Steckverbinder
FRANÇAISE
ATTENTION:
Ne sertissez pas le connecteur
ITALIANA
ATTENZIONE:
Non crimpare il connettore
ESPAÑOL
PRECAUCIÓN:
No frunza el conector
ÈESKÝ
POZOR:
Konektor zatím nekrimpujte
NEDERLANDSE
LET OP!
Krimp de connector niet
DANSKE
FORSIGTIG:
Konnektoren må ikke krympes
SVENSKA
SE UPP:
Pressa inte kontakten
SUOMEN
HUOMAA:
Älä purista liitintä
NORSK
FORSIKTIG:
Ikke crimp konnektoren

CT-2980/L and CT-2980/LE
CT-2980/L & CT-2980/LE PA26011A01_02 Page: 7 of 58 3-2012

CT-2980/L and CT-2980/LE
CT-2980/L & CT-2980/LE PA26011A01_02 Page: 8 of 58 3-2012
CT-2980/L & CT-2980/LE TOOL

CT-2980/L und CT-2980/LE DEUTSCH
CT-2980/L & CT-2980/LE_DEU PA26011A01_02 Page: 9 of 58 3-2012
BEDIENUNG DES WERKZEUGS.......................................................................................................6
SYSTEMSPEZIFIKATION ..................................................................................................................9
OPTIONALES ZUBEHÖR (separat erhältlich)................................................................................10
VORSICHTSMASSNAHMEN UND ALLGEMEINE RICHTLINIEN....................................................11
WARTUNG .......................................................................................................................................13
SYSTEMSPEZIFIKATION
Leistung:
5.6 (metric tons) / 6.2 tons
ANMERKUNG:
STECKVERBINDER, DIE FÜR DIESES WERKZEUG GEEIGNET SIND, SIND NUR
DANN UL-GELISTET UND CSA-ZERTIFIZIERT, WENN PANDUIT
KUPFERPRESSVERBINDER VERWENDET WERDEN. DIE VERWENDUNG
ANDERER MARKEN VON PRESSVERBINDERN WIRD NICHT EMPFOHLEN.
Wenden Sie sich Produktverpackungen, Panduit Katalog oder Website für Informationen
über die empfohlenen Anschlüsse.
Motor:
14.4 V DC motor
5.3 kg / 11.75 lbs.( + )
