PARAMOUNT BED A5 Series User manual

Thank you for purchasing A5 Series Bed.
This instruction manual describes precautions and how to safely use and operate the bed.
●Before using this bed, please read this instruction manual
to fully understand the safe and proper operating procedures.
●The correct operating procedures should be explained not
only to the persons using the bed but also to caregivers.
●After reading this instruction manual,
store it where it can beeasily accessed for later reference.
●The actual product purchased may differ from detailed
descriptions given in this instruction manual due to product improvements.
●Values in the specification such as working range, dimensions,
angles and mass are subject to normal manufacturing tolerances.
Besides some exemptions, display purpose words such as
“approximately”, “about” etc. are omitted.
●For any queries, please feel free to directly contact Paramount Bed or your distributor.
●Users and/or patients are requested to report information about any serious incident
related to this equipment that occurs within the EU to the manufacturer and
the regulating authority of the member country of residence.
'Serious incident' means any incident that directly or indirectly led,
might have led or might lead to any of the following:
・the death of a patient, user or other person.
・the temporary or permanent serious deterioration of a patient's,
user's or other person's state of health.
・a serious public health threat.
A5 Series Bed
Note: In the illustration, an optional
mattress is attached.
INSTRUCTION MANUAL
7C00023700A1

INTENDED USE / PART NAMES
SAFETY PRECAUTIONS
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．4-12
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．13
INSTALLATION
MATTRESS (OPTIONAL)
ASSEMBLING THE BED
1. Board
2. Mattress stopper
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．14
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．15
CONNECTING TO THE POWER SUPPLY
1. Power outlets
2. Cable storage
OPERATION PROCEDURES
6. Adjusting the angle of the leg section base
7. Casters
8. Bed side-rails
9. Accessory holders
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．16
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．16
．．．．．．．．．．．．．．．．．．．．25
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．26-27
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．28-29
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．30
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．37
1
2
3
4
5
6
1
12. Angle indicators
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．32
Page
11. Restraint belt mounting holes
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．31
14. Corner bumpers
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．31
15. Extension frame function
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．33
CONTENTS
1. Operation overview
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．17-18
2. Handheld controller
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．19-20
3. Side-rail integrated panel ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．21-22
4. Patient control panel ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．23
5. Emergency CPR (back-lowering) function ．．．．．．．．．．．．．．．．．．．．24
17. X-ray cassette tray
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．35-36
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3213. Option attachment holes
7
16. Battery unit
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．34
10. Detaching the hip section base
．．．．．．．．．．．．．．．．．．．．．．．．．．．．30

SPECIFICATIONS
PRODUCT SYMBOL DEFINITIONS
REGULAR INSPECTION AND DAILY MAINTENANCE
TROUBLESHOOTING
LONG-TERM STORAGE
AFTER-SALES SERVICE
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．48
．．．．．．．．．．．．．．．．．．．．49-50
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．51-52
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．53
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．54-59
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．60
12
2
10
11
13
14
Page
ACCESSORIES
2. IV pole
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．39
3. Oxygen cylinder holder(φ155mm) ．．．．．．．．．．．．．．．．．．．．．．．．．．40
4. Oxygen cylinder holder(φ115mm) ．．．．．．．．．．．．．．．．．．．．．．．．．．41
6. Foot spacer
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．43
Overbed table
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．47
1. Recommended accessories table ．．．．．．．．．．．．．．．．．．．．．．．．．．38
NOTE
●
After pages 4, some part names described in the text are abbreviated as follow:
・Bed side-rail → Side-rail
8
9
7. Foot spacer storage
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．43
5. Lifting pole
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．42
8. Orthopedic frame attachment
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．44
10. Monitor table
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．45
11. Assist bar
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．46
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．47
15
PERIPHERAL EQUIPMENT
9. Foot light
．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．44

3
1. Intended Use

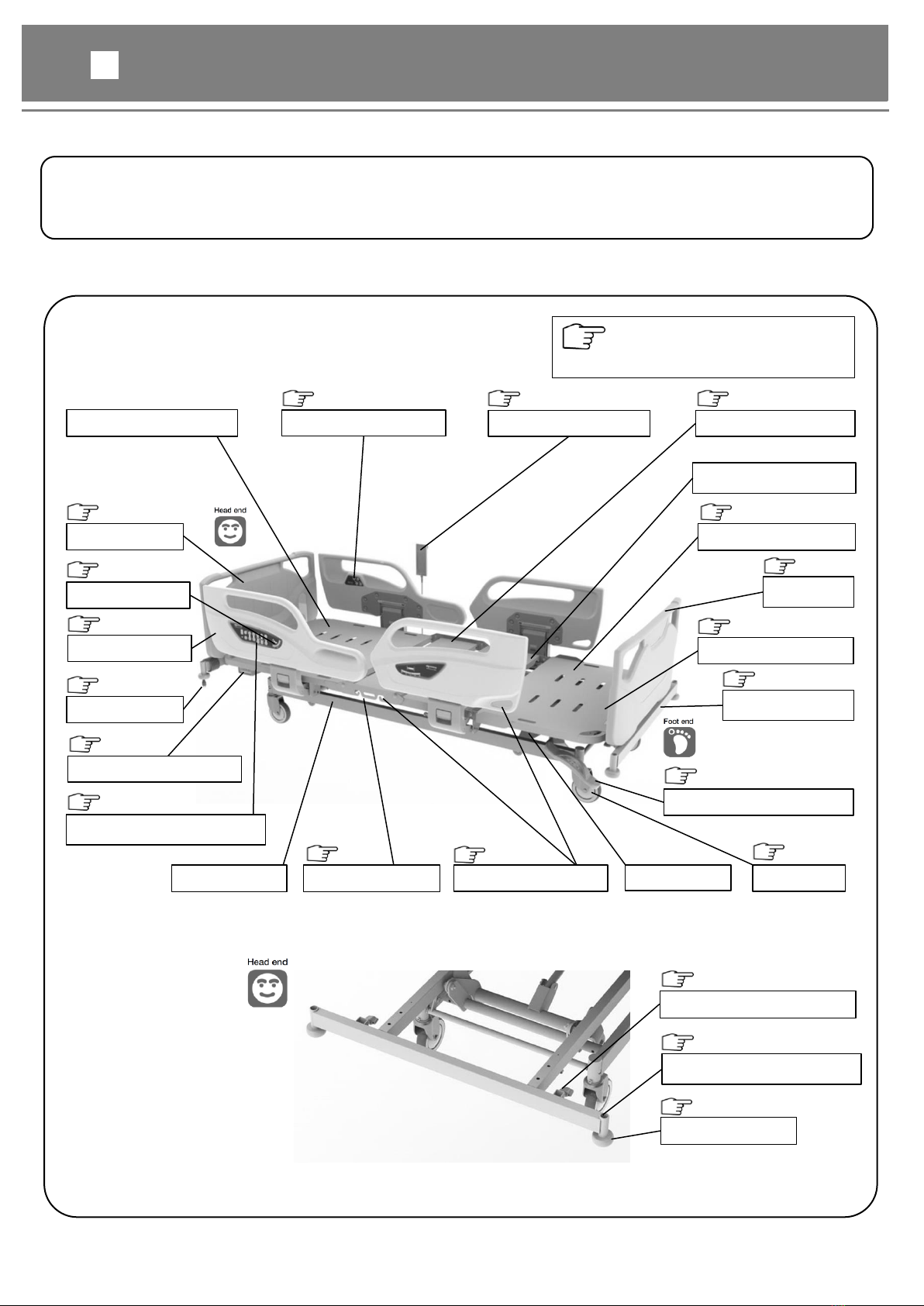

2. Part Names
Board attachment hole
Corner bumper
Option attachment hole
INTENDED USE / PART NAMES
1
p.14
p.32
The page number shown next to this
symbol indicates where the related
explanation can be found.
p.32
Emergency CPR lever
Bed side-rail
Headboard
Back section base
Hip section base
Power plug
Accessory holder
Base frame
Footboard
Caster operation pedal
Knee section base
Caster
Handheld controller
Leg section base
Mattress stopper
Main frame
p.23
Patient control panel
Angle indicator
p.15
p.19-20
p.14
p.14
p.28-29
p.31
p.24
p.16
p.21-22
Side-rail integrated panel
p.30
p.26-27
p.26-27
※X-ray imaging base
is also available.
(p35-36)
Extension frame
p.33
Lock-out switch
p.30
p.20
p.25
■
This bed is designed to be used for patient care in medical institutions and elderly care facilities.
※For details of the patient target groups and contra-indications,
the intended users and clinical benefits, see "Specifications".

●
Precautions requiring special attention by persons using the bed are affixed as pictured in the
figure.
●If the safety label is removed or defaced, replace it with a new one obtained from Paramount Bed
or your distributor.
4
■
Be sure to read these safety precautions beforehand to ensure proper usage.
●The safety precautions described here are intended to ensure safe use of the product and prevent
personal injury and property damage. Precautions are classified as "WARNING" and "CAUTION"
to indicate the degree of hazard or injury that may result from improper use. These are important
safety precautions that must be strictly observed.
Indicates actions that may result in death or serious injury (broken
bones, pressure or paralysis) if the indication is ignored.
Indicates actions that may result in light personal injury (bruises,
wounds, or cuts) or property damage if the indication is ignored.
Among items described in SAFETY PRECAUTIONS, are especially important because ignoring them could
result in serious life-threatening accidents. Be sure to read these notes and use the product safely and properly.
Be especially careful to check patients who might act in unexpected ways or cannot maintain their posture
independently.

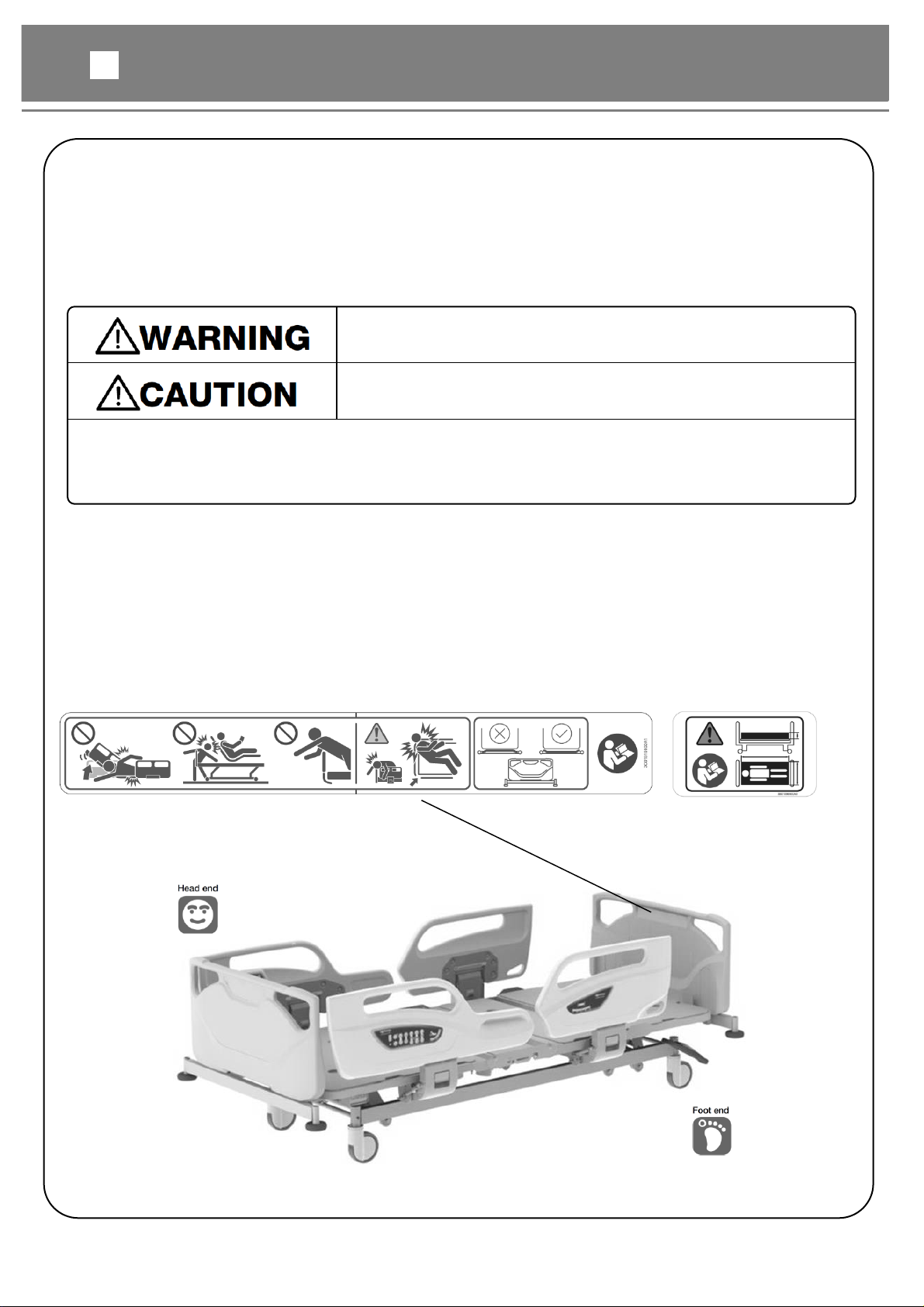

[Safety label]
※After reading this instruction manual, store it in a place that can be easily accessed for later reference.
SAFETY PRECAUTIONS
2
On the leg section base

5
■

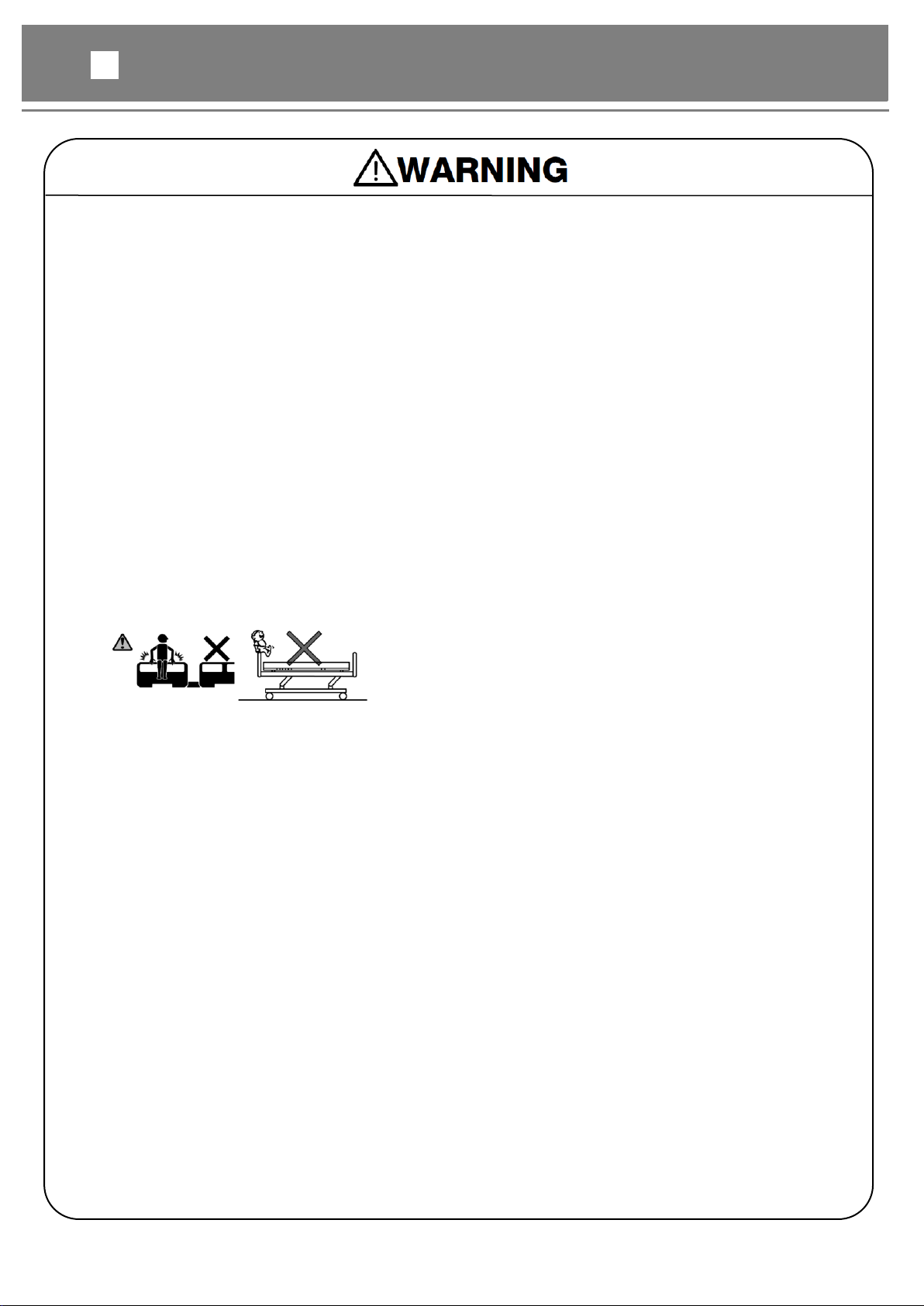

Be careful not to allow any part of the body (especially the head or neck) to enter the gap
between the side-rail, or the side-rail and the board or the mattress base (especially when
raised).
●
When the head or neck enters the gap, the patient and/or user
might not be able to withdraw, and there is a risk of injury.
●Be especially careful to check patients who might act in
unexpected ways or cannot maintain their posture independently.
■

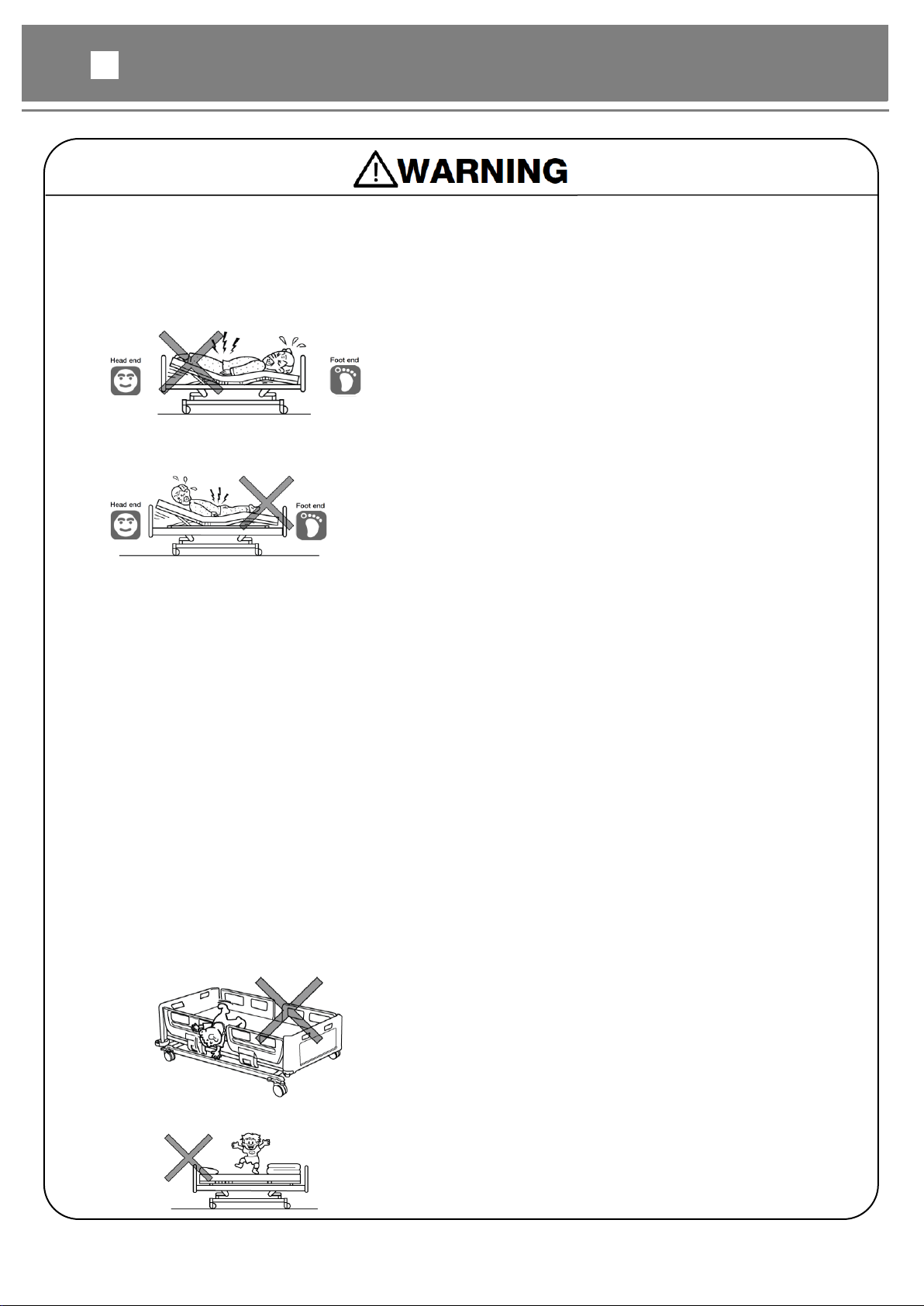

Be careful not to allow any part of the body (especially the head or neck) to enter the gap
between the side-rail and the mattress base or the mattress.
●
If the bed is operated with a body part placed in the gap, the part may get caught, resulting in injury.
●When the head or neck enters the gap, the patient and/or user might not be able to withdraw,
and there is a risk of injury.
●Be especially careful to check patients who might act in unexpected ways or cannot maintain their
posture independently.
■
When performing the height adjustment or inclination angle adjustment with the side-rail
lowered, do not place legs under the side-rail.
●
There is the risk that the legs may get caught, resulting in injury.
■
Be careful not to allow any part of the body to enter the gap in the side-rail and the board.
●
If the bed is operated with a body part placed in the gap, the part may get caught, resulting in injury.
●When the head or neck enters the gap, the patient and/or user might not be able to withdraw,
and there is a risk of injury.
●Be especially careful to check patients who might act in unexpected ways or cannot maintain their
posture independently.
■
Do not insert a hand (fingers) or legs between the bed frame and the mattress base
during electrical operation.
●
The body part may get caught in the gap between the lowered mattress base and the bed frame
or the board, resulting in injury.
■
Check the patient’s condition when adjusting the base angle or bed height.
●
If the patient on the bed moves when the base angle or bed height is adjusted, the patient may fall off
the bed or get caught in the gap between the bed and the side-rail or the board, resulting in injury.
Parform the adjustment while supporting patients who cannot maintain their posture independently.
■Do not crawl or place your head or hands/legs under the bed.
●
There is a risk of getting caught between the moving part on
the bed and the frame or the side-rail, resulting in injury.
Check to make sure there are no people or objects around the
bed before operating the bed.
SAFETY PRECAUTIONS
2

6
■
Be careful not to allow any part of the body to enter the gap between the bed and
wall or surrounding obstacles.
●There is a risk that a part of the body may get caught, resulting in injury.
■
Do not adjust the side-rails from inside the bed.
●
The side-rails may drop suddenly and there is a risk of injury caused by a patient falling off
the bed.
■
When transporting a patient, raise the side-rails.
●
There is a risk of the patient falling off the bed, resulting in injury.
■
Do not sit on the side-rails, the headboard, or the footboard.
●
A patient could fall off the bed, or the bed or
side-rails could be damaged or deformed,
resulting in injury.
■
Take care to prevent a patient from falling off the bed even when side-rails are raised.
●
A patient may fall off the bed through the gap between the side-rails, or a board and side-rail,
resulting in injury.
●If a patient bends forward over a side-rail, they may fall off the bed, resulting in injury.
●Be especially careful to check patients who might act in unexpected ways or cannot maintain their
posture independently.
■
When leaving the bed area or temporarily taking your eyes off the patient, check the
mattress base angle, bed height, and the side-rail status.
●
If a physician, nurse, or caregiver leaves the bed area or temporarily takes their eyes off
the patient, flatten the mattress base angle and set the bed height at the lowest position
according to the patient’s condition because there is a slight chance that the patient could
fall off the bed.
●For patient who cannot maintain their posture independently or have trouble walking, raise all
bed side rails.
■
Do not allow the bed to be operated by a child aged 12 or under, or someone
deemed incapable of comprehending the operation of the bed.
●
If a child aged 12 or under, or someone deemed incapable of comprehending the operation
(such as persons with dementia) operates the handheld controller, the side-rail integrated panel or
the patient control panel by themselves, there is a risk of unexpected injury such as the body getting
caught in the bed by accident. If such person can come into contact with the handheld controller,
the side-rail integrated panel or the patient control panel, limit the operation by either of the following
methods in order to prevent accidents caused by incorrect operation.
・Rotate the switch on the Lock-out switch to the lock position to disable the handheld controller
operation.
・Press the Lock button on the side-rail integrated panel to disable the side-rail integratel panel and
the patient control panel operation.
・Unplug the power plug.
SAFETY PRECAUTIONS
2

■Use the bed in the correct orientation.
●
Lying down on the bed with the feet at the head end and
the head at the feet end induces an unnatural posture
during bed operation (base angle) which may result in
injury.
7
■
Do not perform any angle adjustment when the patient is lying face down or on their side
(in any posture other than lying face up).
●
There is a risk of injury caused by extending the joints
backward.
■Use the bed according to the patient’s medical condition.
●
The bed operations may adversely affect the medical conditions of patients with specific symptoms.
Before the patient or a family member operates the bed, make sure that the physicians or nurses
explain details given in the instruction manual and proper usage to suit the patient’s medical condition.
■

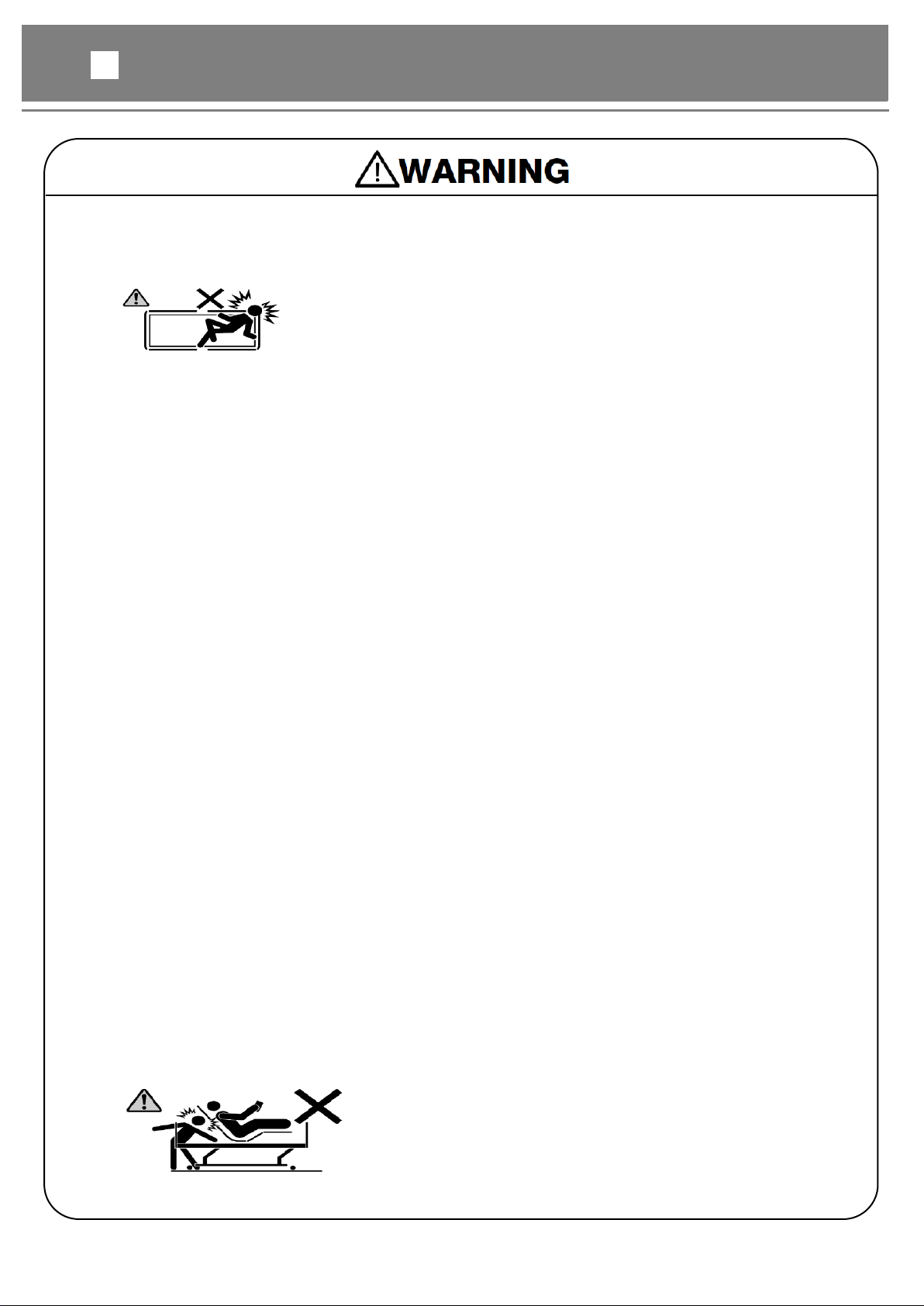

Do not stand on the bed.
●
There is a risk of injury caused by the person falling
off the bed or falling down, or the bed could be
damaged or deformed. Pay close attention to children.
SAFETY PRECAUTIONS
2
■
Do not perform the bed operation such as raising the back or knee section base with a
restraint belt attached to the main frame.
●
The patient's body may be squeezed resulting in injuly or the bed may get damaged or deformed.

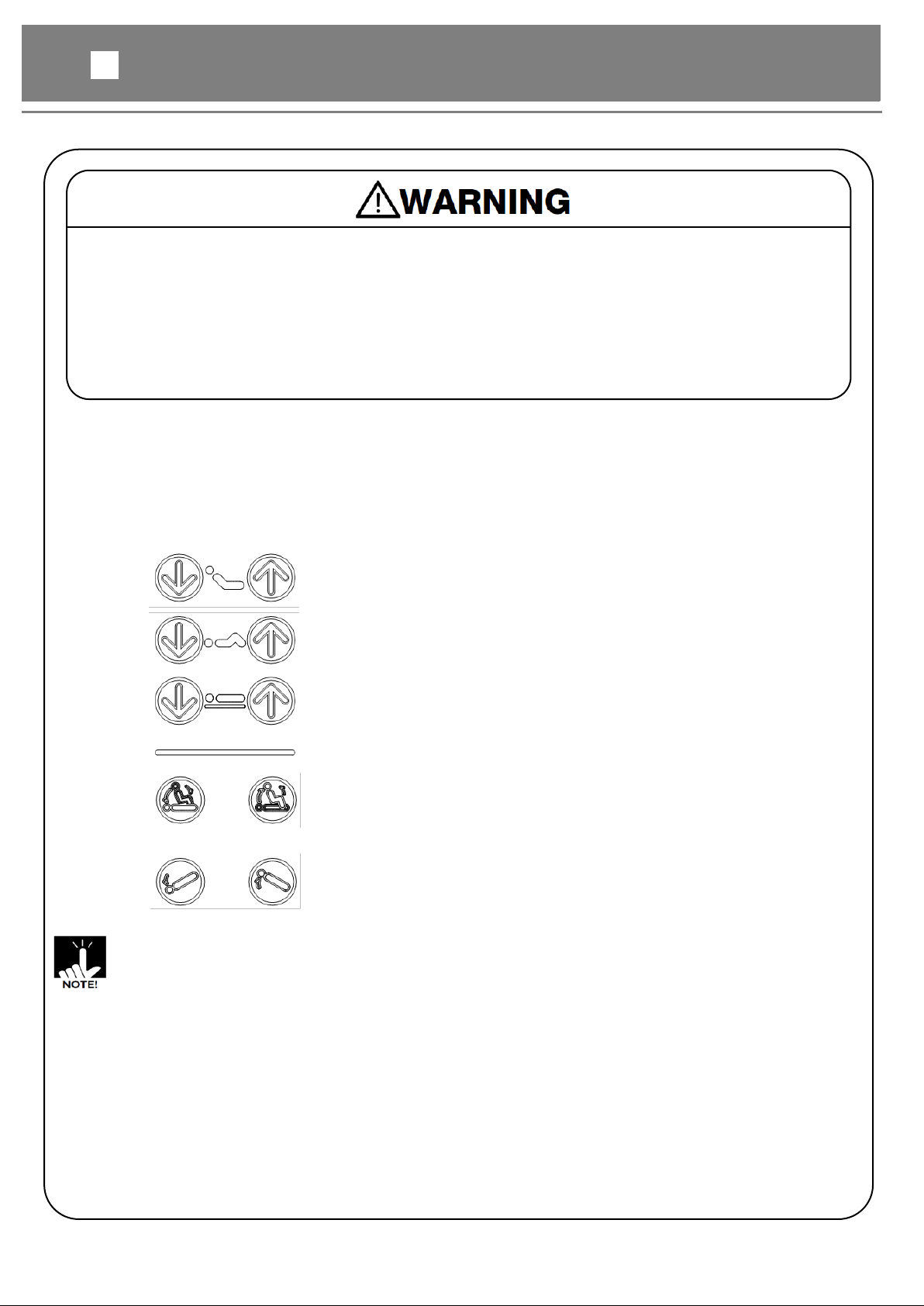

●If a patient or family can come into contact with the handheld controller, the side-rail integrated
panel or the patient control panel, limit the operation by either of the following methods in order
to prevent accidents caused by inccorrect operation.
・Rotate the switch on the Lock-out switch to the lock position to disable the handheld controller
operation.
・Press the Lock button on the side-rail integrated panel to disable the side-rail integrated panel and
the patient control panel operation.
・Unplug the power plug.
■
Do not use the bed for infants or small children.
●
This product is not designed for infants or small
children. There is a risk of injuly caused by the
infant or small child getting caught in gap between
the side-rails.
●There is a risk that infants may fall off the bed
through the gap between the side-rails, even when
the side-rails are used.
■
Pay attention to prevent the patient from being compressed by back raising.
●
Especially before birthing, if the back section base is raised excessibly, the patient might be
compressed, resulting in injury.

8
■Keep the bed away from fire.
●
Do not use thermal appliances such as heaters near the bed. Otherwise, the bed may be damaged
or deformed, or even catch fire.
■When moving the bed, watch your step.
●
Your leg may bump into the caster operation pedal or your foot may get caught by a caster,
resulting in injury.
■Lock the casters at all times except when moving the bed.
●
The bed may move when a patient gets into or out of the bed, resulting in an unexpected injury.
When moving the bed, operate the caster operation pedal and unlock the casters.
■Do not step on the caster operation pedal.
●
There is a risk of injury due to falling or damage to the bed.
■
Do not combine the bed with products other than the suitable products specified by
Paramount Bed.
●
For options directly attached to the bed such as mattresses, use suitable products specified by
Paramount Bed. Using other products may create unintended gaps, cause interference between
products, or lower the product safety, which may result in injury or operational failure.
■
Make sure that there is nothing in the board attachment holes or the option attachment
holes when mounting the boards or the accessories.
●
If there are obstacles in the attachment holes, you cannot mount the boards or the accessories,
and the patient may fall off the bed or get caught in the gap, resulting in injury.
■Do not use a mobile phone or other wireless device in the vicinity of the bed.
●This could cause the bed to malfunction or affect other medical equipment.
■Do not spill liquids on the bed.
●
Do not spill liquids on the bed’s electrical components, such as the motors, handheld controller. This
could cause an electric shock due to a short circuit or product failure. If liquids are spilt accidentally,
disconnect the power plug from the power outlet and contact Paramount Bed or your distributor.
■Do not attach a restraint belt to boards or side-rails.
●The belt could unexpectedly come off, resulting in injuly, or the bed could get damaged or deformed.
■
When attaching the restraint belt to mattress base, put it through the mounting bracket
of the mattress base.
●
If the restraint belt is attached to something other than the mounting bracket, the belt could
unexpectedly come off, resulting injuly, or the bed could be damaged or deformed.
■During operation, be careful not to trap the tubes.
●
It may cause damage to the tubes and devices or be trapped within the moving bed parts, resulting
in injury.
SAFETY PRECAUTIONS
2

9
■Do not damage cables (such as the power cable).
●
Damage to the cables may cause electric shock or fire due to a short circuit.
○Be careful not to allow cables to get caught in the moving parts of the bed.
○Be careful not to place heavy objects on the cables or apply excessive force to them.
○Do not run over cables with the bed.
●Request repair (or replacement) of damaged cables.
■
Do not bump or damage electrical parts such as the handheld controller.
●
The bed may malfunction, resulting in injury, and there is a risk of electric shock or fire due to
a short circuit.
●This may cause operational failure.
●Request repair (or replacement) of a damaged handheld controller.
SAFETY PRECAUTIONS
2
■
Do not run cables (such as the power cable) of the bed or other electrical appliances
under the bed.
●
The cables may get caught in casters or moving parts and become damaged and short circuit,
resulting in electric shock or fire.
■Do not apply excessive force to the power plug.
●There is a risk of electric shock or a fire due to a short circuit.
■
Do not allow dust to accumulate on the power plug pins.
●
Dust on the power plug can absorb moisture and
conduct electricity, causing a short circuit and possibly
resulting in electric shock or fire.
●Wipe away any dust accumulating on the surface of
the power plug using a dry cloth.
■Always unplug the power plug before cleaning.
●There is a risk of injury due to accidental operation or electric shock due to a short circuit.
■Do not insert or remove the power plug with wet hands.
●
There is a risk of electric shock or product failure
due to a short circuit.
■
Do not trip over the power cable or the handheld controller cable.
●
The power plug or cables may get damaged and short circuit, resulting in electric shock or fire.
●There is a risk of injury caused by the patient falling down.

10
■The bed should not be used by two or more persons.
●
This bed is designed for use by one person. When used by two or more persons, the bed could
be damaged, resulting in injury. User's maximum weight is 195kg.
If a physician, nurse, or caregiver needs to get on the bed for a short time, confirm the following
conditions beforehand.
○
The total weight of the person to get on the bed must not exceed user's maximum weight.
○The mattress base has been lowered all the way, and is flat.
■Do not apply more than the safe working load on the bed.
●
The bed could be damaged, resulting in injury. The safe working load of this bed is 2250N (230kgf).
The safe working load is the maximum load with which the bed can be operated and is the total load
of the user's weight and incidental items including the mattress and options.
■Do not place the bed on the inclination which angle is 6 degree or more.
●The bed may tip over, resulting in an injury.
■Do not spray a spray-type insecticide directly on the bed.
●
There is a risk that the solvents contained in insecticide may damage, discolor, or dissolve casters
or other resin parts of the bed. Check for damage caused by insecticide because damaged or dissolved
parts may cause an unexpected injury.
■
Do not use electrically powered beds in the presence of flammable gases.
●There is a risk of explosion.
■Do not repair or modify the product or its components.
●
This may create unintended gaps or may cause abnormal operation, resulting in injury.
■
Always disconnect the power plug for the bed from the power outlet when using
electronic medical equipment.
●
Using the bed in conjunction with electronic medical equipment (e.g. microwave or ultrashortwave
medical equipment) may cause operational failure or malfunction.
●Check for safety considerations before using the bed in conjunction with other medical equipment.
■Inspect the bed regularly.
●
The product exhibits wear and deterioration according to the frequency and conditions of use.
Inspect for loose parts, the operation of moving parts on the bed, and the presence of damage
regularly. There is a risk of unexpected injury.
■
Beds damaged in accidents must be inspected and repaired before being reused.
●
Beds damaged in earthquakes, fires, or floods or other incidents must be inspected and repaired by
Paramount bed or your distributor. Otherwise, there is a risk of electric shock or fire due to short
circuit or current leakage from electrical parts, or injury due to malfunctioning caused by deformation
of the bed.
■

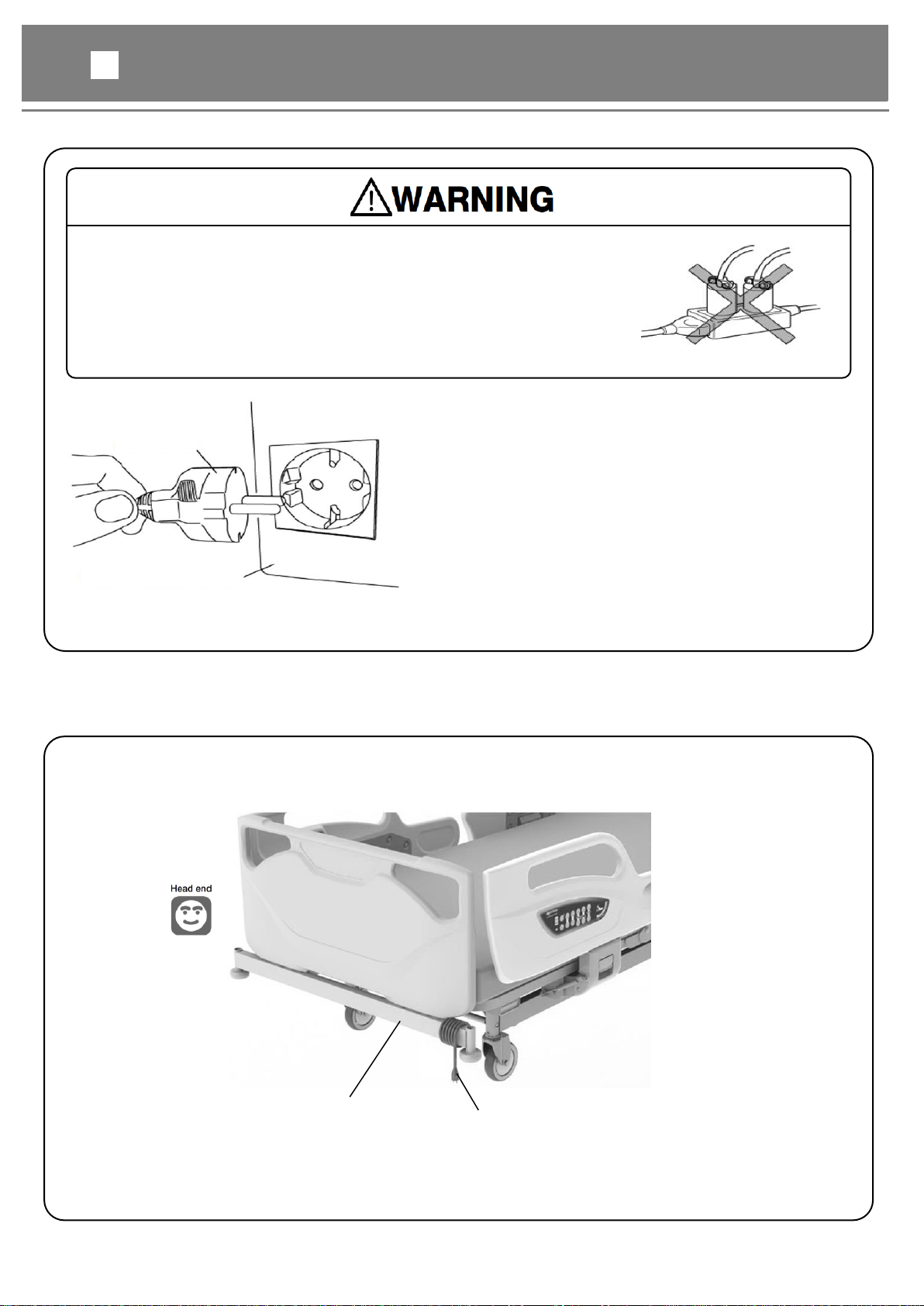

When disconnecting the power plug, hold the power plug body to disconnect.
●
When holding onto only the power cable and pulling it to disconnect the plug from the outlet,
the cable could be damaged and there is a risk of electric shock or fire due to a short circuit.
SAFETY PRECAUTIONS
2

11
■

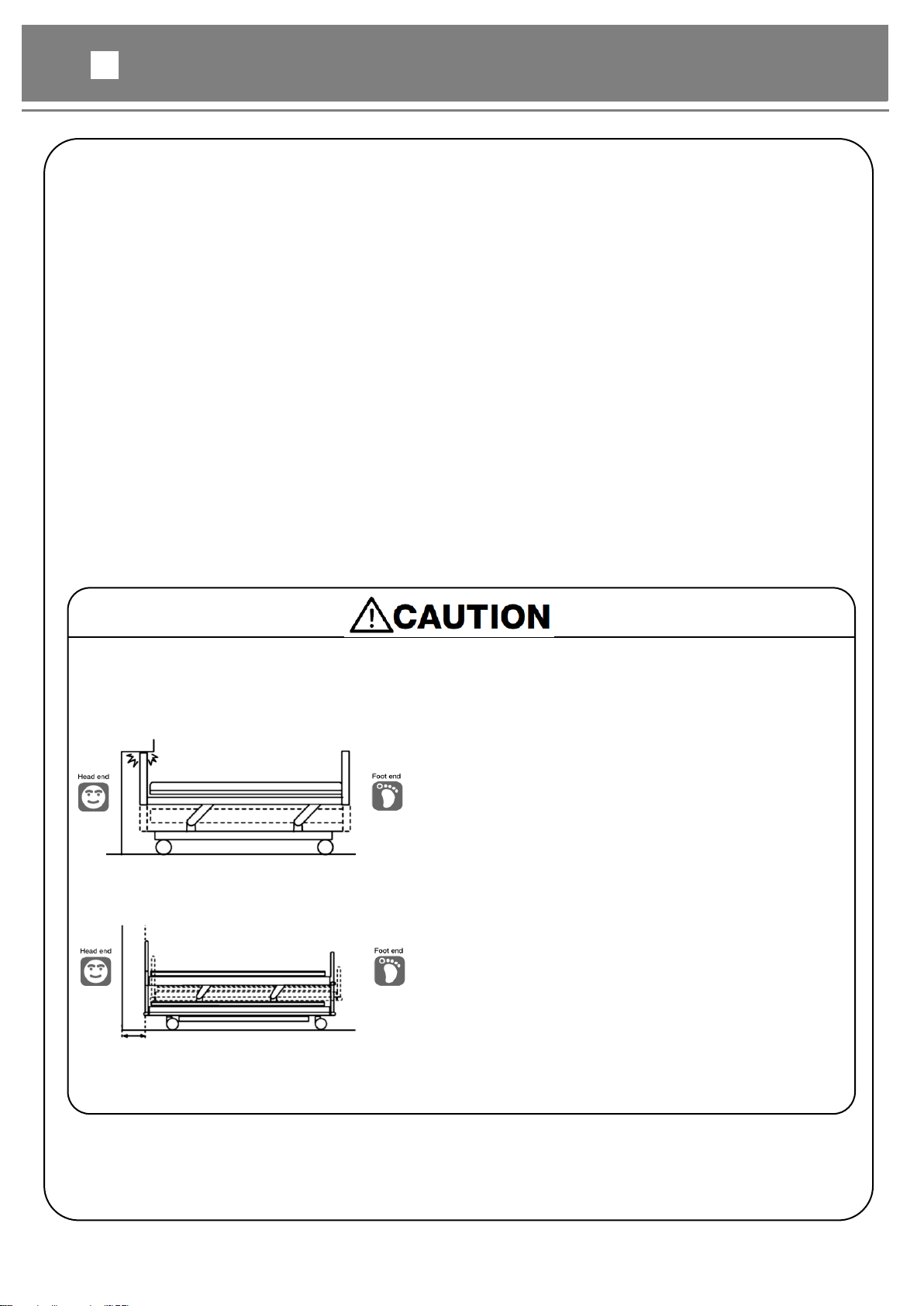

When performing the height adjustment or inclination angle adjustment, pay attention
not to hit the wall, beam, or power outlet on the wall.
●
The bed or wall may be damaged or deformed. Make
sure that the bed does not hit the wall, beam, or power
plug during the height adjustment or inclination angle
adjustment.
■
When setting up the bed, make sure that there is at least 20 cm clearance from the wall.
●
The main frame moves back and forth during the
height adjustment or inclination angle adjustment
and could hit the wall, causing damage or
deformation of the bed.
■Do not get on the mattress base when it is raised.
●
It applies excessive force to the support of the
mattress base, causing damage or deformation.
■Check around the bed before operating the bed.
●
The bed operations may damage objects located around the bed, or may cause the bed to be
damaged or deformed.
Secure at least 20 cm clearance from the wall.

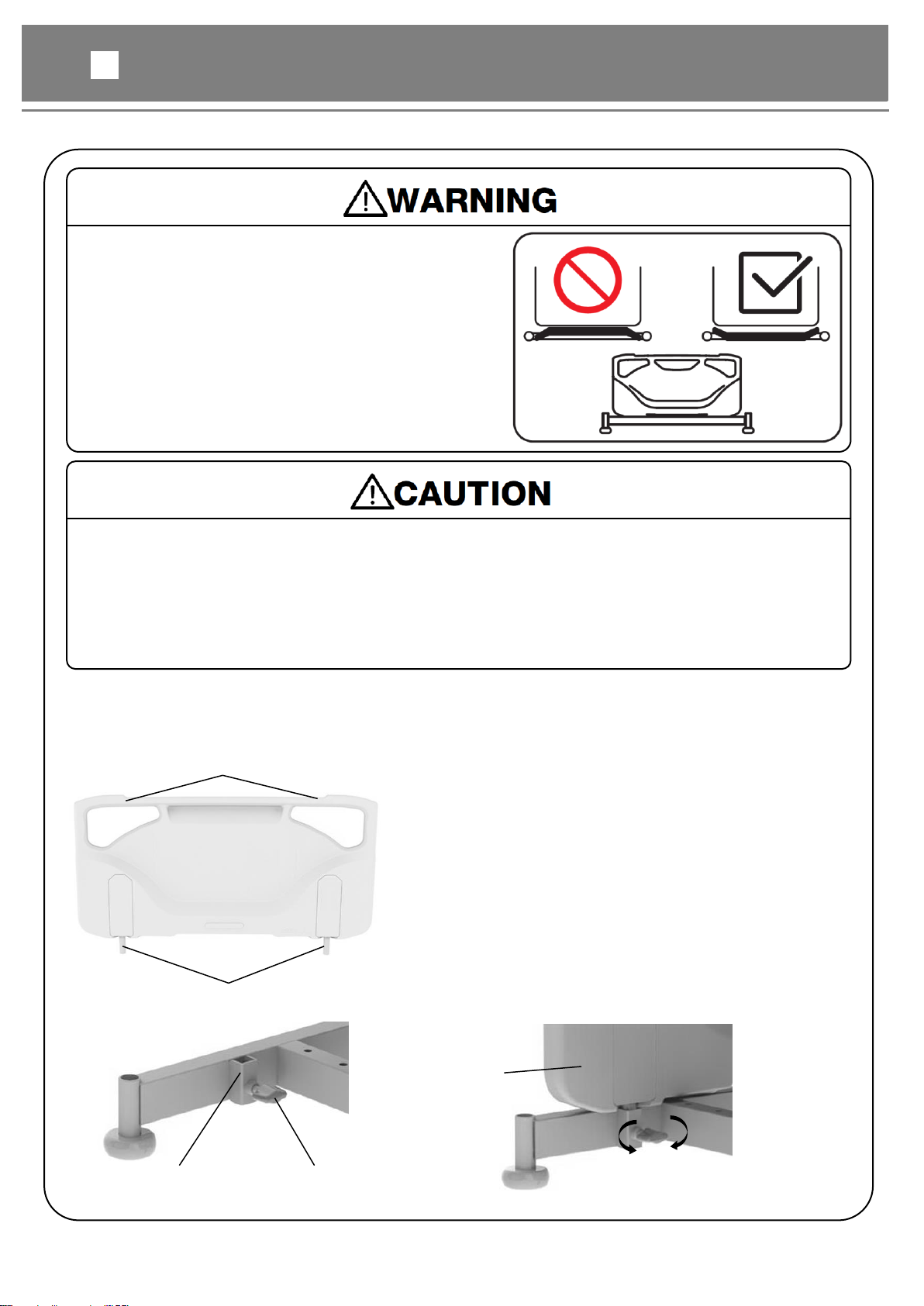

■Make sure that the board stoppers are properly locked.
●
If the board stoppers are not locked properly,
the board may suddenly disengage when a staff
pushes (pulls) the board to move the bed or a
patient grabs the board to support their body,
resulting in injury due to the patient losing balance
and falling down.
■
Do not hold the side-rails to move the bed.
●
It applies excessive force to the side-rails, causing damage or deformation.
SAFETY PRECAUTIONS
2
■
Pay attention to the board and devices that install at the attachment holes during tilt
angle adjustment.
●
During tilt angle adjustment, pay attention the board and accessories attachment holes will become
tilted at an angle, which may cause equipment to drop, leading to injury as well as damage and
deformity to the equipment.
Headboard
(Footboard)
TightenLoosen
Board stopper

12
■Avoid transporting over uneven floors.
●
This may cause damage to the bed, or deformation
or failure of the bed. If moving on uneven floor is
necessary, move the bed as slow as possible.
■The handheld controller must be attached to a suitable bed.
●
If it is attached to an unsuitable bed, the bed could operate unexpectedly, resulting in injury
or bed failure.
●Even though the bed is the same series, the suitable handheld controller may be different due to a
specification changes. Before attaching the handheld controller to the bed, check that the part number
and shape of the handheld controller are the same as those of the bed.
■When using a patient lifter, do not use the leg part height is more than 140mm.
●
The leg part of the patient lifter cannot be inserted under the bed and the patient lifter cannot be used
safely.
■
The angle of the leg section base must be adjusted by at least two persons from both
sides of the bed.
●
If only one person attempts to adjust the angle, the person may get caught between the leg section
base and main frame, resulting in injury.

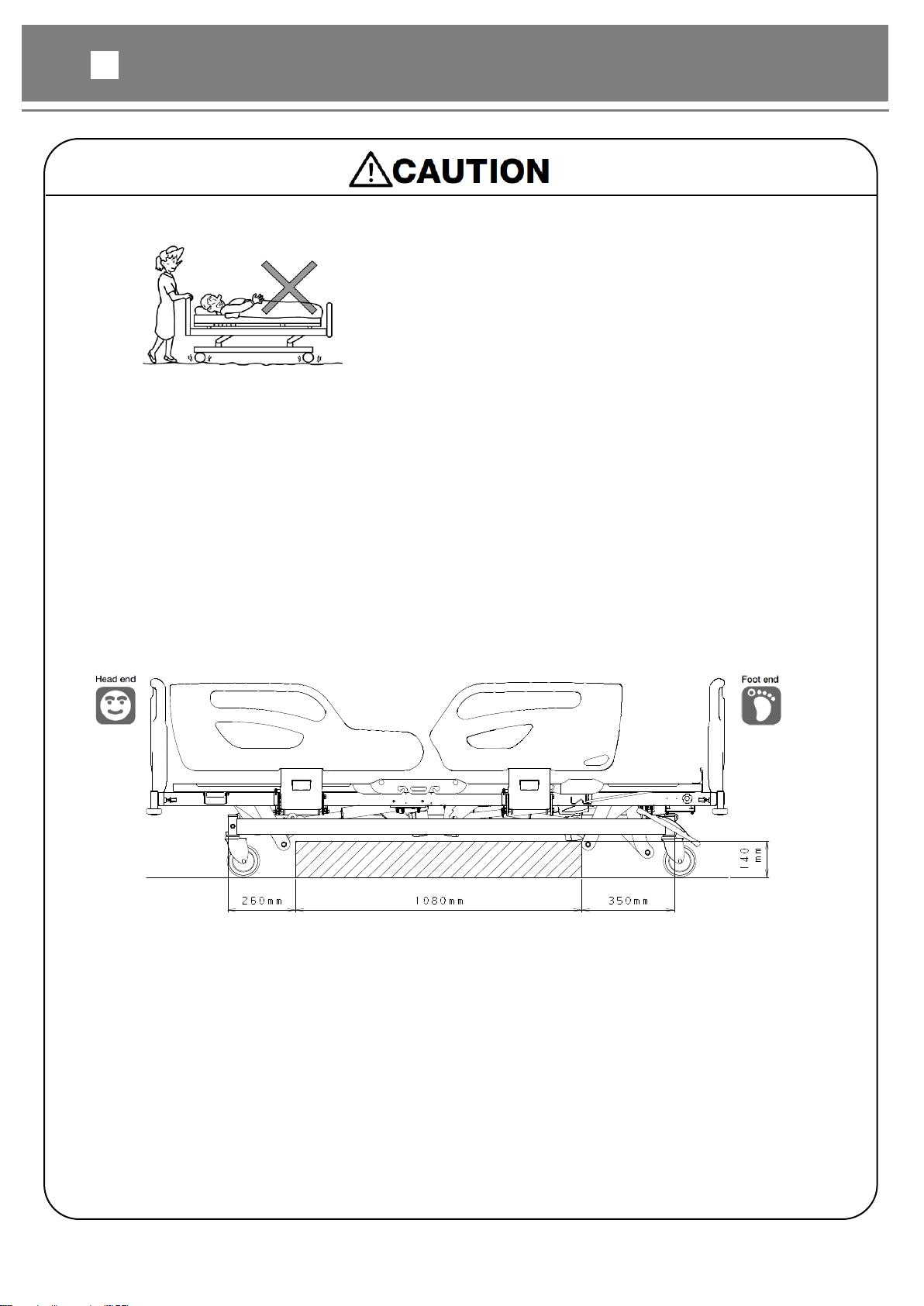

■When using a patient lifter, it can be used in the area as shown in the picture.
●Do not use the patient lifter in the other area because it may damage or deform.
SAFETY PRECAUTIONS
2

■
To avoid possible malfunctions, do not install the bed in the following
●
Locations expose to direct sunlight
●Locations near heat sources such as a stove or heater
●Location which is heavily electrically charged such as near an MRI
●Location that has a high oxygen level
●Locations exposed to excessive amounts of water vapor or oil vapor
●Location that tend to be exposed to high temperatures, high humidity, low temperatures
or dry conditions
※The optimum ambient conditions for the bed are as follows.
Temperature 5℃ to 40℃ / Humidity 20%RH to 90%RH at 30℃/ Atmospheric pressure
700hPa to 1060hPa.
●Locaitons with large amount of dust, smoke, salt, sulfur, or corrosive substances
●Locations with poor ventilation
●Locations exposed to vibrations or shocks (including during transportaion)
●Locations where the floor is not strong enough
●Locations where the floor is not level
13
Secure at least 20 cm clearance from the wall.
INSTALLATION
3
●
The bed or wall may be damaged or deformed. Make
sure that the bed does not hit the wall, beam, or power
plug during the height adjustment or inclination angle
adjustment.
■
When performing the height adjustment or inclination angle adjustment, pay attention
not to hit the wall, beam, or power outlet on the wall.
■
When setting up the bed, make sure that there is at least 20 cm clearance from the wall.
●
The main frame moves back and forth during the
height adjustment or inclination angle adjustment
and could hit the wall, causing damage or
deformation of the bed.

14
■
The boards can be attached or detatched.
When washing the patient's hair, detach the headboard. When performing lower limb training
or giving a foot bath, detach the footboard.
●
When attaching the board, make sure that the board stoppers are properly locked. Otherwise, the
board may disengage when the bed is moved, resulting in injury due to a fall.
●Do not attach the board to a hole other than the board attachment hole. Attachment could
become insufficient and the board could be rattled or come off, resulting in injury.
●When removing the board, do not forcefully lift it while the board is tilted. There is a risk of
deformation of the board insertion parts.
[Attaching]
①Loosen the board stoppers on the bed.
②Hold the grip of the board to lift it and properly
insert the board insertion part into the board
attachment hole of the bed.
③Firmly tighten the board stopper to fasten the board.
④Lightly pull up the board and check that the board is
locked.
[Detaching]
①Loosen the board stoppers on the bed.
②Hold the grip of the board and pull it directly up.
1.Board
Grip
Board insertion part
Board attachment hole
ASSEMBLING THE BED
4
●
Do not attach the board in the wrong way, or the head
or neck enters the gap between the board and the
side-rail, and there is a risk of injury.
●Do not leave the board detached, or a patient may
fall off the bed, resulting in injury.
●Do not detach the headboard when lifting pole is
attached, or the head or neck enters the gap between
the side-rail and the lifting pole, and there is a risk of
injury.
Headboard
(Footboard)
TightenLoosen
Board stopper

15

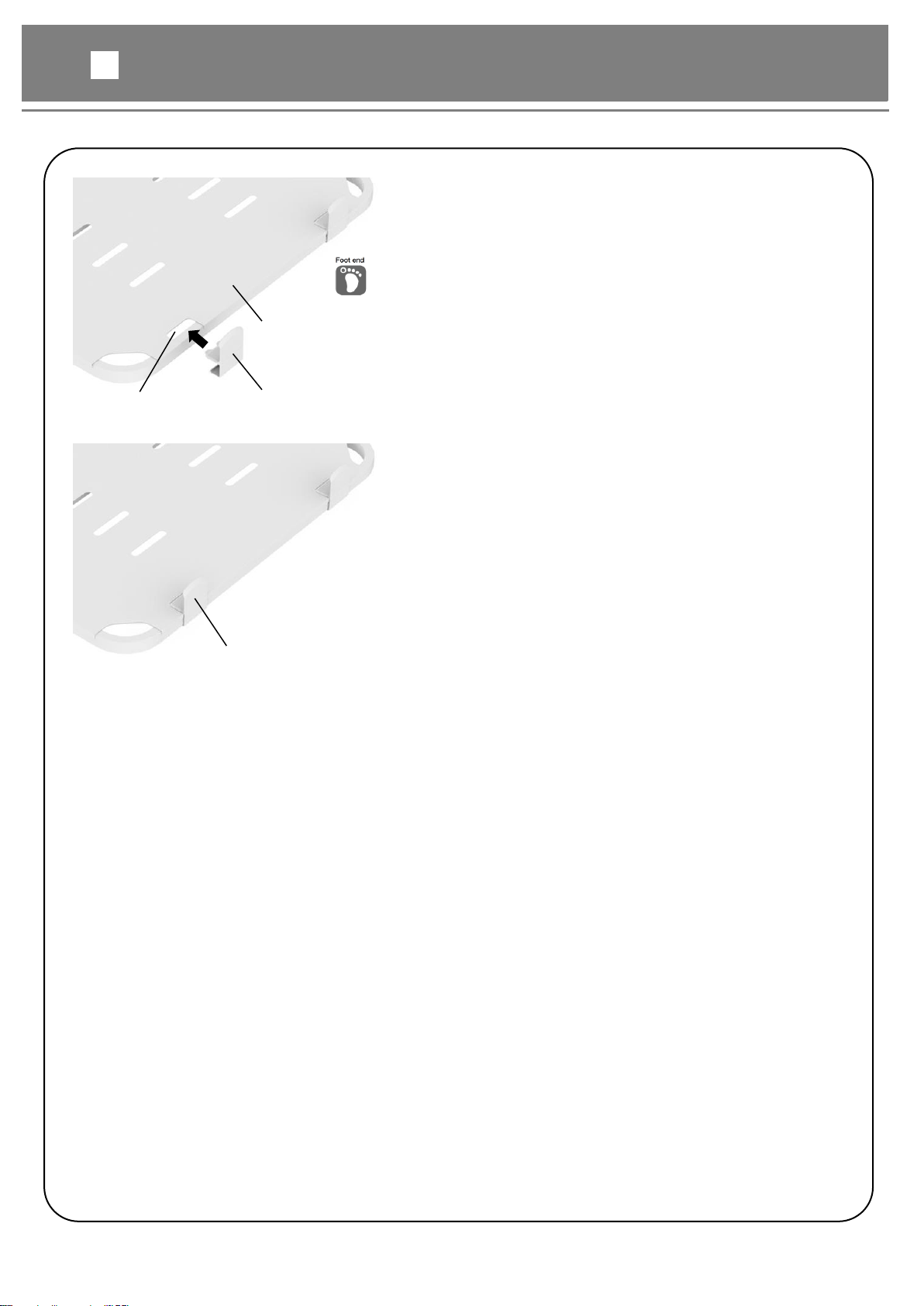

[Attaching the mattress stopper]
①Insert the mattress stoppers into the holes of the leg
section base.
②Push the mattress stoppers inwardly.
③Lightly push the mattress stoppers from inside to
outside to make sure they are attached properly.
2.Mattress stopper (CA-54380 / CA-53380 only)
ASSEMBLING THE BED
4
Mattress stopper
Leg section base
Hole
Mattress stopper

16
1. Power outlets
●
Each Bed should be plugged into a separate,
appropriately wired, groundedpower outlet
and the power plug must be properly inserted
into the outlet.
●
Do not connect multiple cables to a single power outlet. if other
electrical equipment is plugged into a power outlet or an extension
cable and its rated capacity is exceeded, it could cause the cable or
plug to overheat, resulting in fire.
●Make sure the plug is easily accessible so it can be disconnected
quickly in an emergency.
2. Cable storage
●
Wind the power cable onto the main frame when moving the bed.
Main frame
CONNECTING TO THE POWER SUPPLY
5
Power plug
Grounded power outlet
Power cable

17
●

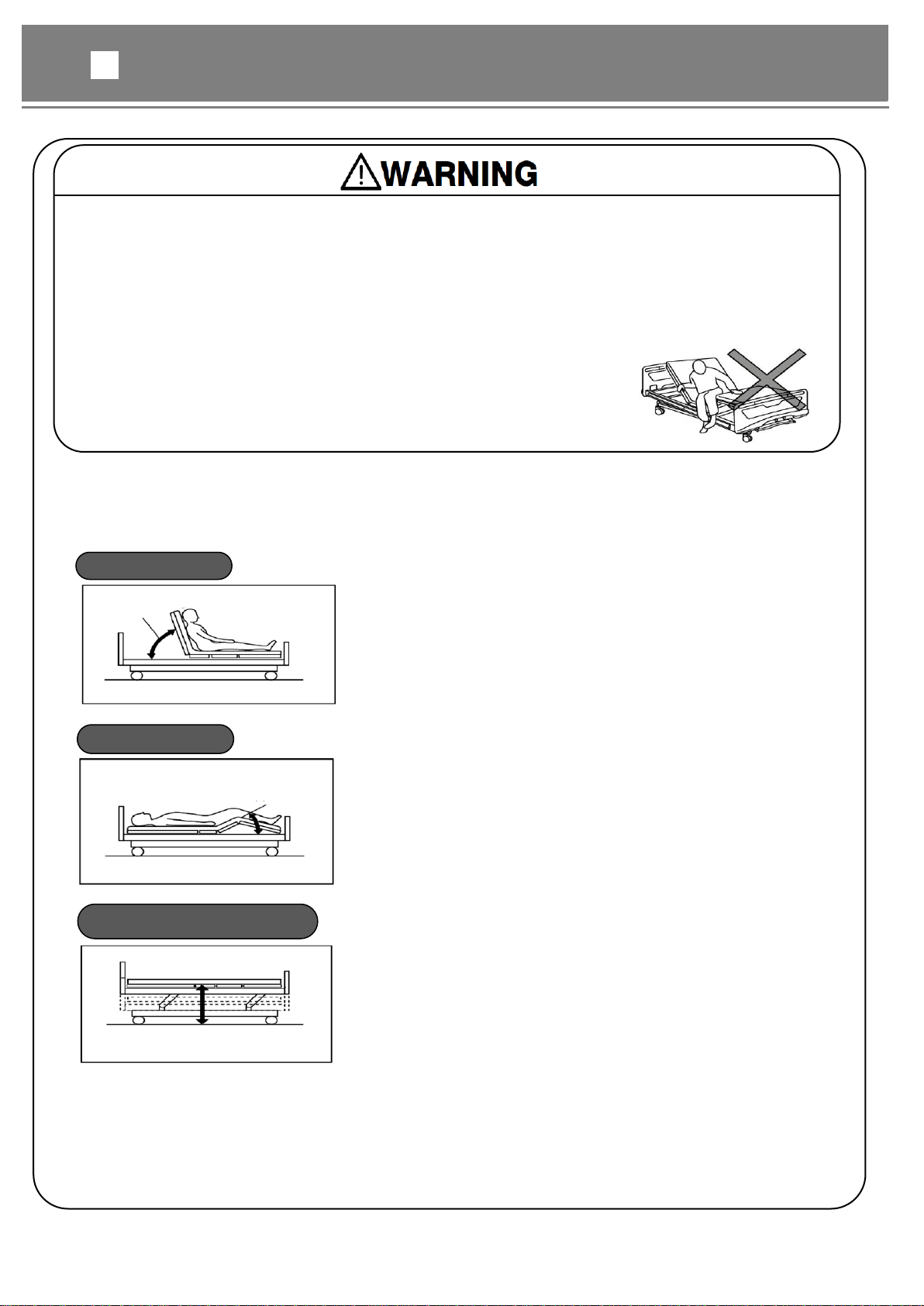

The height from the floor to the mattress base
surface can be adjusted electrically.
■
The angle of the back and knee section bases and the bed height and inclination angle
(Trendelenburg and Reverse Trendelenburg) can be electrically adjusted with no increments.
■The angle of the leg section base can be manually adjusted in two levels.
●
The angle of the knee section base can be
adjusted electrically from an angle of 0⁰to 25⁰.
●
When performing a position operation, check that the patient’s head, arms, feet, or other body
parts have not entered the gap of the side-rails, or the space between the back section base and
the frame; There is a risk of getting caught, resulting in injury.
●When performing the height adjustment or inclination angle adjustment with the side-rail
lowered, do not place legs under the side-rail. There is a risk of getting caught, resulting
in injury.
●
Do not allow the patient to get into or out of the bed while the bed is
in the chair position. There is a risk of injury caused by the patient
falling down.
●Setting the bed to the chair position must only be performed under
the observation of a physician or a nurse.
●
The angle of the back section base can be
adjusted electrically from an angle of 0⁰to 70⁰.
Back raise
0⁰to 70⁰
OPERATION PROCEDURES
6
1. Operation over view
0⁰to 25⁰
Knee raise
Note: See p.54
Height adjustment

18
●
The head end of the bed can be lowered.
The angle can be adjusted electrically up to 12⁰.
●
The head end of the bed can be raised.
The angle can be adjusted electrically up to 12⁰.
●
As shown in the picture on the left, a near seated
posture (chair position) can be created.
Chair position
25°
12°
70°
Trendelenburg
0°to 12°
OPERATION PROCEDURES
6
0°to 12°
Reverse Trendelenburg
※4 motors type only
※4 motors type only
※4 motors type only
●
The angle of the back section base and knee
section base and inclination angle of the bed
can be adjusted to 0⁰(flat).
Flat function
※4 motors type only

19
●
The angle of the back section base, the angle of the knee section base, the bed height and the
inclination angle of the entire bed can be smoothly adjusted with no increments by using the
handheld controller.
Pressing the button adjusts the bed, and releasing the button stops adjustment, allowing you to
adjust the bed to the desired position. Press the [↑] to raise the desired section and press [↓] button
to lower the desired section.
●
Do not allow the bed to be operated by a child aged 12 or under, or someone deemed incapable of
comprehending the operation of the bed. If a child aged 12 or under, or someone deemed incapable
of comprehending the operation (such as persons with dementia) operates the handheld controller
by themselves, there is a risk of unexpected injury such as the body getting caught in the bed by
accident. If such person can come into contact with the handheld controller, unplug the power
plug or rotate the switch on the Lock-out switch to the lock position in order to prevent accidents
caused by incorrect operation.
Back raise adjustment buttons
●The back section base angle can be adjusted.
Hi-lo adjustment buttons
●The bed height can be adjusted.
●Pressing two or more buttons simultaneously stops the adjustment. If you stop the adjustment by
pressing two or more buttons, remove your hands from all buttons and then perform the adjustment again.
●When the TR/RTR button is selected with the head end raised and the DOWN button is
pressed, the movement stops when the bed becomes flat. To incline the bed further,
continue to press the DOWN button for more than 2 seconds.
●When the TR/RTR button is selected with the head end lowered and the UP button is pressed, the
movement stops when the bed becomes flat. To incline the bed further, continue to press the UP button
for more than 2 seconds.
●If the bed is used continuously, the bed cannot be operated for protecting electrical parts from
overheating. In that case, disconnect the power cable and the battery cable, and leave the bed for
more 1 hour. After that, connect the power cable and the battery cable, and press the Hi-lo adjustment
UP[↑] and DOWN[↓] buttons simultaneously for more 5 seconds to reset the protect condition.
Chair position / Flat position buttons
●Chair position button : The back section base and the knee
section base can be raised simultaneously, and then the bed
position is moved into Chair position.
●Flat position button : The bed position is moved into Flat position.
Knee raise adjustment buttons
●The knee section base angle can be adjusted.
2. Handheld controller
Trendelenburg / Reverse trendelenburg (TR / RTR)
adjustment buttons
●The inclination angle of the entire bed can be adjusted.
OPERATION PROCEDURES
6
