PARAMOUNT BED KK-728EG User manual

PARAMOUNT BED CO., LTD.
INSTRUCTION MANUAL
7F09684000A8 KK-728EG
Transfer Stretcher
Preface
Thank you for purchasing the Transfer Stretcher
(hereafter referred to as the “stretcher”).
This instruction manual describes precautions and how
to safely use and operate the stretcher.
 Before using this stretcher, please read this
instruction manual to fully understand the safe
and proper operating procedures.
 Users and/or patients are requested to report
information about any serious incident related to
this equipment that occurs within the EU to the
manufacturer and the regulating authority of the
member country of residence.
‘Serious incident’ means any incident that directly or
indirectly led, might have led or might lead to any of
the following:
a) the death of a patient, user or other person.
b) the temporary or permanent serious deterioration of
a patient’s, user’s or other person’s state of health.
c) a serious public health threat.
 After reading this instruction manual, store where it
can be easily accessed for later reference.
 The actual stretcher purchased may di󰀨er from
detailed descriptions given in this instruction manual
due to product improvements.
 Values described for the operation range, dimensions, angles,
and mass may include some errors. Excluding special cases,
in this instruction manual, for display purposes words such as
approximately, about, etc. are omitted.
 Contact us (see “Contact Information” on p. 30) for
any queries.

1
CONTENTS
Page
1PART NAMES....................................................................................................... 2
2INTENDED USE/SPECIFICATIONS..................................................................... 3
3SAFETY PRECAUTIONS ..................................................................................... 4
4PRECAUTIONS FOR USAGE.............................................................................. 9
5OPERATION PROCEDURES............................................................................... 10
1. Caster (Central locking system)...................................................................................10

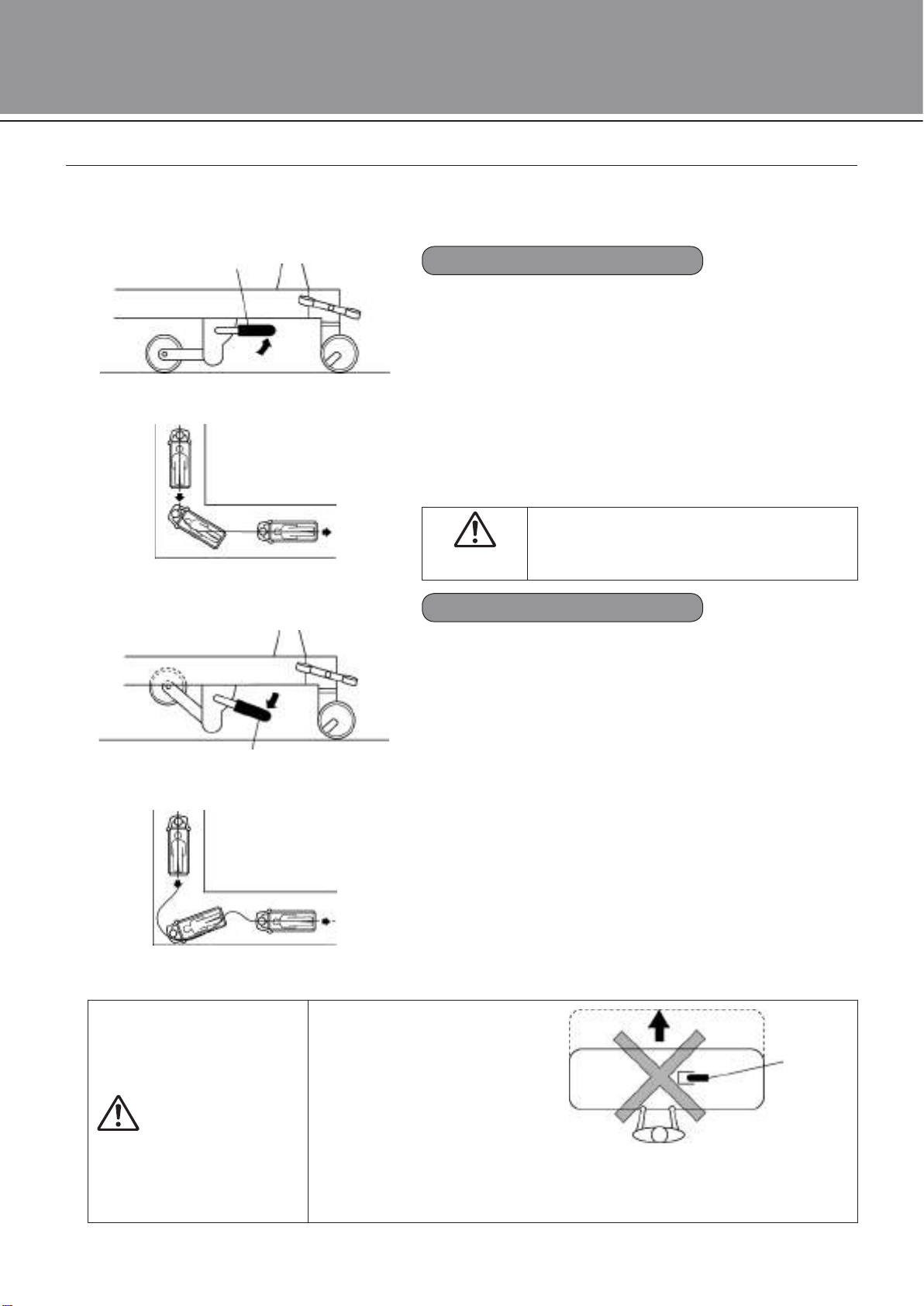

2. Center wheel system....................................................................................................11

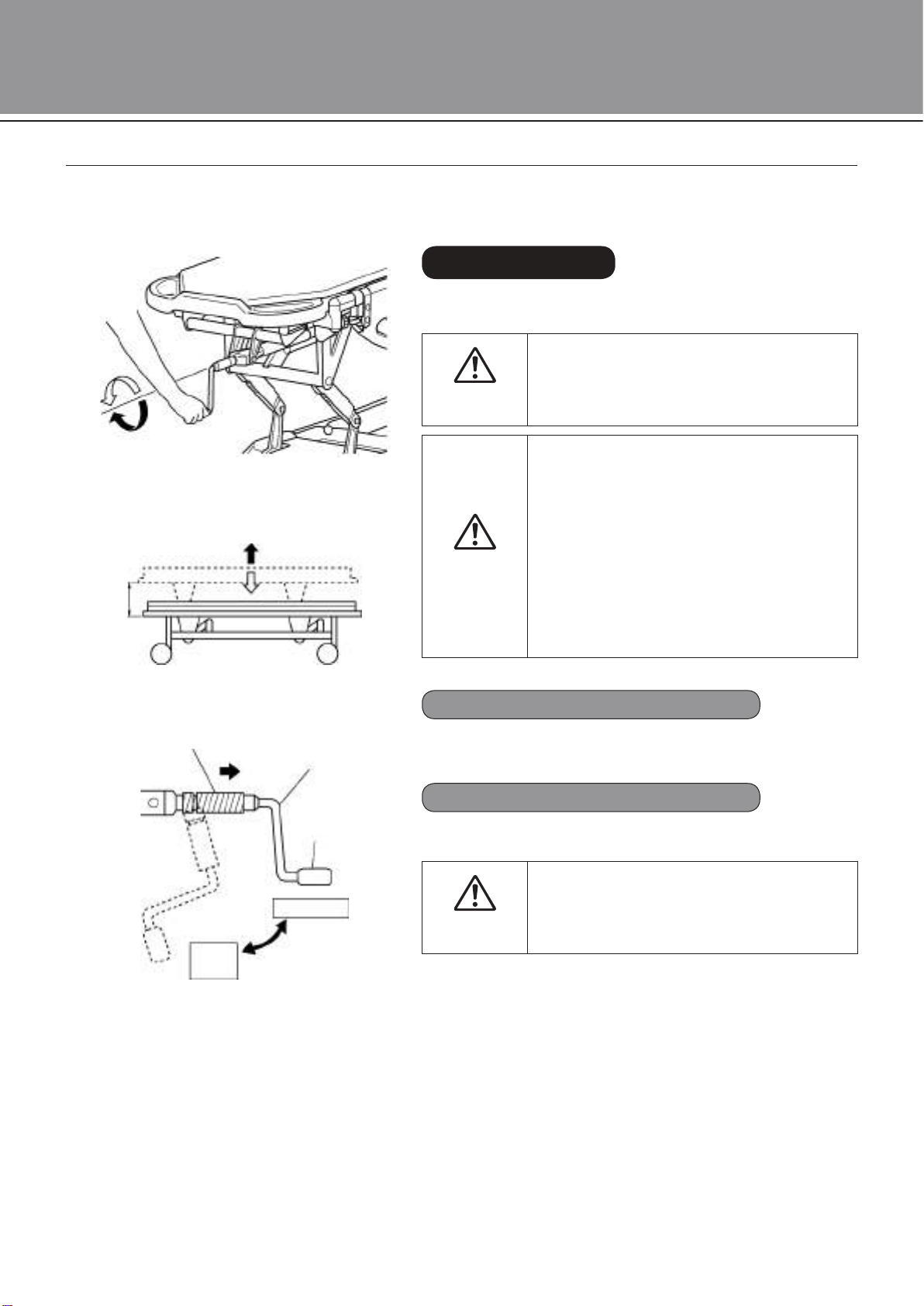

3. Height adjustment ........................................................................................................12

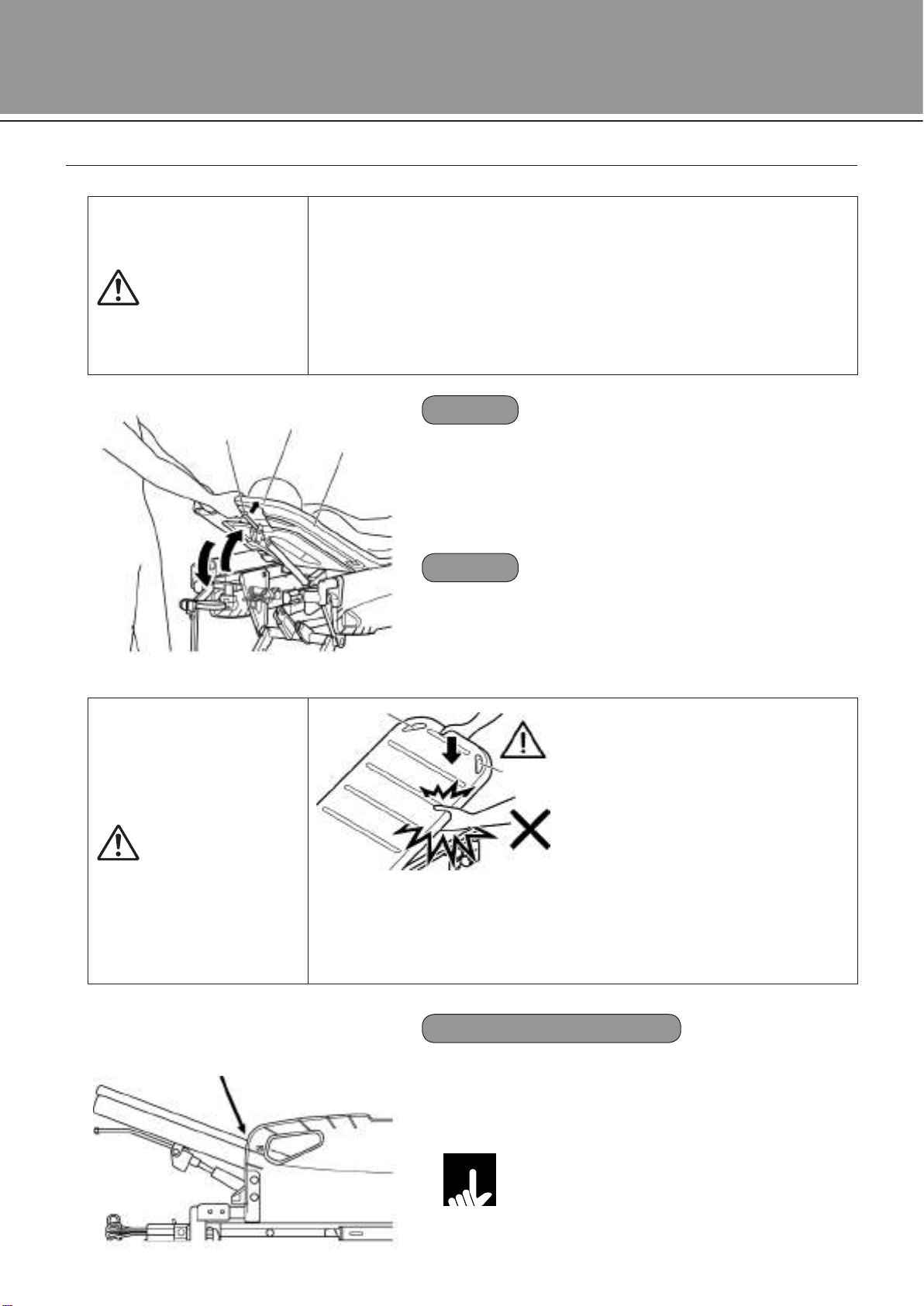

4. Raising the backrest.....................................................................................................13
5. Transfer board..............................................................................................................14
6. Restraint belt................................................................................................................16
7. Oxygen cylinder holder.................................................................................................17
8. IV Pole (C57E) .............................................................................................................19
9. Accessory rail...............................................................................................................21
10. Transfer mattress .......................................................................................................21
6PATIENT TRANSFER ........................................................................................... 22
7PRODUCT SYMBOL DEFINITIONS..................................................................... 26
8REGULAR INSPECTION AND DAILY MAINTENANCE...................................... 27
9TROUBLESHOOTING.......................................................................................... 29
0LONG-TERM STORAGE AND TRANSPORTATION ........................................... 29
aAFTER-SALES SERVICE..................................................................................... 30

Head end
Foot end
2
1PART NAMES
Product ID label
Product ID label GMP
A󰀩xed outside of the main frame.
A󰀩xed outside of the main frame.
The page number shown next to this symbol
indicates where the related explanation can be found.
p. 13
p. 19-20
p. 21
p. 10
p. 11
p. 12
p. 14-16p. 16
p. 21
p. 17-18
Backrest lever
Back section base
Accessory rail
Oxygen cylinder holder
Caster lock pedals Tray Base frame
Height adjusting handle
Main frame
Leg section base
IV Pole attachment hole
Transfer board
Restraint belt
Transfer mattress
Center wheel locking pedal
150 mm dia. TENTE MCS casters
(central locking system)
IV Pole storage holder
IV Pole (C57E)
Gas spring is
used for the
backrest lever.
APPLIED PART
Note: Part of ME EQUIPMENT that in normal use necessarily comes
into physical contact with the patient for ME EQUIPMENT to
perform its function.

3
2INTENDED USE/SPECIFICATIONS
Intended use
 This stretcher is designed to be used in medical institutions to transport patients or support
them as they receive treatment.
* For details of the patient target groups, the intended users and the clinical benets, see “Specications” below.
Specications
Description Transfer Stretcher
Model No. KK-728EG
Category/Classication
Mechanical implement 1: Operating table and treatment table,
general diagnostic and processing table 13958000
Ordinary medical devices and specially maintained and controlled medical devices
Dimensions
Total length 193cm
Total width 66.3cm
Mattress base height (cm) (*1) 51 - 85cm
Back section base Inclination angle 0º to 70°
Casters 150mm dia. Casters (with central locking system) with center wheel
Total weight 71kg (not including the transfer mattress)
maximum patient weight 135kg
Safe working load (*2) 1500N (153kgf)
Service life 8 years (based on Paramount data), excluding consumable items such as casters.
Mattress
Dimensions 190cm × 53cm × 2cm
Surface material Polyester
Padding Urethane foam
Materials
Frame Steel/partially aluminum
Base Polypropylene (PP)
Transfer board Polypropylene (PP)
Capacity of compatible Oxygen cylinder 500 L (diameter 10cm to 11.5cm)
Accessories
IV Pole (C57E) Load capacity: 1kg/hook
Oxygen cylinder holder Load capacity: 15kg
Tray: Polypropylene (PP) Load capacity: 10kg
Hook (3K003355: 4 pieces) Load capacity: 3kg/piece
Patient target groups Patient age 13 years of age or older
Maximum patient weight 135kg
Intended users Health care workers, caregivers, and maintenance sta󰀨
*1) The mattress base height indicates the height from the oor to the mattress base surface.
*2) Safe working load: Maximum weight that the stretcher can safely accept (the total load of the patient’s weight and
incidental items including the mattress and other accessories)
Environmental conditions Range
During transportation or storage During operating
Temperature -10ºC to 50ºC 0ºC to 40ºC
Humidity 30%RH to 90%RH 30%RH to 90%RH
Atmospheric pressure 700hPa to 1060hPa 700hPa to 1060hPa
·Essential performance
Function to support and transfer the body of patients
·Frequently used functions
Caster lock/unlock, transferring, change of transfer board position.
· Clinical benets
Easy patient transport in hospitals
Safe and e󰀩cient patient transfer to hospital beds
Easy and safe treatment reception of the patient
·Applicable standards
The stretcher described in this instruction manual is designed and manufactured according to the following equipment
classication and standards.
Applicable standards: IEC60601-1:2005 + A1:2012
EN60601-1:2006 + A12:2014
Classication as medical device in Europe: Class I

4
3SAFETY PRECAUTIONS
 Be sure to read these safety precautions beforehand to ensure proper
usage.
 The safety precautions described here are intended to ensure safe use of the product
and prevent personal injury and property damage. Precautions are classied by a
WARNING or CAUTION designation, which indicates the degree of hazard or
injury that could result from improper use. They are all important safety precautions
that must be strictly observed.
WARNING Indicates that improper handling by ignoring this indication could
cause death or serious injury (broken bones, pressure, or paralysis).
CAUTION Indicates that improper handling by ignoring this indication could
cause light personal injury (bruises, wounds, or cuts) or property
damage.
Note: After reading this instruction manual, store it in a place that can be easily accessed for later
reference.
[Safety Label]
 Precautions requiring special attention by persons using the stretcher are described on
labels and a󰀩xed to the following locations. Do not remove or deface any labels.
 If the safety label is removed or defaced, replace the part to which the label is a󰀩xed.
Contact Paramount Bed or your distributor (see “Contact Information” on p. 30) for
any queries.
Inside
Product ID label

Foot endHead end
5
3SAFETY PRECAUTIONS
WARNING
 Place the patient on the stretcher with his/her head and feet oriented in
the proper directions.
 Have the patient lie down on the stretcher with his/her head
positioned at the head end of the stretcher and feet at the foot end. If
the patient lies down the other way, he/she could accidentally release
the lock for the transfer board, which could cause him/her to fall o󰀨
and get injured.
 Lying down on the stretcher with the feet at the head end and the
head at the foot end induces an unnatural posture during stretcher
operation (mattress base angle) which may result in injury.
 Do not raise the backrest when a patient is lying face down or on their
side (in any posture other than lying face up).
 Attempting to force the patient to bend his/her legs, arms, or other bendable body parts too far or hard or
in the wrong direction could cause him/her to become injured.
 Do not stand up on the stretcher.
 There is a risk of injury caused by falling or toppling from the
stretcher. In particular, be careful with children.
 Do not crawl under or place your head, hands, or legs under the
stretcher.
 There is a risk of becoming caught between the moving part of the
stretcher and the frame or transfer boards, resulting in injury. Check
that obstacles are not located around the stretcher before operating it.
 Be careful moving the stretcher on a steep slope.
 The stretcher could tip over, causing an injury. Eliminate this risk by having more than two people work
together to move the stretcher or using other means as the circumstances require.
 Lock the casters at all times except when moving the stretcher.
 Otherwise, the stretcher could unexpectedly move when operators
attempt to transfer a patient to or from a bed, adjust the height, or
raise the backrest, which could lead to injury.
 To move the stretcher, depress the caster lock pedal (green) to unlock
the casters.
 Do not stand on the caster lock pedals.
 The person may tip over, resulting in an injury or stretcher damage.
Unlock (green)
Caster lock pedals
Lock (red)

6
WARNING
 Do not attempt to repair or modify the stretcher yourself.
 This could cause abnormal operation, resulting in injury.
 Do not attempt to transfer a patient on the stretcher with the transfer
boards locked in the horizontal level position.
 The patient may fall o󰀨, the stretcher may tip over, or the
patient’s hand may hit the wall, resulting in an injury.
 The stretcher may tip over causing an injury or the stretcher
may break.
 When transporting a patient, make sure that he/she is secured in place
with the two pairs of restraint belts and that the transfer boards are in
the up position. The nurse should observe and attend to the patient at
all times while the patient is on the stretcher.
 Otherwise the patient could lose balance and fall
out of the stretcher or fall over, resulting in injury
or the stretcher could be damaged or deformed.
 The stretcher may tip over causing an injury or the
stretcher may break.
 Make sure that the two pairs of restraining belts are being used to rmly
and securely secure the patient if using it with the two transfer boards
locked in the horizontal level position.
 Otherwise the patient could lose balance and fall out of the stretcher or fall over, resulting in injury or the
stretcher could be damaged or deformed.
 The stretcher may tip over causing an injury or the stretcher may break.
 Do not transfer a patient to a bed with the transfer boards locked in the
horizontal level position.
 Otherwise the patient could lose balance and fall out of the
stretcher or fall over, resulting in injury or the stretcher could
be damaged or deformed.
 The stretcher may tip over causing an injury or the stretcher
may break.
 After raising the transfer boards or locking them in the horizontal level
position, use the safety lock and conrm that they are properly locked
(Green in the indicator window).
 If not properly locked (red shows), the transfer boards may lower and the patient may fall o󰀨 and get
injured.
 Instruct patients not to hold onto the transfer boards while being
transferred or while the transfer boards are being adjusted.
 The patient’s hand may hit the wall during transport or get caught during the operation of the transfer
boards, resulting in an injury.

7
3SAFETY PRECAUTIONS
WARNING

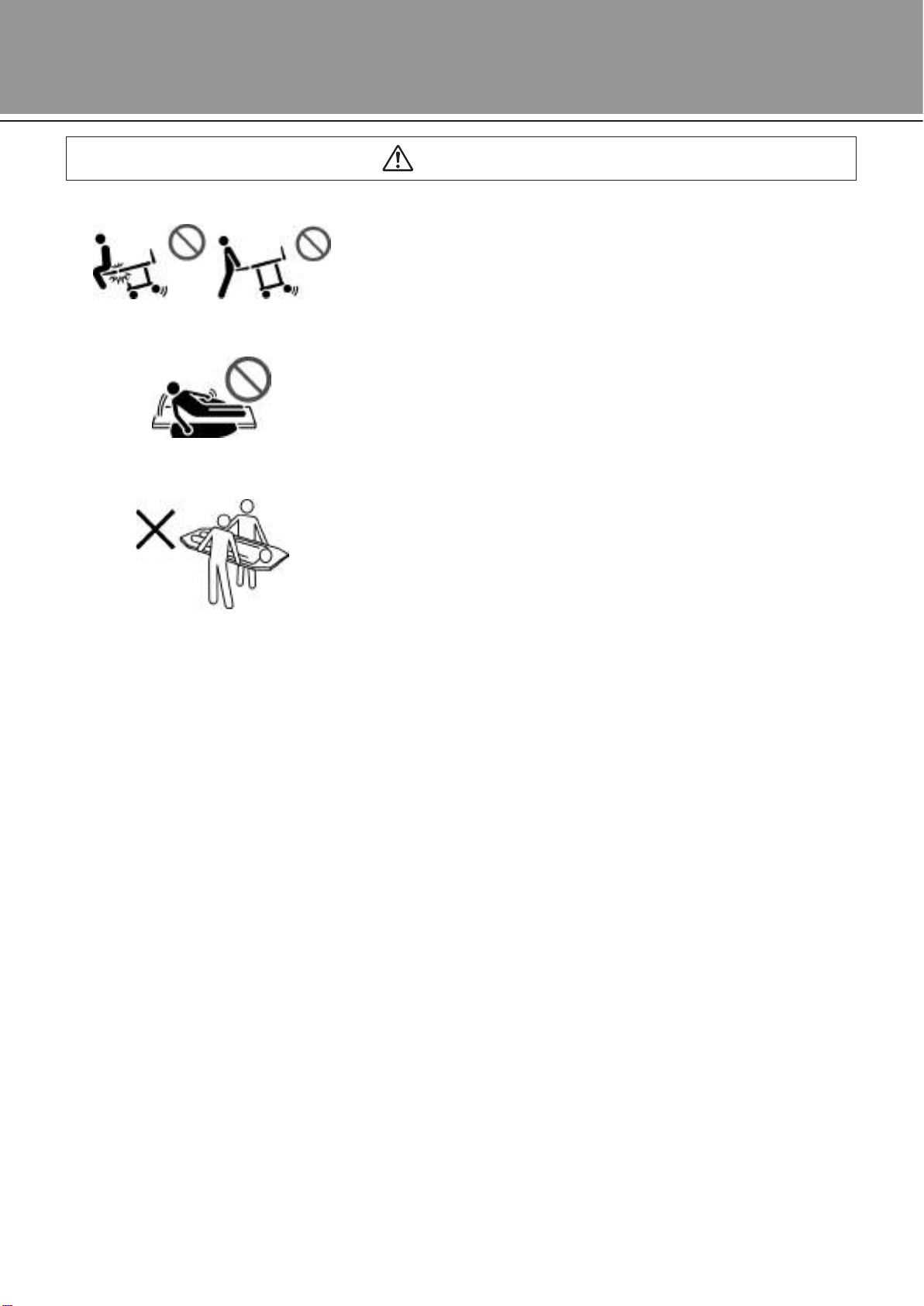

 Do not sit on the transfer boards or lean against them.
 The person may tip over, resulting in an injury or stretcher damage.
 Do not use the transfer board as a support to stand up.
 Otherwise the patient could lose balance and fall out of the stretcher
or fall over, resulting in injury or the stretcher could be damaged or
deformed.
 The stretcher may tip over causing an injury or the stretcher may
break.
 Do not use the transfer mattress as a stretcher.
 Using the transfer mattress as a stretcher may damage it, resulting in
an injury.
 Do not use the stretcher in a strong electromagnetic eld such as near a
MRI.
 Using the stretcher in such an area may cause abnormal operation which may result in an injury or
stretcher damage or deformation.
 Keep away from heaters.
 Do not use heaters near the stretcher. Otherwise, the stretcher may be damaged or deformed, or even
catch re.
 Use care when handling the gas spring.
 Gas spring is used for the backrest lever. If you attempt to disassemble or incinerate the gas spring, the
gas spring could explode and gas could spray out, possibly causing injury.
 Inspect the stretcher regularly.
 Depending on the frequency of use and the environment, the product will exhibit wear and deterioration.
Regularly inspect for parts looseness, the operation of moving parts, and the presence of damage
(see p. 27 and 28).
 For accessories to be directly mounted on the stretcher, such as an IV
Pole or mattress, use only accessories approved by Paramount Bed.
 The use of products other than the specied suitable products or products from other companies could
create unintended gaps, cause interference between products, or lower stability, resulting in injury or
failure of the stretcher.
 Do not grab the stretcher or lean against them.
 The stretcher may tip over causing an injury or the stretcher may break.

8
CAUTION
 Do not climb on the back section base in the raised position.
 The back section base is subject to excessive weight, and could be
damaged or deformed.
 Do not move the stretcher by holding onto the transfer board only.
 Otherwise, this will apply a large force to the transfer board and there
is a risk of damage or deformation.
 Do not place objects weighing more than 10kg on the transfer board in
the horizontal level position.
 Doing so could cause an injury, malfunction, or deformation.
 Avoid transporting the stretcher over uneven oors.
 It may result in stretcher damage, deformation, or malfunction. If this
is unavoidable, move the stretcher as slowly as possible.
 Do not excessively turn the height adjusting handle.
 If the handle is continuously turned until it reaches its limit, it will
suddenly become heavy. Do not turn the handle beyond its working
range. Forcibly turning the handle beyond its working range may
result in handle damage or malfunction.
 When the stretcher is not in use, store it with the casters facing in.
 Otherwise, people may trip over a caster and fall down or get injured.
 Do not place objects weighing 10kg or more on the tray.
 The tray could be deformed or damaged.
 Do not place objects on the area marked with “X” (see the following
gure) on the tray. Also, be careful not to allow objects to protrude
outside the tray.
 When the stretcher height is lowered, objects
on the tray or the tray itself could be caught
between the frame and tray, causing damaged or
deformation.
 Do not use the transfer mattress when CT imaging, X-ray imaging, or
other diagnostic imaging.
 The structure, stitching, and fasteners of the transfer mattress may a󰀨ect the captured images.
 To wash the transfer mattress, take out the padding and wash the
surface material only.
 Otherwise, the surface material and padding may get damaged.
 Do not apply a spray-type insecticide directly on the stretcher.
 Otherwise, there is a risk that the solvents contained in the insecticide could damage, discolor, or dissolve
the stretcher casters or other resin parts. Pay due attention to this; otherwise, there is a risk of unexpected
injury due to damaged or dissolved parts.

9
4PRECAUTIONS FOR USAGE
 To avoid possible malfunctions, do not install the stretcher in
the following locations.
 Locations exposed to direct sunlight
 Locations with strong electromagnetic elds (near MRI machines, etc.)
 Locations near heat sources such as a stove or heater
 Location having a high oxygen concentration
 Locations exposed to excessive amounts of water vapor or oil vapor
 Locations that tend to be exposed to high temperatures or humidity, low temperatures or dry
conditions
Note: The optimum ambient conditions for the stretcher are as follows.
Temperature 0°C to 40°C / Humidity 30%RH to 90%RH
 Locations with high concentrations of dust, smoke, salt, sulfur, or corrosive substances
 Locations with poor ventilation (while storing, etc.)
 Locations exposed to vibrations or shocks (including during transportation)
 Locations where the oor is weak
 Locations where the oor is not level

Foot end
Head end
10
5OPERATION PROCEDURES
1. Caster (Central locking system)
WARNING
 Lock the casters at all times except when moving the
stretcher. Otherwise, the stretcher may move when
transferring a patient to or from a bed, adjusting the height, or
raising the backrest, causing an unexpected injury.
 Do not stand on the caster lock pedals. The person may tip
over, resulting in an injury or stretcher damage.
Central locking system
 All four casters can be locked (swivel and rotation are locked at the same time) or
unlocked by operating only one caster lock pedal.
 Caster lock pedals are located at the four corners of the stretcher, allowing them to be
operated at each side of head and foot ends.
To lock the casters
 Depressing the caster lock pedal (red) locks the
swiveling and rotation of all four casters at the
same time.
Locked
To unlock the casters
 Depressing the caster lock pedal (green) unlocks
all four casters.
Unlocked
CAUTION
 Do not attempt to forcibly move the stretcher when the
casters are locked (xed). It may result in malfunction.
 Do not operate the caster lock pedals when transporting
a patient. It places a load on the casters resulting in
malfunction.
Unlock
(green) Lock (red)
Caster lock pedals
(four corners)
Unlock (green)
Lock (red)

11
5OPERATION PROCEDURES
2. Center wheel system
 Moving the center wheel located at the base center of the stretcher to be in contact with
oor improves cornering, tracking, and allowing stable steering of the stretcher.
When the center wheel is ON
 Raising the center wheel locking pedal sets the
center wheel to ON for better cornering, tracking, and
steering. This mode is convenient for moving over
relatively long distances, such as between patients’
rooms.
 When cornering
 The turning radius of the stretcher is small, thus
o󰀨ering easy directional control and minimizing the
force needed to push the stretcher. This allows for
quick movement.
WARNING
 Do not move too fast when
cornering. The stretcher may tip
over, resulting in an injury.
When the center wheel is OFF
 Depressing the center wheel locking pedal sets the
center wheel to OFF to allow the stretcher to move in
any direction (including sideways).
This mode is convenient for moving short distances,
such as moving within a room.
 When cornering
 The stretcher rotates when cornering, requiring the
person pushing to move around when cornering, and
also requiring force to restrain the stretcher.
CAUTION
 Do not attempt to forcibly
move the stretcher
sideways when the center
wheel is ON because it
may result in malfunction.
To move the stretcher
sideways, set the center
wheel to OFF.
 Do not stand on the center wheel locking pedal. Doing so
could cause damage, deformation, or a malfunction.
Center
wheel is
ON.
The center wheel locking pedal
When the center wheel is in contact with oor
ON
OFF
The center wheel locking pedal

12
3. Height adjustment
 The height of the stretcher can be adjusted with the height of a bed by operating the height
adjusting handle.
Height adjustment (Max. adjustable height: 34cm)
 Turn the height adjusting handle clockwise to raise the
stretcher and turn counterclockwise to lower it.
WARNING
 Lock the casters prior to height
adjustment. Otherwise, the
stretcher may move during the
adjustment, resulting in an injury.
CAUTION
 The height adjusting handle
suddenly becomes heavy when it
is turned close to the limit. Do not
turn the handle over the operating
range. Turning the handle forcibly
over the range may result in
damage or malfunction.
 Do not put a leg on the handle
because it may result in damage or
malfunction.
To store the height adjusting handle
 Hold the locking sleeve, pull towards you, and press
down to store.
To use the height adjusting handle
 Hold the crank and pull up. The locking sleeve will
automatically be locked to enable operation.
WARNING
 Be sure to store the handle when
not using it. Otherwise, it could
catch on a person’s leg, causing
injury.
down
up
(34 cm)
Locking sleeve
Crank
Handle grip
When used
When
stored

13
5OPERATION PROCEDURES
4. Raising the backrest
 The back section base angle can be adjusted at any degree from 0° to 70° using a lever.
WARNING
 When raising the backrest, be sure to lock the casters.
Otherwise, the stretcher may move during operation, resulting
in an injury.
 When raising the backrest, unfasten the two pairs of restraint
belts (see p. 16). Otherwise, the patient may get injured.
 After raising the backrest, secure the patient with the two
pairs of restraint belts. Otherwise, the patient may fall o󰀨 and
get injured.
WARNING
 When lowering the back section
base, hold the grip of the back
section base with the hand
that is not holding the backrest
lever. Holding other parts may
cause an injury because the
operator’s hands or ngers may
get caught.
 When lowering the back section base, prevent the back
section base from contacting the oxygen cylinder or
owmeter. Contact may damage the owmeter or other
equipment.
Grip
Grip
* Do not hold any other place besides the grip.
To raise
 Hold the grip of the back section base with one hand,
hold the backrest lever on the back section base
with your other hand, and pull the back section base
up. The back section base rises due to gas spring
pressure. Let go of the backrest lever to lock the back
section base in position.
To lower
 Hold the grip of the back section base with one hand,
hold the backrest lever on the back section base with
your other hand, and lower the back section base
supporting its weight. Let go of the backrest lever to
lock the back section base in position.
Backrest angle indication
 When the transfer board is up, an approximate angle
for the backrest can be read on the scale on the side.
* The upper surface of the back section base is the
guide for the scale.
The angle is 20° in the gure.
NOTE!
 Use the angle indicator on the transfer
board as guide when adjusting the angle
to which to raise the backrest.
Backrest lever IV storage label
Back section base
The upper surface of the back section base is
the guide for the scale.
The angle is 20° in the gure.

Foot endHead end
Foot endHead end
14
5. Transfer board
 Transfer boards can be used to protect a patient on the stretcher from falling o󰀨 and also
as a bridge between the stretcher and a bed when transferring a patient to/from a bed.
They can be used as an arm table by locking them in the horizontal level position.
WARNING
 When patients are placed on the base of stretcher, secure
them with the restraint belts (see p. 16), raise the transfer
boards, and continuously monitor them.
Otherwise, the patient may fall o󰀨 from the
stretcher and get injured.
 After raising the transfer boards or locking
them in the horizontal level position, use
the safety lock and conrm that they are
properly locked (Green in the indicator
window). If they are not locked properly (red
shows in the indicator window), the transfer boards may lower
and the patient may fall o󰀨 and get injured.
 To lower the transfer board
 To raise the transfer board To raise the transfer board
1Slowly lift the transfer board, which has been
lowered, in the direction shown in the gure to
the left. When it reaches the upper limit, the lug
lowers and the stopper works.
2 Conrm that the stopper is properly working
(green shows in the indicator window).
3Press in the safety lock in the direction shown by
the arrow (transfer board side) until the red
label can no longer be seen for proper locking.
NOTE!
 Make sure not to let sheets get
caught in the stopper or safety lock
as it will hinder the functions of the
parts.
* In this manual, raising the transfer board entails
completing all of the steps outlined in 1to 3.
To lower the transfer board
1Release the safety lock.
2While lifting the lug, slowly lower the transfer
board.
Lug
Red label
Safety lock
Lock
Stopper
receptacle
Conrm that
the indicator
window
shows green
Transfer board Warning label
Lift
Lug
Safety lock
Unlock
Stopper
receptacle
Transfer board Warning label

Foot endHead end
15
5OPERATION PROCEDURES
5. Transfer board
 To lock the transfer board in a horizontal level position (when using as an arm table)
To lock the transfer board in a horizontal level position
[Placing the transfer board in the horizontal level
position from the up position and locking it in place]
1Release the safety lock and lower the transfer board
in a horizontal level position while lifting the lug.
(See To lower the transfer board in p. 14.)
2Move the transfer board in the direction shown by the
arrow while keeping it in a horizontal level position.
The lug lowers and the stopper works.
3 Conrm that the stopper is properly working (green
shows in the indicator window).
4Press in the safety lock in the direction shown by the
arrow (transfer board side) for proper locking.
[Placing the transfer board in the horizontal level
position from the down position and locking it in
place]
1Slowly lift the transfer board to a horizontal level
position.
(See To raise the transfer board in p. 14.)
2Move the transfer board in the direction shown by the
arrow while keeping it in a horizontal level position.
The lug lowers and the stopper works.
3 Conrm that the stopper is properly working (green
shows in the indicator window).
4Press in the safety lock in the direction shown by the
arrow (transfer board side) for proper locking.
To unlock the transfer board from a horizontal level position
1Release the safety lock.
2Pull the lug in the direction shown by the arrow.
Transfer board
WARNING
 Unlock the transfer board in a horizontal level position except
when using as an arm table. Otherwise the patient could lose
balance and fall out of the stretcher or fall over, resulting in injury
or the stretcher could be damaged or deformed.
CAUTION  Do not place objects weighing more than 10kg on the transfer
board when it is locked in a horizontal level position. Doing so
could cause an injury, malfunction, or deformation.
Check that the indicator
is green
Lock
Safety lock
Safety lock
Lug
Lug
Unlock

Head end
Foot end
16
WARNING
 When operating the transfer
board, prevent the tube (drain)
from getting caught in part Ain
the gure to the left. If the tube
(drain) gets caught, it may break.
CAUTION
 Do not operate the transfer board
while placing ngers on part Ain
the gure to the left. Fingers may
get caught, resulting in an injury.
WARNING
 Do not raise the backrest when a
patient is secured on the stretcher.
The patient may get injured.
 Fasten the restraint belts and
make sure there is no slack. If
they are not properly fastened,
the patient may fall o󰀨 or the
stretcher may tip over, resulting in
an injury.
 After placing a patient on the
base (back section base and leg
section base) of the stretcher, use
the two pairs of restraint belts to
secure the patient to the transfer
mattress and stretcher. Otherwise,
the stretcher may slip and the
patient may fall o󰀨 and get injured.
6. Restraint belt
 Restraint belts are designed to secure patients in order to prevent them from falling o󰀨.
When transporting a patient, be sure to rmly secure the patient with the front and back
belts. Pass the restraint belts through handles (all four) on the transfer mattress.
Hook-and-loop fastener
Restraint belt
Transfer board
Restraint belt Handle
 Pass the restraint belts through handles
on the transfer mattress.

17
5OPERATION PROCEDURES
Vertical setting
1Insert the oxygen cylinder holder into the attachment
part for vertical setting as shown in the gure. (At
initial setting, it is already inserted.)
2Turn the holder to adjust the position of an oxygen
cylinder so that it will not contact the back section
base.
3Insert an oxygen cylinder into the oxygen cylinder
holder slowly and then rmly lock the cylinder by
tightening the three thumb screw knobs (one for
stopping the rotation of the holder and two for locking
the cylinder).
WARNING
 Pay attention not to hit the oxygen
cylinder holder and owmeter
against the bed or wall when
transporting or adjusting the height
of stretcher. Otherwise, the oxygen
cylinder holder and owmeter may
be deformed, resulting in injury.
7. Oxygen cylinder holder
 The oxygen cylinder holder can contain a 500L (10cm to 11.5cm diameter) oxygen
cylinder.
 The oxygen cylinder holder can be set either vertically or horizontally. (Initial setting is
vertical.)
Vertical setting
Horizontal setting
NOTE!
 When adjusting the position of the oxygen cylinder holder, be careful not to get your
ngers caught between the oxygen cylinder holder and the thumb screw knob (for
stopping the rotation of the holder) of the attachment part for vertical setting.
 When not using the oxygen cylinder holder, store it under the back section base by
rotating it and rmly lock it by tightening the thumb screw knob (for stopping the
rotation of the holder).
Attachment part for
vertical setting
Loosen
Tighten
Thumb screw knob
(for stopping
the rotation of
the holder)
Thumb screw knob
(for locking a cylinder)
Oxygen cylinder holder
Rotate

18
Horizontal setting
1 As shown in the gure, hold the rotation stopper
tting with your hand to keep it in a horizontal
position, then insert the oxygen cylinder holder into
the attachment part to set horizontally.
Insert the oxygen cylinder holder deeply while
adjusting its angle so that the boss of the holder
reaches deeply into the stopper.
2Rotate the oxygen cylinder holder as shown in the
gure and let the rotation stopper tting go so that
the stopper works.
3Insert an oxygen cylinder deeply into the oxygen
cylinder holder and then rmly lock the cylinder by
tightening the two thumb screw knobs (two thumb
screw knobs for locking a cylinder).
WARNING
 Pay attention not to hit the
oxygen cylinder holder and
owmeter against the bed
or wall when transporting or
adjusting the height of stretcher.
Otherwise, the oxygen cylinder
holder and owmeter may be
deformed, resulting in injury.
Rotation
stopper tting Stopper
Attachment part
for horizontal
setting Boss
Thumb screw knob (for locking a cylinder)
Attachment part for
horizontal setting
Stopper
Boss
Thumb screw knob
(for locking a cylinder) Oxygen cylinder holder
10cm to 11.5cm diameter
Oxygen cylinder
WARNING
 After mounting the oxygen cylinder holder in the horizontal
position, conrm that the stopper is working properly by shaking
the holder. If the holder is not mounted properly, an oxygen
cylinder may drop, resulting in an injury or damage.
 After inserting an oxygen cylinder into the oxygen cylinder
holder, tighten the thumb screw knobs properly. Otherwise, the
oxygen cylinder may move unexpectedly or drop, resulting in an
injury or damage.
 The load capacity of the oxygen cylinder holder is 15kg. Do not
insert a cylinder that exceeds the load capacity because it may
damage or deform the oxygen cylinder holder or frame, resulting
in an injury.

19
5OPERATION PROCEDURES
To attach
1 Insert an IV Pole rmly all the way into an IV Pole
attachment hole.
2Firmly lock the IV Pole by turning the thumb
screw knob (for locking an IV Pole).
WARNING
 For an IV Pole to be directly
mounted on the stretcher, use
only accessories approved by
Paramount Bed. The use of
products other than the specied
suitable products or products
from other companies could
create unintended gaps, cause
interference between products,
or lower stability, resulting in
injury or damage to the stretcher.
 Insert an IV Pole rmly all the way
at a specied attachment position
and rmly tighten the thumb screw
knob (for locking an IV Pole). If an
IV Pole is used in an insu󰀩ciently
inserted or locked state, it may
unintentionally fall or become
detached, resulting in injury.
Furthermore, when the backrest
is lowered, the IV Pole may come
into contact with it, resulting in
damage to the IV Pole.
To use
1Loosen the thumb screw knob (for locking the
sliding pipe) of the IV Pole, adjust the sliding
pipe length, and then lock the sliding pipe by
tightening the loosened thumb screw knob.
WARNING
 When loosening the thumb
screw knob, rmly grip the
sliding pipe (upper part of
the support pole). The sliding
pipe may unintentionally fall,
resulting in injury.
CAUTION
 Adjust the sliding pipe length
to within 400 mm. Pulling the
sliding pipe out too far could
cause it to come o󰀨, resulting
in injury or damage.
8. IV Pole (C57E)
 IV Pole attachment holes are located in two places each on the left and right sides of the
stretcher, four places in total, to attach an IV Pole for intravenous drip.
 When not using an IV Pole, you can store it either in the IV Pole storage holder or tray.
 Stretcher viewed from above
IV Pole attachment hole (4 locations)
Transfer board
IV Pole (C57E)
IV Pole attachment
hole
Insert
Thumb screw knob
(for locking an IV Pole) Do not insert an IV Pole into
the attachment part of the
oxygen cylinder holder.
Tighten
Thumb screw knob
(for locking the sliding pipe)
Sliding pipe
Loosen
Tighten
Product ID label (a󰀩xed to support pole)
* The model number of the IV Pole is
printed on the product ID label.
