PARAMOUNT BED KK-728E User manual

INSTRUCTION MANUAL
7F07181600A1
With separate warranty card Stretcher Trolley
KK-728E
Preface
Thank you for your purchase of the Stretcher Trolley.
This instruction manual describes precautions and how to
safely use and operate the stretcher.
Before using this stretcher, please read this
instruction manual to fully understand the safe and
proper operating procedures.
After reading this instruction manual, store where it can
be easily accessed for later reference.
The actual product purchased may differ from detailed
descriptions given in this instruction manual due to
product improvements.
For any queries, please feel free to directly contact your
distributor.
PARAMOUNT BED
PARAMOUNT BED CO., LTD.

¡PART NAMES......................................................................................................... 1
™INTENDED USE/SPECIFICATIONS....................................................................... 2
£SAFETY PRECAUTIONS........................................................................................ 3 – 6
¢OPERATION
1. Casters (Central locking system)............................................................................... 7
2. Center wheel system................................................................................................ 8

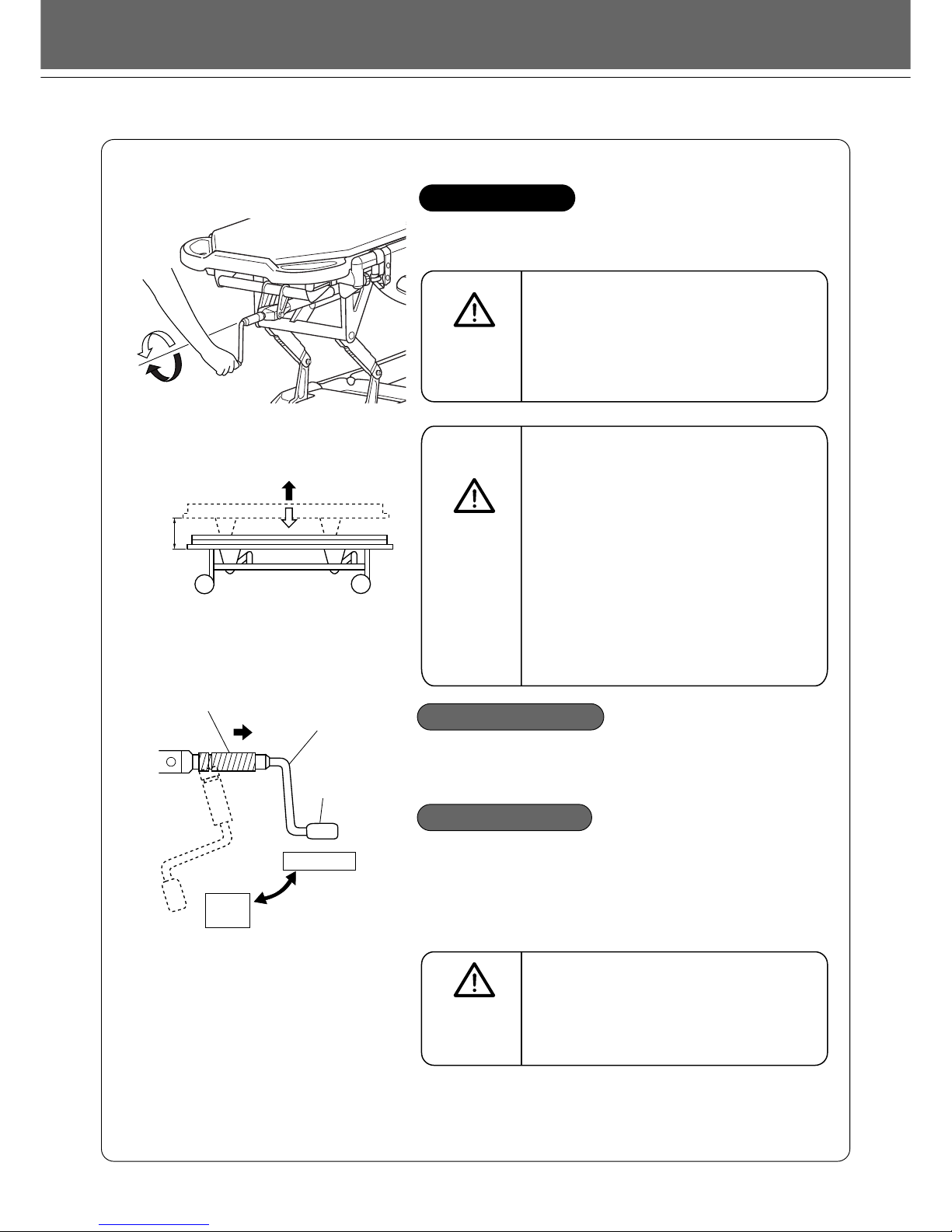

3. Height adjustment................................................................................................... 9
4. Raising the backrest................................................................................................ 10
5. Transfer board......................................................................................................... 11 – 13
6. Restraint belt.......................................................................................................... 13
7. Accessory rail......................................................................................................... 14

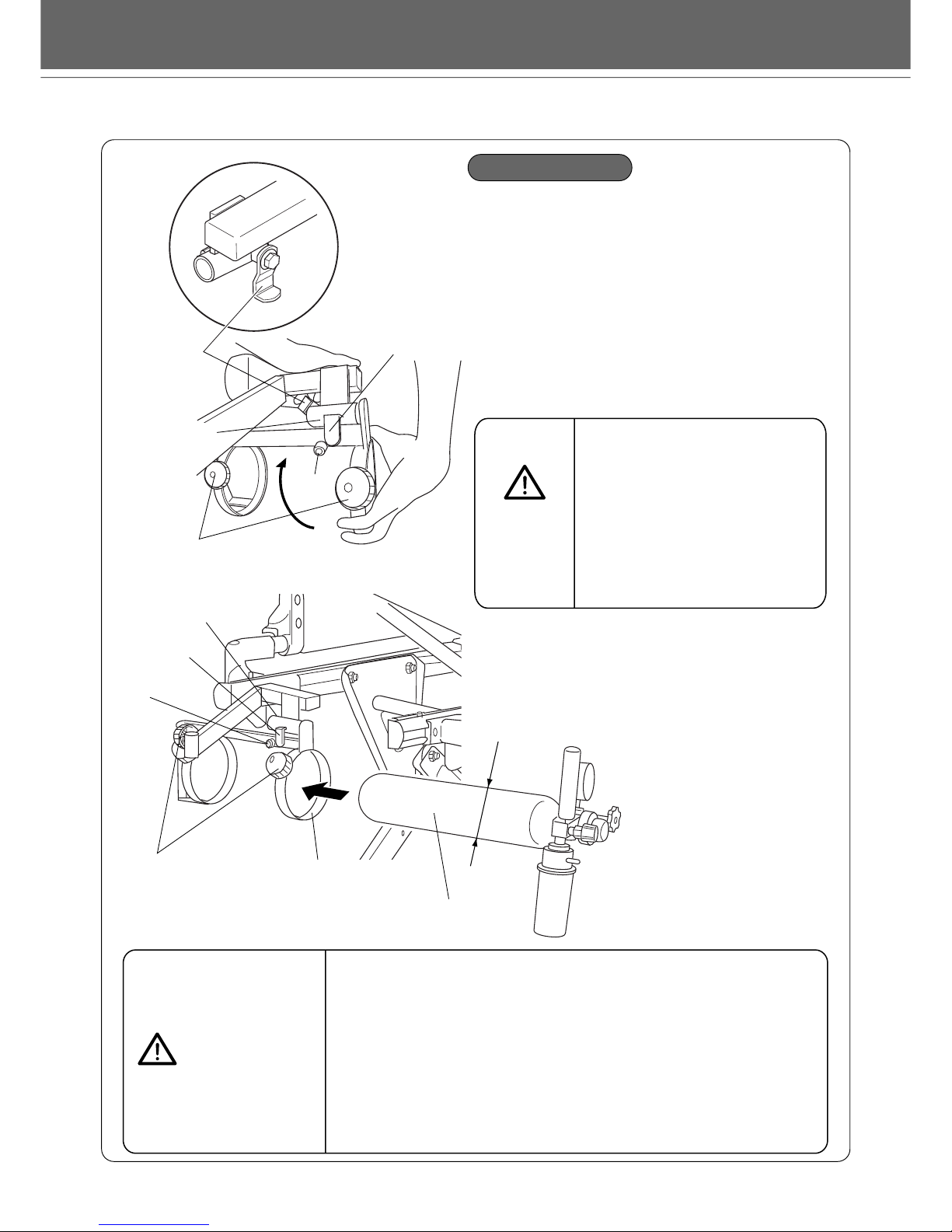

8. Oxygen cylinder holder........................................................................................... 15 – 16

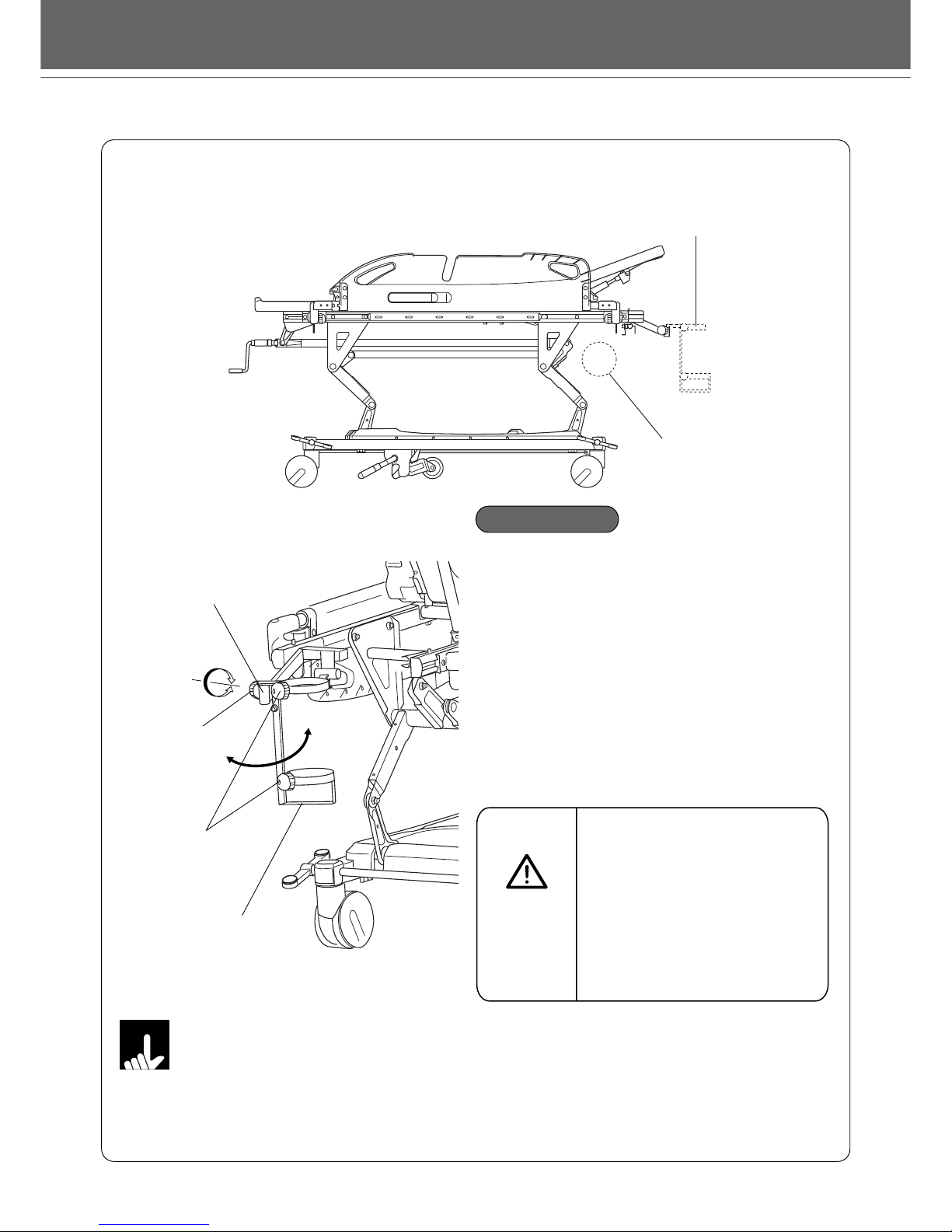

9. IV hanger rod (KC-57E).......................................................................................... 17
10. Transfer mattress................................................................................................... 18
∞PATIENT TRANSFER............................................................................................. 19 – 22
§PRODUCT SYMBOL DEFINITIONS....................................................................... 23
¶REGULAR INSPECTION AND DAILY MAINTENANCE........................................ 24
•TROUBLESHOOTING............................................................................................ 25
ªAFTER-SALES SERVICE....................................................................................... 26
CONTENTS /¡PART NAMES
Page
1
Hi-Lo handle
Caster lock pedals
Transfer board
Restraint belt
Back section base
Backrest lever
Leg section base
Main frame
IV hanger rod attaching hole
Transfer mattress
Base frame
IV hanger rod (KC-57E)
Oxygen cylinder holder
Center wheel locking pedal
Tray
IV hanger rod storage holder
Accessory rail
150 mm dia. TENTE MCS casters
(central locking system)
p. 7
p. 17
p. 14
p. 8
p. 18
p. 10
p. 11 – 13p. 13
p. 9
p. 15 – 16
The page number shown next to this symbol
indicates where the related explanation can be found.
Head end
Foot end
Product identification label
Part names
Stretcher Trolley
Corona Medical S.A.S.
Z.I. La Planche
37210 Rochecorbon FRANCE
MADE IN JAPAN
Model:KK-728E
K726E
-------
0008A
1903001 00001
Affixed outside of the
main frame.

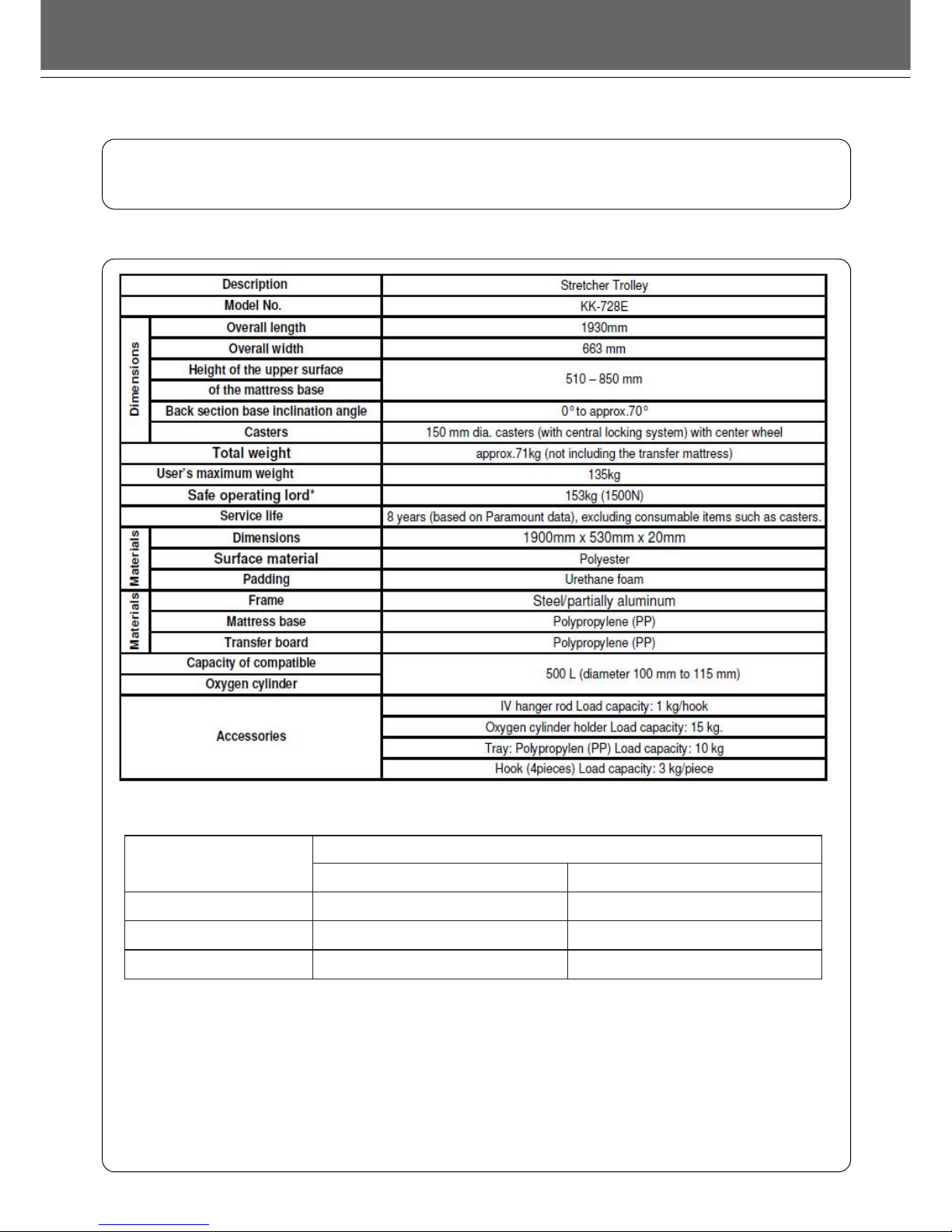

™INTENDED USE/SPECIFICATIONS
2
Intended use
Specificaitons
This stretcher is designed to be used in medical institutions to transport or treat patients.
* Safe operating load: maximum load with which the stretcher can be operated. (The total load of the user's weight,
the mattress, and incidental items including options.)
Environmental conditions
Range
During transportation or storage
-10°C – 60°C
0%RH – 90%RH
700hPa – 1060hPa
0°C – 40°C
30%RH – 90%RH
700hPa – 1060hPa
During operating
Temperature
Humidity
Atmospheric pressure
1930mm
663mm
500 L (diameter 100 mm to 115 mm)
IV hanger rod Load capacity: 1 kg/hook
Oxygen cylinder holder Load capacity: 15 kg
Tray: Polypropylene (PP) Load capacity: 10 kg
Hook (4 pieces) Load capacity: 3 kg/piece
150 mm dia. casters (with central locking system) with center wheel
Stretcher Trolley
510 – 850mm
Polypropylene (PP)
Polypropylene (PP)
Steel/partially aluminum
0 – approx. 70°
Dimensions
Materials
KK-728E
135kg
153kg (1500N)
approx. 71 kg (not including the transfer mattress)
1900mm×530mm×20mm
Urethane foam
Polyester
Mattress
Description
Accessories
Total weight
Safe operating load*
User's maximum weight
Capacity of compatible
oxygen cylinder
Model No.
Classification and Standards
Stretcher Trolley is designed and manufactured according to the following equipment
classification and standards.
Safety standards applied;
Classification according to Directive 93/42/EEC;
Equipment not suitable for use in the presence of a flammable anaesthetic mixture.
IEC60601-1·IEC60601-2-38
EN1865
Class I
Overall length
Overall width
Transfer board
Frame
Mattress base
Back section base inclination angle
Padding
Surface material
Dimensions
Casters
Height of the upper surface
of the mattress base

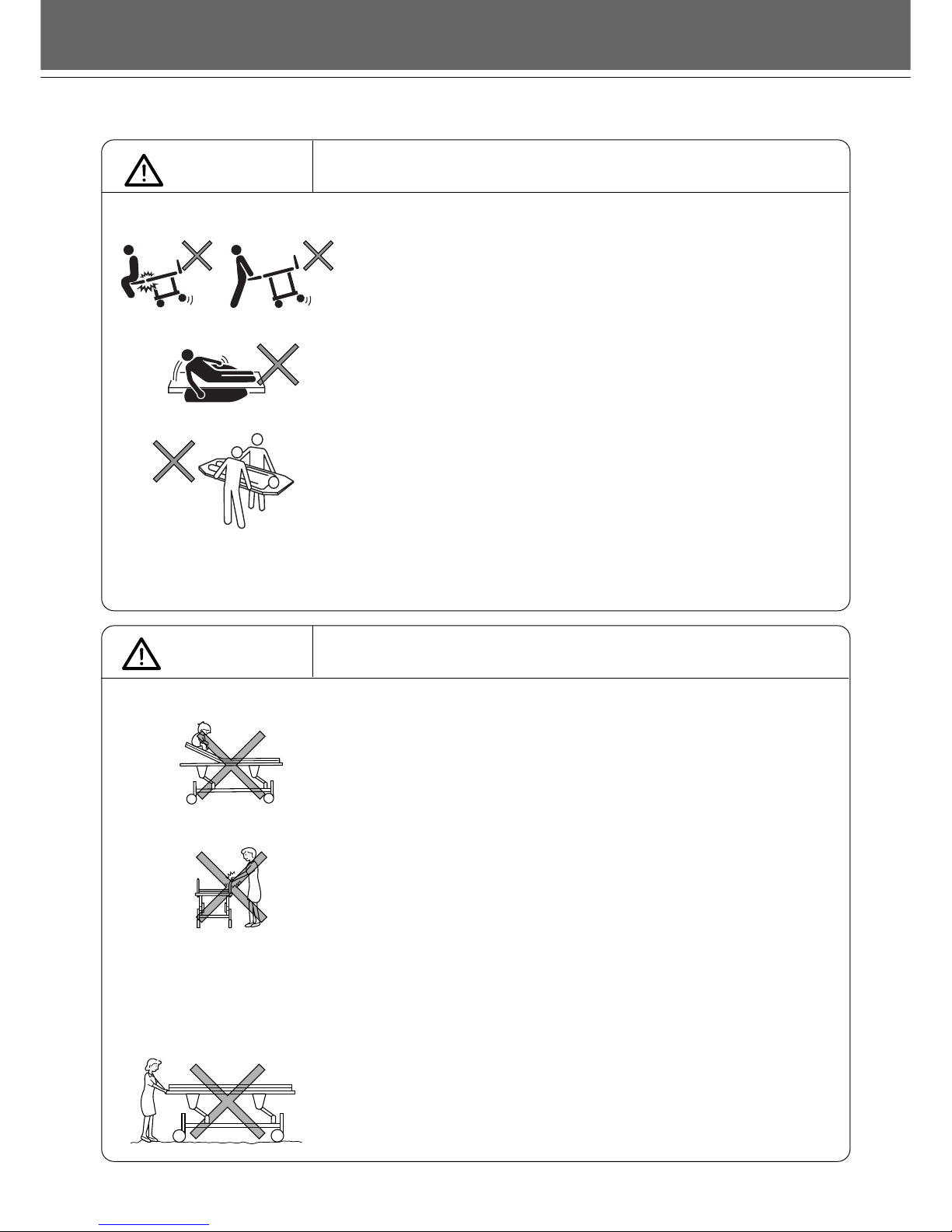

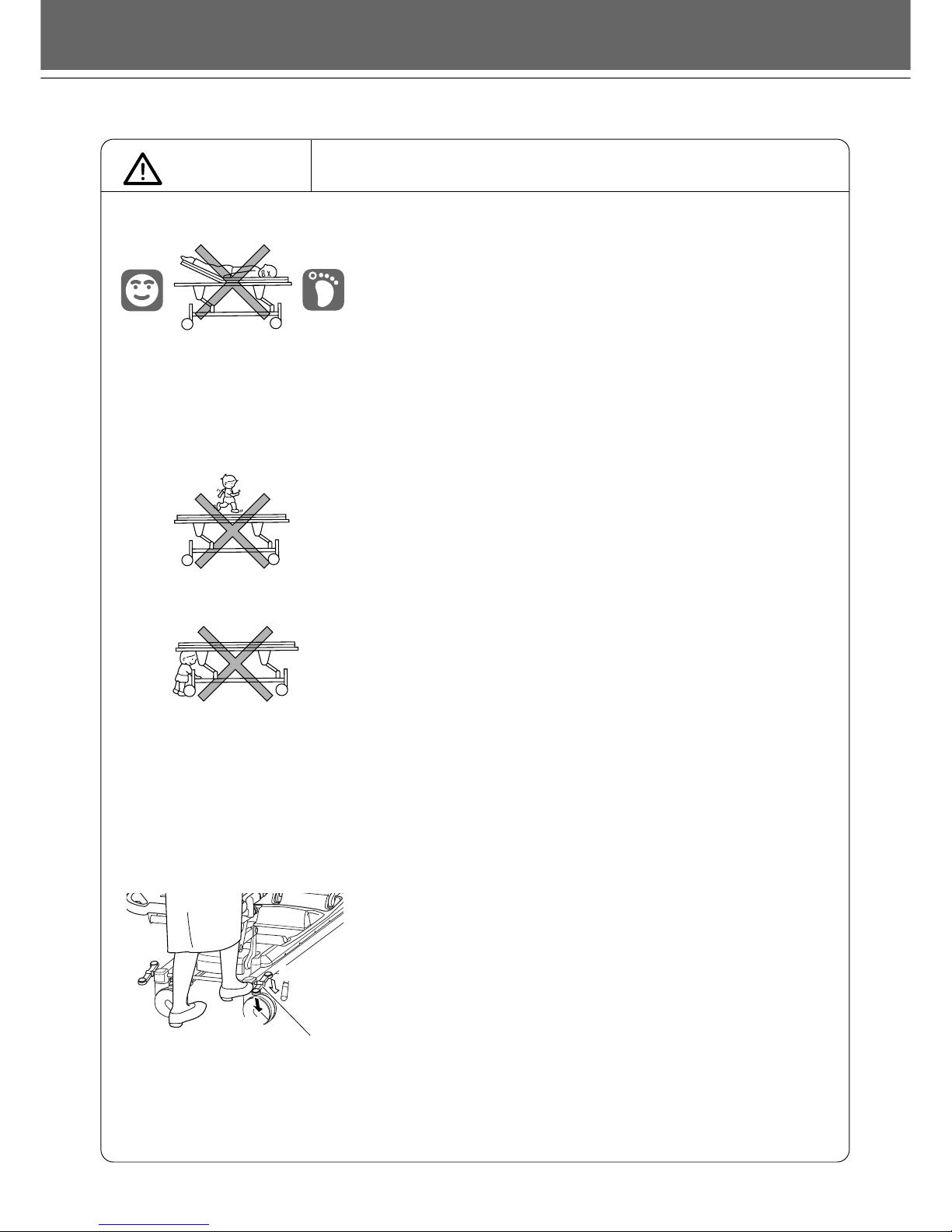

Do not raise the backrest when a patient is lying face down.
WARNING
Do not stand up on the stretcher.
There is a risk of injury due to falling or toppling from the stretcher.
 Do not crawl under the stretcher, or put your head, hands, or feet there.
There is a risk of becoming caught between the movable part of the
stretcher and the frame or transfer boards, resulting in injury. Check
that obstacles are not located around the stretcher before operating it.
 Lock the casters at all times except when moving the stretcher.
Otherwise, the stretcher may move when a patient is transferred to a
bed, the height is adjusted, or the backrest is raised, causing an
unexpected injury.
* To move the stretcher, depress the caster lock pedal (green) to unlock
the casters.
Head end Foot end
3
• Indicates actions that may result in fatal injury if ignored.
Bending the joints in the wrong direction may result in injury.
Use the stretcher in the proper orientation.
 Have a patient lie down with their head positioned at the head end and
their feet at the foot end. Lying in the opposite way may induce false
operation of the transfer board and the patient may fall off and get injured.
 Have a patient lie down with their head positioned at the head end and their feet at
the foot end. If the stretcher's backrest is raised while the patient lies down in the
opposite direction, they may be forced into an unnatural posture and get injured.
The stretcher may tip over, causing an injury. Prevent it by moving
the stretcher with two people or taking other measures according to
the situation.
Be careful moving the stretcher on a steep slope.
Caster lock pedals
Unlock (green)
The stretcher may tip over, causing an injury or the stretcher may
break.
Do not stand on the caster lock pedals.
£SAFETY PRECAUTIONS
Lock (red)

4
The patient's hand may hit the wall during transport or get caught
during the operation of the transfer boards, resulting in an injury.
If not properly locked (red shows), the transfer boards may lower and
the patient may fall off and get injured.
Otherwise, the patient may fall off or the stretcher may tip over,
resulting in an injury.
The patient may fall off or the stretcher may tip
over, resulting in an injury or stretcher damage.
Otherwise, the patient may fall off the stretcher and
get injured.
There is a risk of abnormal operation and resulting injury.
Do not disassemble
Repair or modification is not to be performed by the customer.
The patient may fall off, the stretcher may tip over, or the patient's
hand may hit the wall, resulting in an injury.
WARNING • Indicates actions that may result in fatal injury if ignored.
Do not transfer a patient to a bed with the transfer boards
locked in the horizontal level position.
Prevent patients from holding the transfer boards during
transport (use) or operation of the transfer boards.
After raising the transfer boards or locking them in the
horizontal level position, use the safety lock and confirm that
they are properly locked (green in the indicator window).

When locking the transfer boards in the horizontal level position,
be sure that the two restraint belts are properly fastened.
 When transporting a patient, fasten the two restraint belts, raise
the transfer boards, and continuously monitor the patient.
Do not move the stretcher with the transfer boards locked in
the horizontal level position.

5
Doing so may result in an injury, malfunction, or deformation.
Avoid moving over uneven floors.
It may result in stretcher damage, deformation, or malfunction. If this is
unavoidable, move the stretcher as slowly as possible.
CAUTION • Indicates actions that may result in personal injury or property damage if
ignored.
Do not climb on the back section base in the raised position.
The back section base supports are subjected to excessive weight, and
may be damaged or deformed.
 Do not move the stretcher by holding onto the transfer board only.
Otherwise, this will apply a large force to the stretcher board and
there will be a risk of damage or deformation.
The stretcher may tip over, resulting in an injury or stretcher damage.
Do not sit on the transfer boards or lean against them.
The person may fall down or the stretcher may tip over, resulting in
an injury or stretcher damage.
Do not use the transfer board as a support to stand up.
Using the stretcher in such an area may cause abnormal operation
which may result in an injury or stretcher damage or deformation.
The transfer mattress is designed to slide on a bed or stretcher in order
to transfer a patient. Using the transfer mattress as a stretcher may
damage it, resulting in an injury.
Do not use the transfer mattress as a stretcher.
£SAFETY PRECAUTIONS
WARNING • Indicates actions that may result in fatal injury if ignored.
 Do not use the stretcher in a heavily electrically-charged area such
as near an MRI.
Do not place an object weighing 10 kg or more on the
transfer board when it is locked in a horizontal level position.

6
Do not excessively turn the height adjusting handle.
Be careful when adjusting the stretcher's height. Turning the handle
excessively may result in the handle damage or malfunction.
 When the stretcher is not in use, store it with the casters facing in.
Otherwise, people may trip over a caster and fall down or get injured.
Do not place an object weighing 10 kg or more on the tray.
The tray may deform or get damaged.
Do not place an object that sticks out from the tray.
When the stretcher is lowered, object may get caught between the
frame and tray, and object and tray may get deformed or damaged.
Otherwise, the surface material and padding may get damaged.
Keep away from heaters.
Do not use heaters near the stretcher. Otherwise, the stretcher may be
damaged or deformed, or even catch fire.
Inspect the stretcher regularly.
Depending on the frequency of use and the environment, the product
will exhibit wear and deterioration. Regularly inspect for parts
looseness, the operation of movable parts, and the presence of damage.
(See p. 24)

For parts to be directly mounted on the stretcher such as IV hanger rod and
mattress, use conforming products specified by Paramount Bed. Using other
products may cause undesired clearance, interference between products, or lowered
safety conditions which may result in an injury or stretcher malfunction.
Otherwise, there is a risk that the solvents contained in the insecticide
could damage, discolor, or dissolve the stretcher casters or other resin
parts. Pay due attention to this; otherwise, there is a risk of unexpected
injury due to damaged or dissolved parts.
To wash the transfer mattress, take out the padding and
wash the surface material only.
Do not combine the stretcher with products other than the
suitable products specified by Paramount Bed.
Do not spray a spray type of insecticide directly on the
stretcher.
CAUTION • Indicates actions that may result in personal injury or property damage if
ignored.

7
¢OPERATION
1. Caster (Central locking system)
Do not attempt to forcibly move the stretcher when the
casters are locked (fixed). It may result in malfunction.
Do not operate the caster lock pedals when
transporting a patient. It places a load on the casters
resulting in malfunction.
Depressing the caster lock pedal (red) locks
the swiveling and rotation of all four casters
at the same time.
All four casters can be locked (swivel and rotation are locked at the same time) or unlocked by
operating only one caster lock pedal.
Caster lock pedals are located at the four corners of the stretcher so they can be operated at the
head end, foot end, and both sides.
Lock the casters at all times except when moving the
stretcher. Otherwise, the stretcher may move when
transferring a patient to a bed, adjusting the height, or
raising the backrest, causing an unexpected injury.

Do not stand on the caster lock pedals. The person may
tip over, resulting in an injury or stretcher damage.
Central locking system
To lock the casters
Depressing the caster lock pedal (green)
unlocks all four casters.
To unlock the casters
Head end
Foot end
Unlock
(green)
Caster lock pedals
(four corners)
Lock (red)
Unlock (green) Lock (red) Locked
Unlocked
WARNING
CAUTION

8
The turning radius of the stretcher is small, thus
offering easy directional control and minimizing the
force needed to push the stretcher. This allows for
quick movement.
The stretcher rotates when cornering, requiring the
person pushing to move around when cornering, and
also requiring force to restrain the stretcher.
2. Center wheel system
The center wheel locking pedal
When the center wheel is in contact with floor
ON
OFF
Moving the center wheel located at the base center of the stretcher to be in contact with floor
improves cornering, tracking, and allowing stable steering of the stretcher.
When cornering
When cornering
Raising the center wheel locking pedal sets the center
wheel ON for better cornering, tracking, and steering.
This mode is convenient for moving over relatively
long distances, such as between patients' rooms.
When the center wheel is ON
Depressing the center wheel locking pedal sets the
center wheel to OFF to allow the stretcher to move in
any direction (including sideways).
This mode is convenient for moving short distances,
such as moving within a room.
When the center wheel is OFF
Do not move too fast when
cornering. The stretcher may
tip over, resulting in an injury.
The center wheel locking pedal
CAUTION
 Do not attempt to
forcibly move the
stretcher sideways when
the center wheel is ON
because it may result in
malfunction. To move the
stretcher sideways, be sure to set the center wheel to OFF.
Do not stand on the center wheel locking pedal. It may
result in deformation, damage, or malfunction.
Center
wheel is
ON.
WARNING

9
Hold the locking sleeve, pull towards you, and press
down to store.
3. Height adjustment
Hold the locking sleeve and pull up. The locking sleeve
will automatically lock to enable operation.
Lock the casters prior to
height adjustment. Otherwise,
the stretcher may move during
the adjustment, resulting in an
injury.
Turn the height adjusting handle clockwise to raise the
stretcher and turn counterclockwise to lower it.
Height adjustment (High-low stroke: Approx. 340 mm)
The height of the stretcher can be aligned with the height of a bed by operating a handle.
 Be sure to store the handle
when not in use. Otherwise, the
handle may catch a person's
leg, causing an injury.
 The height adjusting (Hi-Lo)
handle suddenly becomes
heavy when it is turned close to
the limit. Do not turn the handle
over the operating range.
Turning the handle forcibly
over the range may result in
damage or malfunction.
Do not put a leg on the handle
because it may result in
damage or malfunction.
Crank
Locking sleeve
When used
When
stored
Handle grip
(approx.
340mm)
To store the handle
To use the handle
up
down
¢OPERATION
WARNING
WARNING
CAUTION

10
 Hold the back raising lever on the back section base with
one hand, hold the grip of the back section base with your
other hand, and pull the back section base up. The back
section base rises due to gas spring pressure. Let go of the
back raising lever to lock the back section base in position.

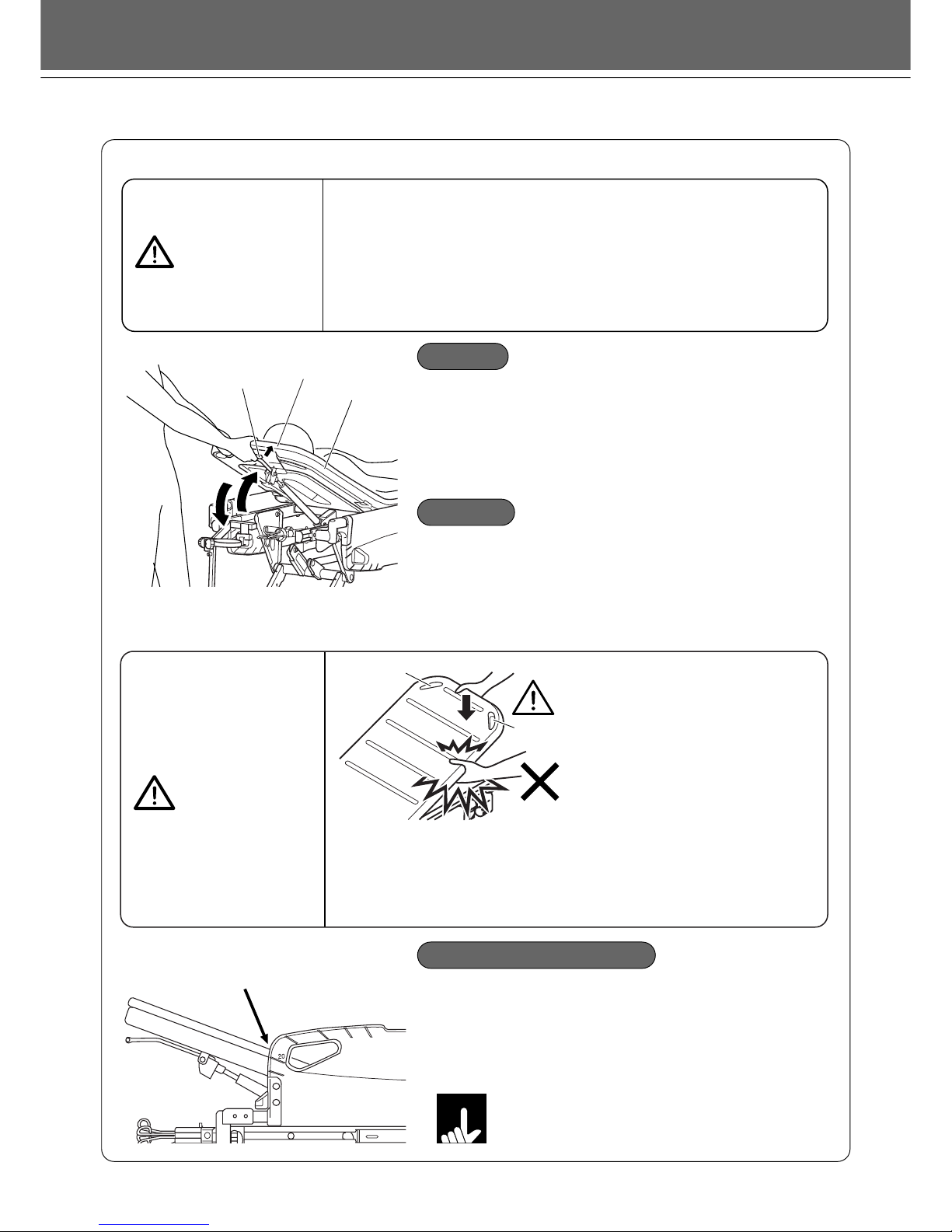

4. Raising the backrest
Hold the grip of the back section base with one hand
supporting its weight, hold the back raising lever of the
back section base with your other hand, and lower the
back section base.
Let go of the back raising lever to lock the back section
base in position.
When the transfer board is up, an approximate angle for
the backrest can be read on the scale on the side.
* The upper surface of the back section base is the guide
for the scale.
The angle is approximately 20°in the figure.
When raising the backrest, be sure to lock the casters.
Otherwise, the stretcher may move during operation,
resulting in an injury.

When raising the backrest, unfasten the two restraint belts.
(See p. 13) Otherwise, the patient may get injured.
After raising the backrest, secure the patient with the
two restraint belts. Otherwise, the patient may fall off
and get injured.
 The back section base angle can be adjusted at any degree from 0°to approximately 70°using a lever.
 When lowering the back section base, prevent the back section
base from contacting the oxygen cylinder or flowmeter.
Contact may damage the flowmeter or other equipment.
 When lowering the back section
base, be sure to hold the grip of
the back section base with the
hand that is not holding the
back raising lever. Holding
other parts may cause an injury
because the operator's hands
or fingers may get caught.
Grip
Grip
The upper surface of the back section base is
the guide for the scale.
The angle is approximately 20°in the figure.
Back section base
To raise
To lower
Backrest angle indication
Backrest lever IV storage label
* Do not hold any other place besides the grip.
Use the indicated angle as a guide to
adjust the angle to raise the backrest.
WARNING
CAUTION
NOTE!

When transporting patients, secure them with the restraint belts
(p. 13), raise the transfer boards, and continuously monitor them.
Otherwise, the patient may fall off from the stretcher and get
injured.
After raising the transfer boards or locking
them in the horizontal level position, use
the safety lock and confirm that they are
properly locked (green shows in the
indicator window). If they are not locked
properly (red shows in the indicator
window), the transfer boards may lower and
the patient may fall off and get injured.
11

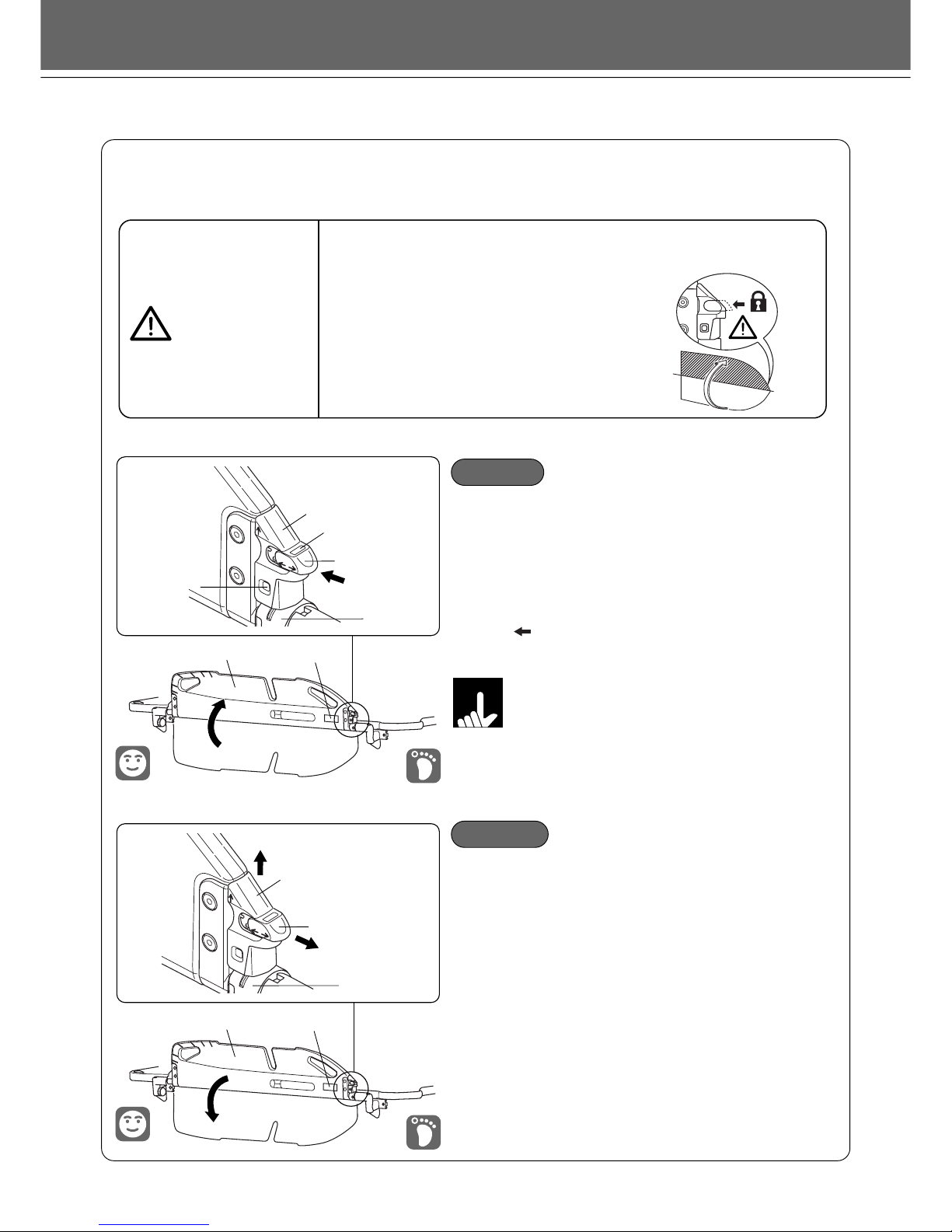

5. Transfer board
Transfer board Warning label
To raise
To raise
To lower
To lower
Head end Foot end
Head end Foot end
 Make sure that sheets don't get
caught in the stopper or safety lock
because they hinder their functions.
w
q
Safety lock
Lug
Lock
Stopper
receptacle
q Slowly lift the transfer board, which has been lowered, in
the direction shown in the figure to the left. When it reaches
the upper limit, the lug lowers and the stopper works.
wConfirm that the stopper is properly working (green
shows in the indicator window).
ePress in the safety lock in the direction shown by the
arrow (transfer board side) until the red label can
no longer be seen for proper locking.
qRelease the safety lock.
wWhile lifting the lug, slowly lower the transfer board.
¢OPERATION
Red label
Transfer board
Transfer boards can be used to protect a patient on the stretcher from falling off and also as a
bridge between the stretcher and a bed when transferring a patient to/from a bed. They can be used
as an arm table by locking them in the horizontal level position.
Unlock
Lift
q
w
Safety lock
Lug
w
e
Warning label
Stopper
receptacle
1
2
Confirm that
the indicator
window shows
green
WARNING
NOTE!

qRelease the safety lock and lower the transfer board in
a horizontal level position while lifting the lug.
(See in p. 11)
w
Move the transfer board in the direction shown by the
arrow while keeping it in a horizontal level position.
The lug lowers and the stopper works.
eConfirm that the stopper is properly working (green
shows in the indicator window).
rPress in the safety lock in the direction shown by the
arrow (transfer board side) for proper locking.
12
Transfer board
Check that the indicator
is green
Safety lock
Lug
Lock
Safety lock
Lug
To lock the transfer board in a horizontal level position (when using as an arm table)
To lock the transfer board in a horizontal level position
To unlock the transfer board from a horizontal level position
To lower
qSlowly lift the transfer board to a horizontal level
position. (See in p. 11)
w
Move the transfer board in the direction shown by the
arrow while keeping it in a horizontal level position.
The lug lowers and the stopper works.
eConfirm that the stopper is properly working (green
shows in the indicator window).
rPress in the safety lock in the direction shown by the
arrow (transfer board side) for proper locking.
[Locking the transfer board in a horizontal level position when it is up]
[Locking the transfer board in a horizontal level position when it is down]
qRelease the safety lock.
wPull the lug in the direction shown by the arrow.
Do not place an object weighing 10 kg or more on the
transfer board when it is locked in a horizontal level position.
Doing so may result in an injury, malfunction, or
deformation.
Head end Foot end
w
e
r
Unlock
q
w
1
2
3
4
CAUTION
To raise

13

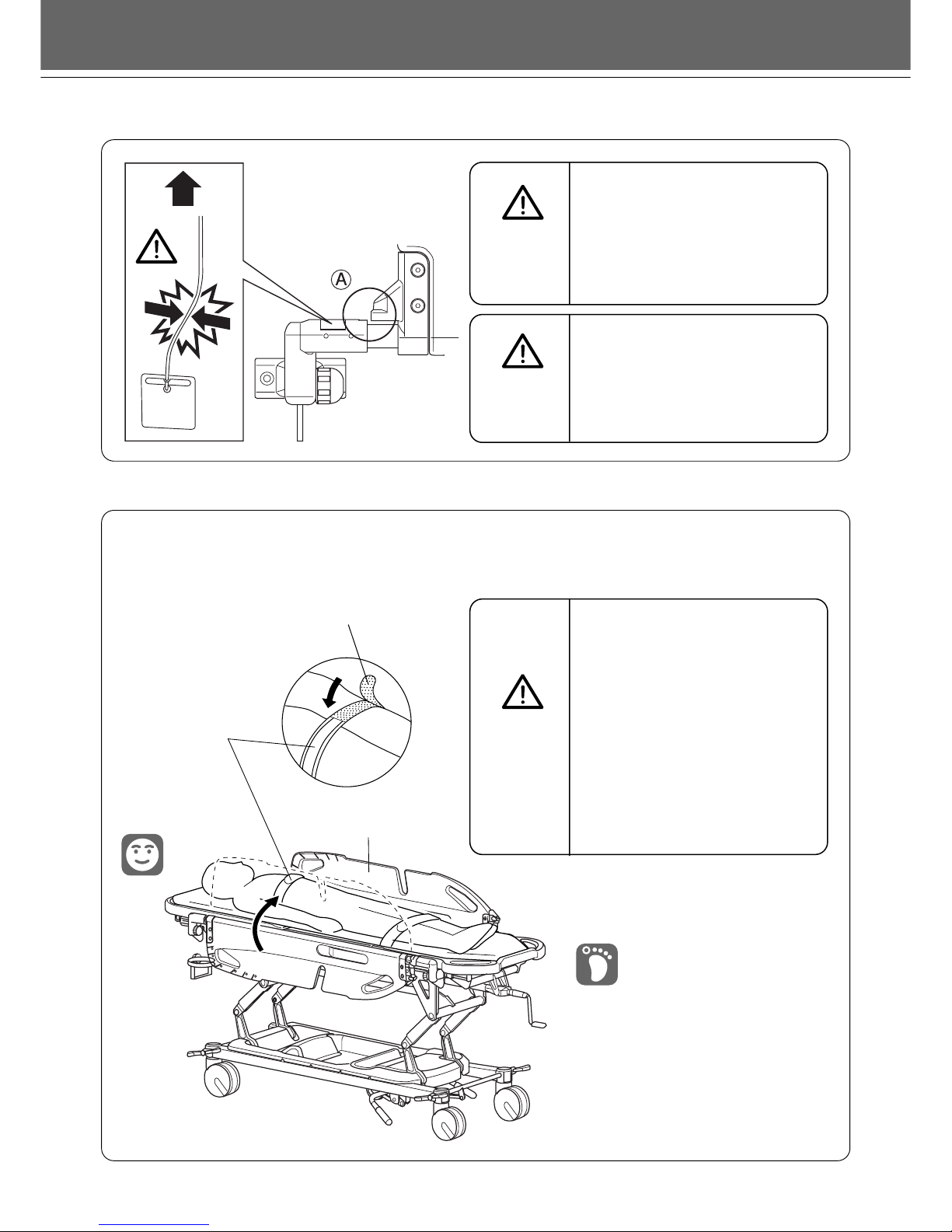

6. Restraint belt
5. Transfer board
Do not raise the backrest
when a patient is secured
on the stretcher. The
patient may get injured.
 Fasten the restraint belts
and make sure there is no
slack. If they are not
properly fastened, the
patient may fall off or the
stretcher may tip over,
resulting in an injury.
Restraint belts are designed to secure patients in order to prevent them from falling off. When
transporting a patient, be sure to firmly fasten the two restraint belts and raise the transfer boards.
Transfer board
Velcro tape
Head end
Foot end
Restraint belt
 When operating the transfer
board, prevent the tube
(drain) from getting caught
in part Ain the figure to the
left. If the tube (drain) gets
caught, it may break.
 Do not operate the transfer
board while placing fingers
on part
A in the figure to the
left. Fingers may get caught,
resulting in an injury.
¢OPERATION
WARNING
WARNING
CAUTION

14
7. Accessory rail
The stretcher is equipped with accessory rails under the transfer boards. Hooks can be attached to
these rails and can be used to hang articles such as urine collection bags.
Hooks can be attached in some different positions. Attach them according to the position or
length of the tube.
Urine collection bag

When attaching articles such as
urine collection bags, do not
raise or lower the transfer board.
It may pull the tube, inducing an
injury, or deform or damage the
urine collection bags.
Each hook's load capacity is 3
kg. Do not hang an article
exceeding the load capacity
because it may damage or
deform the hook or accessory
rail.
Attaching the hook
Insert the hook into a long hole on an accessory
rail sideways and turn it as shown in the figure.
Long hole of the accessory rail
Hook (Four pieces are supplied.)
Accessory rail
CAUTION

8. Oxygen cylinder holder
qInsert the oxygen cylinder holder into the
attachment part for vertical setting as shown in the
figure. (At initial setting, it is already inserted.)
wTurn the holder to adjust the position of an oxygen
cylinder so that it will not contact the back section
base.
eInsert an oxygen cylinder into the oxygen cylinder
holder slowly and then firmly lock the cylinder by
tightening the three thumb screw knobs (one for
stopping the rotation of the holder and two for
locking the cylinder).
The oxygen cylinder holder can contain a 500 L (100 mm to 115 mm diameter) oxygen cylinder.
The holder can be set either vertically or horizontally. (Initial setting is vertical.)
 When adjusting the position of the oxygen cylinder holder, be careful not to get
your fingers caught between the oxygen cylinder holder and the thumb screw knob
(for stopping the rotation of the holder) of the attachment part for vertical setting.
When not using the oxygen cylinder holder, store it under the back section base
by rotating it and firmly lock it by tightening the thumb screw knob (for stopping
the rotation of the holder).
¢OPERATION
Loosen
Tighten
Oxygen cylinder holder
Thumb screw knob
(for locking a cylinder)
Rotate
15
Vertical setting
Vertical setting
Horizontal setting
NOTE!
Attachment part for
vertical setting
Thumb screw knob
(for stopping
the rotation of
the holder)
Pay attention not to hit the
oxygen cylinder holder
against the bed or wall
when transporting or
adjusting the height of
stretcher.
Otherwise, the oxygen
cylinder holder may be
deformed.
CAUTION

qHold the rotation stopper fitting with a hand to
keep it in the horizontal position as shown in the
figure and then insert the oxygen cylinder holder
into the attachment part for horizontal setting.
Insert the oxygen cylinder holder deeply while
adjusting its angle so that the boss of the holder
reaches deeply into the stopper.
wRotate the oxygen cylinder holder as shown in the
figure and let the rotation stopper fitting go so that
the stopper works.
eInsert an oxygen cylinder deeply into the oxygen
cylinder holder and then firmly lock the cylinder by
tightening the two thumb screw knobs (two thumb
screw knobs for locking a cylinder).
After mounting the oxygen cylinder holder in the horizontal
position, confirm that the stopper is working properly by shaking
the holder. If the holder is not mounted properly, an oxygen
cylinder may drop, resulting in an injury or damage.

After inserting an oxygen cylinder into the oxygen cylinder holder,
tighten the thumb screw knobs properly. Otherwise, the oxygen cylinder
may move unexpectedly or drop, resulting in an injury or damage.

The load capacity of the oxygen cylinder holder is 15 kg. Do not insert
a cylinder that exceeds the load capacity because it may damage or
deform the oxygen cylinder holder or frame, resulting in an injury.
Do not hit the oxygen cylinder holder or flowmeter against other
objects during transport. The oxygen cylinder holder or flowmeter
may get damaged or deformed, resulting in an injury.
Stopper
Boss
Oxygen cylinder holderThumb screw knob
(for locking a cylinder)
Rotation
stopper fitting
Stopper
Boss
Thumb screw knob (for locking a cylinder)
16
Horizontal setting
qw
e
WARNING
Attachment part
for horizontal
setting
Attachment part for
horizontal setting
100 mm to 115 mm diameter
Oxygen cylinder
Pay attention not to hit the
oxygen cylinder holder
against the bed or wall
when transporting or
adjusting the height of
stretcher.
Otherwise, the oxygen
cylinder holder may be
deformed.
CAUTION

17

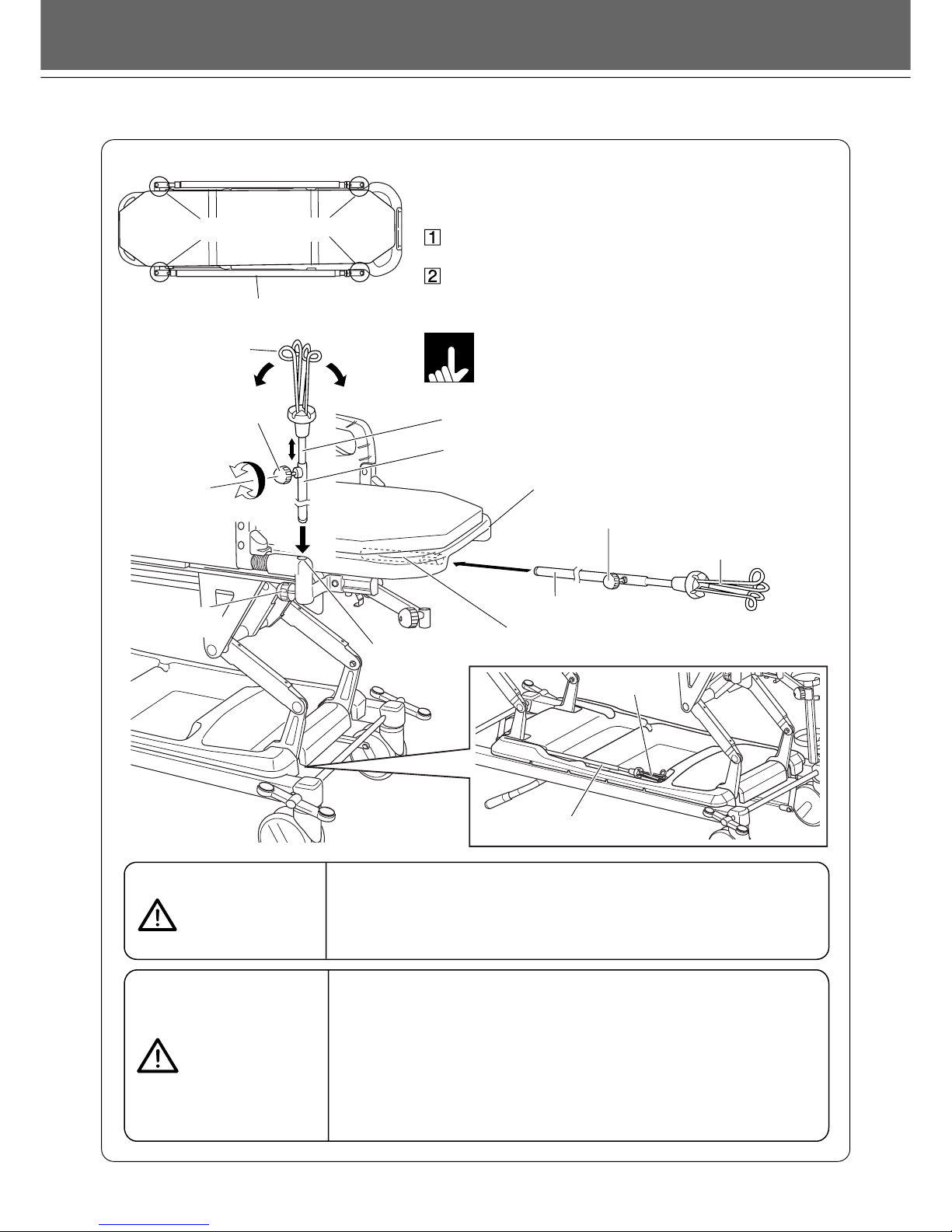

9. IV hanger rod (KC-57E)
IV hanger rod attaching holes are located in two places
each on the left and right sides of the stretcher, four places
in total. Using the holes, IV hanger rods (KC-57E) for drip
infusion can be mounted.
Insert an IV hanger rod into an attaching hole and firmly lock it
by turning the thumb screw knob (for locking an IV hanger rod).
Adjust the length of the sliding pipe of the IV hanger rod, lock it
using the thumb screw knob (for locking the sliding pipe), and
open the hook on the tip.
Confirm that the IV hanger rod is properly
locked with the thumb screw knob (for
locking an IV hanger rod).
Stretcher viewed from above
Hook (Open when using.)
Sliding pipe
IV hanger rod (KC-57E)
Back section base
IV hanger rod attaching hole
Thumb screw knob
(for locking the sliding pipe)
Hook (Close when storing.)
IV hanger rod (KC-57E)
IV hanger rod storage holder
* IV hanger rod can be stored here when it is not used.
Loosen
Tighten Insert
 For an IV hanger rod, use the provided product (KC-57E). Other IV
hanger rods may not be locked into the IV hanger rod attaching hole.
Length adjustment of the sliding pipe should be kept within 40 cm.
If the sliding pipe is pulled out too much, it may come off,
resulting in an injury or damage.

When not using the IV hanger rod, close the hook, make the pole as short
as possible, and properly store it in the storage holder located at the tray
under the back section base. If not stored properly, the IV hanger rod may
hit other parts when the height of the stretcher is adjusted, resulting in
deformation or damage of the IV hanger rod or stretcher.
When using an IV hanger rod, do not put hands or arms in between
the mattress base or transfer board and the IV hanger rod. Hands
or arms may get caught and injured.

Each hook's load capacity is 1 kg. Do not hang an article that exceeds the
load capacity because it may damage the hook, resulting in an injury.
IV hanger rod attaching hole (four corners)
Transfer board
Thumb screw knob
(for locking an IV
hanger rod)
¢OPERATION
WARNING
CAUTION
For storage, align the thumb screw knob with the
groove on the holder.
* IV hanger rod can be stored on the tray.
Hook
NOTE!

18
10. Transfer mattress
A patient can be transferred to/from a bed
without being lifted. For the procedures, see
∞PATIENT TRANSFER on p. 19 to 22.
The mattress consists of three parts, the
center parts and two side parts, so that it can
be placed under a patient easily.
The surface material is water-proof and is
easy to wipe for cleaning.
The surface material is washable. When
washing, unfasten the zipper on the center
and side, take out the padding (three pieces),
and wash the surface material only.
Handle Center
Zipper
Side
The padding is not washable.
To iron the surface material, set the
iron at a low temperature (80°C to
120°C). Otherwise, the surface
material may get damaged or
deformed.
NOTE!

19

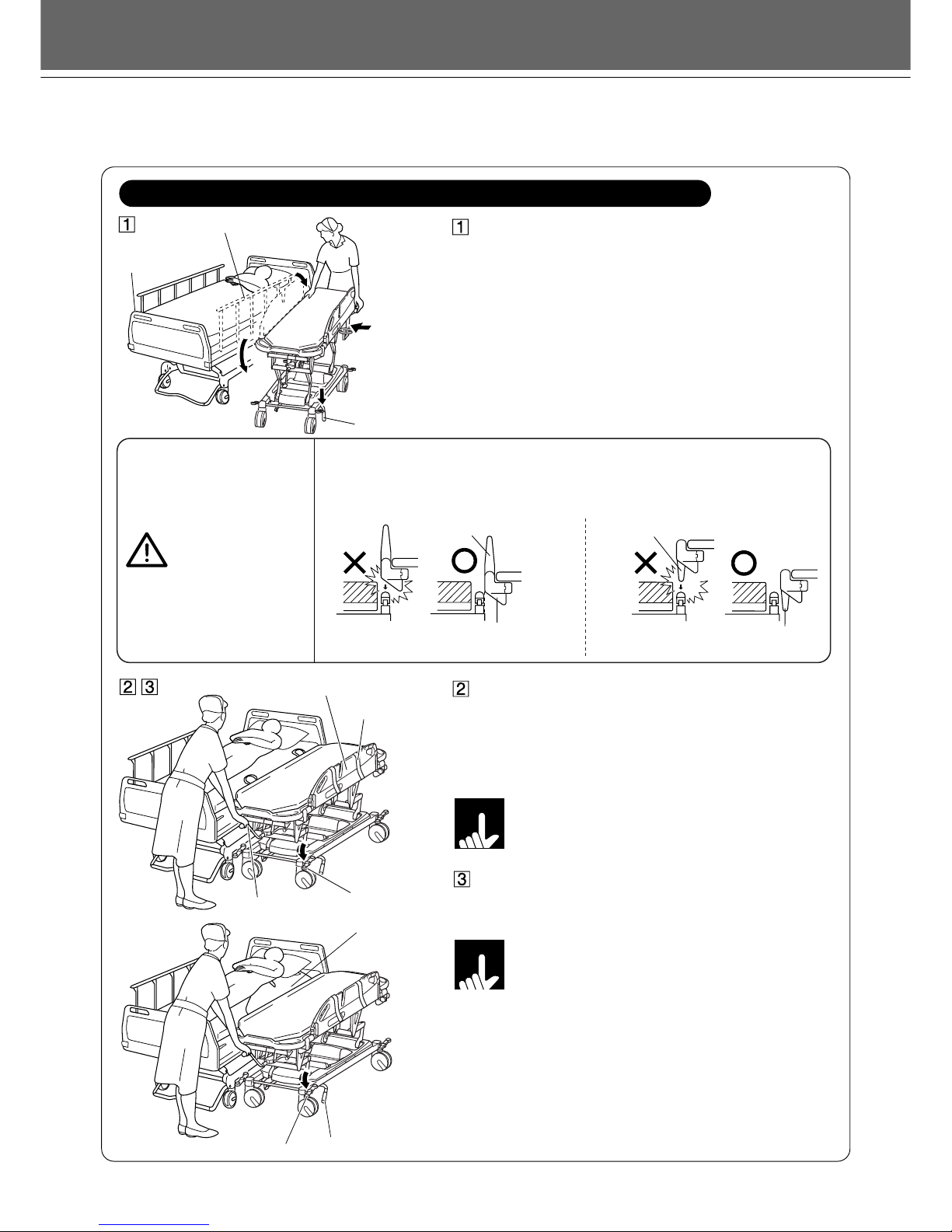

∞PATIENT TRANSFER
qOperate the center wheel locking pedal of the
stretcher to set the lock to OFF.
wLower the transfer board and the side rail of
the bed.
ePlace the stretcher by the bed. (See p. 8
and 11)
Depress the caster lock pedal (red) of the stretcher
to lock the casters and then align the height of the
stretcher to the height of the bed by operating the
Hi-Lo handle.
(See p. 7 and 9)
Unfasten the restraint belts of the stretcher and
move them so that they will not hinder the
transfer procedure.
When placing the stretcher by a bed, prevent the transfer board or
transfer board receptacle of the stretcher from sitting on the side rail
(foldable type) of the bed. Otherwise, the side rail of the bed or the
transfer board may get damaged or deformed.
When there is a wide gap between
the stretcher and bed, the transfer
board can be placed over the bed.
To transfer a patient from a bed to the transfer stretcher
Set the stretcher slightly lower than
the bed for easier transfer.
Side rail of the bed
Bed
Center wheel locking pedal
w
q
e
Transfer board
Transfer board
Restraint belt
Caster lock
pedals
Hi-Lo handle
Center wheel locking pedal
Caster lock pedals
Transfer board Transfer board
[When the transfer board is up] [When the transfer board is down]
Transfer board receptacle Transfer board
WARNING
NOTE!
NOTE!
* The illustration shows only one nurse in order to explain procedures simply.
* In actual procedures however, a patient should be transferred by at least two persons for safety.
* Pay attention not to hit the oxygen cylinder holder against the bed when adjusting the height of
stretcher for transfer.
