General information
F12 is bent axis, fixed displacement
heavy-duty motor/pump series. They
can be used in numerous applications
in both open and closed loop circuits.
Series F12 conforms to current ISO
and SAE mounting flange and shaft
end configurations.
Frame sizes: F12-152, -162, -182
Thanks to the unique spherical piston
design, F12 motors can be used at
unusually high shaft speeds. Operating
pressures to 480 bar provides for the
high output power capability.
The 40° angle between shaft and cylin-
der barrel allows for a very compact,
lightweight motor/pump.
The laminated piston ring oers im-
portant advantages such as low inter-
nal leakage and thermal shock resis-
tance.
The F12 motors produce very high tor-
que at start-up as well as at low speeds.
Our unique timing gear design synch-
ronizes shaft and cylinder barrel, ma-
king the F12 very tolerant to high ’G’
forces and torsional vibrations.
Heavy duty roller bearings permit sub-
stantial external axial and radial shaft
loads.
The F12’s have a simple and straight-
forward design with very few moving
parts, making them very reliable mo-
tors/pumps.
The unique piston locking, timing gear
and bearing set-up as well as the limi-
ted number of parts add up to a very
robust design with long service life
and, above all, proven reliability.
General Information

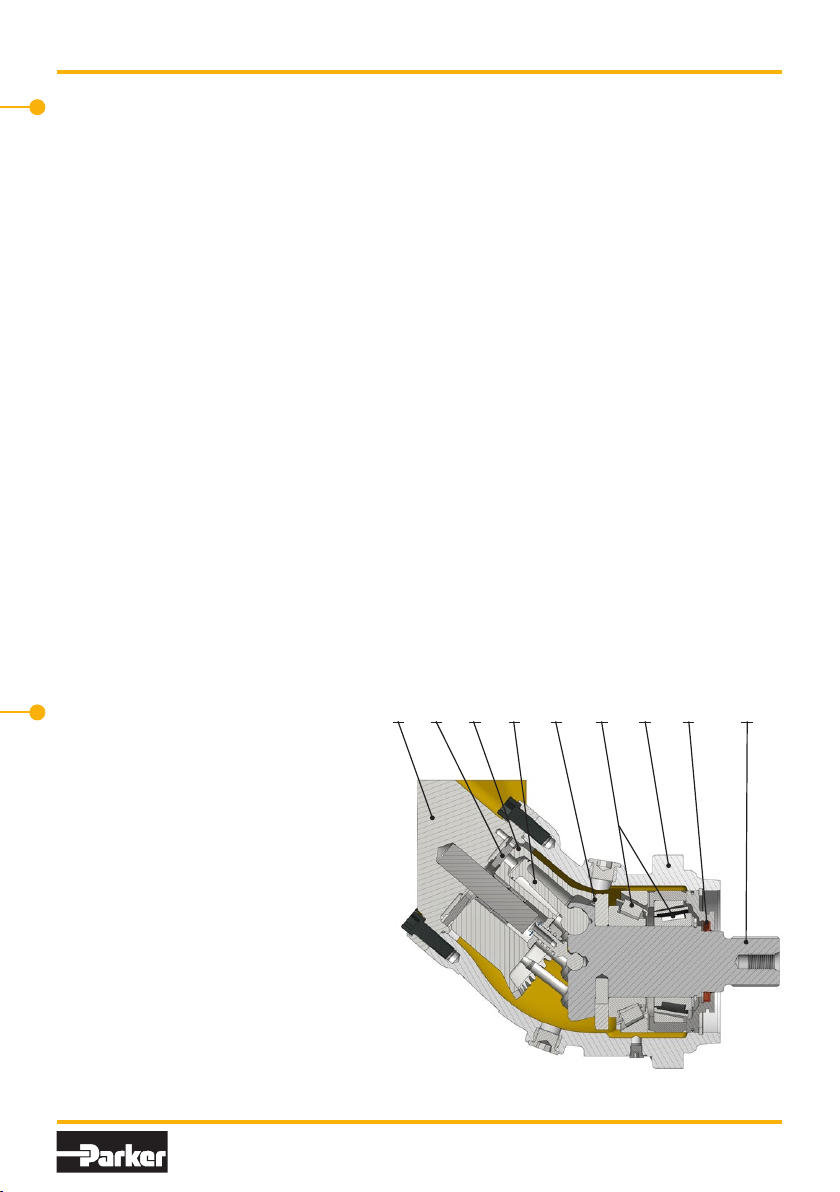

F12 cross section
1. End cap
2. Valve plate
3. Cylinder barrel
4. Piston with piston ring
5. Syncronisation Timing gear
6. Tapered roller bearing
7. Bearing housing
8. Shaft seal
9. Output/input shaft
1 2 3 4 5 6 7 8 9

MSG30-5520-M1/UK
4Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Frame size F12-152 F12-162 F12-182
Displacement (cm3/rev) 149,8 16 3 ,1 179,8
Operating Pressure
max intermittent1) (bar) 480 480 480
max continuous (bar) 420 420 420
Motor operating speed
max intermittent1) (rpm) 4000 4000 4000
max continuous (rpm) 3700 3700 3700
min continuous (rpm) 50 50 50
Max pump sefpriming speed2)
L or R function; max (rpm) - - -
Motor input flow
max intermittent1) (l/min) 608 648 728
max continuous (l/min) 547 583 655
Main circuit temp.3)
max (°C) 115 115 115
min (°C) -40 -40 -40
Mass moment of inertia
(x10-3) (kg m2)21 21 21
Weight
(kg) 40 40 40
Theoretical torque at 100 bar (Nm) 238 260 286
Specifications
1) Intemittent: max 6 seconds in any one minute.
2) Selfpriming speed valid at sea level.
3) See also below, operating temperature.
Operating temperature
NOTE: The temperature should be me-
asured at the utilized drain port.
Continuous operation may require case
flushing in order to meet the viscosity
and temperature limitations.
For further information we refer to:
Catalogue MSG30-8249/UK

5Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Disassembling
Disassembling

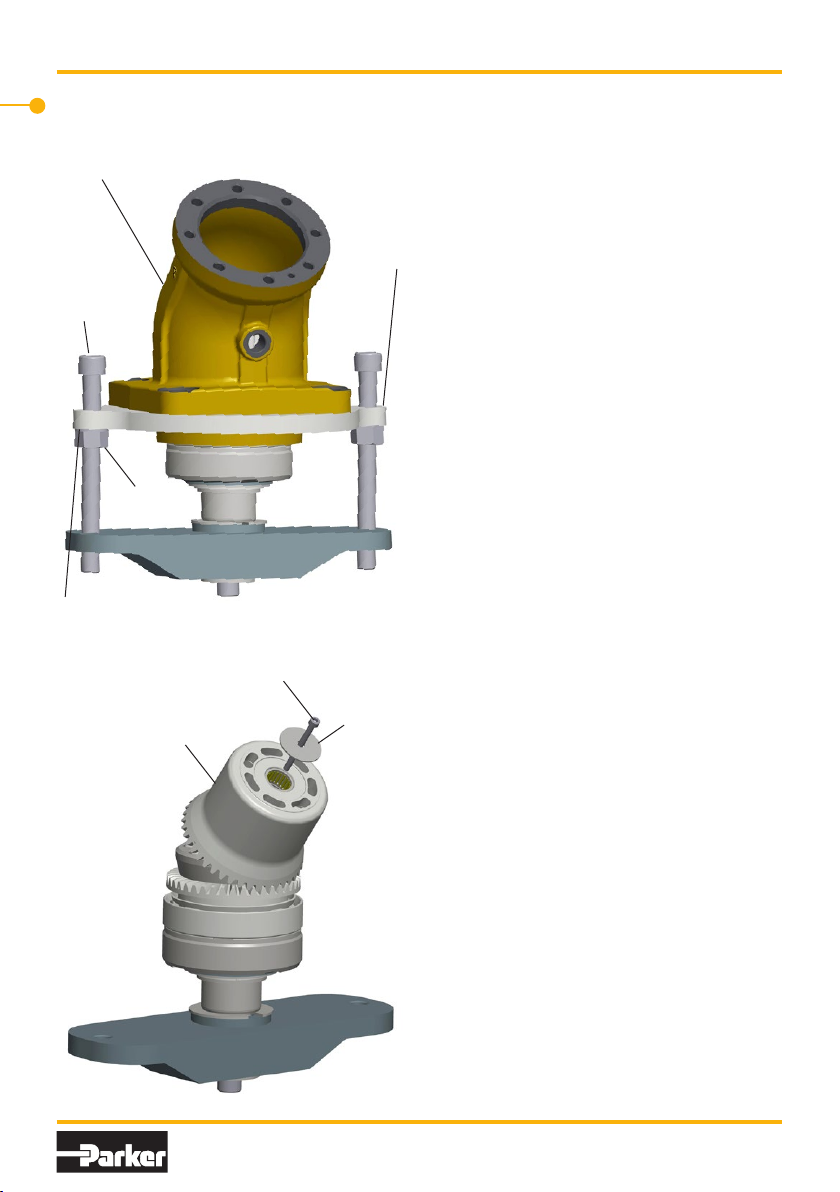

1. Fasten the fixture in a vise and
place the motor in the fixture.
Loosen the bolts (item 491).
Carefully remove the end cap (item
110) and the O-ring (item 221).
Make sure the valve plate (item
121) don't fall out.
2. Fasten screw and washer to secure
that the cylinder barrel (item 411)
stays in correct position.
There is a thread in the barrel sup-
port, item 430 (see page 18).
221
491
121
111
411
screw
washer
See page 21, item 1, 7 and 8

MSG30-5520-M1/UK
6Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Disassembling
Disassembling
3. Place the motor on the side.

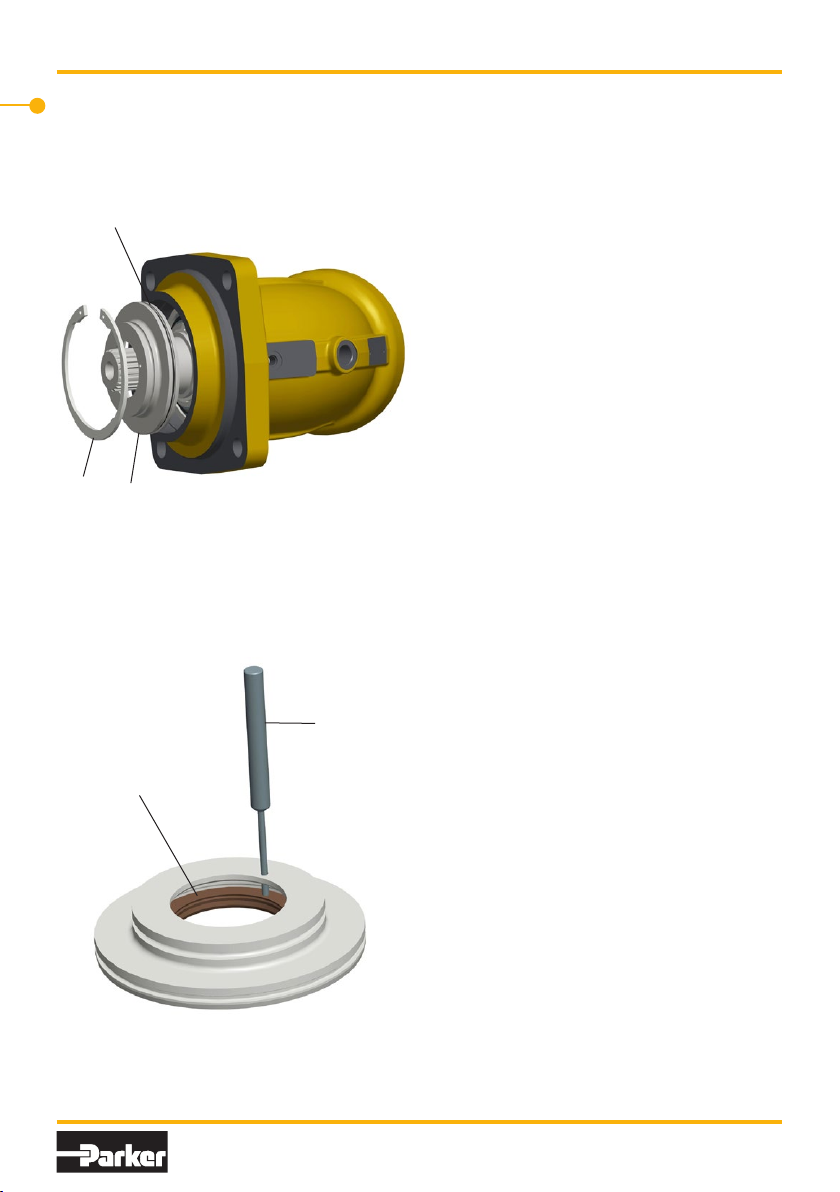

Disassemble the retaining ring
(item 237), remove the shaft seal
carrier (item 231) and the O-ring
(item 225).
4. Use a mandrel and tap the shaft
seal (item 233) out with a hammer.
Make sure the O-ring (item 225) is
removed (see picture 3 above).
225
237 231
233
mandrel

7Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Disassembling
5. Add the flange plate to the fixture
with bolts,washers and nuts.
Fit screw and washer so the motor
is secured in the fixture.
Disassemble the bearing housing
(item 210) by using the fixture as a
puller. Screw the nuts alternately
until the bearing housing is loose.
Disassembling
6. Remove screw and washer.
Disassemble the cylinder barrel
(item 410), pistons (item 440) and
barrel support (item 430).
See page 18 for item 440 and 430.
210
flange plate
bolt
nut
washer
screw
washer
410

MSG30-5520-M1/UK
8Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Disassembling
Disassembling
7. Disassemble the retaining ring
(item 478) and the spacer washer
(item 476).
8. Place the bearing package on a
tube and disassemble the bearings
by pressing on the shaft end.
478
476
press tool
tube

9Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Assembling
Assembling

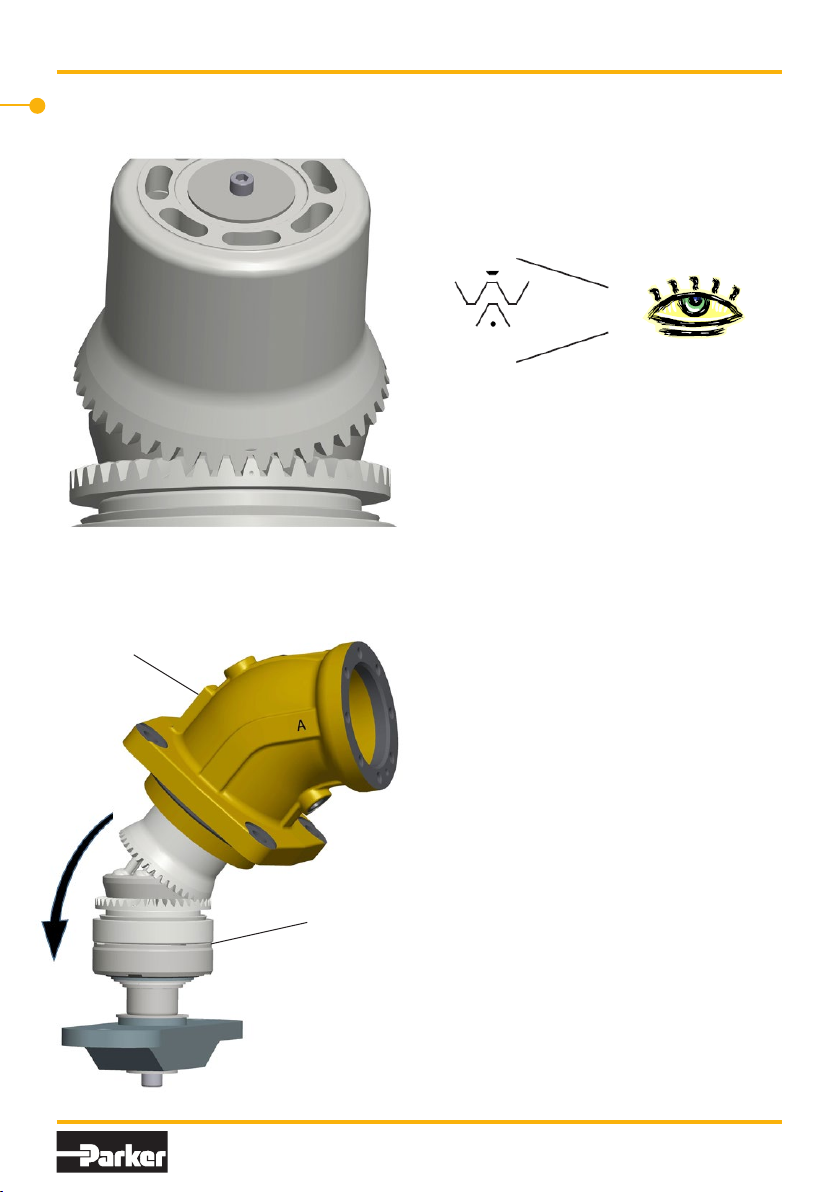

9. Place the ring gear (item 452) in
correct position on the shaft (item
310). Place the tappered roller
bearing (item 460) on the shaft.
Press down the ring gear and tap-
pered rolling bearing by using a
sleeve.
11. Place the spacer ring (item 464)
and the tappered roller bearing
(item 470) on the shaft.
Press down the tappered roller
bearing with a sleeve until correct
preload is achieved.
The rolling torque should be
11±1Nm
10. Press down the outher bearing
racer (item 470) in to the sparcer
ring (item 464).
310
452
470
464
470
464
460

MSG30-5520-M1/UK
10 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
478
476
Assembling
Assembling
12. Assemble spacer washer (item
476) and retaining ring (item 478).
Note! The spacer washer should
not be possible to move when
retaining ring is assembled.
Choose a thicker spacer washer if it
is possible to move it.
13. Assemble barrel support (item
430), pistons (item 440) and
cylinder barrel (item 410).
Make sure the timing is correct
(see picture 13).
Fasten screw and washer to secure
that the cylinder barrel stays in
correct position.
screw
washer
410
440
430
See page 21, item 7 and 8

11 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Assembling
Assembling
210
bearing
package
14. Make sure the timing is correct.
15. Carefully place the bearing hou-
sing (item 210) on the bearing
package.
Note! This operation goes much
smoother if the bearing housing is
heated up to approxmetly 60°C.

MSG30-5520-M1/UK
12 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Assembling
Assembling
16. Assemble the bearing housing
(item 210) by using the fixture as
shown on the picture.
Turn the bolts alternately until the
bearing housing is all the way down.
Note! This operation goes much
smoother if the bearing housing is
heated up to approxmetly 60 °C.
Secure that the the housing
don’t fall off when moving the
motor. The grip could be loose
due to the heated up housing.
17. Assemble the shaft seal (item 233)
and O-ring (item 225).
Note! Apply a thin layer of grease
on the inner and outher diameter of
the shaft seal before assembly.
233
225
210
washer

13 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Assembling
Assembling
18. Assemble shaft seal carrier assy by
using a tube. Carefully tap it in with
a hammer.
Secure location by assembling the
retaining ring (item 237).
19. IMPORTANT !
Add the flange plate to the fixture
with bolts, washers and nuts.
Turn the bolts alternately until the
bearing housing (item 210) stops
against the retaining ring (item
237), see picture 17.
237
shaft seal carrier assy
flange plate
210
bolt
nut washer

MSG30-5520-M1/UK
14 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Assembling
Assembling
20. Make sure the timing is correct.
If the timing is wrong, release the
screw slightly and set the timing to
correct position again.
21. Remove screw and washer.
screw
washer
screw

15 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Assembling
Assembling

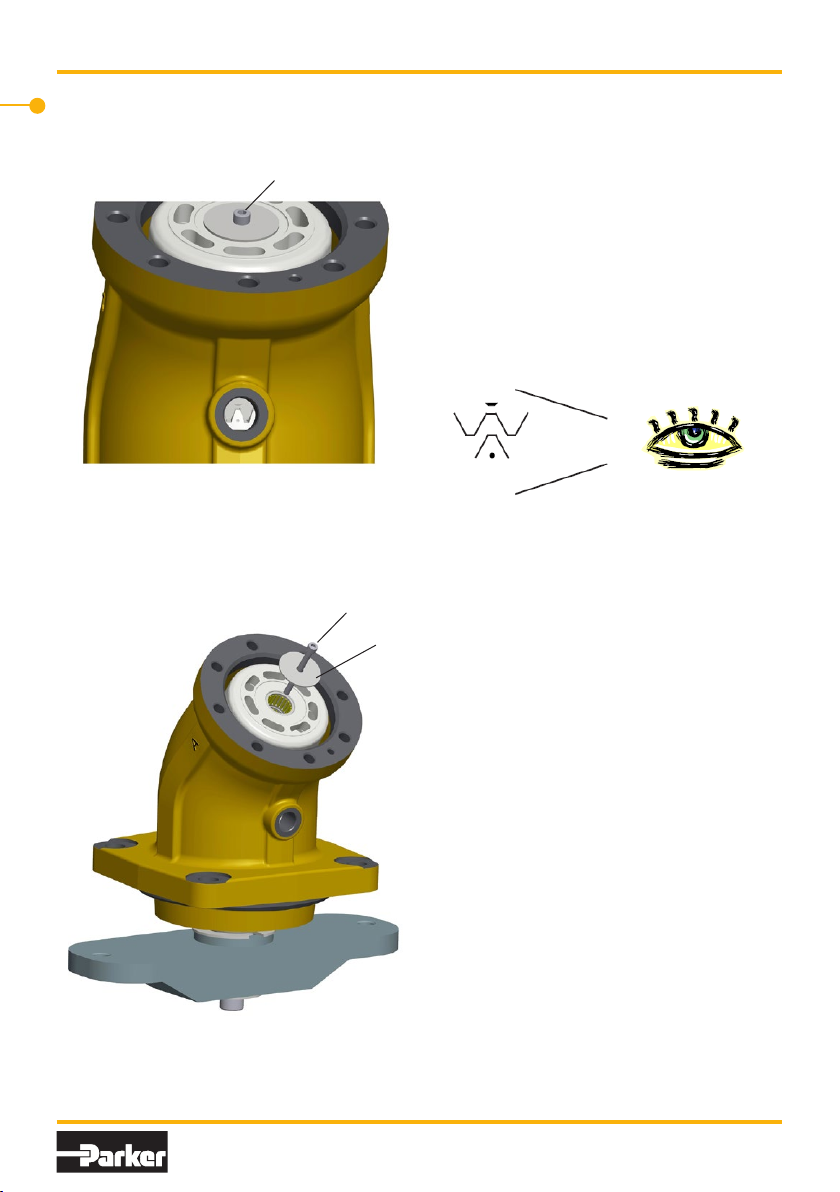

22. Assemble the valve plate (item
121) in the end cap (item 110), use
some grease to keep it in position.
Place the O-ring (item 221) on the
end cap (item 110).
Assemble the end cap with O-ring
on the motor. Fit the bolts
(item 491) and torque them to
180 ± 10 Nm.
23. Once again, make sure the timing
is correct.
221
110
491
221

MSG30-5520-M1/UK
16 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Assembling
Assembling

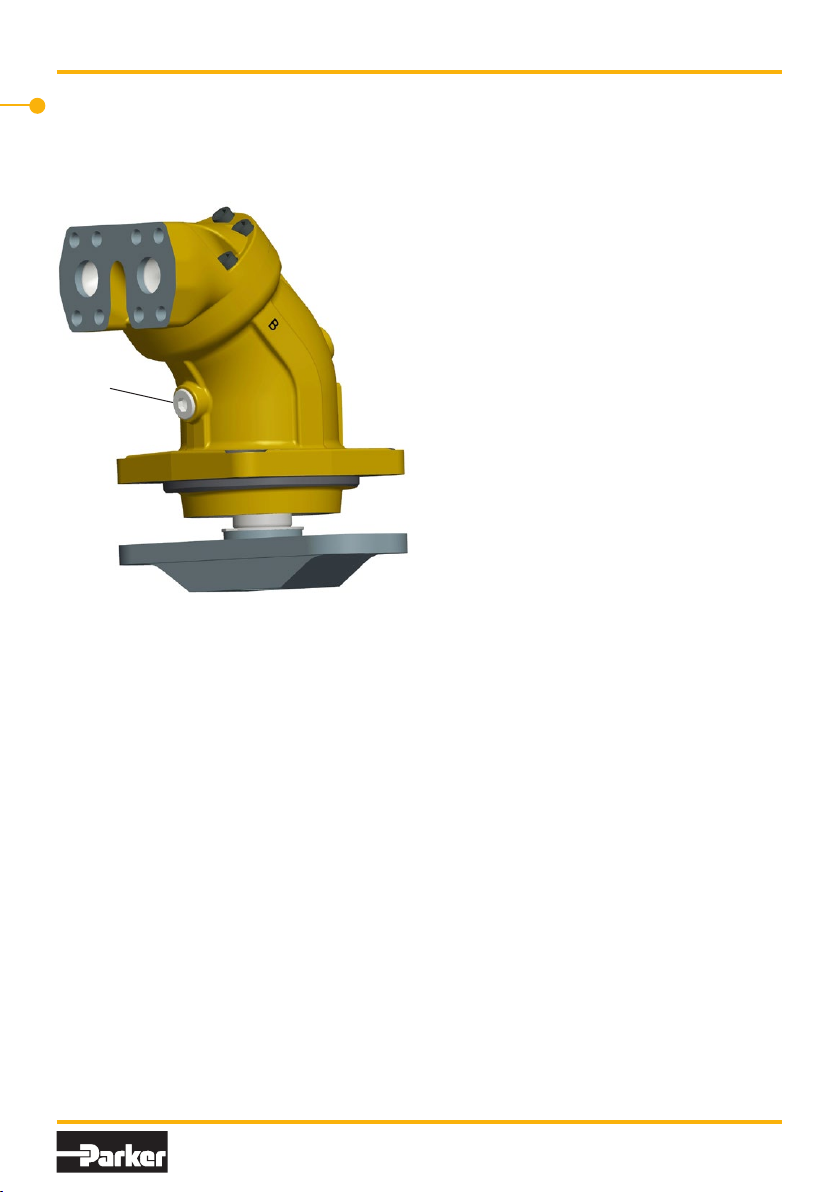

24. Assemble hexagon plug (item 250)
according to customers
specification.
Use a plier and turn the shaft at
least one revolution and make sure
it turns without problems.
Also make sure that there is
back-lash.
250

17 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Test Procedure
Test Procedure
The general condition of the unit can

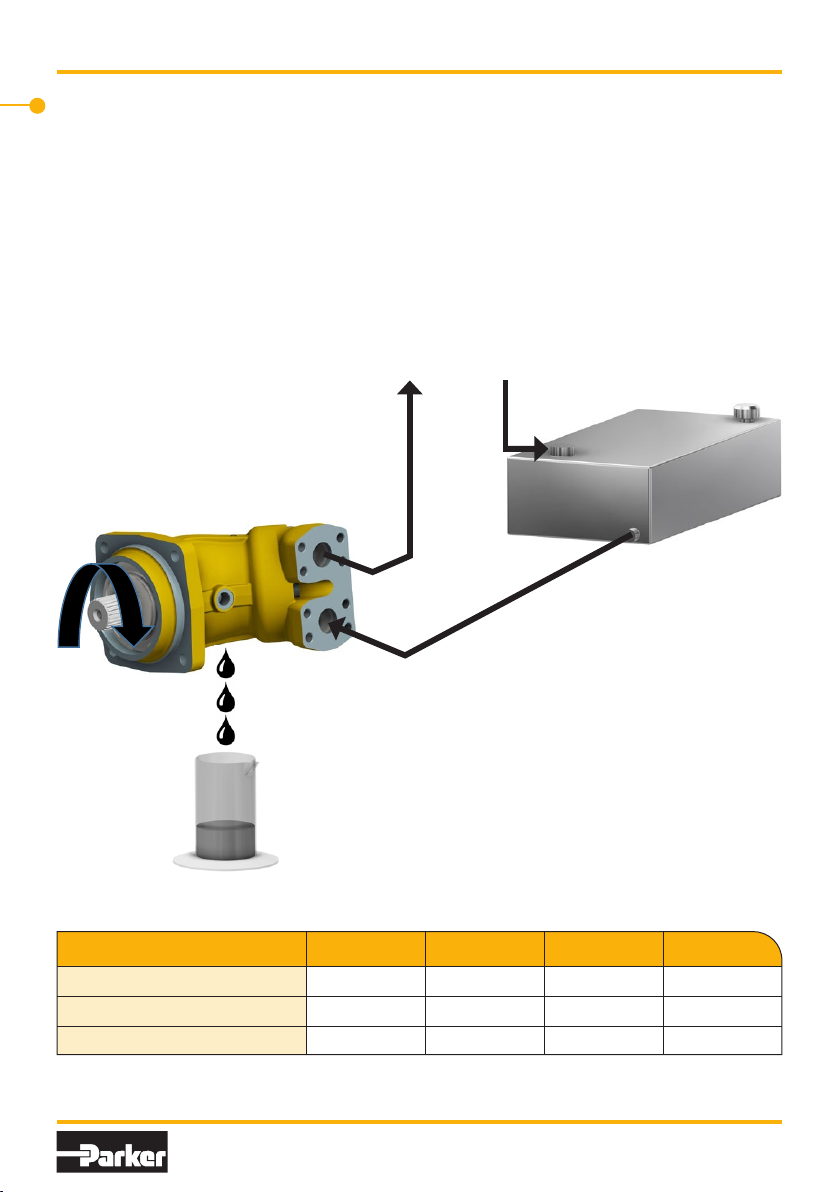

be established by checking the drain
flow. Remove the drain line and keep
the drain port above a suitable contai-
ner. Run the unit at 500 rpm and pres-
surise the system to 200 bar (3000
psi).
Measure the drain flow for one minu-
te; if it exceeds the maximum figures
shown below, the unit is worn or dama-
ged internally and should be replaced
or repaired. Also, check for leakage at
the shaft seal and between the bearing
and barrel housings.
17 Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series F12
MSG30-5520-M1/UK
Thegeneralconditionoftheunitcanbeestablishedbycheckingthedrainow.Removethe
drainlineandkeepthedrainportaboveasuitablecontainer.Runtheunitat500rpmand
pressurisethesystemto200bar(3000psi)
Measurethedrainowforoneminute;ifitexceedsthemaximumguresshownbelow,theunit
iswornordamagedinternallyandshouldbereplacedorrepaired.Also,checkforleakageat
theshaftsealandbetweenthebearingandbarrelhousings.
Series Normal
(gpm,US)
Normal
(l/min)
Max
(gpm,US)
Max
(l/min)
F12-152 0.4 1.5 0.99 3.7
F12-162 0.43 1.6 1.08 4.1
F12-182 0.47 1.8 1.19 4.5
Test Procedure
Series Normal
(gpm, US)
Normal
(l/min)
Max
(gpm, US)
Max
(l/min)
F12-152 0.4 1.5 0.99 3.7
F12-162 0.43 1.6 1.08 4.1
F12-182 0.47 1.8 1.19 4.5

MSG30-5520-M1/UK
18 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12

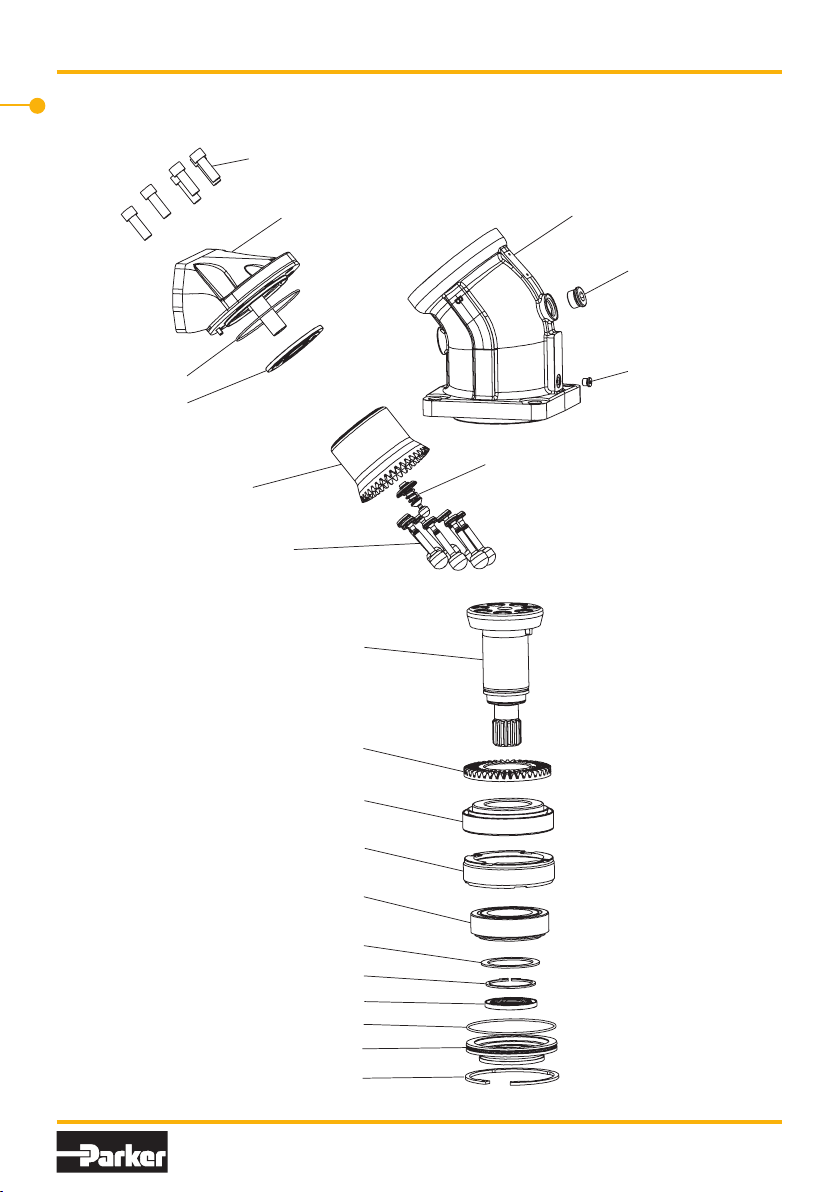

Splitview F12-152, -162, -182
Splitview F12-152, -162, -182
18 Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series F12
MSG30-5520-M1/UK
Splitview F12-152, -162, -182
491
231
225
478
476
470
464
460
452
310
440
430
410
121
221
110
237
233
250
210
260

19 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
MSG30-5520-M1/UK
Parts specification
Parts specification
Item Description
110 End Cap
121 Valve Plate
210 Bearing Housing
221 O-Ring 118*2,5 V80
225 O-Ring 132*3 V80
231 Seal Carrier
233 Shaft Seal 60*80*7
237 Retaining Ring SGH140
250 Hex Socket Plug Assy
260 Hex Socket Plug Assy
310 Shaft
410 Cylinder Barrel Assy
430 Barrel Support
440 Piston Assy
452 Ring Gear
460 Tap Roller Bearing
464 Spacer Ring
470 Tap Roller Bearing
476 Spacer Washer
478 Retaining Ring SGA70
491 Hex S Screw M14*40

MSG30-5520-M1/UK
20 Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F12
Spare Parts for F12-152/162/182
Spare Parts for F12-152/162/182
Seal Kit
Items included 221, 225, 233, 237
Product Part No
F12-152/162/182 3720863
Bearing Kit
Items included 460, 464, 470,
476, 478
Product Part No
F12-152/162/182 3724011
Repair kit
Items included 121, 410, 440, 491
F12-152 Motor type M 3724007
F12-152 Motor type S 3724008
F12-182 Motor type M 3724009
F12-182 Motor type S 3724010
Other kit on request
Shafts 152/162/182
Item 310
Shaft Part No Key Part No
Type K (key) 3720486 3724446*
Type G (key) 3784005 3724446*
Type D (spline) 3720490
Type H (spline) 3720458
Type T (key) 3784016 3724439*
Type S (spline) 3784010
Type F (spline) 3720491
* kit contain 100 pcs
Bearing housing 152/162/182
Item 210
Type I (ISO 180 mm) 3720766
Type F (ISO 200 mm) 3720765
Type S (SAE) 3720570
End Cap 152/162/182
Item 110
Type F 1 1/2” Vertical 3784018
Type D 1 1/4” Horizontal 3783958
Type K 1 1/4” Rear 3720302
Type M 1/1/4” Side 3720303
