Parkside PDSP 1000 A1 SANDBLASTER GUN User manual

SANDBLASTER GUN PDSP 1000 A1
IAN 89572
SANDBLASTER GUN
Operation and Safety Notes
Translation of original operation manual
PAINEILMAKÄYTTÖINEN
HIEKKAPUHALLUSPISTOOLI
Käyttö- ja turvaohjeet
Alkuperäisen käyttöohjeen käännös
BLÄSTRINGSPISTOL, TRYCKLUFT
Bruksanvisning och säkerhetsanvisningar
Översättning av bruksanvisning i original
DRUCKLUFT-SANDSTRAHLPISTOLE
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
TRYKLUFT-SANDBLÆSERPISTOL
Brugs- og sikkerhedsanvisninger
Oversættelse af den originale driftsvejledning

GB/IE Operation and Safety Notes Page 5
FI Käyttö- ja turvaohjeet Sivu 15
SE Bruksanvisning och säkerhetsanvisningar Sidan 25
DK Brugs- og sikkerhedsanvisninger Side 35
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 45
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
Käännä ennen lukemista kuvallinen sivu esiin ja tutustu seuraavaksi laitteen kaikkiin toimintoihin.
Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig bekant
med apparatens/maskinens funktioner.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

15
34
C
A EB
1.
2.
2

5GB/IE
Introduction
Proper use................................................................................ Page 6
Features and equipment......................................................... Page 6
Included items ......................................................................... Page 7
Technical data......................................................................... Page 7
Safety advice................................................................... Page 7
Operation
Connecting the compressed air source ................................. Page 9
Filling the blast medium container.......................................... Page 9
Using the sandblasting gun.................................................... Page 10
Cleaning ............................................................................... Page 11
Service................................................................................... Page 11
Warranty............................................................................. Page 11
Disposal................................................................................ Page 13
Declaration of Conformity/
Manufacturer................................................................... Page 13
Table of contents

6 GB/IE
Introduction
Sandblaster gun PDSP 1000 A1
Q
Introduction
We congratulate you on the purchase of your new device. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use and
disposal. Before using the product, please familiarise yourself with all
of the safety information and instructions for use. Only use the unit as
described and for the specified applications. If you pass the product
on to anyone else, please ensure that you also pass on all the docu-
mentation with it.
Q
Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.
Q
Features and equipment

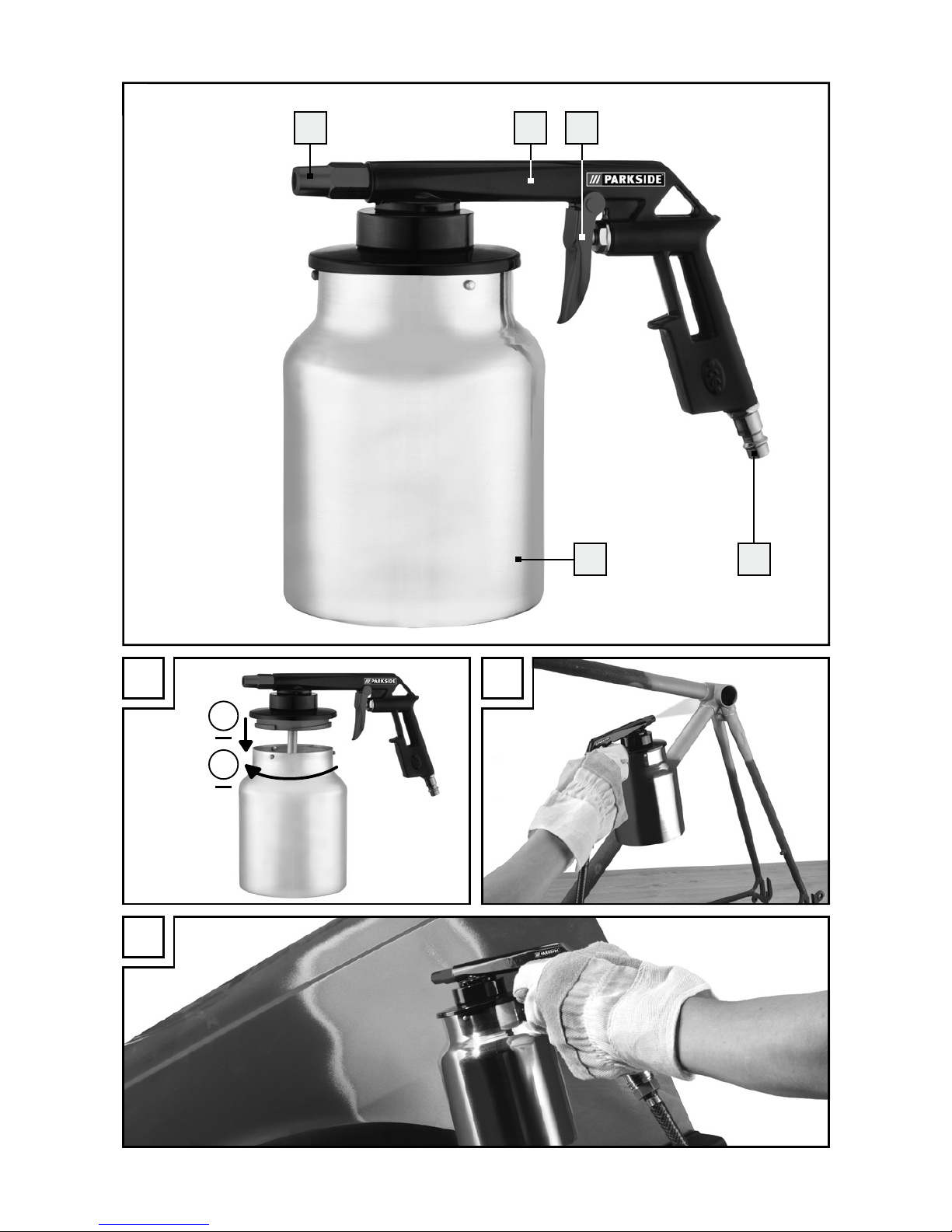

1Sandblaster gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle
Introduction/Safety advice

7GB/IE
Introduction
Introduction/Safety advice
Q
Included items
1 Sandblaster gun PDSP 1000 A1
1 Operating instructions
Q
Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 3–5bar
Compressed air consumption: 130–260l/min
Nozzle ø: 2.8mm
Container capacity: 1000ml
Volume flow rate: typically 200–220g/Min.
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8bar.
Sound pressure level: 86dB(A)
Sound power level: 98dB(A)
Values determined in accordance with EN 14462 (EN1953/A1:2009).
Q Safety advice
Read all the safety advice
and instructions. Even minor failures to observe the
safety advice and instructions could lead to severe injury.
Keep all the safety advice and instructions in a safe
place for future reference.

8 GB/IE
Safety advice/Operation
Safety advice
Check the device for damage before bringing it into
use. Do not use the device if you discover any defects.
Keep children and other people away while you are
operating the sandblasting gun. Distractions can cause
you to lose control of the device.
RISK OF INJURY! IMPROPER USE! Never point the device
at people or animals.
For your own safety, wear suitable personal protec-
tive equipment.
Wear an approved dust mask/protective hood!
Wear protective glasses!
RISK OF EXPLOSION! Do not use the sandblasting gun 1in
environments containing gases, open flames, fires or gas-operated
water heaters.
NO SMOKING!
Work in adequately ventilated spaces only.
Never use oxygen or other combustible gas as the
energy source.
Never exceed the maximum working air pressure of 8bar.
RECOIL FORCES! High working pressures can
give rise to recoil forces that under certain conditions can result in
danger from continuous loading.
DANGER OF INJURY! Disconnect the device from the com pressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.
DANGER OF INJURY! Disconnect the device from the com-
pressed air source before filling it with blast medium.
NOTE! Please observe the safety advice provided by the manu-
facturer of the blast medium.
Use only materials for the blast medium that are suit-
able for the sandblasting gun. Do not use quartz sand.
There is the danger of toxic silicon dust forming.

9GB/IE
Safety advice/Operation
Take precautions to ensure that other people are not
contaminated (dust generation).
Ensure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
Do not remove rating plates or labels–they are safety-relevant
parts of the device.
If you are inexperienced in the use of this type of device, you should
seek out information or training to learn how to handle it safely.
Q
Operation
Q
Connecting the compressed air source
NOTE: Operate the sandblasting gun 1only with cleaned, conden-
sate- and oil-free compressed air and never exceed the maximum working
air pressure at the device of 8bar.
NOTE: The compressed air source must be fitted with a (filter)/pressure
reducer so that the air pressure can be regulated.
Connect the sandblasting gun to a suitable compressed air source
by connecting the quick-release coupling of the air supply hose with
the plug-in nipple 3to the sandblasting gun 1. It locks itself in
place automatically.
Q
Filling the blast medium container
Always use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
Safety advice

10 GB/IE
Operation/Cleaning/Service/Warranty
Operation
Ensure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
Turn the bayonet cap of the blast medium container 4to open it.
Pull the blast medium container 4off downwards.
Fill the blast medium container 4with the desired amount of
blast medium.
Ensure that the maximum capacity of the container (1000ml) is
not exceeded.
Screw the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).
Q
Using the sandblasting gun
(see Figs. B, C)
Carefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
Carefully mask or tape off everything that is not to be sand blasted.
Ensure that there is always a minimum distance of 20cm between
the sandblasting gun 1and the surface being sand blasted.
Switching on:
Press the trigger 2to start operating the sandblasting gun 1.
Switching off:
Release the trigger 2to stop operating the sandblasting gun 1.
After you finish work, disconnect the device from the compressed
air source.
NOTE: First disconnect the hose from the compressed
air source and only then disconnect the compressed
