Parrot CK3100 Series User manual

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
JETTA
Installation manual:
Parrot MKi + Parrot
CK3100 range
The VOLKSWAGEN JETTA marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model JETTA® year 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly
30min
Mounting kit
30min
Reassembly
30min
Testing
15min
Total
1h45min
NO
+IGN
NO
ISO
YES
UNIKA
FRONT LOUDSPEAKER
TEL mode
ALL
MUSIC mode
Fitting time / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or Test lamp
- Wire tie
- Electrical tape
- 1.5 mm flat terminal and round male terminal
Plastic trim removal tools
FACOM / BOJO
Accessories required
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
http://www.parrot.com/usa/support/downloads
Updating
"Please contact your wholesaler to purchase
accessories. A list of wholesalers is available at
www.certified.parrot.com. "
Kram ref.
Dealer ref.
CK range
86 200
YY 138 CABL 2
MKi range
84 942
YY 138 CABL 2
Photos for illustration purposes
CK range MKi range

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

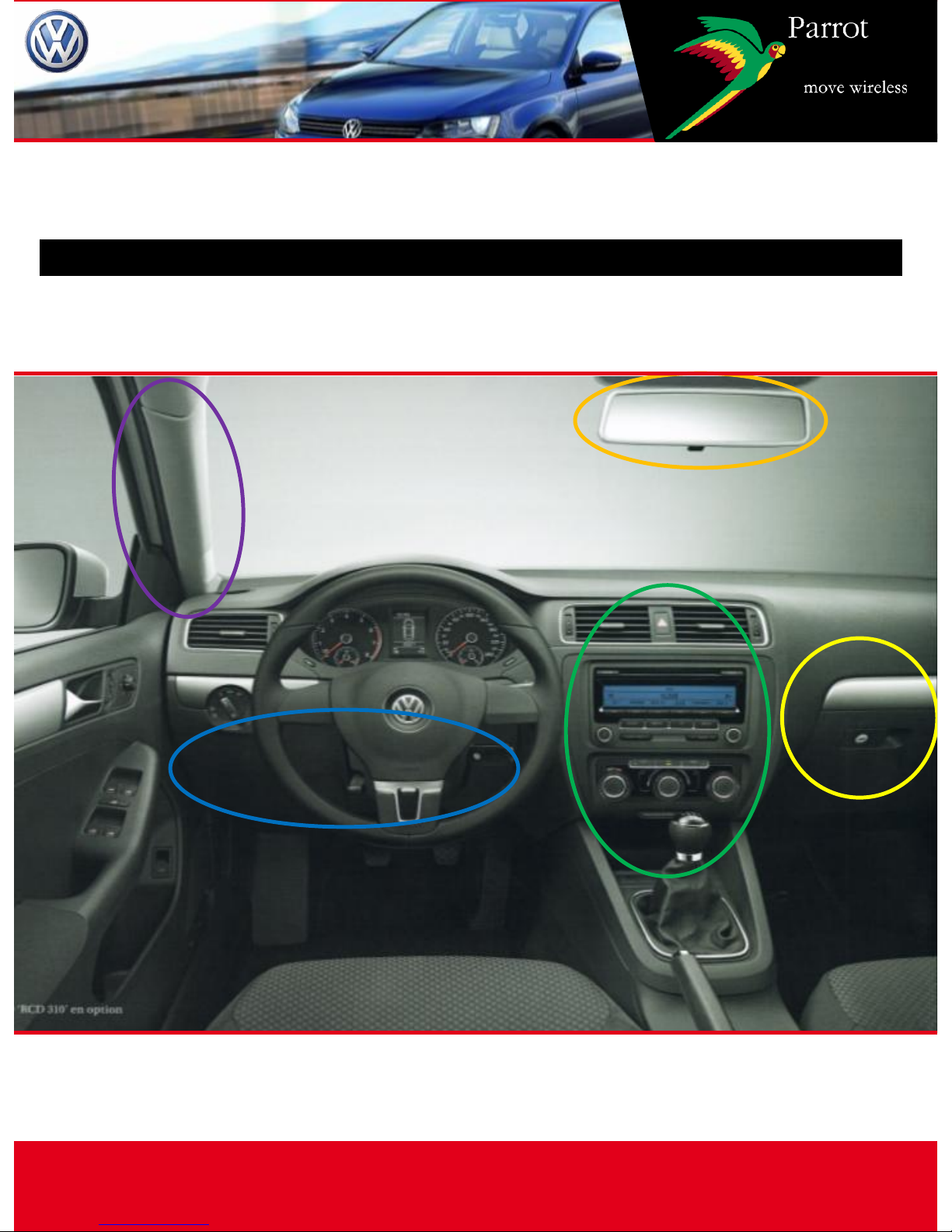

Disassembly

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly 1 / 2
Release the panel by inserting the
plastic trim tools underneath. Remove screws 1 and 2.
Unclip the cabin light and
disconnect it.
Using the plastic trim tools,
unclip the vanity light from the
left-hand side.
5 6
Using the plastic trim tools,
unclip the car stereo and air
conditioning surround. Unplug
the airbag indicator connector.
Remove screws 3, 4, 5 and 6
around the car stereo.
Disconnect the connector and
the aerial cables.
1
2
3
4
5
6
1
3
2
4

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

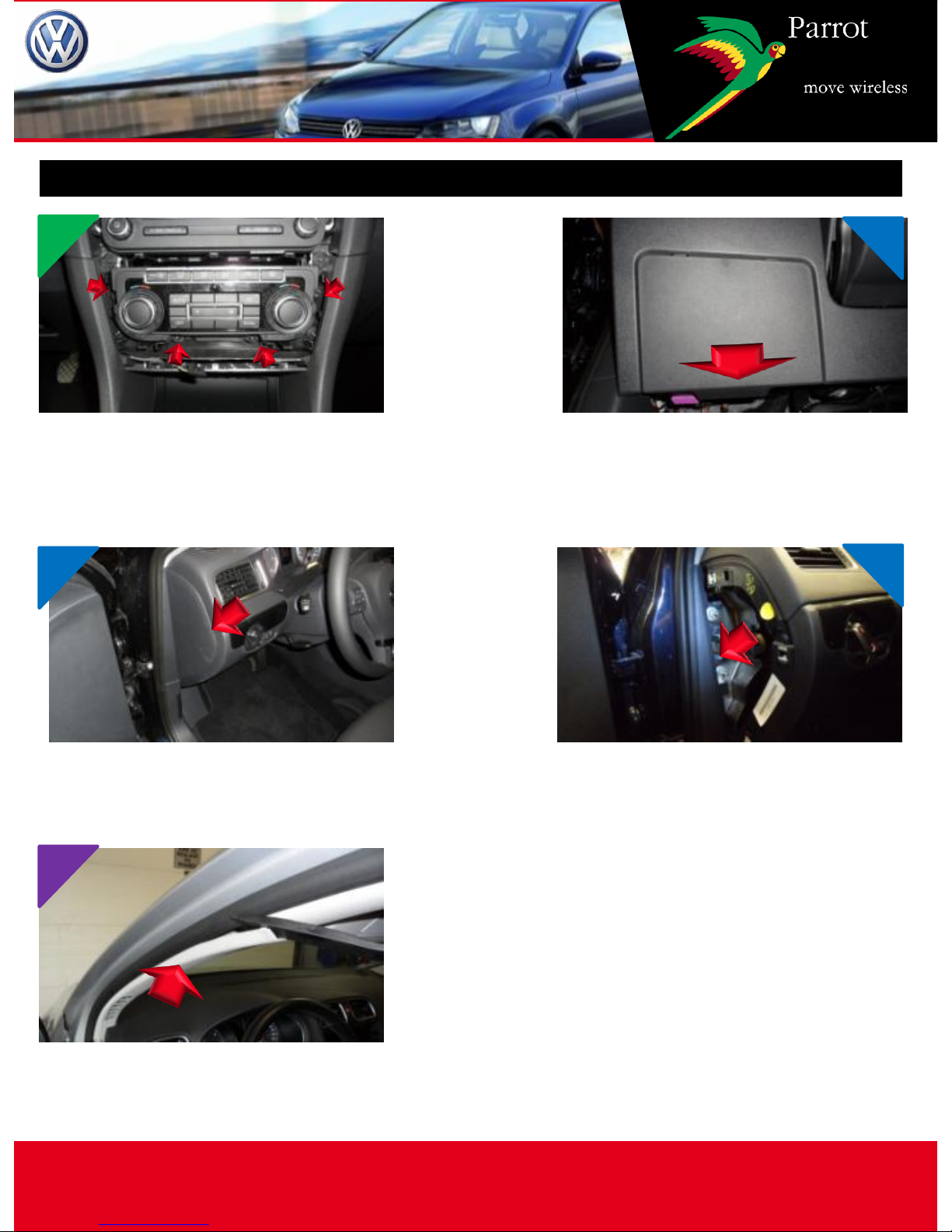

Disassembly 2 / 2
Remove screws 7, 8, 9 and 10
around the air conditioning
control unit, then remove it
without disconnecting it.
Unclip the fusebox cover from the
bottom.
Using the plastic trim tools,
unclip the side panel of the
dashboard on the driver's side.
Unclip the cover plate running
up the side of the driver's door.
7
9
8
10
11 12
Remove the driver's side door
seal.
7
8 9
10

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

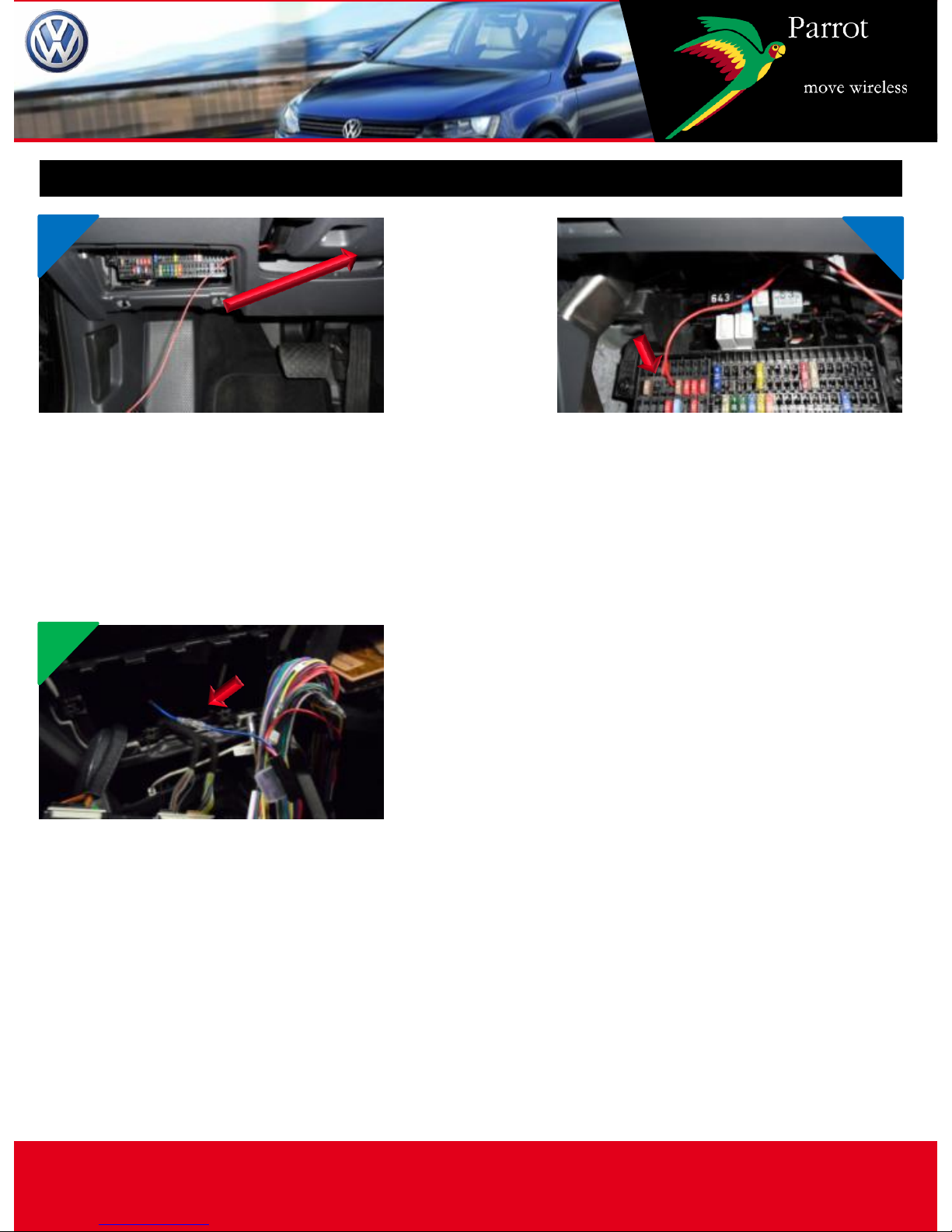

Finding an ACC wire
Using a guide, feed an electric wire
from under the steering wheel to
the air conditioning control
housing. Feed the wire to the left
into the fusebox housing.
Fit a 1.5 mm terminal and insert it
into one of the small fuse slots on
the side of the box (using a
multimeter, check that the +12V
supply is indeed controlled by the
ignition key).
1 2
Connect the +IGN using a male
round terminal to the blue wire
of the 84942 adapter in front of
the fuse holder or on the red
wire of the 86200 or
YY138CABL2 adapter.
3

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Wiring the microphone 1 / 2
Using a guide, feed the cable from
the windscreen to the cabin light.
Glue the bracket (supplied) in the
centre of the cover which connects
the rain sensor after degreasing.
Using a guide, feed the cable
from the cabin light to the
courtesy light.
Using a guide, feed the cable
from the courtesy light to the
driver's side door.
4
5 6
Slide the cable along the driver's
door pillar while replacing the
door seal.
Feed the cable from the driver's
side of the dashboard.
1
3
2

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

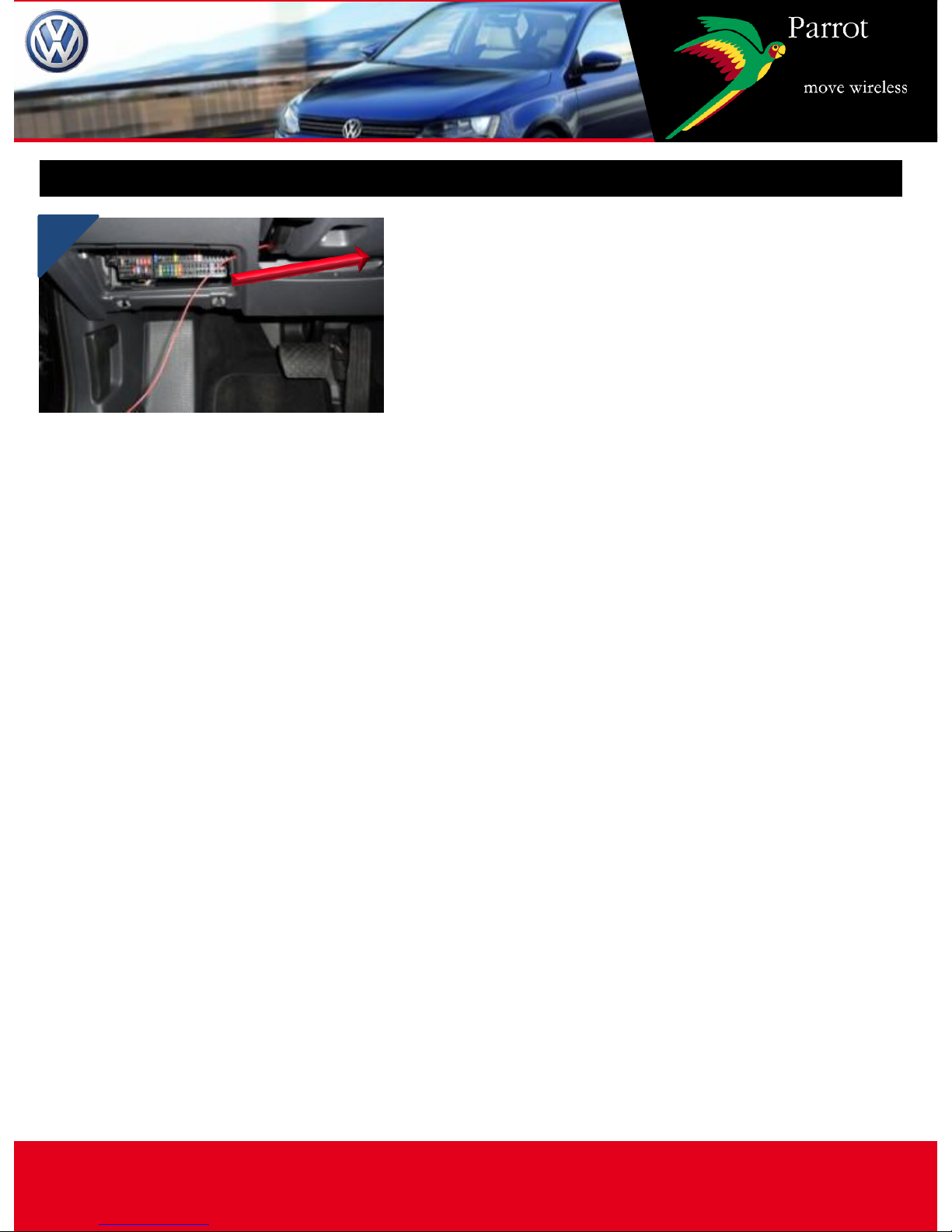

Wiring the microphone 2 / 2
Using a guide, feed the cable
under the steering wheel towards
the air conditioning unit control
housing.
7

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

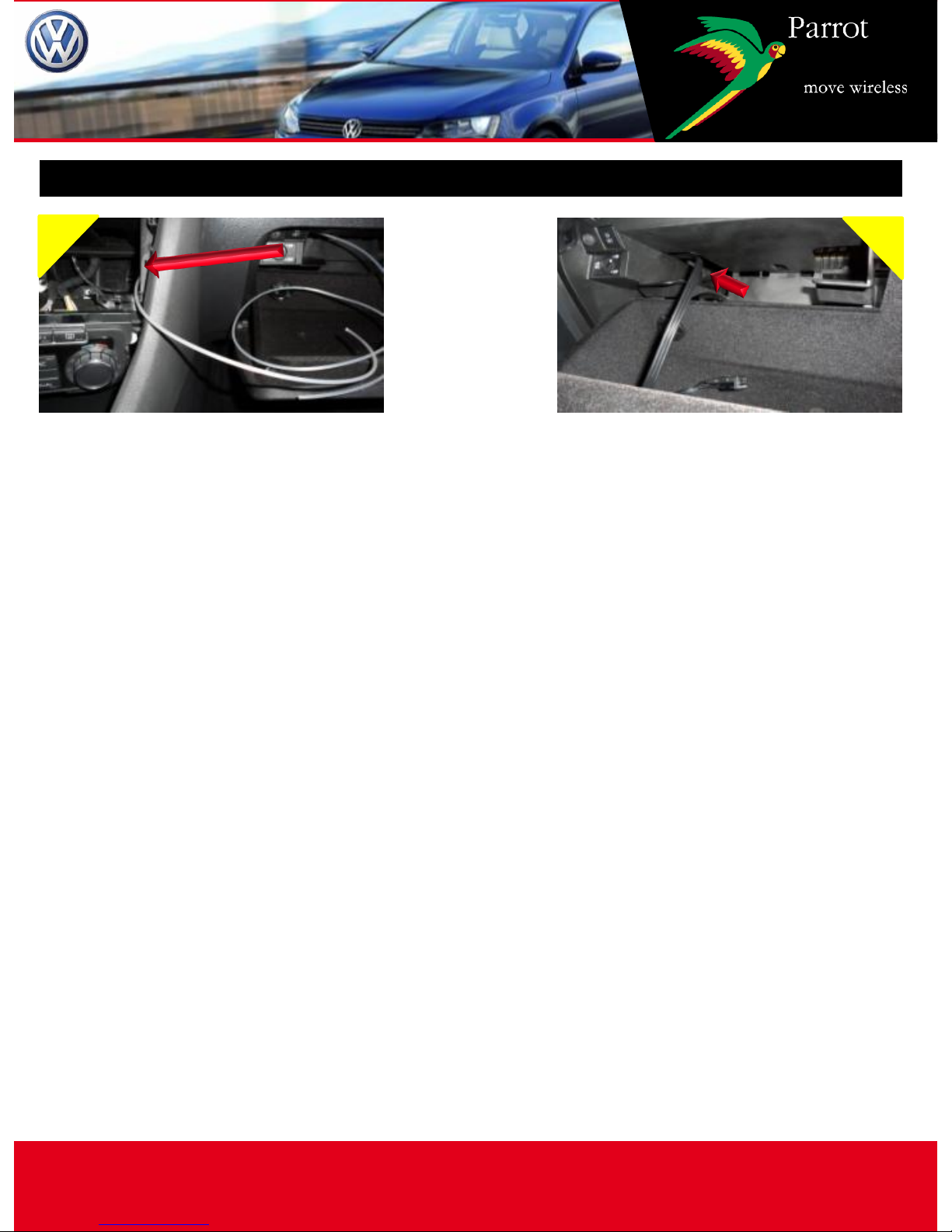

Feeding the accessory cable
Using a guide, feed the cable in
the top part of the glove
compartment through to the air
conditioning control unit
housing.
Make sure that the cable is long
enough.
1 2

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

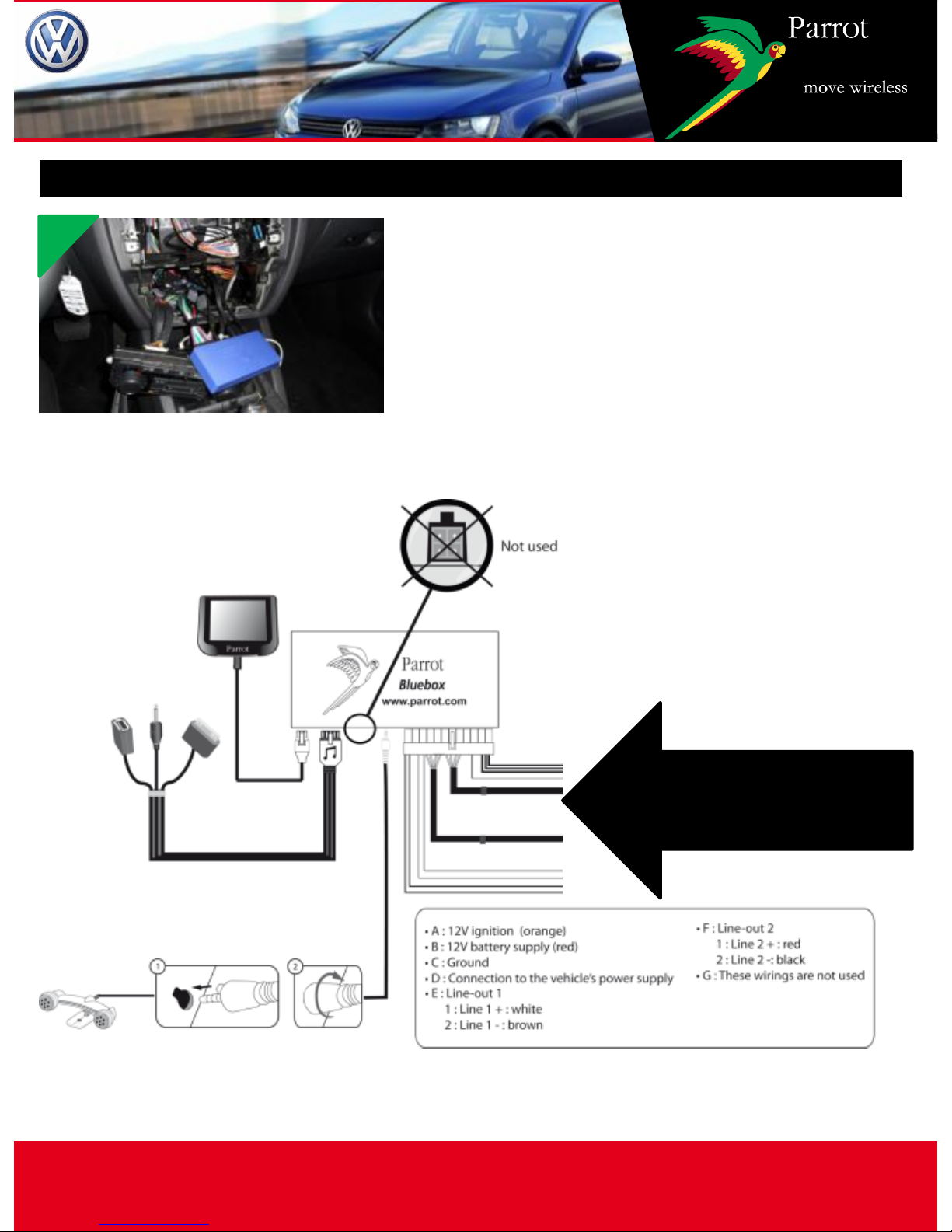

Fitting the hands-free system 1 / 2
Connect the adaptor to the original connector
and connect all of the wires to the blue box as
shown in the diagram below. Test the assembly
before completing fitting and then slide
everything behind the air conditioning control
unit.
1
Direct adaptor cable

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Fitting the hands-free system 2 / 2
Slide the cable into one of the
recesses in the radio frame.
ATTENTION: When reassembling
take great care not to cut the wire
with the radio fixings.
2 3
12
After degreasing the right-hand
side of the speedo surround,
affix the mounting supplied.
3
!

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car). By pushing the central knob
of the remote control, check:
1 - that the menu is displayed on the screen (language or
iPod etc).
2 - that the radio system is muted when the kit is in use (click
in the blue box).
3 - that the sound through all speakers is properly muted.
4 - that there is sound through the front speakers for spoken
menus.
5 - then turn off the ignition, verify that the kit turns off and
that the message “goodbye” is displayed on the screen
(otherwise reverse the fuses on the kit power supply
harness).
6 - pair a telephone with the kit and make a call (check that
both the microphone and the kit are working).

JETTA
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Reassembly
Refit the system using the following procedure:
1 - refit the panel next to the dashboard
2 - refit the panel on the left-hand side of the dashboard
3 - replace the fusebox cover
4 - reconnect and refit the cabin light (screws 1 and 2)
5 - refit the cabin light panel
6 - refit the courtesy light
7 - refit the 4 screws (7, 8, 9 and 10) for the air conditioning control unit
8 –reconnect the adaptor and the aerials behind the car stereo and slip them
inside the housing (make sure that you do not trap and cut any screen wires)
9 - refit the 4 screws (3, 4, 5 and 6) for the car stereo
10 - refit the radio and air conditioning surrounds
11 - retest to check that the system is working correctly
