Installation manual:
Parrot MKi + Parrot
CK3100 range
The brand name PEUGEOT 207 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
This document is only valid for the vehicle model 207® year 2006 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Accessories required
Disassembly
20min
Kit installation
30min
Refitting
20min
Testing
15min
Total
1h25min
YES
ACC wire
NO
ISO
YES
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
- TORX screwdriver
- Multimeter or Test lamp
- Hose clamp
- Electrical tape
- Round file (or a knife)
"Please contact your Wholesalers to purchase
accessories."
Kram ref.
Dealer ref.
CK range
86 165
9706 AP
MKi range
84744
9706AT
Photos not contractually binding
CK range MKi range
Updating
Plastic trim removal tools
FACOM / BERNER
FACOM Sleeve
DX-25 (n°4 spanners)
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Disassembly

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

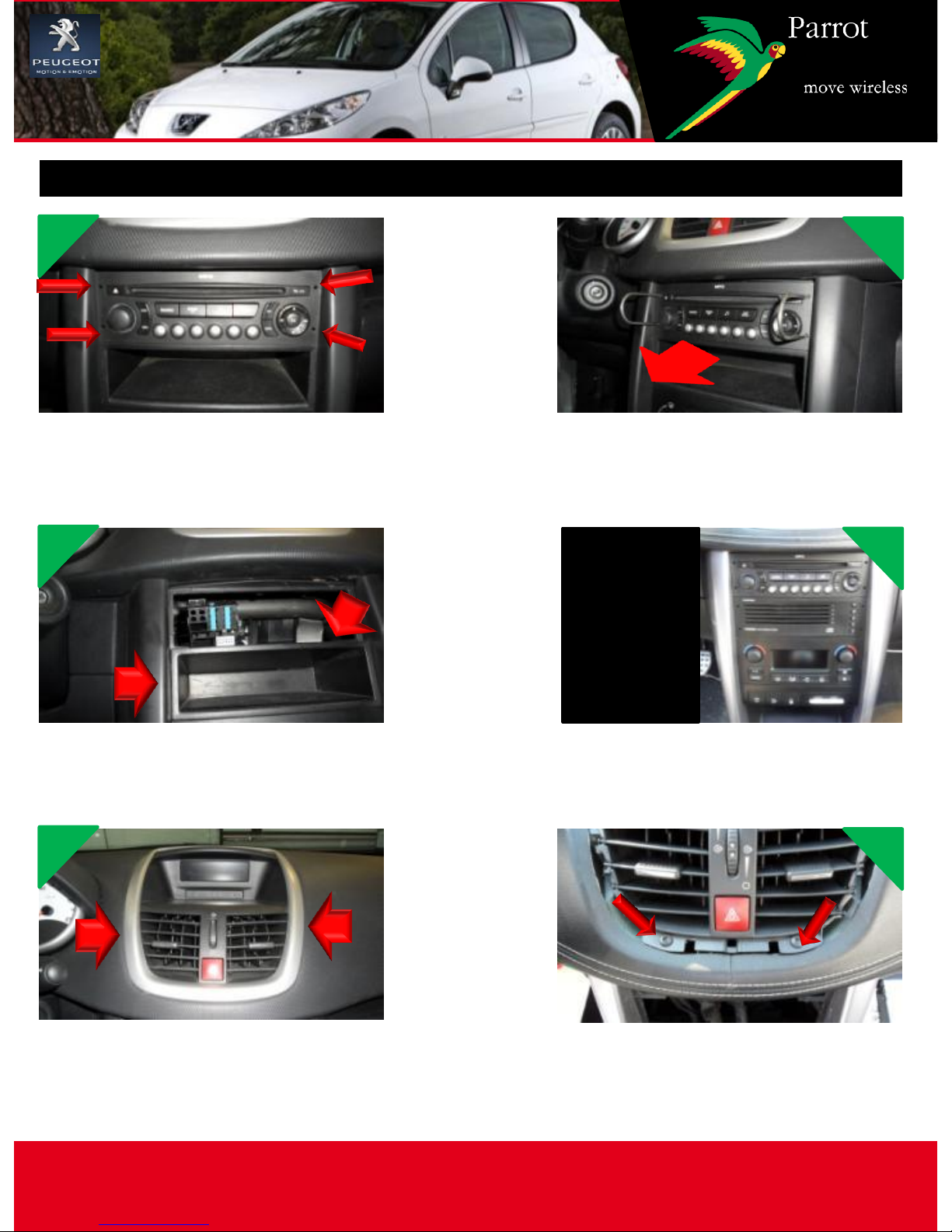

Disassembly 1 / 2
Insert the removal tools into the
slots on each side of the radio.
Unclip, pull and remove the radio
taking care to unplug
the connector and the antenna.
Using the plastic trim tools,
unclip the storage compartment.
Remove it in the same way as
you did the radio.
1
3
2
4
5 6
Using the plastic trim tools,
unclip the air vent/central
display surround.
Remove screws 1 and 2.
If you have
the 6 CD
changer
1 2

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Disassembly 2 / 2
Using the plastic trim tools, unclip
the front without removing it.
Using the plastic trim tools, unclip
the clip located on the left side of
the dashboard.
Release the fuse box cover. Remove the door seal on the
driver’s side.
7
9
8
10

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Microphone passage
Stick the bracket supplied after
cleaning the surface to the
windscreen. Run the cable under
the headliner towards the driver
side door.
Run the cable replacing the seal on
the passenger door.
Pass the cable into the
dashboard on the left side and
into the fuse box.
Run the cable towards the radio,
attaching it under the dashboard
with wire ties.
1
3
2
4

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

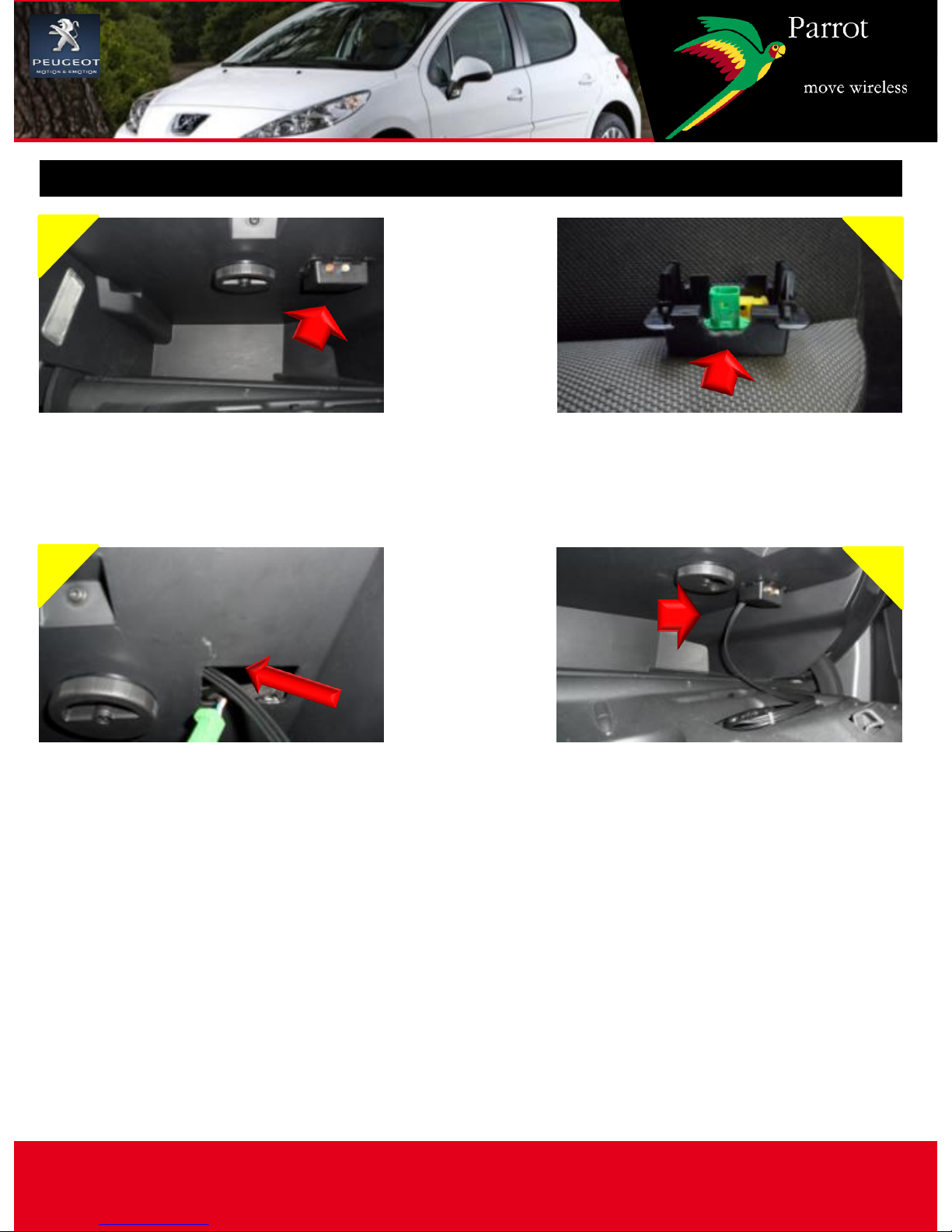

Feeding the accessory cable
In the glove box unclip the RCA
connection support and
disconnect it.
Using a knife or drill, make a notch
on the back of the support.
1 2
Pass the cable from the hole
towards the radio.
Reconnect and re-fit the cover
leaving a sufficient length of
cable.
3 4

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Power supply
Cut the red wire in front of the
fuse for adaptor 84744 or for the
kit bundle supplied for the CK
connect a wire to it.
Run the wire from the radio
housing towards the steering
column.
Run it under the steering wheel
using a guide.
Fit a 2.5mm terminal and
connect the wire to the yellow
fuse holder. (Check that the +12V
is permanent.)
1
3
2
4
This procedure for wiring the permanent +12V only applies to cars with the 6 CD
changer.

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 1 / 2
Connect the adaptor 86165 for the CK or the
84744/9706AT for the Mki to the original
connector. Connect all of the wires to the blue
box as shown in the diagram below. Test the
assembly before reassembly then slide all the
cables behind the glove box and attach them
with wire ties.
1
ISO
adapter

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 2 / 2
Stick the support supplied to the
display panel after having cleaned
the surface.
Run the cable between the panel
and the dashboard towards the
radio.
Replace screws 1 and 2.
2
4
3
12
Clip the display panel and its
surround back on. (Make sure that
you DO NOT cut the cable.)
4
MKi9100 option
Pull the cable through from the bottom of the air
vents and stick the bracket
to the surface. (After cleaning it.)
4b

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car). By pushing the central knob
of the remote control, check:
1 - That the menu is displayed on the screen. (Language or
iPod.)
2 - That the system can be muted. (Click on the blue box.)
3 - That there is no sound coming from the speakers.
4 - That the sound from the voice menu is coming out of the
front speakers.
5 - Then turn off the ignition, check that the kit switches off
and that the "goodbye" message appears on the screen. (If
this fails, reverse the fuses on the kit's wiring harness.)
6 - Pair a telephone with the kit to make a call. (Check that
both the microphone and the kit are working.)

207
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Reassembly
Refit the system using the following procedure:
1 –Re-install the radio reconnecting the adapter and antenna.
2 - Replace the storage compartment.
3 –Re-fit the fusebox cover by pushing hard.
4 –Re-fit the panel on the left-hand side of the dashboard.
