Parrot CK3100 Series User manual

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
GOLF 5 - 2008
Schéma d’installation :
Gamme Parrot MKi +
Parrot CK3100
The VOLKSWAGEN GOLF marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model GOLF® year 2006 –2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly
30 min
Kit installation
30 min
Refitting
30 min
Testing
15 min
Total
1 hour 45 minutes
NO
ACC wire
NO
ISO
YES
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or Test lamp
- Pull through cord
- Electrical/amalgamation tape
- Soldering Iron
Plastic Trim Removal tools
FACOM / BOJO
Accessories required
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads
Updating
"Please contact your Wholesaler to purchase
accessories. A list of Wholesalers is available at
http://certified.parrot.com/faisceaux_US.php"
Kram ref.
Dealer ref.
CK range
86 200
YY 138 CABL 1
MKi range
84 942
YY 138 CABL 2
Photos for illustration purposes
CK range MKi range

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
5 6
Using the plastic trim tools,
unclip the central housing.
Place it on top of the dashboard
without disconnecting it.
1 2
1
3
2
4

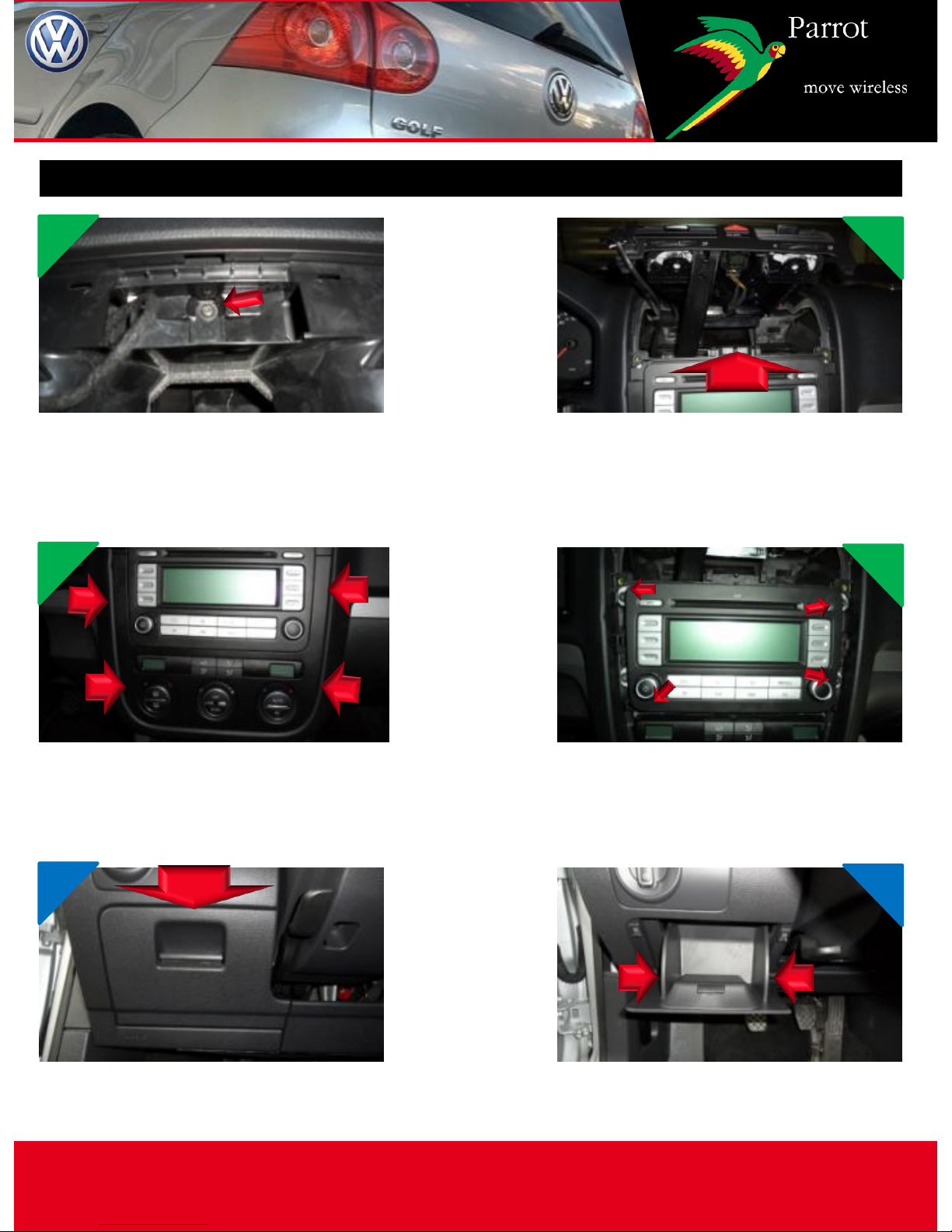

Disassembly 1 / 3
Release the panel by inserting the
plastic trim tools from
underneath.
Remove screws 1 and 2.
Unclip the cabin light and
disconnect it.
Using the plastic trim tools,
unclip the vanity light from the
left-hand side.

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Remove screw 3 found within the
exposed area.
Using the plastic trim tools, unclip
the top on each side. Do not
remove it, hold it up with a trim
tool.
Using the plastic trim tools,
unclip the housing for the car
stereo and air conditioning.
Remove screws 4, 5, 6 and 7
around the car stereo. Unplug
the connector and the antenna
cables.
7
9
8
10
11 12
Open the storage compartment
under the steering wheel.
Press on each side of the
compartment to release it.
3
4
5
6
7
Disassembly 2 / 3

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Pull to remove it.
Using the plastic trim tools, unclip
the panel at the driver-side of the
dashboard.
Unclip the door housing. Remove the ‘A’ Pillar trim.
13
15
14
16
12
Disassembly 3 / 3

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
1
3
2

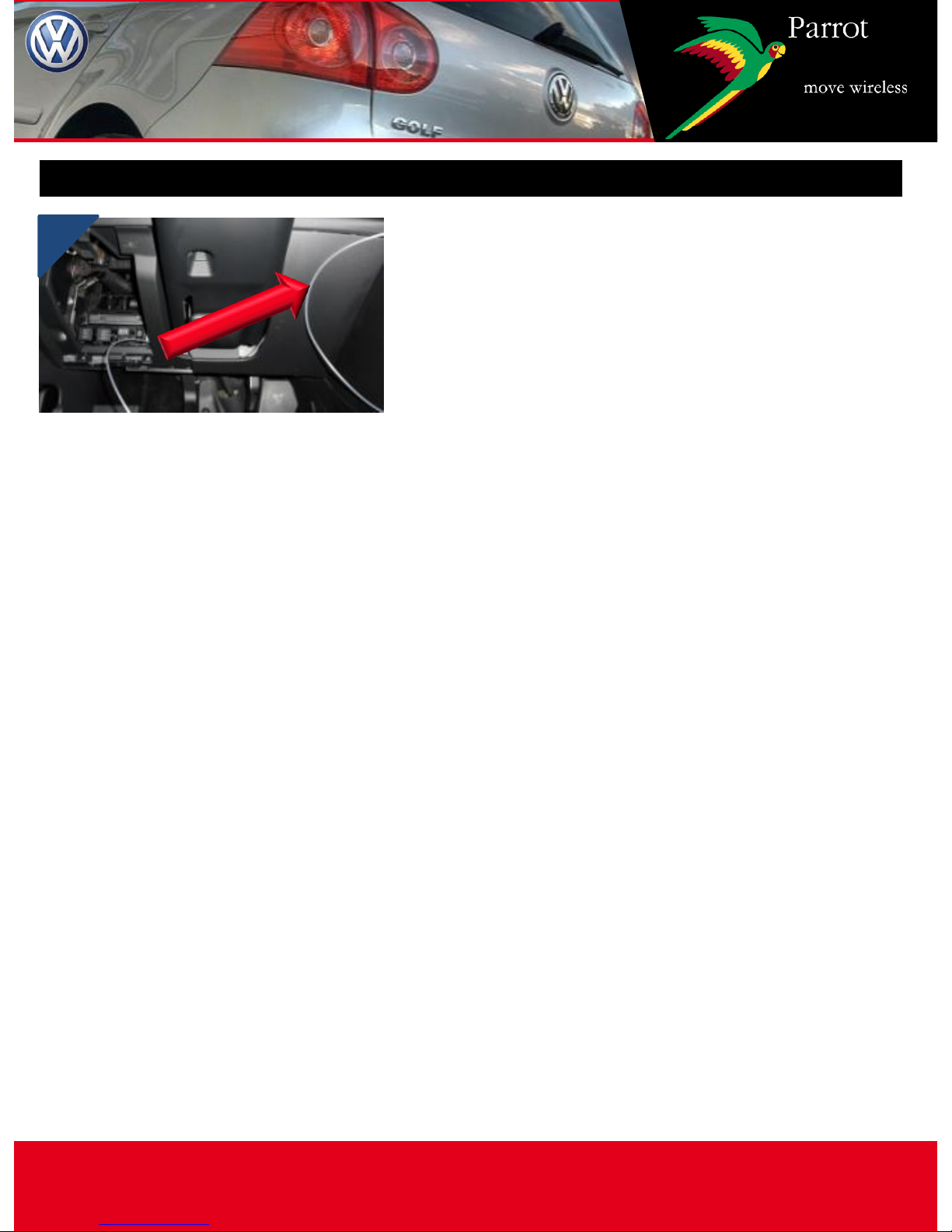

Finding an ACC wire
Locate a suitable 12 volt ignition
supply (using the multimeter) in
the fuse box.
Root the 12volt ignition supply
to the adaptor loom which links
to the Parrot fused ignition
(orange) wire, Solder and heat
shrink. Note this wire should not
be linked to the vehicles stereo.
Using a guide, feed an electric
wire from under the steering
wheel to the air conditioning
control unit. Feed the wire to the
left into the fuse box housing.

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Passage micro 1 / 2
4
5 6
1
3
2

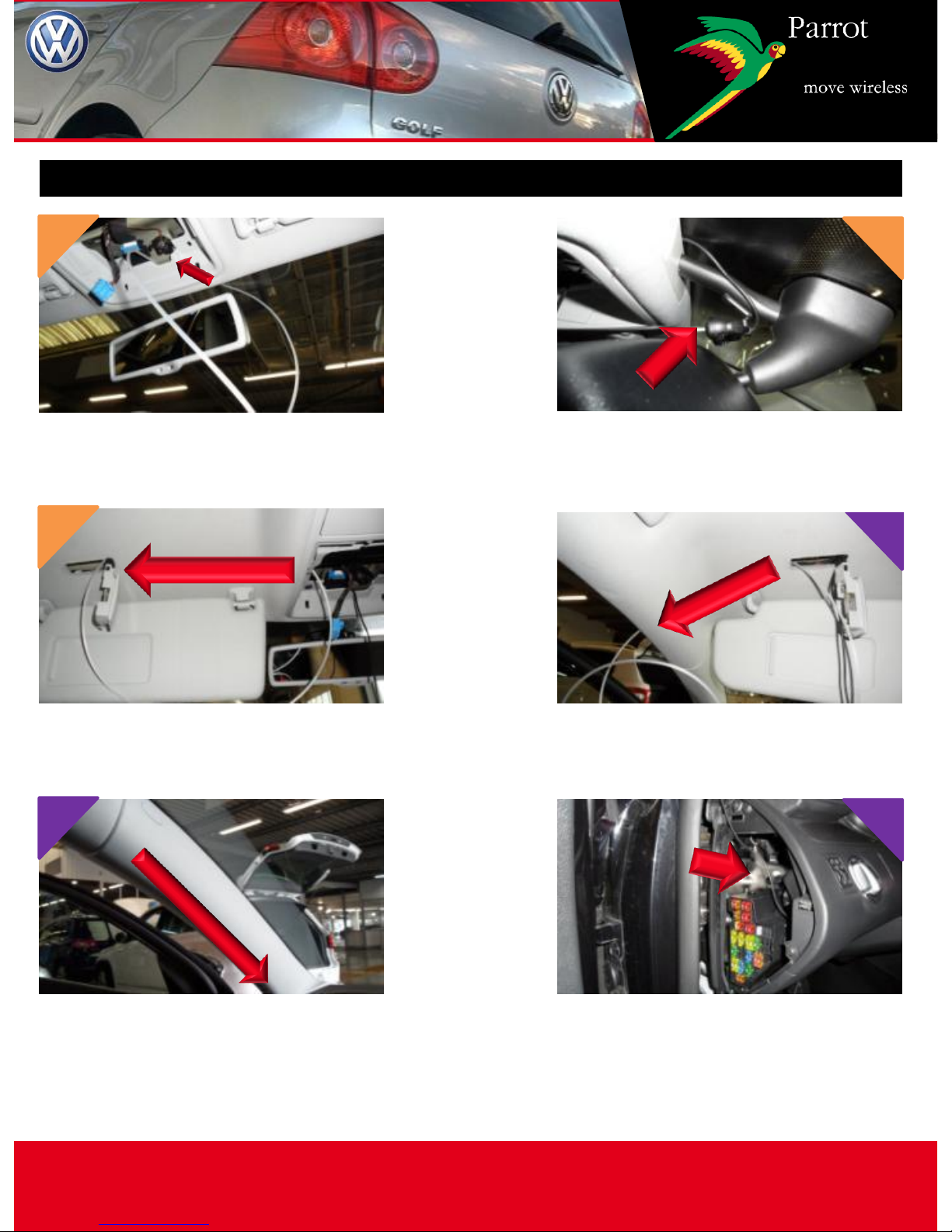

Microphone feeding 1 / 2
Using a guide, feed the cable from
the windscreen to the cabin light.
Using a guide, feed the cable
from the cabin light to the vanity
light.
Using a guide, feed the cable
from the vanity light to the
driver's side door.
Pass the cable through the fuse
box.
After cleaning the centre of the panel
where the rain sensor is connected,
attach the cradle supplied.
Slide the cable along the driver's
side door whilst refitting the
door seal.

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
7
Using a guide, feed the cable under
the steering wheel towards the car
stereo housing.
Microphone feeding 2 / 2

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
1 2
Feeding the accessory cable
Using a guide, feed the cable in
the top part of the glove
compartment through to the air
conditioning control unit housing.
Make sure that the cable is long
enough.

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
1

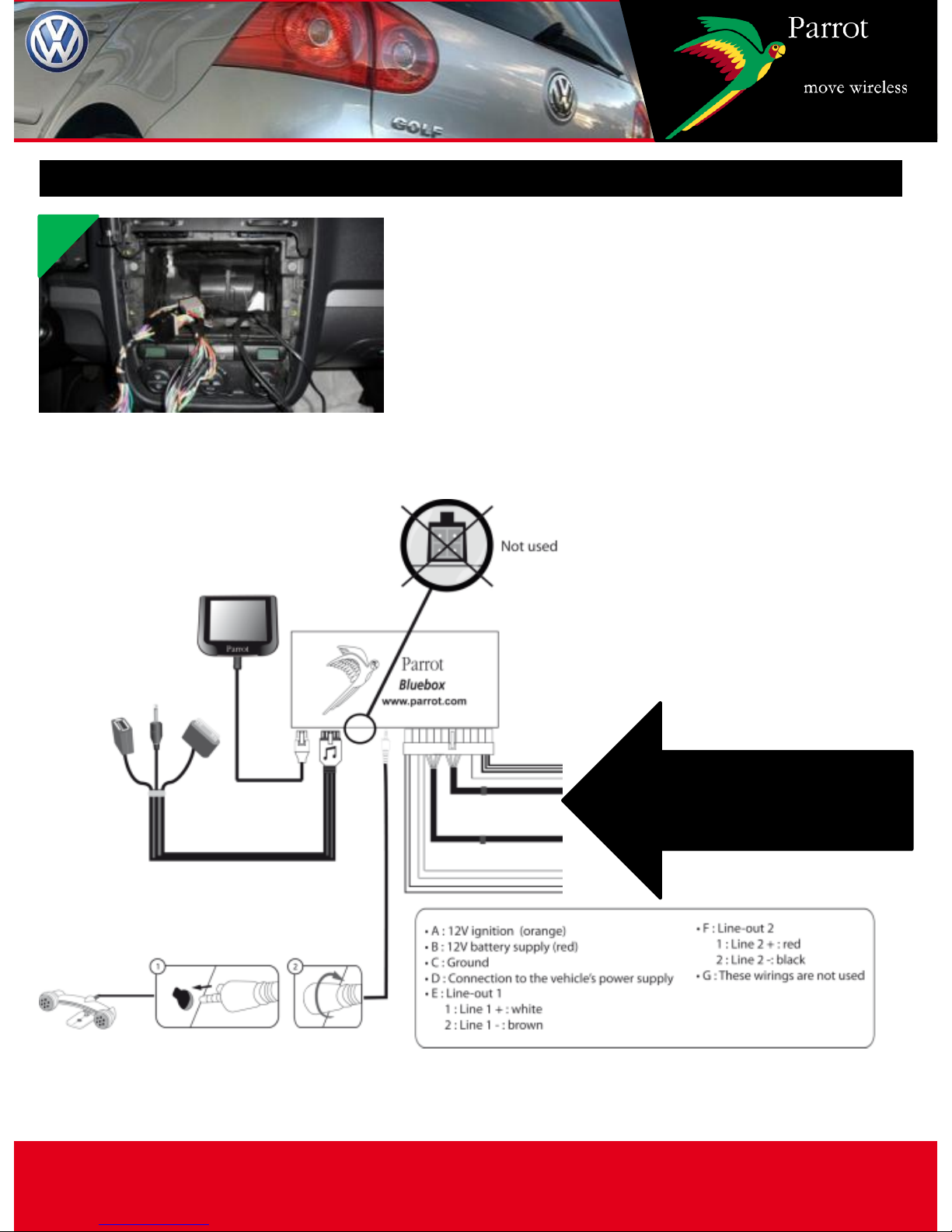

Fitting the hands-free system 1 / 2
Connect the adaptor to the original connector.
Connect all of the wires to the blue box as
shown in the diagram below. Test the assembly
before completing fitting. Then slide everything
behind the air conditioning control unit.
Direct adaptor cable

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Montage du système mains-libres 2 / 2
Feed the cable to the rear of the
car stereo slot.
Glue on the joint (included) after
cleaning the left-hand side of the
air vent housing.
WARNING: Be careful not to cut
the screen cable whilst
reassembling the central
housing.
2
4
3
12

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

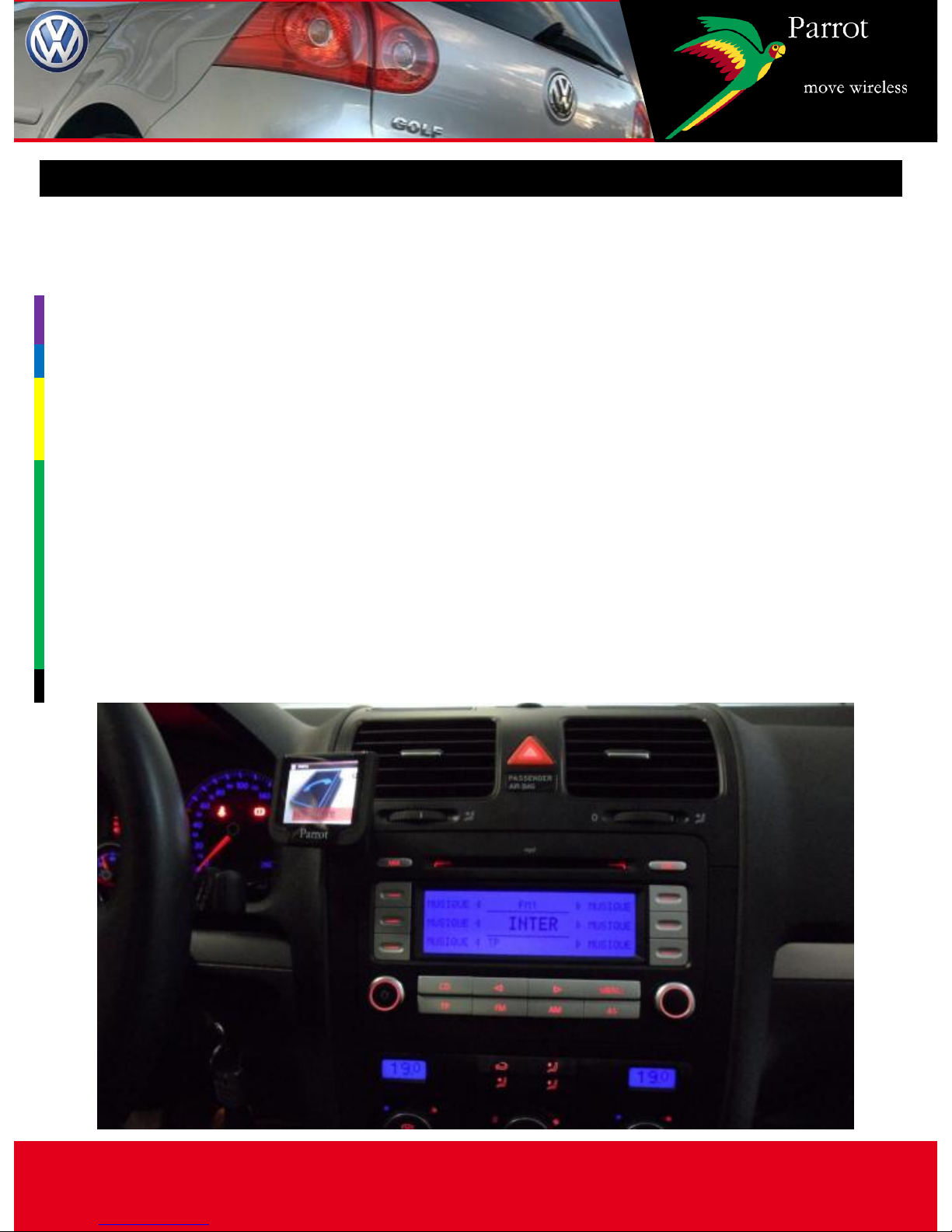

Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car). By pushing the central knob
of the remote control, check:
1 - That the menu is displayed on the screen. (Language or
iPod etc.)
2 - That the radio system is muted when the kit is in use.
3 - That there is sound through all speakers for music.
4 - That there is sound through the front speakers for spoken
menus and handsfree calls.
5 - Pair a telephone with the kit and make a call. (Check that
both the microphone and the kit are working.)
6 - Then turn off the ignition, check that the kit switches off
and that the "goodbye" message appears on the screen. (If
this fails, reverse the fuses on the kit's wiring harness.)

GOLF V
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Remontage
Faire le montage inverse en respectant l'ordre suivant:
1 –Re-fit the panel next to the dashboard.
2 –Re-fit the panel on the left-hand side of the dashboard.
3 –Re-fit the storage compartment under the steering wheel.
4 –Re-connect and refit the cabin light. (screws 1 and 2)
5 –Re-fit the cabin light panel.
6 –Re-fit the vanity light.
7 –Re-connect the adaptor and antenna behind the car stereo then slide it into its
slot, being careful not to cut any screen wiring.
8 –Re-insert the four car stereo screws. (4, 5, 6 and 7)
9 - Put the car stereo housing back into place.
10 - Put the central housing back into place, taking care not to damage the screen
cable then re-insert screw 3.
11 - Put the housing for the top of the central unit back into place.
12 –Re-test to check that the system is working correctly.
