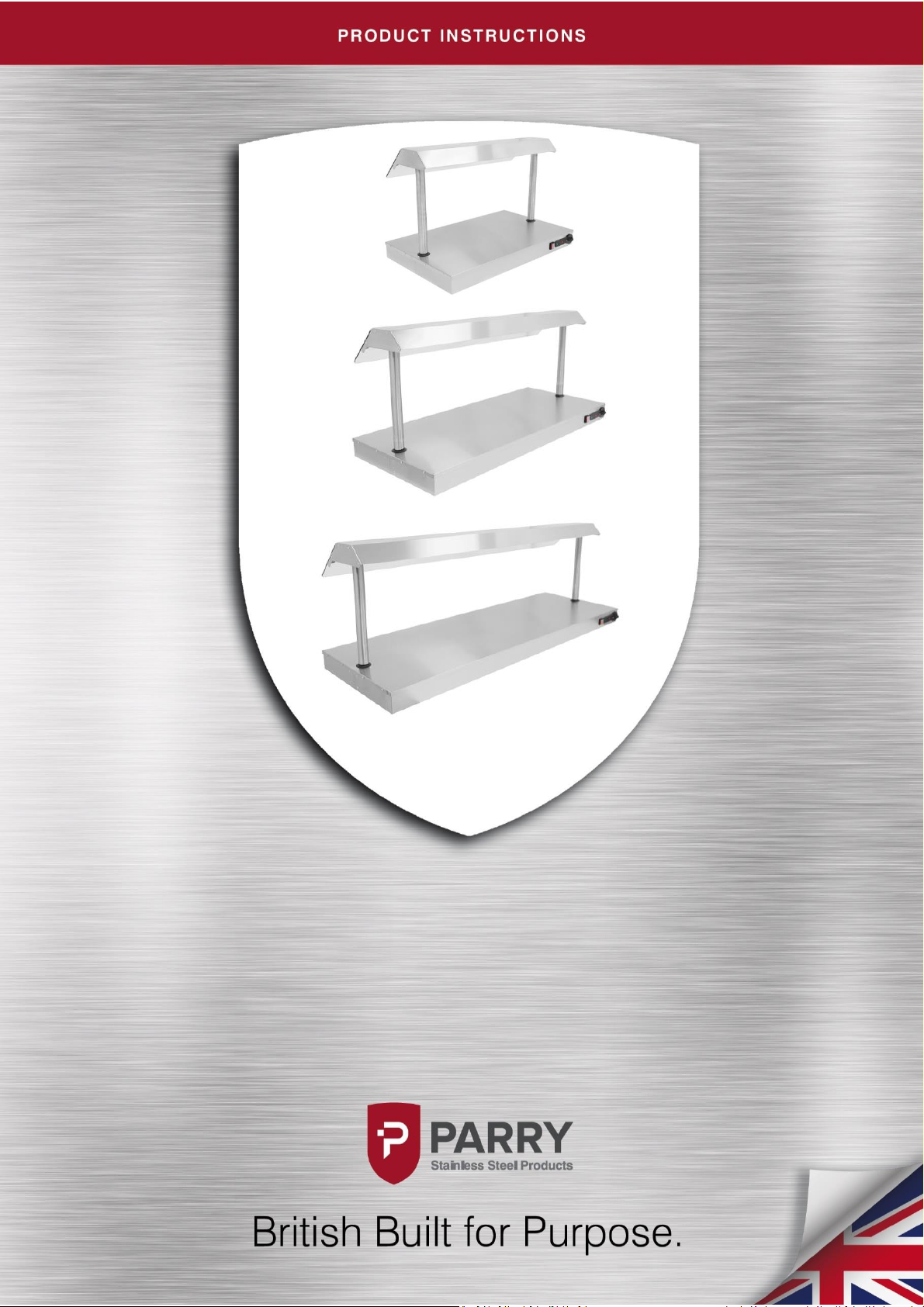

PARRY QLD2 Instruction sheet

Instruction Manual
Quartz Lamp Display Units
QLD2/QLD3/QLD4

Contents
Parry-British Built for Purpose
IN138-4
1
Contents...................................................................................................................................... 1
Product Overview .................................................................................................................... 2-3
Safety Instructions....................................................................................................................... 4
Technical Data ............................................................................................................................ 4
Installation Instructions ............................................................................................................... 5
Operating Instructions ................................................................................................................. 6
Cleaning Instructions ................................................................................................................... 6
Maintenance Instructions............................................................................................................. 7
Fault Finding ............................................................................................................................... 8
Service Information...................................................................................................................... 9
Wiring Diagram .................................................................................................................... 10-11
Exploded View........................................................................................................................... 12
Parts List ................................................................................................................................... 13
Warranty Information................................................................................................................ 14
Disposal & Recycling ................................................................................................................. 15
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: [phone]

Parry-British Built for Purpose
IN138-4
2
Product Overview
QLD2
Attractive and functional, the Parry QLD2 quartz lamp display unit provides the perfect
solution for the storage and presentation of hot foods. Utilising two powerful quartz lamps
and a heated base unit, it is an essential for carveries and self-service outlets. The
removable sneeze guard helps to prevent contamination of food during service.
QLD3
At over a metre wide, the Parry QLD3 quartz lamp display unit has more than enough space
for the attractive presentation and storage of ready-to-serve food. Featuring three powerful
300W quartz bulbs and a heated base unit, the unit is designed to heat and maintain safe
food temperatures. Made from stainless steel and with a removable sneeze guard, the
whole unit is easy to clean and maintain, making it perfect for use in carveries and other
self-service outlets.
QLD4
The Parry QLD4 electric quartz lamp display unit is an attractive and stylish addition to front
of-house serveries. With stainless steel construction and a removable sneeze guard, the unit
is hygienic and easy to clean. The four quartz bulbs, heated base and simple regulator switch
ensure that food is kept at safe, ready-to-serve temperatures.
These units lead the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support

Parry-British Built for Purpose
IN138-4
3
Product Overview
Features
QLD2
QLD3
QLD4
Unpacked weight (kg)
17
22
28
Packed Weight (kg)
19
23
30
Dimensions (w x d x h)
mm
825 x 505 x 547
1165 x 505 x 547
1505 x 505 x 547
Plug
1
1
1
Overall power rating
1kW
1.3kW
2kW
Warranty
2 years
2 years
2 years

Parry-British Built for Purpose
IN138-4
4
Safety Instructions
IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE
These appliances have been designed to keep food hot prior to serving and therefore during
its use parts of the appliance will become very hot. All personnel must be given sufficient
supervision and training in the safe use of this appliance.
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE
FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the
Health and Safety at Work Act.
To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE INSTALLING,
CLEANING OR MAINTAINING THE APPLIANCE
Technical Data
QLD2
QLD3
QLD4
Nominal Voltage
240v 50Hz ~ AC
Nominal Current (Amps)
4.2a
5.4a
8.3a
Nominal Wattage (Watts)
1000W
1300W
2000W
External Dimensions (W x D
x H mm)
825 x 505 x 537
1165 x 505 x 537
1505 x 505 x 537
Weight: (kg)
17
22
28

Parry-British Built for Purpose
IN138-4
5
Installation Instructions
All electrical appliances must be earthed.
Choose a suitable site for your machine taking into consideration its, use, and any
heat that may be generated whilst in service.
Remove all protective film and packing material, then inspect for any damage which
may affect the machine’s electrical safety.
Plug the machine into the mains and press the power on switch.
The glass sneeze screen is packaged separately from the unit to reduce the likelihood of
breakage during transportation.
To fit to the unit, remove all packaging.

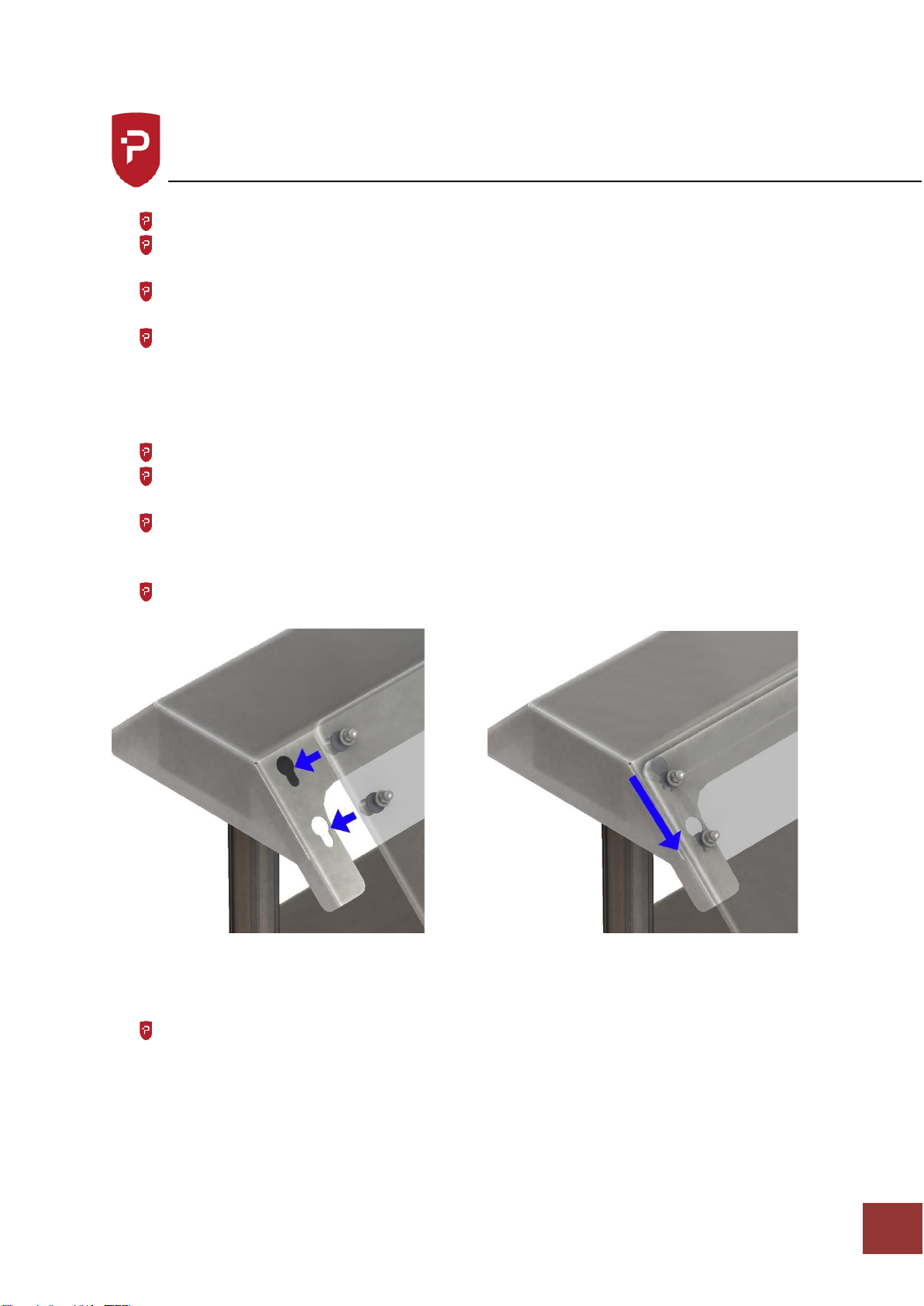

The glass has four tapered bosses connected through the glass. Line these bosses up
with the four keyhole shaped holes on the unit.
Push the bosses through the larger hole and whilst still supporting the glass allow it
to drop into the lower part of the keyhole slot, which locks the sneeze guard in
place.
The glass should sit on the outside of the metal work.
Fitting heated lamps
Fit the lamps into the lamp holders by locating one end into the lamp holder then
push the other end into place.

Parry-British Built for Purpose
IN138-4
6
Operating Instructions
Switch on the power supply, the red lamp will indicate power is ON
Turn the temperature dial to the required setting (1-2½ can be used for simmering
and 3 for maximum continuous heat). When the green lamp lights up, this indicates
that there is power going to the element. The light will go out once the desired
temperature is reached.
This procedure will be repeated automatically as the thermostat maintains a
constant temperature.
Use for serving from cook pots.
Cleaning Instructions
The appliance should be cleaned after every use.
Allow unit to cool down before cleaning.
Turn the units power off at the mains and remove plug.
Wipe down the machine with a soft cloth, do not use abrasive materials as this can
scratch the stainless steel.
Stainless steel cleaners can be used but cleaning instructions on the product must be
adhered to.
Never clean the unit with water jets.

Parry-British Built for Purpose
IN138-4
7
Maintenance Instructions
Ensure the appliance is isolated from the power supply before installing, cleaning or
maintaining the appliance.
Maintenance and service must only be undertaken by a qualified electrician.
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares

Parry-British Built for Purpose
IN138-4
8
Fault Finding
Fault
Check
Solution
Mains lamp does not
illuminate
1. Check unit is plugged
into mains supply and
the socket is switched
on.
2. Check the fuse in the
plug.
3. Try a different socket.
4. If the unit has been
permanently connected
to a fused switch, ask a
qualified electrician or
competent person to
check the connections.
If the problem continues please
contact your distributor

Parry-British Built for Purpose
IN138-4
9
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12 month warranty period will cause the 24 month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register your warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544

Parry-British Built for Purpose
IN138-4
10
Wiring Diagram
QLD2
QLD3

Parry-British Built for Purpose
IN138-4
11
Wiring Diagram
QLD4

Parry-British Built for Purpose
IN138-4
12

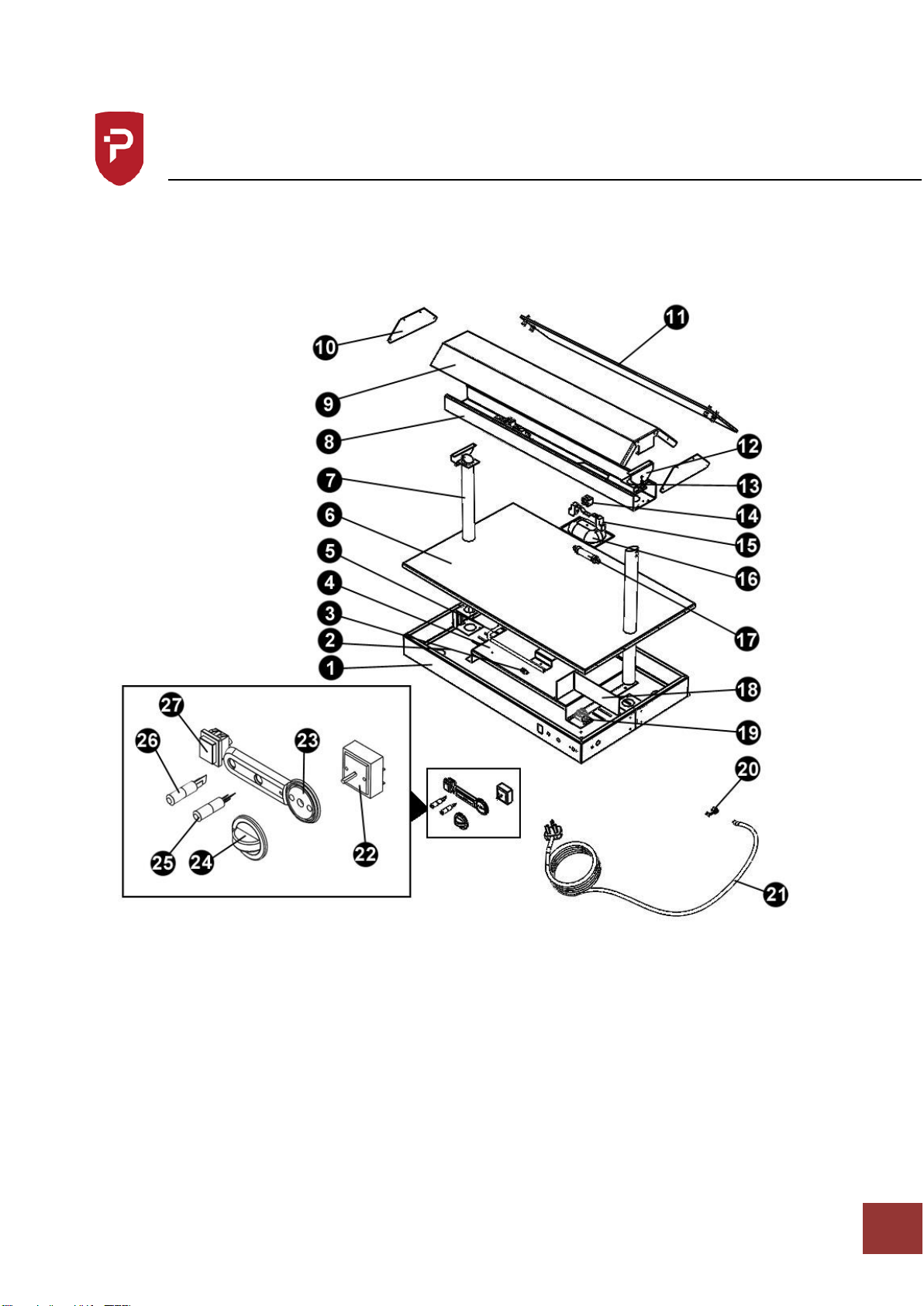

Exploded View

Parry-British Built for Purpose
IN138-4
13
Parts List
Part No.
Description
QLD1
QLD2
QLD3
1
*Body
2
*Base
3
Element Clip
AS2640ELC
AS2640ELC
AS2640ELC
4
*Element Stand
5
Element
ELDU00400
ELDU00400
ELPS40800
6
*Top
7
*Gantry Leg
8
*Lamp Channel
9
*Lamp Top
10
*Lamp End Cap
11
Glass Sneeze Screen
NQLD2GLASS
NQLD3GLASS
NQLD4GLASS
12
*Lamp Support Bracket
13
*Leg Bracket
14
Ceramic Terminal Block
BTCER2WAY
BTCER2WAY
BTCER2WAY
15
Lamp Holder
PART OF
CLICFIT300
PART OF
CLICFIT300
PART OF
CLICFIT300
16
Lamp Reflector
PART OF
CLICFIT300
PART OF
CLICFIT300
PART OF
CLICFIT300
17
Quartz Lamp
Replacement Lamp only
CLICFIT300
CLICLAMP300
CLICFIT300
CLICLAMP300
CLICFIT300
CLICLAMP300
18
*Wire Guard
19
Terminal Block
TERMBRKT1
TERMBRKT1
TERMBRKT1
20
Strain Relief Bush
BUSR06003
BUSR06003
BUSR06003
21
Mains Cable
MAINSLEAD
MAINSLEAD
MAINSLEAD
22
Simmer Stat
SATT37071
SATT37071
SATT37071
23
Bezel
BEZELCBOX
BEZELCBOX
BEZELCBOX
24
Control Knob
KNOBTYPED
KNOBTYPED
KNOBTYPED
25
Red Neon
LNRE2211P
LNRE2211P
LNRE2211P
26
Green Neon
LNGN2211P
LNGN2211P
LNGN2211P
27
Rectangular Switch
SWRE00011
SWRE00011
SWRE00011
Rubber Foot
RUBBRFOOT
RUBBRFOOT
RUBBRFOOT
*Metalwork Components

Parry-British Built for Purpose
IN138-4
14
Warranty Information
Not Covered Under Warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics –e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2 year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service
call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2 year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
[email protected]k.
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk

Parry-British Built for Purpose
IN138-4
15
Disposal & Recycling
This appliance is marked according to the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health which could otherwise be caused by
inappropriate waste handling of this product.
A symbol on the product, or on the documents accompanying the product, indicates that
this appliance may not be treated as household waste. Instead it should be
handed over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal
of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in
order to help conserve the environment.
At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not
discard the unit or place it in the refuse bin.
You have several options:
Take the unit to an approved WEEE scheme company, there will be one in your area.
Take the unit to an approved waste disposal site; many sites are managed by your local
authority.
Contact the units manufacturer, importer or their agent; the contact details will be on
the unit.
There will probably be a charge for this service which will depend on the physical size and
location of the unit. You will be given a collection price for a curb side collection based on
commercial rates prevailing at the time.
It should be noted that the unit to be collected should be suitably packed and sealed to
prevent dangerous gases and fluids from escaping. The condition of the unit must also be
clean to comply with health and safety regulations.

Parry-British Built for Purpose
IN138-4
16
