Patton electronics 509/25 User manual

USER
MANUAL
MODEL 509/25 & 509/6
RS-232/422
Surge Protectors
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part #07M509-C
Doc. #074321U,
Rev. D
Revised 1/22/08
CERTIFIED
An ISO-9001
Certified Company
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards
in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product:
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 509 components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment. This
warranty is limited to defects in workmanship or materials, and does not
cover customer damage, abuse or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of
this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 509 Series units generate and use radio frequency
energy, and if not installed and used properly—that is, in strict
accordance with the manufacturer's instructions—may cause
interference to radio and television reception. They have been tested
and found to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection from such
interference in a commercial installation. However, there is no
guarantee that interference will not occur in a particular installation. If
these products do cause interference to radio or television reception,
which can be determined by turning off the unit, the user is encouraged
to try to correct the interference by one or more of the following
measures: moving the computing equipment away from the receiver, re-
orienting the receiving antenna and/or plugging the receiving equipment
into a different AC outlet (such that the computing equipment and
receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that
it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
12
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Patton Model 509. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 509 components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment. This
warranty is limited to defects in workmanship or materials, and does not
cover customer damage, abuse or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of
this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 509 Series units generate and use radio frequency
energy, and if not installed and used properly—that is, in strict
accordance with the manufacturer's instructions—may cause
interference to radio and television reception. They have been tested
and found to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection from such
interference in a commercial installation. However, there is no
guarantee that interference will not occur in a particular installation. If
these products do cause interference to radio or television reception,
which can be determined by turning off the unit, the user is encouraged
to try to correct the interference by one or more of the following
measures: moving the computing equipment away from the receiver, re-
orienting the receiving antenna and/or plugging the receiving equipment
into a different AC outlet (such that the computing equipment and
receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that
it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
12
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Patton Model 509. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.

3.0 INSTALLATION
Patton's Model 509 units are easy to install and should give you
years of trouble-free service. Here are a few simple instructions to help
you get things hooked up right:
1. Check the label of the Model 509 to be sure that you have the
correct clamping voltage for your system. The Model 509/25 is for
RS-232 systems. The Model 509/6 is for RS-422 systems.
2. Unplug (disconnect) the existing connection between the coaxial
cable and the equipment’s I/O port.
3. Install the Model 509 between the incoming coax and the protected
equipment (see below). Place the surge protector as close as
possible to the device being protected.
4. Connect the braided ground strap directly to a frame ground
connection on the protected device. If you are unsure where to
locate a frame ground connection on your equipment, consult the
equipment's user manual or contact the manufacturer—the ground
connection is critical for proper operation of the Model 509.
4

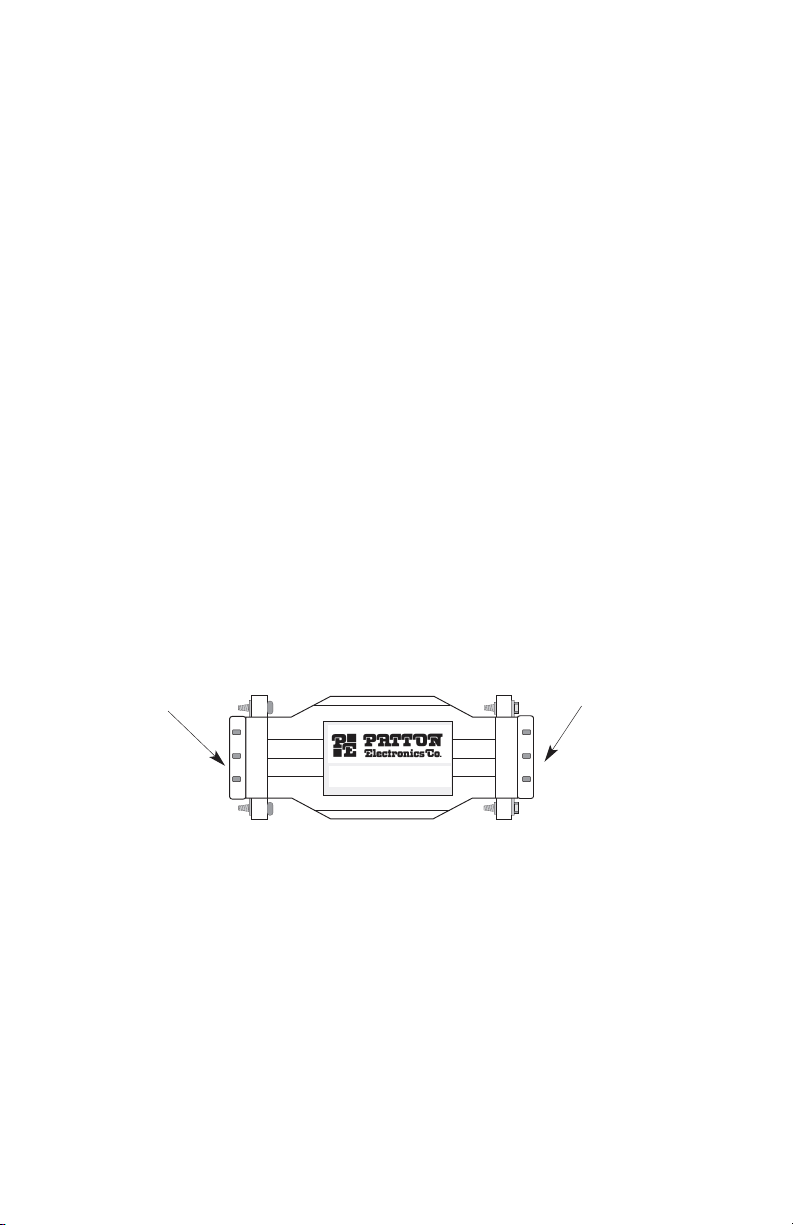

To Data Cable
MODEL 509
To Computer
Hardware
Note: This unit is bi-directional
Figure 1. How to Connect the Patton Model DB-9 to Your Computer Hardware
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions or problems
arise during installation or use of this product, please do not hesitate to
contact Patton Electronics Customer Service at [phone].
2.1 DESCRIPTION
Transient overvoltages can be coupled to data lines from various
sources: lightning, AC power lines, elevator motors, factory equipment,
even UPS devices. Data lines running near power, control or telephone
cables are subject to short duration pulses approaching several
thousand volts. Patton Electronics surge protectors use the latest in
transient surge suppression technology to guard against potential data
loss and hardware damage due to transient surges. The Model 509
protects all 9 pins of the RS-232 or RS-422 interface. Surges are
shunted directly to chassis ground via the metal D-shell connector
Warning: These products will not provide complete protection
should your equipment be subject to a direct lightning hit.
2.2 SURGE PROTECTION BENEFITS
The method of surge protection used in the Model 509 yields four
important benefits to your system:
1)
High Surge Capability . The 509 can dissipate up to 1500
watts (10 x 1000μSec) in compliance to IEC 801-5 Level 3
(2kV);
2)
Quick Response .The 509 has a fast response time of 1.0
picosecond at the componet level and less than 0.5
microsecond installed;
3)
Low Insertion Loss .Connect the 509 directly to RS-232
ports with minimal loss to your system: about the same as a
gender changer;
4)
"Fail Open Design" . Unlike some other surge suppressors,
the 509 fails "open" if system experiences a direct lightning
strike or other extreme transient above the rating of the
protector. This means that if the surge suppressor fails, data
and surges are both shunted to ground instead of back into
your equipment.
3

3.0 INSTALLATION
Patton's Model 509 units are easy to install and should give you
years of trouble-free service. Here are a few simple instructions to help
you get things hooked up right:
1. Check the label of the Model 509 to be sure that you have the
correct clamping voltage for your system. The Model 509/25 is for
RS-232 systems. The Model 509/6 is for RS-422 systems.
2. Unplug (disconnect) the existing connection between the coaxial
cable and the equipment’s I/O port.
3. Install the Model 509 between the incoming coax and the protected
equipment (see below). Place the surge protector as close as
possible to the device being protected.
4. Connect the braided ground strap directly to a frame ground
connection on the protected device. If you are unsure where to
locate a frame ground connection on your equipment, consult the
equipment's user manual or contact the manufacturer—the ground
connection is critical for proper operation of the Model 509.
4
To Data Cable
MODEL 509
To Computer
Hardware
Note: This unit is bi-directional
Figure 1. How to Connect the Patton Model DB-9 to Your Computer Hardware
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions or problems
arise during installation or use of this product, please do not hesitate to
contact Patton Electronics Customer Service at [phone].
2.1 DESCRIPTION
Transient overvoltages can be coupled to data lines from various
sources: lightning, AC power lines, elevator motors, factory equipment,
even UPS devices. Data lines running near power, control or telephone
cables are subject to short duration pulses approaching several
thousand volts. Patton Electronics surge protectors use the latest in
transient surge suppression technology to guard against potential data
loss and hardware damage due to transient surges. The Model 509
protects all 9 pins of the RS-232 or RS-422 interface. Surges are
shunted directly to chassis ground via the metal D-shell connector
Warning: These products will not provide complete protection
should your equipment be subject to a direct lightning hit.
2.2 SURGE PROTECTION BENEFITS
The method of surge protection used in the Model 509 yields four
important benefits to your system:
1)
High Surge Capability . The 509 can dissipate up to 1500
watts (10 x 1000μSec) in compliance to IEC 801-5 Level 3
(2kV);
2)
Quick Response .The 509 has a fast response time of 1.0
picosecond at the componet level and less than 0.5
microsecond installed;
3)
Low Insertion Loss .Connect the 509 directly to RS-232
ports with minimal loss to your system: about the same as a
gender changer;
4)
"Fail Open Design" . Unlike some other surge suppressors,
the 509 fails "open" if system experiences a direct lightning
strike or other extreme transient above the rating of the
protector. This means that if the surge suppressor fails, data
and surges are both shunted to ground instead of back into
your equipment.
3

APPENDIX A
PATTON MODEL 509 SPECIFICATIONS
Circuit: Bipolar, solid state, bi-directional
protection on DB-9 connectors
Electrical Interface: Model 509/25: RS-232
Model 509/25: RS-422
Response Time: Less than 0.5μSec.
Input Capacitance: Model 509/25: less than 500pF
Model 509/6: less than 150pF
Clamp Voltage: 35 volts at 100A (8/20 μ Waveform)
Surge Capability: Model 509/25: IEC-801-5, Level 3, 2kV
Model 509/6: IEC-801-5, Level 2, 1kV
Energy Handling: Model 509/25: 1500 Watts per wire
Model 509/6: 600 Watts per wire
Group Delay: None, 1 MHz to 100 MHz
Series Resistance: Less than 0.9Ω
Grounding: External connection provides separate
unit-ground to chassis-ground contact
Cable Length Burden: Model 509/25: less than 9.1’ (2.8m)
Model 509/6: less than 2.7’ (0.8m)
Size: 2.0" long x 1.0" diameter
5 6
Notes
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________

APPENDIX A
PATTON MODEL 509 SPECIFICATIONS
Circuit: Bipolar, solid state, bi-directional
protection on DB-9 connectors
Electrical Interface: Model 509/25: RS-232
Model 509/25: RS-422
Response Time: Less than 0.5μSec.
Input Capacitance: Model 509/25: less than 500pF
Model 509/6: less than 150pF
Clamp Voltage: 35 volts at 100A (8/20 μ Waveform)
Surge Capability: Model 509/25: IEC-801-5, Level 3, 2kV
Model 509/6: IEC-801-5, Level 2, 1kV
Energy Handling: Model 509/25: 1500 Watts per wire
Model 509/6: 600 Watts per wire
Group Delay: None, 1 MHz to 100 MHz
Series Resistance: Less than 0.9Ω
Grounding: External connection provides separate
unit-ground to chassis-ground contact
Cable Length Burden: Model 509/25: less than 9.1’ (2.8m)
Model 509/6: less than 2.7’ (0.8m)
Size: 2.0" long x 1.0" diameter
5 6
Notes
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________

USER
MANUAL
MODEL 503S
Serial Surge Protector
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M503S-D
Doc# 074201UD,
Rev. E
Revised 1/21/08
CERTIFIED
An ISO-9001
Certified Company
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards
in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product:
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
