Patton electronics 536S User manual

USER
MANUAL
MODEL 536S
802.5 Token Ring (STP)
Surge Protector
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M536S
Doc# 074171U,
Rev. B
Revised 1/22/08
CERTIFIED
An ISO-9001
Certified Company
5
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http:www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electonics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards in
the industry (CE, UL, etc.).
Please contact us and let us know how we may provide you with the
answers to your needs.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 536S components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and
does not cover customer damage, abuse or unauthorized modification.
If this product fails or does not perform as warranted, your sole recourse
shall be repair or replacement as described above. Under no condition
shall Patton Electronics be liable for any damages incurred by the use
of this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Service at: [phone]; http://www.patton.com; or,
[email protected].
Note: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 1092. Technical Service hours: 8AM to 5PM EST, Monday
through Friday.
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is warranted
for One Year parts and labor. If any questions or problems arise during
installation or use of this product, please do not hesitate to contact
Patton Electronics Customer Service at [phone].
1
APPENDIX A
536S SPECIFICATIONS
Protocol/Application: IEEE 802.5 Token Ring, shielded or
unshielded twisted pair
Circuit: Bipolar, Solid State, 4-wire bi-directional
protection on RJ-45 connectors
Maximum Signal Rate: 16 Mbps
RJ-45 Pins Protected: 3, 4, 5 & 6
Response Time: Clamps to 7.5V in 0.5μ Sec
Capacitance: 18 pF
Surge Current: 400A (8x20 S.C. Waveform)
Energy Handling: 1.5 KW for 1 msec
Grounding: External connection provides separate unit-
ground to chassis-ground contact
Size: 3.05” x 1.68” x 0.81” (7.74cm x 4.26cm x
2.06cm)
4

3.0 INSTALLATION
Patton's Model 536S units are easy to install and should give you
years of trouble-free service. Here are a few simple instructions to help
you get things hooked up right:
1. Unplug (disconnect) the existing connection between the network
cable and the equipment’s I/O port.
2. Install the Model 536S between the incoming network cable and the
protected equipment using the 6” (15.24cm) modular patch cable
(supplied). Place the surge protector as close as possible to the
device being protected.
3. Connect the braided ground strap directly to a chassis ground
connection on the protected device. If you are unsure where to
locate a chassis ground connection on your equipment, consult the
equipment's user manual or contact the manufacturer—the ground
connection is critical for proper operation of the Model 536S.
3

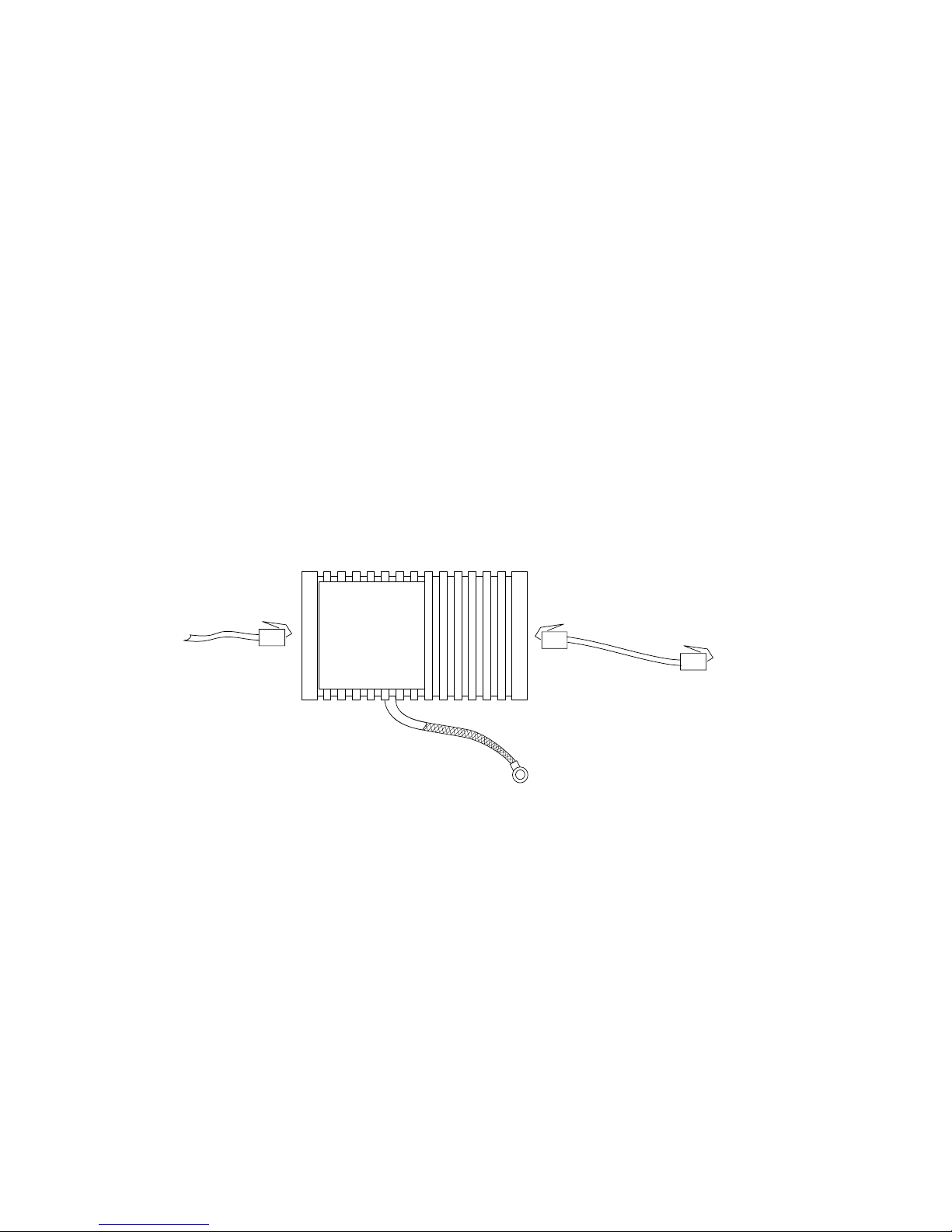

Output to protected
equipment
input from
network
Connection to
frame ground
2
2.1 FEATURES
• Uses a multi-stage hybrid circuit for the best possible protection
• Handles surge energy up to 1.5 kW
• Conforms to the IEEE 802.5 specification
• Works in 4 Mbps / 16 Mbps Token Ring environments
• Diverts surges directly to chassis ground through braided metal
ground strap
• STP wire shield connected directly to chassis ground
• Easy to install
• Made in the U.S.A.
2.2 DESCRIPTION
The potential threats to your Token Ring network are vast:
lightning, AC power induction, electrostatic discharge, ground potential
differences, EMI/RFI interference and more. The Patton Model 536S
has been designed to greatly reduce these risks. Just attach one unit
to each of your 802.5 Token Ring devices and rest easy.
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
The Model 536S connects directly between your shielded or
unshielded twisted pair (UTP) network cables and respective I/O ports.
By shunting all threatening voltages to the chassis ground, the Model
536S insures the integrity of the data in your LAN and protects
connected equipment from damage. Using a solid state design and
sophisticated multistage hybrid circuits, these units can operate at
speeds of 4 or 16 Mbps. Grounding is accomplished via an external
ground strap that provides a separate unit-ground to chassis-ground
connection. In addition, the wire shield is connected directly to chassis
ground (when shielded modular plugs are used).
Warning: This product will not provide complete protection should your
equipment or building be subject to a direct lightning hit.

3.0 INSTALLATION
Patton's Model 536S units are easy to install and should give you
years of trouble-free service. Here are a few simple instructions to help
you get things hooked up right:
1. Unplug (disconnect) the existing connection between the network
cable and the equipment’s I/O port.
2. Install the Model 536S between the incoming network cable and the
protected equipment using the 6” (15.24cm) modular patch cable
(supplied). Place the surge protector as close as possible to the
device being protected.
3. Connect the braided ground strap directly to a chassis ground
connection on the protected device. If you are unsure where to
locate a chassis ground connection on your equipment, consult the
equipment's user manual or contact the manufacturer—the ground
connection is critical for proper operation of the Model 536S.
3
Output to protected
equipment
input from
network
Connection to
frame ground
2
2.1 FEATURES
• Uses a multi-stage hybrid circuit for the best possible protection
• Handles surge energy up to 1.5 kW
• Conforms to the IEEE 802.5 specification
• Works in 4 Mbps / 16 Mbps Token Ring environments
• Diverts surges directly to chassis ground through braided metal
ground strap
• STP wire shield connected directly to chassis ground
• Easy to install
• Made in the U.S.A.
2.2 DESCRIPTION
The potential threats to your Token Ring network are vast:
lightning, AC power induction, electrostatic discharge, ground potential
differences, EMI/RFI interference and more. The Patton Model 536S
has been designed to greatly reduce these risks. Just attach one unit
to each of your 802.5 Token Ring devices and rest easy.
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
The Model 536S connects directly between your shielded or
unshielded twisted pair (UTP) network cables and respective I/O ports.
By shunting all threatening voltages to the chassis ground, the Model
536S insures the integrity of the data in your LAN and protects
connected equipment from damage. Using a solid state design and
sophisticated multistage hybrid circuits, these units can operate at
speeds of 4 or 16 Mbps. Grounding is accomplished via an external
ground strap that provides a separate unit-ground to chassis-ground
connection. In addition, the wire shield is connected directly to chassis
ground (when shielded modular plugs are used).
Warning: This product will not provide complete protection should your
equipment or building be subject to a direct lightning hit.

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 536S components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and
does not cover customer damage, abuse or unauthorized modification.
If this product fails or does not perform as warranted, your sole recourse
shall be repair or replacement as described above. Under no condition
shall Patton Electronics be liable for any damages incurred by the use
of this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Service at: [phone]; http://www.patton.com; or,
[email protected].
Note: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 1092. Technical Service hours: 8AM to 5PM EST, Monday
through Friday.
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is warranted
for One Year parts and labor. If any questions or problems arise during
installation or use of this product, please do not hesitate to contact
Patton Electronics Customer Service at [phone].
1
APPENDIX A
536S SPECIFICATIONS
Protocol/Application: IEEE 802.5 Token Ring, shielded or
unshielded twisted pair
Circuit: Bipolar, Solid State, 4-wire bi-directional
protection on RJ-45 connectors
Maximum Signal Rate: 16 Mbps
RJ-45 Pins Protected: 3, 4, 5 & 6
Response Time: Clamps to 7.5V in 0.5μ Sec
Capacitance: 18 pF
Surge Current: 400A (8x20 S.C. Waveform)
Energy Handling: 1.5 KW for 1 msec
Grounding: External connection provides separate unit-
ground to chassis-ground contact
Size: 3.05” x 1.68” x 0.81” (7.74cm x 4.26cm x
2.06cm)
4

USER
MANUAL
MODEL 536S
802.5 Token Ring (STP)
Surge Protector
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M536S
Doc# 074171U-A,
Rev. B
Revised 1/22/08
CERTIFIED
An ISO-9001
Certified Company
5
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http:www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electonics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards in
the industry (CE, UL, etc.).
Please contact us and let us know how we may provide you with the
answers to your needs.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
