Patton electronics 503S User manual

USER
MANUAL
MODEL 503S
Serial Surge Protector
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M503S-D
Doc# 074201U,
Rev. E
Revised 1/21/08
CERTIFIED
An ISO-9001
Certified Company
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards
in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product:
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 503S components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment. This
warranty is limited to defects in workmanship or materials, and does not
cover customer damage, abuse or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of
this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 503S Series units generate and use radio frequency
energy, and if not installed and used properly—that is, in strict
accordance with the manufacturer's instructions—may cause
interference to radio and television reception. They have been tested
and found to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection from such
interference in a commercial installation. However, there is no
guarantee that interference will not occur in a particular installation. If
these products do cause interference to radio or television reception,
which can be determined by turning off the unit, the user is encouraged
to try to correct the interference by one or more of the following
measures: moving the computing equipment away from the receiver, re-
orienting the receiving antenna and/or plugging the receiving equipment
into a different AC outlet (such that the computing equipment and
receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that
it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
12
1.3 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Patton Model 503S. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 503S components to be free
from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment. This
warranty is limited to defects in workmanship or materials, and does not
cover customer damage, abuse or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of
this product. These damages include, but are not limited to, the
following: lost profits, lost savings and incidental or consequential
damages arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 503S Series units generate and use radio frequency
energy, and if not installed and used properly—that is, in strict
accordance with the manufacturer's instructions—may cause
interference to radio and television reception. They have been tested
and found to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection from such
interference in a commercial installation. However, there is no
guarantee that interference will not occur in a particular installation. If
these products do cause interference to radio or television reception,
which can be determined by turning off the unit, the user is encouraged
to try to correct the interference by one or more of the following
measures: moving the computing equipment away from the receiver, re-
orienting the receiving antenna and/or plugging the receiving equipment
into a different AC outlet (such that the computing equipment and
receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that
it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
12
1.3 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Patton Model 503S. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.

2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions arise during
installation or use of the unit, contact Patton Electronics Technical
Support at [phone].
2.1 PRODUCT DESCRIPTION
The Patton Model 503S guards all pins on the DB-25 serial
interface against data loss and damage due to transient surges. The
Model 503S employs a solid state circuit using Silicon Avalanche
Diodes, and has a combined surge handling capacity of up to 36,000
Watts (1.5kW per wire). Connecting directly between the DB-25 serial
port of your hardware (PC, modem or printer) and the serial cable, the
Model 503S diverts surge energy to chassis ground through pin 1 and
the metal D-shell. For complete protection of your serial line, we
recommend that one surge protector be used at each end of the line.
Warning: These products will not provide complete protection
should your equipment be subject to a direct lightning hit.
2.2 SURGE PROTECTION BENEFITS
The method of surge protection used in the 503S adds four
benefits to your system.
1.
High Surge Capability . The 503S handles up to 36k Watts
(1500 Watts per wire) of surge energy.
2.
Quick Response. The 503S feature a response time of 500
nsec, with transient surges being clamped at 27 Volts.
3.
Low Impedance. Connect the 503S directly to RS-232 ports
with minimal load to your system — about the same as a
gender changer.
4.
“Fail Safe” Design. Unlike some other surge suppressors,
the 503S fails short to ground should your system experience
an excessive surge.
3
3.0 INSTALLATION
Patton's Model 503S is simple to install, and requires no user
configuration. Follow these installation steps.
1. Turn your equipment’s power switch off and disconnect the power
cord from the wall outlet.
2. Unplug (disconnect) the existing connection between the serial
cable and your DB-25 serial port.
3. Install the Model 503S between the serial cable and the DB-25
serial port. If the D-shell is not connected to chassis ground, use
the grounding wire (included) to make an alternate frame ground
connection. Proper grounding is essential to the operation of the
Model 503S.
Alternate Ground Connections
SERIAL DB-25
SURGE
PROTECTOR
MODEL 503S

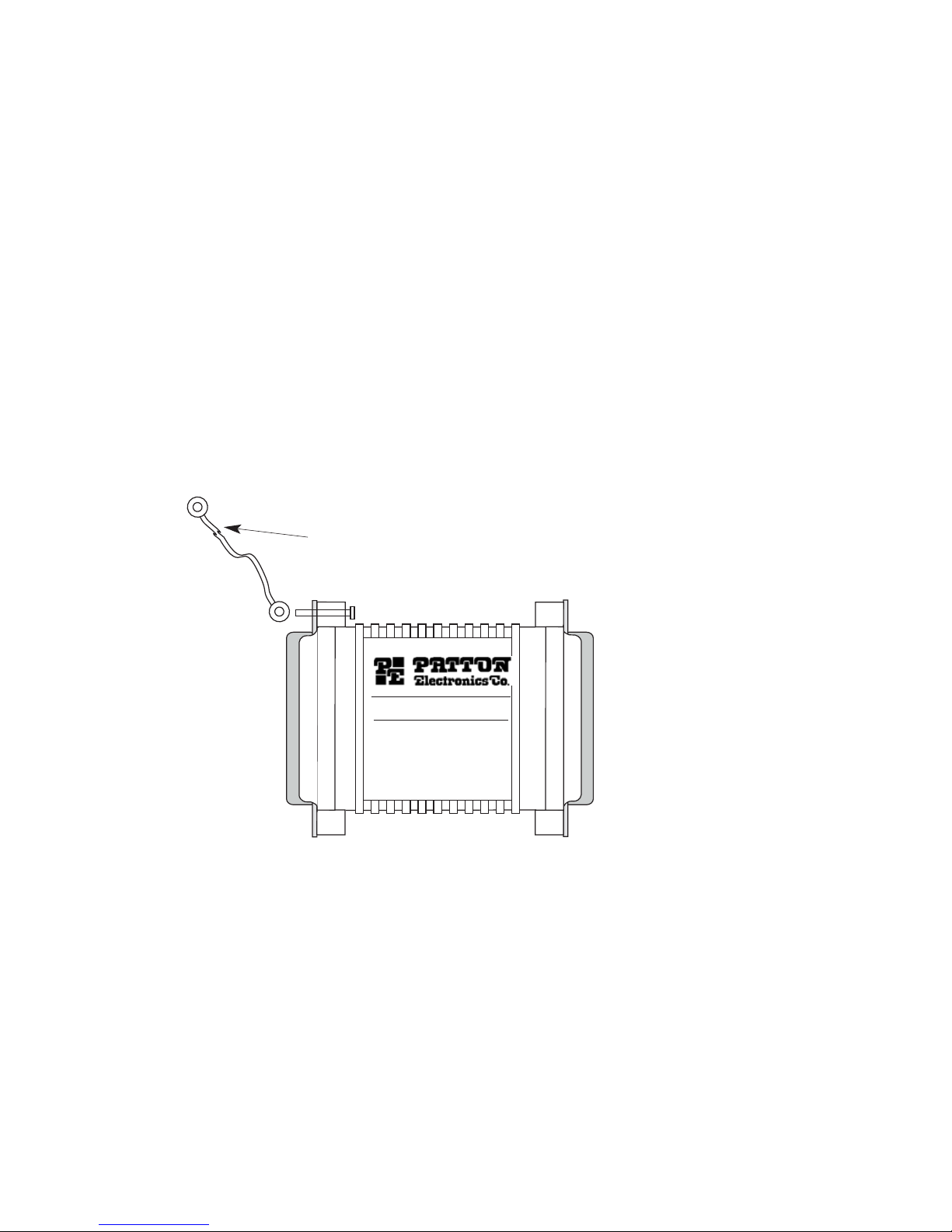

Figure 1. How to Connect the Patton Model DB-25 to Your PC, Modem or Printer
4

2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions arise during
installation or use of the unit, contact Patton Electronics Technical
Support at [phone].
2.1 PRODUCT DESCRIPTION
The Patton Model 503S guards all pins on the DB-25 serial
interface against data loss and damage due to transient surges. The
Model 503S employs a solid state circuit using Silicon Avalanche
Diodes, and has a combined surge handling capacity of up to 36,000
Watts (1.5kW per wire). Connecting directly between the DB-25 serial
port of your hardware (PC, modem or printer) and the serial cable, the
Model 503S diverts surge energy to chassis ground through pin 1 and
the metal D-shell. For complete protection of your serial line, we
recommend that one surge protector be used at each end of the line.
Warning: These products will not provide complete protection
should your equipment be subject to a direct lightning hit.
2.2 SURGE PROTECTION BENEFITS
The method of surge protection used in the 503S adds four
benefits to your system.
1.
High Surge Capability . The 503S handles up to 36k Watts
(1500 Watts per wire) of surge energy.
2.
Quick Response. The 503S feature a response time of 500
nsec, with transient surges being clamped at 27 Volts.
3.
Low Impedance. Connect the 503S directly to RS-232 ports
with minimal load to your system — about the same as a
gender changer.
4.
“Fail Safe” Design. Unlike some other surge suppressors,
the 503S fails short to ground should your system experience
an excessive surge.
3
3.0 INSTALLATION
Patton's Model 503S is simple to install, and requires no user
configuration. Follow these installation steps.
1. Turn your equipment’s power switch off and disconnect the power
cord from the wall outlet.
2. Unplug (disconnect) the existing connection between the serial
cable and your DB-25 serial port.
3. Install the Model 503S between the serial cable and the DB-25
serial port. If the D-shell is not connected to chassis ground, use
the grounding wire (included) to make an alternate frame ground
connection. Proper grounding is essential to the operation of the
Model 503S.
Alternate Ground Connections
SERIAL DB-25
SURGE
PROTECTOR
MODEL 503S
Figure 1. How to Connect the Patton Model DB-25 to Your PC, Modem or Printer
4

APPENDIX A
PATTON MODEL 503S SPECIFICATIONS
LInes Protected: Protects 24 lines on the DB-25 serial
interface
Power Handling: Peak combined power handling up to
36kW; 1.5kW per wire; 10 x 1000μSec in
Compliance to IEC 801-5, Level 3, 2 kV
Clamp Voltage: 27 Volts
Grounding: Surge energy diverted to chassis ground
through pin 1 and metal D-shell. Alternate
ground connection for Model 503P provided
by external grounding wire.
Capacitance: less than 500pF
Cable Length Burden: less than 9.1’ (2.8m)
Surge Capacity: IEC 801-5, Level 3, 2kV
Copyright © 1997
Patton Electronics Company
All Rights Reserved
56
Notes
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________

APPENDIX A
PATTON MODEL 503S SPECIFICATIONS
LInes Protected: Protects 24 lines on the DB-25 serial
interface
Power Handling: Peak combined power handling up to
36kW; 1.5kW per wire; 10 x 1000μSec in
Compliance to IEC 801-5, Level 3, 2 kV
Clamp Voltage: 27 Volts
Grounding: Surge energy diverted to chassis ground
through pin 1 and metal D-shell. Alternate
ground connection for Model 503P provided
by external grounding wire.
Capacitance: less than 500pF
Cable Length Burden: less than 9.1’ (2.8m)
Surge Capacity: IEC 801-5, Level 3, 2kV
Copyright © 1997
Patton Electronics Company
All Rights Reserved
56
Notes
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________

USER
MANUAL
MODEL 503S
Serial Surge Protector
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com
Part# 07M503S-D
Doc# 074201UD,
Rev. E
Revised 1/21/08
CERTIFIED
An ISO-9001
Certified Company
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest standards
in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product:
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
