PDQ 6200 Series User manual

2754 Creek Hill Road | Leola, PA 17540 | 800.441.9692 | www.pdqlocks.com INSTRUCTION #629905 | REV 0 | 1/30/2017
INSTALLING 6EWS TRIM
WITH 6200 SERIES
EXIT DEVICE
2. INSTALL EXIT DEVICE
Remove chassis cover from exit device by
removing (4) at head screws. Install device
without chassis cover on to face of door while
feeding wire harness through hole in exit device
chassis.
1. INSTALL 6EWS
EXIT DEVICE TRIM
Insert trim on outside of door. Feed
wire through door and keep taught as
trim is put in place against the door.
3. FASTEN TO DOOR
Install and secure exit device to trim through
bolts with (4) included pan head screws using
#2 Phillips screwdriver.

2754 Creek Hill Road | Leola, PA 17540 | 800.441.9692 | www.pdqlocks.com
INSTALLING 6EWS TRIM
WITH 6200 SERIES
EXIT DEVICE
4. CONNECT WIRE
Attach wire harness connectors
as shown. Push excess wire into
door cavity.
5. INSTALL CHASSIS COVER
Re-install chassis cover using
(4) at head screws.

2754 Creek Hill Road | Leola, PA 17540 | 800.441.9692 | www.pdqlocks.com
Batteries are located in exit device rail. For new
installations, connect wiring harness plug to exit
device trim before installing batteries.
INSTALLING / REPLACING
6EWS BATTERIES
2. LOCATING BATTERIES
Remove exit device rail insert by
sliding toward hinge side of door.
1. REMOVE END CAP
Remove exit device end cap
and set aside
3. INSTALL / REPLACE
BATTERIES
Install or replace the batteries.
Reinstall rail insert and end cap.

2754 Creek Hill Road | Leola, PA 17540 | 800.441.9692 | www.pdqlocks.com

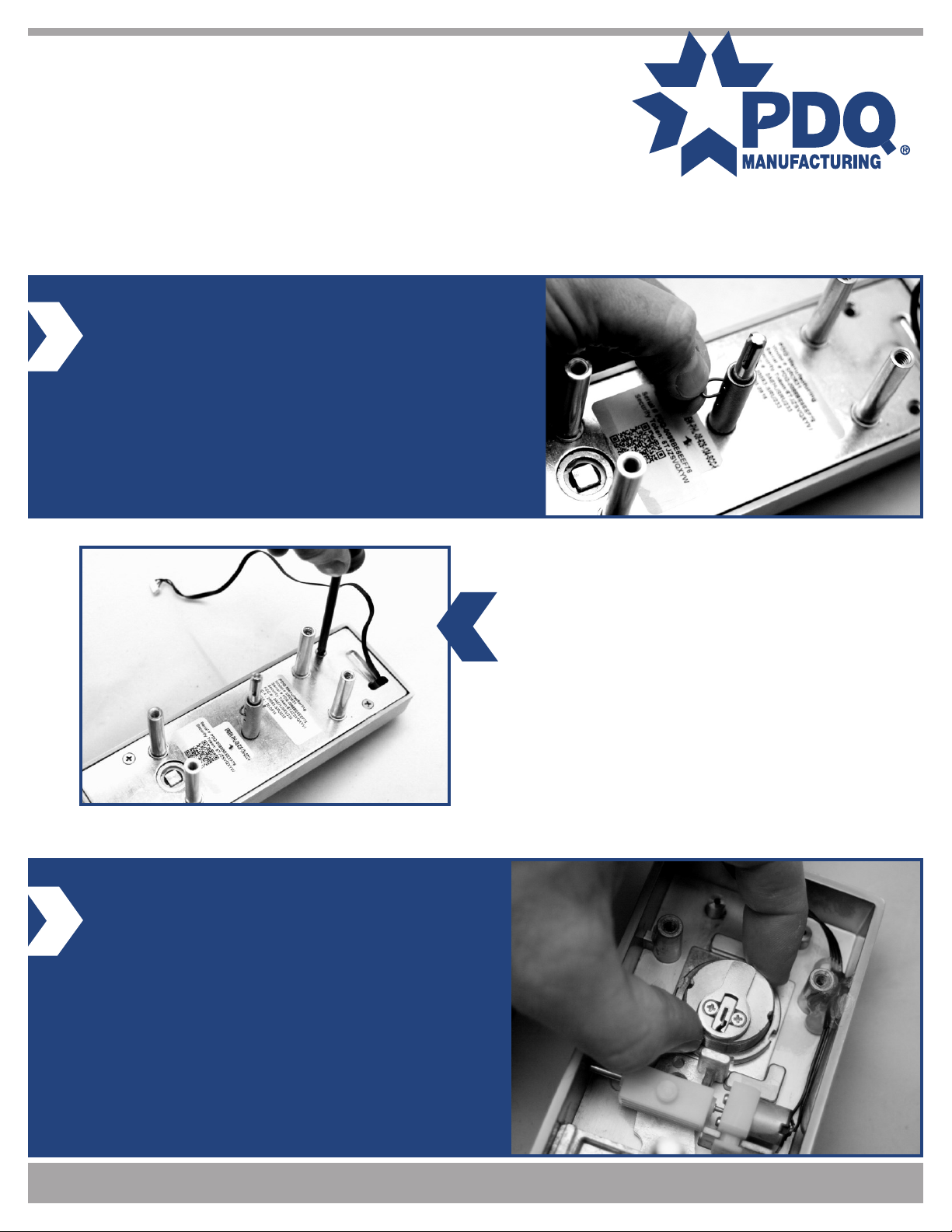

It is necessary to partially disassemble the trim to
replace the cylinder. Take care to not damage the wire
harness. Begin with trim laying face down on table or
other at surface.
INSTALLING / REPLACING
CYLINDER
2. REMOVE BACK PLATE
Using #2 Phillips screwdriver,
remove (4) at head screws that
retain back plate to trim. Remove
back plate and set to the side.
1. REMOVE PIN
Remove cotter pin from drive spindle.
Factory position is in bottom hole and
is set of 1-3/4” thick door. For doors
other than 1-3/4” thick spindle length
must be adjusted.
3. REPLACE CYLINDER
Remove cylinder retaining nut
and replace cylinder. Dierent
cylinders may require dierent
height cylinder collar and
cam. Replace cylinder, install
retaining nut, replace back plate
and drive spindle.

2754 Creek Hill Road | Leola, PA 17540 | 800.441.9692 | www.pdqlocks.com
6EWS trim is easily eld handed. It is simply necessary
to point the lever in the correct direction and insert the
8mm drive spindle.
HANDING TRIM
2. INSERT SPINDLE
Insert square 8mm spindle until
c-clip is against face of hub.
1. SET HANDING
Rotate lever to correct
location for handing of door.
