PEERLESS SR1M Guide

3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09

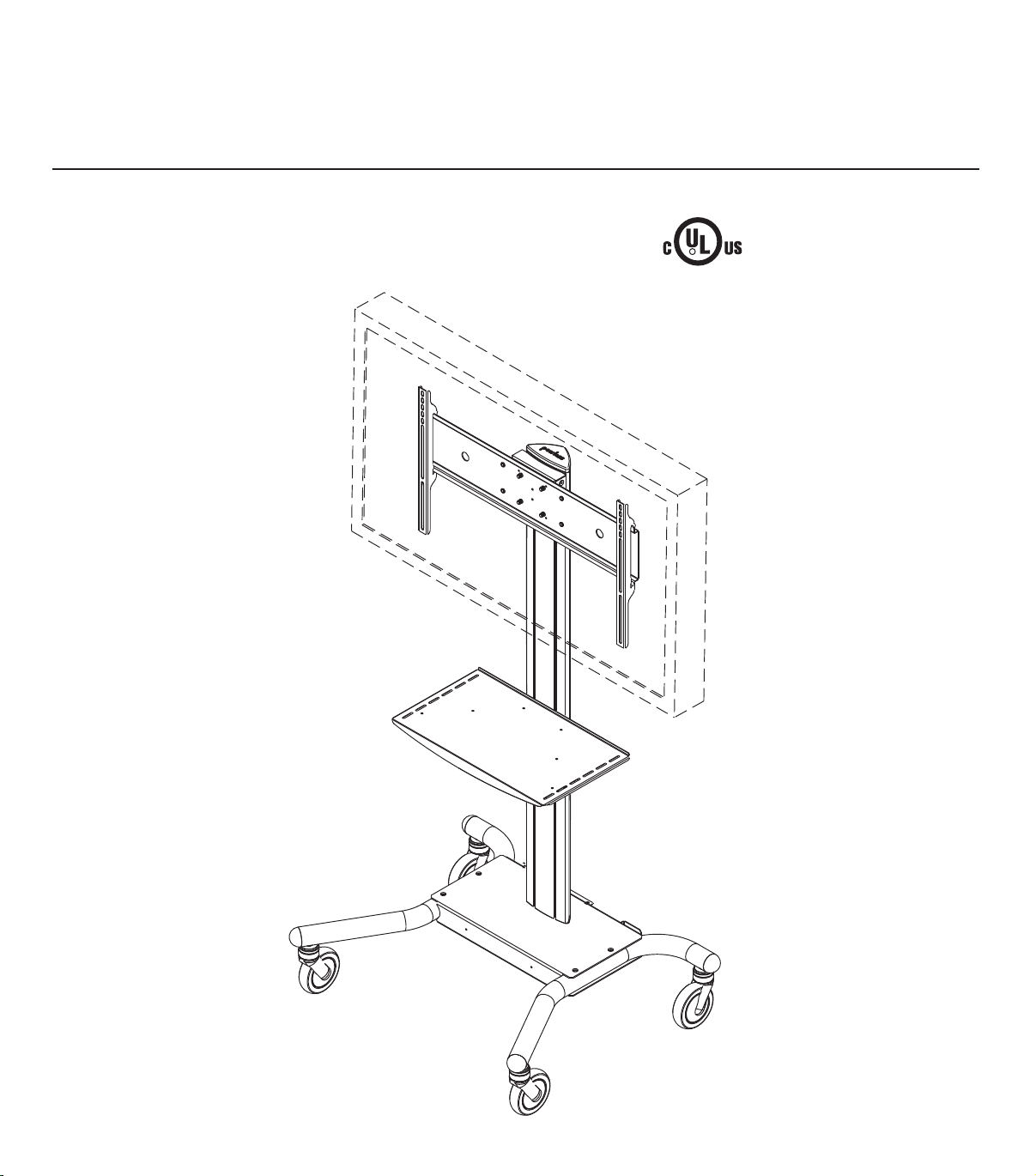

Installation and Assembly: 32" - 60" Flat Panel TV Cart
Models: SR1M, SR560M
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf
This product is UL Listed. It must be
installed by a qualified professional
installer.
R

2 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
NOTE: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List..........................................................................................................................................................................3, 4
AssemblingCart ...................................................................................................................................................................5
AttachingUniversalAdapterPlateorDedicatedAdapterPlate................................................................................................10
InstallingAdapterBrackets.................................................................................................................................................11
CordManagement................................................................................................................................................................13
Tools Needed for Assembly
•level
•phillipsscrewdriver
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
yourlocal distributor.
• Thisproduct should onlybe installed bysomeone of goodmechanical aptitude, andfully understands
these instructions.
• Neverexceed the Maximum ULLoad Capacity onpage 1.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screwsfirmly, butdonot overtighten. Overtighteningcandamage the items,greatly reducing their holding
power.
• The cart is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is shaken
or hit.Always monitor children and do not let children play alone around stand as they could get hurt by a falling
screen.Not recommended for use in areas with heavy traffic.
WARNING

3 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
SR1M SR560M
Description Qty. Part Number Part Number
A
screen mount bracket 1 201-1156 201-1156
Bhook plate 1 201-1157 201-1157
Cshelf support 1 201-1158 201-1158
Dbase 1 009-1223 009-1223
Euniversal plate 1 N/A 201-1110
Fadapter bracket 2 N/A 200-0752
Gupright 1 580-1180 580-1180
Htop cover 1 590-1210 590-1210
I1/4-20 x 12mm decorative screw 14 520-2325 520-2325
J1/4-20 nut 10 530-1022 530-1022
K5/16" flat washer 10 540-9406 540-9406
L3/8-16 x 2.5" socket screw 3 520-9550 520-9550
M7/32" allen wrench 1 560-9715 560-9715
N4 mm allen wrench 1 560-9646 560-9646
O8/32 nylock nut 6 530-1038 530-1038
Pshelf pan 1 009-1225 009-1225
Q6 mm allen wrench 1 560-9716 560-9716
Rleft leg 1 009-1287 009-1287
Sright leg 1 009-1288 009-1288
Twheel caster 2 600-0044 600-0044
Uwheel caster/brake 2 600-0045 600-0045
V
joint connector nut 4 530-1037 530-1037
W3/8-16 x 1.5" screw bolt 4 520-1329 520-1329
X
M10 x .402 ID lock washer 3 540-9424 540-9424
Y
end cap 4 590-1032 590-1032
Z3/16 allen wrench 1 560-0071 560-0071
A
A
M4 x 12 mm serrated washer head socket pin screw 6 N/A 510-1079
BB M4 x 25 mm serrated washer head socket pin screw 4 N/A 510-1082
CC M5 x 12 mm socket pin screw 4 N/A 520-1064
DD M5 x 25 mm socket pin screw 4 N/A 520-1122
EE M6 x 12 mm socket pin screw 4 N/A 520-1050
FF M6 x 25 mm socket pin screw 4 N/A 520-1211
GG M8 x 15 mm socket button screw 6 N/A 520-1068
HH M8 x 40 mm socket pin screw 4 N/A 520-1152
II .219 ID x .5 OD x .5 HT spacer 4 N/A 540-1057
JJ .344 ID x .75 OD x .5 HT spacer 4 N/A 540-1059
KK universal plasma tilt multi washer 6 N/A 580-1036
LL M6 x 20 mm socket pin screw 4 N/A 520-9554
MM M6 x 30 mm socket pin screw 4 N/A 520-1067
NN M8 x 25 mm socket pin screw 4 N/A 520-1101
OO M10 x 15 mm socket screw 4 520-9262 520-9262
Parts List

4 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Z
R
S
N
Some parts may appear slightly different than illustrated.
G
D
A
B
C
V
U
T
Y
P
H
X
MW
L
OO I
KJ
O
Q
F
AA BB CC HHDD GG FFEE
MMKK
JJ
II LL NN E
Universal Adapter Plate, Brackets and hardware included with model SR560M only
Parts List continued

5 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
1Insert four end caps (Y) into ends of left and right support legs (R & S)as shown.
Guide right leg (S) towards base housing (D) as shown in fig.2.1. Then line up holes in base housing with holes in
right leg. Fasten base housing to right leg using two 3/8-16 x 1.5" screw bolts (W) and two joint connectors (V).
Tightenusing3/16"allen wrench (Z)and7/32"allen wrench (M) as shown infig.2.2.
Repeatfor left side with left leg (R).
2
S
W
fig. 2.2
V
fig. 2.1
D
S
Y
R
S

6 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
3Insert and screw casters (U &T) into holes of support legs (R &S). Attach casters with brake (U)to the back of left
and right support legs (R &S). Attach casters without brake (T)to front of support legs as shown.
NOTE:Lock brakesoncasterstoavoidsuddenmovementsduringinstallation.
R
UT
S
HANDTHREAD
HOLDWHEEL
4
L
D
G
X
fig. 4.2
CORDMANAGEMENT
HOLES
fig. 4.1
Attach upright (G) to base (D), as shown in fig 4.2 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID
lock washers (X). Tighten screws using 7/32" allen wrench (M) shown in fig. 4.1.

7 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Loosely attach four 1/4-20 x 12 mm screws (I), washers (K), and 1/4-20 nuts (J) to shelf support (C).
5
Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in figure 6.1
and detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12mm screws (I) using 4mm allen
wrench(N).
NOTE: MAXIMUMOFTWO SHELVES
Max height of top shelf is 34" from base.
Max height of second shelf is 28" from base.
J
G
DETAIL 1
6
SLOT
fig. 6.1
C
C
I
KJ

8 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
7-1
7A
7-2
7

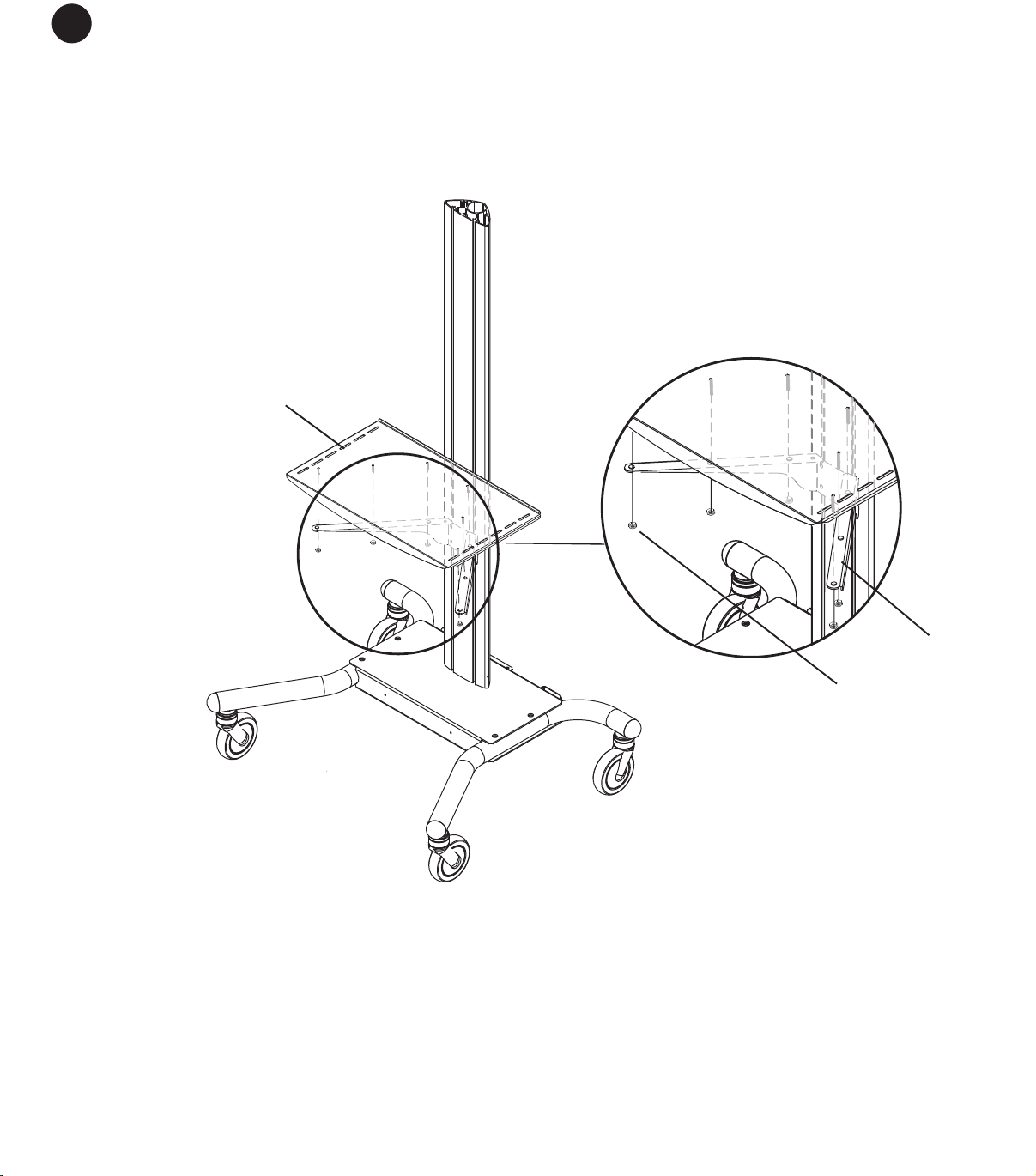

Attaching Metal Shelf
Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to
tighten six 8/32 nylock nuts (O).
O
P
C

9 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Insert two 1/4-20 x 12 mm screws (I) into screen
mountbracket (A), leaving 3/16" of exposed thread
as shown in figure 11.1 and detail 3.
H
G

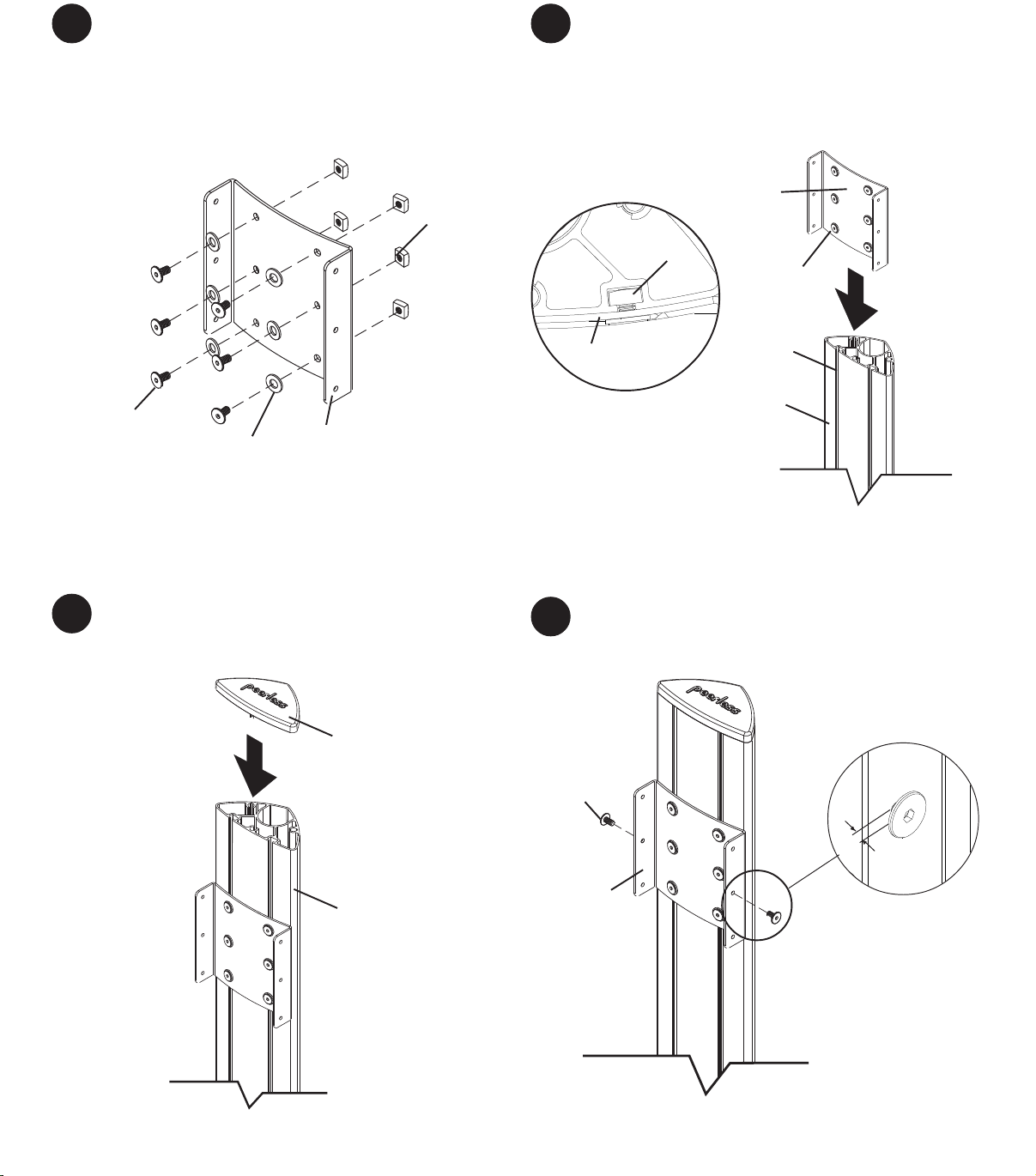

Snaptop cover (H)onto upright (G). 11
10
3/16"
fig. 11.1
DETAIL 3
I
A
Loosely attach six 1/4-20 x 12 mm screws (I),
washers (K), and 1/4-20 nuts (J) to screen mount
bracket(A).
8Slide screen mount bracket (A) onto upright (G) so
that 1/4-20 nuts (J) slide into slots of upright (G) as
shown in figure 9.1 and detail 2. Slide screen mount
bracket to desired position, level, then tighten 1/4-20
x 12 mm screws (I) using 4 mm allen wrench (N).
9
IKA
JA
G
SLOT
fig. 9.1
I
DETAIL 2
J
G

10 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Note:Refer to instructions included with
Dedicated Adapter Plate for assembly to screen.
Once attached, proceed to step 12.
AttachUniversalPlate (E) or DedicatedAdapter
Plate to hook plate (B) using four M10 x 15 mm
socket screws (OO). Tighten screws using 6 mm
allenwrench(Q).
E
B
OO
Attaching Universal Adapter Plate or Dedicated Adapter Plate
Attach hook plate (B) to screen mount bracket (A).
B
A
14 Insert two 1/4-20 x 12 mm screws (I) into holes indicated below for desired screen orientation. Tighten all screws
using 4 mm allen wrench (N).
I
II
2° Backward Tilt 5° Forward TiltNo Tilt
B
UniversalPlateUniversalPlate
OR
DedicatedAdapter Plate
(soldseparately)
Universal
Plate
shown
12 13

11 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
NOTE: "X"dimensionsshouldbeequal.
• Tightenscrews so adapterbrackets are firmly attached. Do not tighten with excessive force. Overtightening can cause
stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING

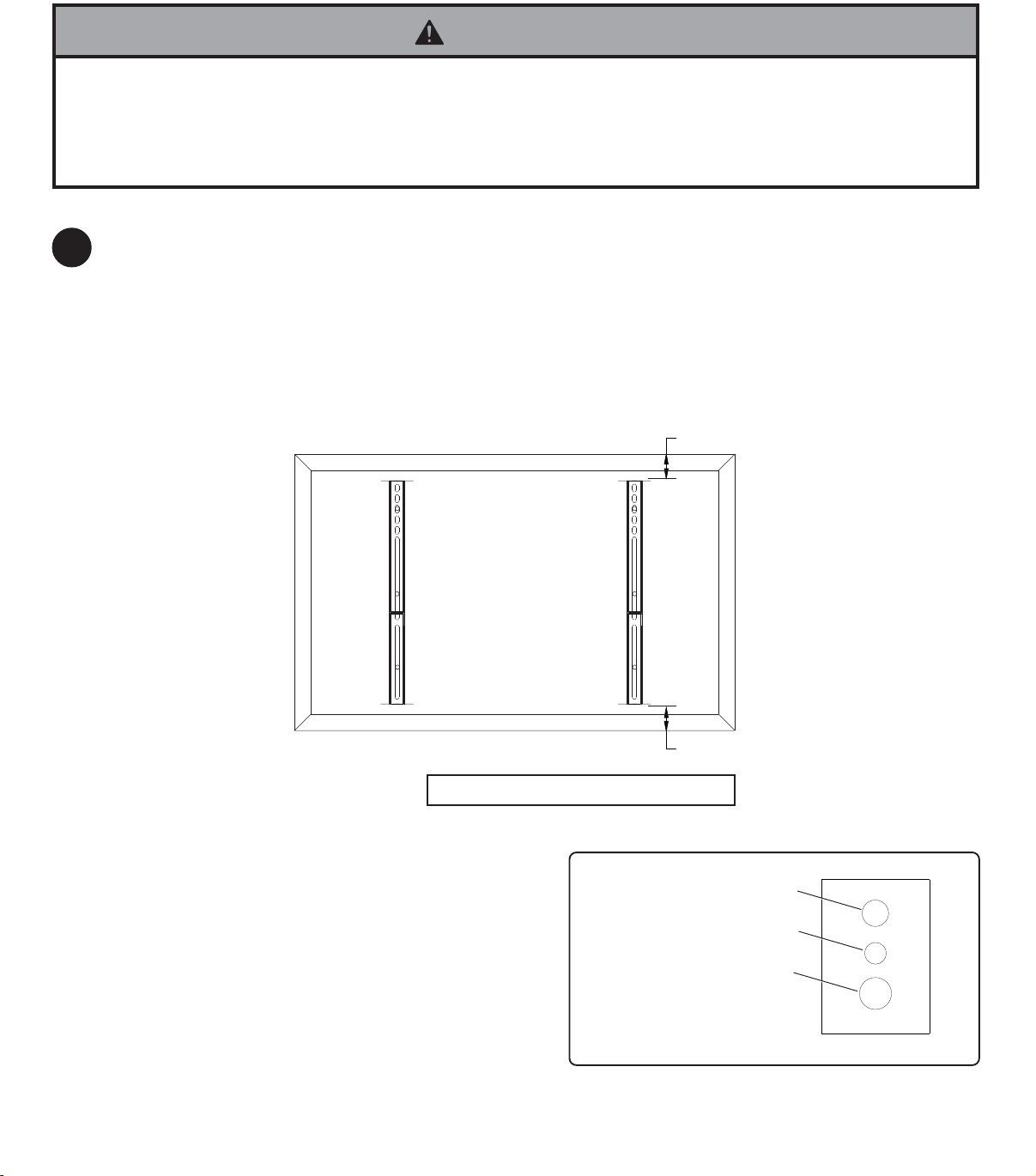

Installing Adapter Brackets to Universal Plate
NOTE: For Dedicated Adapter Plate, skip to step 17.
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen
facesidedown.Refertoscreenmanufacturers instructionsorcustomerservice,forremovinganyknobs,base, cover,or
screw(s)onthebackofthescreen to prepare mounting. These need to beremovedtoallowtheadapterbrackets to be
attached.Selectthe small, medium, largeorextra large screws from thebaffled fastener pack then attachadapter
bracketstoscreen followingfigure15.3or15.4.
NOTE:Topand bottom mounting holes mustbeused for attachingbrackets.Verifythatallholesareproperlyaligned, and
then tighten screws using a security allen wrench.
F
CENTERBRACKETS
VERTICALLYONBACK
OFSCREEN
X
X
fig. 15.1
Notes:
• Thenumberoffastenersused will vary,
dependinguponthe type of screen.
• Multi-washers and spacers may not be
used,depending upon the typeof screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
shown.
15
MEDIUMHOLEFORM5SCREWS
SMALLHOLEFORM4SCREWS
LARGEHOLEFORM6SCREWS
MULTI-WASHER
NOTE: For flat back screens proceed to step 15-3. For bump-out or recessed back screen skip to step 15-4

12 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09

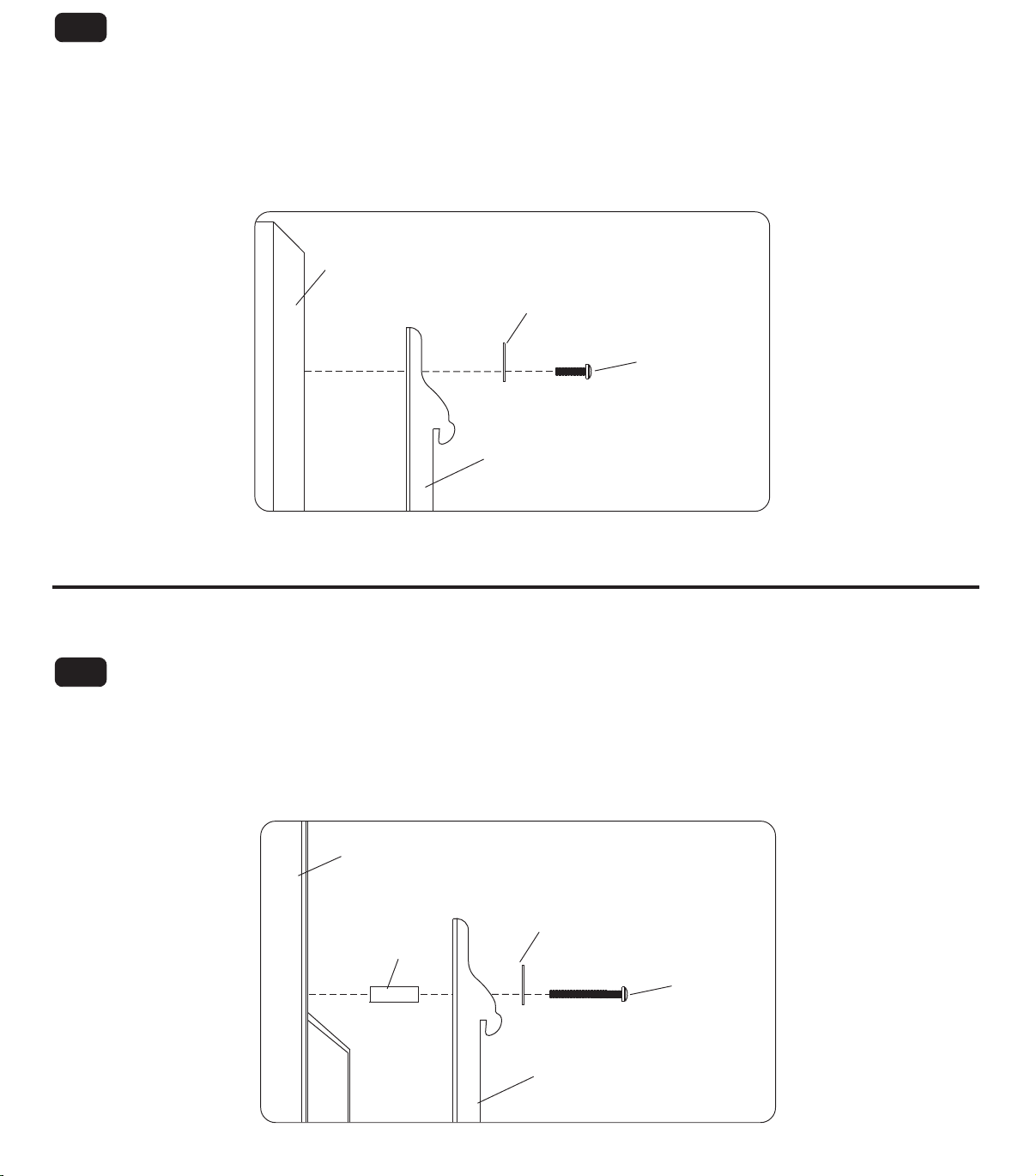

Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2
for a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as shown
below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeatfor remaining mounting holes, level brackets and tighten screws.
NOTE: Spacersmaynot be used, depending uponthe type of screen.
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2
for a full screen compatibility chart for this mount.
Beginwith longer length screw, hand thread through multi-washer, adapter bracket and spacerin that order into
screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do
not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastenerpack. Repeat for remaining mounting holes, level brackets and tighten screws.
For Flat Back Screen
For Bump-out or Recessed Back Screen
15-3
15-4
SCREEN
MULTI-WASHER
SCREW
ADAPTERBRACKET(F)
fig. 15.4
SPACER
ADAPTERBRACKET(F)
SCREEN fig. 15.3
MULTI-WASHER
SCREW
Ifyou have any questions,please call Peerless customercare at 1-800-865-2112.
Ifyou have any questions,please call Peerless customercare at 1-800-865-2112.

13 of 13 ISSUED: 01-10-07 SHEET #: 009-9039-7 06-09-09
Cord Management
Runcords through upright (G) usingcord management holes.
17
CORD
MANAGEMENT
G
©2007PeerlessIndustries,Inc.Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
Mounting and Removing Flat Panel Screen
F
DETAIL 4
SCREWS
E
F
E
Hookadapter brackets (F)onto universal plate(E),
then slowly swing screen in as shown. Turn
screws of adapter plate (F) clockwise at least six times
topreventscreenfrombeingremovedasshownin
detail4.
NOTE:Tightenusing4mmallenwrench(N).
Screen can be adjusted horizontally if desired.
NOTE: It is important to lock screen down! To lock
thescreen down, fully tightenscrews to adapter
bracket as shown in detail 4.
Toremovescreenfrom mount,loosenscrews,swing
screenawayfrommount, and lift screenoffofmount.
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
WARNING
16
