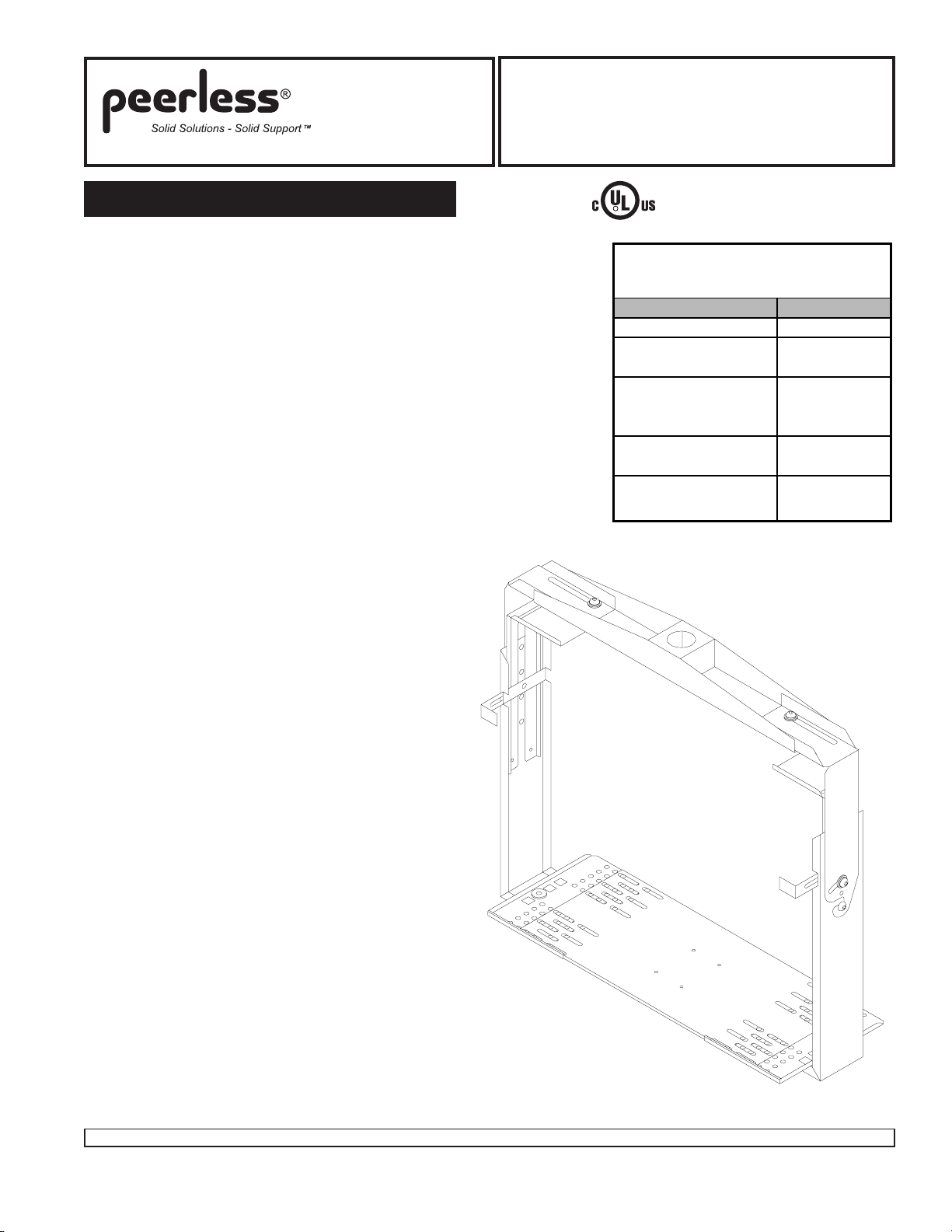

Installation and
Assembly -
Jumbo 2000®
Models: JM 2630S, JM 2640S, JM 2640DS, JM 2650S,
JM 2650DS, JM 2655S, JM 2660S, JM 2665S,
JM 2670S, JM 2675S
Please read this information first
Read entire instruction sheet before beginning
assembly and installation.
Check parts on parts listing before beginning
assembly.
Many accessories are available for this product.
Please contact customer service or visit website for
more information.
The retainer bar (D) in step 4 must be placed with
extruded side towards the anti rollout hook (C).
Pay close attention to the assembly of the threaded
flush mount tube (N) in step 6. The retaining collar
(K) threads up into the horizontal support (G). The
set screw (W) is then installed from the inside of
that collar into the notch in the tube. Refer to
drawings for correct placement.
The placement of set screw (W) in detail 3 of step 6
is essential to the safety of the installation.
R
This product is intended for use with UL Listed
products and must be installed by a qualified
professional installer.
Model #
JM 2630S
JM 2640S,
JM 2640DS
JM 2650S,
JM 2650DS,
JM 2655S
JM 2660S,
JM 2665S
JM 2670S,
JM 2675S
27"
35"
40"
Product is UL rated up to ___ TV
sizes, per attached chart
TV size
17"
21"

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
A1
A2
A3
B
B
C
C
D
D
E
E
FF
G
H
IJ
K
L
M
N
O
P
T
Y
R
S
W
X
Z
AA
U
QTY.

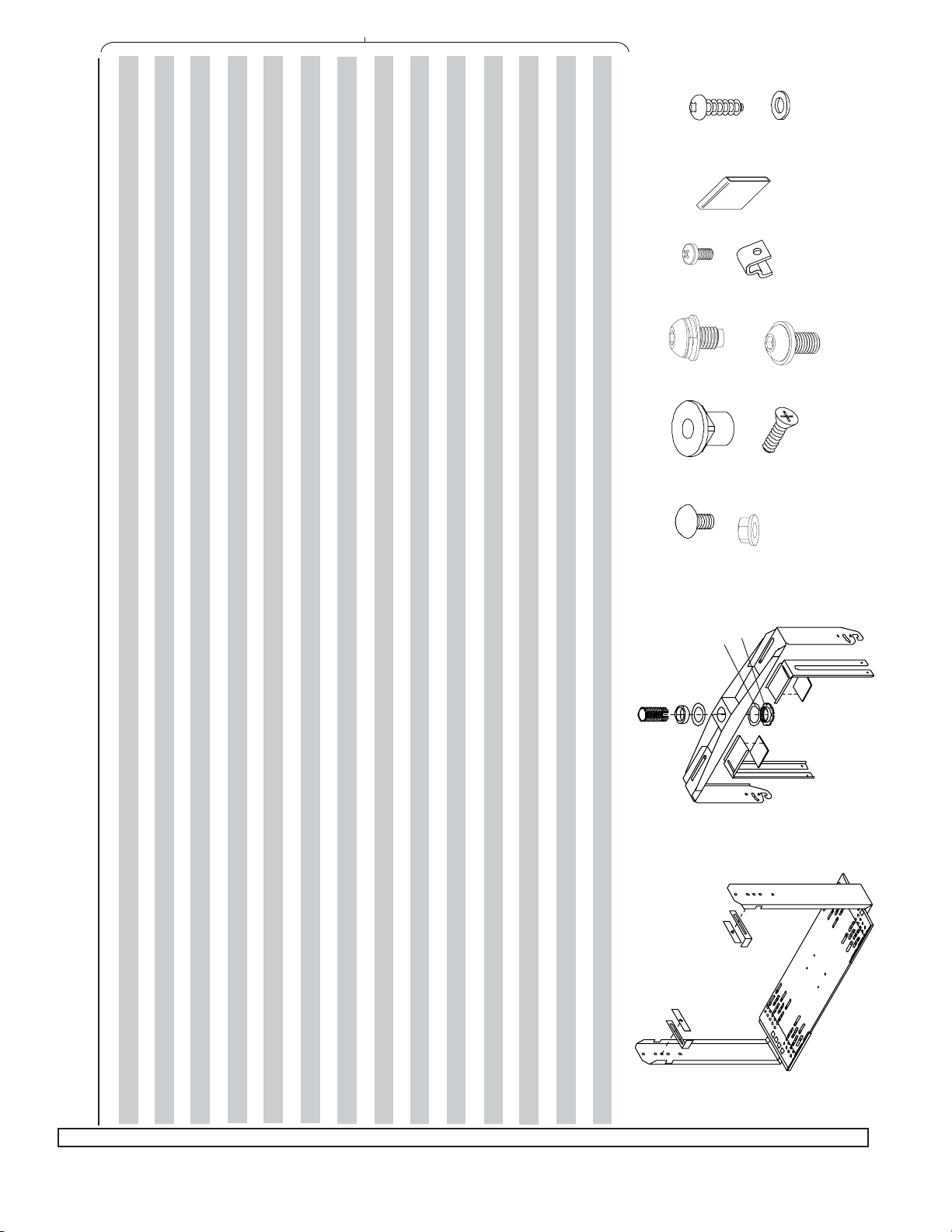

PARTS LIST
JM 2630S 128-4023 128-4024 128-4128 128-4107 128-4116 128-4117 128-4105 570-2024 128-4016 128-4340 128-4339 540-9432 1800-375S 540-9431 128-4067 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2650S 128-4023 128-4024 128-4130 128-4111 128-4116 128-4117 128-4105 570-2024 128-4018 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2650DS 128-4026 128-4027 128-4135 128-4111 128-4116 128-4117 128-4105 570-2024 128-4018 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2655S 128-4026 128-4027 128-4135 128-4109 128-4116 128-4117 128-4105 570-2024 128-4018 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2660S 128-4026 128-4027 128-4136 128-4113 128-4116 128-4117 128-4105 570-2024 128-4019 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2665S 128-4026 128-4027 128-4136 128-4111 128-4116 128-4117 128-4105 570-2024 128-4019 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2670S 128-4026 128-4027 128-4137 128-4115 128-4116 128-4117 128-4105 570-2024 128-4020 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2675S 128-4026 128-4027 128-4137 128-4113 128-4116 128-4117 128-4105 570-2024 128-4020 128-4335 128-4334 540-9432 1800-375S 540-9431 - 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
support tray left support tray right support tray center vertical support arm anti-rollout hook retainer bar top clamp adhesive pad horizontal support tilt bracket right tilt bracket left fiber washer - large inside dia. retaining collar fiber washer - small inside dia. spacer (only 2630-2640D models) flush mount tube 5/16 - 18 x 1/2" carriage bolt 5/16 washer/nut combo M10-1.5 x .7 flange nut M6 x 18 mm flat phillips screw M10-1.5 x 16 mm socket screw/washer combo M10 serrated flange head screw M5 x .8 x 10 mm screw uni-clip plastic cover for anti-rollout hook #10 x 3/4 particle board screw #10 flat washer
M O D E L N U M B E R
DESCRIPTION
A1 A2 A3 B C D E F G H I J K L M N O P R S T U W X Y Z AA
1 1 1 2 2 2 2 2 1 1 1 1 1 1 1 1 4 4 2 2 8 2 6 4 2 4 4
JM 2640S 128-4023 128-4024 128-4129 128-4109 128-4116 128-4117 128-4105 570-2024 128-4017 128-4335 128-4334 540-9432 1800-375S 540-9431 128-4067 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442
JM 2640DS 128-4026 128-4027 128-4134 128-4109 128-4116 128-4117 128-4105 570-2024 128-4017 128-4335 128-4334 540-9432 1800-375S 540-9431 128-4067 1446-014S 520-2047 530-2016 520-9269 520-2166 520-7041 520-7105 520-2005 2245-081S 590-7055 500-2014 540-9442

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
3 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
SIDEVIEW
TV
FLOOR
!Place TV onto a piece of pipe as
shown.(Pipeshouldbeafewinches
wider than the TV.) Roll TV back and
forth to find the balance point. This is
the center of gravity. Mark the center
of gravity on the side of the TV.
CENTEROF
GRAVITY
A1
"Adjust support tray (A1,A2,& A3, three pieces)
to match width of TV.
Lock support tray using four carriage bolts (O),
andwasher/nutcombos(P).Tightensecurely.
O
P
#E
F
Attachadhesivepads
(F) to top clamps (E).
Insertplasticcovers(Y)
ontoendsofanti-rollout
hooks(C).
E
FC
Y
C
Y
TV
A3
A2

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
4 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
R
S
TB
C
D
D
C
B

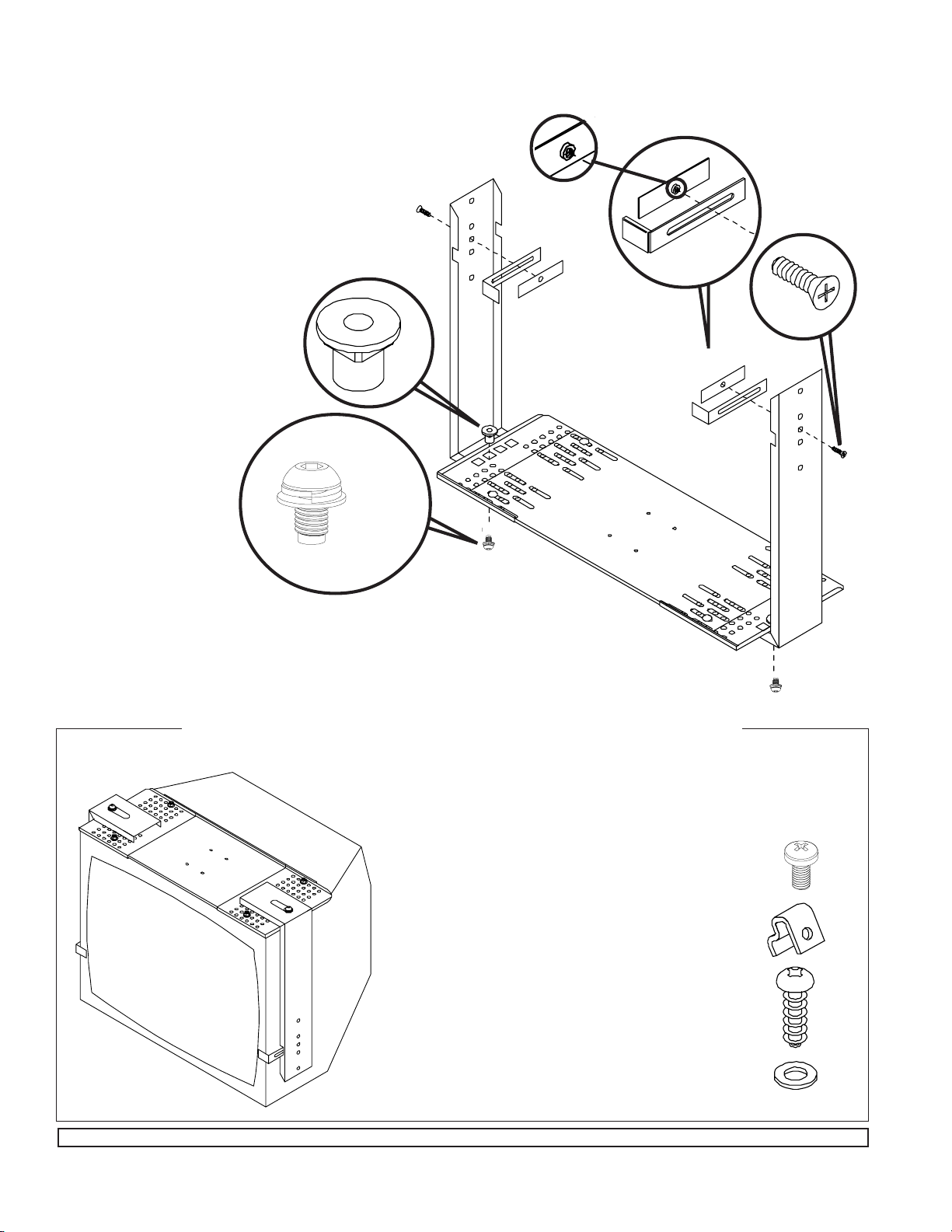

Attach support tray (A) to vertical support arms (B) as shown. Choose the square hole which aligns closest
with the center of gravity mark on the TV (as determined in step 1). Attach anti-rollout hooks (C) as shown
usingM6screws(S)andretainerbars(D).
A
$
Althoughtopclamps(E)and anti-rollout
hooks (C) [see step 5] will provide more than
adequate support for the TV, some installers
may wish to also attach the support tray to
the TV bottom.
Using uni-clips (X) and M5 screws (W) (see
instruction card in fastener pack), or #10 x
3/4"particleboardscrews(Z)andwashers
(AA)(forattachmenttomountingbossesif
present), or a combination of both, attach
support tray (A) to TV bottom. [To do this
place TV upside down on a flat stable
surfaceandposition supporttrayupside
down on TV bottom.] Attach at four places
as close to the four corners of the TV bottom
as possible.
Required for OSHPD approved installation - optional otherwise
X
W
Z
AA
TV BOTTOM
A
TV(UPSIDEDOWN)
D
C
Note:Extrudedsideofretainerbar(D)goestowards
anti-rollouthook(C).Handtightenonly.

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
5 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
Pump ratchet handle to tighten belt. For secure
hold, ratchet reel must have at least two layers of
belt around it.
Note: Too many layers of belt around ratchet reel
will cause it to jam. To avoid this problem be sure to
remove ALL slack from belt before pumping ratchet
handle.
After belt is tight, close ratchet handle.
To release, compress release bar and open ratchet
handle 180°.
Wrap belt around TV or monitor and mounting
surface. Insert end of belt through ratchet reel
and pull until ALL slack is out of belt.
release bar
ratchet
handle
belt
belt
Insert belt under,
behind, then through
ratchet reel.
ratchet reel
Position TV on support tray (A), thread belt through slots in top
clamps (E). Secure TV with belt as directed in detail 1, 2, & 3.
B
A
Safety belt, ACC 666 (Sold Separately), required for OSHPD approved installation.
Use of this belt is optional for all other installations.
E
E
Optional safety belt ACC 666 (required for OSHPD approved
installation) sold separately.
Threadbeltbetweensupportarms(B)andanti-rollouthooks(C),
andbetweensupportarms(B)andsupporttray(A).
A
B
C
belt
belt
C
B
belt
belt
detail 1
detail 2
detail 3
belt

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
6 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
E
B
E
B
B
C
C
C
C
E
E
U

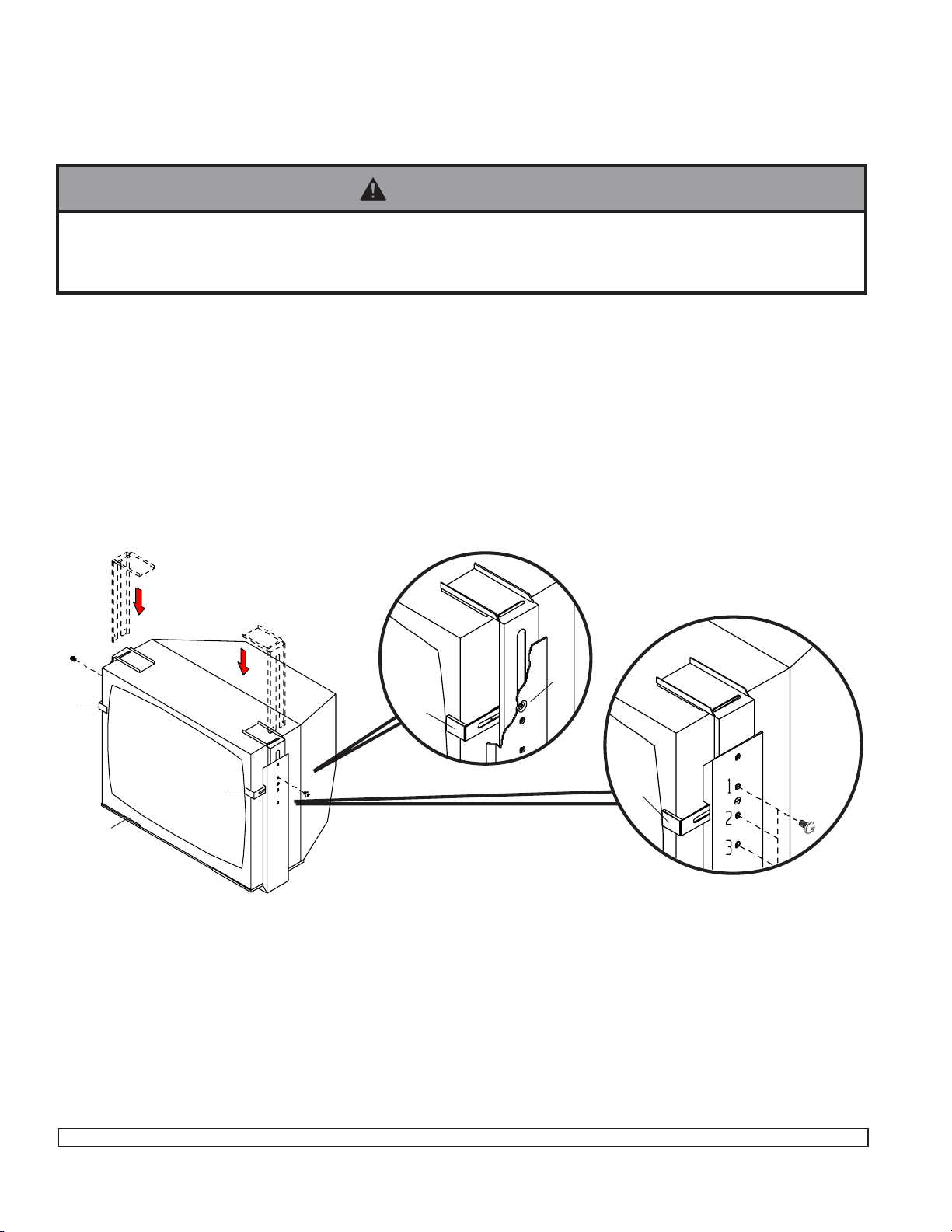

%Note: Slots in corners of top clamps (E) and corners of vertical support arms (B) allow for the installation of
safety belt (model ACC 666, sold separately). If using this belt, install it now as shown on page five.
Position TV onto support tray (A).Positionanti-rollouthooks(C) against front edge of TV.
Insert and press down on top clamps (E) with sufficient force to assure that the top clamps are fitted snugly to
theTVcabinet.Note: Topclamps(E)fit betweenrolloutprotectors(C)and verticalsupportarms(B) [DETAIL1].
Press down on each top clamp (E) while securely tightening each M6 screw (S).
Press inwards on the left and right vertical support arms (B) with sufficient force to assure that the arms are
fitted snugly to the TV cabinet. By hand, thread one M10 serrated flange head screw (U) into each vertical
support arm (B)throughoneofthreethreadedholes[1,2,or3;DETAIL2].Choosethethreadedholes that will
allowjustenoughclearance(approximately11/2")between the horizontal support arm and top clamps[see
step7].Leaveabout 1/4" ofexposedthread.
S
DETAIL 1
DETAIL 2
A
• Each anti-rollout hook (C) should have at least 1/4" of surface contact and fit snugly against the front edge of the
TV cabinet. If this is not the case, the support tray (A) must be adjusted smaller [see step 2], or the vertical
support arms (B) adjusted inward [see step 4].
WARNING

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
7 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
H
I
B
J
K
M
L
N
N
G
T
&Jumbo mount shown with optional ceiling plate/wall arm accessories.
FIRST: From the top fully thread flush mount tube (N) into threaded fitting in wall arm or ceiling plate. Install
the wall arm or ceiling plate according to instructions included with it.
NEXT: Attach right and left tilt brackets (H &I) to horizontal support (G) using four screw/washer combos
(T). Before tightening screws make sure tilt brackets are adjusted horizontally to align precisely with screws
in the side of vertical support arms (B). Attach horizontal support (G) to wall arm or ceiling plate using fiber
washers (J &L), spacer (M, only included with smaller models) and retaining collar (K). IMPORTANT:
Retainingcollar(K)requiresasafetyscrew(W)[refertoDETAIL3, page 8].
FINALLY: Be sure that hooks in right and left tilt brackets (H & I) are open end forward. Hang the TV /
bracket assembly.
Insert one screw/washer combo (T) through slot in each tilt bracket (H & I). Hand tighten.
N
W

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
8 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
When attaching the horizontal support (G) to wall arm or ceiling
plate,carefullythreadretainingcollar (K)ontoendofflushmount
(N)tube(orextension column). Tighten atleastfourcompleteturns
ending with one of the small threaded holes aligned with slot in the
endofflushmount tube(N)(orextension column).Insertand
tighten one M5 screw (W).
N
G
WK
DETAIL3
(BOTTOMVIEW)
G
TILTCLEARANCE
'Adjust TV to desired tilt, then TIGHTEN ALL SCREWS SECURELY. Maximum tilt is 30°. If tilt
clearance is a problem revisit step 5, DETAIL 2.
• Set screw (W) is self tapping and may be hard to get
started but is essential to this installation. Failure to
install this screw can cause the mount to fall.
WARNING

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
9 of 9ISSUED: 08-11-04 SHEET #: 128-9151-2 06-21-05
APPLICATION: ATTACHMENT TO CONCRETE MOUNTING SURFACE
Support
Tray
Depth
10"
10"
14"
10"
14"
14"
14"
14"
14"
14"
TV/Monitor Product Peerless rated when attached to...
Screen
Aspect
Ratio
standard
standard
standard
standard
standard
wide
standard
wide
standard
wide
Model
Number
JM 2630S
JM 2640S
JM 2640DS
JM 2650S
JM 2650DS
JM 2655S
JM 2660S
JM 2665S
JM 2670S
JM 2675S
(330 mm) (432 mm)
(482 mm) (533 mm)
(482 mm) (533 mm)
(635 mm) (711 mm)
(635 mm) (711 mm)
(635 mm) (711 mm)
(762 mm) (889 mm)
(686 mm) (889 mm)
(940 mm) (1067 mm)
(889 mm) (1067 mm)
(254 mm)
(254 mm)
(356 mm)
(254 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
Screen Size
13" - 17"
19" - 21"
19" - 21"
25" - 27"
25" - 27"
25" - 27"
30" - 35"
27" - 35"
37" - 42"
35" - 42"
Support
Tray
Depth
10"
10"
14"
10"
14"
14"
14"
14"
14"
14"
Jumbo 2000 mount TV/Monitor
JUMBO2000®SPECIFICATIONS
Product Peerless rated when attached to...
Screen
Aspect
Ratio
standard
standard
standard
standard
standard
wide
standard
wide
standard
wide
Model Number
JM 2630S
JM 2640S
JM 2640DS
JM 2650S
JM 2650DS
JM 2655S
JM 2660S
JM 2665S
JM 2670S
JM 2675S
(330 mm) (432 mm)
(482 mm) (533 mm)
(482 mm) (533 mm)
(635 mm) (711 mm)
(635 mm) (711 mm)
(635 mm) (711 mm)
(762 mm) (889 mm)
(686 mm) (889 mm)
(940 mm) (1067 mm)
(889 mm) (1067 mm)
(254 mm)
(254 mm)
(356 mm)
(254 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
(356 mm)
Screen Size
13" - 17"
19" - 21"
19" - 21"
25" - 27"
25" - 27"
25" - 27"
30" - 35"
27" - 35"
37" - 42"
35" - 42"
APPLICATION: ATTACHMENT TO WOOD MOUNTING SURFACE
*not compatible
*not compatible
Wall Arm
WMJ018S
150 lb
150 lb
150 lb
*
*
*
*
*
*
*
(65 kg)
(65 kg)
(65 kg)
Wall Arm
WMJ018S
125lb
125 lb
125 lb
*
*
*
*
*
*
*
(57 kg)
(57 kg)
(57 kg)
Wall Arm
WMJ022S
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
*
*
*
*
Suspended
Ceiling Plate
CMJ450
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
Double
Wall Arm
WMJ025HS
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
Double
Wall Arm
WMJ025HS
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
Suspended
Ceiling Plate
CMJ450
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
250 lb
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
(113 kg)
Ceiling Plate
CMJ 470W,
CMJ 480W,
CMJ 490W
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
(137 kg)
Ceiling Plate
CMJ 470W,
CMJ 480W,
CMJ 490W
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
300 lb
Jumbo 2000 mount
JUMBO2000®SPECIFICATIONS
(65 kg)
(65 kg)
(65 kg)
(65 kg)
(65 kg)
(65 kg)
(57 kg)
(57 kg)
(57 kg)
(57 kg)
(57 kg)
(57 kg)
Wall Arm
WMJ022S
125 lb
125 lb
125 lb
125 lb
125 lb
125 lb
*
*
*
*
©2005PeerlessIndustries,Inc. Allrightsreserved.
PeerlessandJumbo2000areregisteredtrademarksofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
• Weight of TV or monitor not to exceed maximum load capacity (Peerless rated)!
WARNING
