Pentair Pentek PSD15 User manual

pentair.com P1061 (03-06-19)
INSTALLATION AND
OPERATION MANUAL
SOLAR DRIVE PSD15
PENTEK

2 I ©2019 Pentair plc.
Contents:
Section ................................................................................................... Page
Safety Instructions......................................................................................3
Pentair Pentek Solar Drive at a Glance ........................................................4
Pentair Pentek Solar Drive Specications...................................................5
Pentair Pentek Solar Drive Installation Requirements ................................6
Pentair Pentek Solar Drive Hardware ..........................................................7
Pentair Pentek Solar Drive Overview...........................................................8
Pentair Pentek Solar Drive Wiring Instructions...........................................9
Pentair Pentek Solar Drive DIP Switch Settings ........................................ 10
Pentair Pentek Solar Drive Sensor Settings............................................... 11
Pentair Pentek Solar Drive Operation....................................................12-13
Installation Notes & Maintenance.............................................................. 14
Troubleshooting – Indicator Lights............................................................ 15
Warranty.................................................................................................... 16

©2019 Pentair plc. I 3
Safety
Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual
contains important instructions that should
be followed during installation, operation, and
maintenance of the Pentair Pentek Solar Drive.
This is the safety alert symbol. When you see this
symbol on your Pentair Pentek Solar Drive or in this
manual, look for one of the following signal words
and be alert to the potential for personal injury!
indicates a hazard which, if not
avoided, will result in death or serious injury.
indicates a hazard which, if not
avoided, could result in death or serious injury.
indicates a hazard which, if not
avoided, could result in minor or moderate injury.
NOTICE addresses practices not related to
personal injury.
Carefully read and follow all safety instructions in
this manual and on the Pentair Pentek Solar Drive.
Keep safety labels in good condition. Replace
missing or damaged safety labels.
California Proposition 65 Warning
This product and related accessories
contain chemicals known to the State of California
to cause cancer, birth defects or other reproductive
harm.
Risk of high-voltage electrical shock
from EMI/RFI filter inside drive. Can shock, burn or
kill if the front cover of the Pentair Pentek Solar
Drive is open or removed while power is connected
to the Drive or the Drive is running. The front cover
of the Drive must be closed during operation.
• Make all wiring connections, then close and
fasten the cover before turning on power to drive.
• NEVER open the box when power is connected
to Drive.
• Before doing any service or maintenance inside
Drive or when connecting or disconnecting any
wires inside Drive:
1. DISCONNECT power.
2. WAIT 5 minutes for retained voltage
todischarge.
3. Open box.
• Before starting any wiring or inspection
procedures, check for residual voltage with a
voltage tester.
• NEVER connect power wiring to Drive before
mounting the box.
• NEVER handle or service Drive with wet or damp
hands. Always make sure hands are dry before
working on Drive.
• NEVER touch the printed circuit board when
power is applied to Drive.
Risk of fire. Can cause severe injury,
property damage or death if installed with incorrect
or inadequate circuit breaker protection. To ensure
protection in the event of an internal fault in the
Pentair Pentek Solar Drive, install the Drive on an
independent branch circuit protected by a circuit
breaker, with no other appliances on the circuit.
Risk of burns. The Drive can become
hot during normal operation. Allow it to cool for 5
minutes after shut-down and before handling it to
avoid burns.
NOTICE To avoid damage to Drive or problems with
Drive make sure:
• Drive is correctly wired to the solar source
and motor load
• DIP switches are configured to match motor
specification
• Drive is installed in the shade away from
direct sunlight
• Do not modify equipment.
• Do not use power factor correction capacitors
as they will damage both motor and Pentair
Pentek Solar Drive.
• Do not remove any parts unless instructed to
do so in Owner’s Manual.
• Do not use a magnetic contactor on Drive for
frequent starting/stopping.
• Do not install or operate Drive if it is damaged
or parts are missing.
• Before starting Drive that has been in storage,
always inspect it and test operation.
• Do not carry out a megger (insulation resistance)
test on the control circuit of the Drive.
• Do not allow loose foreign objects which can
conduct electricity (such as screws and metal
fragments) inside Drive box at any time. Do not
allow flammable substances (such as oil) inside
Drive box at any time.
• Ground Drive according to the requirements of
the National Electrical Code Section 250, IEC
536 Class 1, or the Canadian Electrical Code (as
applicable), and any other codes and ordinances
that apply.
• All installation, service work, and inspections
must be done by qualified electrician.

4 I ©2019 Pentair plc.
Pentair Pentek Solar Drive at a Glance
Grid Power
Pentair Pentek
Solar Drive PSD15
PV Solar Array
DC Disconnect
Water Tank
Level
Switch
AC Motor
Pump
The Pentair Pentek Solar Drive PSD15 is an off-grid solar controller that can operate any
approved Pentair Pentek submersible motor loads or operate approved alternative 3-phase
alternating current (AC) motor loads up to 1.5HP from solar photovoltaic (PV) power.
To size the solar PV array to your specific motor,
please consult with your local dealer or Pentair. A
typical diagram for a Pentair Pentek Solar Drive
operated solar water pumping system is shown in
Figure 1. The solar PV array must be connected to
an external DC Disconnect and then to the Pentair
Pentek Solar Drive controller. The Pentair Pentek
Solar Drive controller should be installed in the
shade (potentially mounted under the PV array)
and away from the direct sun.
The Pentair Pentek Solar Drive can accept up to
two digital sensor inputs. For example, in solar
water pumping applications, an optional float
switch can be connected to the Pentair Pentek
Solar Drive to monitor when a water tank is full, or
a pressure switch can be used in combination with
a pressure tank.
Figure 1: Solar Water Pumping System Diagram with
Pentair Pentek Solar Drive PSD15

©2019 Pentair plc. I 5
Pentair Pentek Solar Drive Specifications
Input Specification:
- Minimum Operating Voltage : 100 Vdc (for 115 Vac)
150 Vdc (for 230 Vac)
- Maximum Solar Open Circuit Voltage: 400 Vdc
- Maximum Solar PV Current in Series: 9 Amps
- Earth-ground connected to chassis
Output Specification:
- Maximum Output Current: 7 Arms (3-phase motors)
- Maximum Power Sustained: 2000W
Protections:
- Short-circuit, ground-fault, over-temperature, overload, over-voltage, over-current,
and solar input reverse polarity protection
- Automatic dry well protection and pump locked rotor protection
Integral solid state short circuit protection does not provide branch circuit protection.
Branch circuit protection must be provided in accordance with the National Electrical
Code and any additional local codes.
ELECTRICAL MECHANICAL
Solar PV open circuit voltage: 400V Operating temperature: -40˚C to 50˚C
Max PV panel current in series: 9A Dimensions: 10”x5.5”x4”
AC Source Terminals: AWG #10-16
Max Three phase AC motor current: 7A Solar Terminals: AWG #10-16
Degree of protection: TYPE 4 Motor terminal: AWG #8-16
Enclosure material: Aluminum Float Sensor terminals: AWG #14-20
WARNING:
Carefully check the motor load specifications and solar PV array maximum power
point voltage to set up the system properly using this manual!
Environmental – Compliance with IEC 60068
IEC 60068-2-2 – Cold IEC 60068-2-2 – Dry Heat
IEC 60068-2-14 – Change of Temperature IEC 60068-2-30 – Damp Heat

6 I ©2019 Pentair plc.
Pentair Pentek Solar Drive Installation Requirements
Once the Pentair Pentek Solar Drive is installed in a shaded location (see Figure 3), it can be wired to DC
(solar) sources. Maximum cable lengths for 115 and 230Vac for different motor load currents are shown in
Figure 2 below.
This unit was evaluated for temperature rating of 60/75°C (140/167˚F) on power field wiring terminals.
Motor
Load [A]
Nominal
Voltage [V]
AWG Copper Wire Sizes
90˚C (194˚F) insulation [ft]
16 14 12 10 8
3.5 115
125 180 300 450 700
230 250 360 600 900 1400
4.5 115
100 150 250 350 500
230 200 300 500 700 1000
5.5 115
80 125 200 300 450
230 160 250 400 600 900
7115
65 95 150 230 350
230 130 190 300 460 700
IMPORTANT: Use copper conductors only!
Figure 2: Maximum Input Cable Lengths in Feet (based on 3% voltage drop)
Dimensions of the Pentair Pentek Solar Drive and back panel are shown in Figure 4, with additional
details on how to mount the unit on page 7.
The Pentair Pentek Solar Drive must be installed in a shaded location, away from any source of heat
and in an area free of vegetation. Measures must also be made to protect the unit from damage by
unauthorized persons, large animals, overgrowth, flooding, or other harm.
WARNING
The Pentair Pentek Solar Drive has voltages capable of causing severe injury or death by electrical
shock. It should only be installed and serviced by Pentair authorized suppliers, dealers and installers.
– Contact your Pentair Supplier/Dealer for any service or warranty claims
– NEC codes take precedence over suggestions in this manual
– We strongly recommend that the installation data be recorded into the “Installation Notes” section
on page 14 and that the manual is stored near the unit
The Pentair Pentek Solar Drive should be mounted at least 2 feet (60cm) above the ground when possible.
A minimum of 10 inches (25cm) of clearance above the Pentair Pentek Solar Drive is required for internal
access. There must be no obstruction of air flow to the heat sink. A typical installation on an array
structure is shown in Figure 3, below.
Figure 3: Pentair Pentek Solar Drive Mounting Figure 4: Pentair Pentek Solar Drive Dimensions
24”
10”
Solar PV Rack
Solar PV Panel
3”
4.25” 5.5” 4”
10”

©2019 Pentair plc. I 7
Pentair Pentek Solar Drive Hardware
The Pentair Pentek Solar Drive controller consists of several components, as shown in
Figure 5. The unit has three wire glands: two large glands for a motor cable (left) and for
solar PV array (right), and one gland for data cables (middle), a float switch sensor or other
optional sensor. There is direct access to the power and signal terminals on the circuit
board once the enclosure door is removed.
The Pentair Pentek Solar Drive controller should be mounted on a wall or other vertical
surface using the back bracket (see Figure 5 below). On the back side of the unit there
are two set screws used to hang the unit on the back bracket. More detailed mounting
instructions are shown below.
Figure 5: Pentair Pentek Solar Drive Hardware
Back Panel
(Wall Mount)
Set Screw for Hanging the
Pentair Pentek Solar Drive to the Back Panel
Back View Front View
Heatsink
Wire
Glands
Fix the back bracket to the
support surface by inserting
three screws (not included)
through the 3 holes in the
back bracket
1
Mounted!
3
Make sure both set screws
are used to hang the Pentair
Pentek Solar Drive onto the
back bracket
2

8 I ©2019 Pentair plc.
Pentair Pentek Solar Drive Overview
The features of the Pentair Pentek Solar Drive controller are shown in Figure 6.

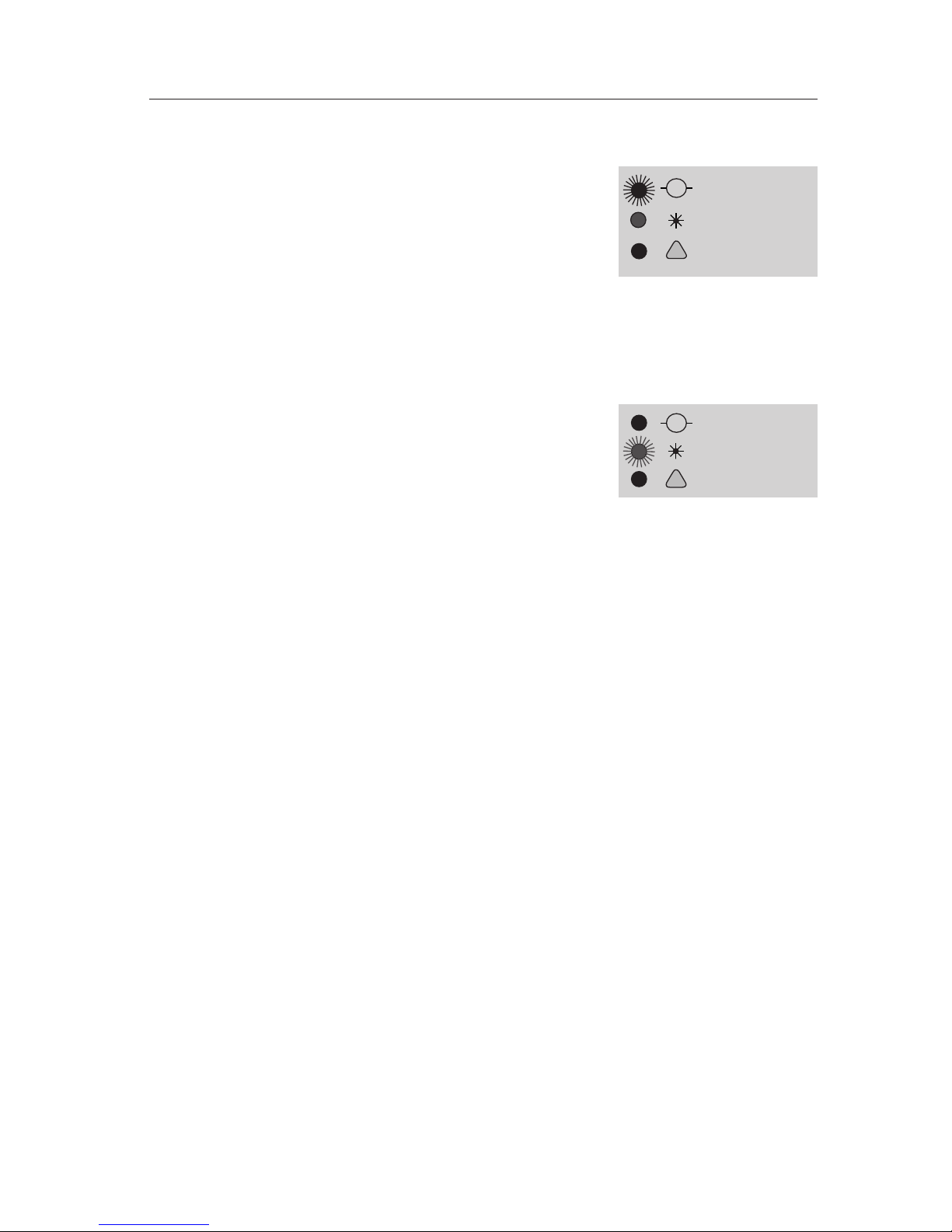

Three LEDs are used to indicate the Pentair Pentek Solar Drive controller's operation
(more details provided on page 10).
Once the door of the enclosure is open, there are three terminal blocks:
1Solar PV wires
2Motor/pump wires
3Pump or tank sensor wires. More information about sensor wiring and
DIP switches is provided on page 8.
Figure 6: Pentair Pentek Solar Drive Features Overview
Solar PV LED
AC Power LED
DIP Switch
Warning LED
Sensor Data Cables
Three Phase
Motor Cables
Motor Ground
Lug
Solar PV
Grounding Lug
1 Solar PV
Terminals
2 Motor/Pump
Terminals
3 Pump or Tank
Sensor Wire
Terminals
Solar PV Cables

©2019 Pentair plc. I 9
Pentair Pentek Solar Drive Wiring Instructions
Figure 7: Wiring Inside the Pentair Pentek Solar Drive
Once the system is wired (per Figure 7), the power conductors wired to the terminals blocks
inside the Pentair Pentek Solar Drive should be tightened with torque values of:
– Power solar PV and motor load conductors: 10 lb-in
– Float switch signal conductors: 8 lb-in
The cable glands (cord grips) on the bottom of the enclosure should be used as shown on
Figure 7 below. Solar power wires feed through the right gland, float switch/signal wires
feed through the middle gland, and motor load wires feed through the left gland.
When all conductors are wired into the controller, the cover (door) should be replaced and
tightened using the cover screws to 2-3 in-lb or equivalent.
WARNING
Do not ground the positive or negative leads of the PV modules!
Only ground the mounting frames of the PV modules.
Never run the Pentair Pentek Solar Drive controller when the AC pump is not connected!
It might cause damage to the controller.
If an installed 3-phase pump does not start pumping water, switch the positions of any
two of the three motor wires. It will change the direction of rotation and it should start
pumping water!

10 I ©2019 Pentair plc.
Pentair Pentek Solar Drive DIP Switch Settings
The Pentair Pentek Solar Drive controller can operate most AC motors up to the power
limits of the controller: 50 or 60Hz; 120Vac or 230Vac. In order for the Pentair Pentek Solar
Drive to match the motor specifications, the first three DIP switches on the left are used
for motor selection.
The Pentair Pentek Solar Drive PSD15 powers 3-phase motors only.
DIP Switch 1 – 120/230Vac: See Figure 8.
If switched ON, the unit is configured for
120Vac pump operation; if switched OFF
(down), the unit is configured for 230Vac.
DIP Switch 3 – 50/60Hz: If switched ON,
the unit is configured for 50Hz motors;
if switched OFF (down), the unit is
configured for 60Hz motors.
DIP Switches 4 and 5 – Over-current Protection: See Figure 9. The Pentair Pentek Solar
Drive can set over-current protection based on the motor pump and controller combination
being used. The default value of RMS current (when both switches are OFF) is 7A for three
phase. DIP switches 4 and 5 are to be used to match or exceed the motor nameplate’s
SFAMPS in order to protect from over-current. For example, if a three phase motor has
SFAMPS: 6A then DIP switches 4 and 5 have to be set for 7A, as this is the next highest
protection current for this motor. Conguring over-current protection also congures
automatic Dry Well Protection. The Pentair Pentek Solar Drive monitors motor amperage
for dry well protection, and no other dry well sensor input is needed unless desired.
1 2 3 4 5 6
Figure 8: DIP Switches
1 2 3
50Hz120Vac
230Vac 60Hz
Figure 9: Over-current Protection
1 2 3 4 5 6
WARNING
Do NOT modify DIP switch settings until power has been turned off and ve minutes have passed.
Motor HP Phase PNR Motor DIP 4 DIP 5 DIP Switches
4 and 5
1/2 3 P43B0005A3-C UP UP
3/4 3 P43B0007A3-C UP DOWN
1 3 P43B0010A3-C DOWN UP
1.5 3 P43B0015A3-C DOWN DOWN
4 5
4 5
4 5
4 5

©2019 Pentair plc. I 11
Pentair Pentek Solar Drive Sensor Settings
The Pentair Pentek Solar Drive controller can be turned ON or OFF remotely by using a
digital input or by using a standard float switch. There is a float switch terminal block
(Figure 6 on page 8) where digital signal wires are connected.
If Digital Inputs 1 and G experience a short circuit, the Pentair Pentek Solar Drive
automatically turns off. Similarly, if Digital Input 2 and G experience an open circuit, the
Pentair Pentek Solar Drive automatically turns off. There are numerous remote sensors
that can be used: float switch, pressure switch, flow switch, water level sensor, dry
run protection, etc. Ask your dealer about configuring sensors and switches for your
application.
A typical example of how tank and well switch signals can be used with a digital input port
is shown in Figure 10. For a tank application, if the active wire is connected to Position 1
and the return wire (usually black) is connected to Position G, then the Pentair Pentek Solar
Drive will stop the pump when the tank gets full because Terminals 1 and G will be “shorted”
(active short). This turns off the Pentair Pentek Solar Drive. See Figure 11.
For a well application, if the active wire is connected to Position 2 and the return wire
(usually black) is connected to Position G, then the Pentair Pentek Solar Drive will stop
the pump when the well runs out of water because Terminals 2 and G will be “open” (active
open). This turns off the Pentair Pentek Solar Drive.
Open Across
Float Switch
Wires
Short Across
Float Switch
Wires
W
a
t
e
r
T
a
n
k
F
u
l
l
W
a
t
e
r
T
a
n
k
E
m
p
t
y
Pump
Well
Full
Well
Empty
Well
Figure 10: “Water Tank Full” and “Well Empty”
Figure 11: Tank/Well Float Switch
2 G G 1

12 I ©2019 Pentair plc.
Pentair Pentek Solar Drive Operation
Once the Pentair Pentek Solar Drive controller is wired to the solar source and a motor load,
and the DIP switches settings are configured to match the motor specification, then the
Pentair Pentek Solar Drive is ready for operation.
Startup:
When starting the Pentair Pentek Solar Drive for the first time:
1. While the Pentair Pentek Solar Drive is still de-energized, configure the DIP switches
per the AC motor load of the connected device (see DIP switch details on page 8).
2. After DIP switches are configured, turn ON the toggle switch, and replace the door.
Make sure to never touch toggle switch while connected to solar.
3. Power up the Pentair Pentek Solar Drive from solar PV by switching the solar DC
disconnect to the ON position. All LEDs will light up, and after a few seconds the
Pentair Pentek Solar Drive will try to start the pump, indicated by a blinking green
light, and upon starting the green LED will remain ON.
4. If there is not enough solar power available, the middle LED will blink yellow,
indicating insufficient solar power to start the motor load.
During start-up mode, the Pentair Pentek Solar Drive soft starts a 60Hz motor/pump from
a standstill to 45Hz operation in 1 second, and then the Maximum Power Point Tracking
(MPPT) algorithm takes over, increasing the motor to 60Hz operation during full sunlight.
This optimizes the motor/pump speed to match available power from the solar PV source.
For 50 Hz motors, the Pentair Pentek Solar Drive soft starts to 40Hz within one second, and
then switches to Max Power Point Tracking (MPPT) control.
Figure 12: Solar Water Pumping System Diagram
Grid Power
Pentair Pentek
Solar Drive PSD15
PV Solar Array
DC Disconnect
Water Tank
Level
Switch
AC Motor
Pump

©2019 Pentair plc. I 13
Pentair Pentek Solar Drive Operation
If the motor is properly connected, the Pentair Pentek Solar
Drive will begin the startup procedure. The green AC LOAD
LED (Figure 13) will have a solid green light, and the motor will
start running. Additionally, the Pentair Pentek Solar Drive will
immediately start performing MPPT operation over the solar
PV source. The MPPT operating range is 45 to 60Hz for 60Hz
rated motors, or 40 to 50Hz for 50Hz rated motors.
The Pentair Pentek Solar Drive has built-in overload
protection, so if a connected motor has a power level higher
than the Pentair Pentek Solar Drive limitations, it first slows
down and tries to run the motor at a lower power level. If
the motor power continues to be outside the power range
of the Pentair Pentek Solar Drive, it will shut off the motor
operation. If there is not enough solar power, the unit’s
SOLAR LED light will blink yellow, as shown in Figure 14.
This usually happens in the early morning or late evening,
or during overcast weather. The Pentair Pentek Solar Drive
controller will try to start the motor once every minute with
increasing time between start attempts. Each attempt will
be indicated by the blinking green LED. If there is not enough
solar production from the solar panels, the yellow LED will
start blinking again.
Shutdown:
To stop the Pentair Pentek Solar Drive’s operation, the DC Disconnect should be used.
Once in the OFF position, the Pentair Pentek Solar Drive will automatically stop the
motor’s operation.
However, if a tank or well float switch is used when the tank becomes full or the well
becomes empty, the Pentair Pentek Solar Drive will stop its operation, and the WARNING
LED will blink red.
The WARNING LED will be solid red if the temperature of the Pentair Pentek Solar Drive
rises above 80°C (176˚), at which point the Pentair Pentek Solar Drive will stop operating and
wait until the temperature drops. This can happen if the unit is exposed to direct sunlight,
which should be avoided.
If the Pentair Pentek Solar Drive gets too hot during normal operation, it will switch to
Power Deration mode, limiting the maximum power that is transferred to the motor load.
During that time, the AC LOAD LED will be solid green and the WARNING LED will be solid
red. If the unit cools down to a regular operating temperature, it will automatically continue
operation without the thermal deration. If the temperature of the Pentair Pentek Solar
Drive continues to increase, it will eventually stop operating, at which point the WARNING
LED will be solid red.
AC LOAD
SOLAR
WARNING
!
S
Figure 13:
LED 1 – AC LOAD is ON
AC LOAD
SOLAR
WARNING
S
!
Figure 14:
LED 2 – SOLAR is BLINKING

14 I ©2019 Pentair plc.
Installation Notes:
Date Installed: ___________________________________________________________________
Serial No. (Spec Label): ___________________________________________________________
Installer: ________________________________________________________________________
Phone: __________________________________________________________________________
Location of Installation: __________________________________________________________
Pump Model No: _________________________________________________________________
Motor: HP, Vac, Ph, SF Amps ______________________________________________________
Static Depth: (m/ft)_______________________________________________________________
Flow Rate: (lpd/gpd) ______________________________________________________________
PV Panel Manufacturer/Model Number: ____________________________________________
No. of Solar PV Panels in Series: ___________________________________________________
Note to Installer: Record the data listed above along with DIP switch setting for future
reference. Give manual to end user or attach to Pentair Pentek Solar Drive when
installation is complete.
Maintenance:
The Pentair Pentek Solar Drive is designed to operate autonomously, however it is
suggested to be inspected every 3 months. If there are any external obstructions that
prevent proper cooling of the heat sink, please remove them to make sure nothing blocks
the air flow from the bottom of the device.
If the Pentair Pentek Solar Drive will operate in a location where freezing temperatures
may occur, deactivate the system with the DC Disconnect during these conditions.
This will prevent the pump from potentially dead heading against a frozen pipe.
Check external sensors every 3 months: float switch, pressure switch, etc.

©2019 Pentair plc. I 15
Troubleshooting - Indicator Lights
There are three LED lights on the Pentair Pentek Solar Drive. The indicator lights and their
definitions are listed below.
AC POWER SOLAR WARNING MODE
(Green) (Yellow) (Red)
ON ON ON - Unit is OFF
FLASHING OFF OFF - Startup
ON OFF OFF - Running
OFF FLASHING OFF - Standby
OFF OFF FLASHING - Float Switch
OFF OFF ON - Over Temperature
ON OFF ON - Power Deration
FLASHING OFF FLASHING - Over-current
OFF FLASHING FLASHING - Short/Open Circuit
FLASHING FLASHING FLASHING - Dry Well Protection
OFF Mode Pentair Pentek Solar Drive toggle switch is in the OFF position.
Startup Mode Pentair Pentek Solar Drive is in the process of starting the motor pump.
Running Mode Pentair Pentek Solar Drive is running the motor pump.
Standby Mode There is not enough power from the solar PV panels for
Pentair Pentek Solar Drive to start the motor.
Float Switch Pentair Pentek Solar Drive is turned OFF as a result of input from one
Mode or more external sensors that are connected to the digital input.
Over Temperature Pentair Pentek Solar Drive stops operation when the temperature
Mode inside the unit exceeds 80°C/176˚F.
Power Deration Pentair Pentek Solar Drive still operates but with reduced power
Mode throughput due to increased operating temperature, or if a load is
connected with current higher than Over-current Protection
DIP Switches 4 and 5.
Over-current Pentair Pentek Solar Drive stops operation when it detects high current
Mode on the motor terminals. This can also be due to a short circuit event if
the unit is mis-wired. Requires manual restart by cycling power to
the unit.
Open Circuit Pentair Pentek Solar Drive will not start operation if the motor wiring
Mode does not align with DIP switch configuration.
Dry Well Pentair Pentek Solar Drive detects dry well condition, and ceases pump
Protection operation, which is restored after 30 minutes. If dry well indication
appears faulty, check that Over-current Protection DIP Switches
4 and 5 are configured correctly.

Limited Warranty
PENTAIR warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed
below, that they will be free from defects in material and workmanship for the Warranty Period
shown below.
Product Warranty Period
Water Systems Products — jet pumps, small centrifugal
pumps, submersible pumps and related accessories
whichever occurs first:
12 months from date of original installation,
18 months from date of manufacture
Pentek Intellidrive*
Pentek* Solar Drive
12 months from date of original installation, or
18 months from date of manufacture
Pro-Source*Composite Tanks 5 years from date of original installation
Pro-Source*Steel Pressure Tanks 5 years from date of original installation
Pro-Source*Epoxy-Line Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Our warranty will not apply to any product that, in our sole judgment, has been subject to negligence,
misapplication, improper installation, or improper maintenance. Without limiting the foregoing,
operating a three phase motor with single phase power through a phase converter will void the
warranty. Note also that three phase motors must be protected by three-leg, ambient compensated,
extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and PENTAIR’s only duty, is that PENTAIR repair or replace defective products (at
PENTAIR’s choice). You must pay all labor and shipping charges associated with this warranty and
must request warranty service through the installing dealer as soon as a problem is discovered. No
request for service will be accepted if received after the Warranty Period has expired. This warranty
is not transferable.
PENTAIR IS NOT LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES
WHATSOEVER.
THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS
AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED
WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
apply to You. This warranty gives You specific legal rights and You may also have other rights which
vary from state to state.
This Limited Warranty is effective March 6, 2019 and replaces all undated warranties and warranties
dated before March 6, 2019.
*For a detailed list of where Pentair trademarks are registered, please visit www.pentair.com/en/registrations.html. Pentair
trademarks and logos are owned by Pentair PLC. or its aliates. Third party registered and unregistered trademarks and
logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair
reserves the right to change specications without prior notice. Pentair is an equal opportunity employer.
P1061 (03/06/19) ©2019 Pentair plc. All Rights Reserved.
293 Wright Street | Delavan, WI 53115 | Ph: 866.973.6835 | Orders Fax: [phone] | pentair.com
