Clean & Clear™Filter System Owner's Manual
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Pentair Pool Products
1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]

P/N 99101100 2 REV. F 5-1-01
SECTIONI. PUMPSAFETYINSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should always be followed,
includingthefollowing:
1. READANDFOLLOWALLINSTRUCTIONS.
2. WARNING - To reduce the risk of injury, do not permit children to use this product unless they
are closely supervised at all times.
3. WARNING - Risk of Electrical Shock. Connect only to a grounding type receptacle protected by a
ground-faultcircuit-interrupter(GFCI). Contact aqualified electrician if youcannot verify that the
receptacle is protected by a GFCI.
4. Do not bury the electrical cord. Locate the cord to minimize the abuse from lawn mowers, hedge
trimmers,andotherequipment.
5. WARNING-Toreducetheriskofelectricalshock,replacedamagedcord immediately.
6. WARNING - To reduce the risk of electrical shock, do not use an extension cord to connect unit
to electric supply; provide a properly located outlet.
7. CAUTION - For continued protection against possible electrical shock, this unit is to be mounted
to the base in accordance with the installation instructions.
8. SAVETHESEINSTRUCTIONS.
SECTIONII. HOWYOURFILTERWORKS
Your cartridge filter is designed to produce clear, sparkling water and operate for years with a minimum of
maintenance when installed, operated and maintained in accordance with these instructions.
Your filter uses a cartridge element to remove dirt particles from the water. Dirt is collected in the filter by
the cartridge element as water flows through the filter. Water enters the filter through the filter inlet port
and is distributed evenly through the cartridge element. The dirt is removed by the cartridge fabric and the
clean water flows through the filter outlet port and is returned to the pool through the piping or hoses.
After a period of time, dirt will accumulate in the filter causing a resistance to the flow of water through the
filter. This resistance results in a diminished flow of water and a rise in the filter pressure. Eventually the
filter will have removed so much dirt and the filter pressure risen to such a point that it will be necessary to
cleanyourfilter,seeSECTIONVI.CLEANINGFILTER.
The filter’s function is to remove suspended matter from the water and does not sanitize the water. For
sparkling clear water, the water must be sanitized as well as balanced. Pool chemistry is a specialized area,
and you should consult your local pool service specialist for specific details. In general, proper pool
sanitation requires a free chlorine level of 1 to 2 PPM and a PH range of 7.2 to 7.6.
WARNING
To reduce the risk of electrical shock, Only connect to a GFCI protected receptacle. Failure to
do so could result in an electrical shock to pool users, installers, or others which can result in
seriouspersonalinjury or death.

REV. F 5-1-01 3 P/N 99101100
SECTIONIII. CHECKVALVEINSTALLATIONINSTRUCTIONS
A. INSTALLATION
1. Turn the pump off, shut off any automatic controls to assure that the system is not inadvertently
started during servicing.
2. OpentheHighFlow™manualairreliefvalve.
3. Plug the suction line by inserting a rag into the skimmer port, or if equipped with a valve close it at
this time to prevent water from siphoning from the pool during servicing.
4. If possible, plug the return line to prevent siphoning. If this can not be done, disconnect the union
fitting from the outlet port of the filter and quickly place the return hose into the pool.
5. Remove the drain cap to empty the water from the filter.
Failuretooperateyourfiltersystemorinadequatefiltrationcancause poor water clarity obstructing
visibilityinyour pool. Poor water claritymayobscure objects in the waterwhichwhile swimming and
divingcouldcause severe personal injury anddeath.Never swim in a poolwithpoor water clarity.
WARNING
WARNING
THIS FILTER OPERATES UNDER HIGH PRESSURE. WHEN ANY PART OF THE
CIRCULATINGSYSTEM (e.g., LOCK RING, PUMP, FILTER, VALVES, ETC.)IS
SERVICED, AIR CAN ENTER THE SYSTEM AND BECOME PRESSURIZED.
PRESSURIZED AIR CAN CAUSE THE LID TO BE BLOWN OFF WHICH CAN RESULT IN
SEVERE INJURY, DEATH, OR PROPERTY DAMAGE. TO AVOID THIS POTENTIAL
HAZARD, FOLLOW THESE INSTRUCTIONS.
1. BEFORE REPOSITIONING VALVES AND BEFORE BEGINNING THE ASSEMBLY,
DISASSEMBLY, OR ADJUSTMENT OF THE LOCK RING OR ANY OTHER SERVICE
OF THE CIRCULATING SYSTEM: (A) TURN THE PUMP OFF AND SHUT OFF ANY
AUTOMATIC CONTROLS TO ENSURE THE SYSTEM IS NOT INADVERTENTLY
STARTED DURING THE SERVICING; (B) OPEN AIR RELIEF VALVE; (C) WAIT
UNTIL ALL PRESSURE IS RELIEVED.
2. WHENEVER INSTALLING THE FILTER LOCK RING FOLLOW THE CLEANING
FILTER INSTRUCTIONS EXACTLY.
3. ONCE SERVICE ON THE CIRCULATING SYSTEM IS COMPLETE FOLLOW INITIAL
START SYSTEM RESTART INSTRUCTIONS EXACTLY.
4. MAINTAIN CIRCULATION SYSTEM PROPERLY. REPLACE WORN OR DAMAGED
PARTSIMMEDIATELY(e.g.,lockring,pressure gauge, relief valve, O-rings, etc.).
5. BE SURE THAT THE FILTER IS PROPERLY MOUNTED AND POSITIONED
ACCORDING TO INSTRUCTIONS PROVIDED.

P/N 99101100 4 REV. F 5-1-01

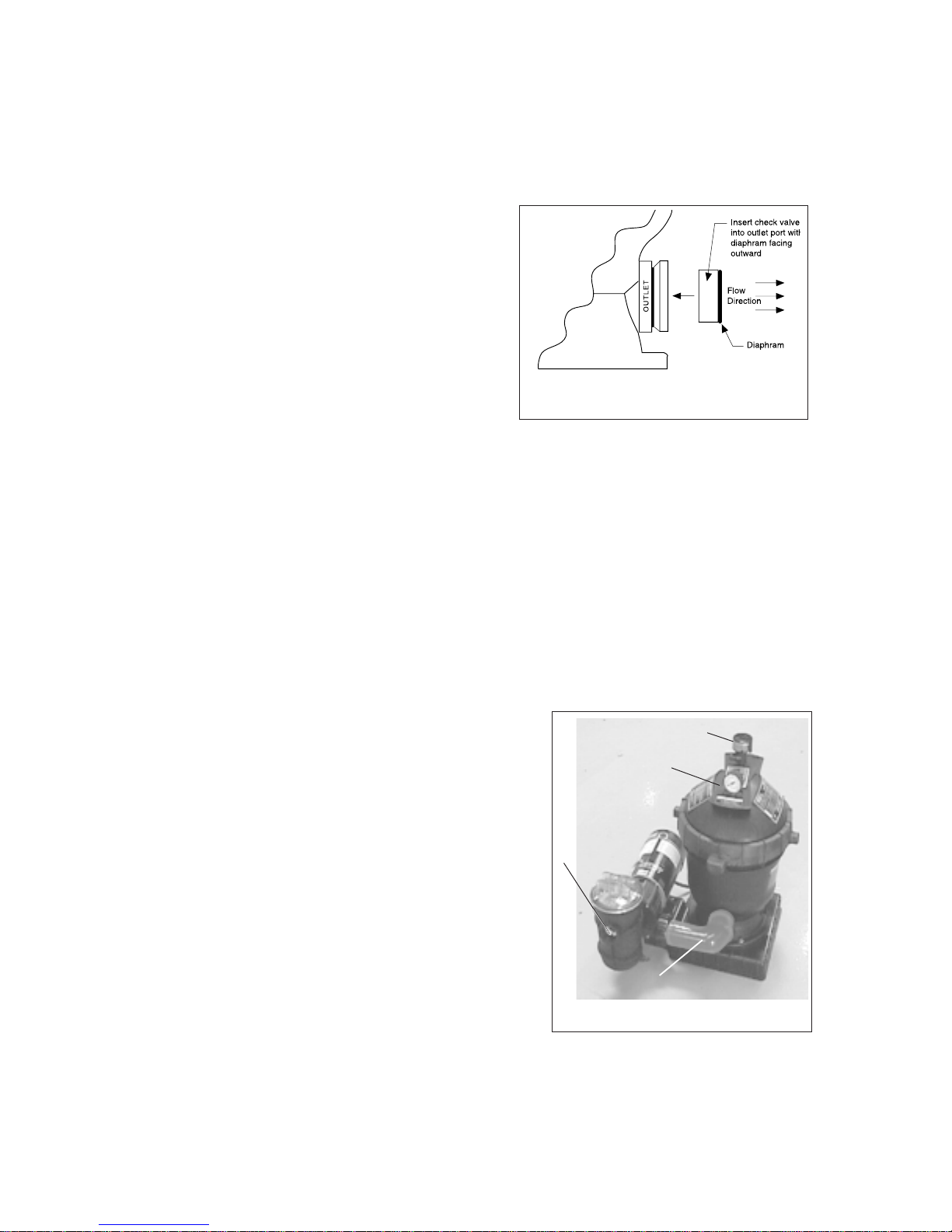

6. Insert the Check Valve into the outlet port
approximately 3/4" to 1" deep making sure the
rubber diaphragm facing outward (towards you),
seeDiagram1.
7. Reconnect the return hose to the outlet port and
tighten the union fitting.
8. Replace the drain cap.
9. Remove the rag from the skimmer or open the
valve on the suction line.
10. If the return line was plugged, unplug it at this time.
11. Withthe HighFlow™ manualair reliefvalve inthe
open position, start the filter pump, after a steady stream of water appears close the High Flow™
manualairreliefvalve.
12. Your system is now in operating order.
SECTIONIV. INSTALLATION
To install this filter system, you will need the following simple tools - a screwdriver, pliers, and wrench.
1. Carefully remove the equipment from the carton and check for any evidence of damage due to
rough handling or shipping. If any of the equipment is damaged, immediately notify the
organization where the equipment was purchased.
2. Position a tee-nut on the boss underneath the skid base. Screw a bolt with washer into the tee-nut
from the top of the base. Continue screwing the bolt into the tee-nut until the tee-nut is flush with
the boss. Unscrew the bolt. Repeat procedure for the remaining bosses.
3. This filter should be mounted on a level concrete slab, preferably concrete poured in a form or on
a platform constructed of concrete block or brick.
4. Depending upon how your skimmer is positioned in
relationship to the return fitting, see Diagram 3, either
right or left of the skimmer, position the mounting base
accordingly; see Diagram 3. Position the filter tank on
the mounting base so the filter inlet port is oriented
towardthepumpsimilartoDiagram2.Securethefilter
to the mounting base using two bolt fasteners. Place
the pump on the mounting base; see Diagram 2.
Loosely attach the pump connector, see Detail A, to the
pump and filter. This will align the pump to the correct
set of mounting holes. Secure the pump to the base
using two bolt fasteners. Tighten the union fittings on
the plumbing connector by hand until tight. If water
leakage occurs at these connections, adjust
connections with a wrench making sure not to exceed 1/
4 of a turn.
Diagram1.
inlet
DetailB
Diagram2.
DetailC
DetailD
DetailA

REV. F 5-1-01 5 P/N 99101100
5. Do not mount electrical controls (on/off switches, timer, etc.) over the filter. You need to be able to
stand clear of the filter when starting the pump.
6. Attach the hair and lint pot to the front of the pump. This is an O-ring seal fitting that requires hand
tighteningonly.(OVERTIGHTENINGCANRESULTINDAMAGETOTHEO-RINGSEAL)
7. Install the threaded fitting, see Diagram 3 – Figure 1, into the suction port of the pump. This is an
O-ringsealfittingthatrequireshandtighteningonly.(OVERTIGHTENINGCANRESULTIN
DAMAGETOTHEO-RINGSEAL)
8. Install the threaded return fitting into the filter outlet port, see Diagram 3 – Figure 2, making sure that
the O-ring is in place in the filter body. Tighten this connection by hand until tight. If water leakage
occurs at this connection after installation, adjust connection with a wrench making sure not to exceed
1/4ofaturn.(OVERTIGHTENINGCANRESULTINDAMAGETOTHEFILTER)
9. Connect black hoses to the equipment and the pool with
the clamps provided.
a. Connect the skimmer suction port from the pool to
the pump inlet.
b. Connect the filter outlet port to the return fitting of
the pool, see Figure 1.
c. InstalltheHighFlow™airreliefvalve,seeDiagram
2 – Detail C, into the top of the filter tank lid. This is
an O-ring seal that requires hand tightening only.
d. Install the pressure gauge, see Diagram 2 – Detail D,
using the Teflon tape provided. Wrap the threads of
the pressure gauge with three layers. Install the
gauge into the top of the filter tank until tight.
10. Never install a pump in this system that exceeds the
maximumpressureofthisfilter,
see data label.
11. If using the optional Chlorinator Base, knockout the
two slots on the system base with a hammer and
screwdriver.
12. Slide the two tabs on the Chlorinator Base into the slots
on the system base; see Diagram 4.
Diagram3.
To
Skim-
mer
To
Return
Fitting
Tabs
Diagram4.
Slots
Skimmer
Figure1. Figure2.
Return
POOL

P/N 99101100 6 REV. F 5-1-01
SECTIONV. INITIALSTART-UPANDRESTARTINSTRUCTIONS.
1. Be sure all connections have been made and are secure.
2. Make sure the hair and lint pot of the pump is filled with water.
(FAILURE TO FILL THE HAIR AND
LINT POT WITH WATER WILL RESULT IN DAMAGE TO THE PUMP AND PUMP SEAL).
3. OPEN THE HIGH FLOW MANUAL AIR RELIEF VALVE UNTIL IT SNAPS INTO THE FULL OPEN
POSITION (THIS ONLY REQUIRES A 1/4 TURN COUNTERCLOCKWISE).
4. STANDCLEAROFTHEFILTER.Startpumpallowingthefiltertanktofillwithwater.Closethe
high flow air relief valve after a steady stream of water appears.
5. Your filter has now started its filter cycle. You should check that the water is returning to the pool
and take note of the operating pressure. My original starting pressure is ___________ PSI with the
filterclean.
6. Check the system for water leaks. If a leak is found, shut off pump before correcting the leak.
7. As the filter removes dirt and impurities from the pool water, the accumulation will cause the filter
pressure to rise and the flow to diminish. When the pressure gauge reading is 8 to 10 PSI higher
than the clean filter reading noted above, it is time to clean the filter’s element grids, see SECTION
VI.CLEANINGTHEFILTER,below.
SECTIONVI. CLEANINGTHEFILTER
1. Cleaning frequency will vary from pool to pool and with other factors such as weather conditions,
heavy rains, dust pollen, bather load and water chemistry. Check the pressure gauge reading on a
regular basis and when the pressure gauge reading increases 8 to 10 PSI over the initial clean filter
reading,itistimetocleanyourCARTRIDGEELEMENT.
2. Turn the pump off, shut off any automatic controls to assure that the system is not inadvertently
started during servicing.
3. Plug the skimmerportwith a rag.This will prevent poolwater from runningoutduring servicing.
4. OpenthefilterHighFlow™manualairreliefvalve,andthefilter drainplug.
5. Remove the hair and lint strainer pot lid and clean the basket. Replace the basket and secure the lid.
6. Remove the filter lock ring by depressing the two spring loaded locking blocks and rotating the ring
counter clockwise until the ring is free from the filter body.
7. Remove the filter lid using the lifting handles on the lid.
WARNING
Thisfilteroperatesunder high pressure. When any partofthecirculating system (e.g., lock
ring,pump,filter, valves, etc.) isserviced, air can enter thesystem and become pressurized.
Pressurizedair can cause thelid to be blownoff which can resultin severe injury, death,or
propertydamage.

REV. F 5-1-01 7 P/N 99101100
8. Removethe CARTRIDGEELEMENTassembly fromthefilterbodyby usingthelifting handlesand
pulling straight up.
9. RemovetheCARTRIDGEELEMENTfromthecoreassemblybyplacingyourmiddlefingersinto
cloth area and using your thumbs on top of the lifting handles and pressing until the CARTRIDGE
ELEMENT is loose and freely slides off the center core assembly.
10. Using a garden hose, direct water spray at the CARTRIDGE ELEMENT to dislodge and wash away
any accumulated foreign matter and Diatomaceous Earth. Thoroughly clean the elements.
11. Clean and remove debris from the inside of the filter tank.
12. Replacethe CARTRIDGEELEMENTover thecenter coreassemblymaking surethe endofthe
element with the wording ‘This Side Up’ is facing up.
13. Replacethe CARTRIDGEELEMENT intothe filtertankbody makingsure thearrow onthe topof
the center core is aligned with the filter inlet port. You will be able to feel the assembly drop into
and lock into place when in the proper position.
14. Clean any debris from the O-ring at the top of the filter tank. Apply a silicone lubricant to the O-ring.
DO NOT USE A PETROLEUM-BASE LUBRICANT ON THE O-RING.
Failure to properly clean and lubricate the O-ring may result in water leakage.
15. Replace the filter tank lid making sure it is fully and firmly seated on the tank body.
16. Place the filter lock ring over the filter lid, and turn clockwise until the safety latches click and the
lock ring hits the stops on the body.
DO NOT ATTEMPT TO OVER TIGHTEN THE FILTER LOCK RING AFTER THE SAFETY LATCHES HAVE
ENGAGED.
17. Replace the drain cap hand tight only.
18. Follow Initial Start Up and System Restart Instructions; see Section V.
WARNING
Ifthe filter lock ringis damaged, replace itimmediately.
Thisfilteroperatesunder high pressure. Replace locking ringifdamagedor worn. Failure to
replacelocking ring can resultin the lid separatingfrom the filter whichcan cause severe
injuryor death.
WARNING
Failuretooperateyourfiltersystemorinadequatefiltrationcancause poor water clarity obstructing
visibilityinyour pool. Poor water claritymayobscure objects in the waterwhichwhile swimming and
divingcouldcause severe personal injury anddeath.Never swim in a poolwithpoor water clarity.

P/N 99101100 8 REV. F 5-1-01
SECTIONVII. WINTERIZINGTHEFILTER
1. In areas that have freezing winter temperatures, the pool
equipment must be winterized to protect it from damage.
2. With the pump turned off, open the High Flow™ manual
airreliefvalve.
3. Remove the drain port cap, and allow the filter to drain
completely.
4. Remove the drain port plugs on the pump and allow the
pumptodrain completely.
5. Drain all appropriate system piping.
6. It is recommended that the pump and filter be covered with
a tarpaulin or plastic sheet to inhibit deterioration from the
weather.
DO NOT WRAP THE PUMP MOTOR WITH PLASTIC.
7. Yourfiltersystemisnowwinterized.
8. SeeSECTIONV.INITIALSTART-UPANDSYSTEM
RESTART, when pool is ready to be opened for the season.
SECTIONVIII. CLEANINGTHEHIGHFLOWMANUALAIRRELIEFVALVE
1. Turn the pump off and shut off any automatic controls to ensure that the system is not
inadvertently started during servicing.
2. OPEN THE HIGH FLOW MANUAL AIR RELIEF VALVE UNTIL IT SNAPS INTO THE FULL OPEN
POSITION, THEN WAIT UNTIL ALL PRESSURE IS RELIEVED.
3. With the relief valve attached to the filter tank, pull out the locking tabs and remove the valve stem
and cover assembly with a counter clockwise and lifting motion, see Figure 4.
4. Clean the debris from the valve stem and body. Verify that the filter tank’s air passage is opened by
inserting a 5/16" drill bit through the valve body. Verify that the O-rings are in good condition,
properly positioned, and lubricated with a silicone base lubricant.
5. Reinstall the valve stem and cover assembly with a downward and clockwise motion until it snaps
into position.

REV. F 5-1-01 9 P/N 99101100
SECTIONIX. TROUBLESHOOTING
Problem Cause Remedy
Pool water not 1. Pool chemistry not adequate to inhibit algae growth. Maintain pool chemistry or consult pool service technician.
sufficiently clean. 2. Inadequate turnover rate. Run system for longer time or consult dealer or pool service
technician.
Higher filter pressure. 1. Insufficient cleaning of the filter element. Clean the filter element (see Cleaning Filter instructions).
2. Partially closed valve or restriction. Open valve or remove obstruction in return line.
Short filter cycles. 1. Insufficient cleaning of filter element. Clean the filter element (see Cleaning Filter instructions).
2. Pool chemistry not adequate to inhibit algae growth. Maintain pool chemistry or consult pool service technician.
3. Flow rate too high. Restrict flow to capacity of filter.
Return flow to pool 1. Obstruction in the pump hair and lint pot. Clean basket in strainer.
diminished, low filter 2. Obstruction in pump. Disassemble and clean pump.
pressure. 3. Obstruction in suction line to pump. Clean skimmer basket. Remove obstruction in lines. Open valves
in suction line.
SECTIONX. PUMPINSTRUCTIONS
Systems are supplied with either the Maxim or the Dynamo Pump.
1. TOPRIMEPUMP-(pumpmustbeoff).
Unscrew the lid from the pot and fill the pot with water to level of the suction line. Inspect O-ring,
lubricate with silicone lubricant. Screw the lid into the pot, hand tighten, lid shoulder will come to
rest on the pot surface. Turn the pump on, priming time will vary depending upon elevation above
water level and horizontal distance of suction line. If the filter is installed, open the air relief valve
(before turning the pump on) until a steady stream of water comes out, then close the air relief valve.
Thepumpis now primed. Ifthe pump is installedbelow water level, closethe return line priortofilling
the hair and lint pot with water. Line must be re-opened before turning the pump on.
2. TOCLEANBASKET-(pumpmustbeoff)
Follow the instructions above to prime the pump. After removing the lid, remove the basket and
empty the debris. Replace the basket and proceed to fill the pot with water. It is important to visually
inspect the basket, through the see through lid, at least once a week. A dirty basket will reduce the
efficiency of your system, and can put an abnormal load on the pump which could result in costly
repairbills.
WARNING
Toreduce the risk ofelectrical shock, only connectto a GFCI protectedreceptacle. Failure to do
socould result in anelectrical shock to poolusers, installers, or otherswhich can result in
seriouspersonalinjury or death.

P/N 99101100 10 REV. F 5-1-01
3. SHAFT SEAL - (rotary seal). The shaft seal consists of two parts:
a. Rotating ceramic seal, press fitted into the impeller.
b. A stationary spring loaded seal, press fitted into the rear of the volute.
4. THEELECTRICMOTOR.
a. The electric motor should be protected from foreign matter, water splashing, hosing, and the
weather. Enclosures should be well ventilated to prevent overheating. If a motor becomes
wet, permit it to dry before running it. If a motor has been damaged by water or dirt, the
warranty is void.
b. The motors used on these pumps are 48 frame through bolt motors. The through bolts are
used to secure the volute to the motor. When replacing the motor, mark the end bells and the
motor shell to indicate alignment. Remove the four nuts from the through bolts at the shaft
end. Place the shaft through the back of the volute and locate the bolts in line with the brass
inserts located in the four legs at the rear of the volute. Be sure the end bell and the shell
marking line up. Securely fasten the motor to the volute.
c. Protectthe motorfromheat. Provide ampleventilation.
CAUTION
The highly polished and lapped faces of the seal are easily damaged. Handle with care.
This centrifugal pump requires little or no service, however the shaft seal will wear with normal use
over the years and will require periodic replacement.
ALWAYS MAINTAIN PROPER WATER LEVEL IN THE POOL. Water level must be half way up the skimmer
opening.A low water levelcan cause the pumpmotor to run drywhich will damage themechanical seal and
causeexternal leakage.
CAUTION
CAUTION
DONOT RUN PUMP DRY. If the pump isrun dry, the mechanical seal will be damagedand external
leakagewill occur. When aseal is damaged, theseal must be replaced.

REV. F 5-1-01 11 P/N 99101100

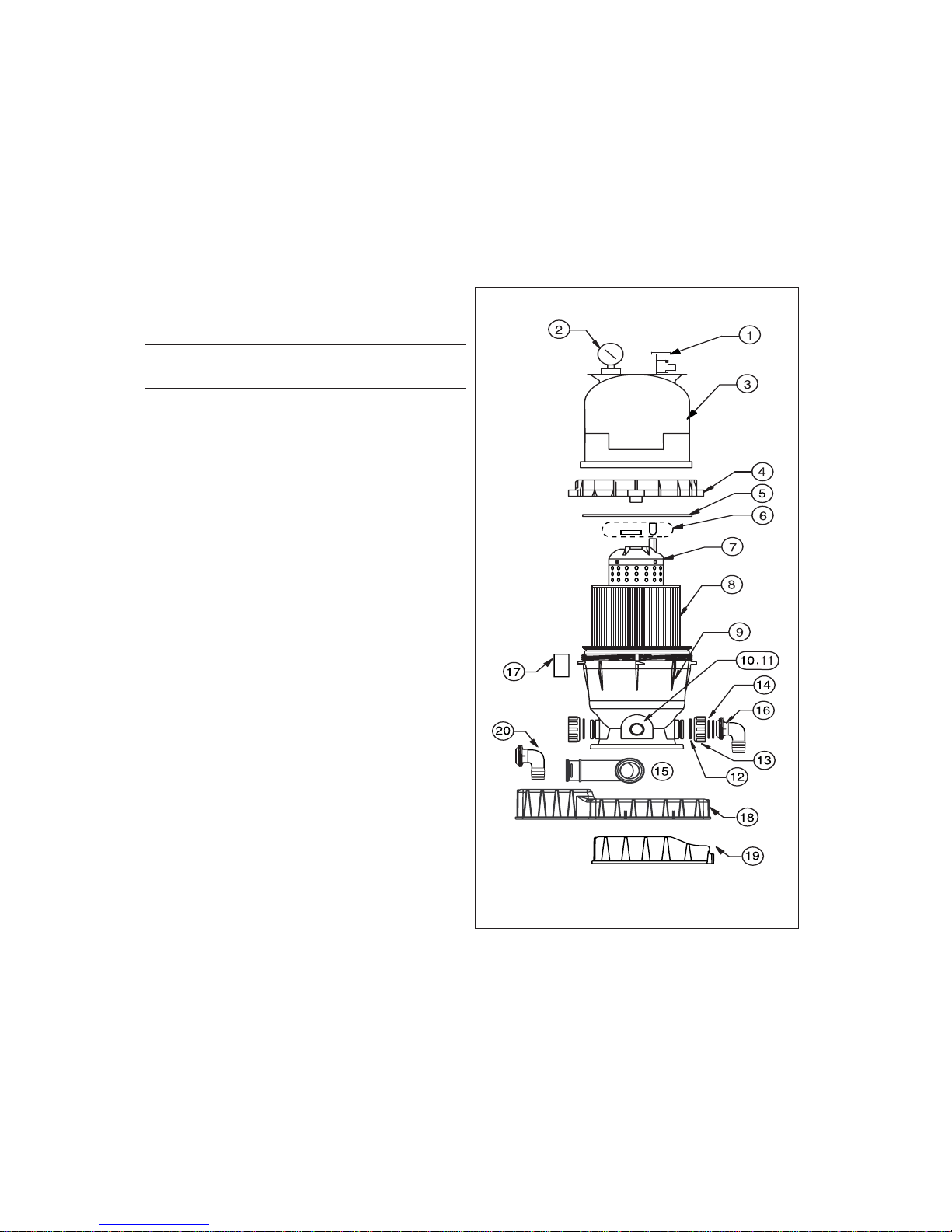

Replacement Parts
Find Part Description
No. No.
1 98209800 High Flow Manual Air Relief Valve
2 53003201 Pressure Gauge
3 178553 Lid, 50/100 Sq./Ft.
3 178561 Lid, 75 Sq./Ft.
4 59052900 Locking Ring Assy.
5 87300400 Body O-ring
6 59016200 Air Bleed Sock Kit
7 59053500 Center Core, 50 Sq./Ft.
7 59053600 Center Core, 75 Sq./Ft.
7 59053700 Center Core, 100 Sq./Ft.
8 59054000 Cartridge Element, 50 Sq./Ft.
8 59054100 Cartridge Element, 75 Sq./Ft.
8 59054200 Cartridge Element, 100 Sq./Ft.
9 178562 Bottom, 50 Sq./Ft.
9 178554 Bottom, 75 Sq./Ft.
9 178563 Bottom, 100 Sq./Ft.
10 86202000 Drain Cap W/ O-ring
11 51005000 O-ring, Drain Cap
12 39104500 Union Nut “C” Clip
13 98212200 Union Nut
14 39102800 Union O-ring
15 178543 Pump Connector
16 39107400 Outlet Connector
17 51516100 Check Valve Kit
18 178540 System Base Assy.
19 178541 Chlorinator Base
20 79304700 Union, Body, for Chlorinator Attach.
98200700 Bolt
98317100 T-nut
39201400 Pump Support
SECTIONXI. TECHNICALDATA
A. FILTERAND TANK

P/N 99101100 12 REV. F 5-1-01
SECTIONXI. TECHNICALDATA(continued)
B. MAXIM PUMP
Find Part Description
No. No.
1 98206400 Plug, ¼ in. with O-ring
2 57006500 O-ring
3 39102503 Volute, S Series, vertical
4 39701200 Seal, shaft
5 39104600 Impeller,½ hp
5 39153100 Impeller, ¾ hp
5 39153200 Impeller, 1 hp
5 39153400 Impeller, 1½ hp
5 39153500 Impeller, 2 hp
5 39153100 Impeller, ½ hp, 50 cycle
5 39153200 Impeller, ¾ hp, 50 cycle
5 39153300 Impeller, 1 hp, 50 cycle
5 39153400 Impeller, 1½ hp, 50 cycle
6 39101500 O-ring, volute
7 98210400 Screw, faceplate, 8-32 x 5/8 in., S Series
98215000 No.10 lock washer, internal star
98215200 Nut, hex, 10-24 Maxim pump
8 39106800 Pot, Union Nut, face plate, wear ring assy.
9 39101200 Basket
10 39101900 O-ring
11 39101100 Lid, clear
11 39101199 Lid, baquacil resistant
12 39502500 Face plate side
13 39102100 Slinger
14 39701800 Weir ring
39102300 Body, Swivel Union
39102400 Nut, Swivel Union
Find Part Description
No. No.
10
5
14
12
1
2
8
9
11
7
64313
21
ReplacementParts

REV. F 5-1-01 13 P/N 99101100
SECTIONXI. TECHNICALDATA,(continued)
C. DYNAMO PUMP
D Y N A M O
C
OO
SNAP TAB
SNAP TAB
MOTOR - SEE NOTE 1
SNAP TAB SLOT
18
26
25
24, 24A
20
21 27
19
23
22
12
17
13
14
15
11
10
16
9
97
8
6
54
3
2
1
*
*
*
Motors
1 35-6471 ¾A std. 48 frame thru-blt 115 only
1 35-6472 1A std. 48 frame thru-blt 115 only
1 35-6469 1½A std. 48 frame thru-blt 115/230
1 35-6481 ¾ 2 spd std. 48 frame thru-blt 115 only
1 35-6551 1hp 2 spd std. 48 frame thru-blt 115 only 23 lbs.
1 35-6486 1½ 2 spd std. 48 frame thru-blt 115 only
1 35-6438 ¾ std. 48 frame thru-blt 115 only
1 35-6439 1 std. 48 frame thru-blt 115 only
1 35-6440 1½ std. 48 frame thru-blt 115/230 23 lbs.
1 35-6445 2 std. 48 frame thru-blt 115/230 28 lbs.
1 35-6441 ¾ 2 spd std. 48 frame thru-blt 115 only
1 35-6442 1 hp 2 spd std. 48 frame thru-blt 115 only
1 35-6443 1½ 2 spd std. 48 frame thru-blt 230 only
2 35-4632 Diffuser - ¾ hp bracket
2 35-4633 Diffuser - 1, 1½ hp bracket
3 35-4542 Nut - 10-24 s/s, 6 req.
4 35-4634 O-ring - 3/16 in. bracket diffuser
5 35-4545 Seal - 5/8 in. Mechanical
6 35-3002 Impeller - 1½ hp
6 35-4552 Impeller - ¾ hp
6 35-5122 Impeller 1, 1½ HP
7 35-4630 Housing, body
8 35-4541 Screw10-24-1½ in. slotted hex, 6 req.
9 15-4481 Plug - ¼ in. drain, 2 req.
10 27-3062 O-ring
11 35-4530 Pot
12 35-4548 Basket w/handle
13 35-4533 O-ring, lid
14 35-4531 Lid- universal
15 35-4547 Valve - check
16 35-4538 Bracket - check valve securing
17 35-4540 Screw- 6-19 X 3/8 in. (obselete)
18 35-4583 Adaptor, 1½ in. thrd.
19 35-2207 Adaptor, 1½ in. quick connect, 2 req.
20 35-2206 Nut, 1½ in. quick connect, 2 req.
21 35-4571 O-ring, 2 req.
22 35-4103 Pot assy.
Find Part Description
No. No.
(continued on next page)
Find Part Description
No. No.
ReplacementParts

P/N 99101100 14 REV. F 5-1-01
15-5118 25 ft. cord and plug
15-5370 25 ft. cord and plug, CSA approved
15-5234 3 ft. cord with twist lock plug
35-2245 Strain relief bushing for cords
15-5297 Photo sensor add-on
23 35-4650 Body - motor enclosure
24 35-4656 Cap - motor enclosure
25 15-4716 Screw - #10 self-tapping
26 15-5371 Cord - 25 ft.
27 35-4657 Bushing
28 15-5187 Switch - on/off TOGGLE
28a35-6546 Switch - 3 pos. toggle
29 15-5193 Wire - 6 in. jumper
30 35-4658 Insulation - foam strip adhesive backing
31 35-4659 Window - light sensor
SECTIONXI. TECHNICALDATA,(continued)
B. DYNAMOPUMP, (continued)
D Y N A M O
C
OO
SNAP TAB
SNAP TAB
MOTOR - SEE NOTE 1
SNAP TAB SLOT
18
26
25
24, 24A
20
21 27
19
23
22
12
17
13
14
15
11
10
16
9
97
8
6
54
3
2
1
*
*
*
Find Part Description
No. No.
ReplacementParts
SAVE THESE INSTRUCTIONS.

REV. F 5-1-01 15 P/N 99101100
