Pentair STA-RITE POSI-CLEAR RP User manual

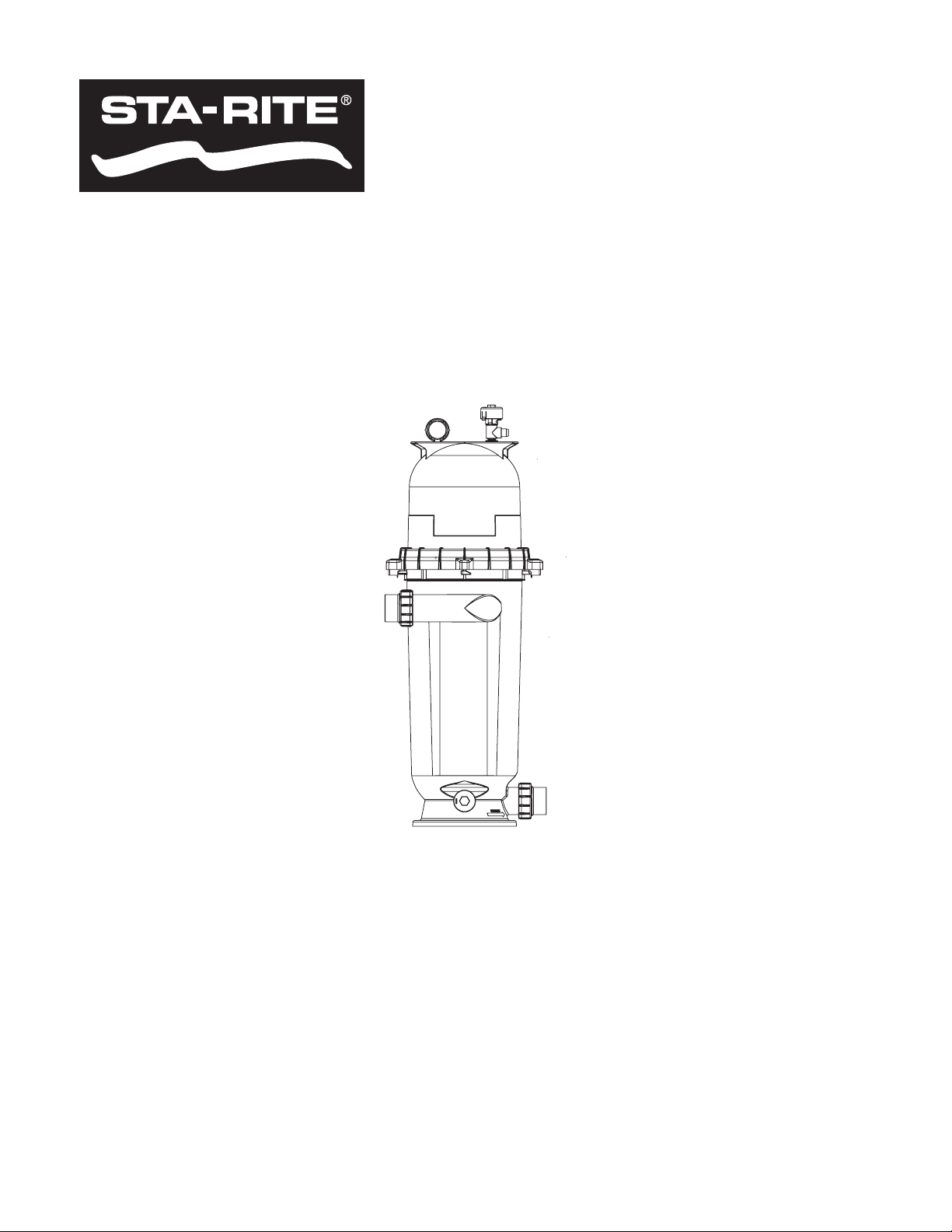

POSI-CLEAR®RP
CARTRIDGE FILTER
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND
USER’S GUIDE

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
P/N 178736 Rev. B 11/12/18
If you have questions about ordering Pentair replacement parts, and pool products, please contact:
CUSTOMER SERVICE / TECHNICAL SUPPORT
TABLE OF CONTENTS
Important Warnings and Safety Instructions ....
General Information ............................................
General Operation Information
Pressure Tests
Installation ............................................................
Filter Location
Filter Plumbing
Operation ..............................................................
Lock Ring Installation Instructions
Startup Instructions
Maintenance .........................................................
Maintaining the Pressure Gauge
Cleaning the Manual Air Relief Valve
Cleaning the Filter
Replacing Cartridge Element
i
1
1
1
2
2
2
3
3
3
4
4
4
5
5
Troubleshooting ..................................................
Technical Data .....................................................
Pressure Loss Chart
Flow Rates
Dimensional Drawings
Replacement Parts ..............................................
6
7
7
7
7
8
i
Customer Service and Technical Support, USA
(8 A.M. to 4:30 P.M. — Eastern/Pacific Times)
Phone: [phone]
Fax: [phone]
Web site
Visit www.pentair.com for information about
Pentair products.
Sanford, North Carolina (8 A.M. to 4:30 P.M. ET)
Phone: [phone]
Fax: [phone]
Moorpark, California (8 A.M. to 4:30 P.M. PT)
Phone: [phone] (Ext. 5591)
Fax: [phone]

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
ii
IMPORTANT WARNINGS AND SAFETY INSTRUCTIONS
Consumer Information and Safety
This filter is designed and manufactured to provide many years of safe and reliable service when installed, operated and maintained
according to the information in this manual and the installation codes referred to in later sections. Throughout the manual, safety warnings
and cautions are identified by the “ “ symbol. Be sure to read and comply with all of the warnings and cautions.
Before installing this product, read and follow all warning notices and instructions which are included. Failure to
follow safety warnings and instructions can result in severe injury, death, or property damage. Call [phone]
for additional free copies of these instructions or replacement safety labels.
Do not operate the filter until you have read and understand clearly all the operating instructions
and warning messages for all equipment that is a part of the pool circulating system. The following instructions are
intended as a guide for initially operating the filter in a general pool installation. Failure to follow all operating instructions and warning
messages can result in property damage or severe personal injury or death.
Due to the potential risk that can be involved it is recommended that the pressure test be kept to the minimum time
required by the local code. Do not allow people to work around the system when the circulation system is under
pressure test. Post appropriate warning signs and establish a barrier around the pressurized equipment. If the
equipment is located in an equipment room, lock the door and post a warning sign.
Never attempt to adjust any closures or lids or attempt to remove or tighten bolts when the system is pressurized.
These actions can cause the filter to separate and could cause severe personal injury or death if they were to
strike a person.
This filter must be installed by a qualified pool serviceman in accordance with all applicable local codes and
ordinances. Improper installation could result in death or serious injury to pool users, installers, or others and may
also cause damage to property.
Always disconnect power to the pool circulating system at the circuit breaker before servicing the filter. Ensure that
the disconnected circuit is locked out or properly tagged so that it cannot be switched on while you are working on
the filter. Failure to do so could result in serious injury or death to serviceman, pool users or others due to electric
shock.
DO NOT permit children to use this product.
IMPORTANT NOTICE:
This guide provides installation and operation instructions for the this filter. Consult Pentair Water Pool and Spa, Inc. with any
questions regarding this equipment.
Attention Installer: This guide contains important information about the installation, operation and safe usage of this product. This
information should be given to the owner and/or operator of this equipment after installation.
Attention User: This manual contains important information that will help you in operating and maintaining this filter. Please retain it
for future reference.
This is the safety alert symbol. When you see this symbol on your system or in this manual, look for one of the
following signal words and be alert to the potential for personal injury.
Warns about hazards that can cause death, serious personal injury, or major property damage if ignored.
Warns about hazards that may cause death, serious personal injury, or major property damage if ignored.
Warns about hazards that may or can cause minor personal injury or property damage
if ignored.
NOTE Indicates special instructions not related to hazards.
Carefully read and follow all safety instructions in this manual and on equipment. Keep safety labels in good condition; replace if missing
or damaged.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
THIS SYSTEM OPERATES UNDER HIGH PRESSURE
When any part of the circulating system, (e.g., closure, pump, filter, valve(s), etc.), is serviced, air can enter the
system and become pressurized. Pressurized air can cause the top closure to separate which can result in severe
injury, death, or property damage. To avoid this potential hazard, follow these instructions:
1. Let air and pressure out of system before and after servicing.
a. Shut off pump and RELIEVE PRESSURE by opening the manual air/pressure relief valve before
servicing.
b. Follow Startup Instructions exactly after completing service (page 3). The air/pressure relief valve
must remain open until water comes out, allowing all air out of the system.
2. Install lock ring properly.
a. Follow Lock Ring Installation Instructions exactly (page 3).
3. Maintain circulation system properly to help prevent air entering the system.
a. Replace worn or damaged parts immediately, (e.g., closure, pressure gauge, valve(s), O-rings,
etc.).
b. Maintain proper water level in the pool or spa.
4. Verify that the return line to the pool is unobstructed. Ensure return valves are open and any winterizing
plugs are removed.
AVOID DAMAGING SYSTEM
Never Exceed Maximum Pressure of Components. The maximum working pressure of this filter is 50 psi. Never
subject this filter to higher pressure, even when conducting hydrostatic pressure tests. Pressures above 50 psi can damage your filter.
Be sure the maximum pressure of the filter system does not exceed the maximum pressure of any components within the system
(typically stated on each component), including during hydrostatic or external leak tests. Exceeding the maximum pressure of a
component can result in that component failing. If you do not know the pool or spa system operating pressure, install an ASME
approved automatic Pressure Relief or Pressure Regulator in the circulation system set to the lowest working pressure of any of the
components in the system.
Certain codes may require pressure testing the system. Performing pressure tests increases the risk of
component failure. Due to the potential risk that can be involved, keep the pressure test to the minimum time
required by the local code and take precautions. If pressure testing is necessary, follow these precautions:
1. Keep people away.
a. Do not allow people to work around the system when the circulation system is under pressure test.
Post appropriate warning signs and establish a barrier around the pressurized equipment. If the
equipment is located in an equipment room, lock the door and post a warning sign.
2. Never exceed maximum operating pressure.
a. When performing hydrostatic pressure tests or when testing for external leaks of the completed filtration
and plumbing system, ensure that the Maximum Pressure that the filtration system will be subjected
to does not exceed the maximum working pressure of any of the components contained within the
system.
IMPORTANT WARNINGS AND SAFETY INSTRUCTIONS
iii

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
1
GENERAL INFORMATION
THIS SYSTEM OPERATES UNDER HIGH PRESSURE.
When any part of the circulating system (e.g., Lock Ring, Pump, Filter, Valves, etc.) is serviced, air can enter the
system and become pressurized. Pressurized air can cause the lid to separate which can result in serious injury,
death, or property damage. To avoid this potential hazard, follow the instructions below.
TABLE 1
ORIGINAL STARTING PRESSURE IS: ________ psi.
(pounds per square inch)
SERVICE THE CARTRIDGES AT: __________ psi.
ORIGINAL PUMP RPM: __________ rpm.
(for Variable Speed Pumps Only)
Pressure Tests
When performing hydrostatic pressure tests or when
testing for external leaks of the completed filtration and
plumbing system, ensure that the Maximum Pressure
that the filtration system will be subjected to DOES NOT
EXCEED THE MAXIMUM WORKING PRESSURE OF ANY OF
THE COMPONENTS CONTAINED WITHIN THE SYSTEM. In
most cases, the maximum pressure will be stated on
each component of the system.
If you do not know the pool or spa system operating
pressure, install an ASME approved automatic
Pressure Relief or Pressure Regulator in the
circulation system set to the lowest working pressure
of any of the components in the system.
General Operation Information
Read and follow all instructions and warnings before
installing or servicing your filter. Proper installation
and operation can prevent unnecessary repairs and
maintenance.
1. The Posi-Clear™ RP Cartridge Filter operates under
pressure. When the lock ring is installed properly and
operated without air in the water system, this filter
will operate in a safe manner.
2. The maximum working pressure of this filter is 50 psi.
Never subject this filter to pressure in excess of this
amount, even when conducting hydrostatic pressure
tests.
3. Be sure the maximum pressure of the filter system
does not exceed the maximum pressure of any
components within the system during hydrostatic or
external leak tests. Consult the maximum pressure
stated on each component of the system.
4. The pressure gauge is the primary indicator of how
the filter is operating. Maintain your pressure gauge
in good working order.
5. Clean your filter when pressure reads between
8-10 psi higher than the “Original Starting
Pressure”, or when significant reduction in flow
is noticed. The pressure reading increases as it
filters dirt from your pool. This build up of pressure
will vary due to different bathing loads, temperature,
environmental conditions, etc.
Note: When using a variable speed pump the
“Original Starting Pressure” will be dependent on
the pump speed (RPM) when recording the original
operating pressure. Record the “Original Pump
RPM” in Table 1.
Note: When the cartridge element filter is used on
new pools and after cleaning the elements, introduce
into the system 0.5 pounds of diatomaceous earth per
every 100 square feet of filter area, (a one-pound coffee
can equals 0.5 pounds of diatomaceous earth). Mix
the diatomite with water and pour it into the skimmer
after the pump is primed and the system is operating.
This will enhance the filtration of your water.
Your filter is a piece of machinery, do not tamper
with it, attempt to disassemble it or otherwise
adjust it unless you fully understand it's operation.
Serious injury or death can occur if the equipment
is improperly handled. Consult a pool service
professional for maintenance and service assistance.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
2
Filter Location
1. The Posi-Clear™ RP Cartridge Filter should be mounted on a level
concrete slab. Position the filter so that instructions, warnings and
the pressure gauge are visible to the operator and readable. It
also should be positioned so that the piping connections, control valve
and waste drain plug are convenient and accessible for servicing and
winterizing.
2. Be certain to install electrical controls (e.g., on/off switches, timers,
control systems, etc.) so that the user is allowed enough space to stand
clear of the filter and pump during startup, shutdown or servicing.
3. Allow sufficient clearance around the filter to permit visual verification
that the lock ring is properly installed around the tank flanges, see
Figure 1.
4. Allow sufficient space above the filter to remove the filter lid for
cleaning and servicing. This distance will vary with the model of
filter you are using. See Table 2 for the required vertical clearance.
5. Position the filter to safely direct water drainage away from
electrical equipment or anything that might be damaged.
6. Position the High Flow™ Manual Air Relief Valve to safely direct
purged air or water.
Figure 1
INSTALLATION
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. Water discharged from an improperly positioned filter or
valve can create an electrical hazard that can cause severe personal injury as well as damage property.
This filter must be installed by a qualified pool technician in accordance with all applicable local codes and
ordinances. Improper installation could result in death or serious injury to pool users, installers, service persons, or
others and may also cause damage to property.
Filter Plumbing
Make all plumbing connections in accordance with local plumbing and building codes. Do not use pipe joint compound,
glue or solvent on the bulkhead connections. The provided filter plumbing connections include an O-ring seal.
Use PTFE or silicone based lubricants when lubricating the O-rings on the union and bulkhead couplings. Use of
petroleum based products will damage the equipment.
For Installation of Electrical Controls at Equipment Pad (ON/OFF Switches, Timers, Control Systems and
Automation) Install all electrical controls at the equipment pad, such as ON/OFF switches, timers, control systems,
etc. to allow the operation (startup, shutdown or servicing) of any pump or filter so the user does not place any
portion of his/her body over or near the pump strainer lid, filter lid or valve closures. This installation should allow
the user enough space to stand clear of the filter and pump strainer lid during system startup, shutdown or servicing
of the system filter.
TABLE 2
Vertical
Model Size Clearance Req.
160351 100 sq. ft. 61 in.
160352 150 sq. ft. 76 in.
160350 200 sq. ft. 76 in.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
3
Lock Ring Installation Instructions
These instructions MUST BE FOLLOWED EXACTLY to prevent the lid from separating during system restart or
later operation.
1. Perform the following steps before working on any part of the circulating system (e.g., lock ring, pump, filter,
valves, etc.).
a. Turn the pump off and shut off any automatic controls to ensure that the system is not
inadvertently started during servicing.
b. Open the High Flow™ manual air relief valve.
c. Wait until all pressure is relieved. Never attempt to assemble, disassemble or adjust the filter
lock ring while there is any pressure in the filter.
2. Be certain the O-ring is in position in the lower tank half. Place the filter lid over the lower tank half, making
sure it is fully and firmly seated on the tank half, see Figure 2.
3. Place lock ring over the tank lid, and centering the lock ring on the threads of the tank body. Turn the lock
ring clockwise until the safety latches click and the lock ring hits the stops on the body. DO NOT ATTEMPT
TO OVER-TIGHTEN THE LOCK RING AFTER LOCK RING HAS HIT THE STOPS ON THE BODY.
4. Follow the Startup Instructions below.
Startup Instructions
1. Open the High Flow™ manual air relief valve until it snaps
into the full open position (this only requires a quarter turn
counterclockwise). Opening this valve rapidly releases air trapped in
the filter.
2. Stand clear of the filter tank, then start the pump.
3. Close the manual air relief valve after a steady stream of water appears.
4. The system is not working properly if either of the following conditions
occur.
a. A solid stream of water does not appear within 30 seconds,
after the pump’s inlet basket fills with water.
b. The pressure gauge indicates pressure before water outflow
appears.
If either condition exists, shut off the pump immediately, open valves
in the water return line to relieve pressure, and clean the air relief valve,
see Cleaning the Manual Air Relief Valve on page 4. If the problem
persists, call [phone] for assistance.
OPERATION
THIS SYSTEM OPERATES UNDER HIGH PRESSURE.
When any part of the circulating system (e.g., Lock Ring, Pump, Filter, Valves, etc.) is serviced, air can enter the sys-
tem and become pressurized. Pressurized air can cause the lid to separate which can result in serious injury, death,
or property damage. To avoid this potential hazard, follow the instructions below.
Filter
Tank
Body
Filter
Tank
To p
Lock
Ring
Figure 2
THIS SYSTEM OPERATES UNDER HIGH PRESSURE.
When any part of the circulating system (e.g., Lock Ring, Pump, Filter, Valves, etc.) is serviced, air can enter the sys-
tem and become pressurized. Pressurized air can cause the lid to separate which can result in serious injury, death,
or property damage. To avoid this potential hazard, follow the instructions below.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
4
MAINTENANCE
Maintaining the Pressure Gauge
The pressure gauge is the primary indicator of how the system is operating, so correct functioning is critical.
Replace the pressure gauge (Pentair P/N 190058) if it does not meet the requirements below:
1. Pressure gauge should go to zero (0) when the system is turned off and pressure is relieved.
2. Pressure gauge should indicate pressure when the system is operating.
3. The pressure gauge should be readable and not damaged in anyway
Cleaning the Manual Air Relief Valve
RECOMMENDED EQUIPMENT:
• 5/16" Drill Bit (to check air passage)
• Silicone-based Lubricant (if needed)
PROCEDURE:
1. Shut off pump and relieve pressure.
a. Turn the pump OFF and shut OFF any automatic controls (e.g., timers)
and disconnect power to ensure that the system is not inadvertently
started during maintenance.
b. Open the manual air relief valve by turning the valve cover assembly a
quarter turn counter-clockwise until it snaps into the full open position.
c. Stand clear of the filter and wait until all pressure is relieved. Pressure
gauge must read zero (0 psi).
2. With the relief valve attached to the Posi-Clear™ RP Cartridge Filter tank,
pull out the locking tabs and unlock the valve stem and cover assembly from
the valve body with a counter-clockwise turn, see Figure 3.
3. Pull the valve stem and cover assembly straight up and away from the valve
body.
4. Clean and check the valve stem and body:
a. Clean off any debris.
b. Verify that the filter tank's air passage is open by inserting a 5/16"
drill bit through the valve body.
c. Verify that the valve stem O-rings are in good condition, properly positioned, and lubricated with a
silicone-base lubricant.
5. Reinstall the valve stem and cover assembly with a downward and clockwise motion until it snaps into
position.
Figure 3
If needed, use only a PTFE or silicone-base lubricant on the O-rings. Use of petroleum based
products on O-rings will damage the equipment.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
5
Cleaning the Filter
1. Turn the pump off, shut off any automatic controls to ensure that the system is not inadvertently started during
servicing.
2. Open the filter High Flow™ manual air relief valve (and the waste drain valve, or cap, if your system has one).
3. Remove hair and lint strainer pot lid and clean basket. Replace basket and secure lid.
4. Disconnect air relief drain hose if installed.
5. Remove lock ring by depressing safety latches on both sides of ring and rotate counterclockwise, then remove
tank lid.
6. Remove the element assembly by placing hands in lifting handles and pulling straight up on the element
assembly.
7. Remove the cartridge element from the center support tube.
8. Using a garden hose with a nozzle, direct water spray at the cartridge element to dislodge and wash away
accumulated foreign matter. Water may be sprayed at the outside as well as the inside of the cartridge
element for thorough cleaning.
7. For cartridges used in pools or spas where high levels of perspiration, suntan lotions and other oils are
present:
a. Soak the cartridge for at least one hour (overnight is most effective) in one of the following:
• A commercial filter cleaner
• One cup trisodium phosphate (TSP) to five gallons of water
• One cup dishwasher detergent to five gallons of water
b. Rinse the cartridge to remove oils and cleaning solution.
8. Direct the water spray to wash out the inside of the tank body and bottom manifold. Water and debris will drain
out through the open drain plug.
9. Check gasket around outer lip of bottom plate. Gasket must be firmly and evenly set around the entirety of the
outer lip.
9. Turn the cartridge element over several times during the washing operation to clean the media thoroughly.
10. Clean and remove debris from inside the filter tank and from the O-ring and O-ring groove on the tank body.
11. Replace clean cartridge element on support tube and install assembly into the filter tank body, aligning the
arrow on the support tube with the inlet port of the filter, making sure it is fully seated. Make sure the internal
air relief screen is attached to the top of the element support tube.
12. Replace the tank lid onto the tank body making sure it is fully and firmly seated on the tank body.
13. Place lock ring over tank lid, and centering the lock ring on the threads of the tank body, turn the lock ring
clockwise until the safety latches click and the lock ring hits the stops on the body. DO NOT ATTEMPT TO
OVER-TIGHTEN THE LOCK RING AFTER LOCK RING HAS HIT THE STOPS ON THE BODY.
Note: Any time the filter tank is opened, and/or element assembly is removed, be sure to generously
coat the O-ring with silicone lubricant before reassembling the unit. DO NOT USE PETROLEUM BASED
LUBRICANTS BECAUSE THEY HAVE A DETERIORATING EFFECT ON RUBBER.
14. Replace drain cap and reinstall manual air relief valve drain hose if used.
Replacing the Cartridge Element
Cartridge element life will vary with pool conditions such as bather load, wind, dust, etc. You can expect an
average media life of three (3) years under normal conditions.
To replace cartridge element follow steps in Cleaning the Filter above.
The following information should be read carefully since it outlines the proper manner of care and operation for
your filter system. As a result of following these instructions and taking the necessary preventative care, you can
expect maximum efficiency and life from your filter system.
Heed all manufacturers' instructions and warnings when using polyhexamethylene biguanide sanitizers or other
cartridge filter cleaner solutions.
Failure to remove all oils and cleaning solutions before acid soaking will result in permanent restriction of water
flow through the filter and will cause premature cartridge failure.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
6
TROUBLESHOOTING
1. Air entering your filter is dangerous and can cause the lid to separate. Correct any conditions in
your filtration system that allow air to enter the system.
Some common ways to identify air entering the system:
a. Low water level in pool or spa - skimmer is starving for water with pump running. Add
water to pool or spa.
b. Air bubbles or low water level in pump hair and lint pot are caused by; low water level,
clogged skimmer basket, split suction cleaner hose, leak in pump hair and lint pot lid, or
leak in pump suction line.
c. Air bubbles coming out of water return lines into pool or spa with pump running.
d. Air is discharged from the air relief valve on top of the filter when the valve is opened with
the pump running.
2. Until the water initially put into the pool has been completely filtered, short filter cycles in
between cleanings are normal. In most cases pool owners are dismayed by the undesirable color
and appearance of water in a newly filled pool. Plaster dust can be responsible for short filter
cycles, requiring frequent cleaning.
3. If pressure drops on gauge, check skimmer basket and pump basket first for debris. If the
baskets are clean, shut off power to pump and turn off any automatic controls. Then turn motor
shaft with your fingers. If it turns freely then the pump must be disassembled and the impeller
checked to see if it is clogged. If it is not frozen or clogged then there is an obstruction in the line
between the pool and the pump.
4. The pressure gauge is an important part of the filter system. It is your primary indicator of
how the system is operating. Maintain your pressure gauge in good working order. Check the
operation of your pressure gauge in the following manner:
a. The pressure gauge should go to zero (0) when the system is turned off and pressure is
relieved.
b. The pressure gauge should indicate pressure when the system is operating.
c. The pressure gauge should be readable and not damaged in any way.
d. Replace the pressure gauge if it does not meet the requirements above.

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
7
(1) Recommended flow rate for residential is 0.5 GPM per sq. ft.
(2) Commercial flow rate is a maximum of 0.375 GPM per sq. ft. of filter area.
NOTE: Actual system flow will depend on plumbing size and other system components.
Flow Rates
Residential
Maximum Cartridge
Flow Rates
Commercial
Maximum Cartridge
Flow Rates
Model # Product # sq. ft. GPM GPH 6 hour 8 hour GPM GPH 6 hour 8 hour
PCRP
100 160351 100 100 6,000 36,000 48,000 38 2,280 13,680 18,240
PCRP
150 160352 150 150 9,000 54,000 72,000 56 3,360 20,160 26,880
PCRP
200 160350 200 150 9,000 54,000 72,000 75 4,500 27,000 36,000
Pressure Loss Chart
TECHNICAL DATA

POSI-CLEAR™ RP Cartridge Filter Installation and User’s Guide
8
Item Part # Description
1 98209800 High Flow Manual Air Relief Valve
2 190058 Pressure Gauge
3 59053001 Lid, 100 sq. ft. Filter
4 178745 Lid, 150, 200 sq. ft. Filter
5 59052900 Lock Ring Assembly
6 87300400 Body O-Ring
7 59016200 Air Bleed Sock Kit
8 59053700 Center Core, 100 sq. ft. Filter
9 59053800 Center Core, 150, 200 sq. ft. Filter
10 R173215 Cartridge Element, 100 sq. ft. Filter
11 R173216 Cartridge Element, 150 sq. ft. Filter
12 R173217 Cartridge Element, 200 sq. ft. Filter
13 178743 Tank Bottom
14 154712Z Drain Cap Assembly (before 10/17)
14 190030Z Drain Cap Assembly (after 10/17)
15 178732 Union Nut “C” Clip
16 U11-200PS Union Nut
17 178746 Union Diamond Seal
18 178733 Union, Threaded Half
1
2
3,4
5
6
7
8,9
10, 11, 12
13
14
15
17
16
18
REPLACEMENT PARTS

NOTES

SPARUS™ 160 Energy Efficient Aquaculture Duty Pump Installation and User’s Guide
NOTES

NOTES

P/N 178736 Rev. B 11/12/18
1620 HAWKINS AVE., SANFORD, NC 27330 • [phone]
10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • [phone]
WWW.PENTAIR.COM
All Pentair trademarks and logos are owned by Pentair or one of its global aliates. Sta-Rite®, Posi-Clear™and High Flow™ are trademarks and/or
registered trademarks of Pentair Water Pool and Spa, Inc. and/or its aliated companies in the United States and/ or other countries. Unless expressly
noted, names and brands of third parties that may be used in this document are not used to indicate an aliation or endorsement between the owners
of these names and brands and Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those
third parties. Because we are continuously improving our products and services, Pentair reserves the right to change specications without prior
notice. Pentair is an equal opportunity employer.
© 2018 Pentair Water Pool and Spa, Inc. All rights reserved. This document is subject to change without notice.
*178736*
