PERFECTPRO Fatbox User manual

GB
NL
D
S
FIN
N
F
DK
Operating instruction
Gebruiksaanwijzing
Bedienungsanleitung
Bruksanvisning
käyttöohjeet
instruksjon
Mode d’emploi
instruktioner

1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with
the instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus ( including amplifiers )
that produce heat.
9. Do not defect the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete
outlet – USA version only.
10. Protect the power cord from being walked on or pinched
particularly at plug, convenience receptacles, and the point
where they exit from the apparatus.

2
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. To reduce the risk of fire or electric shock, Do not expose this
appliance to Rain or Moisture.
16. The Shock Hazard Marking and AssociatedGraphical Symbol
is provided on the bottom panel of unit.
17.Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, shall be placed on the apparatus.
18. For outdoors use, to avoid electric shock, use battery only
during a raining day or the weather is wet.
GB

3

4
Controls
Power On/Off
Charge LEDS
Stereo/Mono switch
EQ ( Equalizer )
Loudness On/Off
Volume Control
LCD display
Tuning Control/Time Set
Band Selection
Preset Stations
Aux In 1 socket
Aux In 2 socket/MP3 player compartment
Back up battery compartment
Main battery compartment
Alkaline/NiMH/NiCad Rechargeable battery switch
10-14V DC In socket
Power cord
FM rubber antenna
LCD Display
Band Indicator and AM/PM
Battery power
EQ indicator
Loudness On
Stereo
Memory preset
Time and Frequency
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
B
C
D
E
F
G
GB

5
Power the radio
A. Battery operation

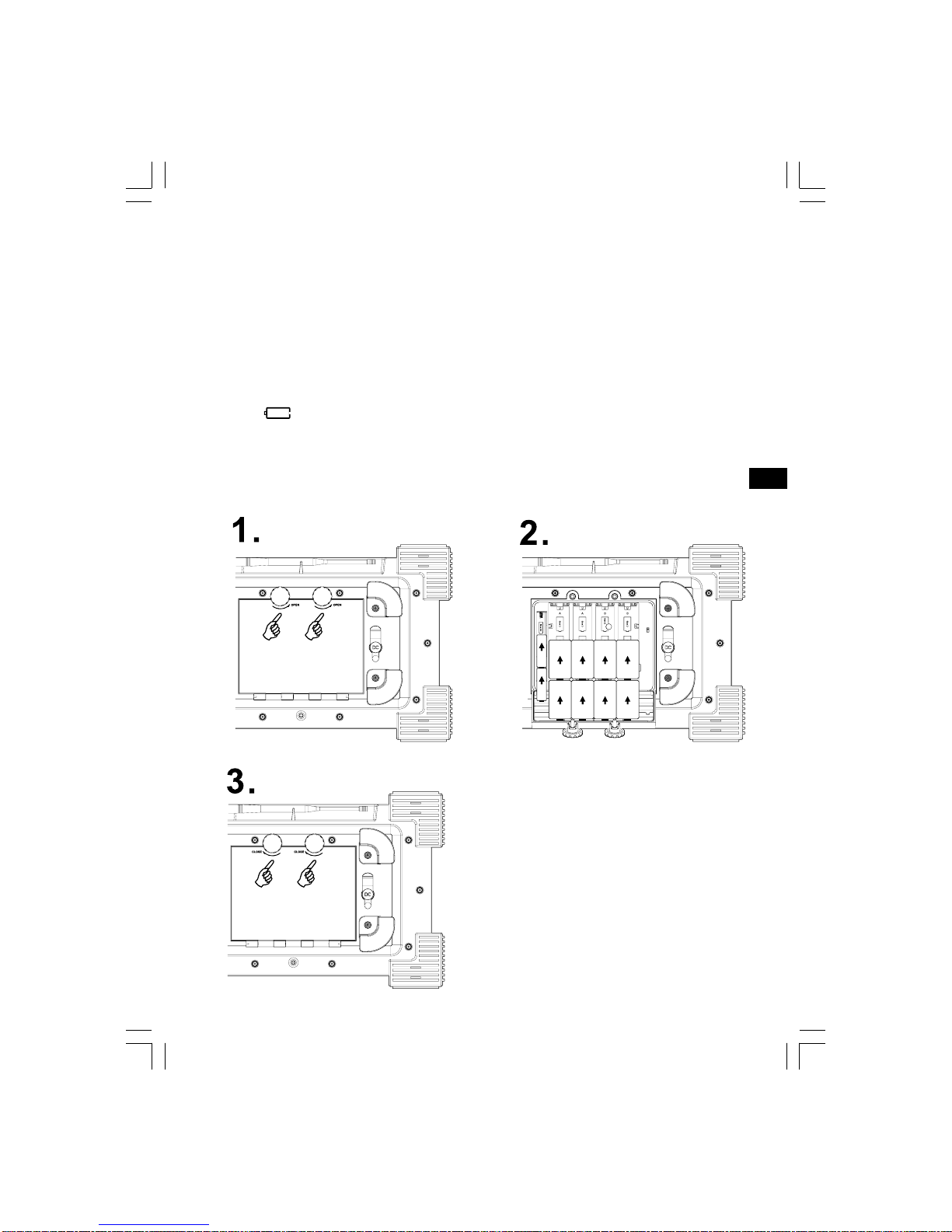

1. Installing the batteries, first turn battery cover fixtures
anti-clockwise to loosen and pull down the battery cover.
Note:
Before you insert the batteries, if you use non-rechargeable
batteries, make sure the NiMH/NiCad /Alkaline switch which located
inside the battery compartment is switched toAlkaline position.
If you use rechargeable batteries, make sure to switch
NiMH/NiCad/Alkaline switch toNiMH/NiCad position.
2. Insert 8 xD size ( UM-1 ) battery into the compartment.
Ensure the battery is inserted in accordance with the
diagram shown.
3. Insert x 2AA size ( UM-3 ) battery into the back up
battery compartment.
Note:
The back up battery is for time and memory station back up during
power failure. It is suggested to replace the back up battery every
six months to avoid battery leakage.
Run time of the radio on batteries varies strongly depending on
the quality and capacity (mAh) of the batteries, temperature,
volume level etc.

6
GB
4. Close the battery cover and fasten the fixture by turning
clockwise.
If the radio is not to be used for any extended period of time, it is
recommended that the batteries are removed from the radio.
Reduced power, distortion and a “ stuttering sound “ or low battery
sign is flashing on the display are all signs that the batteries
need replacing or recharging ( see below Charging the batteries ).

7
B. AC operation
Before plug the AC power cord into the AC socket, be sure the
voltage is correct. If you have batteries in the radio and connect the
AC power cord into the AC socket, the batteries will automatically
be disconnected.
Charging the batteries
Reduced power, distortion and a “ stuttering sound “ or low battery
sign “ “ is flashing on the display are all the signs that the
batteries need to be recharged if you use rechargeable batteries to
power the radio.
Note:
The batteries can be charged only when the radio is off.
Connect theAC power cord into the AC socket to charge
the batteries. Be sure the battery type switch is set toNiNH/NiCad
Rechargeable position.
Battery charging function of this radio only applies to the 8 D-size
( UM-1 ) batteries and not to the AA-size ( UM-3 ) back-up
batteries.
When the batteries are being charged, the red Charge LEDAand
B will be on. LEDAand B will turn into green when the batteries of
charge group A or B are fully charged. Charge until both LEDAand
B are green.
Charging time can take up to approx. 10 hours depending on
capacity of the rechargeable batteries.

8
GB
Charge new batteries fully the first time before first use.
This can take longer depending on the capacity of the
rechargeable batteries.
Do not use a mix of old and new rechargeable batteries.
Do not use a mix of full and empty rechargeable batteries.
Do not use batteries that have a different mAh capacity.
Do not use damaged or leaking batteries.
Charge the batteries in car
The batteries can also be charged in the radio using a 12V car
( cigarette lighter ) adaptor, voltage range 10V-14V, maximum
current of 2.5 A, DC dimension 2.0 mm inner diameter with positive
pole and 6.3mm outer diameter with negative pole. To charge,
connect the adaptor to the car ( cigarette lighter ) socket andDC IN
socket located on the back of the radio.
Setting the clock
The clock can be set either when the radio is on or off.
Press in the Tuning Control/Time set knob until display Hour digit
flashes. Rotate Tuning Control/Time set knob to select required
hour time then press the Tuning control knob again to confirm hour
set. The minute digit will flash, rotate Tuning Control/Time set knob
to select required minute time then press the Tuning control knob
again to confirm minute set.Display will show clock time when time
set is completed.

9
Radio Operation
1. Press the Power button to turn on the radio.
2. Select the required waveband by pressing the Band button.
3. Stand up the FM rubber antenna properly to get best reception.
For AM ( MW ) band, rotate the radio to get best signal.
4. Rotate the Tuning Control knob will change the frequency in the
following increments.
FM: 50 or 100 kHz
AM ( MW ): 9 or 10 kHz
5. Select required EQ and stereo/mono mode.
6. Rotate the volume control to get required sound level.
7. To turn off the radio, press the Power button.
Display will show OFF.
Memory preset stations
There are 6 memory presets for each waveband. Storing stations
in preset memories, follow below steps.
1. Press the Power button to turn on the radio.
2. Tune to required station pressing Band button and rotate
Tuning Control.
3. Press and hold down the required preset until the display M
stop flashing. The preset number will appear in the display
together with M and the station will be stored under chosen
preset button.
4. Repeat this procedure for the remaining presets.
5. Stations stored in preset memories can be over written by
following above procedures.

10
GB
Recall stations from preset memories
1. Press the Power button to turn on the radio.
2. Select the required waveband.
3. Momentarily press the required Preset button, the preset
number and M also station frequency will appear in the display.
Display backlight
Press any button except Power button will illuminate the LCD
display for approx. 15 seconds.
Changing tuning step
Tuning step on some countries are different from where you
purchase the radio. If you buy the radio in Europe and intend to use
inNorthernAmerica or some Latin American countries, you may
have to adjust tuning step so the radio may continue to serve
you well.
While radio is switched off, long press the Band button for approx.
5 seconds until display flashes current FM tuning step 50 ( kHz ).
Rotate the Tuning Control knob, you may adjust to 100 ( kHz ).
Press Band button again to confirm the tuning step change.
Same procedures as above to change AM ( MW ) tuning step.

11
24H/12H format
After tuning step change is completed, display will show 12H or
24H for current hour format. Rotate Tuning Control knob to change
time format and press band button again to complete hour
format change.
Aux In socket
There are 2Aux In sockets in this radio to connect audio sources
like MP 3 player or CDwalkman to listen the audio program via the
speakers of this radio.
Aux In-1 is located on the front panel whileAux In-2 is located
inside the MP3 compartment.
Remove the rubber cover (Aux In – 1 ) connect the audio source
with a 3.5 mm audio connector wire.
Turn MP 3 compartment cover fixture anti-clockwise to loosen and
pull down to cover to findAux In- 2 socket, connect the audio
source with a 3.5 mm audio connector wire.
When radio is on, repeatedly press and release Band button to
selectAU 1 ( Aux In – 1 ) or AU 2 ( Aux In – 2 ), rotate the Volume
Control to play the audio program.

12
GB
Equalizer function ( EQ )
The sound on your radio can be adjusted to suit your personal
taste for the songs you are listening to. It has six preset
equalizer modes.
Press the EQ button to cycle through the various modes.
a. Flat – no tone modification is applied
b. Rock
c. Outdoor
d. Pop
e. News
f. Indoor
Stereo/Mono button
The STEREO button is to switch Stereo/Mono mode. When FM
signal is weak, some hiss may be audible. To reduce the hiss,
press STEREO button to switch to Mono mode. Display stereo
symbol will disappear.
The STEREO button is active only in FM waveband.
Loudness On/Off
Loudness button is to get enhanced bass, display will appear
LOUDNESS when Loudness function is applied.

13
Specifications
Frequency Coverage:
FM 87.50 – 108 MHz
AM ( MW ) 520 – 1710 kHz ( 10 kHz )
522 – 1629 kHz ( 9 kHz )
AC Power:
AC 120V/60Hz/50 W ( USA )
AC 230V/50Hz/50 W ( Europe )
Batteries:
8 x D size ( UM-1 ) for main battery
2 x AA size ( UM-3 ) for back up battery
Output Power:
5 Watt 10% T.H.D. x 2 channels @ 1 kHz @ DC battery 12V
7 Watt 10% T.H.D. x 2 channels @ 1 kHz @ AC 230V or 120V
If at any time in the future you should need to dispose of this product please
note that: Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your LocalAuthority or
retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

14

15
Belangrijke Veiligheidsvoorschriften
1. Lees deze instructies.
2. Bewaar deze instructies.
3. Houd u aan alle waarschuwingen.
4. Volg alle instructies.
5. Gebruik dit apparaat niet in de buurt van water.
6. Maak het alleen schoon met een droge doek.
7. Voorkom het blokkeren van ventilatieopeningen. Volg bij het
installeren van het apparaat de instructies.
8. Plaats het apparaat niet in de buurt van warmtebronnen,
zoals radiatoren, verwarmingsroosters, fornuizen en andere
apparaten (waaronder ook versterkers) die warmte produceren.
9.Gebruik de veiligheidsfunctie van de gepolariseerde of
geaarde stekker. Een gepolariseerde stekker heeft twee pinnen,
één is breder dan de ander. Een geaarde stekker heeft twee
pinnen en een dere aardepin.De brede pin of derde pin zijn
voorzien voor uw veiligheid.Als de voorziene stekker niet in uw
stopcontact past, raadpleeg dan een electriciën voor het
vervangen van uw stopcontact – alleen voor de V.S. versie.

16
NL
10. Bescherm het snoer en zorg dat ervoor dat er niet op gelopen
kan worden en dat hij niet klem kan komen te zitten, vooral bij
de stekkerdozen en de plek waar het snoer uit het
apparaat komt.
11.Gebruik alleen hulpmiddelen/accessoires die gespecificeerd zijn
door de fabrikant.
12. Gebruik alleen de karren, standaards, driehoeksstandaards,
beugels of tafels die gespecificeerd zijn door de fabrikant of
met het apparaat meeverkocht zijn.Als u een kar gebruikt,
wees dan voorzichtig bij het verplaatsen ervan om te
voorkomen dat het apparaat om zou kantelen en letsel
zou veroorzaken.
13. Haal de stekker uit het stopcontact tijdens onweersbuien en als
het apparaat langere tijd niet gebruikt wordt.
14. Laat al het onderhoud doen door gekwalificeerd personeel.
Onderhoud is nodig als het apparaat beschadigd is, als het
stroomsnoer of de stekker beschadigd is, als vloeistof in het
apparaat gemorst is, als voorwerpen erin gevallen zijn, als het
apparaat blootgesteld geweest is aan regen of vochtigheid,
als het niet normaal werkt of als het gevallen is.
15. Stel dit apparaat niet bloot aan Regen en Vochtigheid om het
gevaar van brand en elektrische schokken te voorkomen.

17
16. Een aanduiding voor Schokgevaren en een bijpassend grafisch
symbool zijn voorzien aan de onderkant van dit apparaat.
17. Stel dit apparaat niet bloot aan druppelend of spetterend water
en plaats geen voorwerpen die gevuld zijn met vloeistoffen op
het apparaat.
18.Gebruik, bij buitenshuis gebruik op regenachtige dagen of bij
nat weer, alleen batterijen.

18
NL
Bediening
Stroom Aan/Uit
Oplaad LEDS
Stereo/Mono schakelaar
EQ ( Equaliser )
Loudness Aan/Uit
Volume Controle
LCD scherm
Tuning Controle/Tijd Instelling
Band Selectie
Voorkeuze Stations
Aux In 1 aansluiting
Aux In 2 aansluiting/MP3 speler sectie
Back up batterij sectie
Hoofd batterij compartiment
Alkaline/NiMH/NiCad Oplaadbare batterij schakelaar
10-14V DC In stekker
Stroomkabel
FM rubber antenne
LCD Scherm
Band Indicator en AM/PM
Batterij sterkte
EQ indicatie
Loudness Aan
Stereo
Geheugen voorkeur
Tijd en Frekwentie
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
B
C
D
E
F
G

19
Aanzetten van de radio
A. Batterij bediening
1. Installeer de batterijen, draai eerst de vergrendeling van het
batterijklep tegen de klok in om het te openen en trek de
batterijklep naar beneden.
Opmerking:
Voordat u de batterijen inbrengt, indien u niet-oplaadbare batterijen
gebruikt, zorg ervoor dat deNiMH/NiCad /Alkaline schakelaar,
welke zich in het batterij compartiment bevindt, in de alkaline stand
staat. Indien u oplaadbare batterijen gebruikt, zorg ervoor dat de
NiMH/NiCad /Alkaline schakelaar in deNiMH/NiCad stand staat .
2. Plaats 8 x Dformaat ( UM-1 ) batterij in het compartiment.
Zorg ervoor dat de batterij geplaatst wordt volgens het
getoonde diagram.
3. plaats x 2 AA formaat ( UM-3 ) batterij in het back up
batterij compartement .
Opmerking:
De back up batterij dient voor back up van de tijd en
geheugenstations tijdens stroomstoringen. Het is aan te raden om
de back up batterij elke zes maanden te vervangen om lekkage van
de batterijen te voorkomen.
De looptijd van de radio op batterijen varieert sterk, afhankelijk van
de kwaliteit en capaciteit (mAh) van de batterijen, temperatuur
geluidsniveau e.d.
