Philips Pronto User manual

User Guide
1
Taking a First Look 3
Pronto: The Home Theater Control Panel 3
The Device 4
The Touch Screen 6
What’s New for Pronto Next Generation? 7
Before You Start 8
Placing the Batteries 8
Getting Started 9
Turning on Pronto 9
Setting the Contrast 9
Setting Time and Date 10
Changing the Time Format 10
Changing the Time 10
Changing the Date 10
Operating Pronto 12
Device Overview 12
Page Overview 13
Customizing Pronto 14
Using the Tools 14
Defining the Brand for a Device 14
Learning Commands 19
Labeling Elements 21
Adding Devices 23
Deleting Elements 25
Moving Devices 26
Adjusting the Settings 27
Setting the Timeout of the LCD Screen 28
Setting the Timeout of the LCD Backlight 28
Setting the Switch Level of the Light Sensor 28
Setting the Volume Level 28
Setting the Animation Mode 29
Operating Pronto with the Cursor 29
Calibrating the Touch Screen 29
Using the Power Features 30
Creating and Editing Macros 30
Creating a Macro 30
Editing a Macro 32
Operating Pronto with the Cursor 33
Operating Pronto with RF 34
Selecting RF to Operate your Devices 35
Selecting IR to Operate your Devices 36
Table of Contents
ProntoII upd.qxd 08-11-2002 09:02 Pagina 1

User Guide
2
Table of Contents
ProntoEdit 37
FAQ 38
Troubleshooting 40
General Problems 40
Customizing Problems 40
Storage Problems 41
Pronto error messages 41
Maintaining Pronto 42
Important Notices 42
Cleaning Pronto 42
List of Symbols 43
Specifications 46
Glossary 47
Index 50
Copyright 52
ProntoII upd.qxd 08-11-2002 09:02 Pagina 2

User Guide
3
Taking a First Look
Pronto:
The Home Theater Control Panel
Pronto is a Home Theater Control Panel that allows maximum flexibility and
customization for even the most sophisticated home entertainment system. It can
control almost any device that understands infrared (IR) remote control signals. Its
intuitive interface makes it a perfect remote control for every user.
Pronto is easy to configure. It contains a huge universal database where IR codes
are stored to control different brands for all kinds of video, audio devices and even
home automation equipment. By default Pronto is set up to control Philips or
Marantz devices. For other brands you simply choose the brands of your devices
when you use Pronto for the first time.
Pronto offers you some extra powerful features:
■You can create and edit macros, allowing you to send a series of commands
with one single touch.
■You can choose to have Pronto working with radio frequency (RF) signals to
operate devices from a distance or from an adjacent room. To do this, you
need an optional RF Extender that converts Pronto RF signals into IR signals.
With ProntoEdit software you can create your own screens and define a personal
look. ProntoEdit’s Online Help system (accessible via the ‘Help’ icon in ProntoEdit)
will guide you through the process. You can find ProntoEdit on the included CD-
ROM and on the Philips website www.pronto.philips.com. See “ProntoEdit” on
page 37 for more information.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 3

User Guide
4
The Device
Pronto has several hard buttons. Some are freely programmable, some have a
predefined function:
■The buttons on the left side of Pronto and the buttons at the right side of the
screen have predefined functions.
■The utter left button below the touch screen has a predefined function.
The two middle buttons below the touch screen and the utter right button are
freely programmable.
You can reprogram the function of these buttons and change the label on the
touch screen.
■The cursor and the OK and Home buttons on the right side of the cursor are
programmed to operate devices, for instance for navigating through the on
screen menu of your TV.
All these buttons are freely programmable. However, these buttons each have
a predefined function. If you learn one of these buttons or assign a macro to it,
its predefined function for that database will be permanently lost.
Taking a First Look
Learning eye
LCD touch screen
Buttons
Free programmable
Toggle button
Cursor
Volume up
Volume down
Mute
Channel up
Channel down
Light sensor
OK
Home
ProntoII upd.qxd 08-11-2002 09:02 Pagina 4

User Guide
5
Taking a First Look
Backlight
Page up
Page down
USB port
Reset button
Connection to docking station
Battery
compartment
ProntoII upd.qxd 08-11-2002 09:02 Pagina 5

User Guide
6
Taking a First Look
The Touch Screen
Labels for
the hard
buttons
Next
Device
Previous
Device
Pronto
Icon
Device
Overview
button
Page
Overview
button
Soft
buttons
ProntoII upd.qxd 08-11-2002 09:02 Pagina 6

User Guide
7
Taking a First Look
What’s New for Pronto Next Generation?
This new Pronto offers several new features compared to the previous model.
The most important ones are:
■Light Sensor
The Light Sensor on your Pronto causes the backlight to switch on
automatically according to the ambient light of your own home theater
environment.

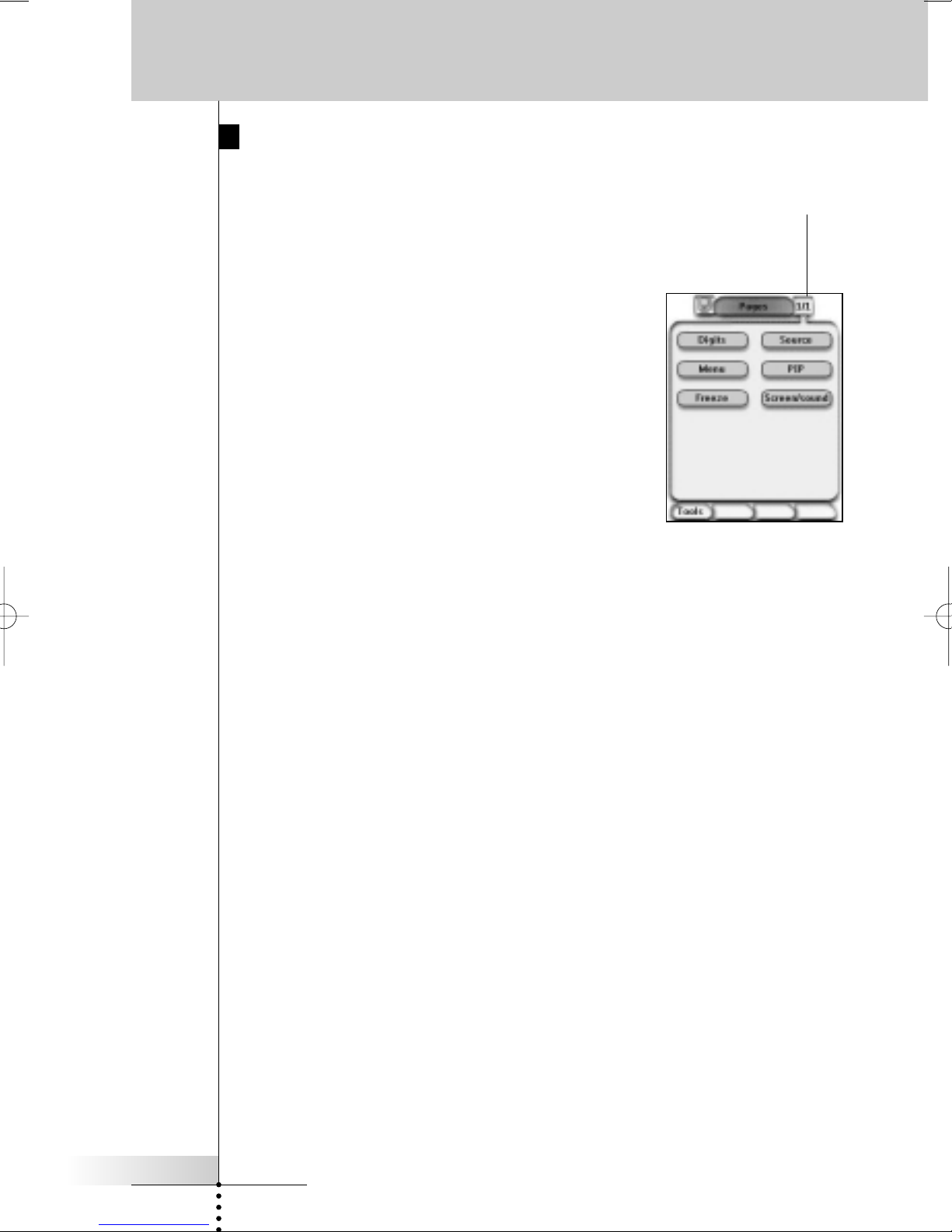

■Page Overview
The Page Overview offers you a list of all the pages for one device. Every
device comes with a Page Overview, making it easier and faster to browse
through the device pages.
■16 Gray Scales
The number of gray scales has increased from 4 to 16. Therefore the buttons
look much more natural.
■Transparency
Pronto supports transparency in buttons and other objects. This allows the
user to create complex user interfaces in an easy way.
■Cursor Navigation
By default the cursor is programmed to operate devices. The functions
assigned to the cursor button depend on the device active on the Pronto.
Pronto also offers you the possibility to use the cursor for navigating through
devices and pages on the screen. The Left and Right cursor buttons allow you
to scroll through the devices, with the Up and Down cursor buttons you scroll
through the different pages.
■Animation Mode
Pronto provides navigation feedback through graphical animations of mode
transitions and page transitions. You can enable and disable the animations of
your Pronto in the Setup Page.
■RF
By default, Pronto operates your devices with IR signals. However, you can
choose to have Pronto working with radio frequency (RF) signals to operate
devices from a distance or from an adjacent room. An RF Extender (not
included) is therefore required.
■USB
Pronto is provided with a USB port. The USB port makes downloading much
easier.
■4 MB of memory
Pronto has 4 MegaByte of memory. This enables you to download larger
configuration files to Pronto.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 7

User Guide
8
Placing the Batteries
When you use Pronto for the first time, you will have to place 4 AAA batteries.
You can use rechargeable or non-rechargeable AAA batteries.
1 Slide off the battery cover from the back of Pronto.
2 Place the batteries in the battery compartment.
Notes When the batteries are running low, the Low Battery icon appears over the
battery icon in the right upper corner of the screen. Pronto retains all its settings
when the batteries have run out. You will only have to set the contrast and the
time. See “Setting the Contrast” on page 9 and “Changing the Time” on page 10
for more information.
You can also use a docking station and a battery pack to recharge your Pronto.
The docking station and the battery pack are optional.
Before You Start
ProntoII upd.qxd 08-11-2002 09:02 Pagina 8

User Guide
9
Turning on Pronto
Pronto can be turned on in three different ways:
■Tap the touch screen.
Note Only use your finger or a blunt soft object like a pencil eraser to operate the
touch screen.
■Press one of the hard buttons.
Note When you press a hard button on Pronto, the according function will be
executed immediately, while the buttons below the touch screen will activate
the display.
■Press the Backlight button.
Getting Started
Setting the Contrast
You can set the contrast level and switch on the backlight of Pronto using the hard
buttons on the left side of the device.
■To decrease the contrast, press and hold the Backlight button and at the
same time press the “-” hard button.
To increase the contrast, press and hold the Backlight button and at the
same time press the “+” hard button.
■To switch on the backlight, press the Backlight button.
Backlight
& contrast
+
-
ProntoII upd.qxd 08-11-2002 09:02 Pagina 9

User Guide
10
Setting Time and Date
When you have installed the batteries and turned on the Pronto, you might want to
set the current time and date. To go to the Setup Pages, tap the Pronto icon in
the top center of the touch screen.
Changing the Time Format
There are three different options:
■12 hour (AM/PM): This is the default format.
■24 hour
■No time
You can select the Time Format by tapping the Time Format button
in the first Setup Page. The Time Format button toggles between the three
formats.
Changing the Time
Note When the batteries are replaced, the time is reset to 12.00 a.m.
1 Tap the Time button in the first Setup Page.
The Time button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the time, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the time, press (and hold) the hard button labeled ‘-’.
3 Tap the Time button again.
The new time is set.
Changing the Date
To change the year
1 Tap the Year button in the first Setup Page.
The Year button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the years, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the years, press (and hold) the hard button labeled ‘-’.
Getting Started
ProntoII upd.qxd 08-11-2002 09:02 Pagina 10

User Guide
11
3 Tap the Year button again.
The new year is set.
To change the month
1 Tap the Month button in the first Setup Page.
The Month button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the months, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the months, press (and hold) the hard button labeled ‘-’.
3 Tap the Month button again.
The new month is set.
To change the day
1 Tap the Day button in the first Setup Page.
The Day button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the days, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the days, press (and hold) the hard button labeled ‘-’.
3 Tap the Day button again.
The new day is set.
Getting Started
ProntoII upd.qxd 08-11-2002 09:02 Pagina 11

User Guide
12
Getting Started
Operating Pronto
Device
Overview
button
Device Right
button
Device Left
button
Pronto contains a series of customizable devices,
each consisting of several device pages. All
active devices on your Pronto are listed in the
Device Overview. All the available device pages
are listed per device in the Page Overview.
Device Overview
The Device Overview offers you a list of all the
devices you can control with Pronto. To view the
Device Overview, press the middle button at the
top of the touch screen.
You can navigate between the devices in two
different ways:
■Tap the device you want to operate from the
Device Overview.
■Tap the Device Left button at the top
of the touch screen to navigate to the
previous device.
Tap the Device Right button at the top
of the touch screen to navigate to the next
device.
By default you navigate through Pronto using
this touch screen navigation. When cursor
navigation is enabled, the Device Left and
Device Right button disappear. You then navigate
through the devices and pages using the cursor.
For more information on changing the touch
screen navigation to cursor navigation, see
“Operating Pronto with the Cursor” on page 33.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 12

Page Overview
The Page Overview offers you a list of all the pages for one
device. To view the Page Overview, tap the Page Number
in the upper area of touch screen.
You can navigate between the different pages in two
different ways:
■Tap the page you want to operate from the
Page Overview.
■Press the Up or Down hard button on the left
side of Pronto.
User Guide
13
ht
Page
Overview
button
Getting Started
ProntoII upd.qxd 08-11-2002 09:02 Pagina 13

User Guide
14
Customizing Pronto
What makes Pronto so powerful, is the ability to extend its functionality in multiple
ways, like programming additional functions, adding supplementary devices and
changing the interface as it suits you best.
For full editing you can use ProntoEdit software. See “ProntoEdit” on page 37 for
more information.
Using the Tools
Pronto provides different tools. For customizing Pronto you have to switch to the
appropriate tool. Pronto offers 8 different tools, each providing different
functionalities:
■Brand Tool:
Defining the brands of your audio/video equipment (page 14);
■Learn Tool:
Learning IR codes from other remote controls (page 19);
■Label Tool:
Labeling buttons, devices and pages (page 21);
■Add Tool:
Adding new devices or copying existing devices (page 23);
■Delete Tool:
Deleting button actions or devices (page 25);
■Move Tool:
Moving devices in the Device Overview (page 26);
■Macro Tool:
Programming a sequence of commands for one single button (page 30);
■RF IR Tool:
Defining to operate Pronto with IR signals or RF signals (page 34).
Defining the Brand for a Device
Pronto contains a huge list of brands and their according IR codes in its database.
Pronto uses these IR codes to control devices. Because there are several brands
using specific IR codes, you have to define the brands and the corresponding code
sets for each device. You can either have Pronto autosearch the brand or select it
yourself. If a device’s brand contains more than one IR code set, you also have to
select it.
On the Device Overview you find buttons for the most common video and audio
devices. Pronto is set by default to operate Philips and Marantz devices. For all
devices other than Philips or Marantz, you first have to define the brand before you
can operate them with Pronto.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 14

User Guide
15
Customizing Pronto
Selecting the Brand and Code Set for your Device
1 Press the left hard button below the touch screen for
3 seconds.
The Tools menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define
the brand.
The ‘Brand Tool’ screen appears.
5 Tap in the ‘Brand Tool’ screen.
The ‘Brands’ screen appears.
Selecting the brand
1 Tap the Scroll Down button or the Scroll Up button next to the
Brands list.
The Brands list scrolls down/up.
Note You can also select the brand via the virtual keyboard by tapping one or more
of the brand’s name characters.
2 Tap the brand for the selected Device in the Brands list.
3 Tap in the ‘Brands’ screen.
The ‘Brand Tool’ screen appears.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 15

User Guide
16
Customizing Pronto
4 Tap in the ‘Brand Tool’ screen.
If there is only one code set, the ‘Installing the Brand’ screen appears.
-or-
If there is more than one possible code set, the ‘Code Sets’ screen
appears.
Selecting the code set
1 Tap the Scroll Down button or the Scroll Up button next to the
Code Sets list.
The Code Sets list scrolls down/up.
2 Tap the Code Set for the selected Device in the Code Sets list.
3 Tap in the ‘Code Sets’ screen.
The ‘Installing the Brand’ screen appears.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 16

User Guide
17
Installing the brand
1 Tap in the ‘Installing the Brand’ screen.
The first Page of the selected Device appears.
2 Tap different buttons to see if the device is responding to the IR codes
for the selected brand and code set.
3 Press the left hard button .
The IR codes for the selected brand and code set are installed.
-or-
Press the right hard button .
The ‘Code Set’ screen appears again without installing the code set.
4 Press the left hard button below the touch screen to exit
Brand Tool.
Selecting the Brand and searching the Code Set for your device
1 Press the left hard button below the touch screen for
3 seconds.
The Tools menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define
the brand.
The ‘Brand Tool’ screen appears.
5 Tap in the ‘Brand Tool’ screen.
The ‘Brands’ screen appears.
6 Select the brand of your device as described in “Selecting the brand”
on page 15.
Searching the code set
1 Tap in the ‘Code Sets’ screen.
The ‘Searching the Code Set’ screen appears.
2 Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of code sets
for the selected brand, by sending out an IR code for each code set.
Customizing Pronto
ProntoII upd.qxd 08-11-2002 09:02 Pagina 17

User Guide
18
3 When the device for which you are defining the brand, responds to the
IR code, tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4 To install the brand and code set, follow the instructions described in
“Installing the brand” on page 17.
Searching the Brand and Code Set for your device
1 Press the left hard button below the touch screen for
3 seconds.
The Tools menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define
the brand.
The ‘Brand Tool’ screen appears.
5 Tap in the ‘Brand Tool’ screen.
The ‘Brands’ screen appears.
Searching the brand
1 Tap in the ‘Brands’ screen.
The ‘Searching the Brand’ screen appears.
2 Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of brands, by
sending out an IR code for each brand.
3 When the device for which you are defining the brand, responds to the
IR code, tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4 To install the brand and code set, follow the instructions described in
“Installing the brand” on page 17.
Customizing Pronto
ProntoII upd.qxd 08-11-2002 09:02 Pagina 18

User Guide
19
Customizing Pronto
Learning Commands
If an IR code is not in the database, you can program Pronto commands by
transmitting IR signals from your existing remote control to Pronto’s learning eye.
The Learn Tool allows you to learn a button or a device action. A device action
is an action that is executed automatically when you select a device. E.g. when
you select TV, you can learn your Pronto to switch on the TV at the same time.
You can also use the Learn Tool to relearn commands that do not work properly.
Note Once you have learned a button, the button will not be overwritten if you select
another brand in Brand Mode.
Learning a Button
1 Press the left hard button below the touch screen for
3 seconds.
The Tools menu appears.
2 Tap Learn in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The last page you have visited appears.
4 Navigate to the Device and the Page that contains the button you want
to learn.
5 Position Pronto and the remote control as illustrated above.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 19

User Guide
20
Customizing Pronto
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
6 Tap the button you want to learn.
A Learning indication appears in the top center of the touch screen.
7 Press the key on the other remote control within 5 seconds.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
See “Pronto will not learn commands” on page 41 for more information.
8 Select other buttons on Pronto you want to learn.
9 Press the left hard button below the touch screen to exit
Learn Tool.
Learning a Device Action
1 Press the left hard button below the touch screen for
3 seconds.
The Tools menu appears.
2 Tap Learn in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Position Pronto and the remote control as illustrated above.
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
5 Tap the Device for which you want to learn a Device Action.
A Learning indication appears in the top center of the touch screen.
6 Press the key on the other remote control.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
7 Select other Devices on the Device Overview you want to learn.
8 Press the left hard button below the touch screen to exit
Learn Tool.
ProntoII upd.qxd 08-11-2002 09:02 Pagina 20
