Philips DC390/05 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
DC390

3EN
Contents
1 Important 4
Safety 4
Notice 6
2 Your Docking Entertainment System 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
Overview of the remote control 10
3 Get started 11
Install batteries 11
Prepare the remote control 12
Connect power 12
Set time and date 12
Turn on 12
4 Play 13
Play from iPod/iPhone/iPad 13
Install the rubber pad 14
Play from an external device 14
5 Listen to radio 15
Tune to a radio station 15
Program radio stations automatically 15
Program radio stations manually 15
Select a preset radio station 15
6 Other features 16
Set the alarm timer 16
7 Adjust sound 17
Adjust volume level 17
Mute sound 17
Select a preset sound effect 17
Enhance bass 17
8 Product information 18
 
9 Troubleshooting 19

4
gDo not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
hDo not install near any heat sources
such as radiators, heat registers, stoves,

that produce heat.
iProtect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
jOnly use attachments/accessories

kUse only with the cart, stand, tripod,

manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
lUnplug this apparatus during lightning
storms or when unused for long periods
of time.
m 
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
nBattery usage CAUTION – To prevent
battery leakage which may result in
bodily injury, property damage, or
damage to the unit:
1 Important
Safety

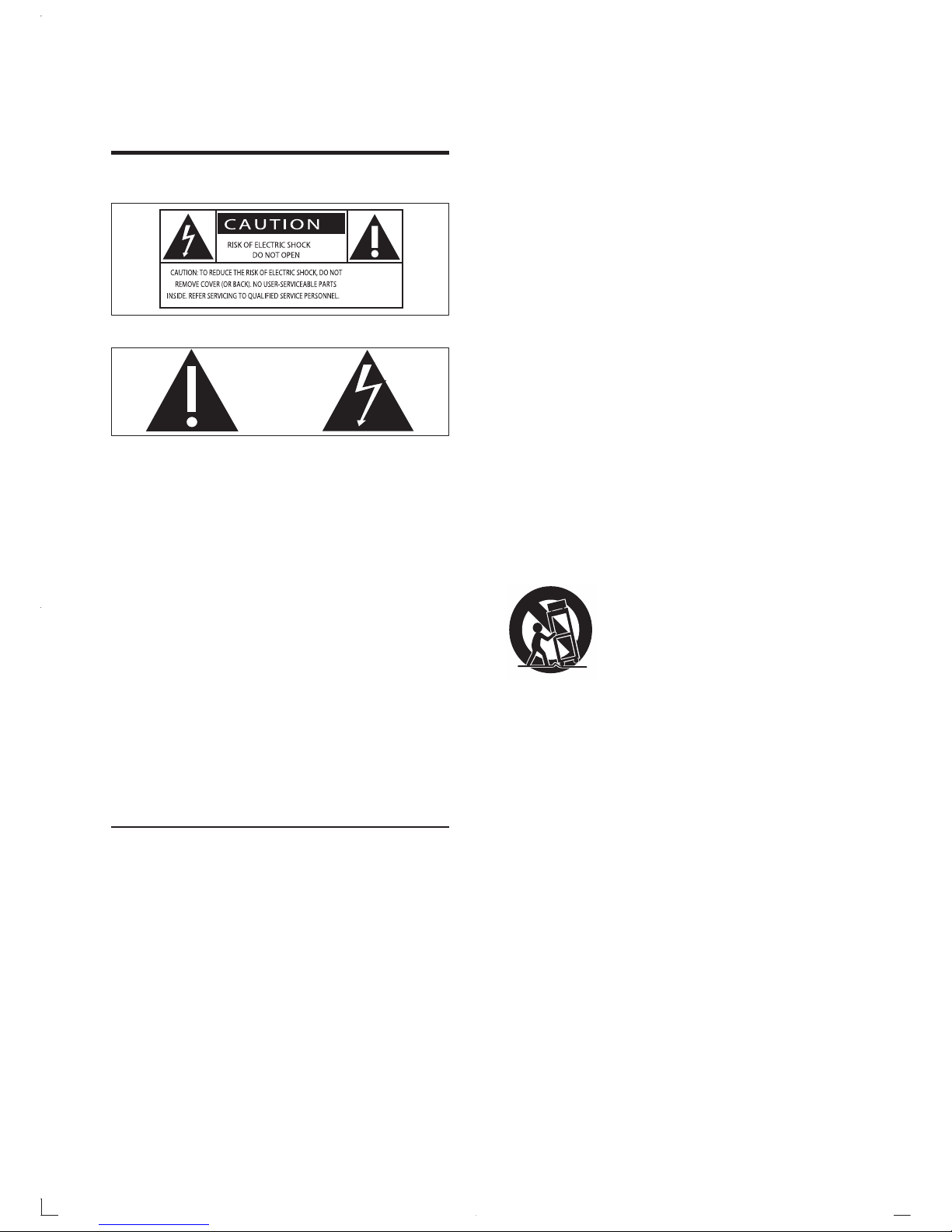

This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.

electric shock, this apparatus should not be

with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
EN

5
Hearing safety
Listen at a moderate volume.
 Using headphones at a high volume can
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
 Sound can be deceiving. Over time your
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
 Set your volume control at a low setting.
 Slowly increase the sound until you can
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
 Prolonged exposure to sound, even
at normally ‘safe’ levels, can also cause
hearing loss.
 Be sure to use your equipment
reasonably and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
 Listen at reasonable volumes for
reasonable periods of time.
 Install all batteries correctly, + and -
as marked on the unit.
 Do not mix batteries (old and new
or carbon and alkaline, etc.).
 Remove batteries when the unit is
not used for a long time.
oApparatus shall not be exposed to
dripping or splashing.
pDo not place any sources of danger on


qWhere the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain
readily operable.
Mains fuse
This information applies only to products with
a UK mains plug.

molded plug. If you replace the fuse, use one
with:
 the ratings shown on the plug,
 a BS 1362 approval, and
 the ASTA approval mark.
Contact your dealer if you are not sure about
what type of fuse to use.
Caution: To conform with the EMC directive
(2004/108/EC), do not detach the plug from
the power cord.
Warning
 Never remove the casing of this apparatus.
 Never lubricate any part of this apparatus.
 Never place this apparatus on other electrical
equipment.
 Keep this apparatus away from direct sunlight,

 Ensure that you always have easy access to the
power cord, plug or adaptor to disconnect the
apparatus from the power.
EN

6
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
“Made for iPod,” “Made for iPhone,” and
“Made for iPad” mean that an electronic
accessory has been designed to connect


developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance
with safety and regulatory standards. Please
note that the use of this accessory with
iPod, iPhone, or iPad may affect wireless
performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
is a trademark of Apple Inc.
 Be careful not to adjust the volume as
your hearing adapts.
 Do not turn up the volume so high that
you can’t hear what’s around you.
 You should use caution or temporarily
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,

hazard and is illegal in many areas.
Notice
This product complies with the radio
interference requirements of the European
Community.

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment
and human health.
EN

7
Class II equipment symbol:
CLASS II apparatus with double insulation,
and no protective earth provided.
Note
 The type plate is located at the bottom of the
apparatus.
EN

8
2 Your Docking
Entertainment
System
Congratulations on your purchase, and

support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from iPod,
iPhone, iPad, radio, or other audio devices.
The radio, iPod, iPhone, or iPad can be set as
the alarm timer.You can set two alarm timers to
go off at different time.
What’s in the box
Check and identify the contents of your
package:
 Main unit
 Remote control
 1 x MP3 link cable
 Quick start guide
 User manual
 Rubber pad
EN

9
fALARM 1/ALARM 2
 Set the alarm timer.
 Turn off the alarm tone.
 View alarm settings.
gDisplay panel
 Show the status.
hREPEAT ALARM/BRIGHTNESS
CONTROL
 Repeat the alarm.
 Adjust the display brightness.
iSOURCE
 Select a source: DOCK 1, DOCK 2,
FM tuner, or MP3 link.

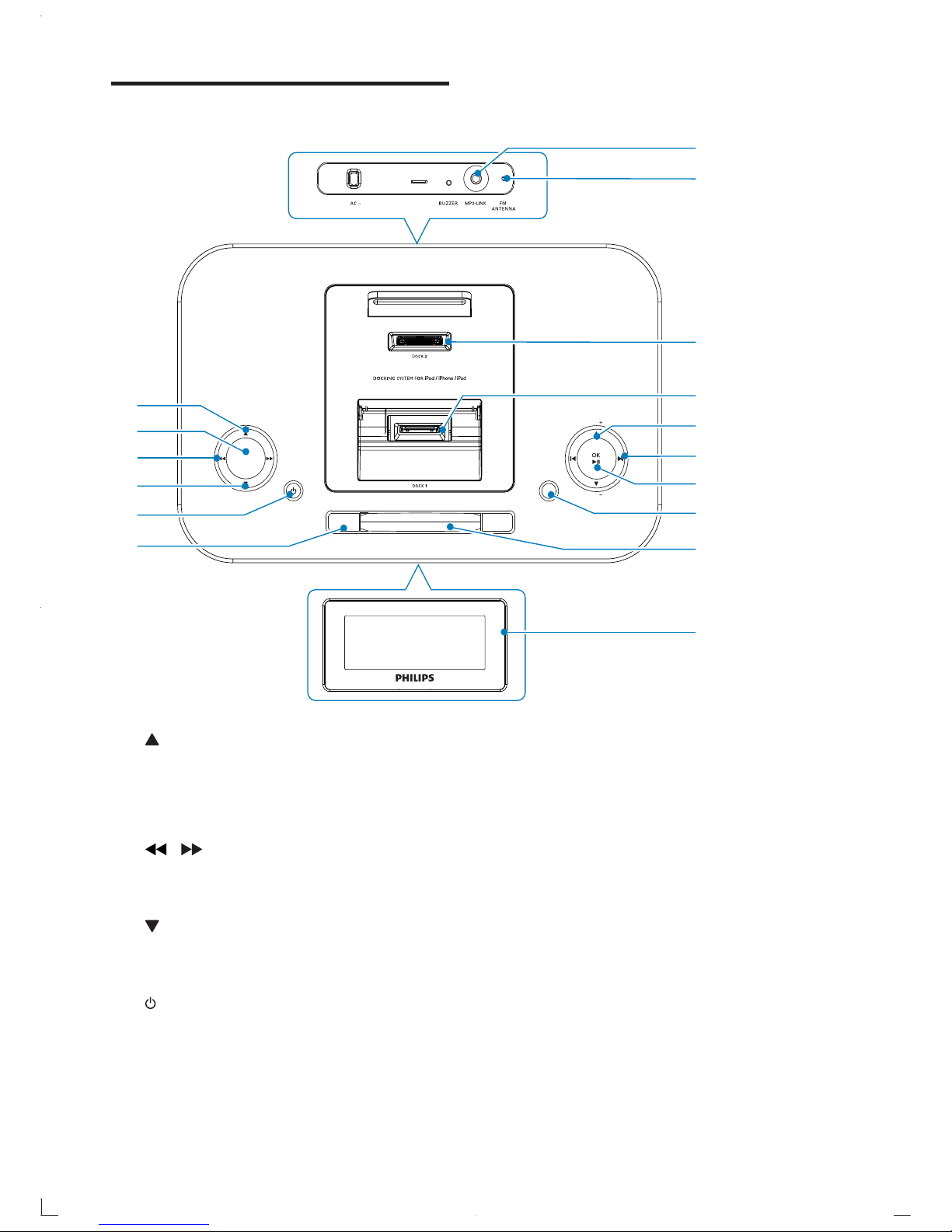

Overview of the main unit
a/DATE
 View the clock time and date.
bSLEEP
 Set the sleep timer.
c/
 
 Tune to a radio station.
d/SET TIME/PROG
 Set the clock and date.
 Program radio stations.
e
 Turn on the unit or switch to
standby mode.
 Deactivate the sleep timer.
 Stop alarm.
VOL
VOL
SOURCE
SLEEP
SET TIME
PROG
DATE
g
k
i
h
j
m
l
c
e
d
f
a
b
n
p
o
ALARM 1 ALARM 2
REPEAT ALARM
BRIGHTNESS CONTROL
EN

10

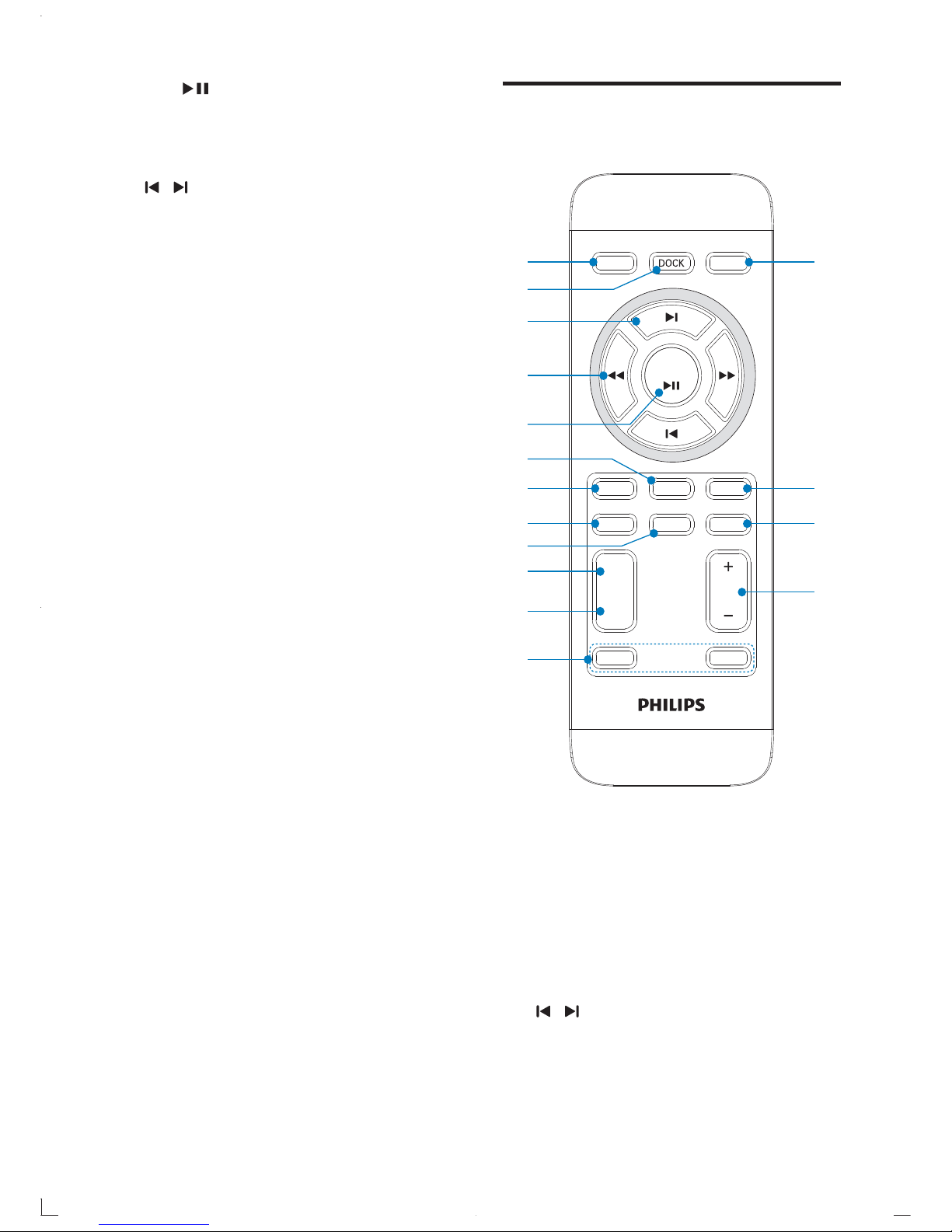

Overview of the remote
control
aPOWER
 Turn on the unit or switch to
standby mode.
 Stop alarm.
 Deactivate the sleep timer.
bDOCK
 Select Dock1 or Dock2 source.
c/
 
 Select a preset radio station.
 Navigate through the iPod/iPhone/
iPad menu.
REP ALM
SLEEP
SET TIME
MENU
VOL
DSC
DBB
POWER
OK
TUNER
MP 3 LINK
MUTE
BRIGHTNESS
PROG
ALM 1 ALM 2
d
c
e
a
b
g
f
h
j
i
k
l
p
o
n
m
jOK/
 Start or pause iPod/iPhone/iPad play.
 
 Select FM stereo or FM mono.
k/
 
 Select a preset radio station.
 Adjust time.
lVOL +/-
 Adjust volume.
mDock1
 Load an iPod/iPhone.
nDock2
 Load an iPod/iPhone/iPad.
oFM antenna
 Improve FM reception.
pMP3-LINK
 Jack for an external audio device.
EN

11
3 Get started
Caution
 Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
bottom of the apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install batteries
Note
 You can only use AC power as power supply.
Batteries (not supplied) are for backup
purpose.
2 x AA
2 x AA
 Adjust time.
d/
 
 Tune to a radio station.
eOK/
 Start or pause iPod/iPhone/iPad play.
 
 Select FM stereo or FM mono.
fMP3 LINK
 Select external audio device source.
gMENU
 Select the iPod/iPhone menu.
hSLEEP
 Set the sleep timer.
iBRIGHTNESS/REP ALM
 Adjust the display brightness.
 Repeat the alarm.
jDBB
 Turn on or off dynamic bass
enhancement.
kDSC
 Select a preset sound setting.
lALM 1/ALM 2
 Set the alarm timer.
 Turn off the alarm tone.
 View alarm settings.
mVOL +/-
 Adjust volume.
nMUTE
 Mute volume.
oSET TIME/PROG
 Set the clock and date.
 Program radio stations.
pTUNER
 Select the tuner source.
EN

12
Note
 The type plate is located on the bottom of the
main unit.

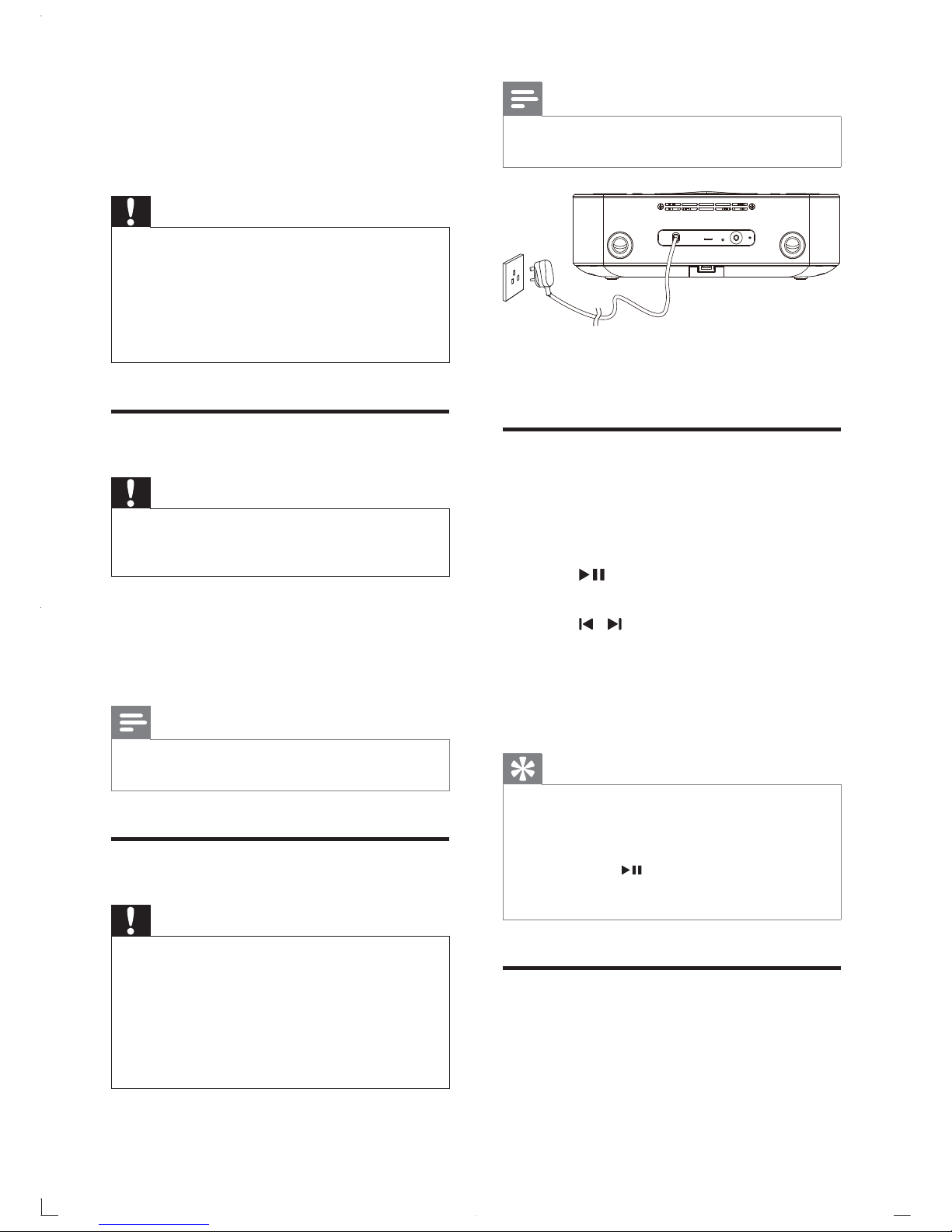

1Connect the AC power cord to the wall
outlet.
Set time and date
1In standby mode, press and hold SET
TIME for two seconds.
»The hour digits begin to blink.
2Press to select the 12/24 hour
format.
3Press / to set the hour
4Press SET TIME
»The minutes digits begin to blink.
5Repeat steps 3-4 to set the minute, year,
month, and day.
Tip
 In 12 hour format, [MONTH--DAY] is
displayed.
 In 24 hour format, [DAY--MONTH] is
displayed.
 You can press to toggle between 12 hour
format and 24 hour format during the whole
process.
Turn on
1Press POWER.
»The unit switches to the last selected
source.
MP3 LINK FM
ANTENNA
1Open the battery compartment.
2Insert 2 x R6/UM-3/AA size batteries
with correct polarity (+/-) as indicated.
3Close the battery compartment.
Caution
 Remove battery if it is exhausted or will not be
used for a long time.
 Batteries contain chemical substances, so they
should be disposed of properly.
 Perchlorate Material-special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Prepare the remote control
Caution
 Risk of explosion! Keep batteries away from


1Open the battery compartment.
2Insert one button battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Note
 If you are not going to use the remote control
for a long time, remove the batteries.
Connect power
Caution
 Risk of product damage! Ensure that the power
voltage corresponds to the voltage printed on
the back or underside of the apparatus.
 Risk of electric shock! When you unplug the
AC power cord, always pull the plug from the
socket. Never pull the cord.
 Before connecting the AC power cord, ensure
you have completed all other connections.
EN

13
4 Play
Play from iPod/iPhone/iPad
You can enjoy audio from iPod/iPhone/iPad
through this unit.
Compatible iPod/iPhone/iPad
Apple iPod and iPhone models with a 30-pin
dock connector.
Made for:
 iPod 4G
 iPod 5G
 iPod nano (6th generation)
 iPod nano (5th generation)
 iPod nano (4th generation)
 iPod nano (3rd generation)
 iPod nano (2nd generation)
 iPod nano (1st generation)
 iPod Classic
 iPod Touch (4th generation)
 iPod Touch (3rd generation)
 iPod Touch (2nd generation)
 iPod Touch (1st generation)
 iPod Mini
 iPhone
 iPhone 3G
 iPhone 3GS
 iPhone 4
 iPad
Note
 IPod with color display, iPod classic, and iPod
with video are not compatible with dock
charging.
Listen to the iPod/iPhone/iPad
1Press DOCK key to select dock source.
2Place the iPod/iPhone/iPad into the dock.
Switch to standby
1Press POWER again to switch the unit to
standby mode.
»The time and date (if set) appear on
the display panel.
EN

14
Charge the iPod/iPhone/iPad
When the unit is connected to power, the
docked iPod/iPhone/iPad begins to charge.
Tip
 For certain iPod models, it may take up to a
minute before the charging indication appears.
 If clock is not manually set, when iPod/iPhone/
iPad is connected, the clock radio synchronizes
time from the iPod/iPhone/iPad automatically.
Play from an external device
You can also listen to an external audio device
through this unit.
1Press MP3 LINK to select the MP3 link
source.
2Connect the supplied MP3 link cable to:
 the MP3 LINK jack (3.5mm) on the
back of the unit.
 the headphone jack on an external
device.
3Start to play the device (see the device
user manual).
 To pause/resume play, press OK/
.
 To skip to a track, press / .
 To search during play, press and hold
/ , then release to resume
normal play.
 To go back to the previous iPod/
iPhone menu, press MENU.
 To scroll through the menu, press
/ .
 OK/
.
»If no key is pressed for more than
10 seconds, OK/ acts back as
the play/pause key.
Install the rubber pad
If necessary, install the supplied rubber pad to
keep the iPad/iPad 2 stable before you place
the iPad/iPad 2.
EN

15
Program radio stations
automatically
You can program a maximum of 20 preset
radio stations.
1In the tuner mode, press and hold SET
TIME/PROG for more than 2 seconds to
activate automatic program mode.
»[AUTO] (auto) is displayed.
»The unit automatically stores radio

»
broadcast automatically.
Program radio stations
manually
You can program a maximum of 20 preset
radio stations.
1Tune to a radio station.
2Press SET TIME/PROG to activate the
program mode.
3Press / to select a number.
4Press SET TIME/PROG
5Repeat the above steps to program other
stations.
Tip
 To overwrite a programmed station, store
another station in its place.
 To select FM stereo or FM mono, press OK.
Select a preset radio station
1Press / to select a preset number.
5 Listen to radio
Note
 Only FM radio reception is available on this
unit.
Tune to a radio station
Tip
 Position the antenna as far as possible from
TV, VCR or other radiation source.
Note
 For optimal reception, fully extend and adjust
the position of the antenna.
1Press TUNER to select FM tuner.
2Press and hold / for more than 2
seconds.
»[SRCH] (search) is displayed.
»The radio tunes to a station with
strong reception automatically.
3Repeat step 2 to tune to more stations.
 To tune to a weak station, press /

reception.
Tip
 [STEREO] is default setting for tuner mode.
 Under tuner mode, you can press OK
repeatedly to toggle between [STEREO] and
[MONO], and the unit memorizes your setting
even if you turn off the unit or turn to other
sources.
EN

16
»If the timer is deactivated, [ AL1] or [
AL2] is displayed.
Repeat alarm
1When the alarm rings, press
BRIGHTNESS/REP ALM.
»The alarm repeats ringing minutes later.
Tip
 You can press / to adjust the interval to
repeat alarm.
Stop alarm ring
1When the alarm rings, press the
corresponding ALM 1 or ALM 2.
»The alarm stops but the alarm settings
remain.
View the alarm settings
1Press ALM 1 or ALM 2.
Adjust display brightness
1Press BRIGHTNESS/REP ALM
repeatedly to select different levels of
display brightness.
6 Other features
Set the alarm timer
You can set two alarms which go off at different
time.
1Make sure that you have set the clock
correctly. (See “Get started - Set time
and date”.)
2Press and hold ALM 1 or ALM 2 for two
seconds.
»[AL 1] or [AL 2] begin to blink.
3Press SOURCE on the top panel to select
an alarm sound source: DOCK1, DOCK2,
FM tuner, or buzzer.
4Press ALM 1 or ALM 2.
»The hour digits begin to blink.
5Press / repeatedly to set the hour.
6Press ALM 1 or ALM 2
»The minute digits begin to blink.
7Repeat steps 5-6 to set the minute.
8Repeat steps 5-6 to select whether to
ring alarm the whole week, on weekdays,
or at weekend.
9Repeat steps 5-6 to set the alarm volume.
Tip
 You can create a playlist in iTunes called
“PHILIPS” and import it to your iPod/iPhone
as alarm source.
 If no playlist is created in the iPod/iPhone or
there is no song in the playlist, the unit will
wake to songs in the iPod/iPhone.
Activate and deactivate the alarm
timer
1Press ALM 1 or ALM 2 repeatedly to
activate or deactivate the timer.
»If the timer is activated, [ AL 1] or [
AL2] is displayed.
EN

17
7 Adjust sound
Adjust volume level
1During play, press VOL +/- to increase/
decrease the volume level.
Mute sound
1During play, press MUTE to mute/unmute
sound.
Select a preset sound effect
1During play, press DSC repeatedly to
select:
 [ROCK] (rock)
 [JAZZ] (jazz)
 [POP] (pop)
 [CLASSIC] (classic)
 [FLAT]
Enhance bass
1During play, press DBB to turn on or off
dynamic bass enhancement.
»If DBB is activated, [DBB] is displayed.
EN

18
General information
AC power 100-240 V, 50/60
Hz
Operation Power
Consumption
17 W
Standby Power
Consumption (clock
display)
<2 W
Dimensions
- Main Unit
(W x H x D) 263 x114 x 165 mm
Weight
- With Packaging
- Main Unit
2.4 kg
1.4 kg
8 Product
information
Note
 Product information is subject to change
without prior notice.
!
"
Rated Output
Power
2 x 5 W RMS
Frequency
Response
40 -20000 Hz, -3dB
Signal to Noise
Ratio
>67 dB
Aux Input (MP3
link)
750 mV RMS 20 kohm
FM
Tuning Range FM 87.5 - 108
MHz
Tuning grid 50 KHz
- Mono, 26 dB S/N Ratio
- Stereo, 46 dB S/N Ratio
<22 dB
<51 dB
Search Sensitivity <41 dB
Total Harmonic
Distortion
<2%
Signal to Noise Ratio >45 dB
Speakers
Speaker Impedance 4 ohm
Speaker Driver 57mm
Sensitivity >84dB/m/W
EN

19
9 Troubleshooting
Warning
 Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome).When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
#Ensure that the AC power plug of the
unit is connected properly.
#Ensure that there is power at the AC
outlet.
#Ensure that the batteries are inserted
correctly.
No sound
#Adjust the volume.
No response from the unit
#Disconnect and reconnect the AC power
plug, then turn on the unit again.
Poor radio reception
#Increase the distance between the unit
and your TV or VCR.
#Fully extend the FM antenna.
Timer does not work
#Set the clock correctly.
#Switch on the timer.
Clock/timer setting erased
#Power has been interrupted or the power
plug has been disconnected.
#Reset the clock/timer.
EN

© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
DC390_05_UM_V3.1
