Philips HP4640/00 User manual

Satin curl aqua
HP4640
/01

2

3
1234
5678
910 11

4

ENGLISH 6
BAHASA MELAYU 10
BAHASA INDONESIA 14
TI”NG VI◊T 18
 22
25
28
31
HP4640

Introduction
This new Philips Satin curl aqua has been specially designed to give
beautiful styling results in a quick and easy way. Its steam function allows
you to make healthy and shiny curls or waves at any time.
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
◗Check if the voltage indicated on the appliance corresponds to
the local mains voltage before you connect the appliance.
◗Check the condition of the mains cord regularly. Do not use the
appliance if the plug, the cord or the appliance itself is damaged.
◗If the mains cord is damaged, it must be replaced by Philips, a
service centre authorised by Philips or similarly qualified persons
in order to avoid a hazard.
◗Keep this appliance away from water! Do not use this product
near or over water contained in baths, washbasins, sinks etc. If
you use it in a bathroom, unplug the appliance after use, since the
proximity of water presents a risk.
◗For additional protection we advise you to install a residual
current device (RCD) with a rated residual operating current
not exceeding 30mA in the electrical circuit supplying the
bathroom.Ask your installer for advice.
◗Keep the appliance out of the reach of children.
◗Only use the appliance on dry or damp hair.
◗The barrel of the brush becomes hot during use. Prevent contact
with the skin.
◗If the appliance falls into water, unplug it immediately and never
use it again.
◗Wait until the appliance has cooled down before storing it.
◗Always unplug the appliance after use.
◗Do not wind the mains cord round the appliance.
ENGLISH6

Preparing for use

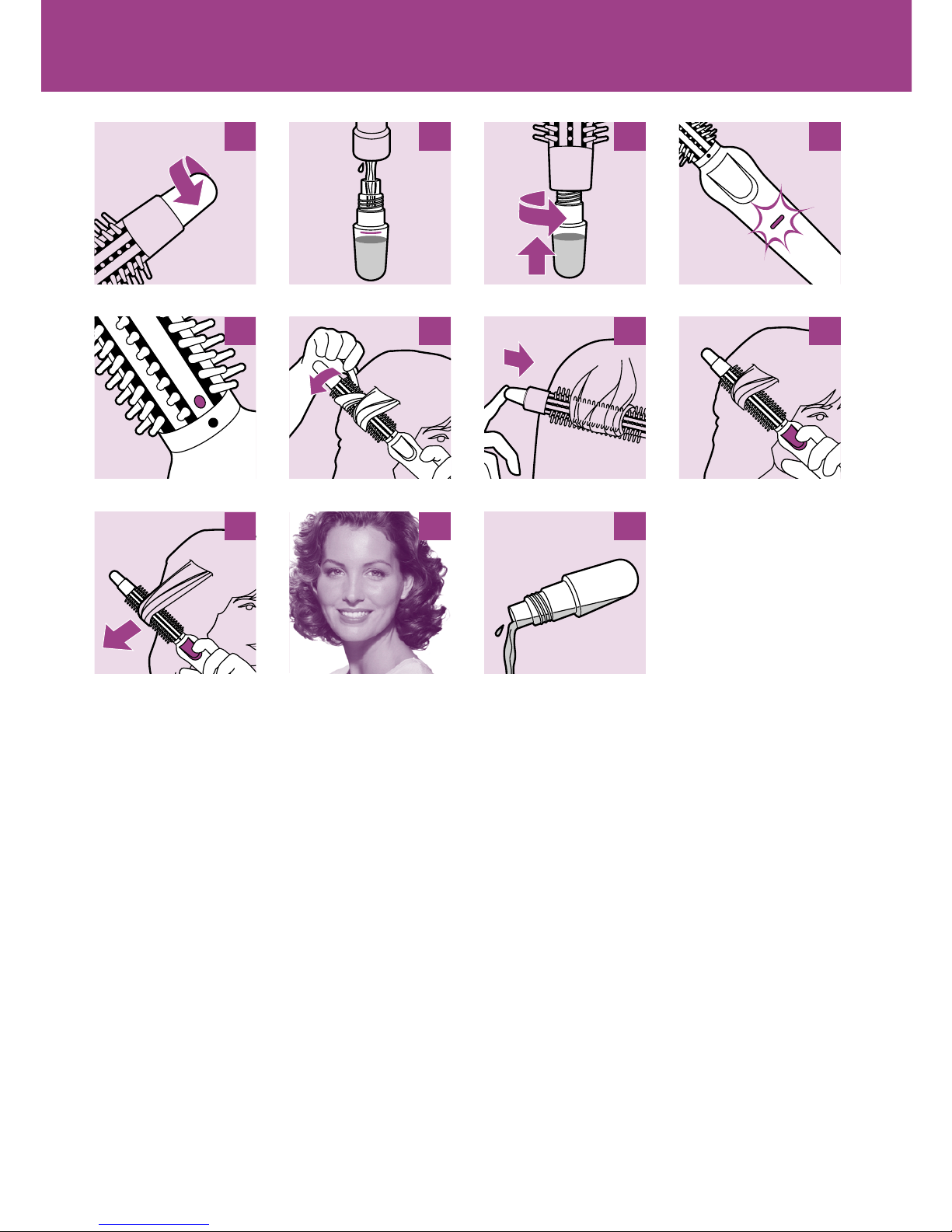

1Unscrew the Cool Tip water reservoir from the brush (fig. 1).
2Fill the reservoir with water to the maximum level indication
under a gently running tap (fig. 2).
3Hold the appliance vertically with the brush end pointing
downwards, and screw the reservoir back onto the brush (fig. 3).
4Unscrew the reservoir a quarter turn and tighten it again to
ensure proper fastening and to prevent leakage.
Using the appliance
BBefore styling, comb or brush your hair so that it is completely
untangled and smooth.
BWe advise you to perform a curl test to determine how long the brush
should be held in your hair to achieve a good result. Start with 8 to 10
seconds.You may have to hold the brush in your hair longer for tighter
curls. Less tight curls will require less than 8 seconds.
1Insert the mains plug into the wall socket (fig. 4).
The pilot light goes on and the appliance starts heating up.
◗The appliance is ready for use after approx. 15 minutes.
2Start styling when the ready dot on the attachment changes
colour (fig. 5).
3Take a lock of hair and wind it round the brush. Make sure the
end of the lock is wound in the required direction (fig. 6).
Do not wind too much hair round the barrel at a time.
The thinner the lock of hair, the tigher the curl will be.
Do not wind a lock of hair more than twice round the brush.
Make sure the lock of hair is in contact with the barrel of the brush.
4Activate the steam function by pushing the Cool Tip water
reservoir into the barrel. Keep it pressed in for up to 3 seconds
before releasing it (fig. 7).
ENGLISH 7

One push will suffice to set one curl or wave.
5Hold the brush in place as long as required (normally 8 to
10 seconds) (fig. 8).
6To remove the brush from your hair, push the button and slide
the brush out of your hair (fig. 9).
Make sure you keep the brush away from the underlying hair when
you remove it.
7Let the curls cool down before combing, brushing or finger-
combing the hair to finish your style (fig. 10).
Cleaning
Always unplug the appliance before cleaning it.
Never rinse the appliance with water.
1Clean the appliance with a small brush or a dry cloth.
2To prevent the build-up of scale, put 3-4 drops of vinegar in the
Cool Tip water reservoir, top it up with water and plug in the
appliance.After a few minutes, i.e. when the ready dot has turned
black, activate the steam function for 3 seconds.Activate the
steam function 10 more times, then unplug the appliance and
rinse the Cool Tip water reservoir with fresh water.
Storage
Always unplug the appliance before storing it.
◗Unscrew the Cool Tip water reservoir and pour out the
remaining water (fig. 11).
◗Put the appliance in a safe place and let it cool down before
storing it.
◗Do not wind the mains cord round the appliance.
ENGLISH8

Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you will find its phone number in the
worldwide guarantee leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or contact the Service
Department of Philips Domestic Appliances and Personal Care BV.
ENGLISH 9

Pendahuluan
Akua ikal Philips Satin baru ini telah direka bentuk khusus untuk
menghasilkan gaya yang menawan dengan pantas dan mudah. Fungsi
wapnya membolehkan anda membuat ikal atau keriting yang sihat dan
bersinar pada bila-bila masa.
Penting
Baca arahan penggunaan ini dengan teliti sebelum menggunakan
perkakas dan simpankannya sebagai rujukan masa depan.
◗Periksa sama ada voltan yang dinyatakan pada perkakas sepadan
dengan voltan sesalur tempatan sebelum anda menyambungkan
perkakas.
◗Periksa keadaan kord sesalur dengan kerap. Jangan gunakan
perkakas jika plag, kord atau perkakas itu sendiri rosak.
◗Jika kord sesalur rosak, ia mesti digantikan oleh Philips, atau pusat
servis yang disahkan oleh Philips, atau orang dengan kelayakan
seumpamanya, untuk mengelakkan bahaya.
◗Jauhkan peralatan ini dari air! Jangan gunakan produk ini
berhampiran atau di atas air yang bertakung dalam tab mandi,
besin air, sinki dsb. Jika anda menggunakannya di dalam bilik air,
cabut peralatan selepas digunakan, kerana adanya air berdekatan
mendatangkan risiko.
◗Sebagai perlindungan tambahan lebih baik untuk melindungi litar
elektrik yang membekalkan bilik mandi dengan suis penutup litar
elektrik yang menghentikan arus lebih dari 30 mA. Menanyai
nasihat pemasang.
◗Jauhkan perkakas daripada capaian kanak-kanak.
◗Gunakan perkakas hanya pada rambut yang kering atau lembap.
◗Laras berus menjadi panas semasa digunakan. Elakkan terkena
pada kulit.
◗Jika peralatan terjatuh ke dalam air, cabutnya serta-merta dan
jangan sekali-kali digunakan lagi.
◗Tunggu sehingga perkakas sejuk sebelum menyimpannya.
◗Cabutkan plag perkakas setiap kali selepas menggunakannya.
◗Jangan lilitkan kord sesalur di sekeliling perkakas.
BAHASA MELAYU10
