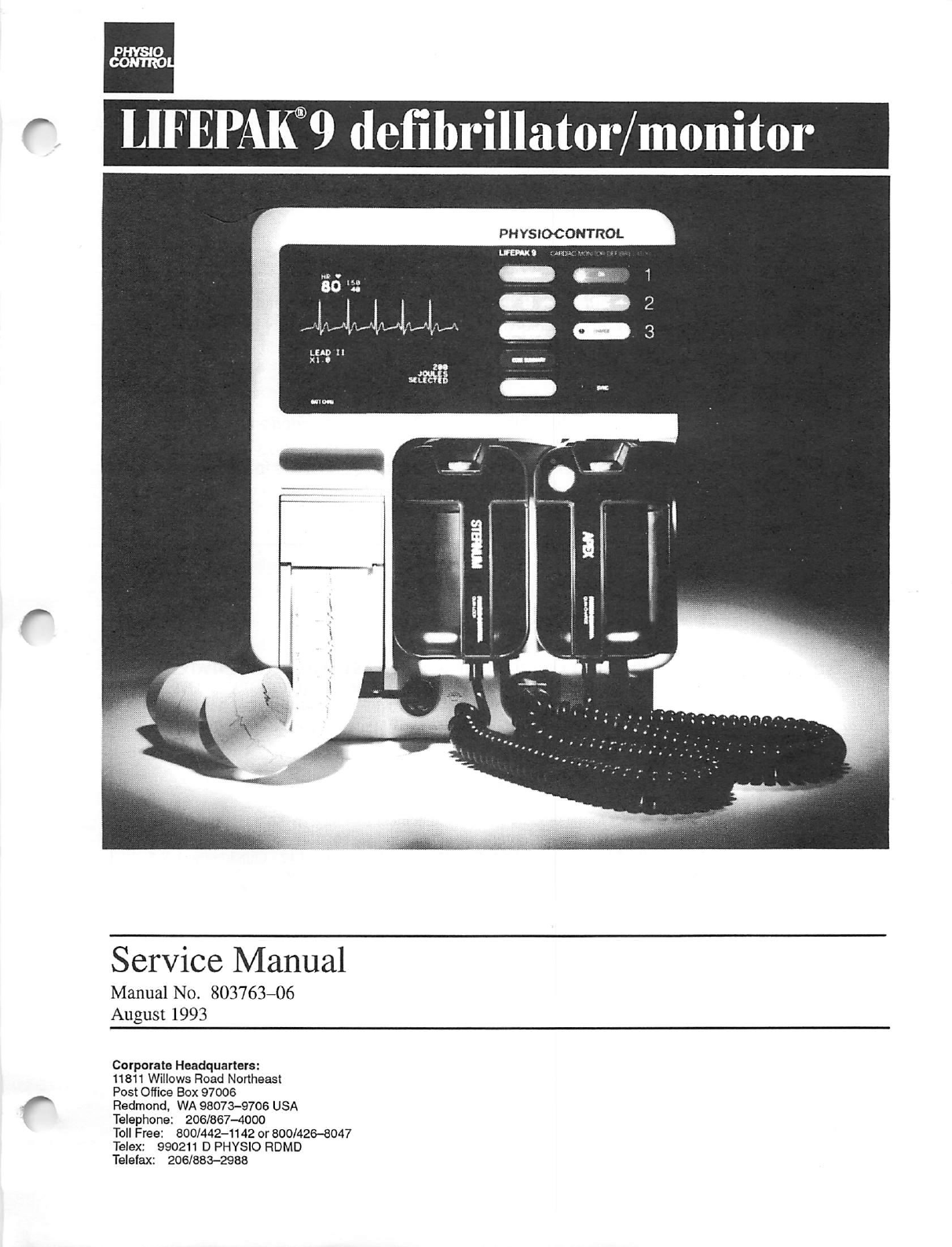

Physio Control LIFEPAK 9 User manual

PHYSIO
CONTRO
LIFEPAK 9 defibrillator/monitor
PHYSIOCONTROL
Service Manual
Manual No. 803763-06
August 1993
Corporate Headquarters:
11811 Willows Road Northeast
Post Office Box 97006
Redmond, WA 98073-9706 USA
Telephone: [phone]
Toll Free: 800/442-1142 or 800/426-8047
Telex: 990211 D PHYSIO RDMD
Telefax: 206/883-2988

LIFEPAK 9 defibrillator/monitor
Part No.
Serial No.
About This Manual: This Service Manual is intended for use
by technical service personnel. It describes how to maintain,
test, troubleshoot, and repair the LIFEPAK 9 defibrillator/
monitor.
A separate publication, the Operating Instructions, is intended
for use by physicians, clinicians, and emergency care
personnel. It provides step-by-step instructions for all operating
features of the LIFEPAK 9 defibrillator/monitor as well as
operator-level testing and maintenance.
Trademarks PHYSIO-CONTROL® LIFEPAK® , FAST-PATCH®, LIFE*PATCH®,
QUIK-LOOK® DERMA JEL®, SAS (SHOCK ADVISORY SYSTEM),
CODE SUMMARY", and PARTSLINE" are trademarks of the
Physio-Control Corporation, 11811 Willows Road N.E., PO Box 97006,
Redmond, WA 98073-9706.
Wa rranty Refer to the product warranty statement included in the accessory kit shipped
with the product. Duplicate copies may be obtained in the USA by calling
the Physio-Control PARTSLINE at 1-800-442-1142. Outside the USA,
contact your local Physio-Control sales or service office.
ii All Rights Reserved © August 1993 Physio-Control

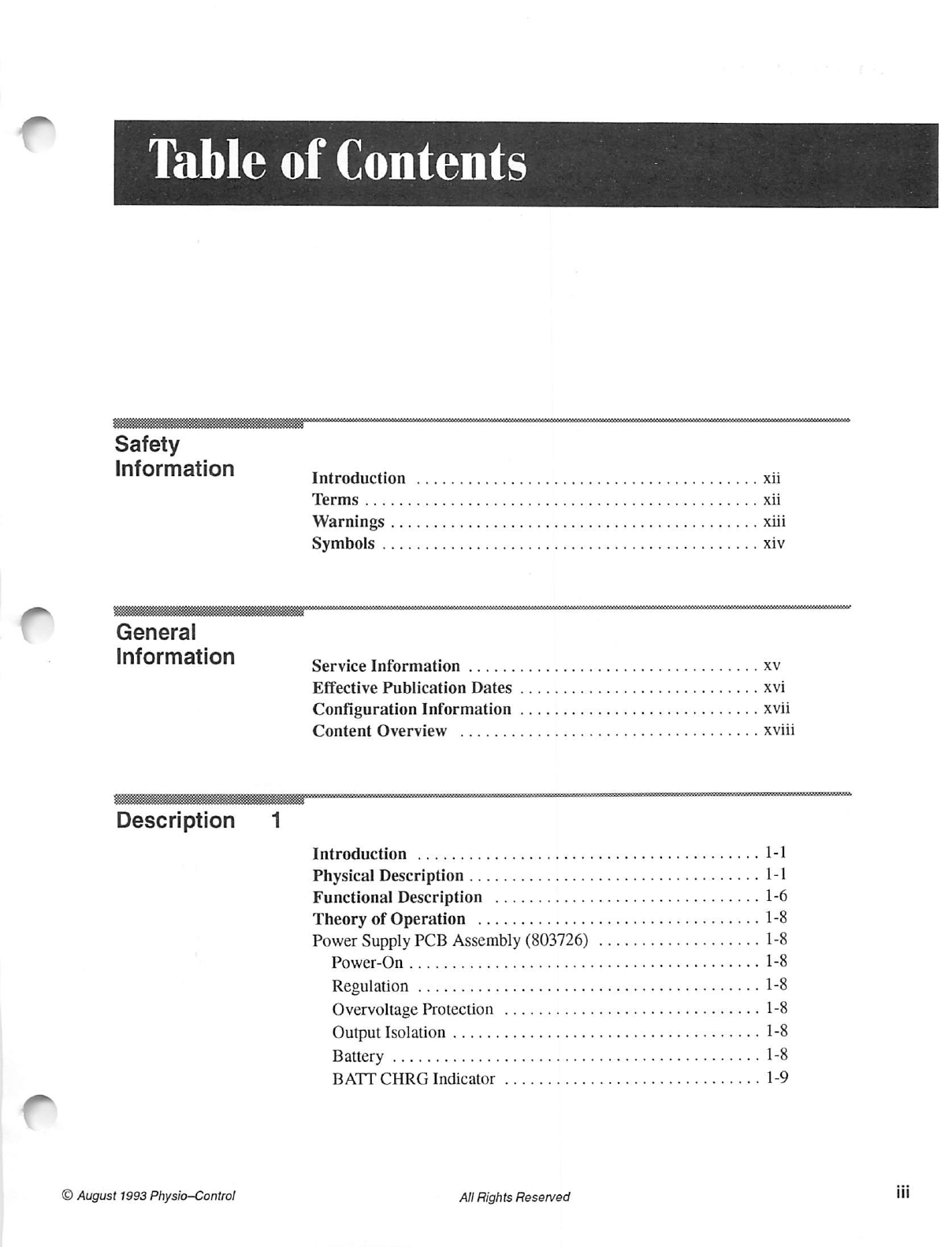

Table of Contents
Safety
Information Introduction ........................................ xii
pa seniii И Ee BS xii
ο πο σι ο xiii
ολ ασ ri ee rana e ec ass xiv
General
Information Service Information < © ozon à à L some ns o more na yo o XV
Effective Publication Dates ............................ xvi
Configuration Information ............................ xvii
Content Overview... sees. roger ss ea ro xviii
Description 1
Introduction: vemos sra ran sr es ena a vs 1-1
Physical Description + | + à ss ss semen à à e acera es 1-1
Functional Description ............................... 1-6
Theory of Operation ................................. 1-8
Power Supply PCB Assembly (803726) ................... 1-8
Power-Qn à à secs à à à à mana à die ini i e e ana dd 1-8
Regulation < s usi 4 4 A rames s à P EG A A E A ONA G č 1-8
Overvoltage Protection ,......,..,.s4ues esse 1-8
Output Isolation .................................... 1-8
Battery ............... eee 1-8
BATT CHRG Indicator ............... e 1-9
© August 1993 Physio—Control All Rights Reserved iii

LIFEPAK 9 defibrillator/monitor

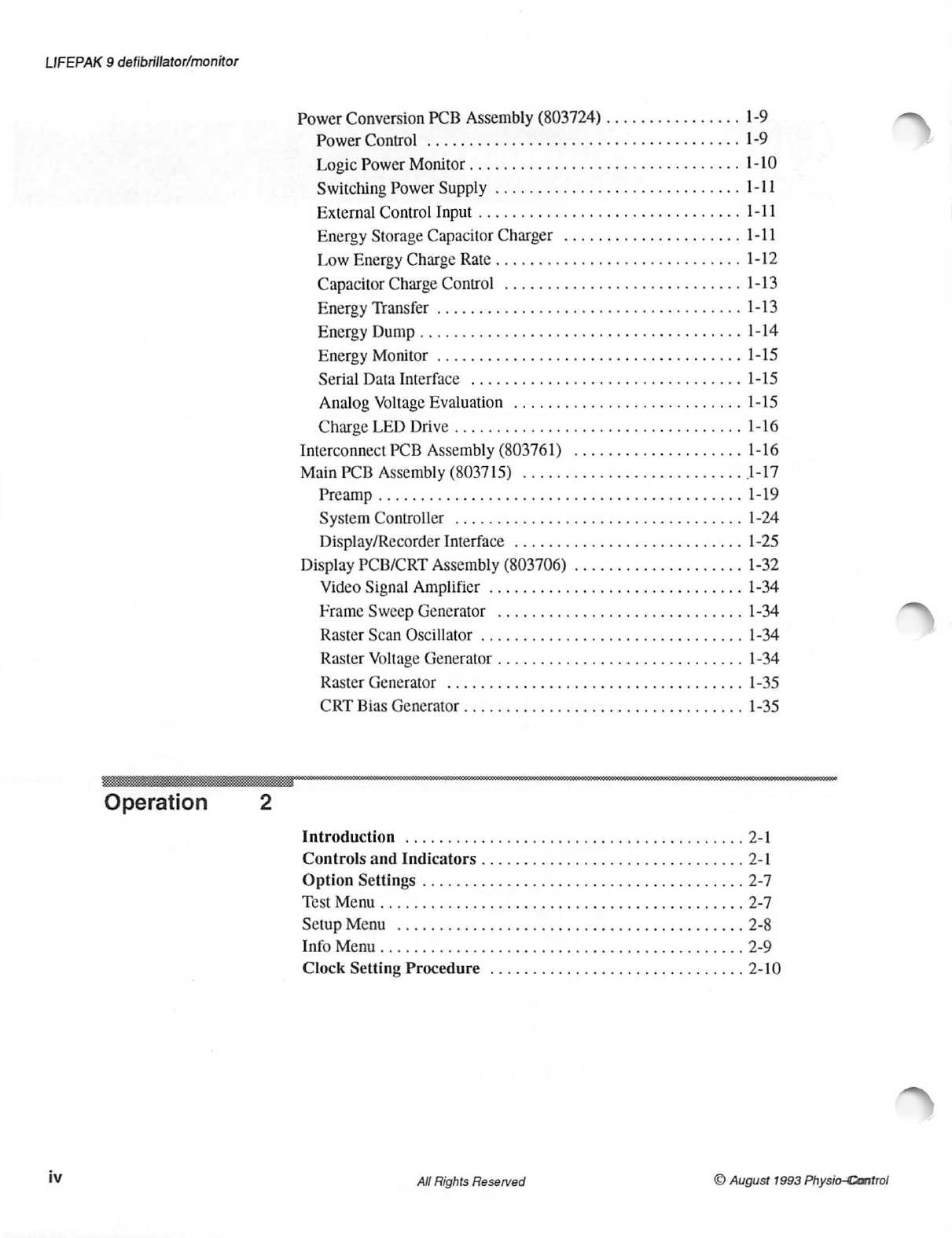

Power Conversion PCB Assembly (803724) ................ 1-9
Power:ControlSS- a. το cri cala 1-9
Eopic Power MONItOL 7:55 2 à saunas 50 5 emen ss sum 1-10
Switching Power Supply ............................. 1-11
External Control Input... é oo usasse ca imersa o à e eme 1-11
Energy Storage Capacitor Charger ..................... 1-11
Low Energy Charge Rate ............................. 1-12
Capacitor Charge Control ccoo o a sessao music а e e ers 1-13
Energy Transfer ο à 5 a eran dè pa à à à pags 1-13
Energy Dump sus : 5 sas р σος ος, 1-14
Energy Monitor .................................... 1-15
Serial Data Intérfice Line à à à é cease à à é unia 1-15
Analog Voltage Evaluation ........................... 1-15
Charge LED DIVE +: mesada ds cana 5 EE RR I è da 1-16
Interconnect PCB Assembly (803761) .................... 1-16
Main PCB Assembly (803715) .......................... 1-17
μι πο τν ο ος 1-19
System Controller .................................. 1-24
Display/Recorder Interface ........................... 1-25
Display PCB/CRT Assembly (803706) .................... 1-32
Video Signal Amplifiér cmo. cs moss sae à 6 6 ο 1-34
οκ ουσ ινών ο ο. 1-34
Raster Scan Oscillator ............................... 1-34
Raster Voltage Generator ............................. 1-34
Raster Generator wan, ο ne 3% ο πα 1-35
ο ἁμ ντε ο σσ ο πο ο. 1-35
Operation 2
Introduction 55 some 5 8 ynde E E RAEE ERRE 2-1
Controls and Indicators ............................... 2-1
Option Settings ...................................... 2-7
和 2-7
Setup Meaw ee e © eim 2-8
Into MOO И di i id 2-9
Clock Setting Procedure
iv All Rights Reserved © August 1993 Physio-Cantrol

Parts Lists/
Schematics
Component
Reference

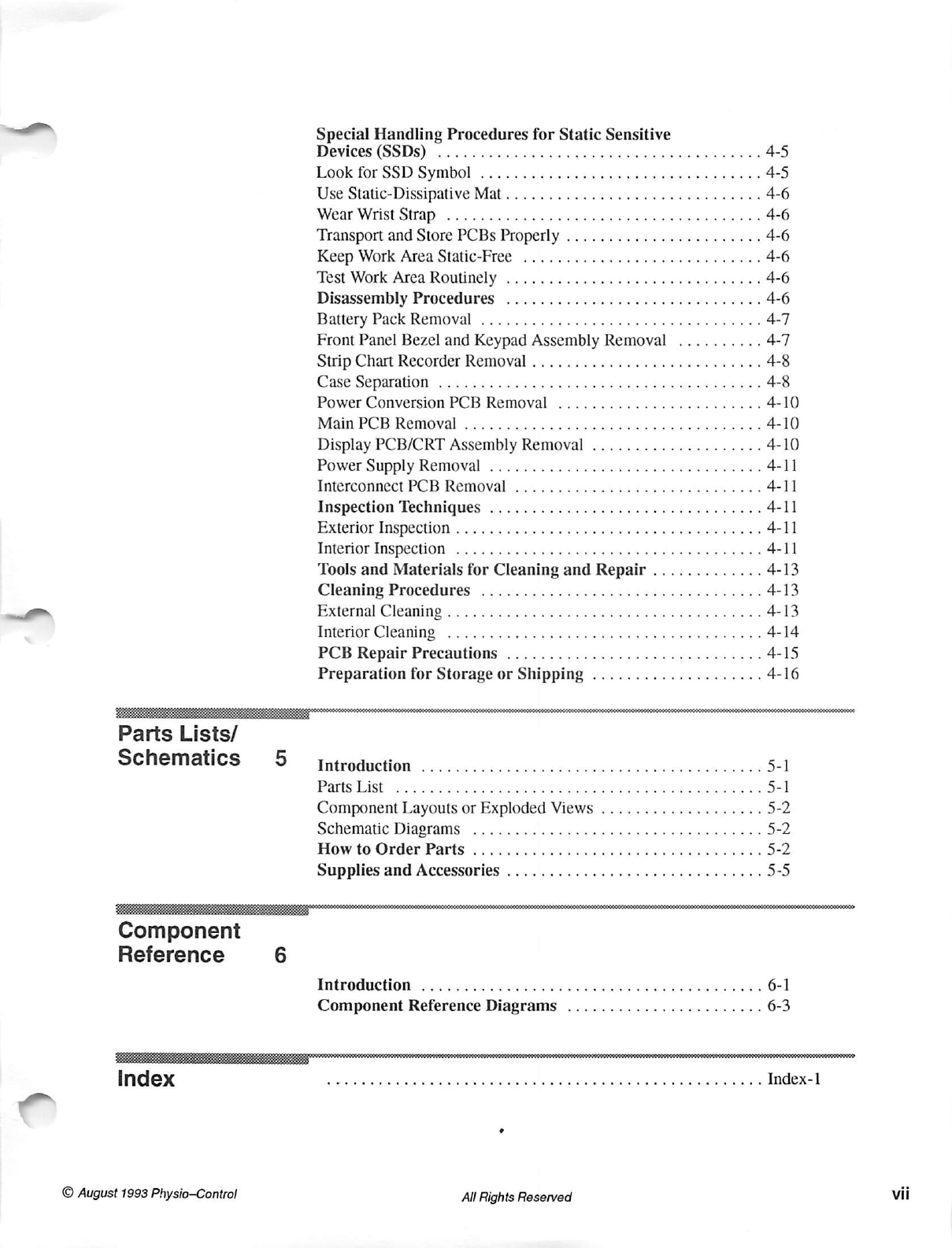

Special Handling Procedures for Static Sensitive
Devices (580$) .................... 00 4-5
Look for SSD Symbol asus ava Gowen à à à sous 9 4 8 € wa 4-5
Use Static-Dissipative Mat .............................. 4-6
Wear Wrist Strap ..................................... 4-6
Transport and Store PCBs Properly ....................... 4-6
Keep Work ArcaStatic-Free ............................ 4-6
Test Work Area Routinely .............................. 4-6
Disassembly Procedures ...........................,.. 4-6
Battery Pack Removal ................................. 4-7
Front Panel Bezel and Keypad Assembly Removal .......... 4-7
Strip Chart Recorder Removal ........................... 4-8
(CB ανω αν ο 8 KPE Dajan 84 0A 4-8
Power Conversion PCB Removal ........................ 4-10
Main PCB Removal ................................... 4-10
Display PCB/CRT Assembly Removal .................... 4-10
Power Supply Removal ................................ 4-11
Interconnect POB RemOval a: : 5 casmcmense rss aamemennenss 4-11
Inspection Techniques 4 4 à à du 4 à 4 à à ananas à à us 4-11
Exterior Inspection .................................... 4-11
Interior
Inspection: ss ++ ono sis soeces sr RRE 4-11
Tools and Materials for Cleaning and Repair ............. 4-13
Cleaning Procedures « ccs: sss ssawaas cee ie veweea anaes 4-13
External Cleaning ..................................... 4-13
Interior Cleaning ..................................... 4-14
PCB Repair Precautions ο εν τς νε εώς ετεκ ασε να 4-15
Preparation for Storage or Shipping .................... 4-16
πια à à à ones à à à ο ο 5-1
Parts List ........................................... 5-1
Component Layouts or Exploded Views ................... 5-2
Schematic Diagrams .................................. 5-2
How to Order Parts: са Е m Böle ma EE 5-2
Supplies and Accessories ..., .,,, 444444 eşe 3 5-5
Index
O August 1993 Physio-Control
All Rights Reserved
vii

LIFEPAK 9 defibrillator/monitor

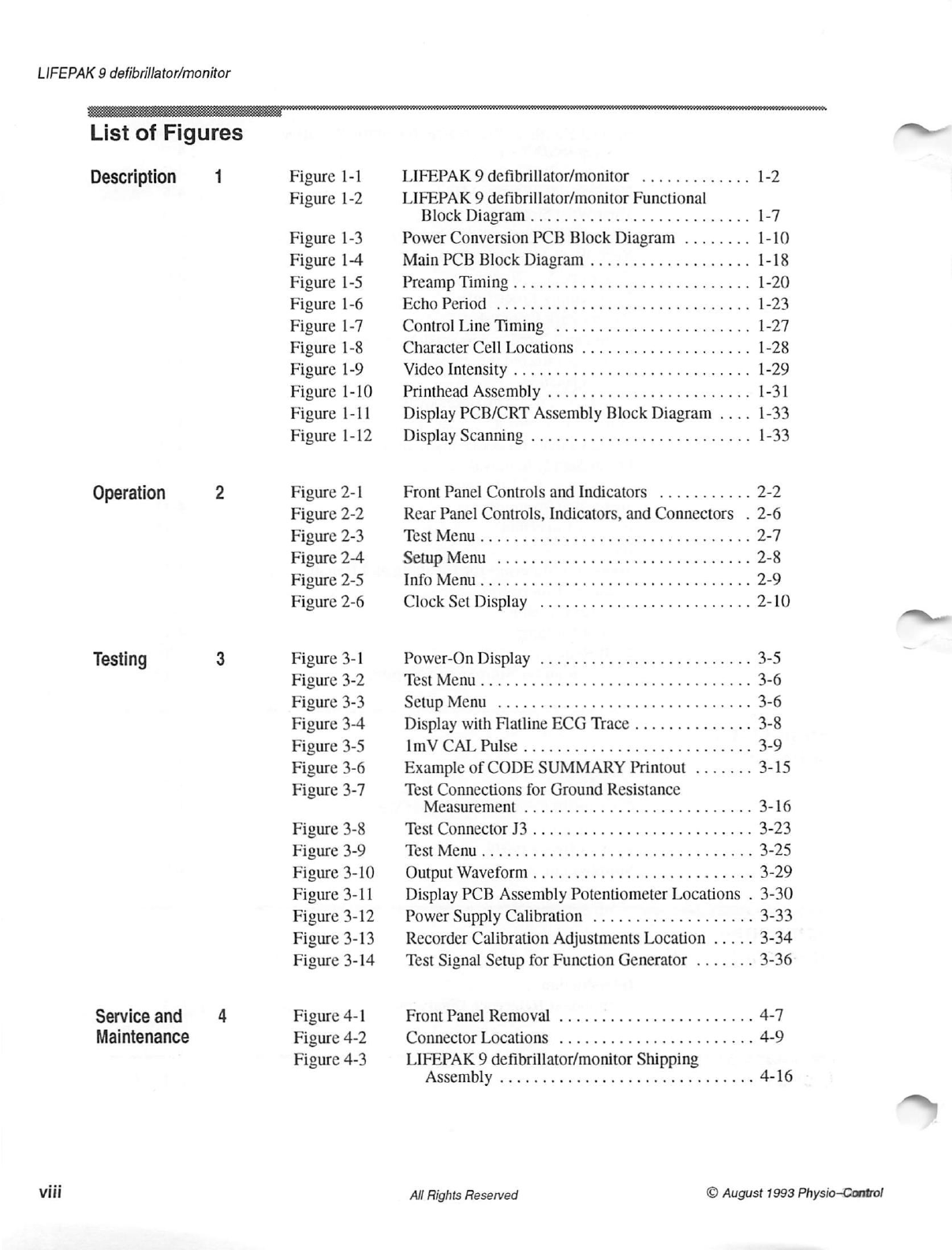

List of Figures
Description 1 Figure 1-1 LIFEPAK 9 defibrillator/monitor ............. 1-2
Figure 1-2 LIFEPAK 9 defibrillator/monitor Functional
Block Diagram .......................... 1-7
Figure 1-3 Power Conversion PCB Block Diagram ........ 1-10
Figure 1-4 Main PCB Block Diagram ................... 1-18
Figure 1-5 Preamp TOS Ys ins Rida ra 1-20
Figure 1-6 Бепо πο πο. 고 1-23
Figure 1-7 Control Line Timing 1.: <; à sure s à à sise à à 1-27
Figure 1-8 Character Cell Locations .................... 1-28
Figure 1-9 Video Intensity ............................ 1-29
Figure 1-10 Printhead Assembly ........................ 1-31
Figure 1-11 Display PCB/CRT Assembly Block Diagram .... 1-33
Figure 1-12 Display Scanning: oss css rig nia ns nera 1-33
Operation 2 Figure 2-1 Front Panel Controls and Indicators ........... 2-2
Figure 2-2 Rear Panel Controls, Indicators, and Connectors . 2-6
Figure 2-3 Test Mei ees; è πο ο ας 2-7
Figure 2-4 Seip MENU ass << vse ο ο 5 à 2-8
Figure 2-5 О И é wu OS a 2-9
Figure 2-6 Clock Set Display ......................... 2-10
Testing 3 Figure 3-1 Power-On Display: use de sans à à à « sois à 3-5
Figure 3-2 MOREL. à Le ess à à à sommes à 6 & sm 3-6
Figure 3-3 SEMP MEM еее о © отель ео хе заварные a 3-6
Figure 3-4 Display with Flatline ECG Trace .............. 3-8
Figure 3-5 TY CAL PUIG ; i scesi i di iva saa 3-9
Figure 3-6 Example of CODE SUMMARY Printout ....... 3-15
Figure 3-7 Test Connections for Ground Resistance
MG asar iyi İN. à de verge te a e a acosan 3-16
Figure 3-8 Test Connector J3 .......................... 3-23
Figure 3-9 SEMİN ik Bakla e VE Vb 466 aan 3-25
Figure 3-10 (Output Wavelorm; Sa im» «a sue 3-29
Figure 3-11 Display PCB Assembly Potentiometer Locations . 3-30
Figure 3-12 Power Supply Calibration ................... 3-33
Figure 3-13 Recorder Calibration Adjustments Location ..... 3-34
Figure 3-14 Test Signal Setup for Function Generator ....... 3-36
Service and 4 Figure 4-1 Front Panel Removal ....................... 4-7
Maintenance Figure 4-2 Connector Locations ....................... 4-9
Figure 4-3 LIFEPAK 9 defibrillator/monitor Shipping
Assembly wen 3 3 v ymm sö ss E EE no 4-16
viii
All
Rights
Reserved
O
August
1993
Physio-Control

Parts Lists/
Schematics
5
©
August
1993
Physio-Control
Figure 5-1
Figure 5-2
Figure 5-3
Figure 5-4
Figure 5-5
Figure 5-6
Figure 5-7
Figure 5-8
Figure 5-9
Figure 5-10
Figure 5-11
Figure 5-12
Figure 5-13
Figure 5-14
Figure 5-15
Figure 5-16
Figure 5-17
Figure 5-18
Figure 5-19
Figure 5-20
Figure 5-21
Figure 5-22
Figure 5-23
Figure 5-24
Figure 5-25
Figure 5-26
Figure 5-27
Figure 5-28
Figure 5-29
Figure 5-30
Figure 5-31
Figure 5-32
Figure 5-33
Figure 5-34
Figure 5-35
Figure 5-36
Figure 5-37
Figure 5-38
Figure 5-39

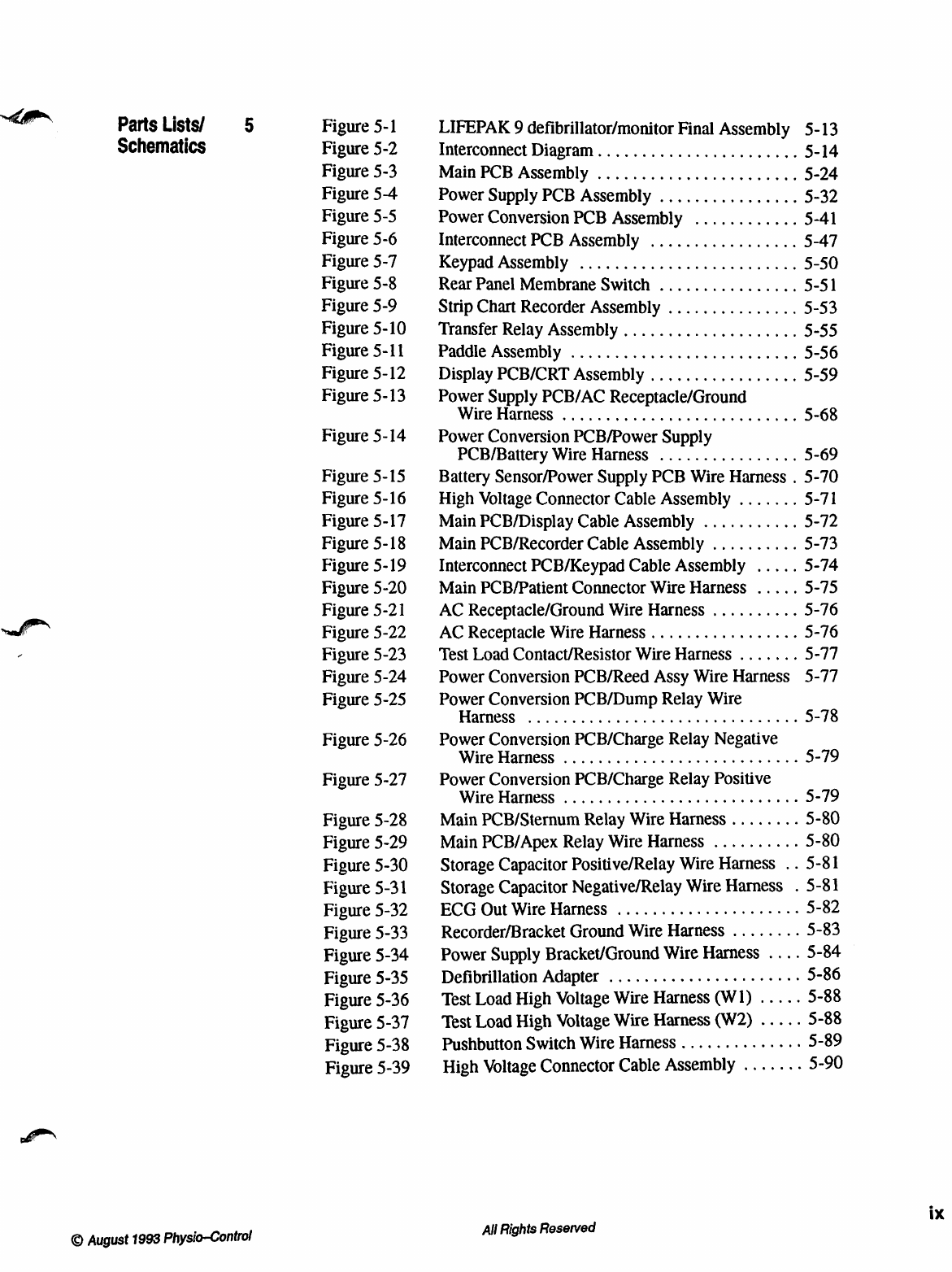

LIFEPAK 9 defibrillator/monitor Final Assembly 5-13
Interconnect Diagram .......,............... 5-14
Main PCB Assembly ....................... 5-24
Power Supply PCB Assembly ................ 5-32
Power Conversion PCB Assembly ............ 5-41
Interconnect PCB Assembly ................. 5-47
Keypad Assembly ......................... 5-50
Rear Panel Membrane Switch ................ 5-51
Strip Chart Recorder Assembly ............... 5-53
Transfer Relay Assembly .................... 5-55
Paddle Assembly .................,........ 5-56
Display PCB/CRT Assembly ................. 5-59
Power Supply PCB/AC Receptacle/Ground
Wire Harness ........................... 5-68
Power Conversion PCB/Power Supply
PCB/Battery Wire Harness ................ 5-69
Battery Sensor/Power Supply PCB Wire Harness . 5-70
High Voltage Connector Cable Assembly ....... 5-71
Main PCB/Display Cable Assembly ........... 5-72
Main PCB/Recorder Cable Assembly .......... 5-73
Interconnect PCB/Keypad Cable Assembly ..... 5-74
Main PCB/Patient Connector Wire Harness ..... 5-75
AC Receptacle/Ground Wire Harness .......... 5-76
AC Receptacle Wire Harness ................. 5-76
Test Load Contact/Resistor Wire Harness ....... 5-77
Power Conversion PCB/Reed Assy Wire Harness 5-77
Power Conversion PCB/Dump Relay Wire
Harness ............................... 5-78
Power Conversion PCB/Charge Relay Negative
Wire Harness ........................... 5-79
Power Conversion PCB/Charge Relay Positive
Wire Harness ........................... 5-79
Main PCB/Sternum Relay Wire Harness ........ 5-80
Main PCB/Apex Relay Wire Harness .......... 5-80
Storage Capacitor Positive/Relay Wire Harness .. 5-81
Storage Capacitor Negative/Relay Wire Harness . 5-81
ECG Out Wire Harness ..................... 5-82
Recorder/Bracket Ground Wire Harness ........ 5-83
Power Supply Bracket/Ground Wire Harness .... 5-84
Defibrillation Adapter ...................... 5-86
Test Load High Voltage Wire Harness (W1) ..... 5-88
Test
Load
High
Voltage
Wire
Harness
(W2)
.....
5-88
Pushbutton
Switch
Wire
Harness
..............
5-89
High
Voltage
Connector
Cable
Assembly
.......
5-90
All Rights Reserved
ix

Component
Reference
Diagrams
LIFEPAK 9 defibrillator/monitor
6
Figure 6-1
Figure 6-2
Figure 6-3
Figure 6-4
Figure 6-5
Figure 6-6
Figure 6-7
Figure 6-8
Figure 6-9
Figure 6-10
Figure 6-11
Figure 6-12
Figure 6-13
Figure 6-14
Figure 6-15
Figure 6-16
Figure 6-17
Figure 6-18
Figure 6-19
Figure 6-20
Figure 6-21
Figure 6-22
Figure 6-23
Figure 6-24
Figure 6-25
Figure 6-26
Figure 6-27
Buffer ...............................,... 6-3
Real-Time Clock .......................... 6-3
A/D Converter ............................ 6-4
D/A Converter ..............,............. 6-4
Counter ...............................,.. 6-5
Counter .....................,.......,.... 6-5
Decoder ..............................,.. 6-6
Decoder ................................. 6-6
Deflection Circuit .......................... 6-7
EPROM............. eee 어이 6-7
D-Type Flip-Flop .......................... 6-8
D-Type Flip-Flop .......................... 6-8
D-Type Flip-Flop .......................... 6-9
J-K Flip-Flop .........................,... 6-9
Display Gate Array ........................ 6-10
Recorder Gate Array ....................... 6-10
Microprocessor .............,............. 6-11
Pulse-Width Modulator ..................... 6-11
Multüvibrator ............................. 6-12
Multivibrator ............................. 6-12
Oscillator ................................ 6-13
Shift Register ............................. 6-13
Pulse-Width Regulator ..................... 6-14
Static RAM, 32kx 8 ..................,.... 6-14
Analog Switch .......................... 6-15
Analog Switch ............................ 6-15
Voltage Regulator .............,......,..... 6-16
All
Rights
Reserved
©
August
1993
Physio-Control

List of Tables
Description 1
Operation 2
Testing 3
Service and 4
Maintenance
Parts Lists/ 5
Schematics
Component 6
Reference
© August 1993 Physio—Control
Table 1-1
Table 1-2
Table 1-3
Table 1-4
Table 2-1
Table 2-2
Table 3-1
Table 3-2
Table 3-3
Table 3-4
Table 3-5
Table 3-6
Table 3-7
Table 3-8
Table 3-9
Table 4-1
Table 4-2
Table 5-1
Table 5-2
Table 5-3
Table 5-4
Table 6-1

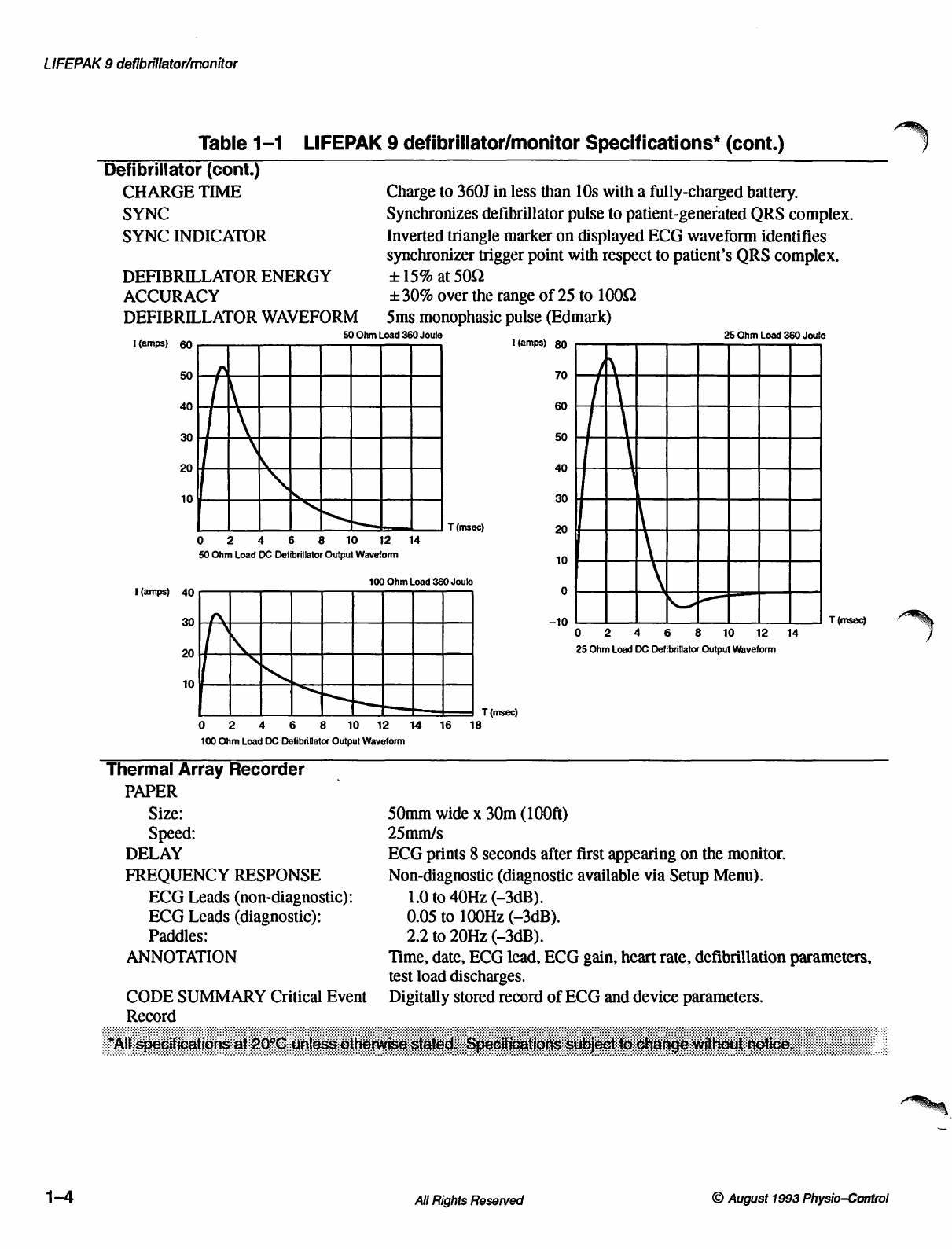

LIFEPAK 9 defibrillator/monitor Specifications .. 1-3
Main PCB FunctionalCircuits................ 1-17
Preamp Pulse Widths . . ее sms sue. 1-21
Display/Recorder Microprocessor 1/0 Lines ..... 1-26
Front Panel Controls and Indicators ........... 2-3
Rear Panel Controls, Indicators and Connectors .. 2-6
PIP Test Equipment ...;: css sia 3-2
Delivered Energy Tolerances: à à à à ss 3-14
Maximum Leakage Current for 120Vac and 60Hz 3-17
Maximum Leakage Current for 230Vac and 50Hz 3-17
Test and Calibration Test Equipment ........... 3-21
Power Conversion PCB Voltage Checks ........ 3-23
Low Battery Thresholds ..................... 3-24
Defibrillator Calibration Measurement Ranges ... 3-26
οι κια ο ο. 3-40
Inspection Techniques ...................... 4-12
Tools
and Materials for Cleaning and Repair .... 4-13
LIFEPAK 9 defibrillator/monitor Major
πο Ημ 3
Defibrillation Adapter Assemblies ............ 5-4
Reference Designator Key ................... 5-4
Supplies and Accessories .................... 5-5
Component Reference Diagrams .............. 6-1
All Rights Reserved
xi

LIFEPAK 9 defibrillator/monitor
Safety
Information
Introduction This safety information includes terms and symbols used in this manual or
on the equipment to alert both operating and service personnel of
recommended precautions in care, use and handling of this specialized
medical equipment.
Refer to NFPA (National Fire Protection Association) 99-1990, Health Care
Facilities, and NFPA 70-1990, National Electrical Code, for specific
guidelines on the standards and practices for health-care instruments and
environments.
Terms Certain terms are used in this manual, or on the equipment. Familiarize
yourself with their definitions and significance.
Danger: Immediate hazards which will result in severe personal injury
or death.
Warning: Hazards or unsafe practices which could result in severe
personal injury or death.
Caution: — Hazards or unsafe practices which could result in minor
personal injury or product damage.
Note: Points of particular interest for more efficient or convenient
instrument operation. Additional information or explanation
concerning the subject under discussion.
xii All Rights Reserved O August 1993 Physio-Control

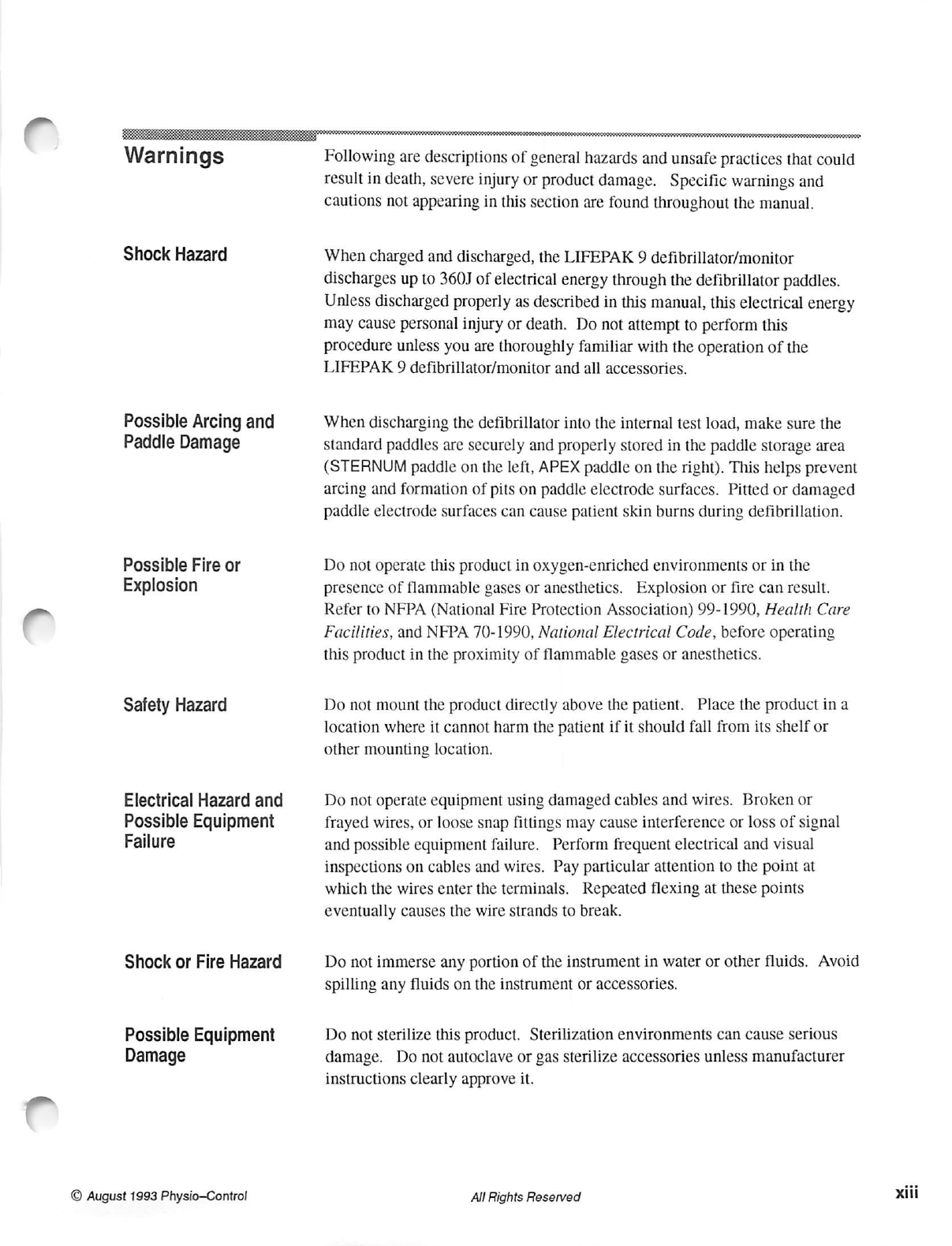

Warnings
Shock Hazard
Possible Arcing and
Paddle Damage
Possible Fire or
Explosion
Safety Hazard
Electrical Hazard and
Possible Equipment
Failure
Shock or Fire Hazard
Possible Equipment
Damage
O August 1993 Physio-Control
Following
are
descriptions
of
general
hazards
and
unsafe
practices
that
could
result
in
death,
severe
injury
or
product
damage.
Specific
warnings
and
cautions
not
appearing
in
this
section
are
found
throughout
the
manual.
When charged and discharged, the LIFEPAK 9 defibrillator/monitor
discharges up to 360J of electrical energy through the defibrillator paddles.
Unless discharged properly as described in this manual, this electrical energy
may Cause personal injury or death. Do not attempt to perform this
procedure unless you are thoroughly familiar with the operation of the
LIFEPAK 9 defibrillator/monitor and all accessories.
When discharging the defibrillator into the internal test load, make sure the
standard paddles are securely and properly stored in the paddle storage area
(STERNUM paddle on the left, APEX paddle on the right). This helps prevent
arcing and formation of pits on paddle electrode surfaces. Pitted or damaged
paddle electrode surfaces can cause patient skin burns during defibrillation.
Do not operate this product in oxygen-enriched environments or in the
presence of flammable gases or anesthetics. Explosion or fire can result.
Refer to NFPA (National Fire Protection Association) 99-1990, Health Care
Facilities, and NFPA 70-1990, National Electrical Code, before operating
this product in the proximity of flammable gases or anesthetics.
Do not mount the product directly above the patient. Place the product in a
location where it cannot harm the patient if it should fall from its shelf or
other mounting location.
Do not operate equipment using damaged cables and wires. Broken or
frayed wires, or loose snap fittings may cause interference or loss of signal
and possible equipment failure. Perform frequent electrical and visual
inspections on cables and wires. Pay particular attention to the point at
which the wires enter the terminals. Repeated flexing at these points
eventually causes the wire strands to break.
Do not immerse any portion of the instrument in water or other fluids. Avoid
spilling any fluids on the instrument or accessories.
Do not sterilize this product. Sterilization environments can cause serious
damage. Do not autoclave or gas sterilize accessories unless manufacturer
instructions clearly approve it.
All
Rights
Reserved
xiii

LIFEPAK 9 defibrillator/monitor
Safety Risk
Shock or Fire Hazard
Symbols
xiv
Do not substitute accessories. Use only recommended accessories listed in
Table 5-4 shown on page 5-5. Substitution may cause the instrument to
work improperly.
Make sure that all equipment is interconnected safely in accordance with
NFPA (National Fire Protection Association) 70-1990, National Electrical
Code.
Note:
Within certain governmental jurisdictions, all interconnected
accessory equipment must be labeled by an approved testing
laboratory. It is important that you verify and observe the required
applications in your location. Check leakage current and
grounding requirements after interconnecting this instrument with
accessory equipment.
als
al
>||S
TET
Any or all of the following symbols may appear in this manual or on the
equipment:
>
ATTENTION
>
+
®=04
©
Static Sensitive Device (SSD)
Additional information in Section 6, Component References
DANGER — high voltage present
ATTENTION — refer to manual for more information
Defibrillation protected, type CF patient connection
Defibrillation protected, type BF patient connection
Protective ground (earth) terminal
Fusible Link
Equipotentiality connector
Off (Power: disconnection from the mains)
On (Power: connection to the AC mains)
ECG Output
All Rights Reserved O August 1993 Physio-Control

General Information
Service Before attempting to clean or repair any assembly in this instrument, the
Information technician should be familiar with the information provided in Section 4,
Service and Maintenance.
If the instrument has been dropped, damaged, or abused, a qualified
technician should complete the Performance Inspection Procedure (PIP)
in Section 3, beginning on page 3-1, to confirm whether the instrument is
operating within specifications. If calibration or more extensive testing is
required, a qualified technician can perform the Test and Calibration
Procedure (TCP) in Section 3. Component replacement and internal
adjustments must be performed only by service personnel qualified by
appropriate training and experience.
Use of non—Physio—Control defibrillation electrodes, batteries, accessories,
or adapter devices may void Safety Agency Certifications and warranty.
For assistance in servicing the instrument in the US, call Physio-Control at
1-800-442-1142. In other countries contact the local Physio-Control
representative.
©
August
1993
Physio—Control
All
Rights
Reserved
xv

LIFEPAK 9 defibrillator/monitor
Effective
Publication
Dates
xvi
The effective publication date for each page of this manual is listed below.
Title Page Date
Trademark and Warranty ii August 1993
Table of Contents ii thru vii August 1993
List of Figures viii thru ix August 1993
List of Tables xi August 1993
Safety Information xi thru xiv August 1993
Terms xii August 1993
Warnings xiii August 1993
Symbols xiv August 1993
General Information χν thru xviii August 1993
Service XV August 1993
Effective Publication Dates Xvi August 1993
Configuration Information xvii August 1993
Content Overview xviii August 1993
1 Description 1- thru 1-35 August 1993
2 Operation 2-1 thru 2-10 August 1993
3 Testing 3-1 thru 3-41 August 1993
4 Service and Maintenance 4-1 thru 4-16 August 1993
5 Part Lists/Schematics 5-1 thru 5-90 August 1993
6 Component Reference 6-1 thru 6-16 August 1993
Index Index-1 thru August 1993
Index-6
All Rights Reserved
© August 1993 Physio-Control

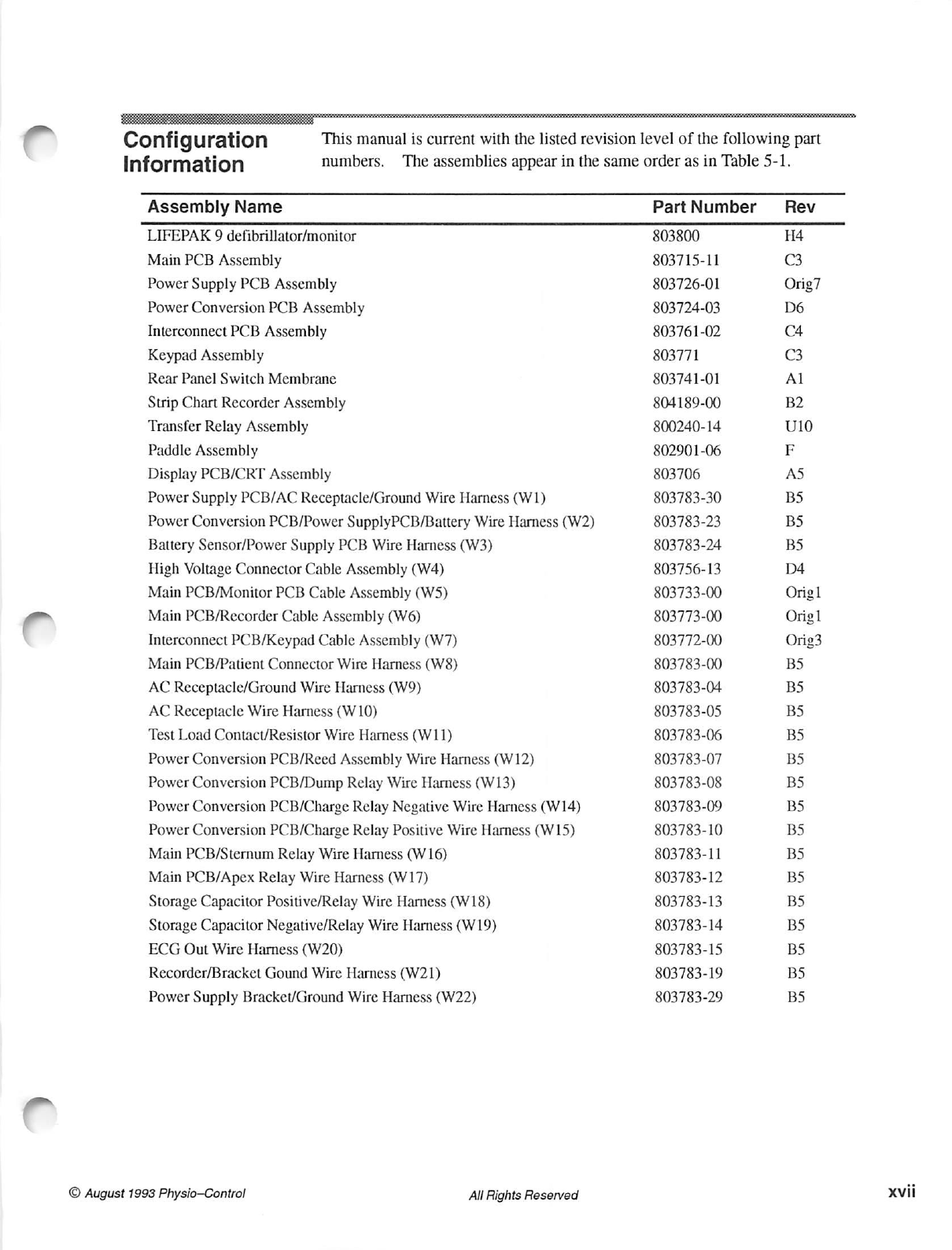

Configuration This manual is current with the listed revision level of the following part
Information numbers. The assemblies appear in the same order as in Table 5-1.
Assembly Name PartNumber Rev
LIFEPAK 9 defibrillator/monitor 803800 H4
Main PCB Assembly 803715-11 C3
Power Supply PCB Assembly 803726-01 Orig7
Power Conversion PCB Assembly 803724-03 D6
Interconnect PCB Assembly 803761-02 C4
Keypad Assembly 803771 C3
Rear Panel Switch Membrane 803741-01 Al
Strip Chart Recorder Assembly 804189-00 B2
Transfer Relay Assembly 800240-14 U10
Paddle Assembly 802901-06 F
Display PCB/CRT Assembly 803706 AS
Power Supply PCB/AC Receptacle/Ground Wire Harness (W1) 803783-30 BS
Power Conversion PCB/Power SupplyPCB/Battery Wire Harness (W2) 803783-23 BS
Battery Sensor/Power Supply PCB Wire Harness (W3) 803783-24 BS
High Voltage Connector Cable Assembly (W4) 803756-13 D4
Main PCB/Monitor PCB Cable Assembly (W5) 803733-00 Orig]
Main PCB/Recorder Cable Assembly (W6) 803773-00 Orig]
Interconnect PCB/Keypad Cable Assembly (W7) 803772-00 Orig3
Main PCB/Patient Connector Wire Harness (W8) 803783-00 BS
AC Receptacle/Ground Wire Harness (W9) 803783-04 BS
AC Receptacle Wire Harness (W 10) 803783-05 BS
Test Load Contact/Resistor Wire Harness (W11) 803783-06 BS
Power Conversion PCB/Reed Assembly Wire Harness (W12) 803783-07 BS
Power Conversion PCB/Dump Relay Wire Harness (W13) 803783-08 BS
Power Conversion PCB/Charge Relay Negative Wire Harness (W14) 803783-09 BS
Power Conversion PCB/Charge Relay Positive Wire Harness (W15) 803783-10 BS
Main PCB/Sternum Relay Wire Harness (W16) 803783-11 BS
Main PCB/Apex Relay Wire Harness (W17) 803783-12 BS
Storage Capacitor Positive/Relay Wire Harness (W18) 803783-13 BS
Storage Capacitor Negative/Relay Wire Harness (W19) 803783-14 BS
ECG Out Wire Harness (W20) 803783-15 BS
Recorder/Bracket Gound Wire Harness (W21) 803783-19 BS
Power Supply Bracket/Ground Wire Harness (W22) 803783-29 BS
©
August
1993
Physio-Control
All
Rights
Reserved
xvii

LIFEPAK 9 defibrillator/monitor
xviii

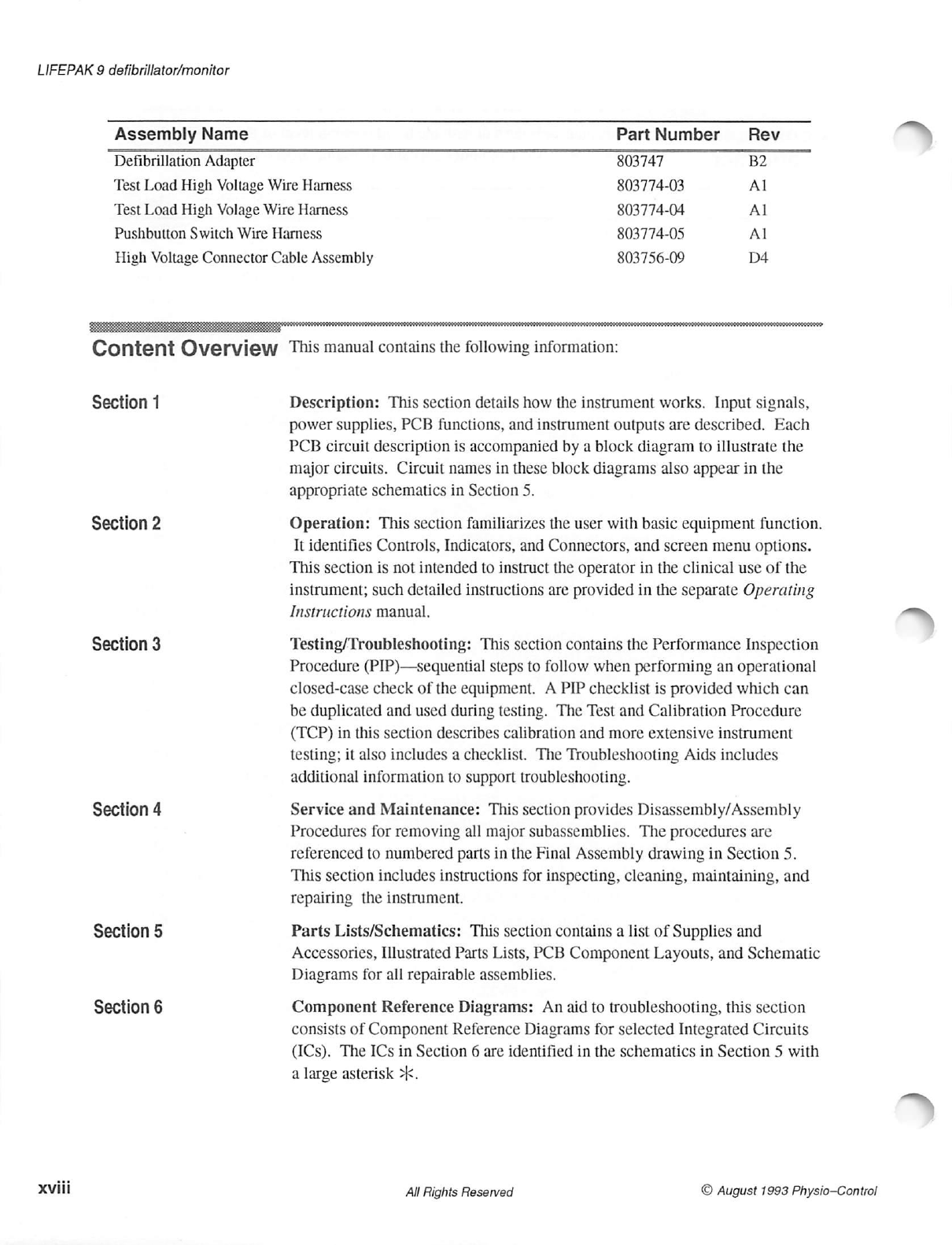

Assembly Name PartNumber Rev
Defibrillation Adapter 803747 B2
Test Load High Voltage Wire Harness 803774-03 Al
Test Load High Volage Wire Harness 803774-04 Al
Pushbutton Switch Wire Harness 803774-05 Al
High Voltage Connector Cable Assembly 803756-09 D4
Content Overview This manual contains the following information:
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Description: This section details how the instrument works. Input signals,
power supplies, PCB functions, and instrument outputs are described. Each
PCB circuit description is accompanied by a block diagram to illustrate the
major circuits. Circuit names in these block diagrams also appear in the
appropriate schematics in Section 5.
Operation: This section familiarizes the user with basic equipment function.
It identifies Controls, Indicators, and Connectors, and screen menu options.
This section is not intended to instruct the operator in the clinical use of the
instrument; such detailed instructions are provided in the separate Operating
Instructions manual.
Testing/Troubleshooting: This section contains the Performance Inspection
Procedure (PIP)—sequential steps to follow when performing an operational
closed-case check of the equipment. A PIP checklist is provided which can
be duplicated and used during testing. The Test and Calibration Procedure
(TCP) in this section describes calibration and more extensive instrument
testing; it also includes a checklist. The Troubleshooting Aids includes
additional information to support troubleshooting.
Service and Maintenance: This section provides Disassembly/Assembly
Procedures for removing all major subassemblies. The procedures are
referenced to numbered parts in the Final Assembly drawing in Section 5.
This section includes instructions for inspecting, cleaning, maintaining, and
repairing the instrument.
Parts Lists/Schematics: This section contains a list of Supplies and
Accessories, Illustrated Parts Lists, PCB Component Layouts, and Schematic
Diagrams for all repairable assemblies.
Component Reference Diagrams: An aid to troubleshooting, this section
consists of Component Reference Diagrams for selected Integrated Circuits
(ICs). The ICs in Section 6 are identified in the schematics in Section 5 with
a large asterisk >.
All Rights Reserved © August 1993 Physio-Control

Description 1
The recorder can print the ECG trace, time and date, ECG lead and size,
heart rate, and SYNC (if activated). The recorder automatically prints for
approximately 16 seconds when a heart rate violation occurs. When the
CODE SUMMARY pushbutton is pressed, the recorder prints the stored
CODE SUMMARY critical event record data, including event summary and
recorded ECG trace data.
The ac line power fuses, a ground connector, and an ECG signal output
connector are accessible at the rear panel. The LIFEPAK 9 defibrillator/
monitor specifications are listed in Table 1-1.
Table 1-1 LIFEPAK 9 defibrillator/monitor Specifications*
ECG Monitor
ECG LEAD SELECTIONS Std, Paddles, I, II, ITI.
INPUT Isolated ECG via QUIK-LOOK defibrillator paddles, FAST-PATCH
disposable defibrillation/ECG electrodes, or 3-lead patient cable.
PATIENT CABLE LENGTH Total length 4.0m (13ft): cable 3.1m (10ft), leads 0.9m (3ft).
COMMON MODE REJECTION 100dB minimum with respect to chassis ground and 65dB minimum
with respect to isolated ground when measured at 60Hz. Common
mode range for patient cable input 210V peak with respect to isolated
ground.
MONITOR DISPLAY SIZE 102mm (4in) wide x 76mm (3in) tall, non-fade.
SWEEP SPEED 25mm/s
FREOUENCY RESPONSE Non-diagnostic.
ECG Leads: 1.0 to 40Hz (-3dB)
Paddles: 2.2 to 20Hz (-3dB)
ECG SIZE Adjusts amplitude of ECG trace on monitor and strip chart recorder.
HEART RATE METER Three-digit readout displays rates from 20 to 300bpm. Heart rates
outside this range do not yield valid systole tones or heart rate display.
HEART RATE ALARM User-selectable alarm limits. Three high/low settings: 150/40, 120/60,
160/90. Other limit options available through the Setup Menu.
1 mV Cal Momentary pushbutton on rear panel simulates a 1mV signal pulse to
the ECG input.
ECG OUTPUT 1V/mV.
Defibrillator
ENERGY SELECT
External Paddles: 1, 2, 3, 4, S, 6, 7, 8, 9, 10, 20, 30, 50, 100, 200, 300, 360J
Internal Paddles: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, SOJ
CHARGE CONTROLS Independent momentary pushbutton controls on front panel and APEX
paddle.
PADDLE CORD LENGTH 3m (10ft)
CHARGE INDICATORS Flashing lamps on paddle and front panel pushbutton along with
increasing stored energy display on monitor indicate charge in
progress. Upon full charge, energy available is displayed and charge
completed tone sounds
© August 1993 Physio—Control
All Rights Reserved 1-3

LIFEPAK 9 defibrillator/monitor
Table 1-1 LIFEPAK 9 defibrillator/monitor Specifications* (cont.)
Defibrillator (cont.)
CHARGE TIME Charge to 360J in less than 10s with a fully-charged battery.
SYNC Synchronizes defibrillator pulse to patient-generated QRS complex.
SYNC INDICATOR Inverted triangle marker on displayed ECG waveform identifies
synchronizer trigger point with respect to patient’s QRS complex.
DEFIBRILLATOR ENERGY + 15% at 500
ACCURACY +30% over the range of 25 to 1000
DEFIBRILLATOR WAVEFORM — Sms monophasic pulse (Edmark)
50 Ohm Load 360 Joule 25 Ohm Load 360 Joule
1(amps) 60 L(amps) 80
50 70
40 | \ 60
30 50
\
20 < 40
10 NM 30
NT
T (msec) 20
0 2 4 6 8 10 12 14
50 Ohm Load OC Defibrillator Output Waveform 10
100 Ohm Load 360 Joule
I (amps) 0
-10 T (msec)
0 2 4 6 8 10 12 14
25 Ohm Load DC Defibrillator Output Waveform
T (msec)
0 2 4 6 8 10 12 14 16 18
100 Ohm Load OC Defibrillator Output Waveform
Thermal Array Recorder
PAPER
Size: 50mm wide x 30m (100ft)
Speed: 25mm/s
DELAY ECG prints 8 seconds after first appearing on the monitor.
FREQUENCY RESPONSE Non-diagnostic (diagnostic available via Setup Menu).
ECG Leads (non-diagnostic): 1.0 to 40Hz (-3dB).
ECG Leads (diagnostic): 0.05 to 100Hz (-3dB).
Paddles: 2.2 to 20Hz (-3dB).
ANNOTATION Time, date, ECG lead, ECG gain, heart rate, defibrillation parameters,
test load discharges.
CODE SUMMARY Critical Event Digitally stored record of ECG and device parameters.
Record
1-4
All
Rights
Reserved
©
August
1993
Physio-Control

Description 1
Table 1-1 LIFEPAK 9 defibrillator/monitor Specifications* (cont.)
General
AC INPUT OPTIONS 120 or 240Vac nominal line voltage without adjustment. 50 or 60Hz
with adjustment in Setup Menu.
BATTERY TYPE Sealed lead-acid, 16Vdc nominal, 3 Ahr.
BATTERY CAPACITY A new, fully-charged battery will provide one of the following prior to
shutdown:
Typical Minimum
Number of 360J discharges: 75 40
Minutes of monitoring: 90 70
LOW BATTERY INDICATOR Advises operator to connect ac power. Battery capacities before and
BATTERY CHARGE INDICATOR
BATTERY CHARGE TIME
SERVICE INDICATOR
POWER CONSUMPTION
SIZE
Height:
Width:
Depth:
Weight:
POWER CORD LENGTH
STANDARD PADDLE
ELECTRODE AREA
after warning (LOW BATTERY-CONNECT AC POWER) for a new,
fully charged battery are:
Typical Minimum
Number of 360J discharges before warning: 50 20
Number of 360J discharges after warning: 25 5
Indicator BATT CHRG illuminates when battery is charging.
24hrs to full capacity.
Message SERVICE indicates self-diagnostic routines have detected
improper operation requiring service attention.
160W maximum while monitoring with recorder on and defibrillator
charging.
35.2cm (13.9in)
29.7cm (11.7in)
31.0cm (12.2in)
12.7kg (28lbs)
3m (10ft)
82cm?
Environmental
ATMOSPHERIC PRESSURE
RELATIVE HUMIDITY
TEMPERATURE RANGE
797 to 500mm Hg (-570 to 11,000ft).
0 to 95% (non-condensing) at 0 to 34°C (32 to 94°F).
0 to 80% (non-condensing) at 35 to 45°C (95 to 113°F).
0 to 45°C (32 to 113°F) operating.
—30 to 65°C (-22 to 149°F) storage.
© August 1993 Physio—Control
All Rights Reserved 1-5

LIFEPAK 9 defibrillator/monitor

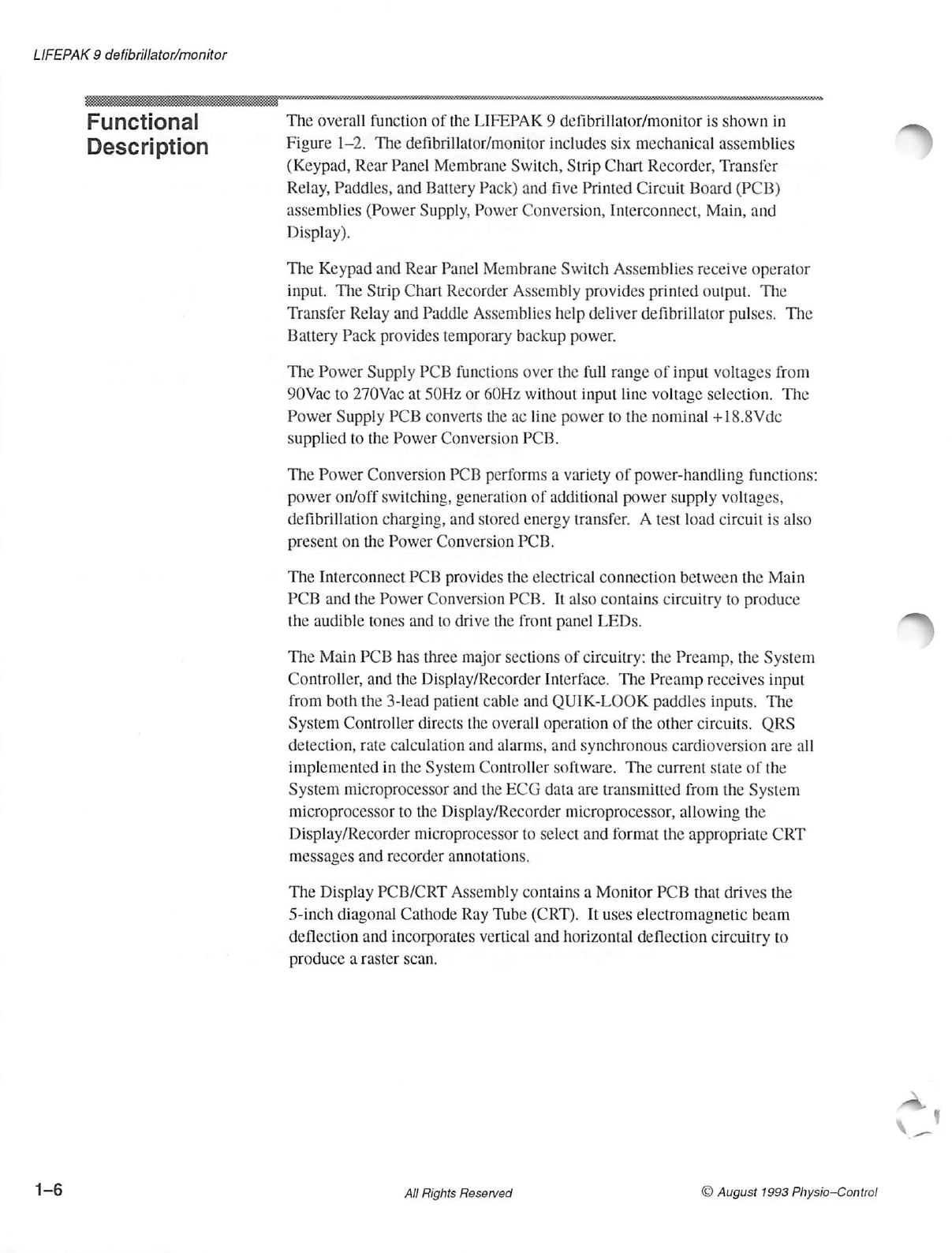

Functional The overall function of the LIFEPAK 9 defibrillator/monitor is shown in
Descri ption Figure 1-2. The defibrillator/monitor includes six mechanical assemblies
(Keypad, Rear Panel Membrane Switch, Strip Chart Recorder, Transfer
Relay, Paddles, and Battery Pack) and five Printed Circuit Board (PCB)
assemblies (Power Supply, Power Conversion, Interconnect, Main, and
Display).
The Keypad and Rear Panel Membrane Switch Assemblies receive operator
input. The Strip Chart Recorder Assembly provides printed output. The
Transfer Relay and Paddle Assemblies help deliver defibrillator pulses. The
Battery Pack provides temporary backup power.
The Power Supply PCB functions over the full range of input voltages from
90Vac to 270Vac at 50Hz or 60Hz without input line voltage selection. The
Power Supply PCB converts the ac line power to the nominal +18.8Vdc
supplied to the Power Conversion PCB.
The Power Conversion PCB performs a variety of power-handling functions:
power on/off switching, generation of additional power supply voltages,
defibrillation charging, and stored energy transfer. A test load circuit is also
present on the Power Conversion PCB.
The Interconnect PCB provides the electrical connection between the Main
PCB and the Power Conversion PCB. It also contains circuitry to produce
the audible tones and to drive the front panel LEDs.
The Main PCB has three major sections of circuitry: the Preamp, the System
Controller, and the Display/Recorder Interface. The Preamp receives input
from both the 3-lead patient cable and QUIK-LOOK paddles inputs. The
System Controller directs the overall operation of the other circuits. QRS
detection, rate calculation and alarms, and synchronous cardioversion are all
implemented in the System Controller software. The current state of the
System microprocessor and the ECG data are transmitted from the System
microprocessor to the Display/Recorder microprocessor, allowing the
Display/Recorder microprocessor to select and format the appropriate CRT
messages and recorder annotations.
The Display PCB/CRT Assembly contains a Monitor PCB that drives the
5-inch diagonal Cathode Ray Tube (CRT). It uses electromagnetic beam
deflection and incorporates vertical and horizontal deflection circuitry to
produce a raster scan.
1-6 All Rights Reserved © August 1993 Physio—Control
