Valeo Back
2
ENGLISH
Physipro inc. is delighted to have you among its clients. We sincerely wish to
thank you for the trust you have shown in our Company by choosing one of our
products. This user manual has been designed to allow the client to use the Valeo
Backrest, a Physipro inc. product, safely in an optimal way. For all adjustments and
settings, Physipro inc. strongly recommends you consult a qualied professional.
Physipro inc. provides you with specic verications you should perform on a
regular basis in order to optimize the performance of your Valeo Backrest and
extend its operational life. Physipro inc. relieves itself from any liability should any
bodily injury or property damage result from a lack of care or misuse or from any
modication made to the product without prior written consent of the Company.
For Physipro inc., your satisfaction remains a priority.
Table of content
1. Main components of the Valeo backrest...............................................................3
2. Foam composition and optional components......................................................3
3. Specications...........................................................................................................4
4. Recommendations ..................................................................................................5
4.1 Usage verication ..................................................................................5
4.2 Safety rules..............................................................................................5
5. Backrest Installation................................................................................................6
5.1 Pre-assembly ..........................................................................................6
5.2 Removable Mounting Hardware (optional) .........................................6
5.3 Backrest Adjustments ............................................................................6
5.4 Function ..................................................................................................7
5.5 Backrest Installation ..............................................................................8
5.6 Backrest Angle Adjustment...................................................................9
6. Backrest components installation .......................................................................11
6.1 Adjustable Laterals ..............................................................................11
6.2 Laterals mount on the backpost .........................................................13
6.3 Proled Adjustable Laterals ................................................................14
6.4 Headrest support..................................................................................16
7. Care and maintenance ..........................................................................................17
8. Warranty.................................................................................................................18
Clickit Fixit .................................................................................................................19

Owners manual
3
Revision 3
April 2016
ENGLISH
1. Main components of the Valeo backrest
The backrest plate is oered in two dierent
thickness levels: standard (3/32") and heavy duty
(1/8"). The mounting hardware is mounted on
the backposts which enable a height setting.
Many options are available depending on the
customer’s needs. Figure 1 shows the backrest’s
components.
2. Foam composition and optional components
Figure 1
1
2
3
44
5
6
1. Backrest plate (2 thickness choices)
2. Integrated adjustable laterals
3. Adjustable laterals on
backposts
4. Stabilizers (xed and removable)
5. Headrest support
6. Harness adjustment device
1. Sacrolumbar corrector (optional) 5. Urethane (Neocor)*
2. Thoracic wedge (optional) 6. Aerolite
3. Lumbar wedge (optional) 7. Thoracolumbar wedge (optional)
4. Viscose * * Depends on the chosen conguration.
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
3
4
5
6
7
Figure 2

Valeo Back
4
ENGLISH
3. Specications
Description Values
Nominal widths* 10", 12", 14", 16", 18", 20"
Nominal heights** 10", 12", 14", 16", 18", 20"
Backrest plate material Aluminum
Backrest plate thickness Standard : 3/32"
Heavy Duty : 1/8"
Mounting Hardware Fixed or removable. (mounted on the
backposts)
Laterals height
Cushioning included
4", 6", 7", 8", 10"
Weight 3 lb (16" x 18" - 3/32" thicknesses)
* Real width = Nominal width - 1"
** Real height = Nominal height
Each Valeo backrest size can be installed on two
dierent wheelchair widths. In order to choose
the right backrest size, it is important to know
the wheelchair width and the user’s thoracic
width. Dimensions table:
Figure 3
Nominal width
Nominal
height
Nominal
width
available
Nominal
height
available
Integrated
laterals
adjustment
Adjustment of the
laterals backpost
Associated
wheelchair
width
Wheelchair
Models
10" 10", 12" 6.5" to 8.5" 3.5" to 11" 10" and 11" Pediatric
12" 12", 14" 8.5" to 10.5" 5.5" to 13" 12" and 13" Pediatric
14" 14", 16" 10.5" to 12.5" 7.5" to 15" 14" and 15" Adult
16" 16", 18" , 20" 12.5" to 14.5" 9.5" to 17" 16" and 17" Adult
18" 16", 18", 20" 14.5" to 16.5" 11.5" to 19" 18" and 19" Adult
20" 16", 18", 20" 16.5" to 18.5" 13.5" to 21" 20" and 21" Adult

Owners manual
5
Revision 3
April 2016
ENGLISH
4. Recommendations
Do not use this equipment without having read and understood this user
manual in its entirety. This manual includes critical information intended
to ensure the safety of the user and the individuals who handle the
backrest.
In case of spasticity that could damage the wheelchair and the Valeo
hardware, a dynamic backrest is recommended.
4.1 Usage verication
As soon as the client receives the Valeo backrest, verications have to be made to ensure
a safe usage :
Check if the laterals are well adjusted and fixed on the backrest;
Check if the mounting hardware are adjusted at the right height and xed on
the backposts;
Check if any other accessory is suitably adjusted and firmly fixed.
4.2 Safety Rules
Several safety measures must be applied to ensure the safety of the user. Note that the
following list is not comprehensive. Therefore, the people who use the Valeo backrest
have the responsibility to use it cautiously:
Never neglect the mounting hardware, or else, make sure the mounting
hardware are closed before using the wheelchair;
Do not use the Valeo backrest to push or lift the wheelchair;
Do not install the Valeo backrest on a wheelchair that is not built for it;
Regularly check the integrity of the backrest, the backposts and the fasteners.

Valeo Back
6
ENGLISH
5 Backrest Installation
5.1 Tools necessary for installation

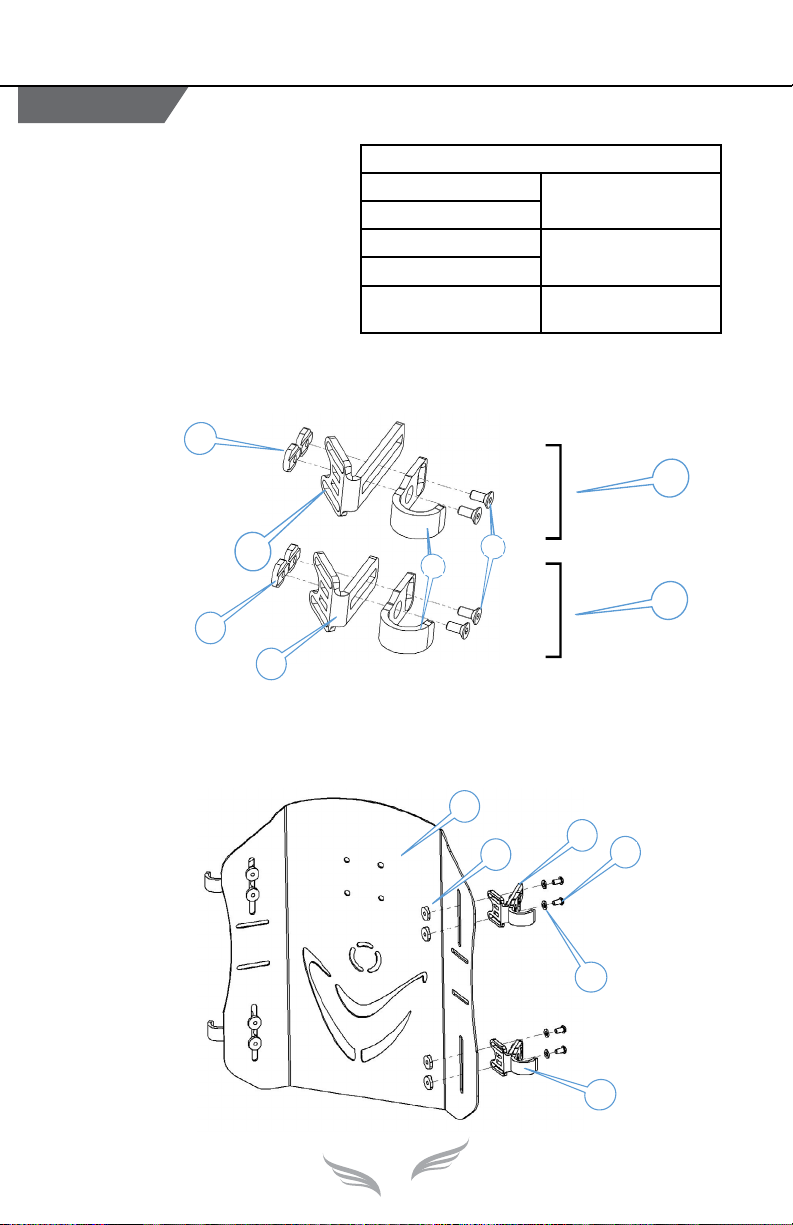

5.2 Pre-Assembly
Use screw Cand nuts Dto assemble the backrest supports Aand Ewith the backrest
cane holders B. At this stage, secure lightly, as the adjustment will be made later. The
5° adjustment angle assembly has to be installed on top of the backrest.
Tool Chart
C4 mm Allen Key
J
M2x Flat-head screwdriver
N
O4 mm and 10 mm
Allen Key
5.3 Hardware installation
Using screws J, washers I and nuts D, install the hardware system Fand Gon the back of
the backrest. At this stage, secure lightly, as the adjustment will be made later.
1
2
1
2
Figure 4
5° adjustment
angle assembly
Install on top of
the backrest
Pivot Hinge assembly
Install on the bottom
of the back
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
F
A
D
E
D
B
C
G
1
2
1
2
1
2
1
2
1
2
1
2
H
D
F
I
G
J
Figure 5

Owners manual
7
Revision 3
April 2016
ENGLISH
5.4 Stabilizers installation
5.4.1 Removable Stabilizers (optional)
The removable stabilizers are designed to be
installed on top of the backrest to facilitate
installing and removing the VALEO Backrest.
To close the stabilizer, push in on the release clip 1,
to open the stabilizer push in on the release clip 2,
as shown in gure 6.
Ensure the mounting hardware are secure when adjustments are made before
using the backrest, failure to follow these suggestions may result in serious
bodily injury to the user and damage to the wheelchair.
Make sure you hear the locking click sound when you set the backrest in the
stabilizers.
1
2
1
2
1
2
1
2
1
2
1
2
2
M
N
L
K
1
5.4.3 Stabilizer installation
Use the hardware shown in gure 7 to install the stabilizers. Place the plastic spacer K
(split plastic tube) using the small part of the backpost (Figure 8). Keep it on the top of
the backpost for now. Position the stabilizer Mand Non the backposts Lusing the small
part of the backpost with the peak pointing down for the high stabilizer and the peak
pointing up for the low stabilizer (Figure 9). Slide the high stabilizer Mon the plastic
spacer and the low stabilizer Non the lower structure of the backpost (Figure 10). Install
the hardware to x the stabilizer. At this stage, secure lightly, as the adjustment will be
made later.
Figure 6
Figure 8 Figure 9 Figure 10
Figure 7

Valeo Back
8
ENGLISH
For the user’s safety, this height adjustment should not be made when the user is
sitting in the wheelchair.
5.5 Backrest installation and adjustment
5.5.1 Backrest installation
Place the backrest with the stabilizer on the backposts. Close the stabilizers. Ensure that
the backrest is secure on the backposts.
5.5.2 Backrest adjustment
Slide the support Gunder the peak of the stabilizer N. Position the supports on each
side and slightly secure screws Cand J(the nal adjustments will be made later).
Front view Back View
1
2
1
2
1
2
1
2
1
2
1
2
1
2
J
G
L
N
C
J
Figure 11
Figure 13
Figure 12
Figure 14

Owners manual
9
Revision 3
April 2016
ENGLISH
5.5.3 Adjustment of the high stabilizer
Continue the adjustment with the high stabilizer Nby keeping a space of about 1/8"
between Nand the stabilizer M. Position the stabilizer on each side and slightly tighten
screws Cand J(The nal adjustments will be made later).
5.6 Adjustment backrest inclination
5.6.1 To select the desired backposts angle
Determine the desired angle for the user referring to the following chart. The angle is
adjustable by 5° increments.
Adjust the backposts to the desired angle (5° increments) then adjust the backrest from
0° to 5° forward. Combined with the backpost, the backrest can be adjusted from -10°
to 25° continuously.
Back vue
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
J
C
J
N
H
K
M
L
Backrest angle congurations
Tilt angle
Backposts Valeo
Backrest Actual angle
85° -5° to 0° 80° to 85°
90° -5° to 0° 85° to 90°
95° -5° to 0° 90° to 95°
100° -5° to 0° 95° to 100°
105° -5° to 0° 100° to 105°
110° -5° to 0° 105° to 110°
115° -5° to 0° 110° to 115°
Figure 15
Figure 17
Figure 16

Valeo Back
10
ENGLISH
5.6.2 Position the backposts
Unscrew and remove the adjustment screw O. Based on the desired tilt angle and the
appropriate hole, tilt the backpost L. Reposition screw Oin the plate and the backpost
by tightening on each side.
5.6.3 Position the backrest angle
Adjust the backrest angle from 0° to 5° forward as needed in order to obtain a precise
degree. Unscrew screw Cand tighten securely after adjusting the angle.
5.6.4 Final adjustment of the backrest
Retighten all screws Jand the stabilizer screws. For the removable option, make sure
it works properly by removing and replacing the backrest. Adjust the stabilizer by
loosening and tightening as needed.
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
L
110° 100° 90°
115°
105°
95° 85°
O
1
2
1
2
1
2
1
2
C
C
At this stage, check if all the bolts are secure.
Figure 18
Figure 19

Owners manual
11
Revision 3
April 2016
ENGLISH
6 Components Installation
6.1 Adjustable Laterals
Using bolts D1, washer D2 and nuts D3, install lateral Con the backrest plate Aincluding
the plastic spacer B. At this stage, secure lightly, as the adjustment will be made later.
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
F
A
A
A
B
A
F
A
Figure 20 A
A
B
CD3
D1
D2
Using bolts D4, washer D5 and nuts D6, install the cushion plate Eon the support plate
C. At this stage, secure lightly, as the adjustment will be made later.
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
C
A
E
A
D
A
A
A
B
A
F
A
A
A
B
A
F
A
Figure 20 B
A
E
C
D4 D5
D6

Valeo Back
12
ENGLISH
The bolts (A) can adjust the height and depth of the
laterals as shown on Figure 22.
Loosen the bolts to change the setting. Make sure to
x the bolts back.
The next table shows possible height setting, depending on the choice.
Pediatric X-small Small Medium Large
Plate height
setting — 1 ½" 1 ½" 2 ½" 2 ½"
Depth 4" 4 ½" 4 ½" 4 ½" 5 ½" 4 ½" 5 ½"
6.1.1Adjustments
The distance (A) between the laterals can be adjusted as in the following table.:
Dimensions
(Backrest size)
Laterals
adjustment
10" 6.5" to 8.5"
12" 8.5" to 10.5"
14" 10.5" to 12.5"
16" 12.5" to 14.5"
18" 14.5" to 16.5"
20" 16.5" to 18.5"
Unscrew hardware assembly Bto adjust the width. Please refer to section 6.1. Once
the adjustment is completed, tighten securely. Please note that this also allows a height
adjustment of ± 1".
4" 6" 7" 8" 10"
A
A
B
A
Figure 21
A
A
B
A
C
A
E
A
D
A
A
A
A
B
A
F
A
B
Figure 22
A
A
A
A

Owners manual
13
Revision 3
April 2016
ENGLISH
A
A
B
A
C
A
D
A
E
A
F
A
B
A
G
A
6.2 Laterals mount on the backpost
These laterals are not compatible with the detachable option of the
Valeo back. This lateral model interferes with the back when it is being
detached.
Place the clamps at the desired height on the wheelchair cane.
Assemble the bolts (A)*, the half cylinder (B) and the column nut (C) as shown in Figure
13. Tighten slightly at this stage to make adjustments possible. Make sure the bolts (D
and E) and the lateral plate bolts (F) are not too tight to be able to adjust at will. Position
the lateral using the 2 pivot points (G) and sliding the clamps on the wheelchair cane
for the height setting.
Secure the bolts for nal adjustments. For the height setting range when using laterals
plate, refer to the section 5.1.
Note: 2 screw lengths are included to use with ¾"and 1"tubes.
Figure 23
Figure 24
A
A
B
A
F
A
A
A
B
A
F
A
B
C

Valeo Back
14
ENGLISH
6.3 Proled laterals
6.3.1 Installation
Make sure a Velcro strip is xed on the lateral plate facing the inside. (Figure 25)
Insert your hand in the cushion through the cover opening to prevent the Velcro strips
from touching each other while you place the cushion. (Figure 26)
Start inserting the cushion by the top of the lateral. (Figure 27)
Push down while making sure the cover opening passes around the plate by making a
downward rotating movement. (Figure 28)
Place the cushion, remove your hand from the cover and push a few times on the front
of the cushion to make sure the Velcro strips are hooked. (Figure 29)
Figure 25 Figure 26
Figure 28
Figure 27
Figure 29

Owners manual
15
Revision 3
April 2016
ENGLISH
6.3.2 Removing the proled cushion
6.3.3 Removing the foam from the proled cushion
Insert your hand inside the proled cushion between the plate and the cushion to
unhook the Velcro strips.
Move the cover opening down the lateral plate and remove the cushion with an upward
rotating movement.
Fold the cushion in the cover. (Figure 31)
Carefully and slowly take the cushion out of the cover opening. (Figure 32)
Completely remove the cushion. (Figure 33)
Figure 30
Figure 32
Figure 31
Figure 33

Valeo Back
16
ENGLISH
6.4 Headrest support
Install the xing block (A) with the four bolts (B) and nuts directly included in the
backrest by inserting a wedge in between (C) as shown in gure 25. Secure the bolts
well.
Insert the headrest support rod (D) in the xing block. Secure the headrest rod at the
desired adjustment with the knob (E) and adjust the positioning stop (F).
Figure 25
A
A
A
A
A
A
A
A
A
A
A
A
F
A
D
B
E
C

Owners manual
17
Revision 3
April 2016
ENGLISH
7. Care and maintenance
Valeo backrest maintenance is essential. By performing the maintenance in the
recommended way, you will maximize its life cycle and ensure its safety of use. Do not
forget to have your backrest checked up by a certied professional at least twice a year.
Eliminate all stains (food and/or biological) as fast as possible.
Check list When
receiving Each week Each month Every six month
Backrest
Observe the condition of the aluminum; x x
Anchors
Make sure the receptacles and the universal
clamps of the backrest are solid;
Make sure the anchor slides and latches work
well.
x
x
x
x
Laterals
Make sure that the laterals are fastened properly; x x
Clean up
Clean up the jointing.
x

Valeo Back
18
ENGLISH
8. Warranty
The Valeo backrest, a product of Physipro inc., is covered with our twenty-
four (24) months manufacturer’s warranty. It includes parts and labor on
manufacturer’s defects, optional parts, and all new parts replaced by your
dealer or an authorized establishment from the date of delivery or replacement.
Physipro inc. will repair or replace the defective parts as long as the warranty is
valid. You will have to contact Physipro inc. or an authorized dealer to obtain
your warranty services. Do not return your backrest without prior consent. If you
are not satised with the repairs, please send us a written complaint with your
dealer’s name, address and delivery date to the address on this manual cover.
Exclusions and limitations
This warranty does not apply to products that were intentionally or accidentally
altered, misused, neglected or did not have the proper maintenance. Furthermore,
this warranty does not apply if repairs or modications were done without a written
consent from Physipro inc., or an authorized dealer. The same restrictions apply
if any other kind of damages were done without Physipro inc. involvement. This
warranty will not apply for everyday use or failure to respect the rules in this manual.
Physipro inc. will not take any responsibilities for damages incurred during shipping.
Terms and Conditions
The seat cushions and backrests are reserved exclusively for use on mobility aid
(manual or power wheelchairs) Physipro will not be held responsible for any misuse
of the product. Crash tests have not been conducted on these products and even
if the mobility aid in which it is installed has obtained the ISO-717619, it will not be
maintained.
The respect of the safety instructions mentioned in this manual is essential to avoid
injury. Improper or inadequate adjustment increases the risk of accident. Before making
adjustments, it is important to read the entire contents of this manual. Physipro will not
be held responsible for misuse or non professional adjustment.
The product presented in this manual may not be an exact representation of the
product you have on hand. The instructions in this manual are still valid for your product.
Physipro reserves the right to modify or change this manual without notice.

Owners manual
19
Revision 3
April 2016
ENGLISH

Valeo Back
20
ENGLISH
