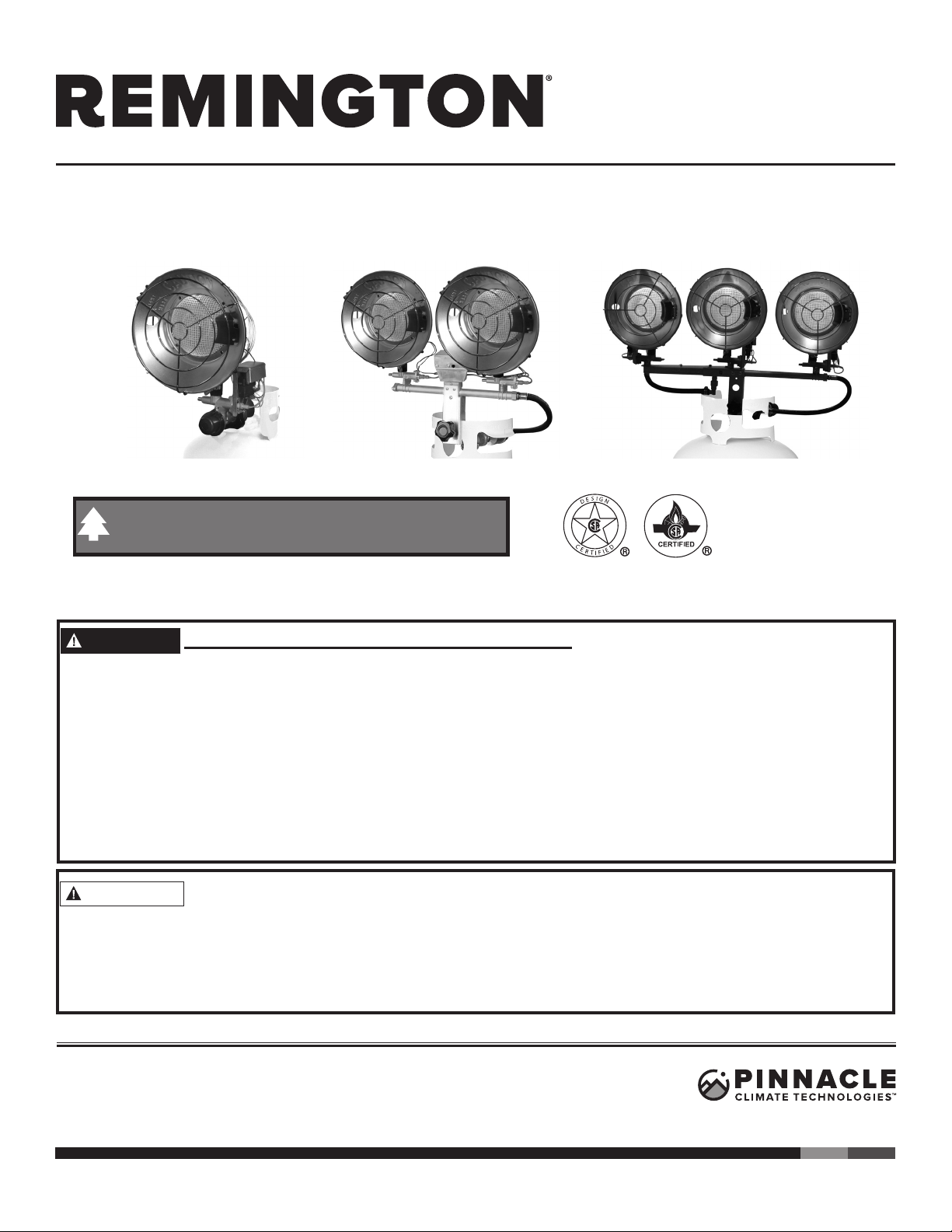

Model Numbers
REM-16-TTC-O / REM-32-TTC-O / REM-47-TTC-O
User’s Manual &
Operating Instructions
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS
OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING AND / OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
DANGER
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY FOR:
The temporary heating of adequately ventilated buildings or
structures under construction, alteration or repair.
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY
THESE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY
CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING
Factory ID: 522
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.remingtonheater.com • Email: [email protected]
© 2017 Pinnacle Climate Technologies, Inc. RGTA-401
PROPANE TANK TOP
HEATER

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Table Of Contents
Safety Information.............................................1-3
Features and Specications.............................4-5
Assembly
......................................................... 6-7
Operation........................................................8-10
Ventilation.............................................................9
Maintenance and Storage..................................10
Troubleshooting Guide.......................................11
Exploded View .............................................. ... . .12
Parts List............................................................13
Warranty.............................................................14
Safety Information
1
Safety Information
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
This is an unvented portable heater. It uses air (oxygen) from the area in which
it is used. Adequate combustion and ventilation air must be provided. Refer to
VENTILATION on Page 6.
WARNING
Carbon Monoxide Hazard This heater produces carbon monoxide, which has no
odor. Burning the heater in an enclosed space can kill you. Never use the heater
in enclosed spaces such as a tent, a camper, any vehicle or recreational vehicle (RV), enclosed
shelter, or any other enclosed areas.
DANGER
Not for use in residential living areas or in non-adequately ventilated enclosed
spaces. Never bring or store a propane cylinder indoors.
DANGER
This heater is designed and approved for use as a construction heater in accordance with Standard
ANSI Z83.7-2011/CSA 2.14-2011. CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU
HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards govern the use of fuel gasses
and heating products for specic uses. Your local authority can advise you about these.
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
DANGER
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in
death, serious bodily injury, property loss or damage from the hazards of fire, explosions, burns,
asphyxiation or carbon monoxide poisoning. Only persons who can read and understand these
instructions should use or service this heater.
WARNING
CALIFORNIA RESIDENTS: This product contains chemicals, including lead,
known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
WARNING
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY FOR: The temporary
heating of adequately ventilated buildings or structures under construction,
alteration or repair.
WARNING

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Safety Information
The products described in this manual are
propane direct-red heaters. Direct-red means
that all of the combustion products of the heater
enter the heated space. This appliance is rated
at 98% combustion efciency, but does produce
small amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
resemble the u. Symptoms of improper
ventilation / carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat •Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: The temporary
heating of adequately ventilated buildings or
structures under construction, alteration or
repair! Provide at least a three square foot
(2,800 sq cm) opening of outside air for
every 100,000 Btu / Hr heater rating. Refer to
“Ventilation” on page 9 for further instructions.
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open ame.
–Shut off gas to heater.
–If odor continues, contact your local gas
supplier or re department.
–DO NOT touch or use any electric switch or
any electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call
the re department.
–Service must be done by a qualied
service agency.
NEVER store or use gasoline or other ammable
vapors and liquids in the vicinity of this heater.
NEVER store
a propane (LP) cylinder not
connected to this heater in the vicinity of this heater.
NEVER
connect heater to an unregulated gas supply.
NEVER
obstruct the flow of combustion and
ventilation air. (The front and rear of heater).
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that
has been modified.
NEVER service, move or handle heater while still
hot or operating
NEVER use heater in occupied dwellings.
NEVER use heater in a tent.
RISK OF INDOOR AIR
POLLUTION!
WARNING
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
DANGER
RISK OF BURNS, FIRE AND
EXPLOSION!
WARNING
PROPANE IS AN
EXPLOSIVE GAS!
DANGER
2

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
Sides Top Front Rear
36 in. 60 in. 60 in. 36 in.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
ALWAYS provide adequate clearance for
accessibility, combustion and ventilation (air supply)
while heater is operating.
– Use heater in accordance with all local codes.
In the absence of local codes, refer to The
National Fuel Code, ANSI Z223.1.
–This heater is shipped from the factory
for use with propane (LP) gas only. Do not
convert to any other gas. Installation must
conform to local codes, or in their absence,
with the standard for the Storage and
Handling of Liquefied Petroleum Gases ANSI/
NFPA 58 and the Natural Gas and Propane
Installation Code CSA B149.1.
– Gas supply connections should be checked
by using a 50/50 soap and water solution.
Never use a ame to check for gas leaks.
– Do not direct heater discharge towards the LP
cylinder unless it is at least 20 feet from the
heater.
– Use only the regulator and hose assembly
provided with this heater. Inspect the
regulator/hose assembly prior to each use of
the heater. If there is excessive abrasion or
wear, or if the hose is cut, replace it with the
proper assembly shown in the parts list, prior
to using the heater.
Minimum and Maximum Inlet Pressure
16-TTC 32-TTC 47-TTC
Min. 5 PSI
Max. 200 PSI
Safety Information
The hose assembly shall be
protected from traffic, building
material and contact with hot surfaces both
during use and while in storage.
WARNING
RISK OF FIRE! ALWAYS ATTACH THE HEATER IN AN UPRIGHT VERTICAL
POSITION. ALWAYS LOCATE HEATER ON A STABLE AND LEVEL SURFACE!
WARNING
CAUTION! HOT WHILE IN
OPERATION. DO NOT TOUCH.
KEEP CHILDREN, ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING
3
For use with propane (LP)
gas only.
WARNING
DO NOT use any LP cylinder
larger than 20 lbs.
WARNING

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual

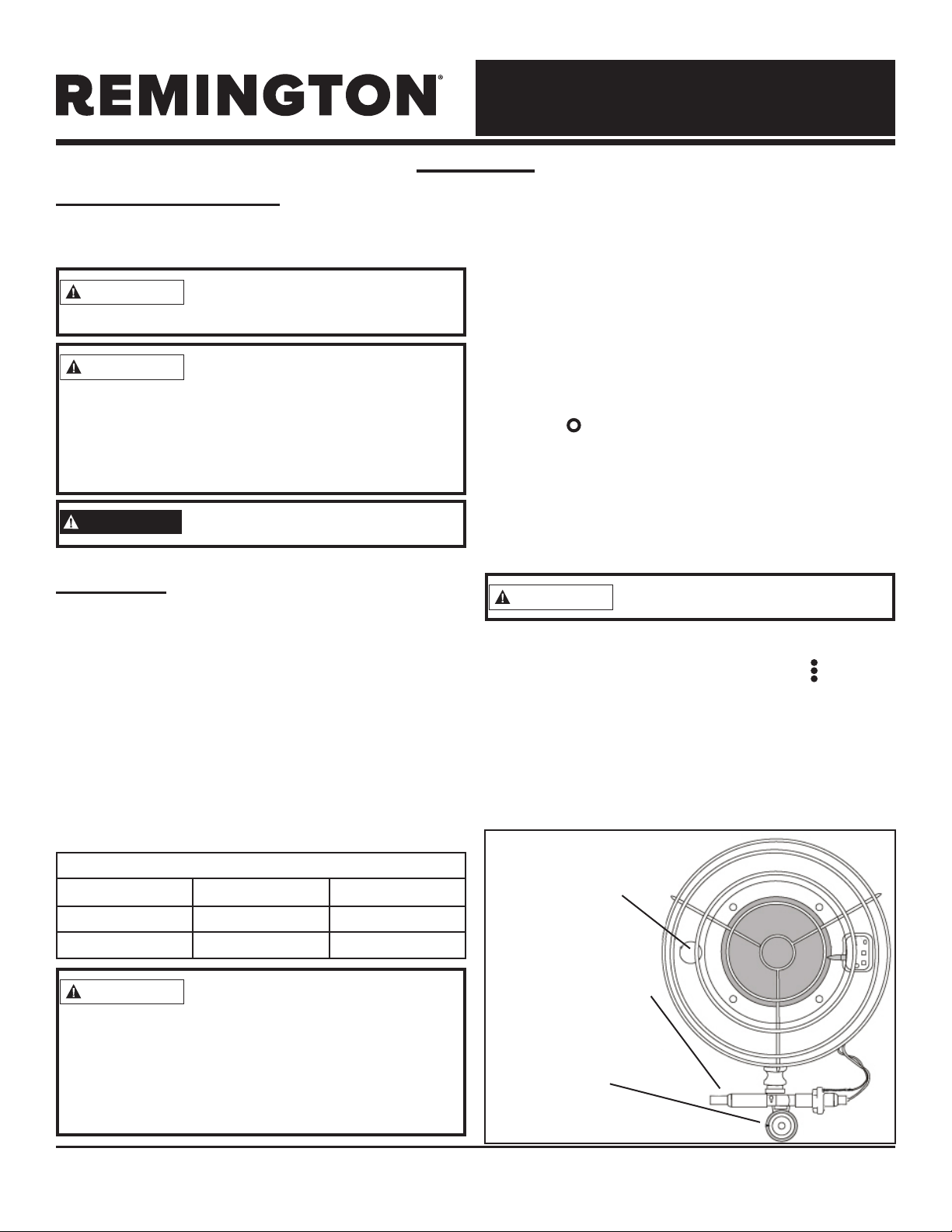

Features
16-TTC
Regulator
Figure 1
Specications
Model # 16-TTC 32-TTC 47-TTC
BTU 12 / 14 / 16,000 25 / 28 / 32,000 36 / 40 / 47,000
Fuel Consumption (Lbs./hr) .56 / .65 / .74 1.16 / 1.30 / 1.49 1.67 / 1.86 / 2.18
Maximum Operating Hours 35.9 / 30.8 / 27.0 17.2 / 15.4 / 13.4 12.0 / 10.8 / 9.2
Required Cylinder Lbs. 20 20 20
Fuel Type Propane Propane Propane
Heating Area (Ft.2)300 / 350 / 400 620 / 700 / 800 900 / 1000 / 1175
Specications subject to change without notice.
Missing Parts? Please Call 866-676-1989 For Assistance
Front Guard
Heat Reector
Rear Guard
Ignition Hole
Tip Over Switch
Safety Valve
4

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Features
32-TTC
Regulator
Figure 2
Front Guard
Heat Reector
Rear Guard
Ignition Hole
Tip Over Switch
Safety Valve
Features
47-TTC
Figure 3
Mounting Bolt Knob
Hose
Front Guard
Heat Reector
Safety Valve
Mounting Bolt Knob
Hose
Rear Guard
Ignition Hole
Regulator
Tip Over Switch
5

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Assembly
Model 32-TTC:
Tools Needed:
– Medium Phillips head screwdriver.
1. Place the tank collar bracket on top of the
center plate. Be sure the mounting bolt knob is
on bottom as shown in Figure 4
2. Insert machine screw into top hole using
Phillips head screwdriver.
3. Insert 2nd machine screw into bottom hole.
This will secure the tank collar bracket to the
center plate.
Model 47-TTC:
Tools Needed:
– Medium Phillips head screwdriver.
1. Insert the mounting bolt knob into the tank
collar bracket.
2. Place tank collar bracket on the swivel bracket.
3. Place the plane washer on the tank collar
bracket and then insert the support bolt.
(See Figure 5)
4. See Figure 6 on page 7 for determining burner
position options.
DO NOT adjust burner heads while heater is operating.
WARNING
Regulator
Knob
Fuel Connector Nut
Machine
Screws
Mounting Bolt Knob
Tank Collar Bracket
Tip over Switch
Assembly
Swivel
Manifold
Mounting
Bolt Knob
Plane Washer
Wing Nut
Regulator
Knob
Fuel Connector Nut Tank Collar Bracket
Swivel Bracket
6
Figure 4 Figure 5
Missing Parts? Please Call 866-676-1989 For Assistance

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Assembly
47-TTC (Continued):
– To have all 3 burners face front, the plane
washer should be to the right side of tank collar
bracket. (See Figure 6)
– To have far left burner face back, the plane
washer should be to the left side of tank collar
bracket. (See Figure 6)
Figure 6
Connecting Heater to LP Cylinder:
Be sure to read and understand all of the Safety
Information in this manual before connecting
the heater to the LP cylinder. Installation must
conform to local codes and with the Standard
for the Storage and Handling of Liquefied
Petroleum Gasses and ANSI/NFPA 58.
Inspect the hose and regulator prior to each use
of the heater. If there is excessive abrasion or
wear, or if the hose is cut, replace it with the
proper assembly shown in the parts list prior to
using the heater.
Model 16-TTC:
1. Be sure that the control knob on the regulator
is in the “OFF” position.
2. Line up the threads on the fuel connector nut
with the threads on the LP cylinder valve. Turn
fuel connector nut COUNTERCLOCKWISE to
tighten. Fully tighten the nut, being careful not
to over tighten.
3. Slowly open the LP cylinder valve.
Models 32-TTC / 47-TTC:
1. Be sure that the control knob on the regulator
is in the “OFF” position.
2. Line up the slots in the tank collar bracket
with the tank collar ring and slide into place.
Be sure the mounting knob is to the outside,
and tighten.
3. Line up the threads on the fuel connector nut
with the threads on the LP cylinder valve. Turn
fuel connector nut COUNTERCLOCKWISE to
tighten. Fully tighten the nut, being careful not
to over tighten.
4. Slowly open the LP cylinder valve.
Check all connections for leaks using a 50/50
mixture of dish-soap and water. Any bubbles
that appear show a leak. Remove and
reconnect the Connector Nut to the valve.
DO NOT direct the heater
discharge towards any
propane cylinder located within 20 feet of
the heater.
WARNING
7

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Operation
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder.
Use only an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier
than air and pools in low areas.
– In its natural state, propane has no odor, but
for your safety an odor that smells like rotten
cabbage has been added.
– Contact of propane (LP) gas with the skin can
cause freeze burns.
– Heater is manufactured for use with propane
gas only. DO NOT attempt to convert to any
other gas. Such modications are dangerous
and will void the warranty.
– When heater is not in use, LP Cylinder must be
turned OFF.
– Be sure that the LP Cylinder is located on a
level and stable surface.
– DO NOT use this heater in a basement or
below ground level. Propane is heavier than
air and will always seek the lowest level. If you
suspect a leak, shut off the valve at the LP
Cylinder immediately.
The Propane (LP) cylinder must also be
equipped with the following
– A collar to protect the gas valve.
– A shut-off valve terminating a LP cylinder valve
outlet as specied in the American National
Standard for Compressed Gas Cylinder Valve
Outlets and Inlets Connections.
– A safety relief valve having direct
communications with the vapor space of the LP
cylinder.
– The heater must operate on vapor withdrawal
from the operating cylinder.
–The amount of Propane (LP) used with this
heater varies. Both factors are
– The amount of gas in the cylinder of LP.
– The temperature of the LP tank and its
surroundings.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may
cause damage to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to
a construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shutoff valve on the LP
cylinder after each use.
– All ttings must be protected when
disconnected from the LP cylinder.
– Never store an LP cylinder inside a building or
in the vicinity of a gas burning appliances.
Propane is safe to use when
properly handled. Careless
handling of the LP cylinder could result in a
fire and or an explosion.
CAUTION
The disconnected tank must
never be stored in a building,
garage or any other enclosed area.
CAUTION
8

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Operation
9
Lighting Instructions:
Models 16-TTC / 32-TTC / 47-TTC
Ventilation
–Risk of indoor air pollution and Carbon
Monoxide Poisoning.
–Refer to Safety Information on pages 1-3
for information about Carbon Monoxide
Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least three square feet
(2,800 sq. cm) for each 100,000 BTU / Hr.
of heater output. Provide a larger opening if
more heaters are being used.
Minimum Ventilation Opening Needed
16-TTC 32-TTC 47-TTC
0.5 ft.21.0 ft.21.4 ft.2
460 cm2920 cm21300 cm2
1. STOP! Be sure to read all of the Safety
Information (See pages 1-3).
–ALWAYS Stand to the side or rear of the
heater.
–ALWAYS keep face and other body parts
away from the heater.
2. Check that the valve and propane cylinder
is open.
3. Turn the heater regulator knob CLOCKWISE
to the (OFF) position.
4. Wait five (5) minutes for any gas to clear.
Smell for gas around the heater, including
near the floor. If you do smell gas STOP!
Follow the safety instructions and check
leaks. If there is no gas smell proceed to the
next step.
5. Turn the regulator knob
COUNTERCLOCKWISE to the “HI” position.
6. Insert a lit match into the ignition hole in the
reflector. (See Figure 7)
7. Press the safety shut-off valve plunger for five
(5) seconds.
8. Mesh burner will light and glow red.
(Continued on Page 10)
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
DANGER
Be sure to read and understand
all of the Safety Information in
this manual before lighting this heater.
WARNING
Heater has high surface
temperatures. Be sure to
keep children, pets and clothing away from
the heater. Be sure to keep burner and
heater regulator clean and free from any
debris. Maintain safe distances from heater
as shown on Page 3.
CAUTION
NEVER use a flame to check
for leaks!
WARNING
Ignition Hole
Safety Shut-OFF
Valve Plunger
Heat Regulator Knob
Figure 7
NEVER look over the top of
the heater (reflector). There
is a potential for a small flash of flame during
ignition that can cause serious bodily injury.
ALWAYS stand to the side or rear of the heater
during ignition. DO NOT allow any body part
to touch the heater or be in front of the heater
during ignition.
WARNING

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Operation
10
Lighting Instructions
Models 16-TTC / 32-TTC / 47-TTC (CONT)
9. Once lit, keep the plunger depressed for thirty
(30) seconds. Then release the plunger, and
if the burner stays lit, remove and extinguish
the match. You will know that the burner is lit
when the mesh screen begins to glow red.
10.If the burner does not stay lit, repeat the
lighting process. If the heater does not light
after several attempts, be sure you are getting
fuel to the burner. The faint smell of gas will
tell you if the fuel is flowing. If not, there may
be a problem with your LP cylinder. Take it
back to your local dealer for replacement.
11. Once the burner is lit, turn Regulator Control
Knob to desired setting (HI) / (MED) / (LO ).
12.Light all burners when maximum heat is
desired. Follow Lighting Instructions steps
1-11. The second and third burner should be
lit separately. Do Not Attempt to light second
burner off the first burner. Be sure NOT to
point burners at one another.
To Turn Off Heater
1. Turn the valve on the LP cylinder CLOCKWISE
to stop the flow of fuel.
2. Turn the heater regulator knob to the (OFF)
position and wait at least fifteen (15) minutes for
the heater to cool.
3. Tightly close the gas shutoff valve on the LP
cylinder after each use.
4. Remove the heater from the LP cylinder by
reversing the steps in Connecting Heater to
LP Cylinder on Page 7. DO NOT store the LP
cylinder with the heater still attached or in an
enclosed area.
NOTE: ALWAYS INSPECT HEATER BEFORE
USE AND AT LEAST ANNUALLY BY A
QUALIFIED SERVICE PERSON.
EXTREMELY HOT during
operation. Do Not touch any
metal components while in operation. Keep
gasoline and any other flammable liquids
away from the heater.
DANGER
Never bring or store a
propane cylinder indoors.
DANGER
DO NOT insert the lit match
into the air inlet holes in the
mixing tube.
CAUTION
Maintenance and Storage
1. Inspect your heater before each use.
Check all connections for leaks, following
the procedure outlined on Pages 7 and 8.
Check the Regulator Hose (dual burner
models only) for any cracks, breaks or wear.
If the hose is damaged replace it with the
correct manufacturers part. Heater should be
inspected before each use and once annually
by a qualied service person.
2. After use, always disconnect the heater
from the LP cylinder, and store the heater
separately from the tank. Be sure to close
the tank valve after use, and before storage.
The LP cylinder should be stored outdoors in
accordance with chapter 5 of the Standard for
Storage and Handling of Liqueed Petroleum
Gases (ANSI/INFPA 58).

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
11
Troubleshooting Guide
Locating Your Serial Number:
Your serial number can be found in the bottom left hand corner of the heater’s instruction hang-tag. It
will begin with the letters “PGTT” followed by 8 digits. For Example: PGTT12345678. Have your Se-
rial Number ready before calling customer service at 866-676-1989.
Problem Possible Cause(s) Solution
Unit will not light.
1. Valve on propane cylinder
closed.
2. Propane cylinder empty.
3. Regulator not in (HI) position.
4. Defective regulator
1. Open cylinder valve by turning
COUNTERCLOCKWISE.
2. Rell cylinder.
3. Turn regulator to (HI) position.
4. Replace regulator assembly.
Burner will not stay lit
when gas valve plunger
is released
1. Tip switch activated or
defective.
2. Wire terminal connections
unplugged.
3. Defective thermocouple.
4. Defective MPU.
1. Place heater in upright position
or replace tip switch.
2. Check wiring connections.
3. Replace thermocouple.
4. Replace MPU.
Excessive ames coming
out of burner, not glowing
red. Flames ashback
/ burn inside the mixing
tube.
1. Air inlet holes blocked or
covered.
2. Burner screen damaged.
3. Gap between burner screen
and burner can.
1. Clear any obstructions
2. Replace Burner screen.
3. Replace or repair burner head
assembly.

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual

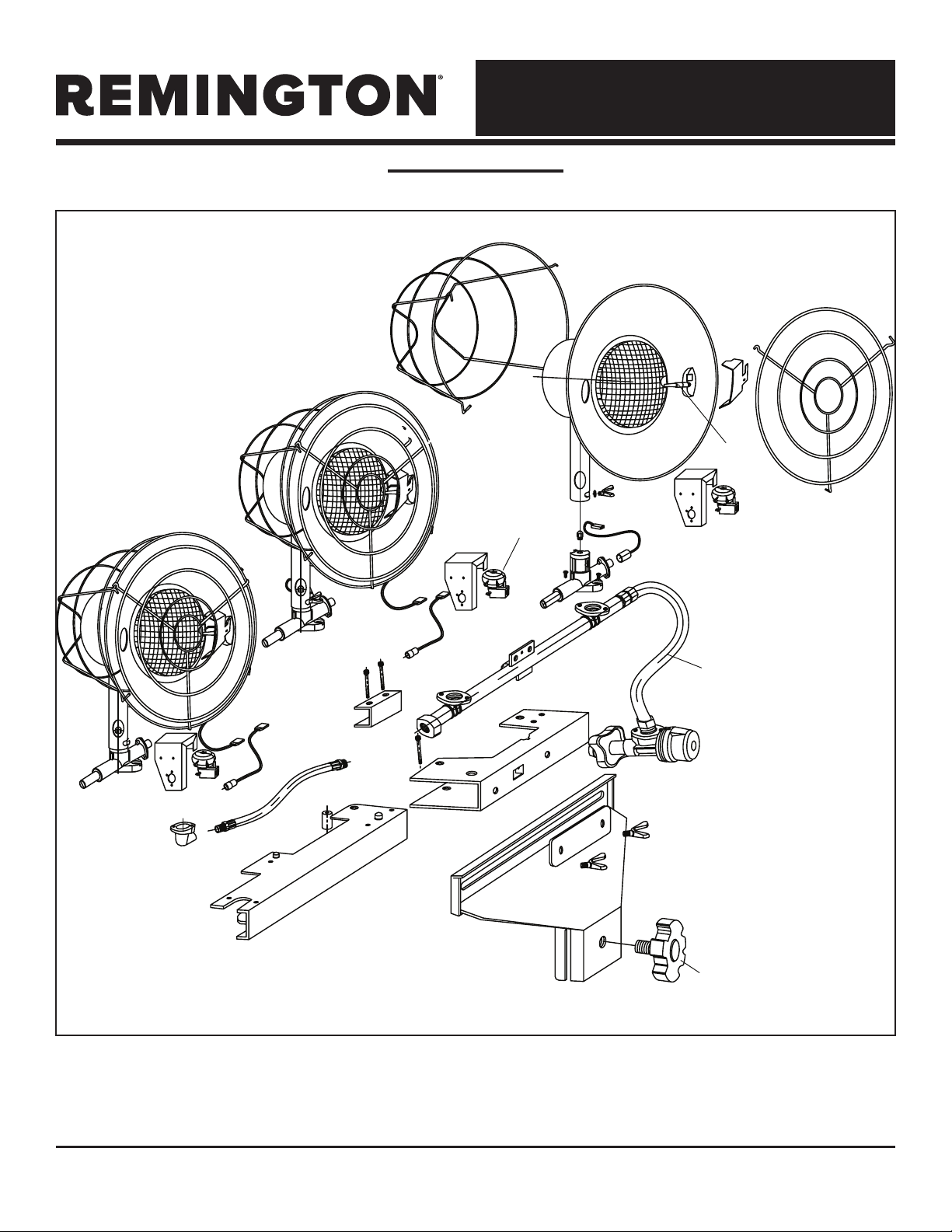

Exploded View
4
1
3
2
Figure 8
12

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
Parts list
Item
#Description 16-TTC 32-TTC 47-TTC
2Hose Assembly ‒ 20-051-0001 20-051-0002
7 Thermocouple 20-091-0002 20-091-0002 20-091-0002
9 Mounting Bolt Knob ‒ 20-503-0001 20-503-0001
19 Tipover Switch 50-017-0001 50-017-0001 50-017-0001
13

NEVER LEAVE HEATER UNATTENDED
WHILE BURNING OR WHILE
CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual
LIMITED WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater
to the original retail purchaser only, to be free from defects
in material and workmanship for a period of one (1) year
from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance
with the instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies, Inc. shall determine at its
reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating difculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
to the nish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. nds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims al warranties for products
that are purchased from sellers other than authorized
dealers or distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
APPLICATION. FURTHER, Pinnacle Climate Technologies,
Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER
OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle
Climate Technologies, Inc. assumes no responsibility for
any defects caused by third parties. This Limited Warranty
gives the purchaser specic legal rights; a purchaser may
have other rights depending upon where he or she lives.
Some states do not allow the exclusion or limitation of
special, incidental or consequential damages, or limitations
on how long a warranty lasts, so the above exclusion and
limitations may not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize
any person or company to assume for it any other
obligation or liability in connection with the sale, installation,
use, removal, return or replacement of its equipment, and
no such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________

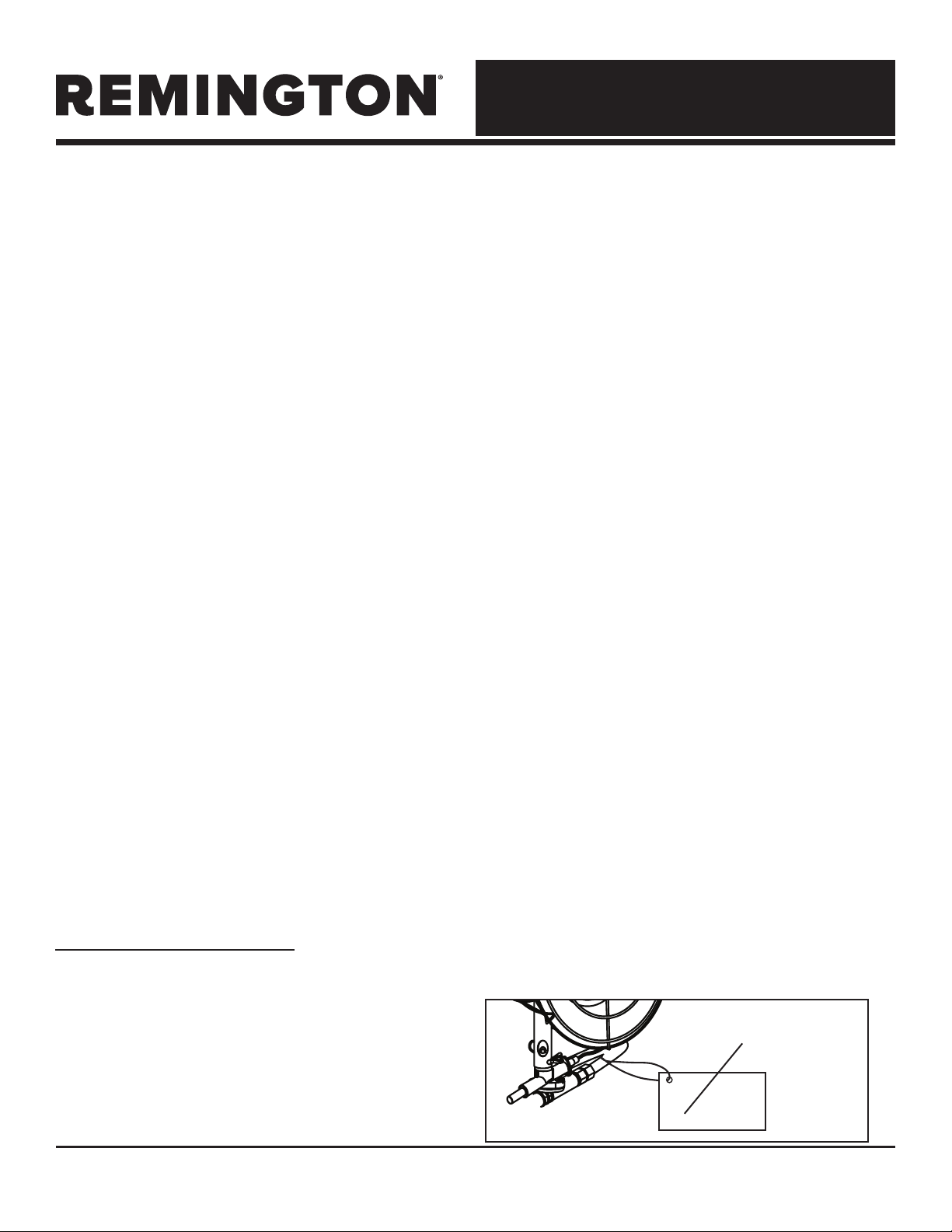

Locating Your Serial Number:
Your serial number can be found in the bottom left hand corner of the heater’s instruction hang-tag. It will begin
with the letters “PGTT” followed by 8 digits. For Example: PGTT12345678. Have your Serial Number ready
before calling customer service at 866-676-1989.
XXX-XXXXXXXX
Serial Number Label
14

1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.pinnacleclimate.com • Email: [email protected]
© 2017 Pinnacle Climate Technologies, Inc.

Modelos N.°
REM-16-TTC-O / REM-32-TTC-O / REM-47-TTC-O
ADVERTENCIA GENERAL DE PELIGRO:
SI NO CUMPLE CON LAS PRECAUCIONES Y LAS INSTRUCCIONES QUE SE LE PROPORCIONAN
CON ESTE CALENTADOR, PUEDE PROVOCAR LA MUERTE, LESIONES CORPORALES GRAVES Y
DAÑOS MATERIALES O DAÑOS POR PELIGRO DE INCENDIO, EXPLOSIÓN, QUEMADURAS, ASFIXIA,
INTOXICACIÓN POR MONÓXIDO DE CARBONO O DESCARGA ELÉCTRICA.
ESTE CALENTADOR SOLAMENTE LO DEBEN USAR O DARLE MANTENIMIENTO PERSONAS QUE
PUEDAN COMPRENDER Y SEGUIR LAS INSTRUCCIONES.
SI NECESITA AYUDA O INFORMACIÓN SOBRE EL CALENTADOR, COMO UN MANUAL DE
INSTRUCCIONES, ETIQUETAS, ETC., PÓNGASE EN CONTACTO CON EL FABRICANTE.
PELIGRO
CONSUMIDOR: LEA Y CONSERVE ESTAS INSTRUCCIONES
PARA USO EN EXTERIORES. EL USO EN INTERIORES SÓLO SE
PERMITE PARA: Calefacción temporal de edificios adecuadamente
ventilados o estructuras en construcción, modificación o reparación.
PELIGRO DE INCENDIO, QUEMADURAS, INHALACIÓN Y EXPLOSIÓN. MANTENGA
LOS COMBUSTIBLES SÓLIDOS, COMO MATERIALES DE CONSTRUCCIÓN, PAPEL
O CARTÓN, A UNA DISTANCIA PRUDENTE DEL CALENTADOR SEGÚN LO RECOMIENDAN ESTAS
INSTRUCCIONES. NUNCA USE EL CALENTADOR EN ESPACIOS QUE CONTENGAN O PUEDAN
CONTENER COMBUSTIBLES VOLÁTILES O SUSPENDIDOS EN EL AIRE NI PRODUCTOS COMO
GASOLINA, DISOLVENTES, SOLVENTES DE PINTURA, PARTÍCULAS DE POLVO O SUSTANCIAS
QUÍMICAS DESCONOCIDAS.
ADVERTENCIA
ID de fábrica: 522
1 Industrial Blvd #101, Sauk Rapids, MN 56379, EE. UU. • Llamada sin costo: (866) 676-31989
Fax: [phone] • Web: www.remingtonheater.com • Correo electrónico: [e-mail]
© 2017 Pinnacle Climate Technologies, Inc.
Manual del usuario e
Instrucciones de operación
CALENTADOR CON
TANQUE DE PROPANO

NUNCA DEJE DESATENDIDO EL CALENTADOR
MIENTRAS ESTÉ ENCENDIDO O MIENTRAS ESTÉ
CONECTADO A UNA FUENTE DE COMBUSTIBLE
© 2017, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador con tanque de propano
Índice
Información sobre seguridad............................1-3
Características y especicaciones ...................4-5
Montaje
........................................................... 6-7
Operación.......................................................8-10
Ventilación ...........................................................9
Mantenimiento y almacenamiento.....................10
Guía de solución de problemas.........................11
Vista detallada
.................................................. 12
Lista de piezas...................................................13
Garantía.............................................................14
Información de seguridad
1
Información de seguridad
NO DEBE USARSE EN CASAS NI EN VEHÍCULOS DE USO RECREATIVO.
ADVERTENCIA
Este es un calentador portátil sin ventilación. La unidad utiliza el aire (oxígeno) del
espacio donde se usa. Será necesario suministrar suficiente aire para la combustión y la
ventilación. Consulte VENTILACIÓN en la página 6.
ADVERTENCIA
Riesgo de inhalación de monóxido de carbono Este calentador produce monóxido
de carbono, que es un gas inodoro. Encender el calentador en un espacio cerrado
puede ocasionarle la muerte. Nunca use el calentador en espacios cerrados, como tiendas de campaña,
remolques, cualquier tipo de vehículo (entre ellos, vehículos de uso recreativo), albergues cerrados o
cualquier otra área cerrada.
PELIGRO
No debe usarse en áreas habitables residenciales ni en espacios cerrados con ventilación
inadecuada. Nunca ingrese o almacene un tanque de propano en espacios interiores.
PELIGRO
Este calentador está diseñado y aprobado para uso en construcciones de acuerdo con la norma ANSI
Z83.7-2011/CSA 2.14-2011. CONSULTE CON LAS AUTORIDADES DE SEGURIDAD DE INCENDIOS DE
SU LOCALIDAD SI TIENE ALGUNA DUDA SOBRE EL USO DE ESTE CALENTADOR. Otras normas rigen
el uso de gases combustibles y productos de calefacción para usos especícos. Sus autoridades locales
pueden asesorarle sobre esas normas.
Si no sigue la información de este manual al pie de la letra, puede producirse un incendio
o una explosión que provoquen daños materiales, lesiones físicas o pérdida de la vida.
PELIGRO
NO USE ESTE CALENTADOR HASTA HABER LEÍDO Y COMPRENDIDO TOTALMENTE
ESTAS INSTRUCCIONES DE SEGURIDAD Y OPERACIÓN.
El no cumplir con las precauciones e instrucciones proporcionadas con este calentador puede resultar en
muertes, lesiones graves, daños materiales o daños por peligro de incendio, explosiones, quemaduras,
asfixia o envenenamiento por monóxido de carbono. Solamente personas que puedan leer y comprender
estas instrucciones deben usar o dar servicio a este calentador.
ADVERTENCIA
RESIDENTES DE CALIFORNIA: Este producto contiene sustancias químicas, incluyendo
plomo, conocidas en el estado de California como causantes de defectos de nacimiento u
otros daños reproductivos. Lávese las manos después de manipularlo.
ADVERTENCIA
PARA USO EN EXTERIORES. EL USO EN INTERIORES SÓLO SE PERMITE
PARA: Calefacción temporal de edificios adecuadamente ventilados o estructuras en
construcción, modificación o reparación.
ADVERTENCIA

NUNCA DEJE DESATENDIDO EL CALENTADOR
MIENTRAS ESTÉ ENCENDIDO O MIENTRAS ESTÉ
CONECTADO A UNA FUENTE DE COMBUSTIBLE
© 2017, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador con tanque de propano
Información de seguridad
Los productos descritos en este manual son
calentadores de fuego directo de gas propano.
Fuego directo signica que todos los productos de
combustión del calentador ingresan en el espacio
calentado. Este aparato tiene una clasicación de
98% de eciencia de combustión, pero produce
pequeñas cantidades de monóxido de carbono.
¡LA INTOXICACIÓN POR MONÓXIDO
DE CARBONO PUEDE CONDUCIR
A LA MUERTE!
PELIGRO
El monóxido de carbono es tóxico. Los seres
humanos solo pueden tolerar pequeñas cantidades
de monóxido de carbono, así que deben tomarse las
medidas de precaución necesarias para suministrar
una ventilación adecuada. No proporcionar la
ventilación adecuada de acuerdo con este manual
puede ocasionar la muerte.
Las personas con problemas respiratorios deben
consultar con un médico antes de usar el calentador.
Los primeros síntomas de envenenamiento por
monóxido de carbono se parecen a los de la
gripe. Los síntomas de ventilación inadecuada o
envenenamiento por monóxido de carbono son:
Dolor de cabeza • Mareo • Náusea • Boca seca
Dolor de garganta • Irritación de la nariz y los ojos
Si tiene alguno de estos síntomas:
¡SALGA AL AIRE LIBRE DE INMEDIATO! Haga
revisar su calentador y compruebe que la ventilación
sea la adecuada. Algunas personas se ven más
afectadas que otras por el monóxido de carbono.
Por ejemplo: mujeres embarazadas, personas con
problemas pulmonares o cardíacos, anemia o bajo la
influencia del alcohol o en grandes altitudes.
PARA USO EN EXTERIORES. EL USO EN
INTERIORES SÓLO SE PERMITE PARA:
Calefacción temporal de edificios adecuadamente
ventilados o estructuras en construcción,
modificación o reparación. Proporcione una
abertura de al menos tres pies cuadrados (2800 cm
cuadrados) al aire exterior por cada 100,000 Btu/h
que genere el calentador. Consulte “Ventilación”
en la página 9 para obtener más instrucciones.
¡EL PROPANO ES UN GAS
EXPLOSIVO!
PELIGRO
QUÉ HACER SI PERCIBE OLOR A GAS:
–NO trate de encender el calentador.
–Apague toda clase de ama abierta.
–Cierre el suministro de gas del calentador.
–Si continúa el olor, póngase en contacto
con la empresa de gas o el departamento de
bomberos de su localidad.
–NO toque ni utilice interruptores de electricidad
ni dispositivos eléctricos que pudieran
provocar una chispa.
–Llame inmediatamente a la empresa de gas
desde el teléfono de un vecino. Siga las
instrucciones de la empresa de gas.
–Si no puede comunicarse con la empresa de
gas, llame al departamento de bomberos.
–Solo una dependencia de servicio calicada
puede hacer la reparación.
¡RIESGO DE QUEMADURAS,
INCENDIO Y EXPLOSIÓN!
ADVERTENCIA
NUNCA almacene ni use gasolina ni otros vapores y
líquidos inamables en las cercanías de este aparato.
NUNCA almacene
tanques de propano (LP) que no
se encuentren conectados a este calentador en los
alrededores del mismo.
NUNCA
conecte el calentador a un suministro de gas
no regulado.
NUNCA
obstruya el flujo del aire de combustión y
ventilación. (La parte frontal y posterior del calentador).
NUNCA use conductos en la parte frontal o posterior
del calentador.
NUNCA modifique el calentador ni utilice un
calentador que haya sido modificado.
NUNCA dé servicio, mueva ni manipule al calentador
mientras está caliente o funcionando.
NUNCA use el calentador en viviendas habitadas.
NUNCA use el calentador en tiendas de campaña.
¡RIESGO DE CONTAMINACIÓN
DEL AIRE INTERIOR!
ADVERTENCIA
2

NUNCA DEJE DESATENDIDO EL CALENTADOR
MIENTRAS ESTÉ ENCENDIDO O MIENTRAS ESTÉ
CONECTADO A UNA FUENTE DE COMBUSTIBLE
© 2017, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador con tanque de propano
Mantenga todos los materiales combustibles lejos de
este calentador.
Separación mínima entre el calentador y
materiales combustibles
Lados Superior Frente Atrás
36 pulg. 60 pulg. 60 pulg. 36 pulg.
SIEMPRE instale el calentador de modo que no esté
expuesto directamente a rocío de agua, lluvia, goteo
de agua o viento.
SIEMPRE proporcione el espacio adecuado para la
accesibilidad, la combustión y la ventilación (entrada
de aire) mientras el calentador está funcionando.
Para usarse con gas propano (LP)
únicamente
ADVERTENCIA
NO use tanques de LP de más
de 20 lb.
ADVERTENCIA
– Use el calentador de acuerdo con todos los
códigos locales. En ausencia de códigos locales,
consulte el Código Nacional de Combustibles,
ANSI Z223.1.
–Este calentador se envía de la fábrica para
uso con gas LP (propano) únicamente. No lo
convierta a ningún otro gas. La instalación debe
cumplir con los códigos locales o, a falta de
ellos, con la norma para el almacenamiento y la
manipulación de gases licuados de petróleo ANSI/
NFPA 58 y el Código de instalación de gas natural
y gas propano CSA B149.1.
– Las conexiones de suministro de gas deben
revisarse usando una solución de 50/50 de agua
y jabón. Nunca use una llama para vericar si hay
fugas de gas.
– No oriente la descarga del calentador hacia el
tanque de LP a menos que éste se encuentre a
una distancia de 20 pies (6 m) del calentador.
– Utilice únicamente el conjunto de regulador y
manguera suministrado con este calentador.
Inspeccione el conjunto del regulador y manguera
antes de cada uso del calentador. Si está
demasiado desgastado, o si la manguera está
cortada, reemplace con el conjunto correcto
mostrado en la lista de piezas, antes de usar
el calentador.
Presión de entrada mínima y máxima
16-TTC 32-TTC 47-TTC
Mín. 5 PSI
Máx. 200 PSI
Información de seguridad
El conjunto de la manguera
deberá estar protegido del
tráfico, de material de construcción y de
contacto con superficies calientes, tanto al
usarse como al tenerlo almacenado.
ADVERTENCIA
¡RIESGO DE INCENDIO! CONECTAR SIEMPRE EL CALENTADOR EN POSICIÓN
VERTICAL Y RECTA. ¡COLÓQUELO SIEMPRE SOBRE UNA SUPERFICIE ESTABLE
Y NIVELADA!
ADVERTENCIA
¡PRECAUCIÓN! CALIENTE
MIENTRAS ESTÉ EN
FUNCIONAMIENTO. NO LO TOQUE. MANTENGA
A NIÑOS, ANIMALES, ROPA Y COMBUSTIBLES
LEJOS DEL CALENTADOR.
ADVERTENCIA
3
