Pinnacle Climate Technologies MASTER MH-18PNCH-A Training manual

CONSUMER: READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE USE
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUC-
TIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH,
SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,
EXPLOSION, BURN. ASPHYXIATION, CARBON MONOXIDE POISONING AND / OR ELECTRIC
SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS
AN INSTRUCTIONS MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
FIRE, BURN, INHALATION, AND EXPLOSION
HAZARD. KEEP SOLID COMBUSTIBLES,
SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS REC-
OMMENDED BY THESE INSTRUCTIONS. NEVER USE THE HEATER
IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS,
PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
KEEP ALL COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER FLAM
MABLE VAPORS AND LIQUID AWAY FROM THIS HEATER.
This heater is designed and approved for use as a construction heater in accordance with
Standard for Gas fired Construction heaters ANS Z83.7 * CSA 2.14-2017. CHECK WITH YOUR
LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE ANY QUESTIONS ABOUT APPLICATIONS.
Other standards govern the use of fuel gasses and heating products for specific uses. Your
local authority can advise you about these.
MODEL NUMBER
MH-18PNCH-A
Factory ID: 525
DANGER
WARNING
Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [email protected]
© 2021 Pinnacle Climate Technologies, Inc. MACC-405
User’s Manual &
Operating Instructions
CABINET HEATER
Locating Your Serial Number:
Your serial number can be found on the heater’s rating label. It will be 8 digits. For Example: 12345678.
Have your Serial Number ready before calling customer service at 1-800-641-6996.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
2
This is an unvented portable heater. It uses air (oxygen) from the
area in which it is used. Adequate combustion and ventilation air
must be provided. Refer to VENTILATION on Page 10.
Not for use in residential living areas or in non-adequately venti-
lated enclosed spaces. Never bring or store a propane cylinder
indoors.
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND
THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING
INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result
in death, serious bodily injury, property loss or damage from the hazards of fire, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and
understand these instructions should use or service this heater.
WARNING: This product can expose you to chemicals, including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
EXTREMELY HOT DURING OPERATION! Do Not touch any metal
components while in operation. Keep all combustible materials, gas-
oline, and other flammable vapors and liquid away from this heater.
DANGER
WARNING
WARNING
WARNING
SAFETY INFORMATION
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
Carbon Monoxide Hazard This heater produces carbon monoxide,
which has no odor. Burning the heater in an enclosed space can
kill you. Never use the heater in enclosed spaces such as a tent,
a camper, any vehicle or recreational vehicle (RV), enclosed shelter, or any other enclosed
areas.
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
loss of life.
WARNING
DANGER
DANGER
TABLE OF CONTENTS
Safety Information......................................................2-5
Specifications..................................................................5

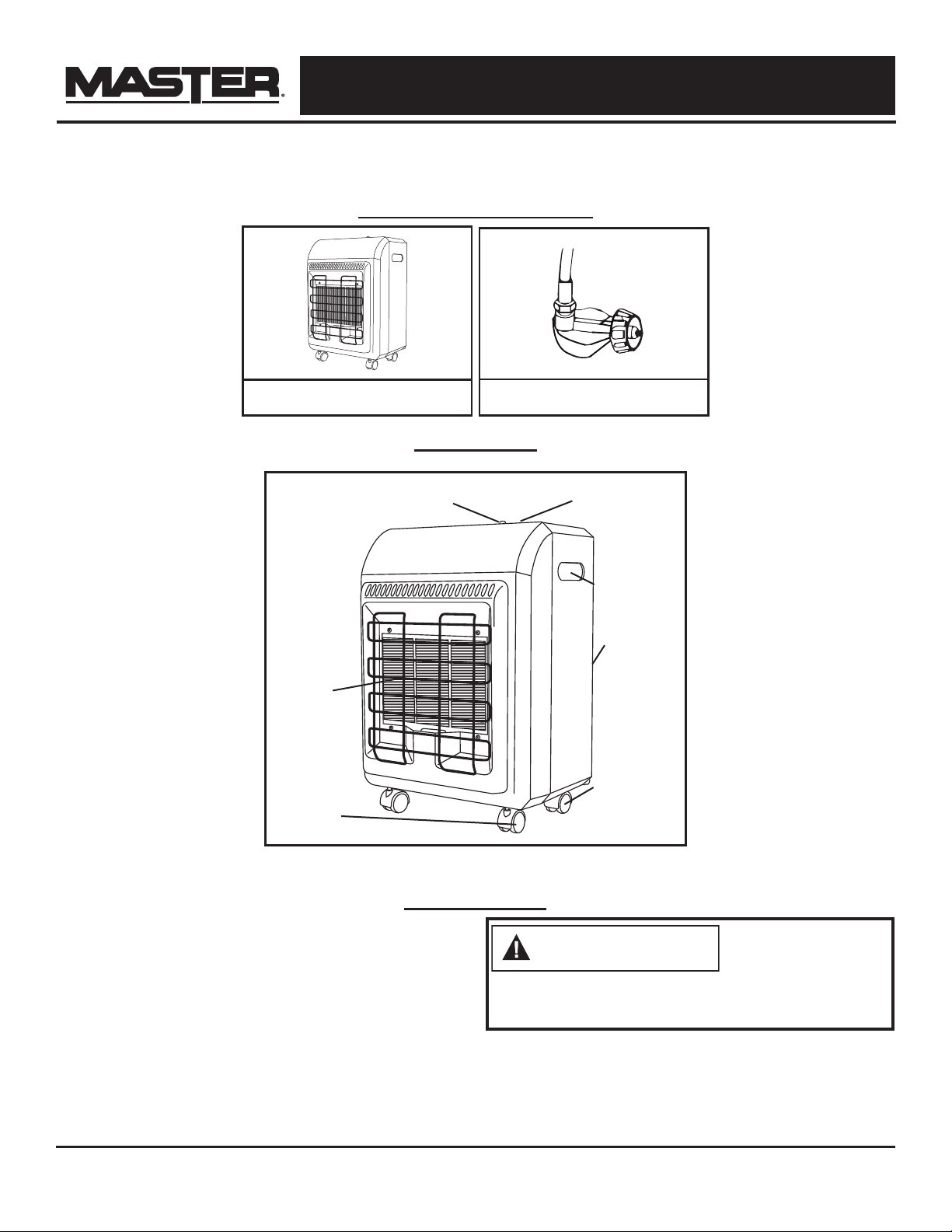

Features............................................................................6
What’s in the Box............................................................6
Unpacking........................................................................6
Assembly ........................................................................ 7
Operation....................................................................8-10
Ventilation........................................................................10
Storage and Maintenance...........................................11
Troubleshooting Guide................................................12

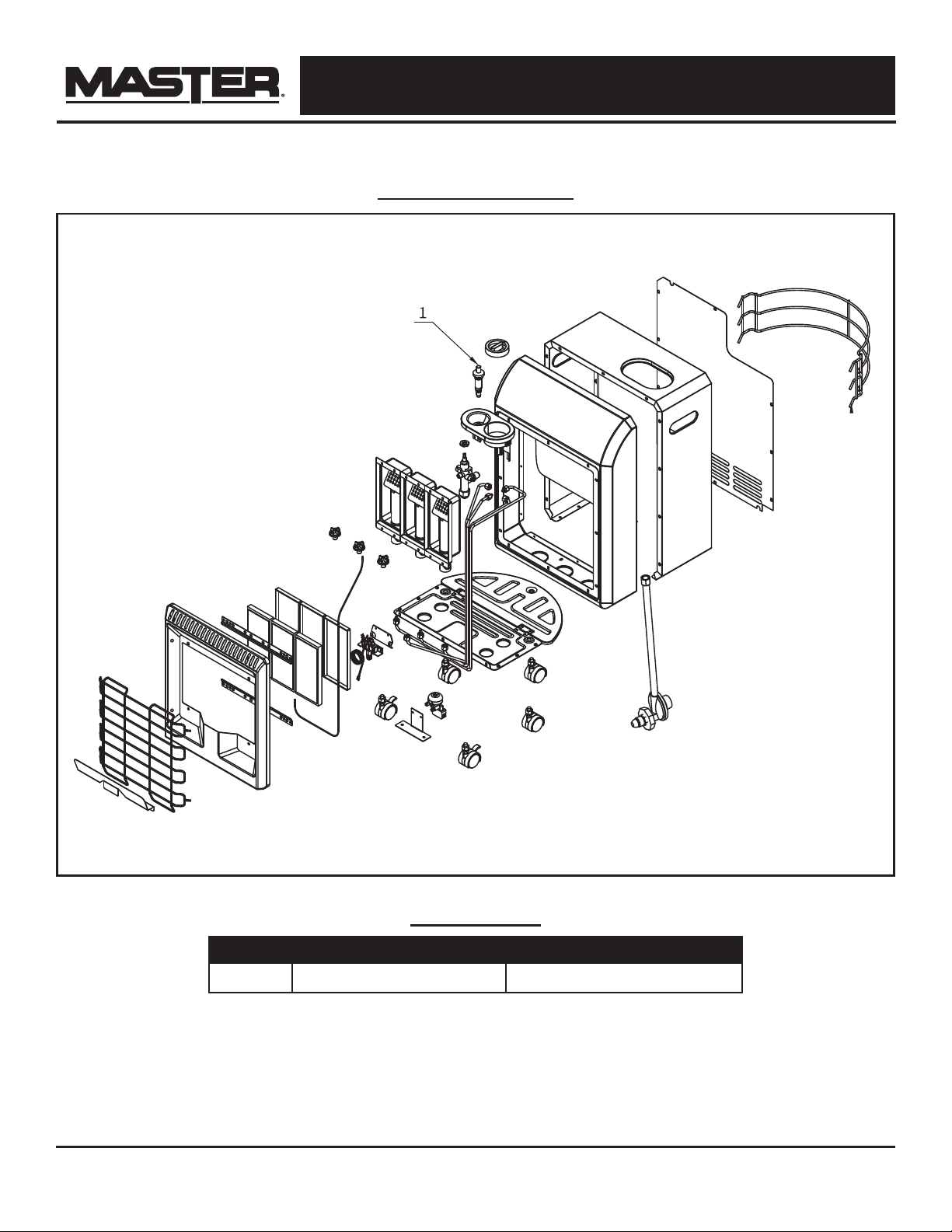

Exploded View & Parts List.........................................13
Warranty...........................................................................14

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
3
SAFETY INFORMATION CONT.
The products described in this manual are pro-
pane direct-fired, forced air heaters. Propane
forced air heaters are primarily intended for use
for temporary heating of buildings under construc-
tion, alteration or repair. Direct-fired means that
all of the combustion products of the heater enter
the heated space. This appliance is rated at 98%
combustion eciency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning re-
semble the flu. Symptoms of improper ventilation /
carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat • Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women, those
with heart or lung problems, anemia or those under
the influence of alcohol or at high altitudes.
FOR INDOOR USE ONLY: Adequate ventilation
shall be provided in accordance with OSHA 29
CFR 1926.154, Safety Requirements for Temporary
and Portable Space Heating Devices and
Equipment, ANSI A10.10, ANSI Z223.1/NFPA 54
Liquefied Petroleum Gas Code, NFPA 58 or the
Natural Gas and Propane Installation Code, CAN
B149.1 as appropriate.
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open flame.
–Shut o gas to heater.
–If odor continues, contact your local gas
supplier or fire department.
–DO NOT touch or use any electric switch or
any electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call the
fire department.
–Service must be done by a qualified service
agency.
NEVER store or use gasoline or other flammable
vapors and liquids in the vicinity of this heater.
NEVER store a propane (LP) cylinder not connected
to this heater in the vicinity of this heater.
NEVER connect heater to an unregulated gas supply.
NEVER obstruct the flow of combustion and
ventilation air.
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that
has been modified.
NEVER service, move or handle heater while still hot
or operating
Keep all combustible materials, gasoline, and other
flammable vapors and liquid away from this heater.
Minimum Clearance From Combustibles
Front Sides Top
40 in. 16 in. 40 in.
RISK OF BURNS,
FIRE AND EXPLO-
SION!
PROPANE IS AN
EXPLOSIVE GAS.
DANGER
WARNING
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
4
–Do not use this heater for heating human living
quarters
–Use of direct-fired heaters in the construction
environment can result in exposure to levels of
CO, CO, and NOconsidered to be hazardous
to health and potentially life threatening
–Do not use in unventilated areas
–Know the signs of CO and COpoisoning
•Headaches, stinging eyes
•Dizziness, disorientation
•Difficulty breathing, feels of being
suffocated
–Proper ventilation air exchange (OSHA 29
CFR 1926.57) to support combustions and
maintain acceptable air quality shall be
provided in accordance with OSHA 29 CFR
Part 1926.154, ANSI A10.10 Safety Requirements
for Temporary and Portable Space Heating
Devices and Equipment used in the
Construction Industry or the Natural Gas and
Propane Installation Codes CSA B149.1
–Periodically monitor levels of CO, COand
NOexisting at the construction site – at the
minimum at the start of the shift and after 4
hours.
–Provide ventilation air exchange, either
natural or mechanical, as required to maintain
acceptable indoor air quality
–Ensure that the flow of combustion and
ventilation air exchanges cannot become
obstructed
–As the building “tightens up” during the
construction phase ventilation may need to be
increased
AIR QUALITY HAZARD
WARNING
USA 8-Hr Time weighted average
(OSHA 29 CFR 1926.55 App A)
Canada 8-hr time weighted average WorkSafe
BC OHS Guidelines Part 5.1 and Ontario Work-
places Reg 833
CO 50 ppm 25 ppm
CO 5000 ppm 5000 ppm
NO 3 ppm (Reg 833)
USA – Ceiling Limit
(Short Term Exposure Limit = 15 minutes)
Canada STEL (15 minutes Reg 833/1 hour
WSBC) WorkSafe BC OHS Guidelines Part 5.1
and Ontario Workplaces Reg 833
CO 100 ppm
CO 15000 ppm (WSBC)
30000 ppm (Reg 833)
NO 5 ppm 1.0 ppm (WorkSafeBC)
5.0 ppm (Reg 833)
SAFETY INFORMATION CONT.
CAUTION! HOT WHILE
IN OPERATION. DO NOT
TOUCH. KEEP CHILDREN,
ANIMALS, CLOTHING AND COMBUSTIBLES AWAY
FROM HEATER.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
5
RISK OF FIRE! ALWAYS LOCATE HEATER ON A STABLE AND LEVEL
SURFACE!
WARNING
SPECIFICATIONS
Model # MH-18PNCH-A
BTU 6,000 / 12,000 / 18,000
Fuel Consumption (lb./hr) 0.29 /0.57 / 0.86
Heat Settings 3
Maximum Operating Hours 69 / 35 / 23
Required Cylinder Lbs. 20
Fuel Type Use ONLY 20 lb. LP Gas
Cylinder: 18" x 12.25"
Heating Area (Ft.2) 150 / 300 / 450
Specifications subject to change without notice.
–ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or
wind.
–Use heater in accordance with all local codes
and with CSA 5.90 U.S. (5th Ed.) Infrared Patio
Heater.
–This heater is shipped from the factory for use
with propane (LP) gas only. Do not convert
to any other gas. Installation must conform
to local codes, or in their absence, with the
standard for the Storage and Handling of
Liquefied Petroleum Gases ANSI/NFPA 58 and
the Natural Gas and Propane Installation Code
CSA B149.1.
–Gas supply connections should be checked by
using a 50/50 soap and water solution. Never
use a flame to check for gas leaks.
–Use only the regulator and hose assembly
provided with this heater. Inspect the
regulator/hose assembly prior to each use
of the heater. If there is excessive abrasion
or wear, or if the hose is cut, replace it with
the proper assembly shown in the parts list,
prior to using the heater. The replacement
hose assembly should follow manufacturer's
specification.
–This heater is not for use on finished floors.
Minimum and Maximum Inlet Pressure
Model MH-18PNCH-A
Min. 5 PSI
Max. Bottle Pressure
For use with propane
(LP) gas only.
WARNING
The hose assembly
shall be protected
from trac, building
material and contact with hot surfaces both
during use and while in storage.
WARNING
SAFETY INFORMATION CONT.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
6
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to
inlet connector and hose / regulator assembly
for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the
heater is damaged, promptly inform dealer
where you purchased the heater.
UNPACKING
The Propane (LP)
gas pressure
regulator and hose
assembly supplied with the heater must be
used without alteration.
CAUTION
FEATURES
WHAT'S IN THE BOX
Safety
Guard
Piezo Valve Knob
Handle
Slot
Protective
Guard
Rear
Castor
Front
Castor
Heater Cabinet Hose and Regulator

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
7
1. Place heater on a flat surface.
2. Fold propane tank tray down (see Figure 1)
3. Attach Back Cover.
4. Inspect heater closely for any damage that
may have occured during shipping. If there
is any damage, return the heater to place of
purchase.
Connecting to Gas Supply
IMPORTANT! - Always use a propane (LP)
cylinder that has a connection device compatible
with the hose and regulator assembly supplied.
1. Remove the back cover by sliding the cover
straight up and away from the heater body.
Place the LP cylinder on the bottom plate and
replace the back cover.
2. To connect LP cylinder, insert regulator end
fitting into cylinder valve, rotate coupling nut
clockwise and tighten firmly (see Figure 2)
3. Open valve on propane cylinder slowly. If the
valve is not opened slowly, the excess flow
check valve in the regulator will stop the flow
of gas. If this should happen, close the valve,
wait one minute (or until you hear the valve
click), and re-open, slowly.
4. Be sure to inspect all connections for leaks, by
using a 50/50 mixture of dish soap and water
on all connection. Any bubbles forming indi-
cate a leak.
ASSEMBLY
The Propane (LP)
gas pressure
regulator and hose
assembly supplied with the heater must be used
without alteration.
Be sure to inspect
the regulator hose
before each use.
If the hose is cut or frayed, replace it with the
manufacturer suggested assembly.
CAUTION
CAUTION
Figure 1 Figure 2
Back
Cover

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
8
OPERATION
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder. Use
only an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier than
air and pools in low areas.
– In its natural state, propane has no odor, but for your
safety an odor that smells like rotten cabbage has
been added.
– Contact of propane (LP) gas with the skin can cause
freeze burns.
– Heater is manufactured for use with propane gas
only. DO NOT attempt to convert to any other gas.
Such modifications are dangerous and will void the
warranty.
– When heater is not in use, LP Cylinder must be
turned OFF.
– Be sure that the LP Cylinder is located on a level and
stable surface.
– DO NOT use this heater in a basement or below
ground level. Propane is heavier than air and will
always seek the lowest level. If you suspect a leak,
shut o the valve at the LP Cylinder immediately.
The Propane (LP) cylinder must also be equipped with
the following:
– A collar to protect the gas valve.
– A shut-o valve terminating a LP cylinder valve
outlet as specified in the American National
Standard for Compressed Gas Cylinder Valve
Outlets and Inlets Connections.
– A safety relief valve having direct communications
with the vapor space of the LP cylinder.
– The heater must operate on vapor withdrawal from
the operating cylinder.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may cause
damage to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to a
construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shuto valve on the LP
cylinder after each use.
– All fittings must be protected when disconnected
from the LP cylinder.
– Never store an LP cylinder inside a building or in the
vicinity of an gas burning appliances.
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder valve
to OFF position.
– LP cylinder valve equipped with old style fitting has
LEFT HANDED THREADS. Turn fitting CLOCKWISE
to loosen. Protect this fitting when disconnected
from LP cylinder.
– Have your LP cylinder filled by your local propane
gas supplier.
– Some LP cylinders have a bleed-OFF valve. This
valve should be inspected for leaks after each
filling of the LP cylinder. Turn the valve clockwise to
close.
– Fasten full propane tank and connect proper
fitting to LP cylinder valve by turning COUNTER-
CLOCKWISE.
– With heater gas valve knob still in OFF position
turn ON the LP cylinder valve and check for leaks
with soap solution.
Propane is safe
to use when
properly handled.
Careless handling of the LP cylinder could
result in a fire and or an explosion.
CAUTION
The disconnected
tank must never
be stored in a
building, garage or any other enclosed
area.
CAUTION
Purging and
filling of the LP
cylinders must be
performed by personnel who have been
thoroughly trained in accepted LP gas
industry procedures. Failure to follow these
instructions may result in explosion, fire,
severe personal injury or death.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
9
OPERATION CONT.
Checking For Leaks
– To check for leaks, make up a 50/50 solution
of dish soap and water. Apply this solution to
all gas connections. If bubbles appear, there
is a leak. If a leak is found, turn o the gas
supply, and re-connect the leaking connection.
If the leak persists after several tries, contact
Pinnacle Customer Service at [phone].
– The installation of this heater must meet all
local codes and/or gas utility requirements. In
the absence of local codes, the National Fuel
Code ANSI Z223.1 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at
all times (See Page 3).
– Inspect the heater before each use, and at
least annually by a qualified service person.
Supply Valve
Regulator
Hose
Propane Tank
Figure 6
EXTREMELY HOT
during operation. Do
Not touch any metal
components while in operation. Keep gasoline
and any other flammable liquids away from
the heater.
WARNING
Lighting Instructions:
1. STOP! Read all of the safety information
provided with this heater.
2. Turn valve on propane cylinder
COUNTERCLOCKWISE until fully open.
3. Wait five (5) minutes for any gas to clear. Smell
for gas. If none is evident, proceed to the next
step.
4. Push in the valve knob and turn to "PILOT".
NOTE: If this is first time use for heater or LP
cylinder has been replaced, hold the valve knob for
approximately 30 seconds to allow bleeding of air
from system then turn valve knob to PILOT.
5. While depressing the valve knob, press red
piezo ignition button to ignite. It may be
necessary to press the igniter button several
times to ignite the center burner panel.
6. Continue to hold valve knob down for 30
seconds after the panel has lit. This will heat the
thermocouple. After 30 seconds, release the
valve knob.
7. If heater fails to light, or does not stay lit, repeat
steps 2 through 6.
8. When the center burner panel stays lit, turn the
valve knob to the desired setting.
Shut Down Instructions:
1. Turn valve knob to the OFF position.
2. Turn the knob at the LP cylinder CLOCKWISE to
the OFF position.
3. Disconnect regulator hose assembly from the
LP cylinder.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
10
Test Firing Heater:
It is always a good idea to test fire your heater
in a safe and controlled environment, in an area
with adequate ventilation, and away from any
combustibles to be sure that all functions of the
heater and gas supply system are operating
properly.
Leak test all gas connections with a 50/50 solution
of dish soap and water. DO NOT use a flame to test
for leaks!
Moving and Positioning the Heater:
There is a brake in each of the front wheels of your
heater that helps keep it in place when in use. To
engage the brakes, push the lever down on each
wheel. To move the heater, release the brakes,
simply by flipping the levers on both brakes up.
The gas must be turned o at the propane supply
cylinders(s) when the heater is not in use.
OPERATION CONT.
–Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in well
ventilated areas.
–Refer to Safety Information on pages 2-3
for information about Carbon Monoxide
Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least 3 square feet (2,800
sq. cm) for each 100,000 BTU / Hr. of heater
output. Provide a larger opening if more
heaters are being used.
– FOR INDOOR USE PERMITTED ONLY
FOR: The temporary heating of adequately
ventilated buildings or structures under
construction, alteration or repair.
Minimum Ventilation Opening Needed
MH-18PNCH-A
0.54 ft.2
501.7 cm2
CARBON MONOXIDE POISONING MAY LEAD TO DEATH!
Not for use in residential living areas or in non-adequately
ventilated enclosed spaces.
DANGER
DANGER
VENTILATION

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
11
STORAGE / MAINTENANCE
Always disconnect the LP cylinder from the regu-
lator assembly and remove the LP cylinder from
the heater before putting the heater into storage.
If, for any reason, the heater is to be stored in-
doors, the heater MUST be disconnected from the
LP cylinder, and the cylinder stored outdoors in a
well-ventilated area, out of the reach of children,
and in accordance with the Standard for Storage
and Handling of Liquefied Gasses, ANSI/NFPA 58
and Natural Gas and Propane Installation Code,
CSA B149.1- latest edition. The plastic valve plug
or valve cover supplied with the LP cylinder must
be reinstalled on the valve to protect the fitting
from damage.
NOTE: Repair of this heater should be done by a
qualified service person.
It is recommended that you save all of the pack-
aging materials that came with your heater, and
re-package the heater using these materials for
safe storage.
Debris, dust and dirt inside of the heater body
can aect the performance of your heater. This
debris can impair the heaters ability to draw air for
ventilation and combustion. Spiderwebs can also
appear during periods of inactivity.
Be sure to inspect the heater before each use to
look for any such obstructions. Be sure to keep
the air passage-ways, burner and combustion
areas clean. Wipe with a damp cloth or use a
vacuum cleaner to clean these areas. It is sug-
gested that you perform a thorough cleaning at
least once every 30 days of operation. You may
need to clean the heater more often if conditions
are naturally dirty. Clean the heater, including spe-
cial surfaces, with recommended cleaning agents,
if necessary.
Clean the ceramic plaques using compressed air
below 30 PSI to prevent damage to plaques.
A yellow tip of the pilot flame indicates that the
burner area may be in need of cleaning.
Never store an LP cylinder inside of a building or near any other gas or
oil burning appliances.
DANGER
Always be sure that the heater has been allowed to cool for at least 30
minutes before attempting to store, service, or perform maintenance.
CAUTION

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
12
Problem Possible Cause Solution
Burner fails to ignite
1. Air in gas line
2. Gas pressure from cylinder
too low.
3. LP cylinder valve turned off
4. Obstruction in air
passageway.
5. Dirt in pilot orifice.
6. Safety switch in cylinder
valve engaged.
7. Tipover switch engaged.
1. Keep depressing the gas control
knob for at least 30 seconds to
remove any in line.
2. Check LP cylinder pressure. Tank
may be empty.
3. Open LP cylinder valve.
4. Inspect and clean heater housing.
5. Blow out, or clean pilot orifice.
6. Close LP cylinder valve. Wait 1
min. for switch to click off. Reopen
LP cylinder valve slowly.
7. Move heater to a level surface.
No spark created when
ignited
1. Incorrect igniter electrode
position.
2. Electrode damaged or
broken.
3. Loose or disconnected
igniter wire.
4. Broken igniter wire.
1. Properly position electrode
2. Replace the electrode.
3. Tighten or reconnect loose wire.
4. Replace igniter wire.
Heater stops running by
itself
1. Thermocouple damaged
2. Gas control valve damaged.
3. Gas leak
4. Thermocouple not in contact
with pilot flame.
5. Tip-over switch damaged,
or loose connection at tip-
switch.
6. Out of fuel.
1. Replace entire heater
2. Replace gas control valve.
3. Check all connections for leaks
using 50/50 solution of dish
soap and water. Repair any leaks
found.
4. Clean inside of heater housing.
5. Inspect tip-over switch and
connections. Replace if
necessary.
6. Replace LP cylinder
TROUBLESHOOTING GUIDE

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
13
PARTS LIST
EXPLODED VIEW
Item # Description MH-18-PNCH-A
1 Piezo Button 50-014-0100

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2021 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
14
LIMITED WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater to
the original retail purchaser only, to be free from defects in
material and workmanship for a period of one (1) year from
the date of initial purchase. This product must be properly
installed, maintained and operated in accordance with the
instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies , Inc. shall determine at its
reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating diculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
to the finish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. finds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims all warranties for products that
are purchased from sellers other than authorized dealers or
distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle
Climate Technologies, Inc. SHALL HAVE NO LIABILITY
WHATSOEVER TO PURCHASER OR ANY THIRD PARTY
FOR ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL,
OR CONSEQUENTIAL DAMAGES. Pinnacle Climate
Technologies, Inc. assumes no responsibility for any defects
caused by third parties. This Limited Warranty gives the
purchaser specific legal rights; a purchaser may have other
rights depending upon where he or she lives. Some states
do not allow the exclusion or limitation of special, incidental
or consequential damages, or limitations on how long a
warranty lasts, so the above exclusion and limitations may
not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize any
person or company to assume for it any other obligation
or liability in connection with the sale, installation, use,
removal, return or replacement of its equipment, and no
such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
Locating Your Serial Number:
Your serial number can be found on the heater’s rating label. It will begin with the letters PGCV
followed by 8 digits. For Example: PGCV12345678. Have your Serial Number ready before calling
customer service at 1-800-641-6996.

Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [email protected]
© 2019 Pinnacle Climate Technologies, Inc.

NOTE AU CLIENT : LIRE ET CONSERVER CES INSTRUCTIONS POUR
POUVOIR S’Y REPORTER ULTÉRIEUREMENT
DANGER
MISES EN GARDE GÉNÉRALES:
LE NON-RESPECT DES MISES EN GARDE ET DES INSTRUCTIONS FOURNIES
AVEC CETTE CHAUFFERETTE PEUT ENTRAÎNER LA MORT, DE GRAVES
BLESSURES ET DES DOMMAGES MATÉRIELS RÉSULTANT D’UN INCENDIE, D’UNE EXPLOSION, DE
BRÛLURES, D’ASPHYXIE, D’EMPOISONNEMENT AU MONOXYDE DE CARBONE ET/OU D’UNE DÉCHARGE
ÉLECTRIQUE. SEULES LES PERSONNES CAPABLES DE COMPRENDRE ET DE SUIVRE LES INSTRUCTIONS
DOIVENT SE SERVIR DE CETTE CHAUFFERETTE OU LA RÉPARER. POUR OBTENIR DE L’AIDE OU DES
INFORMATIONS SUR CETTE CHAUFFERETTE, TELLES QU’UNE NOTICE D’INSTRUCTIONS, UNE ÉTIQUETTE,
ETC., COMMUNIQUER AVEC LE FABRICANT.
AVERTISSEMENT
RISQUE D’INCENDIE, DE BRÛLURE,
D’INHALATION ET D’EXPLOSION.
GARDER LES MATÉRIAUX SOLIDES
INFLAMMABLES, TELS LES MATÉRIAUX DE CONSTRUCTION, LE PAPIER OU LE
CARTON, À UNE DISTANCE SÉCURITAIRE DE LA CHAUFFERETTE, COMME
RECOMMANDÉ DANS LES PRÉSENTES INSTRUCTIONS. NE JAMAIS UTILISER LA
CHAUFFERETTE DANS DES ENDROITS QUI CONTIENNENT OU POURRAIENT
CONTENIR DES MATIÈRES COMBUSTIBLES VOLATILES OU EN SUSPENSION
DANS L’AIR, OU ENCORE DES PRODUITS COMME DE L’ESSENCE, DES SOLVANTS,
DES DILUANTS À PEINTURE, DES PARTICULES DE POUSSIÈRE OU DES PRODUITS
CHIMIQUES INCONNUS. GARDER TOUS LES MATÉRIAUX COMBUSTIBLES,
L’ESSENCE ET AUTRES VAPEURS ET LIQUIDES INFLAMMABLES À L’ÉCART DE
CETTE CHAUFFERETTE.
NUMÉRO DE MODÈLE
MH-18PNCH-A
ID usine : 525
Sauk Rapids, MN 56379 USA • Numéro sans frais 800641-6996
Télécopieur : 320251-2922 • Web : www.masterindustrialproducts.com • Courriel : [email protected]
© 2021, Pinnacle Climate Technologies, Inc. MACC-405
Manuel de l’utilisateur et
mode d’emploi
CHAUFFERETTE CABINET
Repérage du numéro de série:
Le numéro de série se trouve sur l’étiquette signalétique de l’appareil. Il est composé de 8 chires. Par exemple:
12345678. Prendre note du numéro de série avant d’appeler le service à la clientèle au 1 800 641-6996.
Cette chauerette est conçue et approuvée pour les chantiers de construction en conformité avec
les normes ANS Z83.7 * CSA 2.14-2017 régissant les chauerettes de chantier à gaz. VÉRIFIER
AVEC LE SERVICE LOCAL DES INCENDIES EN CAS DE QUESTIONS SUR L’APPLICATION.
D’autres normes régissent l’utilisation des gaz combustibles et des produits de chauage pour
des utilisations spécifiques. Les autorités locales peuvent vous informer sur ces dernières.

NE JAMAIS LAISSER UNE CHAUFFERETTE SANS SURVEILLANCE
LORSQU’ELLE CHAUFFE OU QU’ELLE EST BRANCHÉE À UNE SOURCE
D’ALIMENTATION OU DE COMBUSTIBLE.
© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chauerette cabinet
2
AVERTISSEMENT
Ceci est une chaufferette portative non raccordée, utilisant l’air
ambiant (oxygène) de l’espace où elle est utilisée. Une quantité
d’air suffisante pour la combustion et la ventilation doit être
fournie. Voir la rubrique «VENTILATION» à la page 9.
DANGER
Cet appareil n’est pas conçu pour une utilisation dans une aire résidentielle ou
dans un espace clos qui n’est pas ventilé adéquatement. Ne jamais apporter ou
entreposer une bouteille de propane à l’intérieur.
AVERTISSEMENT
NE PAS UTILISER CETTE CHAUFFERETTE AVANT D’AVOIR LU
ET PARFAITEMENT COMPRIS CES CONSIGNES DE SÉCURITÉ
ET D’UTILISATION.
Le non-respect des précautions et instructions fournies avec cet appareil peut entraîner la mort, des blessures
corporelles graves, la perte ou des dommages aux biens causés par les risques d’incendie, des explosions,
des brûlures, d’asphyxie ou d’un empoisonnement au monoxyde de carbone. Seules les personnes qui
peuvent lire et comprendre les présentes directives doivent utiliser ou faire l’entretien de cette chauerette.
AVERTISSEMENT
CET APPAREIL EST EXTRÊMEMENT CHAUD PENDANT SON
FONCTIONNEMENT! Ne toucher à aucun composant en métal
pendant le fonctionnement. Garder tous les matériaux
combustibles, l’essence et autres vapeurs et liquides inflammables à l’écart de cette chaufferette.
CONSIGNES DE SÉCURITÉ
AVERTISSEMENT
NE PAS UTILISER DANS LES HABITATIONS OU
VÉHICULES RÉCRÉATIFS.
DANGER
Danger lié au monoxyde de carbone Cette chauerette produit du monoxyde
de carbone, qui n’a pas d’odeur. Utiliser cette chauerette dans un espace
clos peut causer la mort. Ne jamais utiliser la chauerette dans des espaces
clos comme une tente, une autocaravane, tout véhicule ou véhicule récréatif (VR), abri fermé ou tout autre
type d’espace clos.
DANGER
Si les informations contenues dans ce manuel ne sont pas suivies à la lettre,
un incendie ou une explosion peuvent survenir et causer des dommages
matériels, des blessures ou la mort.
TABLE DES MATIÈRES
Consignes de sécurité............................................ 2-5
Spécications .............................................................5
Caractéristiques..........................................................6
Contenu de la boîte ....................................................6
Déballage ...................................................................6
Montage......................................................................7
Mode d’emploi ...................................................... 8-10
Ventilation.................................................................10
Rangement et entretien............................................11
Guide de dépannage................................................12
Vue Éclatée / Liste des pièces .................................13
Garantie....................................................................14
AVERTISSEMENT: Ce produit peut vous exposer à des produits chimiques, notamment
du plomb qui est reconnu dans l’État de Californie comme cause de cancer, de
malformations congénitales ou d’autres troubles de la reproduction. Pour plus
d’informations, consultez www.P65Warnings.ca.gov.

NE JAMAIS LAISSER UNE CHAUFFERETTE SANS SURVEILLANCE
LORSQU’ELLE CHAUFFE OU QU’ELLE EST BRANCHÉE À UNE SOURCE
D’ALIMENTATION OU DE COMBUSTIBLE.
© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chauerette cabinet
3
CONSIGNES DE SÉCURITÉ SUITE
Les produits décrits dans ce manuel sont des
chauerettes à feu direct et à air pulsé alimentées au
propane. Les chauerettes à air forcé au propane sont
principalement destinées au chauage temporaire des
bâtiments en cours de construction ou de rénovation. Feu
direct signifie que tous les produits de combustion de la
chauerette entrent dans l’espace chaué. Cet appareil
est évalué à 98% de rendement de la combustion, mais il
produit de petites quantités de monoxyde de carbone.
Le monoxyde de carbone est toxique. Les êtres
humains peuvent en tolérer seulement de petites
quantités; des précautions doivent donc être prises
pour assurer une ventilation adéquate. Une ventilation
non adéquate, en violation des consignes figurant
dans ce manuel, peut entraîner la mort.
Les personnes atteintes de problèmes respiratoires
doivent consulter un médecin avant d’utiliser cet appareil.
Les premiers signes d’intoxication au monoxyde de
carbone ressemblent aux symptômes de la grippe.
Ces symptômes d’une mauvaise ventilation ou d’un
empoisonnement au monoxyde de carbone sont:
Mal de tête • Étourdissement •Nausée • Bouche sèche
Mal de gorge • Nez et yeux qui brûlent
Si un ou plusieurs de ces symptômesapparaissent :
SORTIR IMMÉDIATEMENT RESPIRER DE L’AIR FRAIS!
Faire vérifier ou réparer la chaufferette et vérifier
que la ventilation est adéquate. Certaines personnes
sont plus affectées que d’autres par le monoxyde de
carbone. Celles-ci incluent: les femmes enceintes,
les personnes ayant des problèmes cardiaques ou
pulmonaires, souffrant d’anémie ou qui se trouvent
sous l’influence de l’alcool ou à haute altitude.
POUR USAGE INTÉRIEUR SEULEMENT : Fournir une
ventilation adéquate conformément à la norme OSHA
29 CFR 1926.154, aux exigences de sécurité pour les
appareils et équipements portables de chauffage
temporaire, à la norme ANSI A10.10, à la norme Z223.1/
NFPA 54, au Liquefied Petroleum Gas Code NFPA 58
ou au Code d'installation du gaz naturel et du propane
CAN B149.1, selon le cas.
QUE FAIRE SI UNE ODEUR DE GAZ EST DÉTECTÉE:
–NE PAS tenter d’allumer la chauerette.
–Éteindre toute flamme nue.
–Couper l’alimentation en gaz vers lachauerette.
–Si l’odeur persiste, contacter le fournisseur de
gaz local ou le service des incendies.
–NE PAS toucher ou utiliser un commutateur
électrique ou un appareil électrique qui pourrait
produire une étincelle.
–Appeler immédiatement le fournisseur de gaz
à partir du téléphone d’un voisin. Suivre les
instructions du fournisseur de gaz.
–Si le fournisseur de gaz ne peut être rejoint,
appeler le service des incendies.
–La réparation doit être eectuée par une agence
de service qualifiée.
NE JAMAIS entreposer ni utiliser d’essence ou d’autres
vapeurs ou liquides inflammables à proximité de cette
chauerette ou de tout autre appareil.
NE JAMAIS entreposer une bouteille de propane (GPL)
non raccordée à cette chauerette à proximité de celle-ci.
NE JAMAIS connecter la chauerette à une alimentation
en gaz sans régulation.
NE JAMAIS obstruer le flux d’air carburant et de ventilation.
NE JAMAIS utiliser de gaines ou de conduits d’air à l’avant
ou à l’arrière de l’appareil.
NE JAMAIS modifier la chaufferette ou utiliser une
chaufferette qui a été modifiée.
NE JAMAIS déplacer ou manipuler l’appareil lorsqu’il est
encore chaud ou en marche.
Garder tous les matériaux combustibles, l’essence et
autres vapeurs et liquides inflammables à l’écart de cette
chaufferette.
Dégagement minimal par rapport aux combustibles
Avant Côtés Haut
101.6 cm 40.64 cm 101.6 cm
AVERTISSEMENT
RISQUES DE BRÛLURES, D’INCENDIE ET D’EXPLOSION!
RISQUE DE
POLLUTION DE
L’AIRINTÉRIEUR!
DANGER
L’EMPOISONNEMENT
AU MONOXYDE DE
CARBONE PEUT
ENTRAÎNER LA MORT!
LE PROPANE EST UN
GAZ EXPLOSIF.
DANGER
AVERTISSEMENT

NE JAMAIS LAISSER UNE CHAUFFERETTE SANS SURVEILLANCE
LORSQU’ELLE CHAUFFE OU QU’ELLE EST BRANCHÉE À UNE SOURCE
D’ALIMENTATION OU DE COMBUSTIBLE.
© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chauerette cabinet
4
–Ne pas utiliser cet appareil pour chauffer les
habitations
–L’utilisation de chaufferettes à feu direct dans
les zones de construction peut entraîner une
exposition à des niveaux de CO, CO₂ et NO₂
considérés comme dangereux et potentiellement
mortels
–Ne pas utiliser dans des zones non ventilées
–Savoir reconnaître les signes d’un
empoisonnement aux CO et CO₂
• Maux de tête, sensation de brûlures aux yeux
•Étourdissements, désorientation
•Difficultés respiratoires, sensation
de suffocation
–Fournir un échange d’air par une ventilation
appropriée (OSHA 29 CFR 1926.57) pour
maintenir la combustion et une qualité d’air
acceptable, conformément à la norme OSHA 29
CFR, partie 1926.154, et aux exigences de sécurité
de la norme ANSI A10.10 pour les dispositifs
et équipements de chauffage temporaires et
portatifs utilisés dans l’industrie de la construction
ou aux Codes d’installation CSA B149.1 des
systèmes de gaz naturel et de gaz propane.
–Surveiller périodiquement les niveaux de
CO, CO2 et NO ₂ présents sur le chantier - au
minimum au début du quart de travail et
après 4 heures.
–Assurer un échange d’air par une ventilation
appropriée, naturelle ou mécanique, afin de
maintenir une qualité acceptable de l’air intérieur
–S’assurer que la circulation d’air de combustion
et de ventilation n’est pas obstruée
–Au fur et à mesure que le bâtiment se « referme »
dans les phases de construction, il peut être
nécessaire d’augmenter la ventilation
DANGER CONCERNANT LA QUALITÉ DE L’AIR
CONSIGNES DE SÉCURITÉ SUITE
AVERTISSEMENT
États-Unis – Moyenne pondérée dans le
temps sur 8 heures
(OSHA 29 CFR 1926.55 App A)
Canada – Moyenne pondérée dans le temps
sur 8 heures Directives de Santé et sécurité
au travail (Work Safe) de la Colombie-Britan-
nique, partie 5.1, et règlement 833 de Santé et
sécurité au travail de l’Ontario
CO 50 ppm 25 ppm
CO₂ 5 000 ppm 5000 ppm
NO₂ 3 ppm (règl. 833)
États-Unis – Seuil supérieur
(Limite d’exposition de courte durée =
15 minutes)
Limite d’exposition de courte durée/STEL (15
minutes, règl. 833/1 heure, WSBC), directives
de Santé et sécurité au travail (Work Safe) de la
Colombie-Britannique, partie 5.1, et règlement
833 de Santé et sécurité au travail de l’Ontario
CO 100 ppm
CO₂ 15 000 ppm (WSBC)
30 000 ppm (règl. 833)
NO₂ 5 ppm 1,0 ppm (WorkSafeBC)
5,0 ppm (règl. 833)
MISE EN GARDE! CHAUD DURANT L’UTILISATION. NE PAS
TOUCHER. GARDER HORS DE LA PORTÉE DES ENFANTS ET
DES ANIMAUX ET À L’ÉCART DES VÊTEMENTS OU DE TOUT
MATÉRIAU COMBUSTIBLE.
AVERTISSEMENT

NE JAMAIS LAISSER UNE CHAUFFERETTE SANS SURVEILLANCE
LORSQU’ELLE CHAUFFE OU QU’ELLE EST BRANCHÉE À UNE SOURCE
D’ALIMENTATION OU DE COMBUSTIBLE.
© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chauerette cabinet
5
SPÉCIFICATIONS
Modèles n° MH-18PNCH-A
BTU (kWh) 6000/12000/18000 (1,9/3,5/5,3)
Consommation de carburant (kg/h) 0,29 /0,57 / 0,86
Réglages de chaleur 3
Nombre maximal d’heures de
fonctionnement 69/35/23
Bouteille requise, kg 9
Type de carburant TOUJOURS utiliser une bouteille de gaz
propane de 9 kg (20 lb): 18" x 12.25"
Surface chauée (m²) 14 / 28 / 42
Spécications sujettes à modication sans préavis.
–TOUJOURS installer la chaufferette de façon à ne
pas l’exposer directement aux brumes d’eau, à la
pluie, à l’eau de ruissellement ou au vent.
–Utiliser la chaufferette conformément à tous les
codes locaux et les normes CSA 5.90 U.S. (5e
édition) Chaufferette infrarouge pour terrasse.
–Cette chaufferette est expédiée de l’usine dans
le but d’être utilisée avec du gaz propane (GPL)
exclusivement. Ne pas la convertir pour un autre
gaz. L’installation doit être conforme aux codes
locaux, ou en leur absence, avec la norme du
Storage and Handling of Liquefied Petroleum
Gases ANSI/NFPA 58 et du Code d’installation du
propane et du gaz naturel CSA B149.1.
–Vérifier les connexions d’alimentation en gaz avec
une solution de 50/50 d’eau et de savon. Ne pas
utiliser une allumette ou une flamme pour détecter
des fuites de gaz.
–N’utiliser que l’ensemble de régulateur et de
tuyau fourni avec cette chauerette. Inspecter
l’ensemble régulateur/tuyau avant chaque utilisation
de la chauerette. Si l’abrasion ou l’usure est
excessive, ou si le tuyau est coupé, le remplacer
par l’ensemble qui convient, illustré dans la liste des
pièces, avant d’utiliser lachauerette. L’ensemble
de tuyau de remplacement doit respecter la
spécification du fabricant.
–Cette chauerette n’est pas conçue pour une
utilisation sur des planchers finis.
Pressions d’entrée minimum et maximum
Modèle MH-18PNCH-A
Min. 5 PSI
Max. Pression de la bouteille
AVERTISSEMENT
Pour être utilisé avec du gaz propane (GPL)
seulement
AVERTISSEMENT
L’ensemble des tuyaux doit être protégé contre la
circulation, les matériaux de construction et tout
contact avec des surfaces chaudes, durant
l’utilisation et pendant l’entreposage.
CONSIGNES DE SÉCURITÉ SUITE
AVERTISSEMENT
RISQUE D’INCENDIE! TOUJOURS PLACER LA CHAUFFERETTE
SUR UNE SURFACE PLANE ET STABLE.
