Pinnacle Climate Technologies PROTEMP PT-40-GFA Training manual

MODEL NUMBERS:
PT-40-GFA / PT-60V-GFA-A / PT-125V-GFA-A / PT-150V-GFA-A
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
C
E
R
T
I
F
I
E
D
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS
PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS
BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION,
BURN. ASPHYXIATION, CARBON MONOXIDE POISONING AND / OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN IN-
STRUCTIONS MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
FIRE, BURN, INHALATION, AND EXPLOSION
HAZARD. KEEP SOLID COMBUSTIBLES,
SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM
THE HEATER AS RECOMMENDED BY THESE INSTRUCTIONS. NEVER
USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE
OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMI-
CALS.
Factory ID: 001
DANGER
WARNING
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.protemp.us • Email: [email protected]
© 2018 Pinnacle Climate Technologies, Inc. PTGC-404
User’s Manual &
Operating Instructions
PROPANE FORCED AIR HEATER

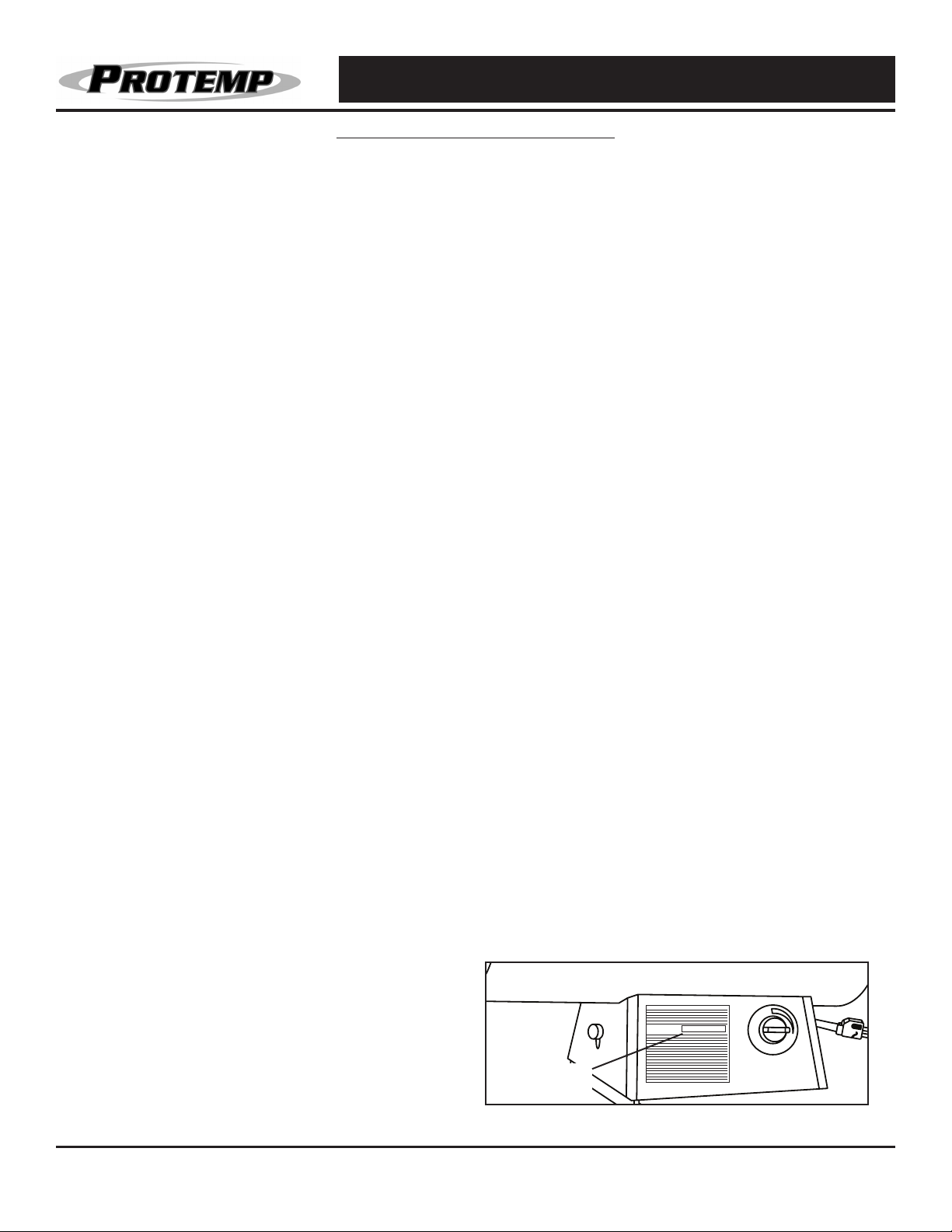

Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will begin
with the letter “G” followed by 9 digits. For Example: G123456789. Have your Serial Number ready
before calling customer service at 800-641-6996.
®

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
2
®
Safety Information.........................................2-4
Unpacking.......................................................4
Specifications..................................................5
Features..
....................................................... 5
What’s in the Box.............................................5
Operation......................................................6-8
Ventilation.................................................... ..8

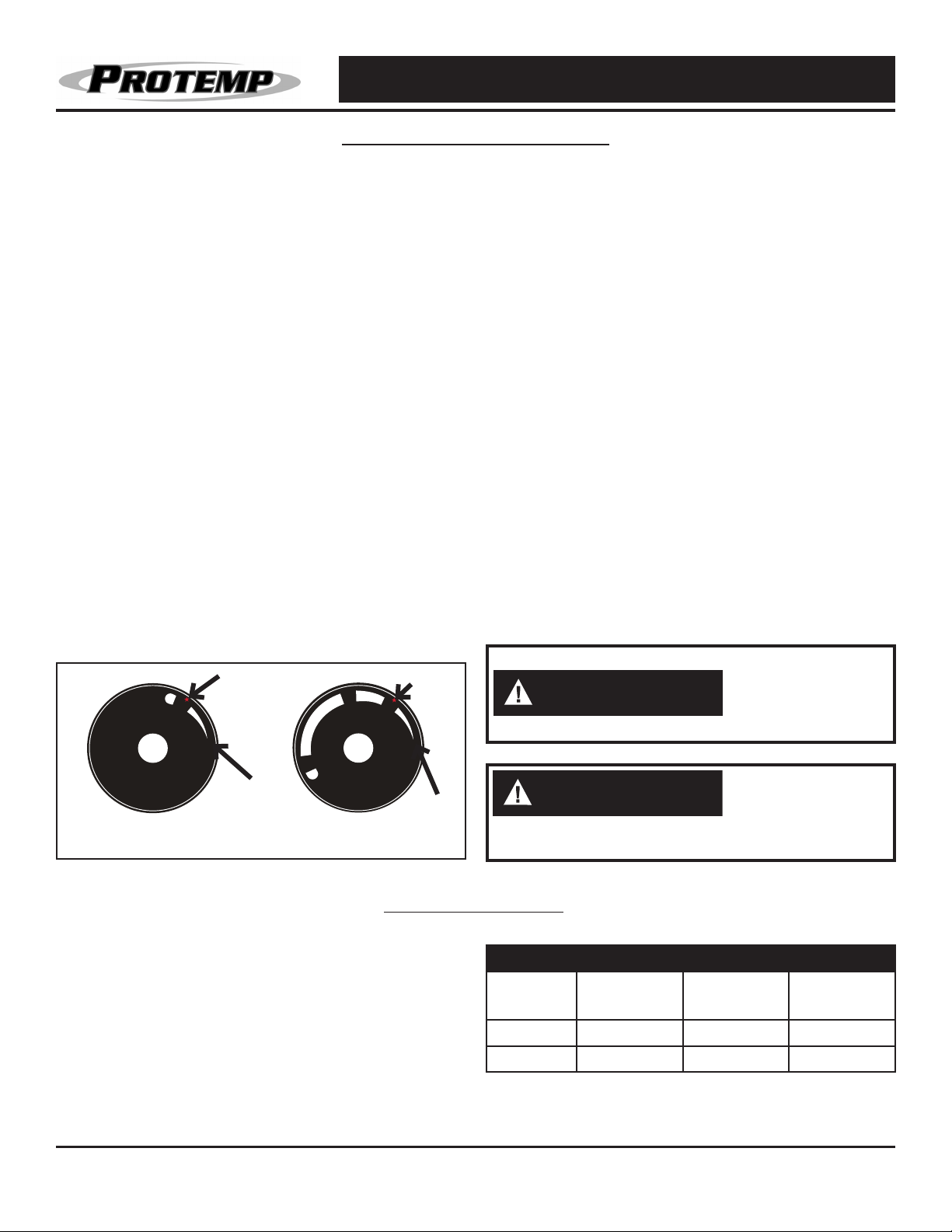

Storage/Maintenance.....................................8-9

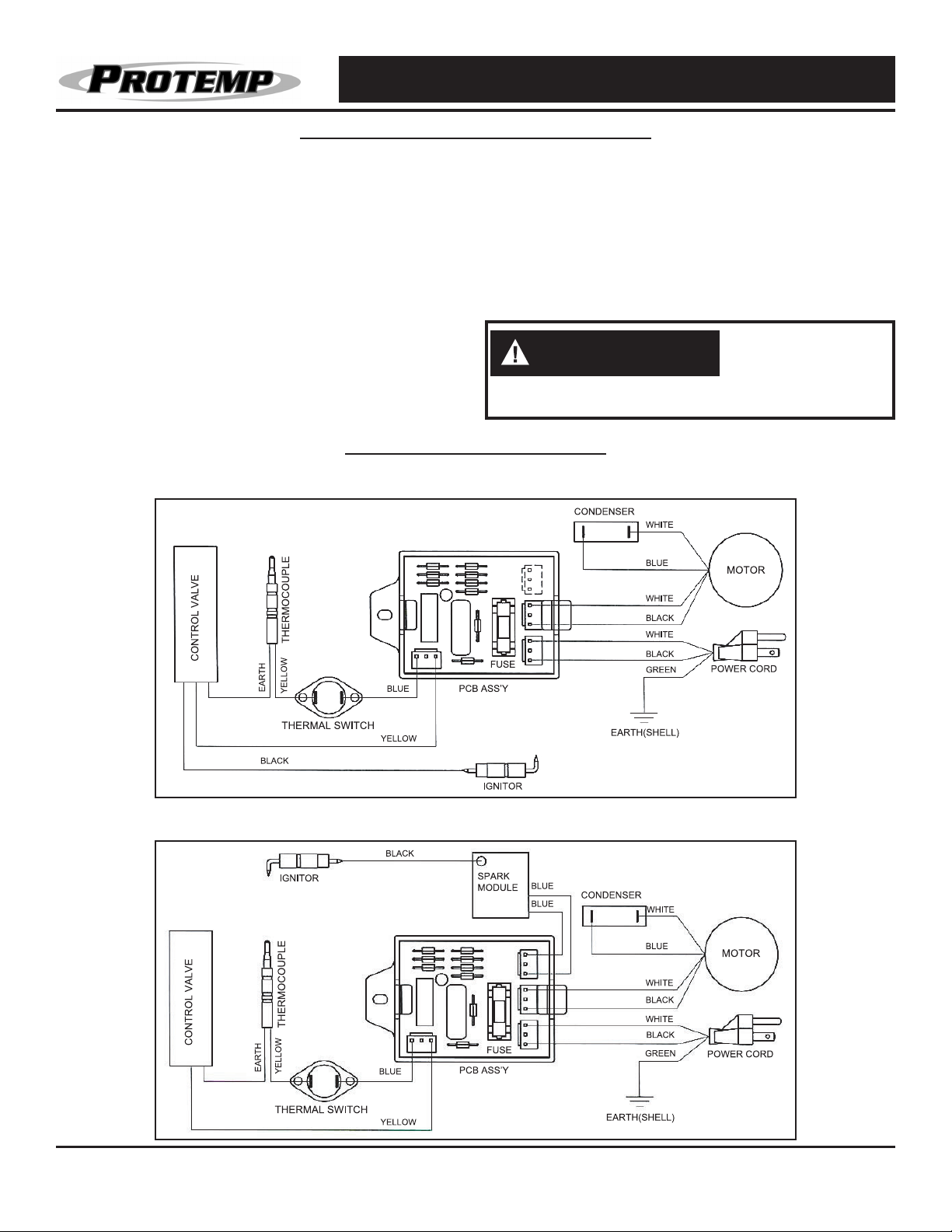

Wiring Diagrams...............................................9
Troubleshooting Guide....................................10
Exploded View
.......................................... ... . .11
Parts List......................................................11
Limited Warranty............................................12
TABLE OF CONTENTS
SAFETY INFORMATION
Carbon Monoxide Hazard This heater produces carbon monoxide, which
has no odor. Burning the heater in an enclosed space can kill you. Never
use the heater in enclosed spaces such as a tent, a camper, any vehicle
or recreational vehicle (RV), enclosed shelter, or any other enclosed areas.
DANGER
This is an unvented portable heater. It uses air (oxygen) from the area in
which it is used. Adequate combustion and ventilation air must be pro-
vided. Refer to VENTILATION on Page 8.
Not for use in residential living areas or in non-adequately ventilated
enclosed spaces. Never bring or store a propane cylinder indoors.
If the information in this manual is not followed exactly, a fire or explo-
sion may result causing property damage, personal injury or loss of life.
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND
THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING
INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury, property loss or damage from the hazards of fire, explosions, burns, asphyxiation
or carbon monoxide poisoning. Only persons who can read and understand these instructions should
use or service this heater.
DANGER
DANGER
WARNING
WARNING
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
This heater is designed and approved for use as a construction heater in accordance with Standard
ANSI Z83.7-2011/CSA 2.14-2011. CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU
HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards govern the use of fuel gasses and
heating products for specific uses. Your local authority can advise you about these.
This product contains chemicals, including lead, which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
WARNING

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
3
®
The products described in this manual are pro-
pane direct-fired, forced air heaters. Propane
forced air heaters are primarily intended for use
for temporary heating of buildings under construc-
tion, alteration or repair. Direct-fired means that
all of the combustion products of the heater enter
the heated space. This appliance is rated at 98%
combustion efficiency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation in
accordance with the instructions in this manual
can result in death.
People with breathing problems should consult
a physician before using this heater. Early signs
of carbon monoxide poisoning resemble the flu.
Symptoms of improper ventilation / carbon mon-
oxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth Sore
Throat • Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or
those under the influence of alcohol or at high
altitudes.
FOR OUTDOOR USE. INDOOR USE PERMITTED
ONLY FOR: The temporary heating of adequately
ventilated buildings or structures under construc-
tion, alteration or repair! Provide at least a three
square foot (2,800 sq. cm) opening of outside air
for every 100,000 Btu / Hr (29 kW) heater rating.
Refer to “Ventilation” on page 8 for further instruc-
tions.
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open flame.
–Shut off gas to heater.
–If odor continues, contact your local gas supplier
or fire department.
–DO NOT touch or use any electric switch or any
electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call the fire
department.
–Service must be done by a qualified service
agency.
NEVER store or use gasoline or other flammable vapors
and liquids in the vicinity of this heater.
NEVER store a propane (LP) cylinder not connected to
this heater in the vicinity of this heater.
NEVER connect heater to an unregulated gas supply.
NEVER obstruct the flow of combustion and ventila-
tion air. (The front and rear of heater).
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that has
been modified.
NEVER service, move or handle heater while still hot
or operating
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
Sides Top Front Rear
24 in. 36 in. 72 in. 24 in.
61 cm 92 cm 183 cm 61 cm
ALWAYS use the electrical power (voltage and frequen-
cy) specified on the model plate of the heater.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER
SAFETY INFORMATION (CONT.)
PROPANE IS AN
EXPLOSIVE GAS.
DANGER
RISK OF BURNS,
FIRE AND EXPLO-
SION!
WARNING
CAUTION!
HOT WHILE IN
OPERATION. DO NOT
TOUCH. KEEP CHILDREN, ANIMALS, CLOTHING
AND COMBUSTIBLES AWAY FROM HEATER.
WARNING

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
4
®
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
– Use heater in accordance with all local codes. In
the absence of local codes, refer to The National
Fuel Code, ANSI A223.1/NFPA 54.
–This heater is shipped from the factory for use with
propane (LP) gas only. Do not convert to any other
gas. Installation must conform to local codes, or
in their absence, with the standard for the Storage
and Handling of Liquefied Petroleum Gases
ANSI/NFPA 58 and the Natural Gas and Propane
Installation Code CSA B149.1.
– Gas supply connections should be checked by
using a 50/50 soap and water solution. Never use a
flame to check for gas leaks.
– Locate LP cylinder at least 6 ft. (183 cm) (10
ft./305 cm in Canada) from the heater, and do not
direct heater discharge towards the LP cylinder
unless it is at least 20 feet (610 cm) from the
heater.
– Use only the regulator and hose assembly provided
with this heater. Inspect the regulator/hose
assembly prior to each use of the heater. If there
is excessive abrasion or wear, or if the hose is cut,
replace it with the proper assembly shown in the
parts list, prior to using the heater.
Manifold, Minimum, and Maximum Inlet Pressure
40-GFA 60V-GFA 125V-GFA 150V-GFA
Man. 11" (279
mm) W.C. 11" (279 mm) W.C. 8.3" (211
mm) W.C. 8" (203 mm) W.C.
Min. 5 PSI (34.5 kPa)
Max. Bottle Pressure
For use with propane
(LP) gas only.
WARNING
Electrical Ground-
ing Instructions: This
appliance is equipped
with a three-prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded three-
prong receptacle.
WARNING
RISK OF ELECTRIC
SHOCK!
WARNING
SAFETY INFORMATION (CONT.)
The hose assembly
shall be protected
from trafc, building
material and contact with hot surfaces both dur-
ing use and while in storage.
WARNING
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
RISK OF FIRE! DO NOT POSITION HEATER IN A DOWNWARD ANGLE.
ALWAYS LOCATE HEATER ON A STABLE AND LEVEL SURFACE (SEE
FIGURE 1)!
Figure 1
WARNING
UNPACKING
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to inlet
connector and hose / regulator assembly for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the heater
is damaged, promptly inform dealer where you
purchased the heater.
The Propane (LP)
gas pressure regula-
tor and hose as-
sembly supplied with the heater must be used
without alteration.
CAUTION

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
5
®

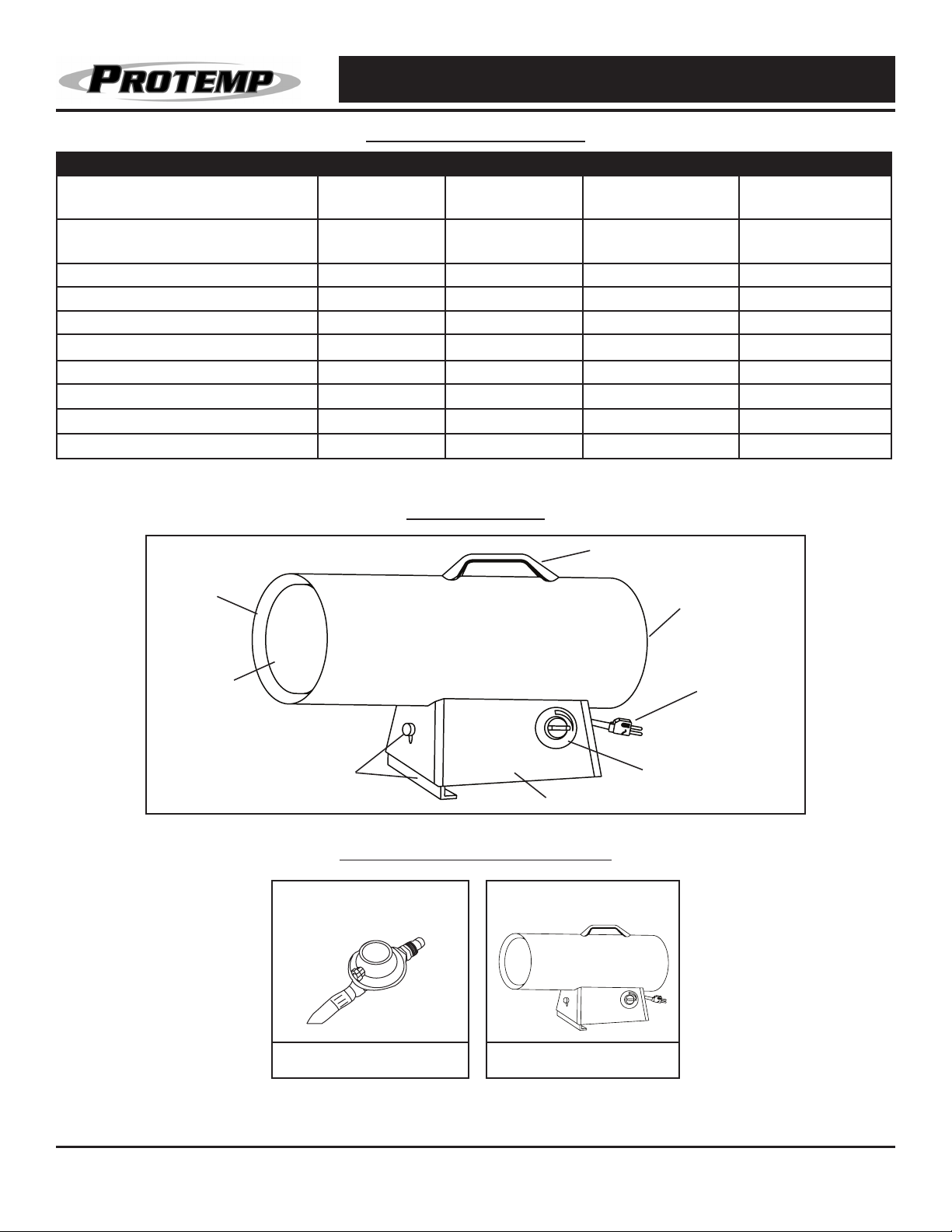

SPECIFICATIONS
Model # 40-GFA 60V-GFA 125V-GFA 150V-GFA
BTU 40,000 40 / 50 / 60,000 95 / 110 / 125,000 120 / 135 /
150,000
Fuel Consumption - Lb./hr (kg/hr) 1.9
(0.9)
1.9 / 2.3 / 2.8
(0.9 / 1.04 / 1.27)
4.4 / 5.1 / 5.8
(2.00 / 2.31 / 2.63)
5.5 / 6.2 / 6.9
(2.50 / 2.81 / 3.13)
Maximum Operating Hours 11 10.5 22 18
Required Cylinder - Lb. (kg) 20 (9) 20 (9) 100 (45) 100 (45)
Fuel Type Propane Propane Propane Propane
Heating Area - Ft.2(m2) 1000 (93) 1500 (139) 3125 (290) 3800 (353)
Air Flow (CFM) 300 300 400 400
Max Outlet Temp - ºF (ºC) 477 (247) 491 (255) 500 (260) 622 (328)
Volts: AC/Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz
Amps 0.6 A 0.6 A 1.02 A 1.02 A
Specifications subject to change without notice.
Handle
Base
Height Controller Gas Valve Knob
Outer Shell
Inner Shell
Guard
Power Cord
FEATURES
WHAT’S IN THE BOX
Hose & Regulator Assembly (1) Heater (1)

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
6
®
OPERATION
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder.
Use only an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier
than air and pools in low areas.
– In its natural state, propane has no odor, but
for your safety an odor that smells like rotten
cabbage has been added.
– Contact of propane (LP) gas with the skin can
cause freeze burns.
– Heater is manufactured for use with propane
gas only. DO NOT attempt to convert to any
other gas. Such modifications are dangerous
and will void the warranty.
– When heater is not in use, LP Cylinder must be
turned OFF.
– Be sure that the LP Cylinder is located on a
level and stable surface.
– DO NOT use this heater in a basement or below
ground level. Propane is heavier than air and
will always seek the lowest level. If you suspect
a leak, shut off the valve at the LP Cylinder
immediately.
The Propane (LP) cylinder must also be equipped
with the following:
– A collar to protect the gas valve.
– A shut-off valve terminating a LP cylinder valve
outlet as specified in the American National
Standard for Compressed Gas Cylinder Valve
Outlets and Inlets Connections.
– A safety relief valve having direct
communications with the vapor space of the LP
cylinder.
– The heater must operate on vapor withdrawal
from the operating cylinder.
The amount of Propane (LP) used with this heater
varies. Both factors are:
– The amount of gas in the cylinder of LP.
– The temperature of the LP tank and its
surroundings.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may cause
damage to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to a
construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shutoff valve on the LP
cylinder after each use.
Minimum Number of LP Cylinders
Average
Temp
(ºF / ºC)
40-GFA
100 lb.
(45 kg)
cylinder
60V-GFA
100 lb.
(45 kg)
cylinder
125V-GFA
100 lb.
(45 kg)
cylinder
150V-GFA
100 lb.
(45 kg)
cylinder
32º / 0º 1 1 2 2
20º / -7º 1 1 2 2
10º / -12º 1 1 3 3
0º / -18º 1 1 3 3
-10º / -23º 2 2
Use Larger
Tank
Use Larger
Tank
-20º / -29º 2 2
Use Larger
Tank
Use Larger
Tank
The table above shows the minimum number of 100 lb.
(45 kg) LP cylinders required in cold weather. Your local LP
dealer will help you select the proper LP supply system.
Propane is safe to
use when properly
handled. Careless
handling of the LP cylinder could result in a re
and or an explosion.
CAUTION

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
7
®
OPERATION (CONT.)
– All fittings must be protected when
disconnected from the LP cylinder.
– Never store an LP cylinder inside a building or
in the vicinity of an gas burning appliances.
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder valve to
OFF position.
– LP cylinder valve equipped with old style fitting
has LEFT HANDED THREADS. Turn fitting
CLOCKWISE to loosen. Protect this fitting when
disconnected from LP cylinder.
– Have your LP cylinder filled by your local propane
gas supplier.
– Some LP cylinders have a bleed-OFF valve. This
valve should be inspected for leaks after each
filling of the LP cylinder. Turn the valve clockwise
to close.
– Fasten full propane tank and connect proper
fitting to LP cylinder valve by turning COUNTER-
CLOCKWISE (See Figure 2 & 3).
– With heater gas valve knob still in OFF position
turn ON the LP cylinder valve and check for leaks
with soap solution.
Checking For Leaks
– To check for leaks, make up a 50/50 solution of
dish soap and water. Apply this solution to all gas
connections. If bubbles appear, there is a leak. If
a leak is found, turn off the gas supply, and re-
connect the leaking connection. If the leak persists
after several tries, contact Pinnacle Customer
Service at 800-641-6996.
– The installation of this heater must meet all local
codes and/or gas utility requirements. In the
absence of local codes, the National Fuel Code
ANSI Z223.1/NFPA 54 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at all
times (See Page 3).
– Inspect the heater before each use, and at least
annually by a qualified service person.
Supply Valve
Regulator
Hose
Propane Tank
Figure 2 Figure 3
Hose
Inlet
Connector
Purging and lling of
the LP cylinders must
be performed by per-
sonnel who have been
thoroughly trained in accepted LP gas industry
procedures. Failure to follow these instructions
may result in explosion, re, severe personal
injury or death.
WARNING
The disconnected
tank must never be
stored in a building,
garage or any other enclosed area.
CAUTION

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
8
®
OPERATION (CONT.)
Lighting Instructions:
Starting the Heater (Ignition)
1. Connect the heater to a three prong (grounded)
power source. You must use a three prong (grounded)
extension cord that is at least 6 feet long is a minimum
of 14 AWG rating.
2. Connect heater to a proper LP cylinder.
3. Turn gas control knob CLOCKWISE to off position.
4. Wait five (5) minutes for any gas to clear. Smell for
gas, if you do not smell gas, go to step 5.
5. Turn gas supply ON by turning the LP cylinder valve
COUNTERCLOCKWISE to OPEN.
6. Push in and turn gas control knob
COUNTERCLOCKWISE to 1 position. This will light
the burner. If needed, keep pressing control knob
until the burner lights, and keep pressing and turning
from “O” (OFF) to 1 on Piezo electric spark models
(40-GFA) (See Figure 4).
7. Keep the gas control knob depressed for at least 30
seconds after lighting the burner. After 30 seconds,
release the control knob.
8. If the burner doesn’t stay lit, repeat lighting procedures.
9. When burner stays lit, turn gas control knob
COUNTERCLOCKWISE to desired setting (all models
except 40-GFA).
Shutdown Instructions
To Shut Off the Heater:
1. Turn gas control knob CLOCKWISE to
“O” (OFF) position (See Figure 4).
2. Turn gas supply OFF by turning the LP cylinder valve
CLOCKWISE to close.
3. Disconnect the power cord.
Test Firing the Heater
Test fire your construction heater following the lighting
instructions applicable to the gas control system
employed.
Leak test all gas connections with 50/50 soap and water
solution prior to start-up. Soap bubbles indicate a gas
leak. DO NOT use a match or flame to test for gas leaks.
NOTE: Heater surface temperature must be cold before
initiating service, cleaning or storage.
1
O
1
3
2
O
40-GFA
Valve Knob
60V-GFA / 125V-GFA /
150V-GFA Valve Knob
OFF OFF
Ignition Ignition
Figure 4
VENTILATION
–Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in well
ventilated areas.
–Refer to Safety Information on pages 2-3 for
information about Carbon Monoxide Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least three square feet
(2,800 sq. cm) for each 100,000 BTU / Hr
(29 kW). of heater output. Provide a larger
opening if more heaters are being used.
Minimum Ventilation Opening Needed
40-GFA 60V-GFA
125V-GFA 150V-GFA
1.2 ft.21.8 ft.23.8 ft.24.5 ft.2
1110 cm21670 cm23530 cm24180 cm2
CARBON MONOX-
IDE POISONING
MAY LEAD TO
DEATH!
Not for use in
residential living
areas or in non-
adequately ventilated enclosed spaces.
DANGER
DANGER

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
9
®
STORAGE / MAINTENANCE
Always disconnect the heater from the LP cylinder
before putting the heater into storage. If for any
reason the heater is to be stored indoors, the tank
MUST be disconnected from the LP cylinder, and
the cylinder stored outdoors in a well-ventilated
area, out of the reach of children, and in accor-
dance with the Standard for Storage and Handling
of Petroleum Gases, ANSI/NFPA 58 - latest edi-
tion and Natural Gas and Propane Installation
Code, CSA B149.1. The plastic valve plug or
valve cover supplied with the cylinder must be
re-installed on the valve to protect the fitting from
damage.
NOTE: Installation and repair of this heater
should be done by a qualified service person.
ALWAYS be sure to follow proper maintenance
procedures. This should include cleaning the in-
side of the heater once a month and checking the
spark gap at least once a heating season. Re-gap
the terminals to 0.160” (4mm)
Never store an LP
cylinder inside of a
building or near any
other gas or oil burning appliances.
DANGER
WIRING DIAGRAMS
40-GFA
60V-GFA / 125V-GFA / 150V-GFA
Figure 6

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
10
®
Problem Possible Cause(s) Solution
Fan does not turn when
electricity is connected.
1. No electric power to heater.
2. Blades of fan in contact with
heater housing.
3. Fan blades bent.
4. Fan motor defective.
1. Check current at outlet. If voltage
is correct, inspect extension and
power cords for cuts, frays or
breaks
2. Check housing for damage. Be
sure there are no dents in the
housing obstructing the fan.
3. Straighten all fan blades.
4. Replace motor assembly.
Heater will not fire (ignite).
1. No spark at module.
2. Incorrect spark gap.
3. Corroded electrode.
1. Inspect module wire. Re-attach
or tighten if loose. Inspect spark
module and replace if necessary.
Inspect all other electrical
components.
2. Set plug gap to 0.16” (4 mm).
3. Replace spark plug
(multi-bracket assembly).
Heater stops running
by itself.
1. Temperature inside heater is too
high, causing thermal switch to
shut down operation.
2. Damaged control valve.
3. Dust or debris accumulated
in heater.
1. If the heater input or output is
restricted, the inside temperature
can become too hot. Keep the
areas in front and behind heater
clear of obstructions.
2. Replace control valve.
3. Clean inside of heater.
TROUBLESHOOTING GUIDE

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
11
®
4
59
10 11
12
13 14
22
17
20
19
16
3
23
2
21
1
6
8
7
15
18
EXPLODED VIEW
Item # Description 40-GFA 60V-GFA 125V-GFA 150V-GFA
1 Base 22-501-0003 22-501-0003 22-501-0004 22-501-0004
2 Height Controller 22-512-0006 22-512-0006 22-512-0008 22-512-0008
3 Base Cover 22-508-0003 22-508-0003 22-508-0004 22-508-0004
4 Inner Shell Cap 22-505-0006 22-505-0010 22-505-0011 22-505-0008
5 Multi Bracket Assembly 22-504-0002 22-504-0002 22-504-0002 22-504-0002
6 Tubing Assembly 22-605-0001 22-605-0001 22-605-0002 22-605-0007
7 Nozzle 22-081-0007 22-081-0014 22-081-0015 22-081-0004
8 Nozzle Nut 22-518-0001 22-518-0001 22-518-0002 22-518-0002
9 Handle 70-001-0103 70-001-0103 70-001-0103 70-001-0103
10 Flange Hex Nut 22-518-0003 22-518-0003 22-518-0003 22-518-0003
11 Fan 22-514-0001 22-514-0001 22-514-0002 22-514-0002
12 Cushion Pad 22-509-0001 22-509-0001 22-509-0001 22-509-0001
13 Motor 22-061-0015 22-061-0015 22-061-0016 22-061-0016
14 Rear Guard 22-101-0003 22-101-0003 22-101-0004 22-101-0004
15 Round Bolt 22-503-0002 22-503-0002 22-503-0002 22-503-0002
16 Valve Assembly 22-011-0005 22-011-0017 22-011-0018 22-011-0008
17 Inlet Connector 22-507-0003 22-507-0003 22-507-0003 22-507-0003
18 Spark Module –22-604-0005 22-604-0005 22-604-0005
19 PCB Assembly 22-521-0001 22-521-0002 22-521-0002 22-521-0002
20 PCB Case 22-506-0001 22-506-0001 22-506-0001 22-506-0001
21 Valve Knob 22-516-0001 22-516-0001 22-516-0001 22-516-0001
22 Power Cord 22-131-0001 22-131-0001 22-131-0001 22-131-0001
23 Regulator Assembly 22-041-0004 22-041-0004 22-041-0005 22-041-0005
PARTS LIST

© 2018 Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
12
®
LIMITED WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater to
the original retail purchaser only, to be free from defects in
material and workmanship for a period of one (1) year from
the date of initial purchase. This product must be properly
installed, maintained and operated in accordance with the
instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies, Inc. shall determine at its
reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating difficulties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage to
the finish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. finds the item to be
in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims al warranties for products that
are purchased from sellers other than authorized dealers or
distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle
Climate Technologies, Inc. SHALL HAVE NO LIABILITY
WHATSOEVER TO PURCHASER OR ANY THIRD PARTY
FOR ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL,
OR CONSEQUENTIAL DAMAGES. Pinnacle Climate
Technologies, Inc. assumes no responsibility for any defects
caused by third parties. This Limited Warranty gives the
purchaser specific legal rights; a purchaser may have other
rights depending upon where he or she lives. Some states
do not allow the exclusion or limitation of special, incidental
or consequential damages, or limitations on how long a
warranty lasts, so the above exclusion and limitations may
not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize any
person or company to assume for it any other obligation
or liability in connection with the sale, installation, use,
removal, return or replacement of its equipment, and no
such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will begin
with the letter “G” followed by 9 digits. For Example: G123456789. Have your Serial Number ready
before calling customer service at 800-641-6996.
XXX-XXXXXXXX
Serial Number
Label
