Pinnacle Climate Technologies MASTER MH-80-OFR Training manual

CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS
MANUAL BEFORE ASSEMBLING, STARTING, OR SERVICING
THE HEATER. Be sure to comply with the instructions and warnings provided with this heater.
Failure to comply can result in fire or explosion that can cause property loss, bodily injury, or
loss of life. Only persons who can follow and understand these instructions should operate
or service this heater. If you need heater info; such as an operating manual, labels, etcetera,
contact Pinnacle Climate Technologies at 800-641-6996.
NOT FOR USE IN RESIDENTIAL LIVING
AREAS OR IN ENCLOSED SPACES WITHOUT
ADEQUATEVENTILATION. THIS HEATER IS
SUITABLE FOR OUTDOOR USE, AND INDOOR USE ONLY IN WELL
VENTILATED AREAS. INDOOR USE PERMITTED ONLY FOR: THE
TEMPORARY HEATING OF ADEQUATELY VENTILATED BUILDINGS OR
STRUCTURES UNDER CONSTRUCTION, ALTERATION OR REPAIR. This
is an unvented portable heater that uses air (Oxygen) from within the area
in which it is used. Failure to provide adequate combustion and ventilation
air will result in asphyxiation, carbon monoxide poisoning, bodily injury or
death. Refer to “Ventilation” on Page 7.
MODEL NUMBERS:
MH-80-OFR / MH-125-OFR-A
Factory ID: 500
DANGER
DANGER
User’s Manual &
Operating Instructions
KEROSENE RADIANT HEATER
Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [email protected]
© 2021 Pinnacle Climate Technologies, Inc. MARE-405
U.S. Patent No. 9,644,863
Locating Your Serial Number:
Your serial number can be found on a blue label on the left side cover. It will begin with the letter “S”
followed by 9 digits. For Example: S160901126. Have your Serial Number ready before calling customer
service at 800-641-6996.

2
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in
any building which is used in whole or in part for human habitation. Use of this heating device
in Massachusetts requires local fire department permit (M.G.L.C. 148, Section 10A).
NEW YORK CITY RESIDENTS: The New York City Fire Code prohibits the storage, handling
and use of kerosene fueled heaters for space heating. Any person violating that provision
may be punished by a fine up to $10,000 and a term of imprisonment of up to 6 months.
Look for this icon throughout the manual for helpful tips on how to assemble, use and
clean your OFR heater.
THE INSTALLATION OF THIS HEATER SHALL COMPLY WITH THE REGULATIONS OF THE
AUTHORITIES HAVING JURISDICTION.
WARNING: This product can expose you to chemicals, including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
DO NOT START THE HEATER WHEN EXCESS OIL HAS ACCUMULATED.
DO NOT START THE HEATER WHEN THE CHAMBER IS HOT.
WARNING
WARNING
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep com-
bustibles such as; building materials, paper or cardboard a safe dis-
tance away from the heater as recommended by these instructions.
Never use the heater in spaces which contain products such as; gasoline, solvents, paint
thinners, dust particles, volatile or airborne combustibles or any unknown chemicals. This is
an unvented portable heater. It uses air (Oxygen) from the area in which it is used. Adequate
combustion and ventilation air must be provided. Refer to “Ventilation” on page 7. Bulk fuel
storage should be a minimum of 25 feet from heater.
WARNING
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND
THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING
INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in
death, serious bodily injury, property loss or damage from the hazards of fire, soot production,
explosions, burns, asphyxiation or carbon monoxide poisoning. Only persons who can read
and understand these instructions should use or service this heater.
WARNING
SAFETY INFORMATION
Safety Information......................................................2-3
Specifications................................................................. 4
Features........................................................................... 4
What’s in the Box....................................................... 5-6
Assembly..................................................................... 5-6
Operation .....................................................................7-8
Maintenance..............................................................9-10
Wiring Diagram ..............................................................11
Troubleshooting Guide ...............................................12

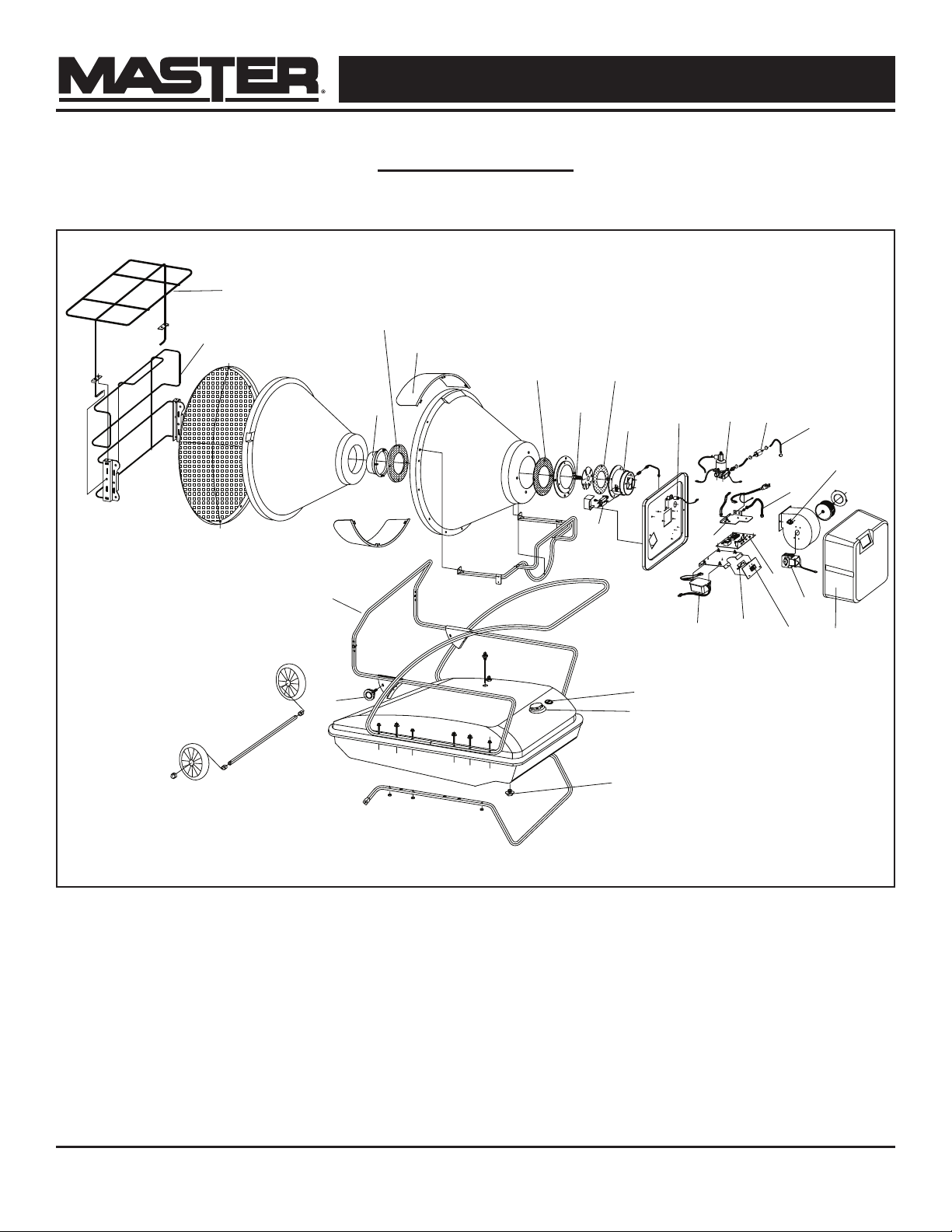

Exploded View........................................................13, 15
Parts List ...................................................................14, 16
Limited Warranty...........................................................17
TABLE OF CONTENTS

3
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
ALWAYS use only the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only three-prong, grounded outlet and
extension cord.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER refill the heater’s fuel tank while the heater
is operating or still hot. This heater is EXTREMELY
HOT while in operation.
NEVER block air outlet (front).
NEVER use duct work in front of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
80-OFR 125-OFR-A
Top 4 ft. (122 cm) 6 ft. (183 cm)
Sides 4 ft. (122 cm) 6 ft. (183 cm)
Front 8 ft. (244 cm) 8 ft. (244 cm)
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat, once it
is plugged in, it can start at anytime in accordance
with the thermostat setting.
RISK OF ELECTRIC
SHOCK!
WARNING
RISK OF BURNS,
FIRE AND
EXPLOSION!
WARNING
CAUTION! HOT
WHILE IN OP-
ERATION. DO NOT
TOUCH. KEEP CHILDREN, ANIMALS, CLOTHING
AND COMBUSTIBLES AWAY FROM HEATER.
WARNING
The products described in this manual are
kerosene direct-fired, forced air heaters. Kerosene
forced air heaters are primarily intended for use for
temporary heating of buildings under construction,
alteration or repair. Direct-fired means that all
of the combustion products of the heater enter
the heated space. This appliance is rated at 98%
combustion eciency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation in
accordance with the instructions in this manual can
result in death.
People with breathing problems should consult
a physician before using this heater. Early signs
of carbon monoxide poisoning resemble the
flu. Symptoms of improper ventilation/carbon
monoxide poisoning are:
Headache • Dizziness •Nausea • Dry Mouth
Sore Throat • Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more aected by carbon monoxide
than others. These include: pregnant women, those
with heart or lung problems, anemia or those under
the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE PERMITTED
ONLY FOR: The temporary heating of adequately
ventilated buildings or structures under
construction, alteration or repair! Provide at
least a three square foot (2,800 sq cm) opening
of outside air for every 100,000 Btu/Hr (29 kW)
heater rating. Refer to “Ventilation” on page 7 for
further instructions.
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON
MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER
SAFETY INFORMATION CONT.

4
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
SPECIFICATIONS
Model # 80-OFR 125-OFR-A
Rating: Btu/Hr 80,000 125,000
Fuel Consumption: Gal./Hr / L/Hr 0.63 / 2.38 0.85 / 3.22
Fuel Tank Capacity: Gal. / L 4 / 15 14 / 53
Max Operating Hours 6 16
Volts: AC/Hz 120V / 60Hz 120V / 60Hz
Amps 3.15 3.15
Heating Area: ft.22000 3125
Specifications subject to change without notice.
FEATURES
FUEL PRESSURE GAUGE
(BEHIND REMOVABLE COVER)
80-OFR
125-OFR-A
º
TOP SAFETY GUARD
RADIANT
CONE
FRONT
SAFETY
GUARD
RADIANT
VISORS
ADJUSTMENT
KNOB CAN TILT
UP TO 15° WHEEL DRAIN
BOLT
WHEEL
FRAME
FUEL
CAP
HANDLE

5
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE

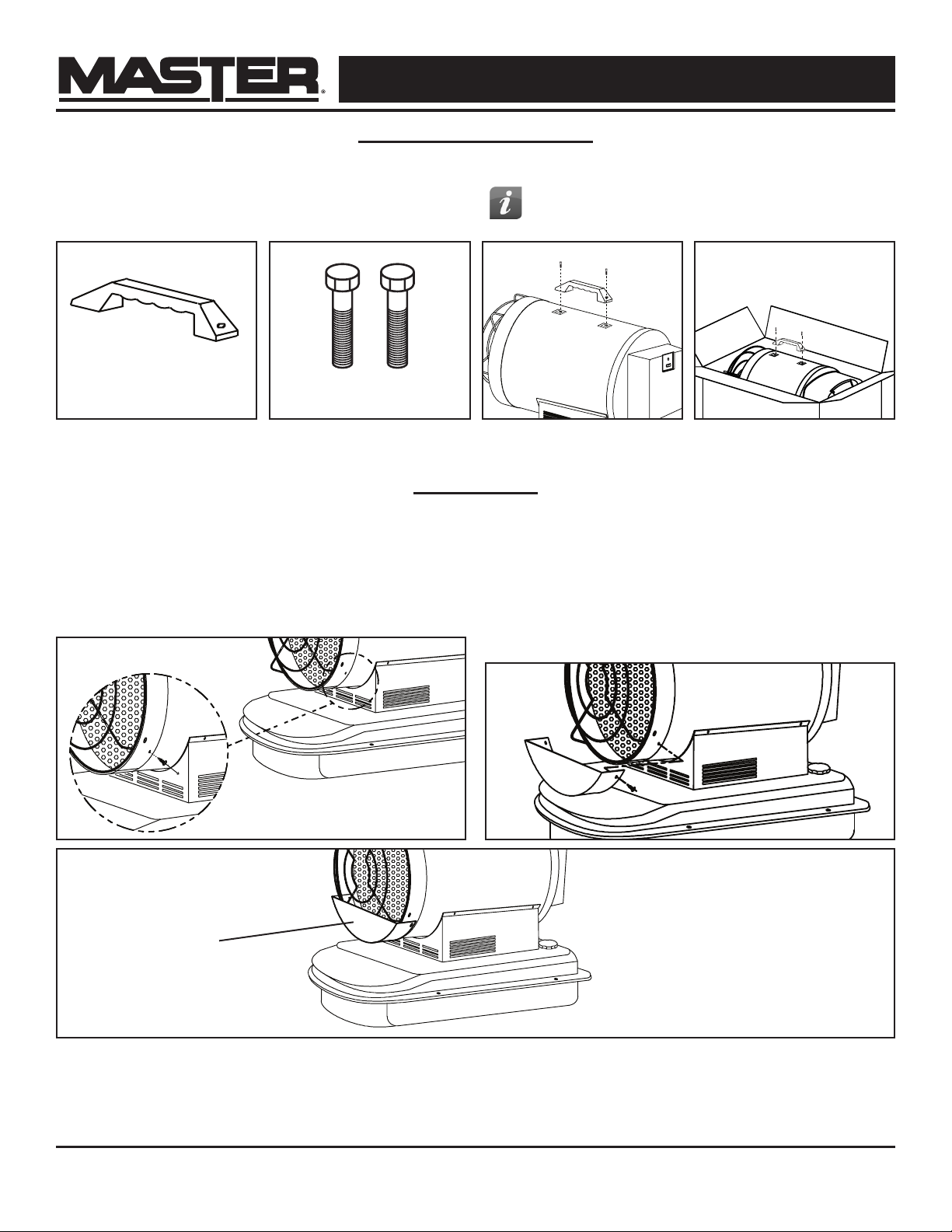

WHAT’S IN THE BOX
Tools Needed:
- Phillips Head Screw Driver
Figure 1 Figure 2
Attach the handle while still in the box for
easier unpacking (see Figures 1 and 2).
Carry Handle (1) Black Screws (2)
80-OFR
1. Remove existing screws from shell ring on
either side of heater (see Figure 3) .
2. Line up holes on heat shield with holes in
shell ring. Attach with screws removed in
step 1 (see Figures 4 and 5).
Heat Shield
ASSEMBLY
Figure 3
Figure 4
Figure 5
IMPORTANT: INSTALL HEAT SHIELD BEFORE OPERATING YOUR 80-OFR HEATER
80-OFR

6
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
1. Slide axle through Wheel Frame and attach
wheels, washers and nuts (see Figure 6).
2. Place main structure on wheel frame and
fasten with long screws provided (see Figure 7).
3. Attach safety guard to front of heater with
screws provided (see Figure 8).
4. Attach Radiant Visors to the top and bottom
rear of the Radiant Cone Assembly using extra
screws included.
5. Attach top safety guard using the two
outer-most extra screws on the top of the
radiant cone (see Figure 9).
Note: Save the box and packaging materials for
future storage.
Figure 6
Figure 7
Figure 8
Screws
Radiant
Cone
Assembly
Top Safety Guard
Safety
Guard
Radiant Visor
Figure 9
Safety Guards
(Top, Front) Wheel Frame
Long Screws (6) Short Screws (4) 8 mm Nuts (6)
Wheels (2) Visors (2)
19 mm Axle Nuts (2)
Spacers (2)
Washers (2)
Axle (1)
125-OFR-A
WHAT’S IN THE BOX
ASSEMBLY
125-OFR-A

7
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
OPERATION
Fueling The Heater:
Kerosene
For optimal performance of this heater, it is
strongly suggested that Kerosene be used.
Kerosene has been refined to virtually eliminate
contaminants, such as sulfur, which can cause
a rotten egg odor during the operation of the
heater. Using diesel fuel can cause excess soot
production. Do not use Bio-Diesel as this fuel will
damage your heater’s seals and filter.
- CSA certified for use with K-1 kerosene, no. 1 & no. 2
diesel, JP8/Jet A Fuel, no. 1 and no. 2 fuel oil.
- NEVER use fuel such as, benzene, alcohol, white gas,
camp stove fuel, paint thinners, or other oil
compounds in this heater. THESE ARE VOLATILE
FUELS THAT CAN CAUSE A FIRE OR EXPLOSION.
- NEVER store Kerosene in the living space. Kerosene
should be stored in a well ventilated area outside
the living area.
- NEVER store Kerosene in direct sunlight or near a
source of heat.
- NEVER use Kerosene that has been stored from one
season to the next. Kerosene deteriorates over
time. OLD Kerosene WILL NOT BURN PROPERLY
IN THIS HEATER.
NOTE: Kerosene should only be stored in a blue
container that is clearly marked “Kerosene.”
Never store Kerosene in a red container. Red is
associated with gasoline.
Ventilation:
- Risk of indoor air pollution and Carbon Monoxide
Poisoning. Use heater only in well ventilated
areas.
- Refer to Safety Information on pages 2-3 for
information about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated
space of at least 2,800 square centimeters
(3 sq. ft) for each 100,00 Btu/Hr. (29 kW) of heater
output. Provide a larger opening if more heaters are
being used.
Minimum Ventilation Opening Needed
80-OFR 125-OFR-A
2.4 ft.23.75 ft.2
2230 cm23484 cm2
CARBON MON-
OXIDE POISON-
ING MAY LEAD TO
DEATH!
NEVER REFUEL
THIS HEATER
WHILE IT IS HOT
OR OPERATING. FIRE OR EXPLOSION
COULD RESULT.
DANGER
DANGER
NEVER FILL THE
FUEL TANK IN-
DOORS. ALWAYS
FILL THE TANK OUTDOORS. BE SURE THAT
THE HEATER IS ON LEVEL GROUND WHEN
FUELING, AND NEVER OVERFILL THE
TANK.
CAUTION
DO NOT USE GAS-
OLINE OR CRANK-
CASE DRAININGS.
WARNING

8
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
OPERATION CONT.
Starting the Heater (Ignition):
1. Fill the tank with Kerosene or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten firmly.
3. Connect the heater to a three prong
(grounded) power source. You must use a
three prong (grounded) extension cord that is
at least 1.8 meters long and is a minimum of 14
AWG rating.
NOTE: On first ignition or after refueling, you may
hear a grinding sound just before ignition. This is
the fuel pump removing the air from the fuel line.
Your heater will start up within seconds. If it does
not start repeat
start-up procedures with fuel gauge reading at
least 1/2 tank.
NOTE: Smoking may occur on first ignition.
NOTE: The electrical components of these
heaters are protected by a fuse mounted in the
PC board. If the heater fails to ignite, check this
fuse first and replace if necessary. Also check the
power source to be sure the proper voltage is
being provided to the heater.
1. Complete steps 1-3 above.
2. Push the power switch to the “ON” position.
The power indicator lamp will light and heater
will ignite (see Figure 10).
Stopping the Heater (Cool Down):
1. Turn the power switch to the “OFF” position.
Combustion will stop and the Cooling Cycle
will begin.
- 80-OFR: approx. 5 mins
- 125-OFR-A: approx 3 mins
When the Cooling Cycle is complete the fan
will stop running and it will be safe to unplug
the heater.
NOTE: Unplugging the heater before the Cooling
Cycle has been completed may cause overheating,
possible damage to the heater and heat plate.
Restarting the Heater:
1. Wait ten seconds after Cooling Cycle has
been completed.
2. Follow all start-up procedures above.
Electrical Outlet (80-OFR Only):
-Never plug an appliance with more than a 5
amp rating into this outlet (see Figure 11).
-Always keep outlet covered when not in use
Figure 10
Power Switch
Figure 11
Electrical Outlet
80-OFR Only
DO NOT disconnect
heater from power
source before
cooling cycle has been completed.
WARNING

9
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE

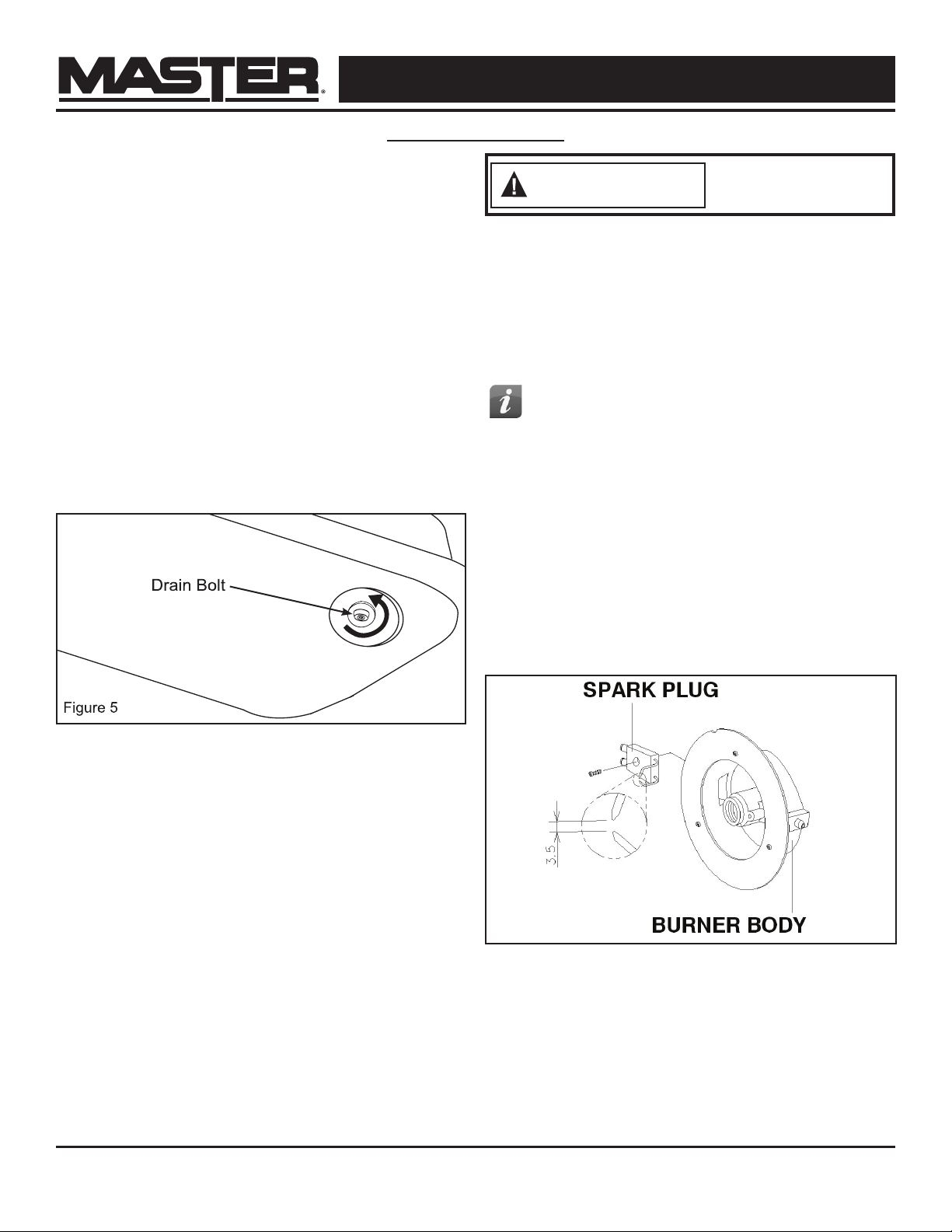

MAINTENANCE
Long Term Storage (80-OFR):
1. Unscrew the fuel cap.
2. Using an approved siphon, remove the
Kerosene or diesel.
3. Using a small amount of Kerosene or diesel,
rinse and swirl the fuel inside the fuel tank
NOTE: NEVER MIX WATER WITH FUEL. It will
cause rust inside the tank.
4. Empty the tank completely.
Long Term Storage (125-OFR-A):
1. Drain fuel through the drain bolt in the bottom
of the fuel tank.
2. To remove the drain bolt, unscrew
counterclockwise (see Figure 5).
3. Using a small amount of kerosene, rinse and
swirl the kerosene inside of the fuel tank,
empty the tank fully.
4. To replace the drain bolt, insert the drain head
fully into the drain hole and screw clockwise.
IMPORTANT: Never store leftover Kerosene
between seasons, using old fuel can
damage heater.
Store Heater in a dry, well ventilated area.
-Be sure that the storage area is free of dust
and corrosive vapors. Repack the heater in the
original packaging and keep user’s manual in
an easily accessible place.
Service:
DO NOT TAMPER WITH THE UNIT. HAVE AN
EXPERIENCED SERVICEMAN MAKE ANY
NECESSARY ADJUSTMENT OR REPAIRS.
We suggest following a maintenance schedule as
follows:
FUEL / FUEL TANK:
Flush tank every 200 hours of operation or as
needed. DO NOT flush with water, use fresh
Kerosene only.
SPARK PLUG:
Clean and re-gap every 600 hours of operation
or replace as needed. After removing the Spark
Plug, clean the terminals with a wire brush.
Re-gap the terminals to 0.140” (3.5 mm)
(see Figure 12).
TIP: Follow the long term storage
instructions to ush the tank.
Figure 12
Never service heater
while it is plugged in
or hot!
WARNING

10
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
MAINTENANCE CONT.

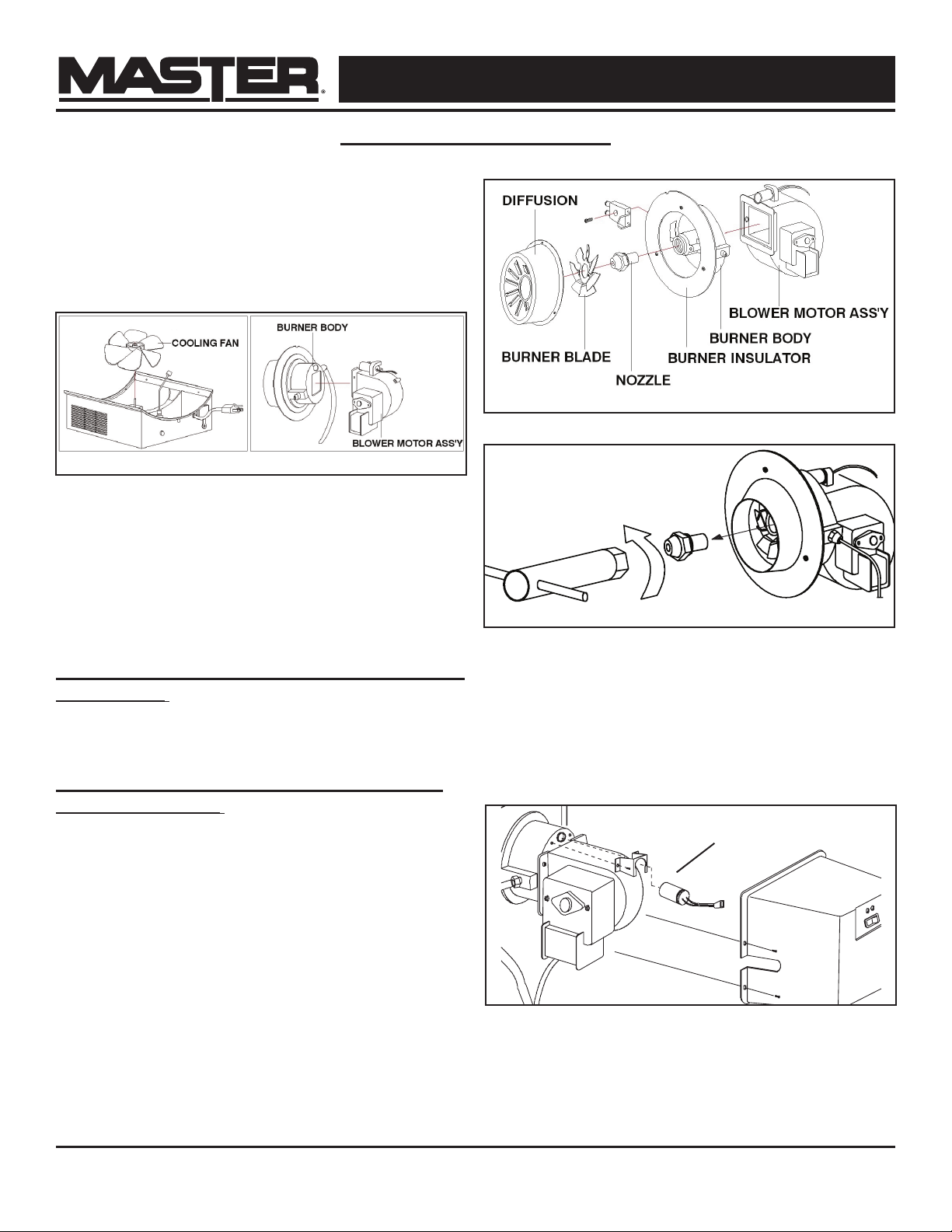

Service (Continued):
FAN BLADES:
The fan blades should be cleaned at least once
per heating season, depending on conditions.
Remove all accumulated dust and dirt with a
burst of condensed air (see Figure 13).
PRESSURE ADJUSTMENTS:
Proper pressure is dependent on the fuel type the
unit will be running. When smoking or non-ignition
occurs, remove the lower panel. Locate the Phillips
screw with a nut on the fuel pump to the left of the
fuel line. There is a small “P” next to the pressure
screw. The ideal pressure is 112 psi (7.9 kg/cm2).
If you are experiencing smoking or fuel dripping
from the unit, turn the screw clockwise 1/8 to 1/4
of a turn to increase the fuel pressure until the
unit is operating properly.
If you are experiencing extended flames from
the front of the unit, turn the screw 1/8 to 1/4 of a
turn counterclockwise to reduce the air pressure
until the unit is operating properly.
NOZZLES:
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel
could make this necessary immediately. To clean
dirt from nozzle, blow compressed air through
nozzle front. It may be necessary to soak nozzle
in clean Kerosene or diesel to help loosen any
particles (see Figure 14a and 14b).
PHOTOCELL:
The photocell should be cleaned at least once
per heating season or more depending on
conditions. Use a cotton swab and water or
alcohol to clean the lens of the photocell.
Be certain to reinstall the photocell in proper
position as shown below (see Figure 15).
FILTERS:
The fuel filter and oil filter should be cleaned at
least twice per heating season by rinsing it in
clean Kerosene or diesel. Contaminated or old
fuel could make cleaning necessary immediately.
(see Figure 16).
Figure 14a
Figure 15
Photocell
80-OFR Nozzle
125-OFR-A Nozzle
Figure 14b
Figure 13
80-OFR 80-OFR / 125-OFR-A

11
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
125-OFR-A
WIRING DIAGRAMS
AC 120V/60Hz
AC 250V 3.15A
ELECTRIC OUTLET
80-OFR

12
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
Heater fires, but shuts down after a
short period of time.
1. Dirty Fuel Filter.
2. Nozzle Dirty.
3. Photocell Dirty.
4. Photocell not installed properly.
5. Photocell Defective .
6. Improper electrical connection
between Circuit Board and Photocell.
7. Cooling Fan is obstructed
8. Improper pressure.
1. Clean/replace Fuel Filter.
2. Clean/replace Nozzle
3. Clean/replace Photocell .
4. Adjust Photocell position.
5. Replace Photocell.
6. Check wiring connections (See Wiring
Diagrams, Page 11).
7. Check to be sure cooling fan is not
obstructed.
8. Adjust pump pressure.
Heater will not operate, or motor
runs for short time.
1. No Kerosene/ diesel in fuel tank.
2. Corroded Spark Plug or incorrect
plug gap.
3. Dirty Fuel Filter.
4. Dirty Nozzle.
5. Moisture in Fuel/Fuel Tank.
6. Improper electrical connection
between Transformer and Circuit
Board.
7. Transformer Wires not connected to
Spark Plug.
8. Defective Transformer.
1. Fill tank with fresh Kerosene/ diesel.
2. Clean/replace Spark Plug.
3. Clean/replace Fuel Filter.
4. Clean/replace Nozzle.
5. Rinse out fuel tank with clean fresh
Kerosene/ diesel.
6. Inspect all electrical connections. (See
Wiring Diagrams, Page 11).
7. Re-attach Transformer wires to Spark
Plug.
8. Replace Transformer.
Fan does not operate when heater
is plugged in and Operating Switch
is in the “ON” position.
1. Broken electrical connection between
Circuit Board and motor.
2. Not enough amps available to power
heater.
1. Inspect all electrical connections on
Wiring Diagrams (Page 11).
2. Use a new extension cord or try
another electrical socket.
Heater makes grinding noise. 1. Air in fuel pump. 1. Sound will stop after 3 seconds. If
grinding sound continues, add fuel to
tank.
Heater does not turn on and the
lamp is not lit.
1. Temperature limit sensor has over-
heated.
2. No electrical power.
3. Fuse break down.
4. Improper electrical connection
between Temperature Limit Sensor
and Circuit Board.
1. Push Operating Switch to “OFF” and
allow heater to cool for 5 minutes.
Push Operating Switch back to “ON”.
2. Check power cord and extension
cord to insure of proper connection.
Test power supply.
3. Check/replace Fuse.
4. Inspect all electrical connections. (See
Wiring Diagrams, Page 11).
Poor combustion and / or soot
production.
1. Pump Pressure.
2. Poor fuel quality.
1. Be sure pump pressure is adjusted
correctly.
2. Be sure Kerosene/ diesel is not old or
contaminated.

13
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
EXPLODED VIEW
23
21
22
7
19
20 1817
24
8
26
4
3
1
2
25
6
10
11
5
1415
16
12
13
927
80-OFR

14
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
PARTS LIST:
80-OFR
Item # Description Part Number
1Fuel Filter 75-023-0285
2Fuel Line 75-024-0740
3Fuel Gauge 75-022-0210
4Fuel Cap 70-006-0140
5Cooling Fan Housing / Cooling Fan Housing Panel 75-011-0685 / 75-011-0690
6Electric Pump 75-027-0650
7 Ignitor 70-037-0350
8Main PCB Assembly 75-025-0490
9Tip-Over Sensor 75-051-0200
10 Cooling Motor Assembly 75-047-0250
11 Cooling Fan 75-047-0200
12 Handle 75-001-0060
13 Temperature Limit Switch 75-040-0100
14 Heat Plate 75-012-0600
15 Shell Ring 75-011-0650
16 Safety Guard 75-012-0310
17 Burner Body 75-036-0180
18 Spark Plug 75-075-0200
19 Burner Blade 75-036-0120
20 Nozzle 75-036-0460
21 Nipple 75-040-0610
22 Diffusion Cap 42-300-0010
23 Blower Motor Assembly 75-045-0200
24 Photocell 72-038-0200
25 Return Pipe 75-055-0100
26 Return Hose 75-055-0205
27 Fuel Pressure Gauge 70-028-0200

15
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
1
2
5
6
7
8
9
10
11
12
13 14
15
16
17
22
19
20
27
21
18
24
26
31
28 29
23
25
EXPLODED VIEW
125-OFR-A

16
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
PARTS LIST:
125-OFR-A
Item # Description 125-OFR-A
1Fuel Gauge Assembly 70-007-0215
2Fuel Cap 70-006-0130
3 Wheel 70-041-1400
4 Axle 72-041-0200
5Drain Bolt 72-002-0220
6Height Adjustment Knob 72-042-0500
7Return Fuel Line 72-023-0290
8Intake Fuel Line 72-023-0280
9Fuel Filter Assembly 72-020-0200
10 Fuel Pump 72-027-0100
11 Main PCB and Fuse 72-025-0450
12 Tip Over Sensor 75-051-0200
13 Power Switch 72-012-0120
14 Back Cover 72-013-0110
15 Panel sub-PCB 72-014-0100
16 Blower Motor Assembly 72-045-0100
17 Photocell 72-038-0200
18 Spark Plug 75-075-0200
19 Burner Body 72-035-0210
20 Nozzle 72-036-0100
21 Diffusion Cap 42-300-0010
22 Ignitor 70-037-0350
23 Temperature Overheat Sensor 72-040-0100
24 Safety Guard 72-012-0200
25 Front Frame 38-110-0010, 38-110-0020
26 Top Safety Guard 72-012-0250
27 Radiant Visors 72-012-0220
28 Radiant Cone Gaskets 72-035-0630
29 Burner Housing Assembly 72-035-0615

17
© 2021 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
LIMITED WARRANTY
Pinnacle Climate Technnologies, Inc. warrants this heater
to the original retail purchaser only, to be free from defects
in material and workmanship for a period of one (1) year
from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance
with the instructions provided.
Pinnacle Climate Technnologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technnologies, Inc. shall determine at its
reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating diculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered. In addition,
the Limited Warranty does not cover damage to the finish,
such as scratches, dents, discoloration, rust or other
weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technnologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technnologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technnologies, Inc. finds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technnologies, Inc. disclaims all warranties for products
that are purchased from sellers other than authorized
dealers or distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technnologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle
Climate Technnologies, Inc. SHALL HAVE NO LIABILITY
WHATSOEVER TO PURCHASER OR ANY THIRD PARTY
FOR ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL,
OR CONSEQUENTIAL DAMAGES. Pinnacle Climate
Technnologies, Inc. assumes no responsibility for any
defects caused by third parties. This Limited Warranty gives
the purchaser specific legal rights; a purchaser may have
other rights depending upon where he or she lives. Some
states do not allow the exclusion or limitation of special,
incidental or consequential damages, or limitations on how
long a warranty lasts, so the above exclusion and limitations
may not apply to you.
Pinnacle Climate Technnologies, Inc. does not authorize
any person or company to assume for it any other obligation
or liability in connection with the sale, installation, use,
removal, return or replacement of its equipment, and no
such representations are binding on Pinnacle Climate
Technnologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technnologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
Locating Your Serial Number:
Your serial number can be found on a blue label on the left side cover. It will begin with the letter “S” followed by 9
digits. For Example: S160901126. Have your Serial Number ready before calling customer service at 800-641-6996.
XXXXXXXXXX
Serial Number Label

NOTE AU CLIENT: LIRE ET CONSERVER CE MANUEL POUR CONSULTATIONULTÉRIEURE
AVERTISSEMENT GÉNÉRAL DE DANGER:
LIRE ET COMPRENDRE TOUTES LES INSTRUCTIONS DE CE MANUEL
AVANT D’ASSEMBLER, DE METTRE EN MARCHE OU D’EFFECTUER DES
RÉPARATIONS SUR CETTE CHAUFFERETTE. Toujours se conformer aux instructions et aux avertissements
fournis avec la chauerette. Le non-respect de ces directives pourrait entraîner des risques d’incendie ou
d’explosion pouvant causer de graves dommages à la propriété, des blessures ou même la mort. Seules les
personnes pouvant suivre et comprendre ces instructions devraient utiliser ou réparer cette chauerette. Pour
obtenir plus de renseignements (manuel d’utilisation, étiquettes, etc.), contacter Pinnacle Climate Technologies
au 800-641-6996.
NE PAS UTILISER DANS DES ZONES RÉSIDENTIELLES
OU DANS DES ESPACES CLOS SANS VENTILATION
ADÉQUATE. CE RADIATEUR EST CONÇU POUR
ÊTRE UTILISÉ À L’EXTÉRIEUR ET À L’INTÉRIEUR SEULEMENT DANS UNE AIRE
BIEN VENTILÉE. USAGE INTÉRIEUR PERMIS SEULEMENT POUR : LE CHAUFFAGE
TEMPORAIRE DES STRUCTURES OU DES BÂTIMENTS BIEN VENTILÉS EN COURS
DE CONSTRUCTION, DE MODIFICATION OU DE RÉPARATION. Ceci est une
chauerette portative non raccordée utilisant l’air (oxygène) ambiant de l’espace où
elle est utilisée. Une insusance d’air pour la combustion et la ventilation causera
l’asphyxie, l’intoxication par oxyde de carbone, des lésions corporelles ou la mort. Voir
«Ventilation» à la page 7.
NUMÉROS DE MODÈLES:
MH-80-OFR/MH-125-OFR-A
ID usine : 500
DANGER
DANGER
Manuel de l’utilisateur et
mode d’emploi
CHAUFFERETTE RAYONNANTE AUKÉROSÈNE
Sauk Rapids, MN 56379 USA • Numéro sans frais 800-641-6996
Télécopieur : 320 251-2922 • Web : www.masterindustrialproducts.com • Courriel : [e-mail]
© 2021, Pinnacle Climate Technologies, Inc. MARE-405
Nº de brevet U.S. 9,644,863
Repérage du numéro de série:
Le numéro de série se trouve sur une étiquette bleue apposée du côté gauche du couvercle. Il commence par la lettre
«G» suivie de 9 chires. Par exemple: S160901126. Noter le numéro de série avant de contacter le service à la clientèle au
800-641-6996.

© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chaufferette au kérosène
NE JAMAIS LAISSER UNE CHAUFFERETTE SANS
SURVEILLANCE LORSQU’ELLE BRÛLE OU QU’ELLE EST
BRANCHÉE À UNE SOURCE D’ALIMENTATION.
2
RÉSIDENTS DU MASSACHUSETTS: Ce produit contient des produits chimiques, dont du plomb, connus dans
l’État du Massachusetts comme cause de malformations congénitales ou d’autres troubles de la reproduction.
L’utilisation de cet appareil de chauage au Massachusetts exige un permis du service d’incendie local
(M.G.L.C. 148, Section 10A).
RÉSIDENTS DE LA VILLE DE NEW YORK : Le Code de prévention des incendies de la ville de New York
interdit l’entreposage, la manipulation et l’utilisation de chauerette au kérosène pour le chauage localisé.
Toute personne contrevenant à cette disposition peut encourir une amende allant jusqu’à 10000dollars et une
peine d’emprisonnement allant jusqu’à 6mois.
Rechercher cette icône dans le manuel pour des conseils utiles sur la façon d’assembler, d’utiliser et
de nettoyer la chauerette rayonnante au mazout.
L’INSTALLATION DE CETTE CHAUFFERETTE DOIT RESPECTER LA RÉGLEMENTATION DES AUTORITÉS
AYANT JURIDICTION.
AVERTISSEMENT
NE PAS METTRE EN MARCHE LA CHAUFFERETTE LORSQU’IL
Y A ACCUMULATION D’HUILE.
AVERTISSEMENT: Ce produit peut vous exposer à des produits chimiques, notamment du plomb qui est reconnu
dans l’État de Californie comme cause de cancer, de malformations congénitales ou d’autres troubles de la
reproduction. Pour plus d’informations, consultez www.P65Warnings.ca.gov.
AVERTISSEMENT
NE PAS METTRE EN MARCHE LA CHAUFFERETTE LORSQUE
LA CHAMBRE DE COMBUSTION EST CHAUDE.
AVERTISSEMENT
RISQUE D’INCENDIE, DE BRÛLURE, D’INHALATION ET
D’EXPLOSION. Garder les matériaux combustibles tels que
matériaux de construction, papier ou carton à une distance sécuritaire
de la chauerette, selon les recommandations de ces instructions. Ne jamais utiliser la chauerette dans des endroits
qui contiennent des produits comme : essence, solvants, diluants à peinture, poussières, substances combustibles
volatiles ou aéroportées ou tout produit chimique de nature inconnue. Ceci est une chauerette portative non
raccordée, Elle utilise l’air (oxygène) ambiant de l’espace où elle est utilisée. Une quantité d’air susante pour la
combustion et la ventilation doit être fournie. Voir «Ventilation» à la page 7. Tout stockage de carburant en vrac doit se
trouver à un minimum de 7,6 mètres de la chauerette.
AVERTISSEMENT
NE PAS UTILISER CETTE CHAUFFERETTE AVANT D’AVOIR LU
ET PARFAITEMENT COMPRIS CES CONSIGNES DE SÉCURITÉ
ET D’UTILISATION.
Le non-respect des précautions et instructions fournies avec cette chauerette peut entraîner la mort, des
blessures corporelles graves, des pertes ou dommages matériels dus aux risques d’incendie, à la production
de suies, à des explosions, à des brûlures, à l’asphyxie ou à un empoisonnement au monoxyde de carbone.
Seules les personnes qui peuvent lire et comprendre les présentes directives doivent utiliser ou faire
l’entretien de cette chauerette.
CONSIGNES DE SÉCURITÉ
Consignes de sécurité...................................... 2-3
Spécifications..........................................................4
Caractéristiques......................................................4
Contenu de la boîte...........................................5-6
Montage................................................................5-6
Mode d’emploi.................................................... 7-8
Entretien ............................................................. 9-10
Schéma de câblage...............................................11
Guide de dépannage .......................................... 12
Vue éclatée...................................................... 13, 15
Liste des pièces.............................................. 14, 16
Garantie limitée......................................................17
TABLE DES MATIÈRES

© 2021, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chaufferette au kérosène
NE JAMAIS LAISSER UNE CHAUFFERETTE SANS
SURVEILLANCE LORSQU’ELLE BRÛLE OU QU’ELLE EST
BRANCHÉE À UNE SOURCE D’ALIMENTATION.
3
TOUJOURS utiliser uniquement l’alimentation électrique
(tension et fréquence) indiquée sur la plaque signalétique de
la chaufferette.
TOUJOURS utiliser seulement des prises ou des rallonges à
trois broches et avec mise à la terre.
TOUJOURS utiliser une rallonge de calibre 14 AWG ou plus.
TOUJOURS débrancher la chaufferette lorsqu’elle n’est
pasutilisée.
TOUJOURS installer la chaufferette de façon à ne pas
l’exposer directement aux brumes d’eau, à la pluie, à l’eau
de ruissellement ou au vent.
NE JAMAIS utiliser de carburant comme de l’essence, du
benzène, des diluants à peinture ou autres composés
d’huile dans cette chaufferette.
NE JAMAIS remplir le réservoir de carburant de cette chaufferette
alors qu’elle est en marche ou encore chaude. Cette chaufferette
est EXTRÊMEMENT CHAUDE lorsqu’elle est en marche.
NE JAMAIS bloquer la sortie d’air (à l’avant).
NE JAMAIS utiliser de gaines ou conduits d’air à l’avant ou à
l’arrière de cette chaufferette.
NE JAMAIS déplacer ou manipuler cette chaufferette
lorsqu’elle est encore chaude.
NE JAMAIS transporter cette chaufferette lorsqu’il y a du
carburant dans le réservoir.
NE JAMAIS l’utiliser avec un réservoir de carburant externe.
Garder tous les matériaux combustibles à l’écart de cette
chaufferette.
Dégagement minimal par rapport aux combustibles
80-OFR 125-OFR-A
Haut 122 cm 183 cm
Côtés 122 cm 183 cm
Avant 244 cm 244 cm
TOUJOURS placer sur une surface stable et plane.
Si la chaufferette est équipée d’un thermostat, une fois
branchée, elle peut se mettre en marche à tout moment
selon le réglage du thermostat.
AVERTISSEMENT
RISQUE DE DÉCHARGE ÉLECTRIQUE!
AVERTISSEMENT
RISQUES DE BRÛLURES, D’INCENDIE ET D’EXPLOSION!
AVERTISSEMENT
MISE EN GARDE! CHAUD DURANT L’UTILISATION.
NE PAS TOUCHER. GARDER HORS DE LA PORTÉE
DES ENFANTS ET DES ANIMAUX ET À L’ÉCART DES
VÊTEMENTS OU DE TOUT MATÉRIAU COMBUSTIBLE.
Les produits décrits dans ce manuel sont des chauerettes
à feu direct et à air pulsé alimentées au kérosène. Les
chauerettes à air forcé au kérosène sont principalement
destinées au chauage temporaire des bâtiments en cours
de construction, de modification ou de rénovation. Feu
direct signifie que tous les produits de combustion de la
chauerette entrent dans l’espace chaué. Cet appareil
est évalué à 98% de rendement de la combustion, mais il
produit de petites quantités de monoxyde de carbone.
Le monoxyde de carbone est toxique. Les êtres humains
peuvent en tolérer seulement de petites quantités; des
précautions doivent donc être prises pour assurer une
ventilation adéquate. Une ventilation non adéquate, en
violation des consignes figurant dans ce manuel, peut
entraîner la mort.
Les personnes atteintes de problèmes respiratoires doivent
consulter un médecin avant d’utiliser cet appareil. Les
premiers signes d’intoxication au monoxyde de carbone
ressemblent aux symptômes de la grippe. Les symptômes
d’une mauvaise ventilation ou d’un empoisonnement au
monoxyde de carbone sont:
Mal de tête • Étourdissement • Nausée • Bouche sèche
Mal de gorge • Nez et yeux qui brûlent
Si un ou plusieurs de ces symptômesapparaissent :
SORTIR IMMÉDIATEMENT RESPIRER DE L’AIR FRAIS!
Faire vérifier ou réparer la chauerette et vérifier que la
ventilation est adéquate. Certaines personnes sont plus
aectées que d’autres par le monoxyde de carbone.
Celles-ci incluent: les femmes enceintes, les personnes
ayant des problèmes cardiaques ou pulmonaires, sourant
d’anémie ou qui se trouvent sous l’influence de l’alcool ou à
haute altitude.
POUR USAGE EXTÉRIEUR. USAGE INTÉRIEUR PERMIS
SEULEMENT POUR: le chauage temporaire des
structures ou des bâtiments bien ventilés en cours de
construction, de modification ou de réparation! Fournir
une ouverture d’au moins 2800cm sur l’air extérieur
pour chaque 100000 BTU/h (29 kWh) du régime nominal
de la chauerette. Voir la section «Ventilation» à la page
7 pour plus de détails.
AVERTISSEMENT
RISQUE DE POLLUTION DE L’AIR INTÉRIEUR!
L’EMPOISONNEMENT
AU MONOXYDE DE
CARBONE PEUT
ENTRAÎNER LA MORT!
DANGER
CONSIGNES DE SÉCURITÉ SUITE
