Pinnacle Climate Technologies Remington REM-45-KFA-O Training manual

Model Numbers
REM-45-KFA-O / REM-75T-KFA-O / REM-135T-KFA-O / REM-175T-KFA-O / REM-190T-KFA-O
REM-215T-KFA-O
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING: READ AND UNDERSTAND
ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE
ASSEMBLING, STARTING, OR SERVICING THE HEATER.
Be sure to comply with the instructions and warnings provided with this heater. Failure to
comply can result in fire or explosion that can cause property loss, bodily injury, or loss
of life. Only persons who can follow and understand these instructions should operate or
service this heater. If you need heater info; such as an operating manual, labels, etcetera,
contact Pinnacle Climate Technologies at 866-676-1989.
DANGER
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN
ENCLOSED SPACES WITHOUT ADEQUATE VENTILATION.
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY
FOR: THE TEMPORARY HEATING OF ADEQUATELY VENTILATED BUILDINGS
OR STRUCTURES UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is an
unvented portable heater that uses air (Oxygen) from within the area in which it is used.
Failure to provide adequate combustion and ventilation air will result in asphyxiation, carbon
monoxide poisoning, bodily injury or death. Refer to “Ventilation” on Page 5.
FACTORY ID: 001
Safety Information
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep
combustibles such as; building materials, paper or cardboard a
safe distance away from the heater as recommended by these
instructions. Never use the heater in spaces which contain products such as; gasoline,
solvents, paint thinners, dust particles, volatile or airborne combustibles or any unknown
chemicals. This is an unvented portable heater. It uses air (Oxygen) from the area in which
it is used. Adequate combustion and ventilation air must be provided. Refer to “Ventilation”
on page 5. Bulk fuel storage should be a minimum of 25 feet from heater.
WARNING
DO NOT OPERATE THIS HEATER UNTIL
YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND
OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this
heater can result in death, serious bodily injury, property loss or damage
from the hazards of fire, soot production, explosions, burns, asphyxiation or
carbon monoxide poisoning. Only persons who can read and understand
these instructions should use or service this heater.
DANGER
WARNING
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.remingtonheater.com • Email: [email protected]
© 2017 Pinnacle Climate Technologies, Inc. RGKD-403
User’s Manual &
Operating Instructions
KEROSENE FORCED AIR
HEATER

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
1
MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater
in any building which is used in whole or in part for human habitation. Use of this heating
device in Massachusetts requires local fire department permit (M.G.L.C. 148, Section 10A).
NEW YORK CITY RESIDENTS: The New York City Fire Code prohibits the storage,
handling and use of kerosene fueled heaters for space heating. Any person violating that
provision may be punished by a fine up to $10,000 and a term of imprisonment of up to 6
months.
Look for this icon throughout the manual for helpful tips on how to assemble, use
and clean your KFA Heater.
THE INSTALLATION OF THIS HEATER SHALL COMPLY WITH THE REGULATIONS OF
THE AUTHORITIES HAVING JURISDICTION.
CALIFORNIA RESIDENTS: This product contains chemicals,
including lead, known to the State of California to cause birth
defects or other reproductive harm. Wash hands after handling.
DO NOT START THE HEATER WHEN EXCESS OIL HAS
ACCUMULATED.
DO NOT START THE HEATER WHEN THE CHAMBER IS HOT.
WARNING
WARNING
WARNING
The products described in this manual are
kerosene direct-red, forced air heaters. Kerosene
forced air heaters are primarily intended for use for
temporary heating of buildings under construction,
alteration or repair. Direct-red means that all of
the combustion products of the heater enter the
heated space. This appliance is rated at 98%
combustion efciency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
resemble the u. Symptoms of improper ventilation
/ carbon monoxide poisoning are:
Headache • Dizziness •Nausea • Dry Mouth
Sore Throat •Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: The temporary
heating of adequately ventilated buildings or
structures under construction, alteration or
repair! Provide at least a three square foot
(2,800 sq cm) opening of outside air for
every 100,000 Btu / Hr heater rating. Refer to
“Ventilation” on page 5 for further instructions.
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON
MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
2
Safety Information
ALWAYS use only the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only three-prong, grounded outlet and
extension cord.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER refill the heater’s fuel tank while the
heater is operating or still hot. This heater is
EXTREMELY HOT while in operation.
NEVER block air inlet (rear) or air outlet (front).
NEVER use duct work in front or rear of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
45-190T-KFA 215T-KFA
Top 4 ft. 4 ft.
Sides 4 ft. 4 ft.
Front 8 ft. 10 ft.
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat,
once it is plugged in, it can start at anytime in
accordance with the thermostat setting.
RISK OF BURNS,
FIRE AND
EXPLOSION!
RISK OF
ELECTRIC
SHOCK!
CAUTION!
HOT WHILE IN
OPERATION.
DO NOT TOUCH. KEEP CHILDREN,
ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING
WARNING
WARNING
Specications
Model # 45-KFA 75T-KFA 135T-KFA 175T-KFA 190T-KFA 215T-KFA
Rating: Btu/Hr 45,000 75,000 135,000 175,000 190,000 215,000
Fuel Consumption: Gal/Hr .35 .56 1.00 1.33 1.42 1.63
Fuel Tank Capacity: Gallons 5.0 5.0 10.0 13.0 13.0 13.0
Pump Pressure: psi 3.0 4.2 5.5 7.5 8.5 9.0
Volts: AC/Hz
120VAC /
60Hz
120VAC /
60Hz
120VAC /
60Hz
120VAC /
60Hz
120VAC /
60Hz
120VAC /
60Hz
Amps 1.4 1.5 2.3 2.7 2.7 2.8
Phase Single Single Single Single Single Single
Specications subject to change without notice.
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. For Example:
150812779. Have your Serial Number ready before calling customer service at 866-676-1989.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
3

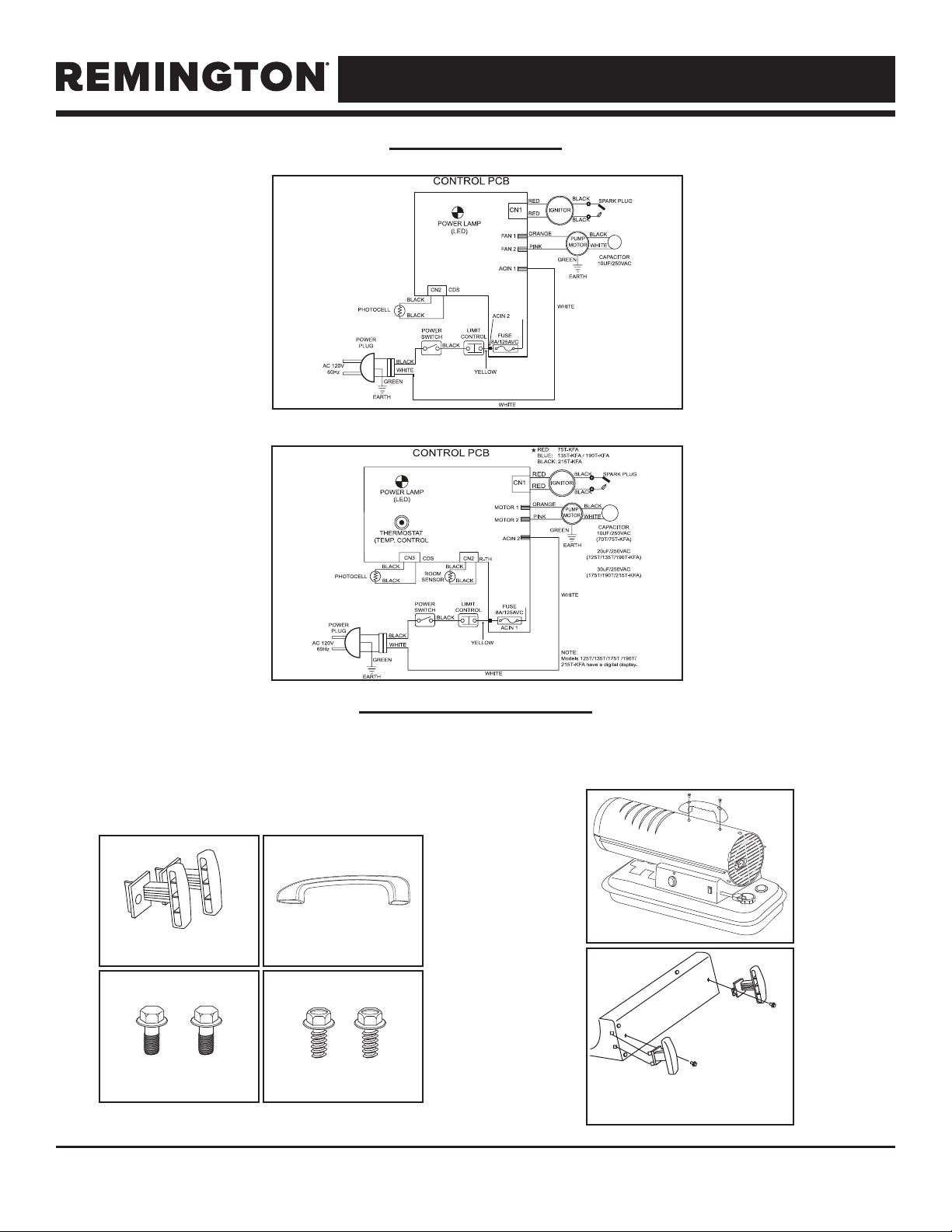

Wiring Diagrams
45-KFA
75T - 215T- KFA
Assembly Instructions
What’s In The Box Models: 45-KFA / 75T-KFA
- Remove the heater and all packaging materials
from the shipping carton Note: Save the box and packaging materials
for future storage.
Shown With Optional Cord
Wraps
Cord Wraps (Optional) Carry Handle (1)
10 mm Screws (2) 13 mm Screws (2)
Figure 3
Figure 4

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
4

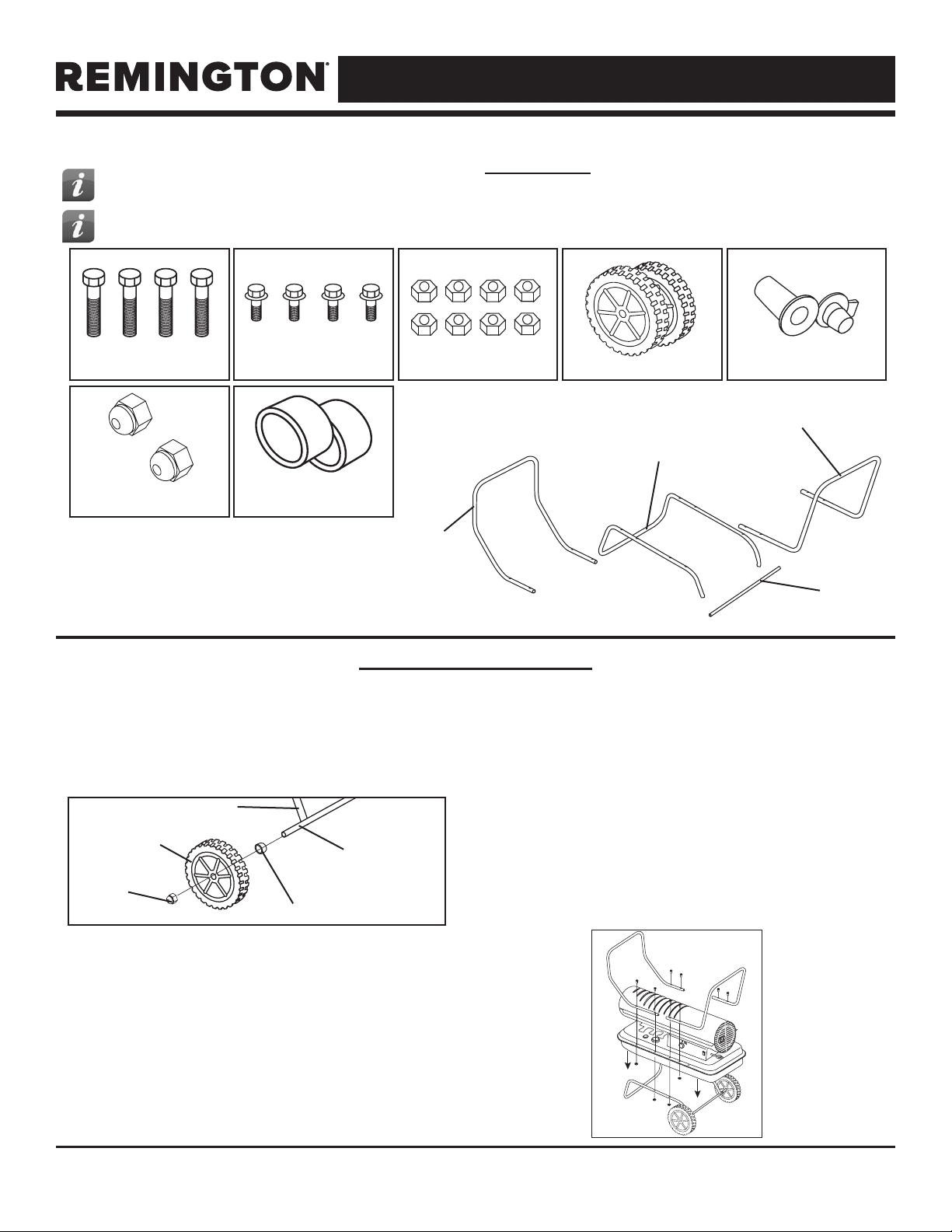

What’s In The Box Models: 135T-KFA / 175T-KFA / 190T-KFA / 215T-KFA
Tools Needed:
- Phillips Head Screw Driver
- 8 mm open end wrench
- 19 mm open end wrench
Tip: Be sure to remove the axle from the side of
the Styrofoam packaging.
Tip: Use a power screwdriver and locking wrench
for easier assembly.
Front Handle
Axle
Rear Handle
Wheel Support Frame
50 mm Screws (4) 30 mm Screws (4) 8 mm Nuts (8)
Wheels (2)
Axle Nuts (2) Spacers (2)
Spare Drain Plug (1)
Assembly Instructions
Models: 135T-KFA / 175T-KFA / 190T-KFA / 215T-KFA
1. Insert axle through holes in wheel support.
2. Slide spacer onto axle.
3. Slide wheel onto axle and hold in place with the axle nuts.
(See Figure 1).
4. Place heater on wheel support and line up holes on the fuel
tank lip.
5. Attach front handle with (2) long screws
(50 mm) and (2) nuts through the second hole from the front
on both sides of the tank lip and wheel support frame and
tighten firmly.
6. Insert (2) short screws (30 mm) through the first hole from the
front in the tank lip and tighten firmly. Make certain all (4)
screws are secure.
7. Attach rear handle with (2) long screws
(50 mm) and (2) nuts through the second hole from the rear
of the heater on either side. (See Figure 2)
8. Tilt the heater up gently so it is resting on the front handle.
NOTE: DO NOT do this if there is fuel in the tank.
9. Remove the wheels to secure the second set of screws
through the rear handle.
10. Secure the rear handle with (2) short screws (30 mm) and
(2) nuts and tighten firmly
11. Replace wheels and tighten with the wheel nuts.
12. Tilt heater back down onto wheels and check all screws and
nuts to make sure they are secure.
Figure 1
Axle
Axle Nut
Spacer
Tire
Wheel Support Frame
Figure 2

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
Fueling The Heater:
Kerosene (K-1)
For optimal performance of this heater, it is strongly
suggested that K-1 kerosene be used. K-1 kerosene
has been rened to virtually eliminate contaminants,
such as sulfur, which can cause a rotten egg odor during
the operation of the heater. Using diesel fuel can cause
excess soot production. Do not use Bio-Diesel as this
fuel will damage your heater’s seals and lter.
- CSA certified for use with K-1 kerosene,
no. 1 & no. 2 diesel, JP8/Jet A Fuel,
no. 1 and no. 2 fuel oil.
DO NOT use any fuel that is not approved above.
- NEVER use fuel such as, benzene, alcohol, white glass,
camp stove fuel, paint thinners, or other oil compounds in
this heater. THESE ARE VOLATILE FUELS THAT CAN
CAUSE A FIRE OR EXPLOSION.
- NEVER store kerosene in the living space. Kerosene should
be stored in a well ventilated area outside the living area.
- NEVER store kerosene in direct sunlight or near a source
of heat.
- NEVER use kerosene that has been stored from one season to
the next. Kerosene deteriorates over time. OLD KEROSENE
WILL NOT BURN PROPERLY IN THIS HEATER.
NOTE: Kerosene should only be stored in a blue
container that is clearly marked “Kerosene.” Never store
kerosene in a red container. Red is associated with
gasoline.
Ventilation:
- Risk of indoor air pollution and Carbon Monoxide
Poisoning. Use heater only in well ventilated areas.
- Refer to Safety Information on page 1 for information
about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated space
of at least three square feet (2,800 sq. cm) for each
100,00 Btu / Hr. of heater output. Provide a larger opening
if more heaters are being used.
Minimum Ventilation Opening Needed
45-KFA 75T-KFA 135T-KFA
1.4 ft.² 2.3 ft.² 4.1 ft.²
1250 cm² 2090 cm² 3760 cm²
Minimum Ventilation Opening Needed
175T-KFA 190T-KFA 215T-KFA
5.3 ft.² 5.7 ft.² 6.5 ft.²
3760 cm² 5290 cm² 5990 cm²
Operation
NEVER FILL
THE FUEL TANK
INDOORS.
ALWAYS FILL THE TANK OUTDOORS.
BE SURE THAT THE HEATER IS ON
LEVEL GROUND WHEN FUELING, AND
NEVER OVERFILL THE TANK.
CAUTION
NEVER REFUEL
THIS HEATER
WHILE IT IS HOT
OR OPERATING. FIRE OR EXPLOSION
COULD RESULT.
CARBON MONOXIDE POISONING MAY LEAD
TO DEATH!
5
DANGER
DO NOT USE
GASOLINE OR
CRANKCASE
DRAININGS.
WARNING
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
Operation
Starting the Heater: (Ignition)
1.Fill the tank with kerosene or other approved fuel
until needle on fuel gauge points to “F”.
2.Replace fuel cap and tighten firmly.
3.Connect the heater to a three prong
(grounded) power source. You must use a
three prong (grounded) extension cord that is at
least 6 feet long and is a minimum of 14 AWG
rating.
Model 45-KFA:
1.Complete steps 1-3 above.
2.Move power switch to “On” position. The power
indicator light will illuminate and the heater will
ignite.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the “Off”
position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Models 75T-KFA - 215T-KFA:
1.Complete “starting heater ignition” steps 1-3
above
2.Turn thermostat control knob to desired
temperature setting. The thermostat set range
is from 40 ºF to 110 ºF.
3.Move power switch to “On” position. The power
indicator light and room temperature display will
illuminate and heater will ignite.
NOTE: 45-75T-KFA models do not have a room
temperature display feature.
The room temperature display will indicate the
following:
- When the temperature is less than 0 ºF the
display says “LO”.
- When the temperature is more that 99 ºF the
display says “HI”.
- Between 0 °F and 99 °F the display shows
actual temperature.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the “Off”
position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Long Term Storage:
Models 45-KFA - 75T-KFA:
1. Use an approved siphon to drain fuel through the
fuel cap opening.
Models 135T-KFA - 215T-KFA:
1. Drain fuel through the drain plug in the bottom
of the fuel tank.
2. To remove the drain plug, pull the plug grip
downward and remove the seal head from the
drain hole in the tank.
3. Using a small amount of kerosene, rinse and
swirl the kerosene inside of the fuel tank, empty
the tank fully.
4. To replace the drain plug; push the drain head
fully into the drain hole and secure by pushing
the seal cap fully into the head hole.
IMPORTANT: Never store leftover kerosene between
seasons, using old fuel can damage heater.
6
TIP: If the heater does not ignite; move
switch to “Off” position, check steps 1-3
above and then move switch to “On” position.
TIP: If the heater does not ignite, the
thermostat may be set too low. Turn the
control knob to a higher setting until the
heater ignites. If the heater does not ignite; move
switch to “Off” position, check steps 1-3 above
and then move switch to “On” position.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
Maintenance
Service:
DO NOT TAMPER WITH THE UNIT. HAVE
A COMPETENT SERVICEMAN MAKE ANY
NECESSARY ADJUSTMENT OR REPAIRS.
Use only original equipment parts. The use of alternate
or third party components can cause unsafe operating
conditions and will void your warranty.
We suggest following a maintenance schedule as follows:
FUEL / FUEL TANK:
Flush tank every 200 hours of operation or as needed.
DO NOT ush with water; use fresh K-1 kerosene only.
AIR FILTERS:
The air intake lter should be replaced or washed with
soap and water and dried thoroughly every 500 hours
of operation or less depending on conditions.
The output and lint lters should be replaced
every 500 hours of operation or less depending on
conditions. (See Figure 4)
NOTE: Use of diesel fuel may require additional
maintenance
FAN BLADES:
Blades should be cleaned at least once per heating
season, depending on conditions. Remove all
accumulated dust and dirt with a damp cloth, taking
care not to bend any of the fan blades. Be sure the
blades are dry before re-starting the heater.
FUEL FILTER:
The fuel filter should be cleaned at least twice
per heating season. Clean the filter by rinsing
it in clean K-1 Kerosene. Contaminated fuel
could make cleaning the fuel filter necessary
immediately.
NOTE: To remove the filter from models 45 -
75T-KFA turn filter 90º clockwise. To remove the
filter from models 125T - 215T-KFA turn filter 90º
counter-clockwise. See Figure 3.
THERMISTER PLACEMENT:
Ensure the thermister wire is in the proper place.
The wire should be lying on the bottom shell inside
the heater with the plastic end placed under the
motor support/motor and away from fan blade.
ROTOR:
The rotor with carbon vanes should be evaluated
every heating season. The rotor is behind the air
filters. The vanes should be inspected for damage
or wear. The rotor should be inspected for damage,
chips, wear, cracks.
Check rotor gap: Remove the rear cover.
Loosen the two pump ring screws. Lift the pump
ring upwards. Insert a 0.1 mm feeler gauge and
apply slight downward pressure, enough to offer
resistance when attempting to remove gauge.
Hand-tighten the two pump ring screws. Re-install
the End Pump Cover and the plastic End Filter
Cover. Start the heater and adjust to the proper
pump pressure.
Air Output Filter
Intake Filter
Lint Filter End Filter
Figure 4
7
Never service
heater while it is
plugged in or hot!
WARNING
Figure 3
Fuel Filter
Fuel Line
Side Cover

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual

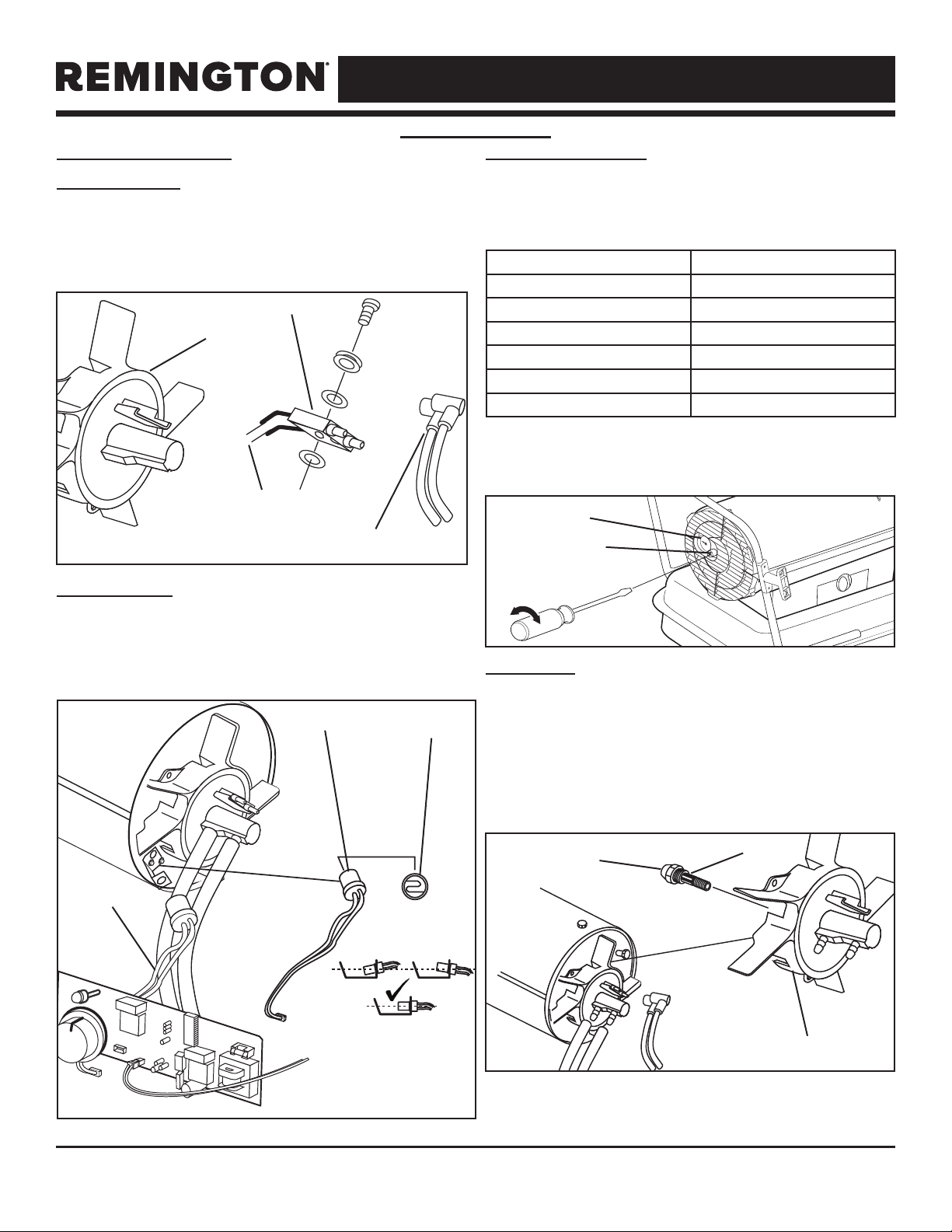

Maintenance
Service (Continued):
SPARK PLUG:
Clean and re-gap every 600 hours of operation, or
replace as needed. After removing the spark plug,
clean the terminals with a wire brush. Re-gap the
terminals to 0.140” (3.5mm) See Figure 5.
PHOTOCELL:
The photocell should be cleaned using a cotton
swab dipped in alcohol or water at least once per
heating season, or more depending on conditions.
See Figure 6.
PUMP PRESSURE:
While heater is operating, turn adjusting screw
clockwise to increase, counter-clockwise to
decrease pressure. Correct pump pressure is as
follows:
Model Number Pump Pressure
45-KFA 3.0 PSI
75T-KFA 4.2 PSI
135T-KFA 5.5 PSI
175T-KFA 7.5 PSI
190T-KFA 8.5 PSI
215T-KFA 9.0 PSI
Tolerance ± 10%
NOZZLES:
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel could
make this necessary immediately. To clean dirt
from nozzle, blow compressed air through nozzle
front. It may be necessary to soak the nozzle in K-1
kerosene to loosen any dirt particles.
Figure 5 Ignitor Wire
Spark Plug
Gap
Burner Head
Figure 6
XX
Photocell Photocell lens
Photocell
Wire
8
Figure 8
Adjusting Screw
Pressure Valve
Figure 7
Nozzle
Nozzle Face
Burner Head

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
Troubleshooting Guide
Problem Possible Cause Solution
Heater Ignites, but main PCB shuts
off after a short period of time.
Lamp ickers and LED display
shows “E1”.
1. Incorrect pump pressure.
2. Dirty input, output or lint lter.
3. Dirty fuel lter.
4. Nozzle is dirty.
5. Photocell lens is dirty.
6. Photocell not installed properly.
7. Photocell is defective.
8. Improper electrical connection
between main PCB and photocell.
9. Improper location of thermister sensor
(does not apply to 45-KFA model)
10. Improper electrical connection within
the temperature limit switch
1. Adjust pump pressure.
2. Clean / replace air or lint lter.
3. Clean / replace fuel lter.
4. Clean / replace Nozzle.
5. Clean / replace photocell.
6. Adjust photocell position
7. Replace photocell
8. Check wiring connections
(see wiring diagrams on page 3).
9. Check thermister placement
10. Replace temperature limit switch
Heater will not operate or motor
runs for a short time.
Lamp ickers and LED display
shows “E1”.
1. No kerosene in the fuel tank.
2. Incorrect pump pressure.
3. Corroded spark plug or incorrect
plug gap.
4. Dirty fuel lter.
5. Dirty nozzle.
6. Moisture in fuel tank.
7. Improper electrical connection
between transformer and circuit
board.
8. Ignitor wire not connected to spark
plug.
9. Defective ignitor.
10. Improper spacing with rotor
1. Fill tank with fresh kerosene.
2. Adjust pump pressure.
3. Clean / replace spark plug.
4. Clean / replace fuel lter.
5. Clean / replace nozzle.
6. Rinse fuel tank with clean, fresh
kerosene.
7. Inspect all electrical connections.
(See wiring diagrams on page 3.)
8. Re-attach ignitor wire to spark plug.
9. Replace ignitor.
10. Adjust rotor
Fan does not operate when heater
is plugged in and power switch is
in the “ON” position. The lamp is
ickering or and LED display shows
“E1” or “E2”.
1. Thermostat is set too low (does not
apply to 45-KFA model).
2. Broken electrical connection
between main PCB and motor.
1. Rotate thermostat to a higher
setting
2. Inspect all electrical connections
(see wiring diagrams on page 3).
Lamp is ickering and LED display
shows “E3”.
1. Thermostat switch has failed. 1. Replace thermostat switch (see
Wiring diagrams on page 3).
Poor combustion and / or excess
soot production.
1. Dirty input, output or lint lter.
2. Dirty fuel lter.
3. Poor quality of fuel.
4. PSI is too high or too low.
5. Dirty nozzle
1. Clean / replace air or lint lter.
2. Clean / replace fuel lter.
3. Flush fuel tank and refuel heater.
4. Use proper pressure.
5. Clean / replace nozzle
Heater does not turn on and the
lamp is not lit.
1. Temperature limit sensor has
overheated.
2. No electrical power.
3. Fuse is blown.
4. Improper electrical connection
between temperature limit sensor
and circuit board.
1. Push power switch to “OFF and
allow heater to cool for 10 minutes.
Restart heater.
2. Check power cords for proper
connection and test the power
supply.
3. Check / replace the fuse.
4. Inspect all electrical connections
(see wiring diagrams on page 3).
9

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
10
14
1113
8
12
930
26
3
16
2
4
6
1**
7
22
24
17
18
19
21 30
20
15 41**
33*
35**
36
29
28
5
32
31
25
27
38**
37**
39**
34**
42

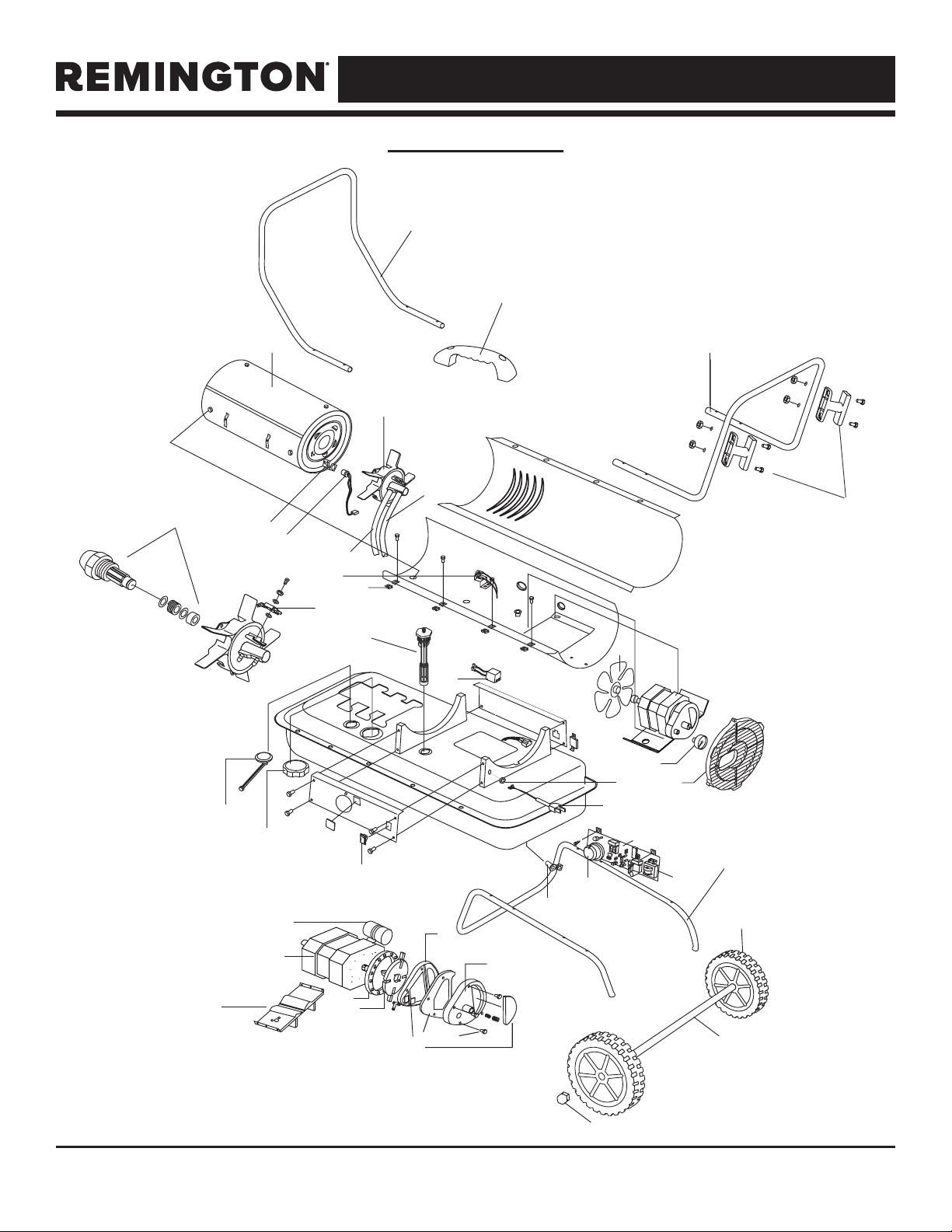

Exploded View
10
* 45-KFA - 75T-KFA Only
** 135T-KFA - 215T-KFA Only

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
11
Parts List
TIP: To order parts call 866-676-1989.
# Description 45-KFA 75T-KFA 135T-KFA 175T/190T-KFA 215T-KFA
1Drain Plug ––70-002-0105 70-002-0105 70-002-0105
2Fuel Gauge 70-007-0110 70-007-0115 70-007-0210 70-007-0210 70-007-0215
3Fuel Filter 70-003-0100 70-003-0100 70-003-0200 70-003-0200 70-003-0200
4Fuel Cap - Large Plastic 70-006-0140 70-006-0140 70-006-0140 70-006-0140 70-006-0140
5Power Cord 70-034-0100 70-034-0100 70-034-0200 70-034-0200 70-034-0200
6Power Switch 70-038-0100 70-038-0100 70-038-0100 70-038-0100 70-038-0100
7Thermostat Control Knob – 70-031-0100 70-031-0100 70-031-0100 70-031-0100
8Air Line 70-035-0100 70-035-0200 70-035-0300 70-035-0400 70-035-0500
9Thermostat Limit Control 70-019-0100 70-019-0100 70-019-0100 70-019-0100 70-019-0200
10 Combustion Chamber Assembly 70-011-0100 70-011-0200 70-011-0300 70-011-0400 70-011-0500
11 Photocell Bracket 70-010-1010 70-010-1010 70-010-1010 70-010-1010 70-010-1010
12 Fuel Line 70-036-0100 70-036-0200 70-036-0300 70-036-0400 70-036-0500
13 Photocell 70-016-0100 70-016-0100 70-016-0100 70-016-0100 70-016-0100
14 Burner Head Assembly 70-014-0101 70-014-0101 70-014-0301 70-014-0401 70-014-0401
15 Nozzle Kit 70-015-0100 70-015-0210 70-015-0310 70-015-0410 70-015-0500
16 Spark Plug Kit 70-052-0100 70-052-0100 70-052-0200 70-052-0200 70-052-0200
17 Motor 70-021-0500 70-021-0500 70-021-0510 70-021-0520 70-021-0520
18 Pump Body 70-020-0101 70-020-0101 70-020-0101 70-020-0401 70-020-0401
19 Rotor Kit 70-022-0100 70-022-0100 70-022-0100 70-022-0200 70-022-0200
20 End Pump Cover 70-020-0102 70-020-0102 70-020-0102 70-020-0102 70-020-0102
21 Filter Kit 70-054-0100 70-054-0100 70-054-0100 70-054-0100 70-054-0100
22 End Filter Cover 70-020-0103 70-020-0103 70-020-0103 70-020-0103 70-020-0103
23 Pump Adjustment Kit 70-055-0100 70-055-0100 70-055-0100 70-055-0100 70-055-0100
24 Capacitor 70-020-0125 70-020-0125 70-020-0200 70-020-0201 70-020-0201
25 Fan 70-024-0100 70-024-0200 70-024-0300 70-024-0400 70-024-0400
26 Ignitor 70-037-0350 70-037-0350 70-037-0350 70-037-0350 70-037-0350
27 Fan Guard 70-016-0700 70-016-0700 70-016-0200 70-016-0200 70-016-0220
28 Main PCB Assembly 70-027-0110 70-027-0200 70-027-0310 70-027-0310 70-027-0310
29 Fuse 70-027-0101 70-027-0101 70-027-0101 70-027-0101 70-027-0101
30 Clip Nut 70-001-0105 70-001-0105 70-001-0105 70-001-0105 70-001-0105
31 Air Pressure Gauge – 70-025-0100 70-025-0100 70-025-0100 70-025-0100
32 Cord Bushing 70-033-0100 70-033-0100 70-033-0200 70-033-0200 70-033-0200
33 Handle 70-001-0103 70-001-0103 – – –
34 Front Handle – – 70-042-0100 70-042-0200 70-042-0200
35 Rear Handle – – 70-043-0105 70-043-0205 70-043-0205
36 Wheel Support Frame – – 70-041-0101 70-041-0201 70-041-0201
37 Wheel Axle – – 70-041-0115 70-041-0205 70-041-0205
38 Wheel – – 70-041-1400 70-041-1400 70-041-1400
39 Wheel Nut – – 70-041-0550 70-041-0550 70-041-0550
40 Hardware Kit (not pictured) 70-056-0100 70-056-0100 70-056-0200 70-056-0200 70-056-0200
41 Cord Wrap 70-032-0100 70-032-0100 70-032-0200 70-032-0200 70-032-0200
42 Motor Supporter 0-020-0600 70-020-0600 70-020-0610 70-020-0610 70-020-0610

NEVER LEAVE HEATER UNATTENDED WHILE BURNING
OR WHILE CONNECTED TO A POWER SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
LIMITED WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater
to the original retail purchaser only, to be free from defects
in material and workmanship for a period of one (1) year
from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance
with the instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies , Inc. shall determine at
its reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating difculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
to the nish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. nds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims all warranties for products
that are purchased from sellers other than authorized
dealers or distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
APPLICATION. FURTHER, Pinnacle Climate Technologies,
Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER
OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle
Climate Technologies, Inc. assumes no responsibility for
any defects caused by third parties. This Limited Warranty
gives the purchaser specic legal rights; a purchaser may
have other rights depending upon where he or she lives.
Some states do not allow the exclusion or limitation of
special, incidental or consequential damages, or limitations
on how long a warranty lasts, so the above exclusion and
limitations may not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize
any person or company to assume for it any other
obligation or liability in connection with the sale, installation,
use, removal, return or replacement of its equipment, and
no such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
12
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will be a
series of 9 digits. For Example: 136985632. Have your Serial Number ready before calling customer
service at 866-676-1989.
Serial Number Label
XX-X-XXXXXX

1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.remingtonheater.com • Email: [email protected]
© 2017 Pinnacle Climate Technologies, Inc.
