User’s Manual &
Operating Instructions
PROPANE FORCED AIR
HEATER

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
This is an unvented portable heater. It uses air (oxygen) from the
area in which it is used. Adequate combustion and ventilation air
must be provided. Refer to VENTILATION on Page 8.
1
Not for use in residential living areas or in non-adequately venti-
lated enclosed spaces. Never bring or store a propane cylinder
indoors.
This heater is designed and approved for use as a construction heater in accordance with
Standard ANSI Z83.7-2011/CSA 2.14-2011. CHECK WITH YOUR LOCAL FIRE SAFETY
AUTHORITY IF YOU HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards
govern the use of fuel gasses and heating products for specic uses. Your local authority can
advise you about these.
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
loss of life.
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ
AND THOROUGHLY UNDERSTAND THESE SAFETY AND
OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result
in death, serious bodily injury, property loss or damage from the hazards of fire, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and
understand these instructions should use or service this heater.
CALIFORNIA RESIDENTS: This product contains chemicals,
including lead, known to the State of California to cause birth
defects or other reproductive harm. Wash hands after handling.
DANGER
DANGER
WARNING
WARNING
WARNING
The products described in this manual are propane direct-
red, forced air heaters. Propane forced air heaters are
primarily intended for use for temporary heating of buildings
under construction, alteration or repair. Direct-red means
that all of the combustion products of the heater enter the
heated space. This appliance is rated at 98% combustion
efciency, but does produce small amounts of carbon
monoxide.
Carbon monoxide is toxic. Humans can tolerate only small
amounts of carbon monoxide and so precautions should
be taken to provide proper ventilation. Failure to provide
proper ventilation in accordance with the instructions in this
manual can result in death.
People with breathing problems should consult a physician
before using this heater.
Early signs of carbon monoxide poisoning resemble the
u. Symptoms of improper ventilation / carbon monoxide
poisoning are:
Headache • Dizziness • Nausea • Dry Mouth Sore Throat
• Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater serviced and
check for proper ventilation. Some people are more affected
by carbon monoxide than others. These include: pregnant
women, those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY
FOR: The temporary heating of adequately ventilated
buildings or structures under construction, alteration
or repair! Provide at least a three square foot
(2,800 sq cm) opening of outside air for every 100,000
Btu / Hr heater rating. Refer to “Ventilation” on page 8
for further instructions.
RISK OF INDOOR
AIR POLLUTION!
CARBON
MONOXIDE
POISONING MAY
LEAD TO DEATH!
WARNING
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
Safety Information
2
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open ame.
–Shut off gas to heater.
–If odor continues, contact your local gas
supplier or re department.
–DO NOT touch or use any electric switch or
any electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call the
re department.
–Service must be done by a qualied service
agency.
NEVER store or use gasoline or other ammable
vapors and liquids in the vicinity of this heater.
NEVER store a propane (LP) cylinder not connected to
this heater in the vicinity of this heater.
NEVER connect heater to an unregulated gas supply.
NEVER obstruct the flow of combustion and ventilation
air. (The front and rear of heater).
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that has
been modified.
NEVER service, move or handle heater while still hot or
operating
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
Sides Top Front Rear
24 in. 36 in. 72 in. 24 in.
ALWAYS use the electrical power (voltage and frequency)
specified on the model plate of the heater.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
RISK OF BURNS,
FIRE AND
EXPLOSION!
PROPANE IS
AN EXPLOSIVE
GAS.
CAUTION!
HOT WHILE IN
OPERATION.
DO NOT TOUCH. KEEP CHILDREN,
ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING
DANGER
WARNING
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
– Use heater in accordance with all local codes. In
the absence of local codes, refer to The National
Fuel Code, ANSI Z223.1.
–This heater is shipped from the factory for use
with propane (LP) gas only. Do not convert to
any other gas. Installation must conform to local
codes, or in their absence, with the standard for
the Storage and Handling of Liquefied Petroleum
Gases ANSI/NFPA 58 and the Natural Gas and
Propane Installation Code CSA B149.1.
– Gas supply connections should be checked by
using a 50/50 soap and water solution. Never use
a ame to check for gas leaks.
– Locate LP cylinder at least 6 feet (10 ft. in
Canada) from the heater, and do not direct heater
discharge towards the LP cylinder unless it is at
least 20 feet from the heater.
– Use only the regulator and hose assembly
provided with this heater. Inspect the regulator/
hose assembly prior to each use of the heater. If
there is excessive abrasion or wear, or if the hose
is cut, replace it with the proper assembly shown
in the parts list, prior to using the heater.
Minimum and Maximum Inlet Pressure
40-GFA 60V-GFA 125V-GFA 150V-GFA
Min. 5 PSI
Max. Bottle Pressure
For use with
propane (LP)
gas only.
WARNING
RISK OF
ELECTRIC
SHOCK!
Electrical Grounding
Instructions:
This appliance is
equipped with a three-prong (grounding) plug
for your protection against shock hazard and
should be plugged directly into a properly
grounded three-prong receptacle.
WARNING
WARNING
The hose assembly
shall be protected
from traffic, building
material and contact with hot surfaces both
during use and while in storage.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to inlet
connector and hose / regulator assembly for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the heater
is damaged, promptly inform dealer where you
purchased the heater.
The Propane
(LP) gas
pressure
regulator and hose assembly supplied
with the heater must be used without
alteration.
Unpacking
3
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X

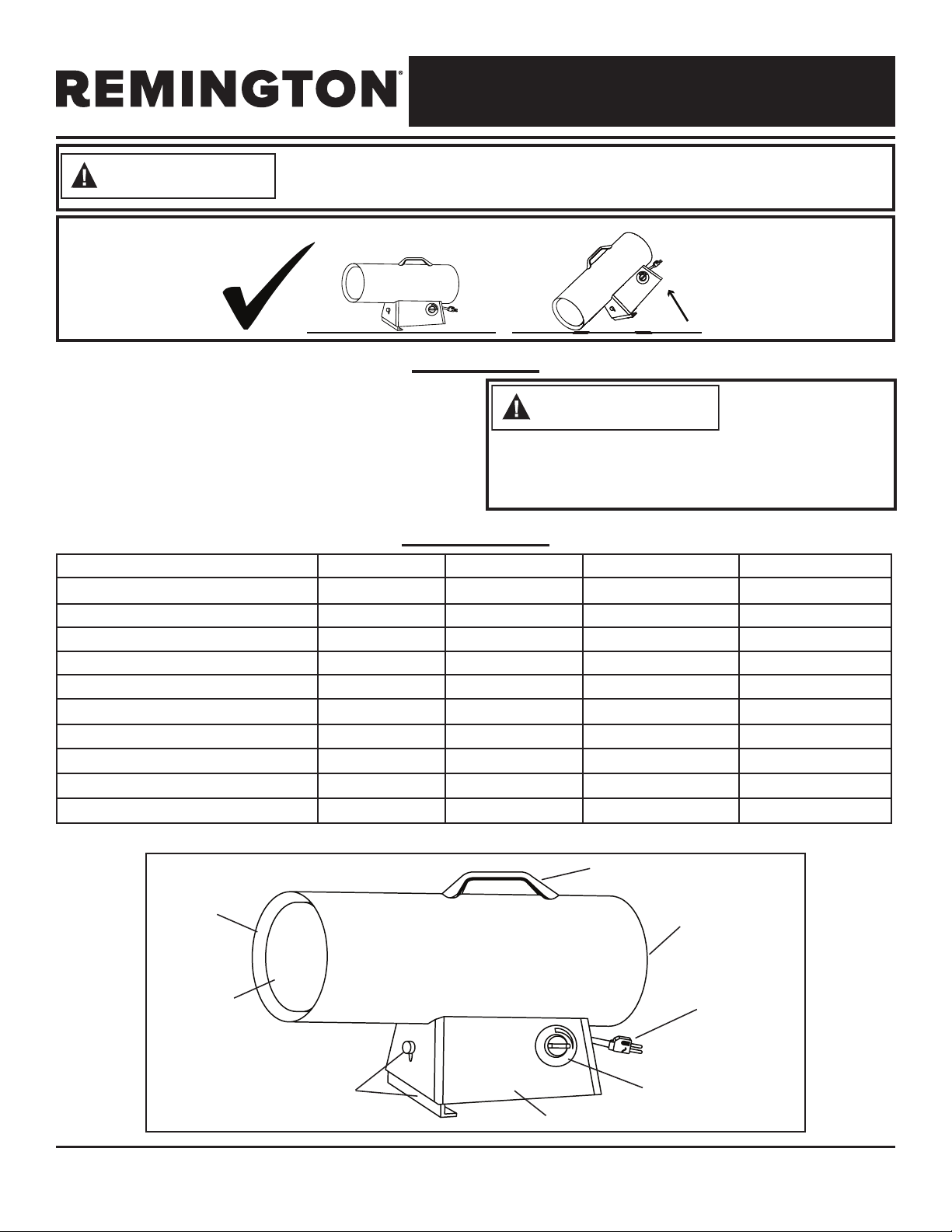

RISK OF FIRE! DO NOT POSITION HEATER IN A DOWNWARD
ANGLE. ALWAYS LOCATE HEATER ON A STABLE AND
LEVEL SURFACE!
Figure 1
WARNING
Specications
Model # 40-GFA 60V-GFA 125V-GFA 150V-GFA
BTU 40,000 40/50/60,000 95/110/125,000 120/135/150,000
Fuel Consumption (Lbs./hr) 1.9 1.9 / 2.3 / 2.8 4.4 / 5.1 / 5.8 5.5 / 6.2 / 6.9
Maximum Operating Hours 11 10.5 22 18
Required Cylinder Lbs. 20 20 100 100
Fuel Type Propane Propane Propane Propane
Heating Area (Ft.2) 1,000 1,500 3,125 3,800
Air Flow (CFM) 300 300 400 400
Max Outlet Temp (ºF) 477 491 500 622
Volts: AC/Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz
Amps 0.6 A 0.6 A 1.02 A 1.02 A
Specications subject to change without notice.
CAUTION
Handle
Base
Height Controller Gas Valve Knob
Outer Shell
Inner Shell
Guard
Power Cord
Figure 2

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual4
Operation
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder. Use only
an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier than air
and pools in low areas.
– In its natural state, propane has no odor, but for your
safety an odor that smells like rotten cabbage has been
added.
– Contact of propane (LP) gas with the skin can cause
freeze burns.
– Heater is manufactured for use with propane gas only.
DO NOT attempt to convert to any other gas. Such
modications are dangerous and will void the warranty.
– When heater is not in use, LP Cylinder must be turned
OFF.
– Be sure that the LP Cylinder is located on a level and
stable surface.
– DO NOT use this heater in a basement or below ground
level. Propane is heavier than air and will always seek
the lowest level. If you suspect a leak, shut off the valve
at the LP Cylinder immediately.
The Propane (LP) cylinder must also be equipped with
the following
– A collar to protect the gas valve.
– A shut-off valve terminating a LP cylinder valve outlet
as specied in the American National Standard for
Compressed Gas Cylinder Valve Outlets and Inlets
Connections.
– A safety relief valve having direct communications with
the vapor space of the LP cylinder.
– The heater must operate on vapor withdrawal from the
operating cylinder.
The amount of Propane (LP) used with this heater varies.
Both factors are
– The amount of gas in the cylinder of LP.
– The temperature of the LP tank and its surroundings.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may cause damage
to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to a
construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shutoff valve on the LP cylinder
after each use.
– All ttings must be protected when disconnected from
the LP cylinder.
– Never store an LP cylinder inside a building or in the
vicinity of an gas burning appliances.
Average
Temp
(ºF)
40-GFA
100 lb.
cylinder
60V-GFA
100 lb.
cylinder
125V-GFA
100
lb. cylinder
150V-GFA
100
lb. cylinder
32º 1 1 2 2
20º 1 1 2 2
10º 1 1 3 3
0º 1 1 3 3
-10º 2 2
Use Larger
Tank
Use Larger
Tank
-20º 2 2
Use Larger
Tank
Use Larger
Tank
The table above shows the minimum number of 100 lb. LP
cylinders required in cold weather. Your local LP dealer will help
you select the proper LP supply System
Propane is
safe to use
when properly
handled. Careless handling of the LP
cylinder could result in a fire and or an
explosion.
The
disconnected
tank must never
be stored in a building, garage or any
other enclosed area.
CAUTION
CAUTION

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
Operation
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder valve
to OFF position.
– LP cylinder valve equipped with old style tting
has LEFT HANDED THREADS. Turn tting
CLOCKWISE to loosen. Protect this tting when
disconnected from LP cylinder.
( See Figure 3 & 4.)
– Have your LP cylinder lled by your local propane
gas supplier.
– Some LP cylinders have a bleed-OFF valve. This
valve should be inspected for leaks after each
lling of the LP cylinder. Turn the valve clockwise
to close.
– Fasten full propane tank and connect proper
tting to LP cylinder valve by turning COUNTER-
CLOCKWISE.
– With heater gas valve knob still in OFF position
turn ON the LP cylinder valve and check for leaks
with soap solution.
Checking For Leaks
– To check for leaks, make up a 50/50 solution of
dish soap and water. Apply this solution to all gas
connections. If bubbles appear, there is a leak. If
a leak is found, turn off the gas supply, and re-
connect the leaking connection. If the leak persists
after several tries, contact Pinnacle Customer
Service at (866)-676-1989.
– The installation of this heater must meet all local
codes and/or gas utility requirements. In the
absence of local codes, the National Fuel Code
ANSI Z223.1 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at all
times (See Page 2).
– Inspect the heater before each use, and at least
annually by a qualied service person.
Purging and
filling of the LP
cylinders must
be performed by personnel who have
been thoroughly trained in accepted
LP gas industry procedures. Failure to
follow these instructions may result in
explosion, fire, severe personal injury or
death.

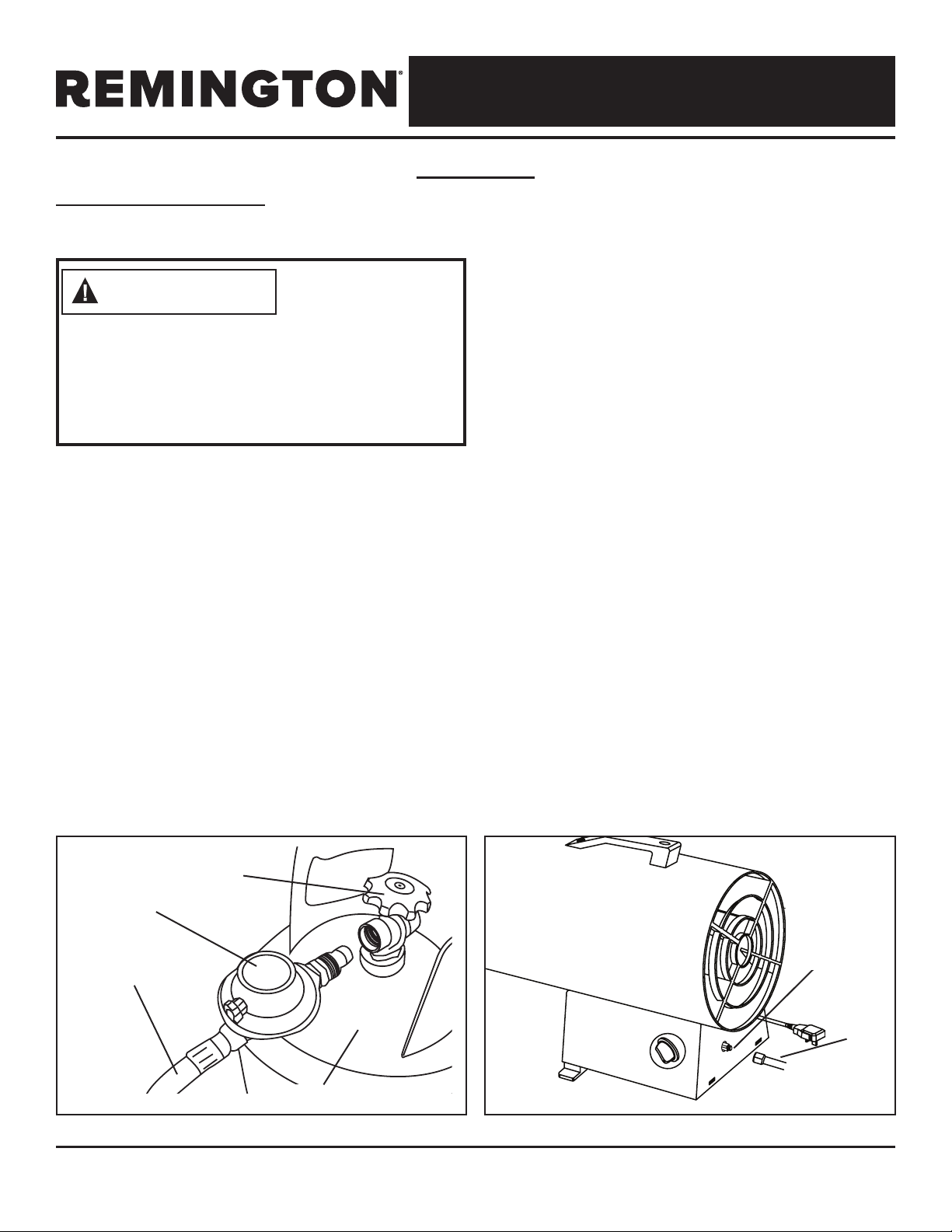

Supply Valve
Regulator
Hose
Propane Tank
Figure 3
5
Figure 4
Hose
Inlet
Connector
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
Operation
Lighting Instructions:
Starting the Heater (Ignition)
1. Connect the heater to a three prong (grounded)
power source. You must use a three prong (grounded)
extension cord that is at least 6 feet long is a minimum
of 14 AWG rating.
2. Connect heater to a proper LP cylinder.
3. Turn gas valve CLOCKWISE to off position.
4. Wait ve (5) minutes for any glass to clear. Smell for
gas, if you do not smell gas, go to step 5.
5. Push in and turn gas control knob
COUNTERCLOCKWISE to 1 position. This will light
the burner. If needed, keep pressing control knob
until the burner lights, and keep pressing and turning
from “O” (OFF) to 1 on Piezo electric spark models
(40-GFA)
(See Figure 5)
6. Keep the valve knob depressed for at least 30
seconds after lighting the burner. After 30 seconds,
release the valve knob.
7. If the burner does not stay lit, repeat the lighting
procedures.
8. When burner stays lit, turn gas valve knob
COUNTERCLOCKWISE to desired setting (All
models except 40-GFA).
Shutdown Instructions
To Shut Off the Heater:
1. Turn gas valve knob CLOCKWISE to
“O” (OFF) position. (See Figure 5)
2. Turn gas supply OFF by turning the LP cylinder
valve CLOCKWISE to close.
3. Disconnect the power cord.
Test Firing the Heater
Test fire your construction heater following the lighting
instructions applicable to the gas control system
employed.
Leak test all gas connections with 50/50 soap and water
solution prior to start-up. Soap bubbles indicate a gas
leak. DO NOT use a match or flame to test for gas leaks.
NOTE: Heater surface temperature must be cold
before initiating service, cleaning or storage.
1
O
1
3
2
O
40-GFA
Valve Knob
60V-GFA-A / 125V-GFA-A /
150V-GFA-A Valve Knob
OFF
OFF
Ignition Ignition
Figure 5
6

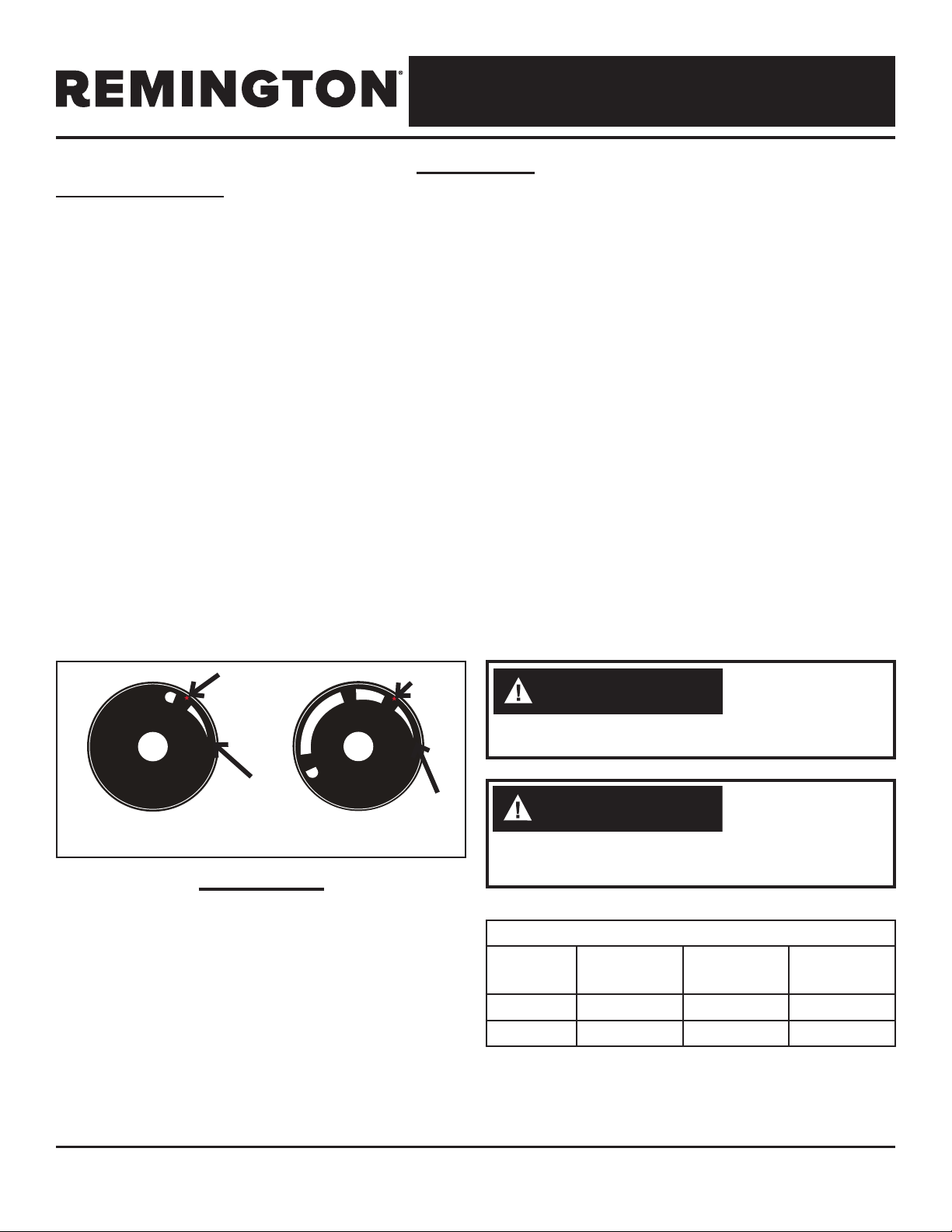

Ventilation
–Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in
well ventilated areas.
–Refer to Safety Information on pages 1-2
for information about Carbon Monoxide
Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least three square feet
(2,800 sq. cm) for each 100,000 BTU / Hr.
of heater output. Provide a larger opening if
more heaters are being used.
Minimum Ventilation Opening Needed
40-GFA 60V-GFA 125V-GFA 150V-GFA
1.2 ft.21.8 ft.23.8 ft.24.5 ft.2
1110 cm21670 cm23530 cm24180 cm2
CARBON
MONOXIDE
POISONING
MAY LEAD TO DEATH!
Not for use in
residential living
areas or in
non-adequately ventilated enclosed
spaces.
DANGER
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
Storage / Maintenance
Always disconnect the heater from the LP cylinder before
putting the heater into storage. If for any reason the heater
is to be stored indoors, the tank MUST be disconnected
from the LP cylinder, and the cylinder stored outdoors in
a well-ventilated area, out of the reach of children, and in
accordance with the Standard for Storage and Handling
of Petroleum Gases, ANSI/NFPA 58 - latest edition and
Natural Gas and Propane Installation Code, CSA B149.1.
The plastic valve plug or valve cover supplied with the
cylinder must be re-installed on the valve to protect the
fitting from damage.
NOTE: Installation and repair of this heater should be
done by a qualified service person.
ALWAYS be sure to follow proper maintenance procedures.
This should include cleaning the inside of the heater once a
month and checking the spark gap at least once a heating
season. Re-gap the terminals to 0.160” (4mm)
7
Never store
an LP cylinder
inside of a
building or near any other gas or oil
burning appliances.
DANGER

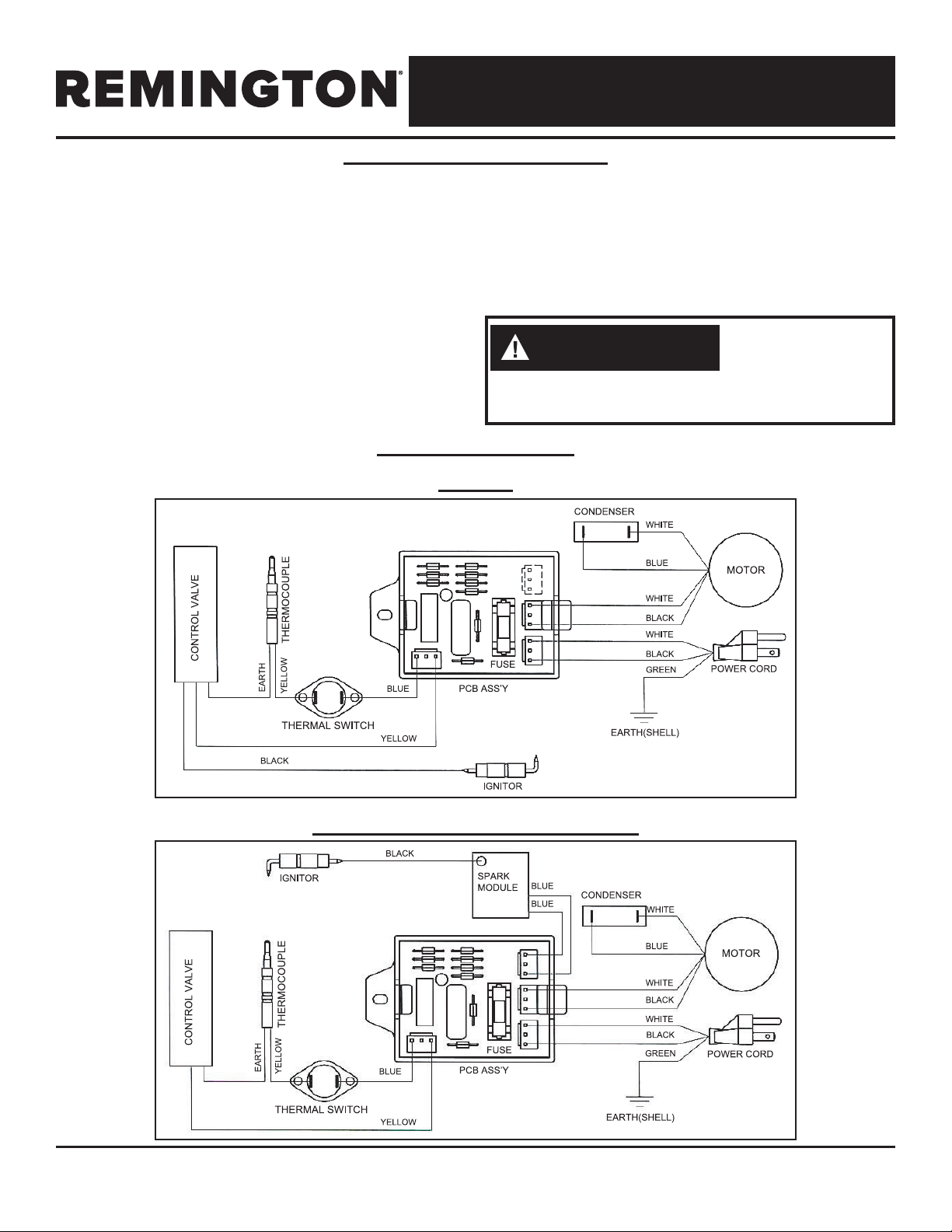

Wiring Diagrams
40-GFA
60V-GFA / 125V-GFA / 150V-GFA
Figure 6
Figure 7
Figure 6

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
Problem Possible Cause(s) Solution
Fan does not turn when
electricity is connected.
1. No electric power to heater.
2. Blades of fan in contact with
heater housing.
3. Fan blades bent.
4. Fan motor defective.
1. Check current at outlet. If voltage
is correct, inspect extension and
power cords for cuts, frays or
breaks
2. Check housing for damage. Be
sure there are no dents in the
housing obstructing the fan.
3. Straighten all fan blades.
4. Replace motor assembly.
Heater will not re (ignite).
1. No spark at module.
2. Incorrect spark gap.
3. Corroded electrode.
1. Inspect module wire. Re-attach
or tighten if loose. Inspect spark
module and replace if necessary.
Inspect all other electrical
components.
2. Set plug gap to 0.16” (4 mm).
3. Replace spark plug
(multi-bracket assembly).
Heater stops running
by itself.
1. Temperature inside heater is too
high, causing thermal switch to
shut down operation.
2. Damaged control valve.
3. Dust or Debris accumulated
in heater.
1. If the heater input or output is
restricted, the inside temperature
can become too hot. Keep the
areas in front and behind heater
clear of obstructions.
2. Replace control valve.
3. Clean inside of heater.
Troubleshooting Guide

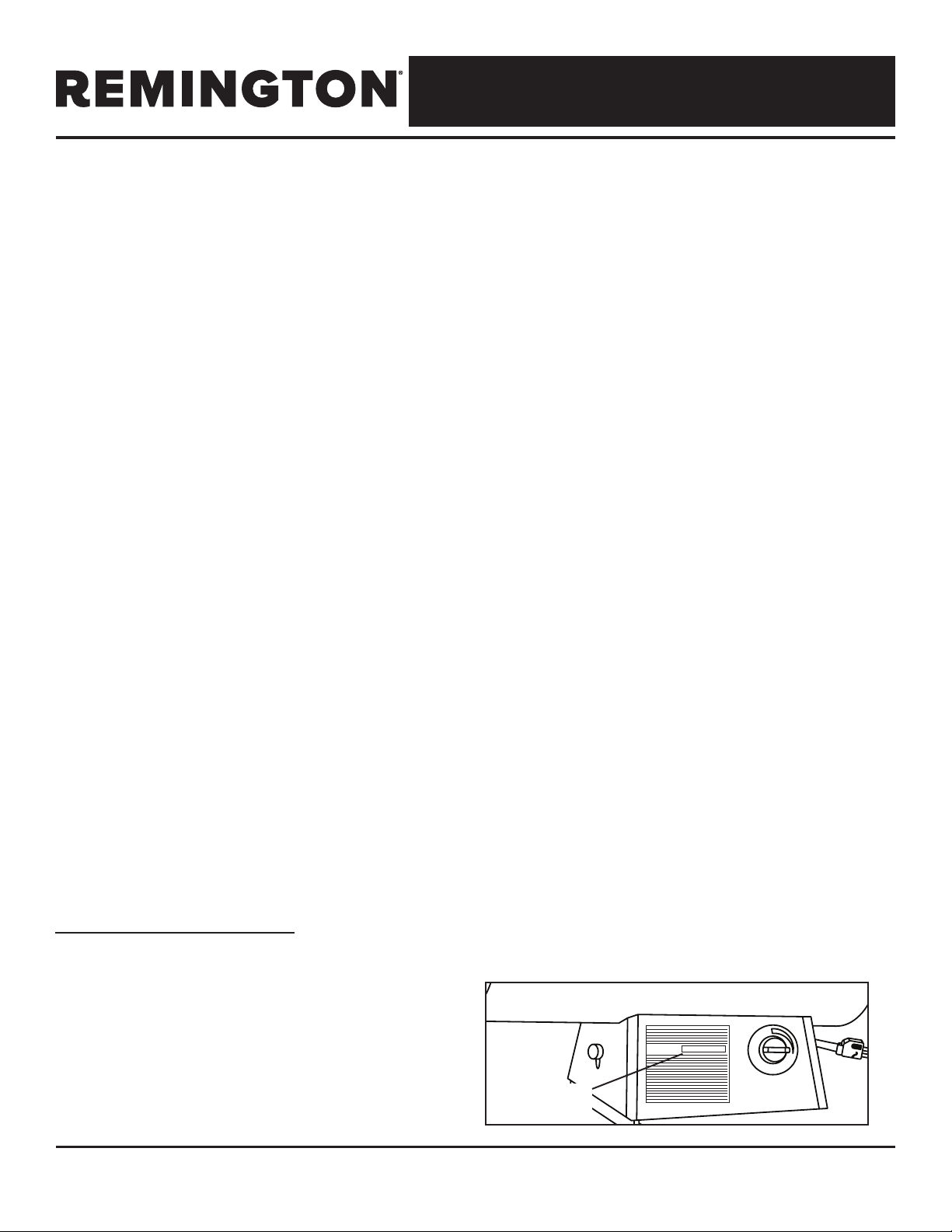

Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will begin
with the letter “G” followed by 9 digits. For Example: G123456789. Have your Serial Number ready
before calling customer service at 866-676-1989.

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
4
59
10 11
12
13 14
22
17
20
19
16
3
23
2
21
1
6
8
7
15
18

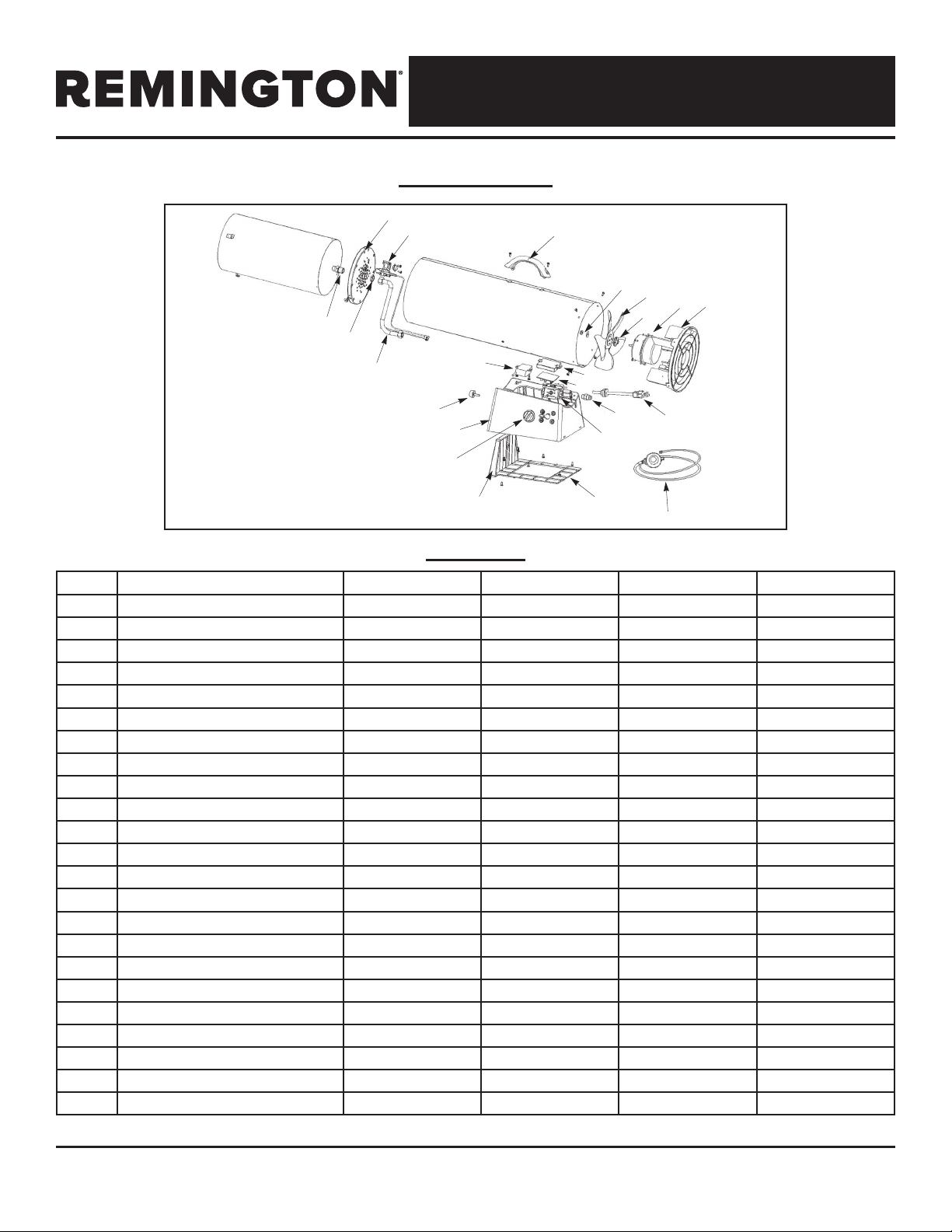

Exploded View
Figure 8
8
Item # Description 40-GFA 60V-GFA 125V-GFA 150V-GFA
1 Base 22-501-0003 22-501-0003 22-501-0004 22-501-0004
2 Height Controller 22-512-0006 22-512-0006 22-512-0008 22-512-0008
3 Base Cover 22-508-0003 22-508-0003 22-508-0004 22-508-0004
4 Inner Shell Cap 22-505-0006 22-505-0010 22-505-0011 22-505-0008
5Multi Bracket Assembly 22-504-0002 22-504-0002 22-504-0002 22-504-0002
6Tubing Assembly 22-605-0001 22-605-0001 22-605-0002 22-605-0007
7 Nozzle 22-081-0007 22-081-0014 22-081-0015 22-081-0004
8 Nozzle Nut 22-518-0001 22-518-0001 22-518-0002 22-518-0002
9 Handle 22-511-0004 22-511-0004 22-511-0004 22-511-0004
10 Flange Hex Nut 22-518-0003 22-518-0003 22-518-0003 22-518-0003
11 Fan 22-514-0001 22-514-0001 22-514-0002 22-514-0002
12 Cushion Pad 22-509-0001 22-509-0001 22-509-0001 22-509-0001
13 Motor 22-061-0015 22-061-0015 22-061-0016 22-061-0016
14 Rear Guard 22-101-0003 22-101-0003 22-101-0004 22-101-0004
15 Round Bolt 22-503-0002 22-503-0002 22-503-0003 22-503-0003
16 Valve Assembly 22-011-0005 22-011-0017 22-011-0018 22-011-0008
17 Inlet Connector 22-507-0003 22-507-0003 22-507-0003 22-507-0003
18 Spark Module ‒22-604-0005 22-604-0005 22-604-0005
19 PCB Assembly 22-521-0001 22-521-0002 22-521-0002 22-521-0002
20 PCB Case 22-506-0001 22-506-0001 22-506-0001 22-506-0001
21 Valve Knob 22-516-0001 22-516-0001 22-516-0001 22-516-0001
22 Power Cord 22-131-0001 22-131-0001 22-131-0001 22-131-0001
23 Regulator Assembly 22-041-0004 22-041-0004 22-041-0005 22-041-0005
Parts List

NEVER LEAVE HEATER UNATTENDED WHILE
BURNING, CONNECTED TO A POWER SOURCE, OR
WHILE CONNECTED TO A FUEL SOURCE
© 2017, Pinnacle Climate Technologies, Inc. Propane Forced Air Heater User’s Manual
LIMITED WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater
to the original retail purchaser only, to be free from defects
in material and workmanship for a period of one (1) year
from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance
with the instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies , Inc. shall determine at
its reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating difculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
to the nish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. nds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims al warranties for products
that are purchased from sellers other than authorized
dealers or distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
APPLICATION. FURTHER, Pinnacle Climate Technologies,
Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER
OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle
Climate Technologies, Inc. assumes no responsibility for
any defects caused by third parties. This Limited Warranty
gives the purchaser specic legal rights; a purchaser may
have other rights depending upon where he or she lives.
Some states do not allow the exclusion or limitation of
special, incidental or consequential damages, or limitations
on how long a warranty lasts, so the above exclusion and
limitations may not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize
any person or company to assume for it any other
obligation or liability in connection with the sale, installation,
use, removal, return or replacement of its equipment, and
no such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will begin with the
letter “G” followed by 9 digits. For Example: G123456789. Have your Serial Number ready before calling cus-
tomer service at 866-676-1989.
XXX-XXXXXXXX
Serial Number
Label
9

1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.remingtonheater.com • Email: [email protected]
© 2017 Pinnacle Climate Technologies, Inc.
