Pinnacle Climate Technologies Master MH-45-KFA Training manual

MODEL NUMBERS:
MH-45-KFA / MH-80T-KFA / MH-140T-KFA / MH-190T-KFA / MH-215T-KFA
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING: READ AND UNDERSTAND
ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE
ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure
to comply with the instructions and warnings provided with this heater. Failure to comply
can result in re or explosion that can cause property loss, bodily injury, or loss of life. Only
persons who can follow and understand these instructions should operate or service this
heater. If you need heater info; such as an operating manual, labels, etcetera, contact Pinnacle
Climate Technologies at 800-641-6996.
DANGER
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED
SPACES WITHOUT ADEQUATE VENTILATION. THIS HEATER IS
SUITABLE FOR OUTDOOR USE, AND INDOOR USE ONLY IN
WELL-VENTILATED AREAS. INDOOR USE PERMITTED ONLY FOR: THE TEMPORARY
HEATING OF ADEQUATELY VENTILATED BUILDINGS OR STRUCTURES UNDER
CONSTRUCTION, ALTERATION OR REPAIR. This is an unvented portable heater that
uses air (Oxygen) from within the area in which it is used. Failure to provide adequate
combustion and ventilation air will result in asphyxiation, carbon monoxide poisoning, bodily
injury or death. Refer to “Ventilation” on Page 6.
FACTORY ID: 500
DANGER
Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [email protected]
© 2020 Pinnacle Climate Technologies, Inc. MAKL-424
User’s Manual &
Operating Instructions
KEROSENE FORCED AIR
HEATER
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. For Example:
150812779. Have your Serial Number ready before calling customer service at 800-641-6996.

2
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in
any building which is used in whole or in part for human habitation. Use of this heating device
in Massachusetts requires local re department permit (M.G.L.C. 148, Section 10A).
NEW YORK CITY RESIDENTS: The New York City Fire Code prohibits the storage, handling
and use of kerosene fueled heaters for space heating. Any person violating that provision may
be punished by a ne up to $10,000 and a term of imprisonment of up to 6 months.
Look for this icon throughout the manual for helpful tips on how to assemble, use and
clean your KFA Heater.
THE INSTALLATION OF THE EQUIPMENT SHALL BE IN ACCORDANCE WITH THE
REGULATION OF AUTHORITIES HAVING JURISDICTION AND CSA STANDARD B139.
This product can expose you to chemicals, including lead, which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
DO NOT START THE HEATER WHEN EXCESS OIL HAS ACCUMULATED.
DO NOT START THE HEATER WHEN THE CHAMBER IS HOT.
WARNING
WARNING
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep com-
bustibles such as; building materials, paper or cardboard a safe dis-
tance away from the heater as recommended by these instructions.
Never use the heater in spaces which contain products such as; gasoline, solvents, paint
thinners, dust particles, volatile or airborne combustibles or any unknown chemicals. This is
an unvented portable heater. It uses air (Oxygen) from the area in which it is used. Adequate
combustion and ventilation air must be provided. Refer to “Ventilation” on page 6. Bulk fuel
storage should be a minimum of 25 feet (7.6 m) from heater.
WARNING
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND
THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING
INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with
this heater can result in death, serious bodily injury, property loss or damage from the hazards of
re, soot production, explosions, burns, asphyxiation or carbon monoxide poisoning. Only per-
sons who can read and understand these instructions should use or service this heater.
WARNING
SAFETY INFORMATION
Safety Information.......................................................2-3
What’s in the Box.............................................................4
Specications...................................................................5
Features.. ......................................................................... 5
Assembly Instructions....................................................5
Operation......................................................................6-7
Maintenance.................................................................8-9
Wiring Diagrams............................................................10
Troubleshooting Guide.................................................11
Exploded View ......................................................... ... . .12
Parts List...........................................................................13
Limited Warranty.............................................................14
TABLE OF CONTENTS

3
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
SAFETY INFORMATION CONT.
ALWAYS use only the electrical power (voltage and
frequency) specied on the model plate of the heater.
ALWAYS use only three-prong, grounded outlet and
extension cord.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER rell the heater’s fuel tank while the heater
is operating or still hot. This heater is EXTREMELY
HOT while in operation.
NEVER block air inlet (rear) or air outlet (front).
NEVER use duct work in front or rear of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
45-190T-KFA 215T-KFA
Top 4 ft. (122 cm) 4 ft. (122 cm)
Sides 4 ft. (122 cm) 4 ft. (122 cm)
Front 8 ft. (244 cm) 10 ft. (305 cm)
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat, once it
is plugged in, it can start at anytime in accordance
with the thermostat setting.
RISK OF BURNS,
FIRE AND
EXPLOSION!
RISK OF ELECTRIC
SHOCK!
WARNING
WARNING
CAUTION! HOT
WHILE IN OP-
ERATION. DO
NOT TOUCH. KEEP CHILDREN, ANIMALS,
CLOTHING AND COMBUSTIBLES AWAY
FROM HEATER.
WARNING
The products described in this manual are
kerosene direct-red, forced air heaters. Kerosene
forced air heaters are primarily intended for use for
temporary heating of buildings under construction,
alteration or repair. Direct-red means that all
of the combustion products of the heater enter
the heated space. This appliance is rated at 98%
combustion eciency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this
manual can result in death.People with breathing
problems should consult a physician before
using this heater. Early signs of carbon monoxide
poisoning resemble the u. Symptoms of improper
ventilation/carbon monoxide poisoning are:
Headache • Dizziness •Nausea • Dry Mouth Sore
Throat •Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more aected by carbon monoxide
than others. These include: pregnant women, those
with heart or lung problems, anemia or those under
the inuence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE PERMITTED
ONLY FOR: The temporary heating of adequately
ventilated buildings or structures under
construction, alteration or repair. Provide at
least a three square foot (2,800 sq cm) opening
of outside air for every 100,000 Btu/Hr (29 kW)
heater rating. Refer to “Ventilation” on page 6 for
further instructions.
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON
MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER

4
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual

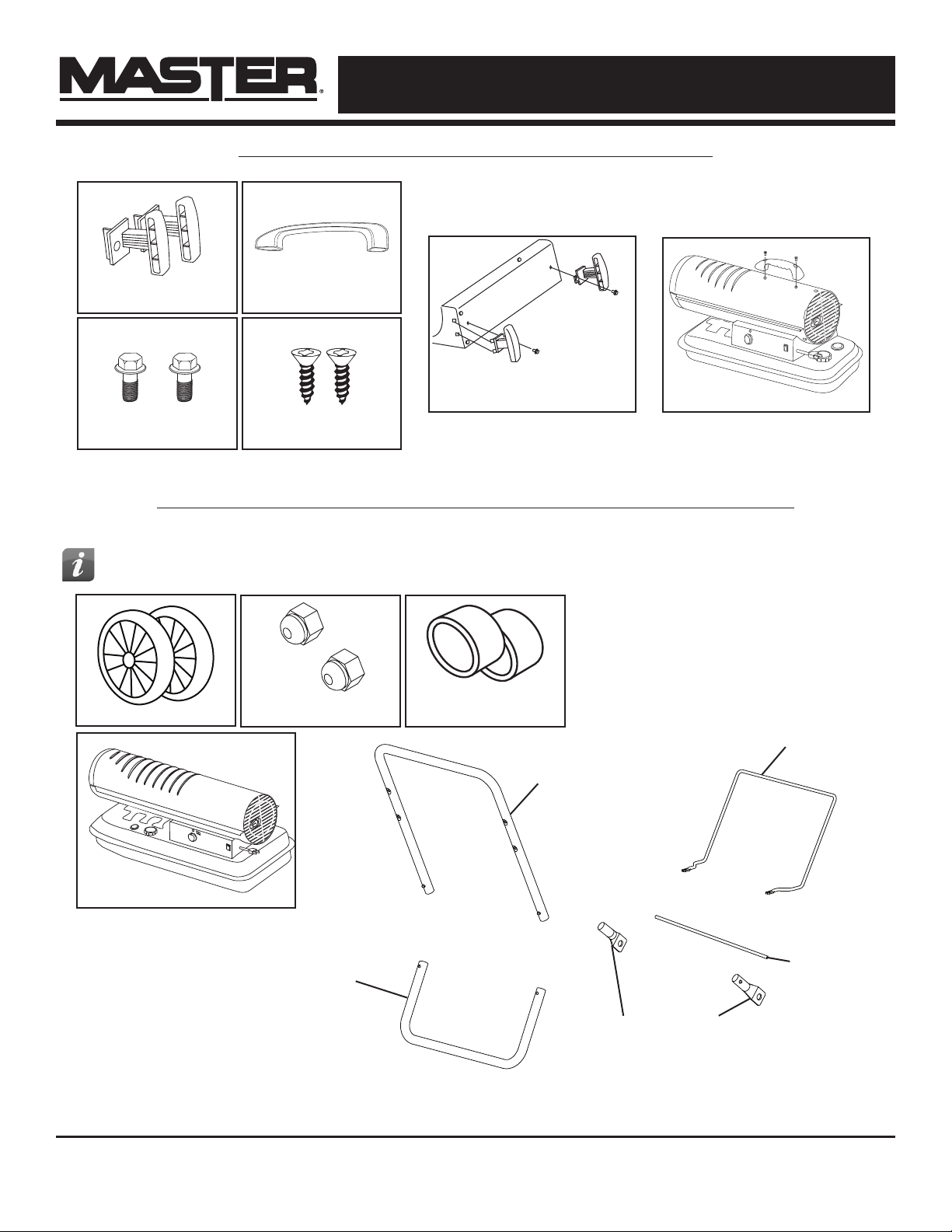

WHAT’S IN THE BOX 45KFA / 80TKFA
- Remove the heater and all packaging materials
from the shipping carton Note: Save the box and packaging materials for future storage.
Shown With Optional Cord
Wraps
Cord Wraps (Optional) Carry Handle (1)
10 mm Screws (2) 15 mm Screws (2)
WHAT’S IN THE BOX 140TKFA / 190TKFA / 215TKFA
Tip: Be sure to remove the axle from the side of the
Styrofoam packaging.
Wheels (2) Axle Nuts (2)
Spacers (2)
Heater (1)
Heater (1)
Axle
Safety Guard
Rear Handle
Wheel Support Frame
Axle Supports

5
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual

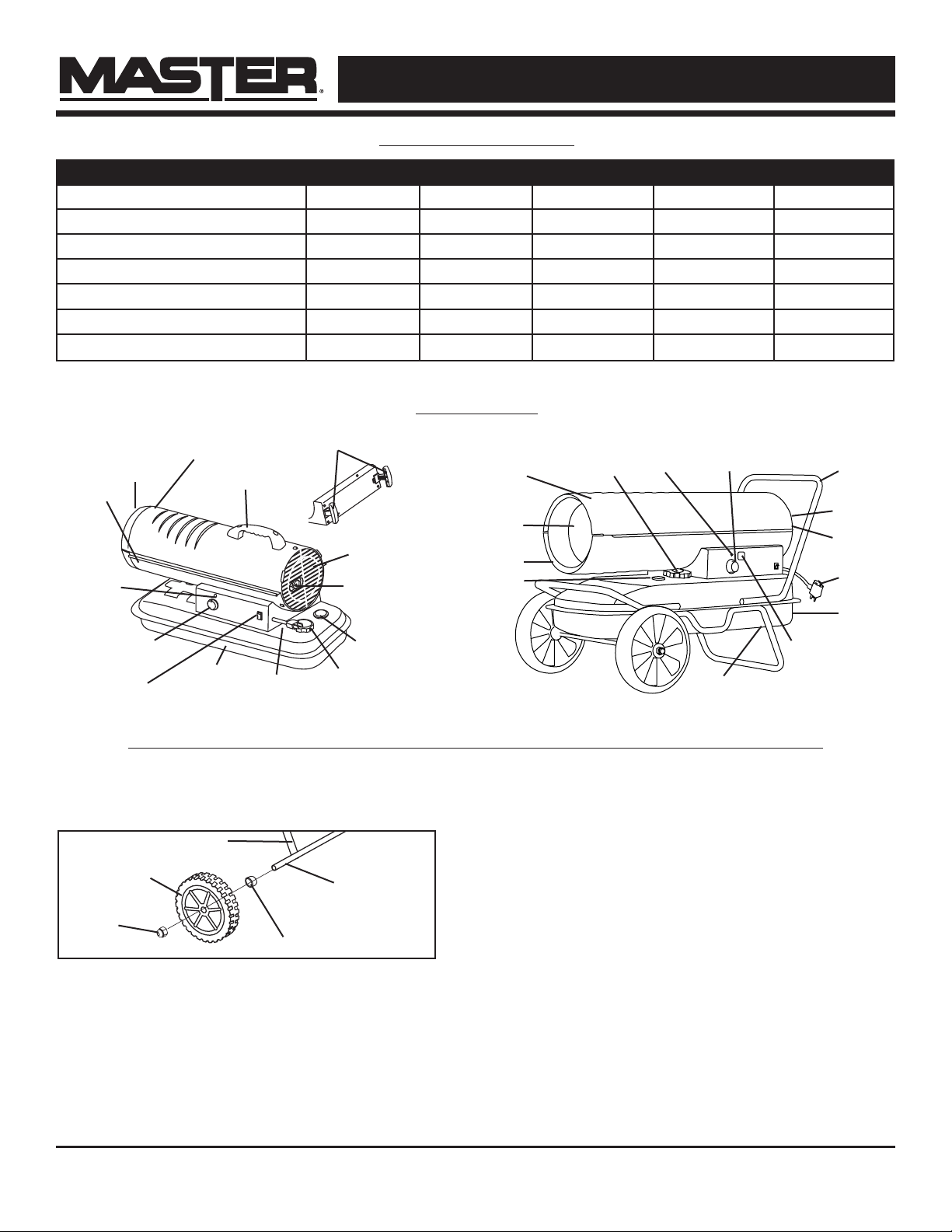

ASSEMBLY INSTRUCTIONS 140TKFA / 190TKFA / 215TKFA

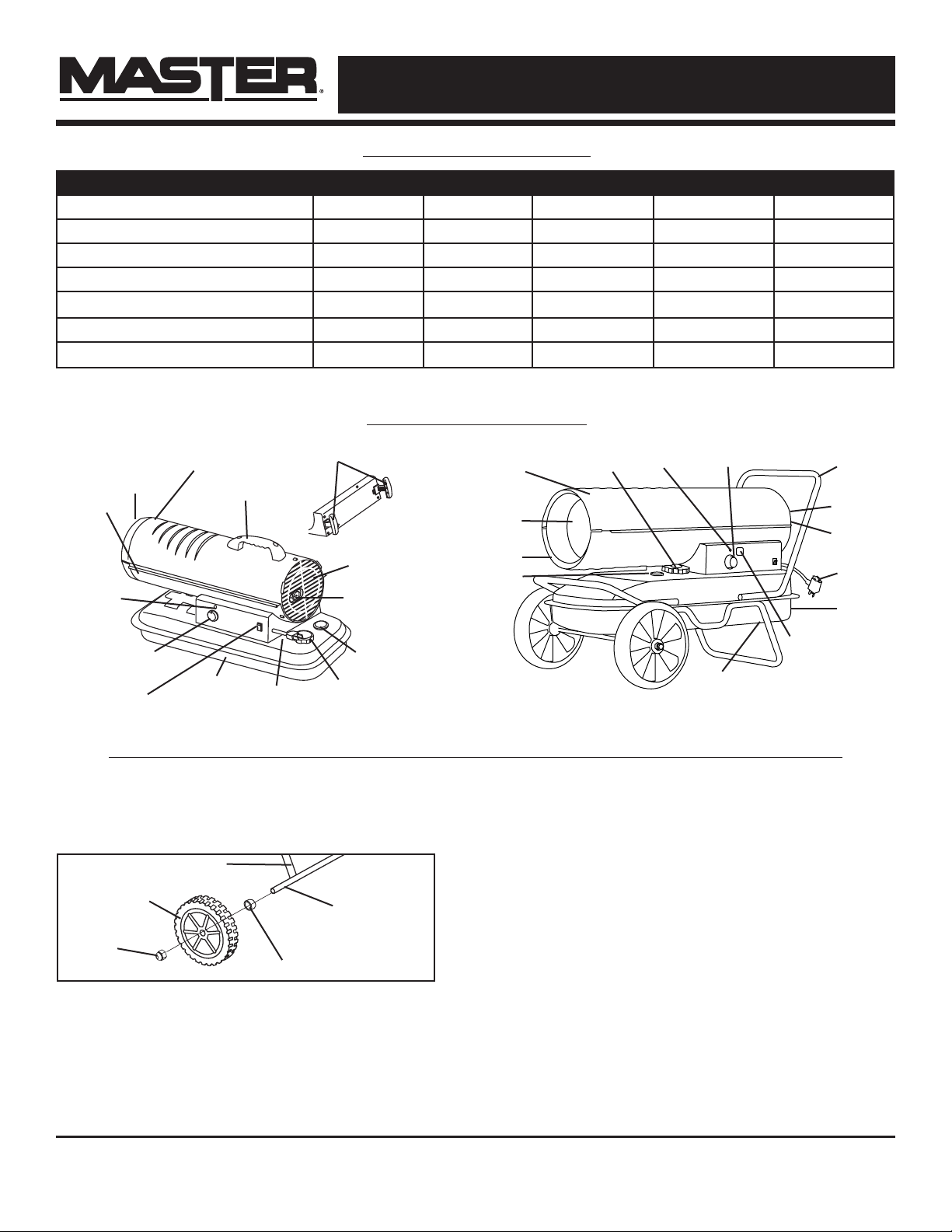

SPECIFICATIONS
Model # 45-KFA 80T-KFA 140T-KFA 190T-KFA 215T-KFA
Rating: Btu/Hr / kW 45,000 / 13.2 80,000 / 23.4 140,000 / 41 190,000 / 55.7 215,000 / 63
Fuel Consumption: Gal/Hr / L/Hr 0.35 / 1.3 0.63 / 2.38 1.1 / 4.16 1.42 / 5.38 1.63 / 6.17
Fuel Tank Capacity: Gallons / Liters 5 / 19 5 / 19 10 / 38 13 / 49 13 / 49
Pump Pressure: psi / BAR 3.0 / 0.21 4.2 / 0.29 6.6 / 0.46 8.5 / 0.59 9.0 / 0.62
Volts: AC/Hz 120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz
Amps 1.4 1.5 2.4 2.7 2.8
Phase Single Single Single Single Single
Specications subject to change without notice.
FEATURES
Hot Air Outlet
Upper Shell
Handle
Extension Cord Wrap
Fan Guard
Pressure Gauge
Fuel Gauge
Fuel Cap
Power Cord
Fuel Tank
Power/Reset Switch
Thermostat Knob
(80T KFA Only)
Lamp
Lower Shell
Upper Shell
Power
Cord
Drain Bolt
Fuel Tank
Pressure
Gauge
Fan Guard
Rear Handle
Digital Temperature
Display
Lamp
Thermostat
KnobFuel Cap
Fuel Gauge
Lower Shell
Hot Air
Outlet
1. Tilt the heater tank backward and attach the Wheel
Support Frame by inserting it into the button spring
clips at the back of the bottom support frame.
2. Attach the axle supports by inserting them into
the button spring clips at the front of the bottom
support frame.
3. Insert the axle through the holes in the axle supports.
4. Slide the spacers onto the axle.
5. Slide the wheels onto the axle and secure with the
axle nuts.
6. Attach the rear handle by inserting the handle
into the button spring clips at the rear of the top
support frame.
7. Check all parts to ensure they are secure before
operating the heater.
Figure 1
Axle
Axle Nut
Spacer
Tire
Axle Support

6
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
Fueling The Heater:
Kerosene (K-1)
For optimal performance of this heater, it is
strongly suggested that K-1 kerosene be used,
especially in temperatures lower than 26°F
(-3°C). K-1 kerosene has been rened to virtually
eliminate contaminants, such as sulfur, which can
cause a rotten egg odor during the operation of
the heater. Using diesel fuel can cause excess
soot production. Do not use Bio-Diesel as this fuel
will damage your heater’s seals and lter.
- CSA certified for use with K-1 kerosene, no. 1 &
no. 2 diesel, JP8/Jet A Fuel, no. 1 and no. 2 fuel
oil.
DO NOT use any fuel that is not approved above.
- NEVER use fuel such as, benzene, alcohol, white
glass, camp stove fuel, paint thinners, or other oil
compounds in this heater. THESE ARE VOLATILE
FUELS THAT CAN CAUSE A FIRE OR EXPLOSION.
- NEVER store kerosene in the living space. Kerosene
should be stored in a well ventilated area outside
the living area.
- NEVER store kerosene in direct sunlight or near a
source of heat.
- NEVER use kerosene that has been stored from one
season to the next. Kerosene deteriorates over time.
OLD KEROSENE WILL NOT BURN PROPERLY IN
THIS HEATER.
NOTE: Kerosene should only be stored in a blue
container that is clearly marked “Kerosene.” Never
store kerosene in a red container. Red is associated
with gasoline.
Ventilation:
- Risk of indoor air pollution and Carbon Monoxide
Poisoning. Use heater only in well ventilated
areas.
- Refer to Safety Information on page 3 for
information about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated
space of at least three square feet (2,800 sq. cm) for
each 100,000 Btu / Hr. (29 kW) of heater output.
Provide a larger opening if more heaters are being
used.
Minimum Ventilation Opening Needed
45-KFA 80T-KFA 140T-KFA
1.4 ft.² 2.4 ft.² 4.2 ft.²
1300 cm² 2230 cm² 3902 cm²
Minimum Ventilation Opening Needed
190T-KFA 215T-KFA
5.7 ft.² 6.5 ft.²
5295 cm² 6039 cm²
OPERATION
NEVER FILL THE
FUEL TANK IN-
DOORS. ALWAYS
FILL THE TANK OUTDOORS. BE SURE THAT
THE HEATER IS ON LEVEL GROUND WHEN
FUELING, AND NEVER OVERFILL THE
TANK.
CAUTION
CARBON MONOXIDE POISONING MAY LEAD
TO DEATH!
DANGER
DO NOT USE GAS-
OLINE OR CRANK-
CASE DRAININGS.
WARNING
NEVER REFUEL
THIS HEATER
WHILE IT IS HOT
OR OPERATING. FIRE OR EXPLOSION
COULD RESULT.
DANGER

7
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
OPERATION CONT.
Starting the Heater: (Ignition)
1. Fill the tank with kerosene or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten rmly.
3. Connect the heater to a three prong
(grounded) power source. You must use a three
prong (grounded) extension cord that is at least
6 feet long and is a minimum of 14 AWG rating.
Model 45-KFA:
1. Complete steps 1-3 above.
2. Move power switch to “On” position. The power
indicator light will illuminate and the heater will
ignite.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the “O”
position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Models 80T-KFA - 215T-KFA:
1. Complete “starting heater ignition” steps 1-3
above
2. Turn thermostat control knob to desired
temperature setting. The thermostat set range is
from 40 ºF to 110 ºF.
3. Move power switch to “On” position. The power
indicator light and room temperature display will
illuminate and heater will ignite.
NOTE: 45-80T-KFA models do not have a room
temperature display feature.
The room temperature display will indicate the
following:
- When the temperature is less than 0 ºF the
display says “LO”.
- When the temperature is more that 99 ºF the
display says “HI”.
- Between 0 °F and 99 °F the display shows
actual temperature.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the “O”
position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Long Term Storage:
Models 45-KFA - 80T-KFA:
1. Use an approved siphon to drain fuel through the
fuel cap opening.
Models 140T-KFA - 215T-KFA:
1. Drain fuel through the drain bolt in the bottom of
the fuel tank.
2. To remove the drain bolt, unscrew
counterclockwise.
3. Using a small amount of kerosene, rinse and
swirl the kerosene inside of the fuel tank, empty
the tank fully.
4. To replace the drain bolt; push the drain head
fully into the drain hole and screw clockwise.
IMPORTANT: Never store leftover kerosene between
seasons, using old fuel can damage heater.
TIP: If the heater does not ignite; move
switch to “O” position, check steps 1-3
above and then move switch to “On” position.
TIP: If the heater does not ignite, the
thermostat may be set too low. Turn the
control knob to a higher setting until the
heater ignites. If the heater does not ignite; move
switch to “Off” position, check steps 1-3 above
and then move switch to “On” position.

8
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
MAINTENANCE
Service:
DO NOT TAMPER WITH THE UNIT. HAVE
A COMPETENT SERVICEMAN MAKE ANY
NECESSARY ADJUSTMENT OR REPAIRS.
Use only original equipment parts. The use of
alternate or third party components can cause unsafe
operating conditions and will void your warranty.
We suggest following a maintenance schedule as follows:
FUEL / FUEL TANK:
Flush tank every 200 hours of operation or as needed.
DO NOT ush with water; use fresh K-1 kerosene only.
AIR FILTERS:
The air intake lter should be replaced or washed with
soap and water and dried thoroughly every 500 hours
of operation or less depending on conditions.
The output and lint lters should be replaced every
500 hours of operation or less depending on
conditions. (See Figure 3)
NOTE: Use of diesel fuel may require additional
maintenance
FAN BLADES:
Blades should be cleaned at least once per heating
season, depending on conditions. Remove all
accumulated dust and dirt with a damp cloth, taking
care not to bend any of the fan blades. Be sure the
blades are dry before re-starting the heater.
FUEL FILTER:
The fuel filter should be cleaned at least twice
per heating season. Clean the filter by rinsing it in
clean K-1 Kerosene. Contaminated fuel could make
cleaning the fuel filter necessary immediately.
NOTE: To remove the filter from models 45 - 80T-
KFA turn filter 90º clockwise. To remove the
filter from models 140T - 215T-KFA turn filter 90º
counter-clockwise. See Figure 2.
THERMISTER PLACEMENT:
Ensure the thermister wire is in the proper place.
The wire should be lying on the bottom shell inside
the heater with the plastic end placed under the
motor support/motor and away from fan blade.
ROTOR:
The rotor with carbon vanes should be evaluated
every heating season. The rotor is behind the air
filters. The vanes should be inspected for damage
or wear. The rotor should be inspected for damage,
chips, wear, cracks.
Check rotor gap: Remove the rear cover. Loosen
the two pump ring screws. Lift the pump ring
upwards. Insert a 0.1 mm feeler gauge and
apply slight downward pressure, enough to offer
resistance when attempting to remove gauge.
Hand-tighten the two pump ring screws. Re-install
the End Pump Cover and the plastic End Filter
Cover. Start the heater and adjust to the proper
pump pressure.

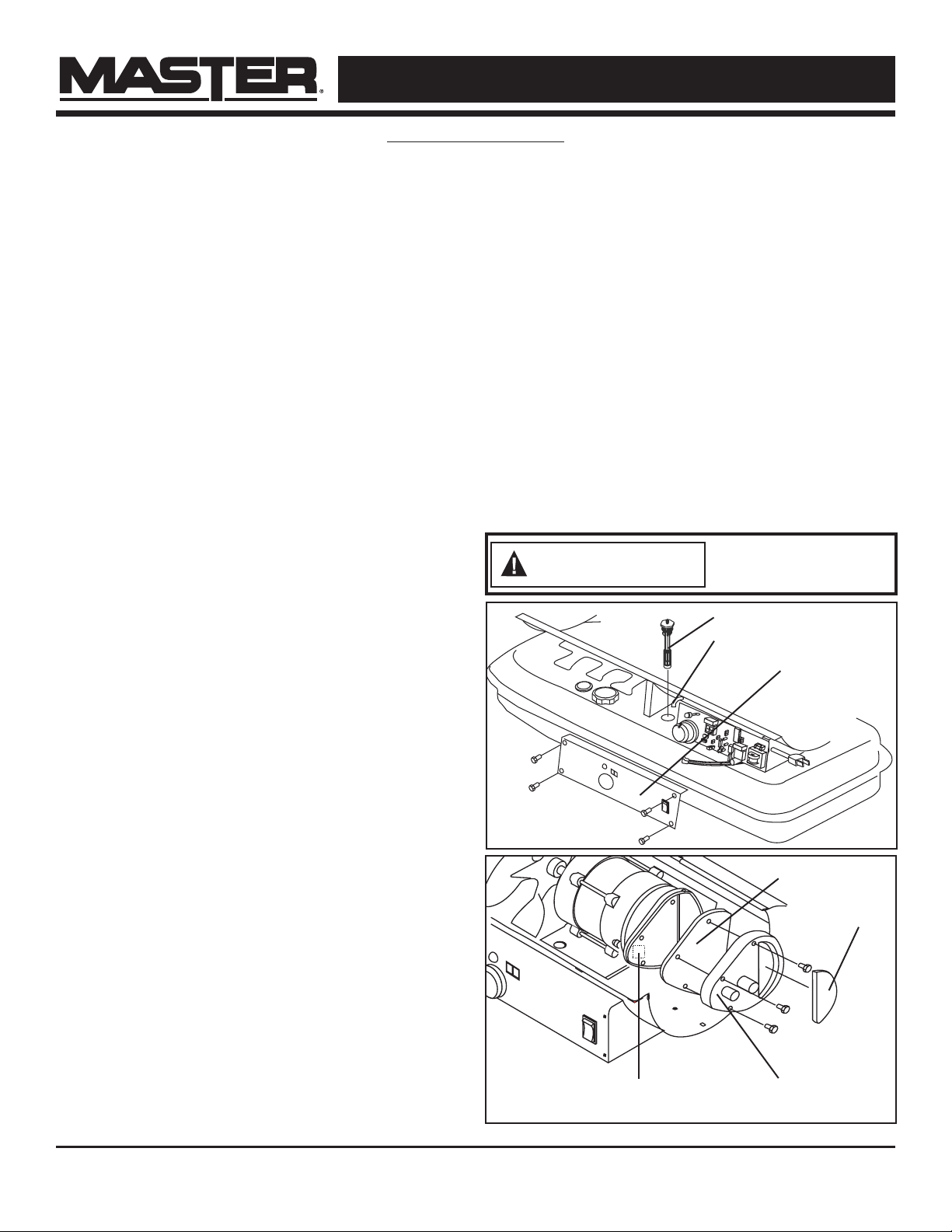

Air Output Filter
Intake Filter
Lint Filter End Filter
Figure 3
Never service heater
while it is plugged in
or hot!
WARNING
Figure 2
Fuel Filter
Fuel Line
Side Cover

9
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
XX
MAINTENANCE CONT.
Service (Continued):
SPARK PLUG:
Clean and re-gap every 600 hours of operation, or
replace as needed. After removing the spark plug,
clean the terminals with a wire brush. Re-gap the
terminals to 0.140” (3.5mm). See Figure 4.
PHOTOCELL:
The photocell should be cleaned using a cotton
swab dipped in alcohol or water at least once per
heating season, or more depending on conditions.
See Figure 5.
PUMP PRESSURE:
While heater is operating, turn adjusting screw
clockwise to increase, counter-clockwise to
decrease pressure. Correct pump pressure is as
follows:
Model Number Pump Pressure
45-KFA 3.0 PSI (0.21 BAR)
80T-KFA 4.2 PSI (0.29 BAR)
140T-KFA 6.6 PSI (0.46 BAR)
190T-KFA 8.5 PSI (0.59 BAR)
215T-KFA 9.0 PSI (0.62 BAR)
Tolerance ± 10%
NOZZLES:
Nozzles should be cleaned or replaced at least once
per heating season. Contaminated fuel could make
this necessary immediately. To clean dirt from nozzle,
blow compressed air through nozzle front. It may
be necessary to soak the nozzle in K-1 kerosene to
loosen any dirt particles.
Figure 4 Ignitor Wire
Spark Plug
Gap
Burner Head
Figure 5
Photocell Photocell lens
Photocell
Wire
Figure 7
Adjusting Screw
Pressure Valve
Figure 6
Nozzle
Nozzle Face
Burner Head

10
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
WIRING DIAGRAMS
(80T-KFA)
(140T-KFA)
(175T-KFA / 190T-KFA / 215T-KFA)
Models
140T/175T/190T/215T-KFA have
a digital display.
80T-KFA
140T-KFA / 175T-KFA / 190T-KFA
45-KFA
80T - 215T- KFA

11
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
Heater Ignites, but main PCB shuts
o after a short period of time.
Lamp ickers and LED display shows
“E1”.
1. Incorrect pump pressure.
2. Dirty input, output or lint lter.
3. Dirty fuel lter.
4. Nozzle is dirty.
5. Photocell lens is dirty.
6. Photocell not installed properly.
7. Photocell is defective.
8. Improper electrical connection
between main PCB and photocell.
9. Improper location of thermister sensor
(does not apply to 45-KFA model)
10. Improper electrical connection within
the temperature limit switch
1. Adjust pump pressure.
2. Clean / replace air or lint lter.
3. Clean / replace fuel lter.
4. Clean / replace Nozzle.
5. Clean / replace photocell.
6. Adjust photocell position
7. Replace photocell
8. Check wiring connections
(see wiring diagrams on page 10).
9. Check thermister placement
10. Replace temperature limit switch
Heater will not operate or motor
runs for a short time.
Lamp ickers and LED display shows
“E1”.
1. No kerosene in the fuel tank.
2. Incorrect pump pressure.
3. Corroded spark plug or incorrect
plug gap.
4. Dirty fuel lter.
5. Dirty nozzle.
6. Moisture in fuel tank.
7. Improper electrical connection
between transformer and circuit
board.
8. Ignitor wire not connected to spark
plug.
9. Defective ignitor.
10. Improper spacing with rotor
1. Fill tank with fresh kerosene.
2. Adjust pump pressure.
3. Clean / replace spark plug.
4. Clean / replace fuel lter.
5. Clean / replace nozzle.
6. Rinse fuel tank with clean, fresh
kerosene.
7. Inspect all electrical connections
(see wiring diagrams on page 10).
8. Re-attach ignitor wire to spark plug.
9. Replace ignitor.
10. Adjust rotor
Fan does not operate when heater
is plugged in and power switch is
in the “ON” position. The lamp is
ickering or and LED display shows
“E1” or “E2”.
1. Thermostat is set too low (does not
apply to 45-KFA model).
2. Broken electrical connection
between main PCB and motor.
1. Rotate thermostat to a higher setting
2. Inspect all electrical connections
(see wiring diagrams on page 10).
Lamp is ickering and LED display
shows “E3”.
1. Thermostat switch has failed. 1. Replace thermostat switch (see
Wiring diagrams on page 10).
Poor combustion and / or excess
soot production.
1. Dirty input, output or lint lter.
2. Dirty fuel lter.
3. Poor quality of fuel.
4. PSI is too high or too low.
5. Dirty nozzle
1. Clean / replace air or lint lter.
2. Clean / replace fuel lter.
3. Flush fuel tank and refuel heater.
4. Use proper pressure.
5. Clean / replace nozzle
Heater does not turn on and the
lamp is not lit.
1. Temperature limit sensor has
overheated.
2. No electrical power.
3. Fuse is blown.
4. Improper electrical connection
between temperature limit sensor
and circuit board.
1. Push power switch to “OFF and
allow heater to cool for 10 minutes.
Restart heater.
2. Check power cords for proper
connection and test the power
supply.
3. Check / replace the fuse.
4. Inspect all electrical connections
(see wiring diagrams on page 10).

12
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
13
1012
8
11
929
25
3
15
2
4
61**
7
21
23
16
17
18
20 30
19
14 39**
32*
33**
34**
28
27
5
31
30
24
26
36**
35**
37**
40
22
41**
41**
EXPLODED VIEW
* 45-KFA - 80T-KFA Only
** 140T-KFA - 215T-KFA Only

13
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
PARTS LIST
TIP: To order parts call 800-641-6996.
#Description 45-KFA 80T-KFA 140T-KFA 190T-KFA 215T-KFA
1Drain Bolt ––70-002-0115 70-002-0115 70-002-0115
2Fuel Gauge 70-007-0110 70-007-0110 70-007-0215 70-007-0215 70-007-0215
3Fuel Filter 70-003-0100 70-003-0100 70-003-0200 70-003-0200 70-003-0200
4Fuel Cap - Large Plastic 70-006-0140 70-006-0140 70-006-0140 70-006-0140 70-006-0140
5Power Cord 70-034-0100 70-034-0100 70-034-0205 70-034-0205 70-034-0205
6Power Switch 70-038-0100 70-038-0100 70-038-0100 70-038-0100 70-038-0100
7Thermostat Control Knob – 70-031-0100 70-031-0100 70-031-0100 70-031-0100
8Air Line 70-035-0100 70-035-0200 70-035-0300 70-035-0400 70-035-0500
9Thermostat Limit Control 70-019-0100 70-019-0100 70-019-0100 70-019-0100 70-019-0200
10 Photocell Bracket 70-010-0101 70-010-0101 70-010-0101 70-010-0101 70-010-0101
11 Fuel Line 70-036-1010 70-036-1010 70-036-1020 70-036-1030 70-036-1040
12 Photocell 70-016-0100 70-016-0100 70-016-0100 70-016-0100 70-016-0100
13 Burner Head Assembly 70-014-0101 70-014-0101 70-014-0301 70-014-0301 70-014-0301
14 Nozzle Kit 70-015-0100 70-015-0205 70-015-0310 70-015-0410 70-015-0500
15 Spark Plug Kit 70-052-0100 70-052-0100 70-052-0200 70-052-0200 70-052-0200
16 Motor 70-021-0500 70-021-0500 70-021-0510 70-021-0520 70-021-0520
17 Pump Body 70-020-0101 70-020-0101 70-020-0101 70-020-0401 70-020-0401
18 Rotor Kit 70-022-0100 70-022-0100 70-022-0100 70-022-0200 70-022-0200
19 End Pump Cover 70-020-0102 70-020-0102 70-020-0102 70-020-0102 70-020-0102
20 Filter Kit 70-054-0100 70-054-0100 70-054-0100 70-054-0100 70-054-0100
21 End Filter Cover 70-020-0103 70-020-0103 70-020-0103 70-020-0103 70-020-0103
22 Pump Adjustment Kit 70-055-0100 70-055-0100 70-055-0100 70-055-0100 70-055-0100
23 Capacitor 70-020-0125 70-020-0125 70-020-0200 70-020-0201 70-020-0201
24 Fan 70-024-0100 70-024-0200 70-024-0300 70-024-0400 70-024-0400
25 Ignitor 70-037-0350 70-037-0350 70-037-0350 70-037-0350 70-037-0350
26 Fan Guard 70-016-0700 70-016-0700 70-016-0200 70-016-0200 70-016-0200
27 Main PCB Assembly 70-027-0100 70-027-0200 70-027-0300 70-027-0300 70-027-0300
28 Fuse 70-027-0101 70-027-0101 70-027-0101 70-027-0101 70-027-0101
29 Clip Nut 70-001-0106 70-001-0106 70-001-0106 70-001-0106 70-001-0106
30 Air Pressure Gauge – 70-025-0100 70-025-0100 70-025-0100 70-025-0100
31 Cord Bushing 70-033-0100 70-033-0100 70-033-0200 70-033-0200 70-033-0200
32 Handle 70-001-0103 70-001-0103 – – –
33 Rear Handle – – 70-041-0725 70-043-0600 70-043-0600
34 Wheel Support Frame – – 70-043-0110 70-041-0760 70-041-0760
35 Wheel Axle – – 70-041-0115 70-041-0205 70-041-0205
36 Wheel – – 70-041-1400 70-041-1400 70-041-1400
37 Wheel Nut – – 70-041-0550 70-041-0550 70-041-0550
38 Hardware Kit (not pictured) 70-056-0100 70-056-0100 70-056-0210 70-056-0210 70-056-0210
39 Cord Wrap 70-032-0100 70-032-0100 70-032-0200 70-032-0200 70-032-0200
40 Motor Supporter 70-020-0600 70-020-0600 70-020-0610 70-020-0610 70-020-0610
41 Axle Frame – – 70-041-0735 70-041-0735 70-041-0735
42 Safety Guard (not pictured) – – 70-065-1005 70-065-1005 70-065-1005

14
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
LIMITED WARRANTY 5YEAR MOTOR WARRANTY
Pinnacle Climate Technologies, Inc. warrants this heater to
the original retail purchaser only, to be free from defects in
material and workmanship for a period of one (1) year from
the date of initial purchase. This product must be properly
installed, maintained and operated in accordance with the
instructions provided.
Pinnacle Climate Technologies, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Climate Technologies , Inc. shall determine at its
reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
operating diculties due to normal wear and tear, accident,
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third party. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
to the nish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser. Upon
receipt of damaged item, Pinnacle Climate Technologies,
Inc. will examine the item and determine if defective.
Pinnacle Climate Technologies, Inc. will repair or replace
and return the item, freight pre-paid.
If Pinnacle Climate Technologies, Inc. nds the item to
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is
in lieu of all other express warranties. Pinnacle Climate
Technologies, Inc. disclaims all warranties for products that
are purchased from sellers other than authorized dealers or
distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Climate Technologies,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle
Climate Technologies, Inc. SHALL HAVE NO LIABILITY
WHATSOEVER TO PURCHASER OR ANY THIRD PARTY
FOR ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL,
OR CONSEQUENTIAL DAMAGES. Pinnacle Climate
Technologies, Inc. assumes no responsibility for any defects
caused by third parties. This Limited Warranty gives the
purchaser specic legal rights; a purchaser may have other
rights depending upon where he or she lives. Some states
do not allow the exclusion or limitation of special, incidental
or consequential damages, or limitations on how long a
warranty lasts, so the above exclusion and limitations may
not apply to you.
Pinnacle Climate Technologies, Inc. does not authorize any
person or company to assume for it any other obligation
or liability in connection with the sale, installation, use,
removal, return or replacement of its equipment, and no
such representations are binding on Pinnacle Climate
Technologies, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Climate
Technologies, Inc. For your convenience, use the space
provided below to list this information.
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. It will be a
series of 9 digits. For Example: 131234956. Have your Serial Number ready before calling customer
service at 800-641-6996.
Serial Number Label
XX-X-XXXXXX

MODELOS N.°
MH-45-KFA / MH-80T-KFA / MH-140T-KFA / MH-190T-KFA / MH-215T-KFA
CONSUMIDOR: LEA Y CONSERVE ESTAS INSTRUCCIONES
ADVERTENCIA GENERAL DE PELIGRO: LEA Y COMPRENDA TODAS
LAS INSTRUCCIONES EN ESTE MANUAL ANTES DE ARMAR,
ENCENDER O DAR SERVICIO AL CALENTADOR. Asegúrese de seguir
las instrucciones y advertencias provistas con este calentador. No seguirlas puede provocar un
incendio o explosión que pueden causar pérdidas materiales, lesiones físicas o muerte. Solamente
personas que puedan seguir y comprender estas instrucciones deben operar o dar servicio a este
calentador. Si necesita información sobre el calentador, como un manual de operación, etiquetas, etc.
comuníquese con Pinnacle Climate Technologies al 800-641-6996.
PELIGRO
ID DE FÁBRICA: 500
NO DEBE USARSE EN ÁREAS HABITABLES RESIDENCIALES NI EN
ESPACIOS CERRADOS CON VENTILACIÓN INADECUADA. ESTE
CALENTADOR ES ADESCUADO PARA USO ESTERIOR, Y USO
INTERIOR PERO SÓLO EN ÁREAS BIEN VENTILADAS. EL USO EN INTERIORES SÓLO SE
PERMITE PARA: CALEFACCIÓN TEMPORAL DE EDIFICIOS ADECUADAMENTE VENTILADOS
O ESTRUCTURAS EN CONSTRUCCIÓN, MODIFICACIÓN O REPARACIÓN. Este es un
calentador portátil sin ventilación que utiliza aire (oxígeno) del área en la que se usa. Si no se
suministra aire de combustión y ventilación adecuados se puede causar asxia o envenenamiento
por monóxido de carbono, lesiones físicas o la muerte. Consulte “Ventilación” en la página 6.
PELIGRO
Sauk Rapids, MN 56379, EE. UU. • Llamada sin costo: [phone]
Fax: [phone] • Web: www.masterindustrialproducts.com • Correo electrónico: [e-mail]
© 2020 Pinnacle Climate Technologies, Inc. MAKL-424
Manual del usuario e
Instrucciones de operación
CALENTADOR DE AIRE
FORZADO DE QUEROSENO
Cómo localizar su número de serie:
El número de serie lo puede encontrar en una etiqueta blanca en el lado derecho de la cubierta de su
calentador. Por ejemplo: 150812779. Tenga su número de serie a la mano antes de llamar al servicio al cliente al
800-641-6996.

2
NUNCA DEJE DESATENDIDO EL CALENTADOR MIENTRAS ESTÉ
ENCENDIDO O MIENTRAS ESTÉ CONECTADO A UNA FUENTE
DE ALIMENTACIÓN
© 2020, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador de aire forzado
de queroseno
RESIDENTES DE MASSACHUSETTS: La ley del Estado de Massachusetts prohíbe el uso de este
calentador en cualquier edicio que se utilice total o parcialmente para habitación de seres humanos.
El uso de este dispositivo de calefacción en Massachusetts requiere la autorización del departamento
de bomberos de la localidad (M.G.L.C. 148, Sección 10A).
RESIDENTES DE LA CIUDAD DE NUEVA YORK: El Código de Incendios de la ciudad de Nueva York
prohíbe el almacenamiento, la manipulación y el uso de calentadores de queroseno para calentar
espacios. Toda persona que infrinja esa disposición estará sujeta a una multa de hasta 10,000 dólares
y una sentencia de prisión de hasta 6 meses.
Busque este símbolo en el manual para encontrar consejos útiles sobre cómo armar, usar y limpiar su
calentador KFA.
LA INSTALACIÓN DEL EQUIPO DEBERÁ SER DE ACUERDO CON LOS REGLAMENTOS DE LAS
AUTORIDADES QUE TENGAN JURISDICCIÓN Y LA NORMA CSA B139.
ADVERTENCIA
NO ENCIENDA EL CALENTADOR CUANDO SE HAYA
ACUMULADO UN EXCESO DE ACEITE.
ADVERTENCIA: Este producto puede exponerlo a sustancias químicas, incluyendo plomo,
conocidas en el estado de California como causantes de cáncer y defectos de nacimiento u otros
daños reproductivos. Si desea más información, visite www.P65Warnings.ca.gov.
ADVERTENCIA
NO ENCIENDA EL CALENTADOR CUANDO LA CÁMARA ESTÁ
CALIENTE.
ADVERTENCIA
PELIGRO DE INCENDIO, QUEMADURAS, INHALACIÓN Y
EXPLOSIÓN. Mantenga los combustibles como materiales de
construcción, papel o cartón, a una distancia prudente del
calentador según lo recomiendan estas instrucciones. Nunca use el calentador en espacios que
contengan productos como gasolina, disolventes, solventes de pintura, partículas de polvo, combustibles
volátiles o suspendidos en el aire o sustancias químicas desconocidas. Este es un calentador portátil sin
ventilación. La unidad utiliza el aire (oxígeno) del espacio donde se usa. Será necesario suministrar
suciente aire para la combustión y la ventilación. Consulte “Ventilación” en la página 6.
Elalmacenamiento de combustible a granel debe estar a un mínimo de 25 pies (7.6 m) del calentador.
ADVERTENCIA
NO USE ESTE CALENTADOR HASTA HABER LEÍDO Y
COMPRENDIDO TOTALMENTE ESTAS INSTRUCCIONES DE
SEGURIDAD Y OPERACIÓN.
El no cumplir con las precauciones e instrucciones proporcionadas con este calentador puede causar
muertes, lesiones graves, pérdidas o daños materiales por el peligro de incendio, producción de hollín,
explosiones, quemaduras, asxia o envenenamiento por monóxido de carbono. Solamente personas
que puedan leer y comprender estas instrucciones deben usar o dar servicio a este calentador.
INFORMACIÓN DE SEGURIDAD
Información de seguridad................................................ 2-3
Qué hay en la caja .................................................................4
Especicaciones.....................................................................5
Características.........................................................................5
Instrucciones de armado......................................................5
Funcionamiento.................................................................. 6-7
Mantenimiento ....................................................................8-9
Diagramas eléctricos........................................................... 10
Guía para la solución de problemas .................................11
Vista detallada ...................................................................... 12
Lista de piezas .......................................................................13
Garantía limitada....................................................................14
ÍNDICE

3
NUNCA DEJE DESATENDIDO EL CALENTADOR MIENTRAS ESTÉ
ENCENDIDO O MIENTRAS ESTÉ CONECTADO A UNA FUENTE
DE ALIMENTACIÓN
© 2020, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador de aire forzado
de queroseno
INFORMACIÓN DE SEGURIDAD CONTINÚA
SIEMPRE utilice la energía eléctrica (voltaje y frecuencia)
que se indica en la placa de modelo del calentador.
SIEMPRE use solamente tomacorrientes con conexión a
tierra y cable de extensión de tres puntas.
SIEMPRE utilice únicamente un cable de extensión de
calibre 14 AWG o superior.
SIEMPRE desconecte el calentador cuando no lo use.
SIEMPRE instale el calentador de modo que no esté
expuesto directamente a rocío de agua, lluvia, goteo
de agua o viento.
NUNCA use combustibles como gasolina, bencina,
solventes de pintura u otros compuestos de aceite en
este calentador.
NUNCA rellene el tanque de combustible del calentador
mientras esté en encendido o caliente. Este calentador
genera CALOR EXTREMO cuando está encendido.
NUNCA bloquee la entrada de aire (atrás) o la salida
de aire (al frente).
NUNCA use conductos en la parte frontal o posterior
del calentador.
NUNCA mueva ni manipule el calentador mientras
estécaliente.
NUNCA transporte el calentador con combustible en
eltanque.
NUNCA lo use con un tanque de combustible externo.
Mantenga todos los materiales combustibles lejos de
este calentador.
Separación mínima entre el calentador
y materiales combustibles
45-190T-KFA 215T-KFA
Superior 4 pies (122 cm) 4 pies (122 cm)
Lados 4 pies (122 cm) 4 pies (122 cm)
Frente 8 pies (244 cm) 10 pies (305 cm)
Colóquelo SIEMPRE sobre una supercie estable y nivelada.
Si su calentador tiene un termostato, una vez que se
enchufe, puede encenderse en cualquier momento
según la conguración del termostato.
ADVERTENCIA
¡RIESGO DE
DESCARGA
ELÉCTRICA!
ADVERTENCIA
¡RIESGO DE QUEMADURAS, INCENDIO Y EXPLOSIÓN!
Los productos descritos en este manual son
calentadores de aire forzado de fuego directo de
queroseno. Los calentadores de aire forzado de
queroseno están hechos expresamente para calefacción
temporal de edicios en construcción, modicación
o reparación. Fuego directo signica que todos los
productos de combustión del calentador ingresan en el
espacio calentado. Este aparato tiene una clasicación
de 98% de eciencia de combustión, pero produce
pequeñas cantidades de monóxido de carbono.
El monóxido de carbono es tóxico. Los seres
humanos solo pueden tolerar pequeñas cantidades
de monóxido de carbono, así que deben tomarse las
medidas de precaución necesarias para suministrar
una ventilación adecuada. No suministrar la ventilación
adecuada de acuerdo con las instrucciones de este
manual puede ocasionar la muerte. Las personas
con problemas de respiración deben consultar a un
médico antes de usar este calentador. Los primeros
síntomas de envenenamiento por monóxido de
carbono se parecen a los de la gripe. Los síntomas
de ventilación inadecuada o envenenamiento por
monóxido de carbono son:
Dolor de cabeza • Mareo •Náusea • Boca seca
Dolor de garganta • Irritación de la nariz y los ojos
Si tiene alguno de estos síntomas:
¡SALGA AL AIRE LIBRE DE INMEDIATO! Haga revisar
su calentador y compruebe que la ventilación sea la
adecuada. Algunas personas se ven más afectadas
que otras por el monóxido de carbono. Por ejemplo:
mujeres embarazadas, personas con problemas
pulmonares o cardíacos, anemia o bajo la inuencia
del alcohol o en grandes altitudes.
PARA USO EN EXTERIORES. EL USO EN
INTERIORES SÓLO SE PERMITE PARA: Calefacción
temporal de edificios adecuadamente ventilados
o estructuras en construcción, modificación o
reparación. Proporcione una abertura de al menos
tres pies cuadrados (0.28 metros cuadrados) al aire
exterior por cada 100,000 BTU/h (29 kW) que genere
el calentador. Consulte “Ventilación” en la página 6
para obtener más instrucciones.
ADVERTENCIA
¡RIESGO DE CONTAMINACIÓN DEL AIRE INTERIOR!
¡LA INTOXICACIÓN
POR MONÓXIDO DE
CARBONO PUEDE
CONDUCIR A LA MUERTE!
PELIGRO
ADVERTENCIA
PRECAUCIÓN CALIENTE MIENTRAS ESTÉ EN
FUNCIONAMIENTO. NO LO TOQUE. MANTENGA A
NIÑOS, ANIMALES, ROPA Y COMBUSTIBLES LEJOS
DEL CALENTADOR.

4
NUNCA DEJE DESATENDIDO EL CALENTADOR MIENTRAS ESTÉ
ENCENDIDO O MIENTRAS ESTÉ CONECTADO A UNA FUENTE
DE ALIMENTACIÓN
© 2020, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador de aire forzado
de queroseno
QUÉ HAY EN LA CAJA 45KFA / 80TKFA
- Retire el calentador y los materiales de empaque de
la caja de envío Nota: Guarde la caja y los materiales de empaque para cuando guarde la unidad posteriormente.
Ilustrado con el cable
opcional Enrolladores
Enrolladores de cable
(Opcional) Asa (1)
Tornillos de 10 mm (2) Tornillos de 15 mm (2)
QUÉ HAY EN LA CAJA 140TKFA / 190TKFA / 215TKFA
Consejo: Asegúrese de retirar el eje del lateral del
empaque de espuma de poliestireno.
Ruedas (2) Tuercas del eje (2)
Separadores (2)
Calentador (1)
Calentador (1)
Eje
Asa trasera
Soportes del eje
Guardia de
seguridad
Bastidor de soporte
de las ruedas

5
NUNCA DEJE DESATENDIDO EL CALENTADOR MIENTRAS ESTÉ
ENCENDIDO O MIENTRAS ESTÉ CONECTADO A UNA FUENTE
DE ALIMENTACIÓN
© 2020, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador de aire forzado
de queroseno
INSTRUCCIONES DE ARMADO 140TKFA / 190TKFA / 215TKFA
1. Incline hacia atrás el tanque del calentador
y je el patín inferior insertándolo en los
sujetadores de resorte de botón en la parte
trasera del bastidor de soporte inferior.
2. Fije los soportes del eje insertándolos en los
sujetadores de resorte de botón al frente del
bastidor de soporte inferior.
3. Inserte el eje a través de los oricios de los
soportes del eje.
4. Deslice los separadores en el eje.
5. Deslice las ruedas en el eje y asegúrelas con
las tuercas del eje.
6. Fije el asa trasera insertándola en los
sujetadores de resorte de botón en la parte
trasera del bastidor de soporte superior.
7. Antes de operar el calentador, verique todas
las piezas para asegurarse de que están
seguras.
Figura 1
Eje
Tuerca del eje
Separador
Llanta
Soporte del eje
ESPECIFICACIONES
N.° de modelo 45-KFA 80T-KFA 140T-KFA 190T-KFA 215T-KFA
Capacidad nominal: BTU/H / kWh 45,000 / 13.2 80,000 / 23.4 140,000 / 41 190,000 / 55.7 215,000 / 63
Consumo de combustible: Gal/H / L/H 0.35 / 1.3 0.63 / 2.38 1.1 / 4.16 1.42 / 5.38 1.63 / 6.17
Capacidad del tanque: Galones / Litros 5 / 19 5 / 19 10 / 38 13 / 49 13 / 49
Presión de la bomba: PSI / Bares 3.0 / 0.21 4.2 / 0.29 6.6 / 0.46 8.5 / 0.59 9.0 / 0.62
Voltaje: CA/Hz 120 VCA / 60 Hz 120 VCA / 60 Hz 120 VCA / 60 Hz 120 VCA / 60 Hz 120 VCA / 60 Hz
Amperaje 1.4 1.5 2.4 2.7 2.8
Fase Monofásico Monofásico Monofásico Monofásico Monofásico
Las especicaciones pueden cambiar sin previo aviso.
CARACTERÍSTICAS
Salida de
aire caliente
Coraza superior
Asa
Enrollador de la extensión
Protección del
ventilador
Manómetro
Indicador de
combustible
Tapa de combustible
Cable eléctrico
Tanque de
combustible
Interruptor de
encendido/reinicio
Perilla del
termostato
(solo 80T KFA)
Luz
Coraza inferior
Coraza superior
Cable
eléctrico
Perno de drenaje
Tanque de
combustible
Manómetro
Protección del
ventilador
Asa trasera
Pantalla digital
detemperatura
Luz
Perilla del
termostato
Tapa de
combustible
Indicador de
combustible
Coraza inferior
Salida de
aire caliente

6
NUNCA DEJE DESATENDIDO EL CALENTADOR MIENTRAS ESTÉ
ENCENDIDO O MIENTRAS ESTÉ CONECTADO A UNA FUENTE
DE ALIMENTACIÓN
© 2020, Pinnacle Climate Technologies, Inc. Manual del usuario del calentador de aire forzado
de queroseno
Llenar de combustible el calentador:
Queroseno (K-1)
Para el desempeño óptimo de este calentador, se
sugiere enfáticamente que se use queroseno K-1. El
queroseno K-1 se ha renado para eliminar virtualmente
todos los contaminantes, como el azufre, que
pueden causar un olor a huevos podridos durante el
funcionamiento del calentador. Usar combustible diésel
puede causar producción excesiva de hollín. No use Bio-
diésel pues dañará los sellos y el ltro del calentador.
- Certificado por CSA para uso con queroseno
K-1 N.º 1 y diésel N.º 2, combustible JP8/Jet A,
combustóleo N.º 1 y 2.
NO use ningún combustible que no se indique como
aprobado arriba.
- NUNCA use un combustible como bencina, alcohol,
gasolina blanca, combustible para hornos de
campamento, solventes de pintura u otros compuestos de
aceite en este calentador. ESTOS SON COMBUSTIBLES
VOLÁTILES QUE PUEDEN CAUSAR INCENDIOS O
EXPLOSIONES.
- NUNCA almacene queroseno en el área habitable.
Elqueroseno debe almacenarse en un área bien ventilada,
fuera del espacio habitable.
- NUNCA almacene el queroseno expuesto directamente a
la luz solar ni cerca de una fuente de calor.
- NUNCA utilice queroseno que haya estado almacenado
de una temporada a la siguiente. El queroseno se
deteriora con el tiempo. EL QUEROSENO VIEJO NO SE
QUEMARÁ ADECUADAMENTE EN ESTE CALENTADOR.
NOTA: El queroseno debe almacenarse únicamente en un
contenedor azul que esté claramente identificado con la
palabra “queroseno”. Nunca almacene queroseno en un
contenedor rojo. El color rojo se asocia con la gasolina.
Ventilación:
- Riesgo de contaminación del aire interior y de
envenenamiento por monóxido de carbono. Utilice el
calentador sólo en áreas bien ventiladas.
- Consulte la Información de seguridad en la página 3 acerca
del envenenamiento por monóxido de carbono.
 SIEMPRE provea una abertura para aire fresco en el
espacio que caliente de por lo menos tres pies cuadrados
(0.28 metros cuadrados) por cada 100,000BTU/h (29 kW)
de emisión del calentador. Si utiliza más calentadores,
provea una abertura más grande.
Abertura de ventilación mínima necesaria
45-KFA 80T-KFA 140T-KFA
1.4 pies² 2.4 pies² 4.2 pies²
1300 cm² 2230 cm² 3902 cm²
Abertura de ventilación mínima necesaria
190T-KFA 215T-KFA
5.7 pies² 6.5 pies²
5295 cm² 6039 cm²
FUNCIONAMIENTO
ATENCIÓN
NUNCA LLENE EL
TANQUE DE
COMBUSTIBLE EN
UN LUGAR INTERIOR. SIEMPRE LLENE EL TANQUE
EN EXTERIORES. ASEGÚRESE QUE EL
CALENTADOR ESTÉ EN UN SUELO NIVELADO
CUANDO LLENE DE COMBUSTIBLE, Y NUNCA
LLENE EL TANQUE DE COMBUSTIBLE DEMASIADO.
¡LA INTOXICACIÓN
POR MONÓXIDO DE
CARBONO PUEDE
CONDUCIR A LA MUERTE!
PELIGRO
ADVERTENCIA
NO USE GASOLINA O ESCURRIMIENTOS DEL
CÁRTER
NUNCA LLENE DE
COMBUSTIBLE
ESTE CALENTADOR
MIENTRAS ESTÉ CALIENTE O EN
FUNCIONAMIENTO. ESO PUEDE OCASIONAR UN
INCENDIO O UNA EXPLOSIÓN.
PELIGRO
