INSTALLATION MANUAL
MANUEL D’INSTALLATION
English Français
CRD3837B_inst_cover 3/31/04 11:51 AM Page 1

1
IMPORTANT INFORMATION
ABOUT YOUR NEW NAVIGATION SYSTEM AND THIS MANUAL
•The navigation features of this unit (and rear view camera option if purchased) is
intended solely as an aid to you in the operation of your vehicle. It is not a substi-
tute for your attentiveness, judgment and care when driving.
•Never use this Navigation System to route to hospitals, police stations, or similar
facilities in an emergency, Please call 911.
•Do not operate this Navigation System (or the rear view camera option if pur-
chased) if doing so in any way will divert your attention from the safe operation
of your vehicle. Traffic restrictions and advisories currently in force should
always take precedence over guidance given by this product. Always obey current
traffic restrictions, even if this product provides contrary advice.
•Certain government laws may restrict the placement and use of navigation sys-
tems in your vehicle. Please comply with all applicable laws and regulations in
the installation and operation of your navigation system.
•This manual explains how to install this Navigation System in your vehicle.
Operation of this Navigation System is explained in the separate “Operation
Manual” or “Hardware Manual” for Navigation System.
•Do not install the display unit or Hide-away unit where it may (i) obstruct the dri-
ver’s vision, (ii) impair the performance of any of the vehicle’s operating systems
of safety features, including airbags, hazard lamp buttons or (iii) impair the dri-
ver’s ability to safely operate the vehicle. In some cases, it may not be possible to
install this unit because of the vehicle type or the shape of the vehicle interior.
ENG/MASTER 96 2
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 2

English Español Deutsch Français Italiano Nederlands
3
IMPORTANT INFORMATION .................... 1
ABOUT YOUR NEW NAVIGATION
SYSTEM AND THIS MANUAL .............. 1
IMPORTANT SAFEGUARDS .................... 3
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING
YOUR NAVIGATION
SYSTEM AND RETAIN THEM
FOR FUTURE REFERENCE .................... 3
Connecting the System ............................ 4
-Before installing the unit
-To prevent damage
-Parts supplied
Connecting the system ...................................... 7
Connecting the power cord (1) .......................... 9
Connecting the power cord (2) ........................ 11
When connecting to separately sold power
amp .......................................................... 13
When connecting with a Rear view
camera ...................................................... 15
When connecting the external video component
and the display .......................................... 16
-When using a display connected to rear video
output
Installation ................................................ 17
To guard against electromagnetic
interference .............................................. 18
Before installing .............................................. 18
Installing the display unit and
Hide-away unit ........................................ 19
-Installation notes
-Parts supplied
-Installing the Hide-away unit
-DIN Front/Rear-mount
-DIN Front-mount
-DIN Rear-mount
-Fixing the front panel
Installing the GPS antenna .............................. 26
-Installation notes
-Parts supplied
-When installing the antenna inside the vehi-
cle (on the rear shelf)
-When installing the antenna outside the vehi-
cle (on the body)
After Installing the Unit ............................29
2
ENG/MASTER 96
Contents
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 3

4
ENG/MASTER 96
IMPORTANT SAFEGUARDS
3
PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR
NAVIGATION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE
1. Read this manual fully and carefully before installing your Navigation System.
2. Keep this manual handy for future reference.
3. Pay close attention to all warnings in this manual and follow the instructions care-
fully.
4. This Navigation System may in certain circumstances display erroneous informa-
tion regarding the position of your vehicle, the distance of objects shown on the
screen, and compass directions. In addition, the system has certain limitations,
including the inability to identify one-way streets, temporary traffic restrictions
and potentially unsafe driving areas. Please exercise your own judgment in the
light of actual driving conditions.
5. As with any accessory in your vehicle’s interior, the Navigation System should
not divert your attention from the safe operation of your vehicle. If you experi-
ence difficulty in operating the system or reading the display, please make adjust-
ments while safely parked.
6. Please remember to wear your seat belt at all times while operating your vehicle.
If you are ever in an accident, your injuries can be considerably more severe if
your seat belt is not properly buckled.
Do not attempt to install or service your Navigation System by yourself.
Installation or servicing of the Navigation System by persons without training and
experience in electronic equipment and automotive accessories may be dangerous
and could expose you to the risk of electric shock or other hazards.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 4

English Español Deutsch Français Italiano Nederlands
5
4
ENG/MASTER 96
Connecting the System
•Pioneer does not recommend that you install your Navigation System yourself. We
recommend that only authorized Pioneer service personnel, who have special train-
ing and experience in mobile electronics, set up and install the unit. NEVER SER-
VICE THE UNIT YOURSELF. Installing or servicing the unit and its connecting
cables may expose you to the risk of electric shock or other hazards, and can cause
damage to the Navigation System that is not covered by warranty.
•If you decide to perform the installation yourself, and have special training and
experience in the mobile electronics installations, please carefully follow all of the
steps in the Installation Manual.
•Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring
to remain exposed.
•Do not directly connect the yellow lead of the unit to the vehicle battery. If the lead
is directly connected to the battery, engine vibration may eventually cause the insu-
lation to fail at the point where the wire passes from the passenger compartment
into the engine compartment. If the yellow lead’s insulation tears as a result of con-
tact with metal parts, short-circuiting can occur, resulting in considerable danger.
•It is extremely dangerous to allow the GPS antenna cable or microphone cable to
become wound around the steering column or shift lever. Be sure to install the unit,
its cables, and wiring away in such a way that they will not obstruct or hinder dri-
ving.
•Make sure that the cables and wires are routed and secured so they will not inter-
fere with or become caught in any of the vehicle’s moving parts, especially the
steering wheel, shift lever, parking brake, sliding seat tracks, doors, or any of the
vehicle’s controls.
•Do not route wires where they will be exposed to high temperatures. If the insula-
tion heats up, wires may become damaged, resulting in a short circuit or malfunc-
tion and permanent damage to the product.
•Do not cut the GPS antenna cable to shorten it or use an extension to make it
longer. Altering the antenna cable could result in a short circuit or malfunction.
•Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse resister
or filter, etc.) may fail to work properly.
•Never feed power to other electronic products by cutting the insulation of the
power supply lead of the Navigation System and tapping into the lead. The current
capacity of the lead will be exceeded, causing overheating.
•Do not ground more than one product together with the ground from another
product. For example, you must separately ground any amplifier unit away from
the ground of the Hide-away unit. Connecting grounds together can cause a fire
and/or damage the products if their grounds became detached.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 5

5
Connecting the System
Before installing the unit
•This unit is for vehicles with a 12-volt battery and negative grounding. Check the battery
voltage of your vehicle before installation.
To prevent damage
•When disconnecting a connector, pull the connector itself. Do not pull the lead, as you
may pull it out of the connector.
•This unit cannot be installed in a vehicle that does not have an ACC (accessory) position
on the ignition switch.
•To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especial-
ly important to insulate all unused speaker leads, which if left uncovered may cause a
short circuit.
•Attach the connectors of the same color to the corresponding colored port, i.e., blue con-
nector to the blue port, black to black, etc.
•The black lead is ground. Please ground this lead separately from the ground of high-
current products such as power amps.
Do not ground more than one product together with the ground from another product.
For example, you must separately ground any amplifier unit away from the ground of
the Hide-away unit. Connecting grounds together can cause a fire and/or damage the
products if their grounds became detached.
•Refer to the owner’s manual for details on connecting the power amp and other units,
then make connections accordingly.
•When replacing the fuse, be sure to use only a fuse of the rating prescribed on the fuse
holder.
•Since a unique BPTL circuit is employed, do not directly ground the ≠side of the
speaker lead or connect the ≠sides of the speaker leads together. Be sure to connect the
≠side of the speaker lead to the ≠side of the speaker lead on the display unit.
•If the RCA pin jack on the unit will not be used, do not remove the caps attached to the
end of the connector.
•When the auto antenna function is used by connecting the blue lead to the vehi-
cle with the auto antenna function, either turning off the ignition switch or
detaching the front panel will retract the auto antenna of the vehicle.
No ACC positionACC position
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
•To avoid shorts in the electrical sys-
tem, be sure to disconnect the (–)
battery cable before beginning
installation.
ENG/MASTER 96 6
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 6

English Español Deutsch Français Italiano Nederlands
7
6
ENG/MASTER 96
•Never connect speakers with an output rating of less than 50 W channel or impedance
outside of the 4 ohms to 8 ohms specifications to your Navigation system. Connecting
speakers with output and/or impedance values other than those noted here may result in
the speakers catching fire, emitting smoke, or becoming damaged.
•When the ignition switch is turned on (ACC ON), a control signal is output through the
blue/white lead. Connect to an external power amp’s system remote control terminal
(max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even
if the front panel is detached, or the audio source is switched off.
•When an external power amp is being used with this system, be sure not to connect the
blue lead to the amp’s power terminal. Likewise, do not connect the blue lead to the
power terminal of the auto antenna. Such connection could cause excessive current drain
and malfunction as well as damage to the auto antenna of the vehicle.

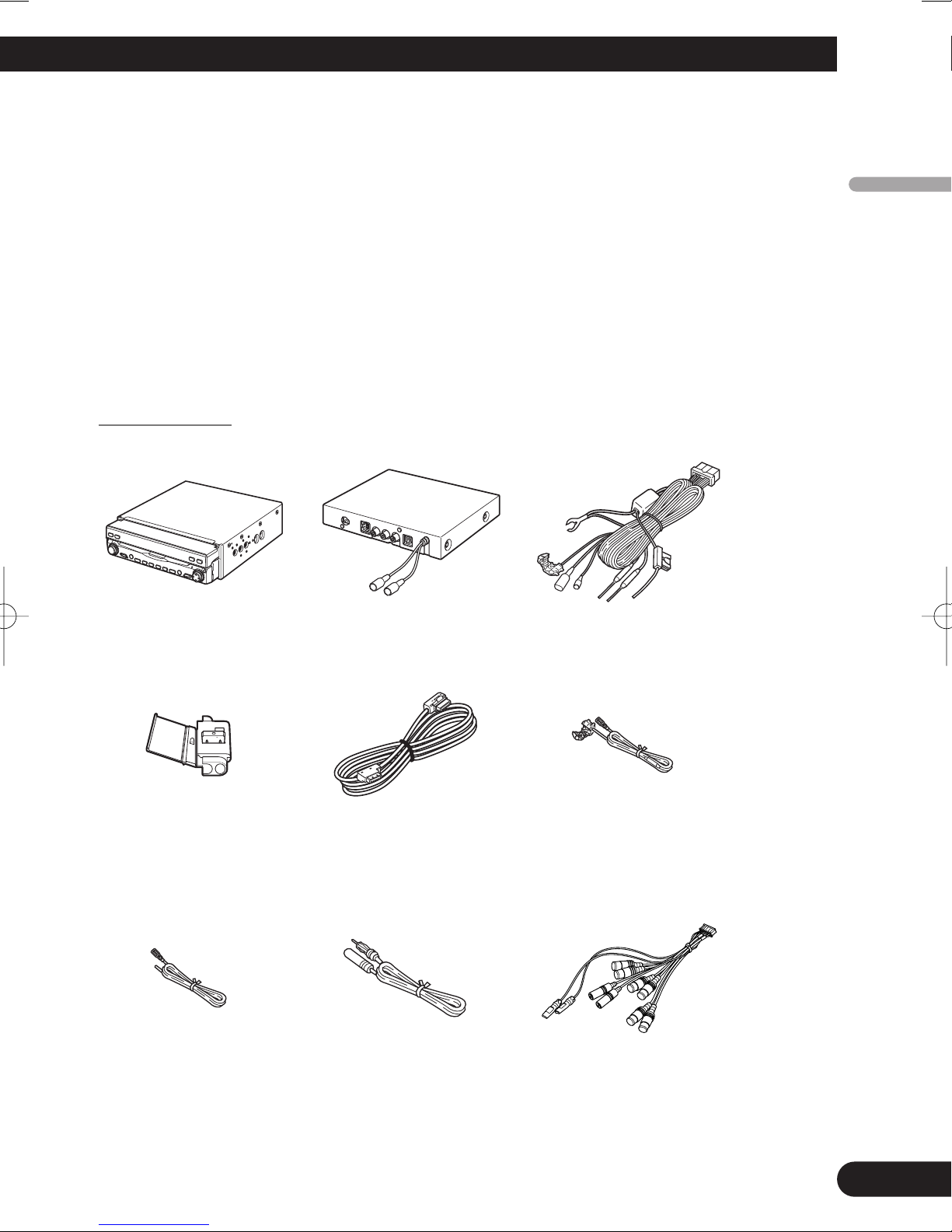

Parts supplied
System extension connectorExtension antenna cableExtension lead
(for speed signal)
Extension lead
(for reverse signal)
30-pin cableConnector
Power cordHide-away unitDisplay unit
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 7

8
7
Connecting the System
ENG/MASTER 96

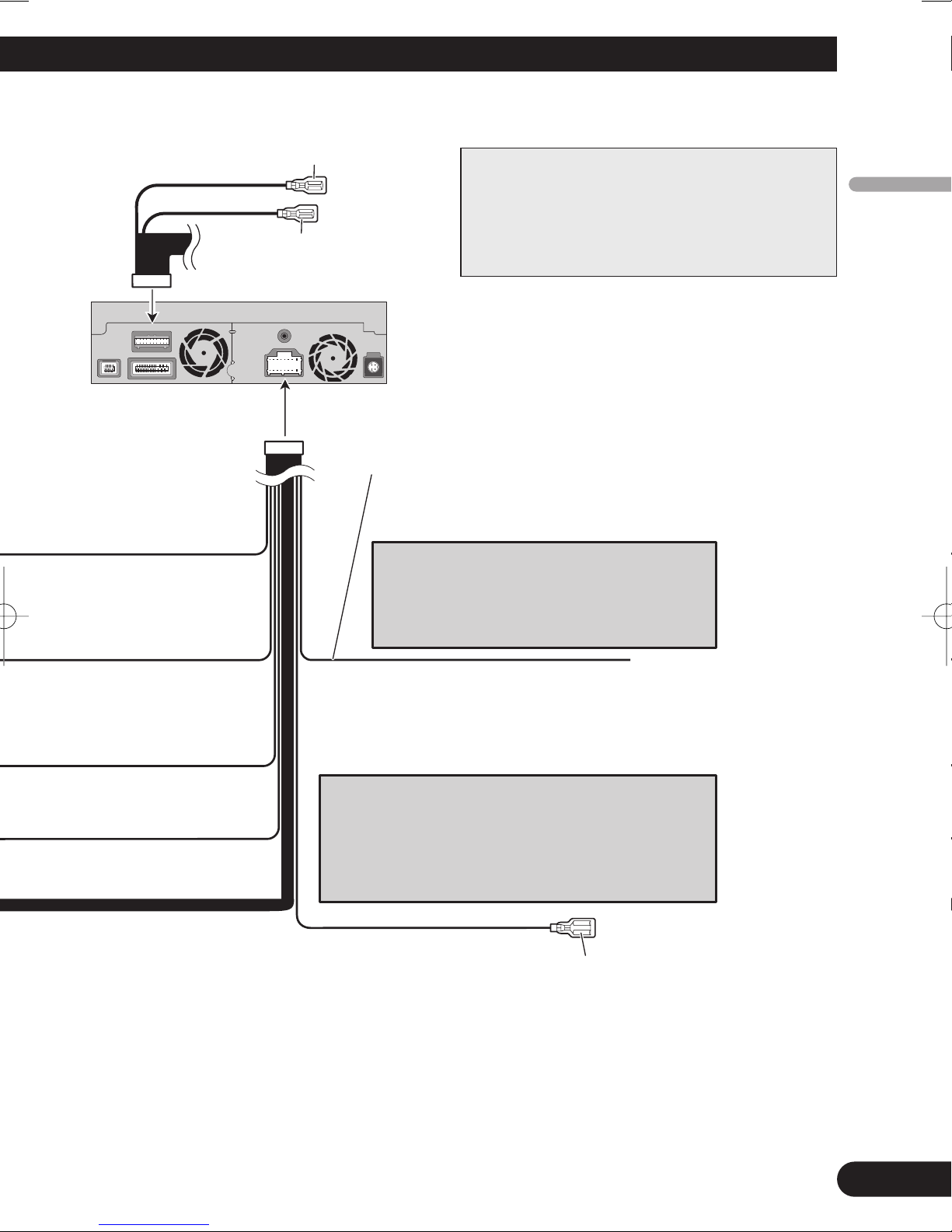

Connecting the system
Multi-CD player
Yellow Hide-away unit
Light gray Blue Blue
AV-BUS cable
(supplied with
TV tuner)
Extension
antenna cable
(supplied)
3 m
5 m
IP-BUS cable
IP-BUS cable
(supplied with TV tuner)
GPS antenna
When installing
the Hide-away unit
in the trunk, etc.,
the extension cable
(e.g. CD-SC300E)
(sold separately)
is required.
Y
G.SP (Guidance
This is not used
When combinin
Pioneer multi-ch
(sold separately
with this unit, G
output the guida
In this case, the
speaker (e.g. CD
separately) must
the SP-OUT jac
1W max [16 Ω]
For details, see t
of the external s
EXTENSION port
Not used.
3 m
30-pin cable (supplied
(sold separately)
Black
BlackBlue
Hide-away TV tuner
(e.g. GEX-P6400TV)
(sold separately)
•To avoid the risk of accident and the potential
violation of applicable laws, this unit should
never be used while the vehicle is being driven
except for Navigation purposes. And, also
Rear Displays should not be in a location
where it is a visible distraction to the driver.
•In some countries or states the viewing of
images on a display inside a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply they must be
obeyed and this unit’s DVD or TV features
should not be used.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 8

8
ENG/MASTER 96
9
English Español Deutsch Français Italiano Nederlands
Yellow
DIGITAL OUT
This is used when connecting
to the Pioneer multi-channel
processor (sold separately),
that is compatible with this unit.
Otherwise this is not used.
G.SP (Guidance speaker output)
This is not used normally.
When combining this unit with
Pioneer multi-channel processor
(sold separately) that is compatible
with this unit, G.SP will be used to
output the guidance voice.
In this case, the Pioneer external
speaker (e.g. CD-TS37GP) (sold
separately) must be connected to
the SP-OUT jack (2.5 ø MINI JACK,
1W max [16 Ω]).
For details, see the operation manual
of the external speaker.
MIC INPUT
The microphone in the voice
recognition kit (e.g. CD-VC1)
(sold separately) is connected
when the voice recognition
function is used.
EXTENSION port
Not used.
3 m
30-pin cable (supplied)
Power cord
WIRED
REMOTE
Please see the Instruction
Manual for the Wired Remote
Control (sold separately).
Display unit
Note:
When Pioneer multi-channel processor (sold separately) is
connected to this unit, make sure the “5.1 CH” mode is acti-
vated. Please find the correct setting by referring to
"Switching the 5.1ch setting" in the "Operation Manual" of
the navigation system.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 9

9
Connecting the System
ENG/MASTER 96 10
Connecting the power cord (1)
Fuse holder
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Red
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Black (ground)
To vehicle (metal) body.
Orange/white
To lighting switch terminal.
Fuse resistor
GUIDE ON
SYSTEM R
CONTROL
Fuse resistor
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
N
W
t
f
d
o
White
White/black
Gray
Gray/black
Green
Green/black
Violet
Violet/black
Front speaker
Rear speaker
Front speaker
Rear speaker
Left Right
+
≠
+
≠
+
≠
+
≠
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 10

10
ENG/MASTER 96
11
English Español Deutsch Français Italiano Nederlands
GUIDE ON
SYSTEM REMOTE
CONTROL
Blue
To Auto-antenna relay control
terminal (max. 300 mA 12 V DC).
Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
Note:
When the auto antenna function is used by connecting
the blue lead to the vehicle with the auto antenna
function, either turning off the ignition switch or
detaching the front panel will retract the auto antenna
of the vehicle.
Note:
Audio source will be set to mute or attenuate,
while the voice guidance of the navigation
will not be muted or attenuated. For details,
see the “Operation Manual”.
Note:
Cords for this product and those for other products
may be different colors even if they have the same
function. When connecting this product to another
product, refer to the supplied manuals of both prod-
ucts and connect cords that have the same function.
Display unit
☞ See Page 13.
☞ See Page 12.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 11

Pink (CAR SPEED SIGNAL INPUT)
The mobile navigation system is connected here to detect the distance
the vehicle travels. Always connect the vehicle’s speed detection
circuit or the ND-PG1 speed pulse generator, sold separately. Failure
to make this connection will increase errors in the location display.
IMPROPER CONNECTION MAY RESULT IN SERIOUS
DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK,
AND INTERFERENCE WITH THE OPERATION OF THE
VEHICLE’S ANTILOCK BRAKING SYSTEM, AUTOMATIC
TRANSMISSION AND SPEEDOMETER INDICATION.
Light green
Used to detect the ON/OFF status of the parking brake. This lead
must be connected to the power supply side of the parking brake
switch. If this connection is made incorrectly or omitted, certain
functions of your navigation system will be unusable.
LIGHT GREEN LEAD AT POWER
CONNECTOR IS DESIGNED TO DETECT
PARKED STATUS AND MUST BE
CONNECTED TO THE POWER SUPPLY SIDE
OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS
LEAD MAY VIOLATE APPLICABLE LAW
AND MAY RESULT IN SERIOUS INJURY OR
DAMAGE.
11
Connecting the System
ENG/MASTER 96 12
Connecting the power cord (2)
Note: The position of the speed
detection circuit depends on the
vehicle model. For details, consult
your authorized Pioneer dealer or
an installation professional.
If connection to the speed detec-
tion circuit is too difficult, connect
the separately sold ND-PG1 speed
pulse generator to the pink lead.
Note: The position of the parking
brake switch depends on the vehi-
cle model. For details, consult the
vehicle owner’s manual or dealer.
Connection method
Clamp the parking brake
switch power supply side
lead.
Clamp firmly with
needle-nosed pliers.
Power supply side
Ground side
Parking brake switch
Hide-away unit
Speed detection circuit lead
Vehicle injection
computer
Connector
Pass the extension cord
and the lead for the speed
detection circuit through
this hole.
Clamp firmly with
needle-nosed
pliers.
Close the cover.
Connection method
Extension lead
(for speed signal)
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 12

e
12
ENG/MASTER 96
13
English Español Deutsch Français Italiano Nederlands
Note:
Cords for this product and those for other products may
be different colors even if they have the same function.
When connecting this product to another product, refer
to the supplied Installation manuals of both products
and connect cords that have the same function.
Power cord
Black, Orange/white, Red, Yellow
☞ See Page 9.
Yellow/black (GUIDE ON)
When combining this navigation unit with the other
Pioneer audio unit for the vehicle, if the vehicle
stereo has yellow/black leads, connect them to those
leads. In this way, when the guidance audio is output
and when you operate the system by voice, the vehi-
cle stereo is automatically muted to reduce the vehi-
cle stereo volume.
Violet/white (REVERSEGEAR SIGNAL INPUT)
This is connected so that the navigation system can
detect whether the vehicle is moving forwards or
backwards. Connect the violet/white lead to the
lead whose voltage changes when the shift lever is
put in reverse. Unless connected, the sensor may
not detect your vehicle traveling forward/backward
properly, and thus the position of your vehicle
detected by the sensor may be misaligned from the
actual position.
Note: When you use the ND-PG1 speed pulse
generator (sold separately), please make sure
to connect it.
When you use a rear view camera, please make
sure to connect it. Otherwise you cannot switch to
rear view camera picture.
Do not use other than the supplied extension lead.
☞ See Page 15.
Connection method
Clamp the reversing lamp
lead.
Clamp firmly with
needle-nosed pliers.
Reversing lamp lead
Fuse resistor
Check the position of your vehicle’s
reversing lamp (the one that lights up
when the shift lever is in reverse [R])
and find the reversing lamp lead in the
trunk.
Display unit
Extension lead
(for reverse signal)
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 13

13
Connecting the System
ENG/MASTER 96 14

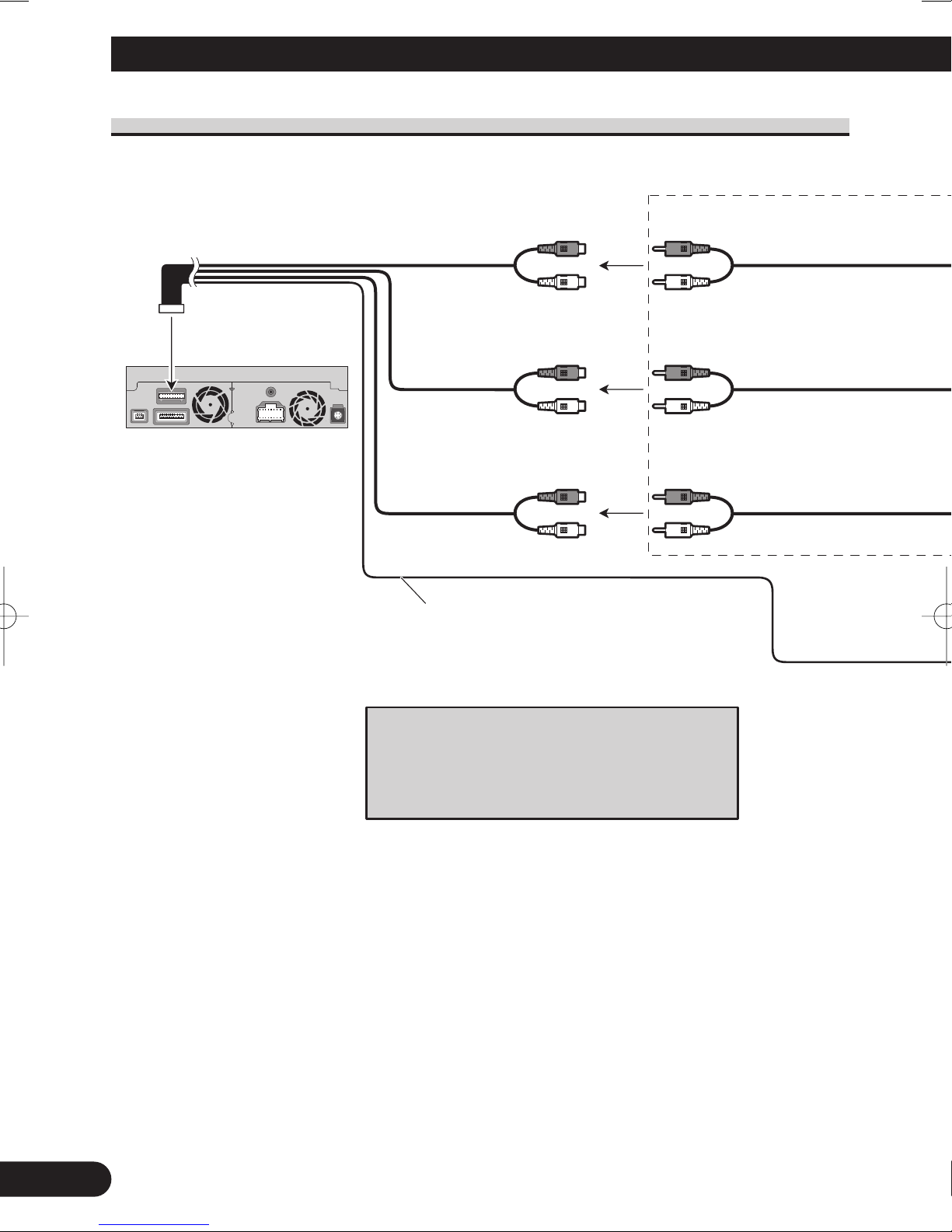

Display unit Front output
(FRONT OUTPUT)
Subwoofer output
or non-fading output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)
Rear output
(REAR OUTPUT)
Sy
RC
(so
Front speaker
Rear speaker
Subwoofer
Left
15 cm
20 cm
15 cm
Blue/white
To system control terminal of the power amp
(max. 300 mA 12 V DC).
Do not connect this lead to Auto-antenna control
terminal.
Note:
When a subwoofer is connected to this unit instead
of a rear speaker, change the rear output setting in
the Initial Setting. (Refer to the Operation Manual.)
The subwoofer output of this unit is monaural.
When connecting to separately sold power amp
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 14

14
ENG/MASTER 96
15
English Español Deutsch Français Italiano Nederlands

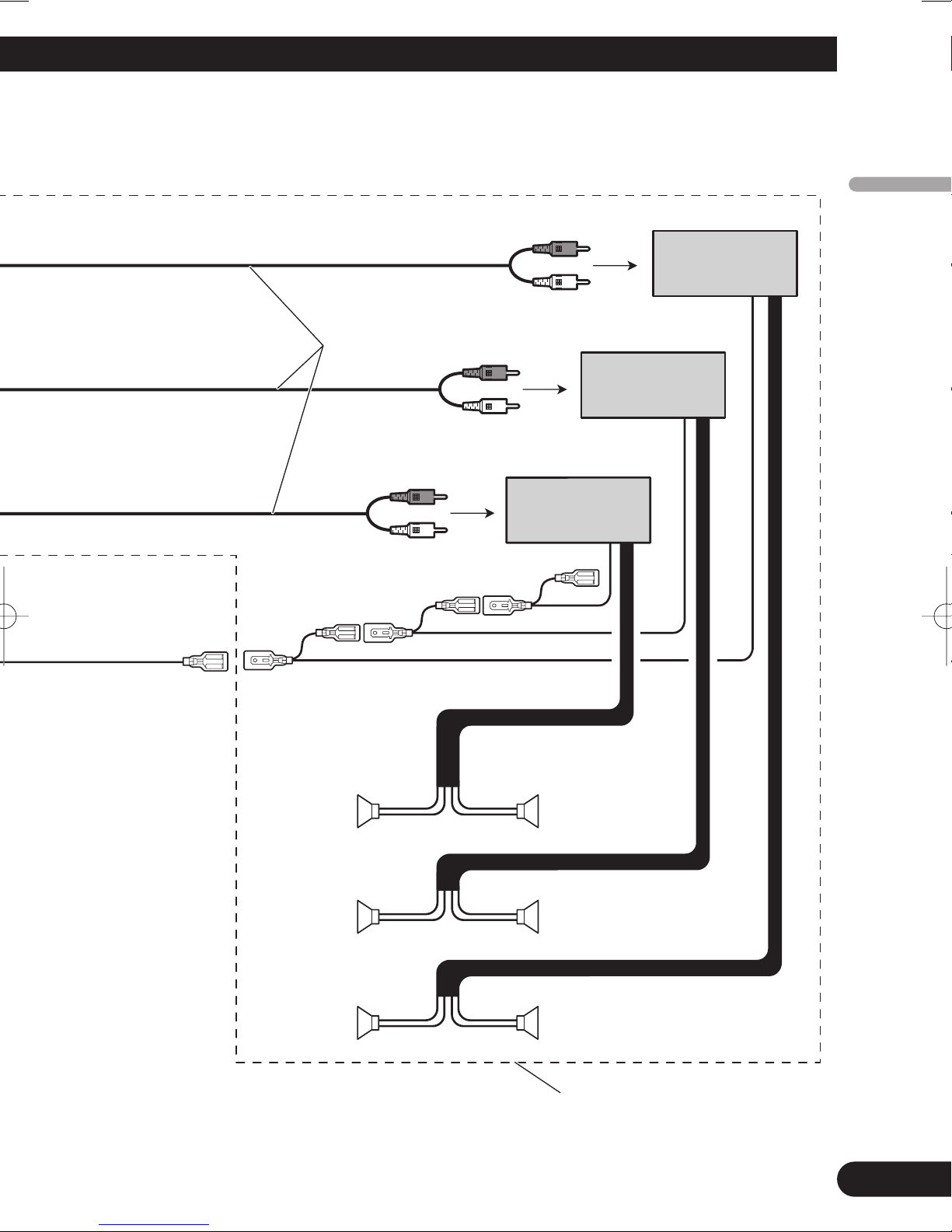

Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
System remote control
RCA cables
(sold separately)
Front speaker
Rear speaker
Subwoofer
Front speaker
Rear speaker
Subwoofer
Left Right
Perform these connections when using
the optional amplifier.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 15

15
Connecting the System

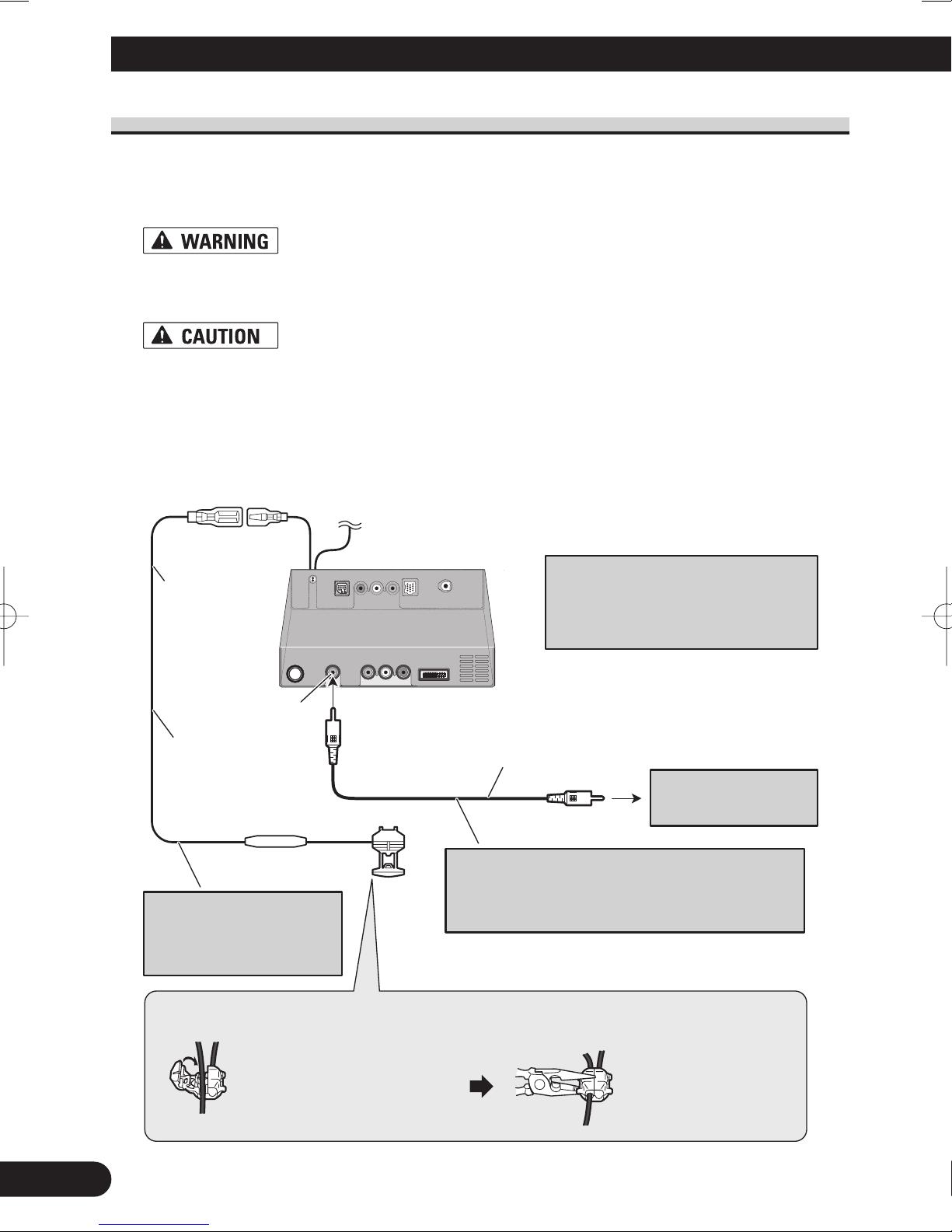

When connecting a Rear view camera
When using this product with a rear view camera, automatic switching to video from a rear
view camera is possible when the gear shift is moved to REVERSE (R) position.
Rear view mode also allows you to check what is behind you while driving.
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE
MAY RESULT IN INJURY OR DAMAGE.
•The screen image may appear reversed.
•The rear view camera function is to use this product as an aid to keep an eye on trailers, or backing
into a tight parking spot. Do not use this function for entertainment purposes.
•The object in rear view may appear closer or more distant than in reality.
•Please note that the edges of the rear view camera images may differ slightly according to whether
full screen images are displayed when backing, and whether the images are used for checking the
rear when the vehicle is moving forward.
ENG/MASTER 96 16
Fuse resistor
8 m
Extension lead
(for reverse signal)
Connection method
Clamp the lead.1. 2. Clamp firmly with
needle-nosed
pliers.
Hide-away unit
Rear view camera
RCA cable
(sold separately)
To video output
Connect to the rear view camera. Do not connect
to any other equipment.
Do not use other than the
supplied extension lead.
Note:
Note:
Brown
Note:
It is necessary to set to CAMERA in
SETUP when connecting the rear
view camera.
☞ See Page 11.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 16

When connecting the external video component and the display
•It is necessary to set to AV INPUT or REAR DISP in SET UP when connecting the
external video component.
When using a display connected to rear video output
This product’s rear video output is for connection of a display to enable passengers in the
rear seats to watch the DVD, etc.
•NEVER install the rear display in a location that enables the Driver to watch the DVD while
Driving.
•NEVER connect rear audio output (REAR OUT) to separately sold power amp.
Hide-away unit
External video
component
(sold separately)
RCA cables
(sold separately)
Display with
RCA input jacks
To video output
To audio outputs
RCA cables
(sold separately) To audio inputs
To video input
16
ENG/MASTER 96
17
English Español Deutsch Français Italiano Nederlands
Note:
The map screen navigation images
output to the rear display differ from
standard NTSC format images.
Therefore, their quality will be infe-
rior to the images that appear on the
front display.
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 17

17
Installation
•Pioneer does not recommend that you install or service your Navigation
System yourself. Installing or servicing the product may expose you to risk of
electric shock or other hazards. Refer all installation and servicing of your
navigation unit to authorized Pioneer service personnel.
•Never install the unit in places, or in a manner that where:
*It could injure the driver or passengers if the vehicle stops suddenly.
*It may interfere with the driver’s operation of the vehicle, such as on the
floor in front of the driver’s seat, or close to the steering wheel or shift
lever.
•Make sure there is nothing behind the dashboard or paneling when drilling
holes in them. Be careful not to damage fuel lines, brake lines, electronic
components, communication wires or power cables.
•When using screws, do not allow them to come into contact with any electri-
cal lead. Vibration may damage wires or insulation, leading to a short circuit
or other damage to the vehicle.
•To ensure proper installation, use the supplied parts in the manner specified.
If any parts other than the supplied ones are used, they may damage internal
parts of the unit or they may work loose and the unit may become detached.
•It is extremely dangerous to allow the GPS antenna lead or microphone lead
to become wound around the steering column or shift lever. Be sure to install
the unit in such a way that it will not obstruct driving.
•Make sure that leads cannot get caught in a door or the sliding mechanism of
a seat, resulting in a short circuit.
•Please confirm the proper function of your vehicle’s other equipment follow-
ing installation of the Navigation System.
•Certain government laws may prohibit or restrict the placement and use of
this system in your vehicle. Please comply with all applicable laws and regu-
lations regarding the use, installation and operation of your Navigation
System.
•Do not install the display unit or Hide-away unit where it may (i) obstruct
the driver’s vision, (ii) impair the performance of any of the vehicle’s operat-
ing systems or safety features, including airbags, hazard lamp buttons or (iii)
impair the driver’s ability to safely operate the vehicle.
ENG/MASTER 96 18
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 18

•Install the display unit between the driver’s seat and front passenger seat so
that it will not be hit by the driver or passenger if the vehicle stops quickly.
•Never install the display unit in front of or next to the place in the dash,
door, or pillar from which one of your vehicle’s airbags would deploy. Please
refer to your vehicle’s Owner’s Manual for reference to the deployment area
of the frontal airbags.
•Do not install the display unit and Hide-away unit in a place where it will
impair the performance of any of the vehicle’s operating systems, including
airbags and headrests.
To guard against electromagnetic interference
•In order to prevent interference, set the following items as far as possible from the dis-
play unit and Hide-away unit of this Navigation System, other cables or leads:
-TV antenna and antenna lead
-FM, AM antenna and its lead
-GPS antenna and its lead
In addition you should lay or route each antenna lead as far as possible from other antenna
leads.
Do not bind them together, lay or route them together, or cross them.
Such electromagnetic noise will increase the potential for errors in the location display.
Before installing
•Consult with your nearest dealer if installation requires the drilling of holes or other mod-
ifications of the vehicle.
•Before finally installing the unit, connect the wiring temporarily, making sure it is all
connected up properly, and the unit and the system work properly.
18
ENG/MASTER 96
19
English Español Deutsch Français Italiano Nederlands
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 19

19
Installation
Installing the display unit and Hide-away unit
Installation notes
•Do not install the display unit or Hide-away unit in places where it may become subject
to high temperatures or humidity, such as:
*Places close to a heater, vent or air conditioner.
*Places exposed to direct sunlight, such as on top of the dashboard or the rear shelf.
*Places that may be splashed by rain, for example close to the door.
•When installing the unit choose a position that is strong enough to bear the weight of the
unit. Choose positions where the display unit or Hide-away unit can be firmly installed,
and install it securely.
Unless the display unit or Hide-away unit are securely attached, the current location of
the vehicle cannot be displayed correctly.
•Do not install the Hide-away unit on the board covering the spare tire or other places
which are subject to vibration.
•When the Hide-away unit is installed under a front seat, ensure that it does not obstruct
the sliding action of the seat.
•When installing the Hide-away unit, choose a position that ensures there will be no con-
tact with luggage. The impact of a heavy weight or sudden shock on the Hide-away unit
will adversely affect the accurate display of the current location of the vehicle.
•Avoid installing the Hide-away unit in places where it will interfere with loading and
unloading of the spare tire, jack, tools, etc.
•Check that a disc can be ejected with the display unit installed.
•Install the Hide-away unit horizontally on a surface within +30 degrees to -30 degrees
tolerance (within five degrees to the left or right of your vehicle’s direction of travel).
Mis-installing the unit with the surface tilted more than these tolerances would increase
the potential for errors in the location display, and might otherwise cause reduced dis-
play performance.
30°
30°
30°
5°
ENG/MASTER 96 20
CRD3837B_inst_001_031_US 4/1/04 2:20 PM Page 20
