Pioneer FM687 - CDX CD Changer User manual

Operation Manual
CDX-FM1287
CDX-FM687
UNIVERSAL
MULTI-CD SYSTEM

Precautions ................................................. 4
Preparing to Use the Remote Controller Unit ..... 5
Precautions .......................................................... 5
Loading Battery .................................................... 5
Using the Compact Discs Magazine ......... 6~8
Inserting discs ................................................... 6~7
Loading the magazine ............................................ 8
Playing Compact Discs .......................... 9~22
Start the CD player ................................................ 9
Disc Number Search .............................................. 9
Using Track Search/Fast Forward and Reverse ........ 10
Pausing .............................................................. 11
Repeat ............................................................... 11
Random Play ....................................................... 12

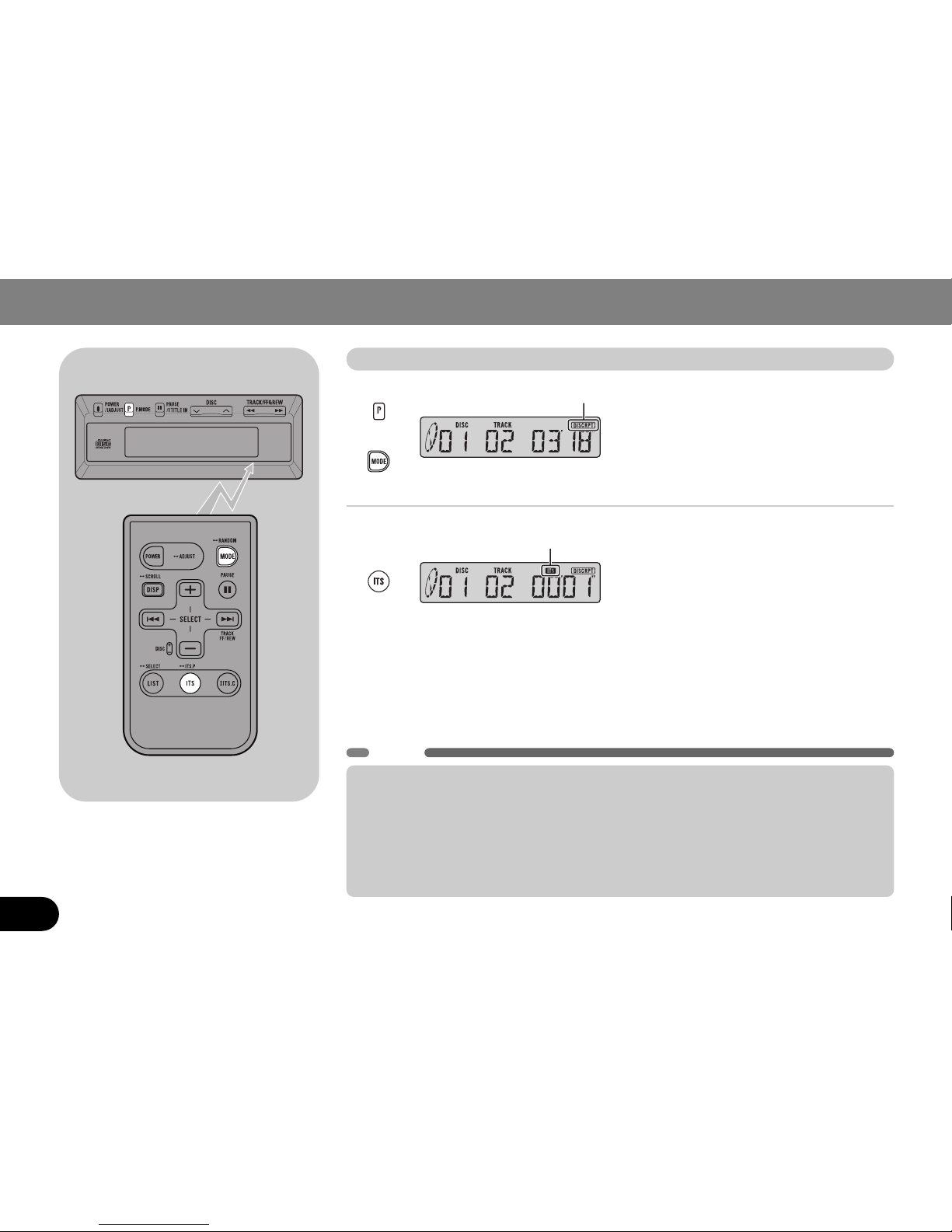

ITS (Instant Track Selection) ............................. 13~15

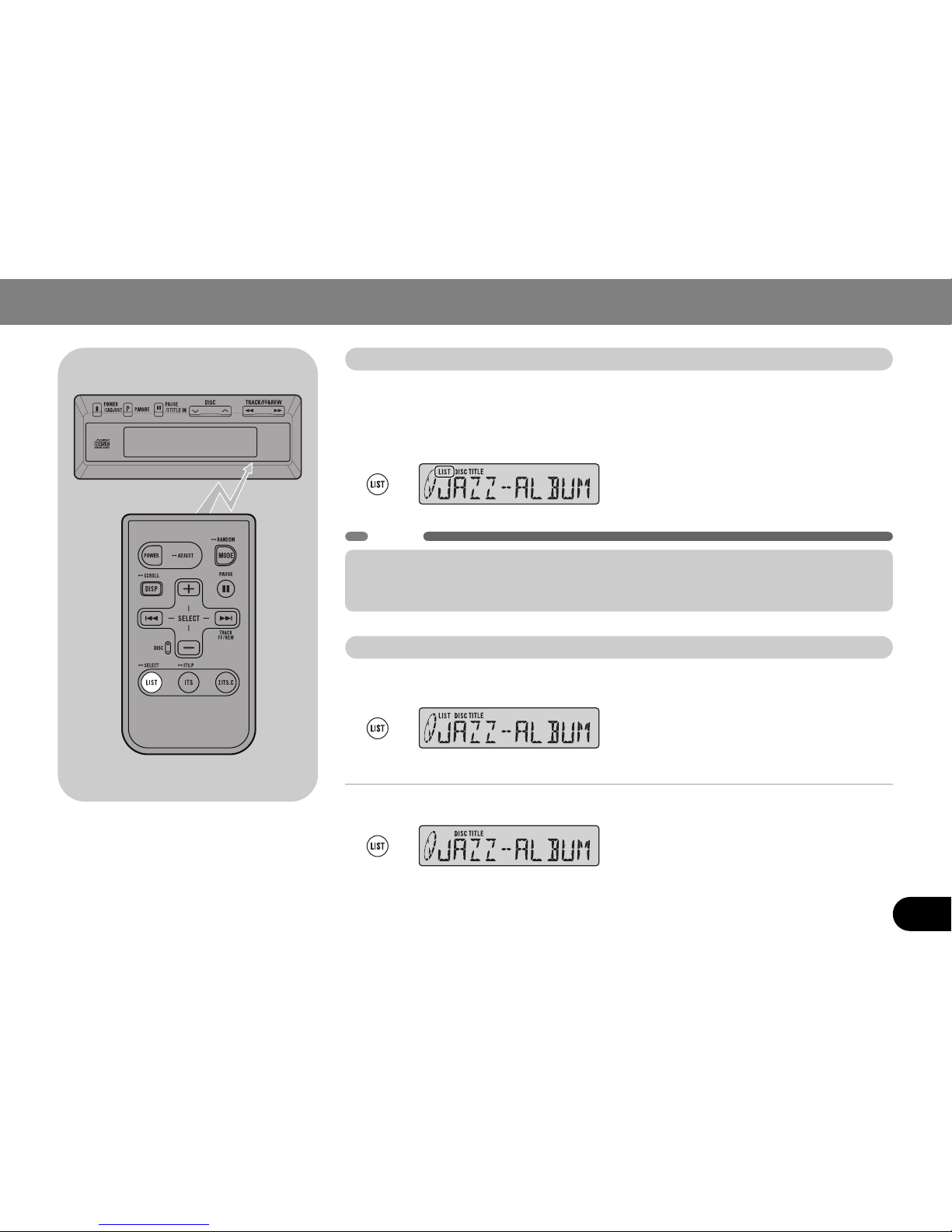

Disc Title ....................................................... 16~19
Setting Player to Play Discs via Radio ................ 20~21
Display shows this message ................................. 22
Pressing the Clear Button .......................... 23
Discs ........................................................ 23
Transportation of multi-CD player .............. 24
Specifications ........................................... 25
Precauciones ............................................. 26
Preparación para utilizar la unidad
de control remoto ....................................... 27
Precauciones ....................................................... 27
Colocación de la pila ............................................. 27
Utilización del cargador
de discos compactos .............................. 28~30
Inserción de discos .......................................... 28~29
Introducción del cargador ...................................... 30
Reproducción de discos compactos ....... 31~44
Inicie el reproductor de disco compacto .................. 31
Búsqueda de número de disco ............................... 31
Utilizando la búsqueda de pista/avance
rápido e inversión ................................................ 32
Pausa ................................................................. 33
Repetición .......................................................... 33
Reproducción aleatoria ......................................... 34
ITS (Selección instantánea de pista) .................. 35~37
Título de disco ............................................... 38~41
Fijación del reproductor para reproducir discos
por medio del radio ......................................... 42~43
La presentación muestra este mensaje ................... 44
Presionando el botón de borrado ................ 45
Discos ....................................................... 45
Transporte del reproductor de múltiples
discos compactos ......................................... 46
Especificaciones ........................................ 47
Contents/Indice/Índice
2
English Español

Precauções ................................................ 48
Preparação para utilizar o controle remoto ... 49
Precauções .......................................................... 49
Colocação da pilha ............................................... 49
Utilização do magazine de CD .................. 50~52
Colocação dos discos ....................................... 50~51
Colocação do magazine ........................................ 52
Reprodução de CD................................ 53~66
Para iniciar o CD player ........................................ 53
Busca de número de disco .................................... 53
Utilização da busca de faixa/
Avanço rápido e retrocesso ................................... 54
Pausa ................................................................. 55
Repetição ........................................................... 55
Reprodução aleatória ........................................... 56
ITS (Seleção instantânea de faixa) .................... 57~59
Título de disco ............................................... 60~63
Ajuste do CD player para
tocar discos via rádio ....................................... 64~65
Mensagens de erro .............................................. 66
Utilização do botão de reposição ................ 67
Discos ....................................................... 67
Transporte do multi-CD player .................... 68
Especificações ........................................... 69 3
Português (B)

Precautions
4
• When you use this universal multi-CD
system, the effective sensitivity of your
radio will be reduced slightly.
• When you turn the car radio off, the
system stays on. If you leave it on for a
long time, the car battery may go flat.
• You can connect this unit to a Multi-CD
controller (e.g. a head unit) with an
IP-BUS cable (sold separately). If you do
this, refer to the manual provided with
the Multi-CD controller before using it to
operate this unit.
• With this player, you can use the ITS
functions to store up to 99 tracks per
disc.
Even if the Head unit’s manual indicates
ITS memory is up to 24 tracks per disc,
this player can store up to 99 tracks per
disc.
• When driving on an uneven road, the
player may not reproduce every sound
properly.
• When this universal multi-CD system is
connected to a vehicle’s diversity anten-
na, there may be distortion if a station is
broadcasting a strong signal on the fre-
quency you’re using for the system. If
this occurs, switch to another frequency.
•During winter the inside of the vehicle
may be very cold. If the heater is turned
on and the player is used soon after, the
disc or optical parts (prism, lens, etc.)
may become misted up, and the player
will not operate correctly. If the disc is
misted up, wipe it with a soft cloth. If
the optical parts are misted up, wait for
about an hour for them to warm up.
They will return to their normal condi-
tion.
•This product conforms to the track skip
function of the CD-R disc. The tracks
containing the track skip information are
skipped over automatically.
In case of trouble
When the unit does not operate proper-
ly, contact your dealer or the nearest
authorized PIONEER Service Station.
CAUTION:
USE OF CONTROL OR ADJUSTMENT
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION:
THE USE OF OPTICAL INSTRUMENTS
WITH THIS PRODUCT WILL INCREASE
EYE HAZARD.

Preparing to Use the Remote Controller Unit English
5
•Slide out the tray on the back of the
remote control and insert the battery
with the (+) and (–) poles pointing in the
proper directions.
•When using for the first time, pull out
the film protruding from the tray.
•Use only lithium battery “CR2025”, 3 V.
Precautions
Battery
This product is equipped with a remote
control for convenient operation.
•Point the control in the direction of the
unit to operate.
•Do not store the remote control in high
temperatures or direct sunlight.
•The control may not function properly in
direct sunlight.
•Do not let the remote control fall onto
the floor, where it may become jammed
under the brake or accelerator pedal.
•Remove the battery if the remote control
is not used for a month or longer.
•If the event of battery leakage, wipe the
remote control completely clean and
install a new battery.
WARNING:
•Keep the lithium battery out of reach of children. Should the battery be swallowed,
immediately consult a doctor.
CAUTION:
•Do not recharge, disassemble, heat or dispose of battery in a fire.
•Use a CR2025 (3 V) lithium battery only. Never use other types of battery with this
unit.
•Do not handle the battery with metallic tools.
•Do not store the lithium battery with metallic materials.
•When disposing of used batteries, please comply with governmental regulations or
environmental public institution’s rules that apply in your country/area.
•Always check carefully that you are loading the battery with its (+) and (–) poles fac-
ing in the proper directions.

Using the Compact Discs Magazine
6
1
2
3
4
5
6
7
8
9
10
11
12
Hold down the magazine
lock button and, pull the
tray out.
Slide out the disc tray
Disc tray
Position the disc with
the label upward.
Inserting discs [Page 6~7]
Disc 1
to
Disc 12
Changing disc trays
Align the disc tray with the left and right
grooves, and push it in until you hear it
click.
Gently pull the disc tray out.
Disc tray

English
7
Notes on 8-cm (3-inch) CDs
Do not use an 8-cm CD adapter. If it is
used, the player may fail. To load an
8-cm CD, you need a special 8-cm CD
tray (Part No. CXB5931). Ask your
Pioneer service station about it.
8cm
•Do not put the magazine in a place
where it will be exposed to high
temperatures or direct sunlight.
•Do not disassemble the magazine.
•Take care not to drop the magazine or
knock it against anything.
•Do not use cracked or warped trays.
•Never insert anything other than discs.
Do not attach a label or tape to a disc.
•The use of benzine, thinner, insecticide,
or other volatile chemicals may damage
the magazine surface.
If you need more magazines, please ask
your nearest dealer for magazine
JD-1212S.
Attach the supplied label in the speci-
fied position. Attaching the label in an
incorrect place or attaching more than
one label will cause malfunction.
Label
•Be sure to remove the disc before
changing a disc tray.
•If the tray is not aligned with the right
and left grooves, it cannot be pushed to
the end. Do not bend or force the tray.
•Always load 12 trays in a magazine to
prevent loss or warping of trays.
•If you load a disc with the label general-
ly printed in black facing down, not only
will the player not be able to recognize
whether the disc is set or not, but also,
the display unit will not display an error
message to let you know about it. So
make sure all the discs in each maga-
zine have their label sides facing up.
Precautions when handling
magazines
Extra magazines
Attaching the label
The figure shows this product with
CDX-FM1287 as an example.

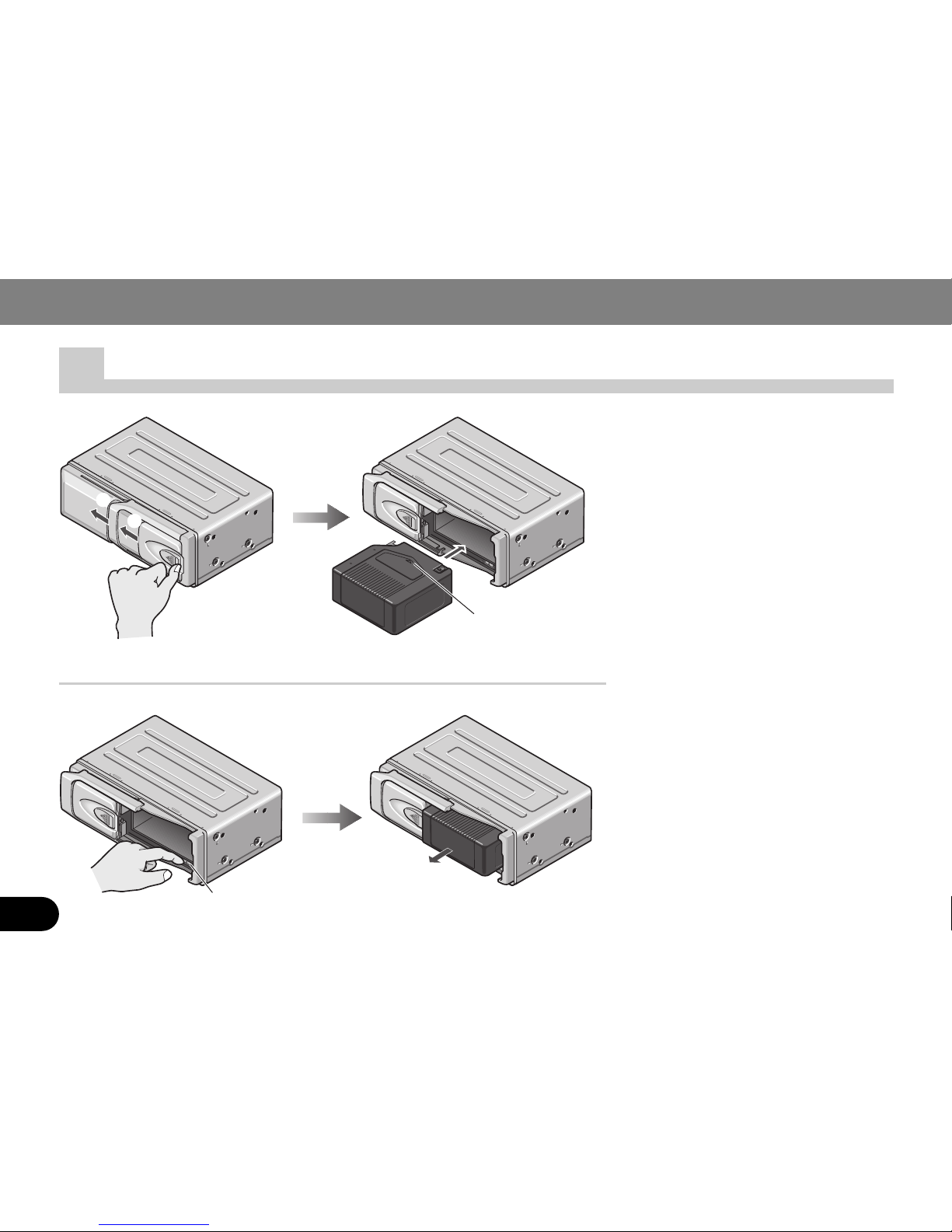

To remove the magazine
1Slide and open the door.
2Open it fully until it locks with a click.
Press the eject button.
Using the Compact Discs Magazine
8
2
1
Insert the magazine
with the arrow upward.
Insert the magazine.
•Do not put your fingers in the magazine
tray as this may lead to incorrect opera-
tion and damage to the player.
•If the label on the magazine is coming
off or wrinkled up, it may damage the
eject mechanism, and in some cases,
the magazine may not be ejected.
Therefore, remove a damaged label
completely before use.
•Never leave the door open while play-
ing discs. The entry of dirt, dust, or any
other foreign matter into the player may
cause it to fail.
Loading the magazine

Playing Compact Discs English
9

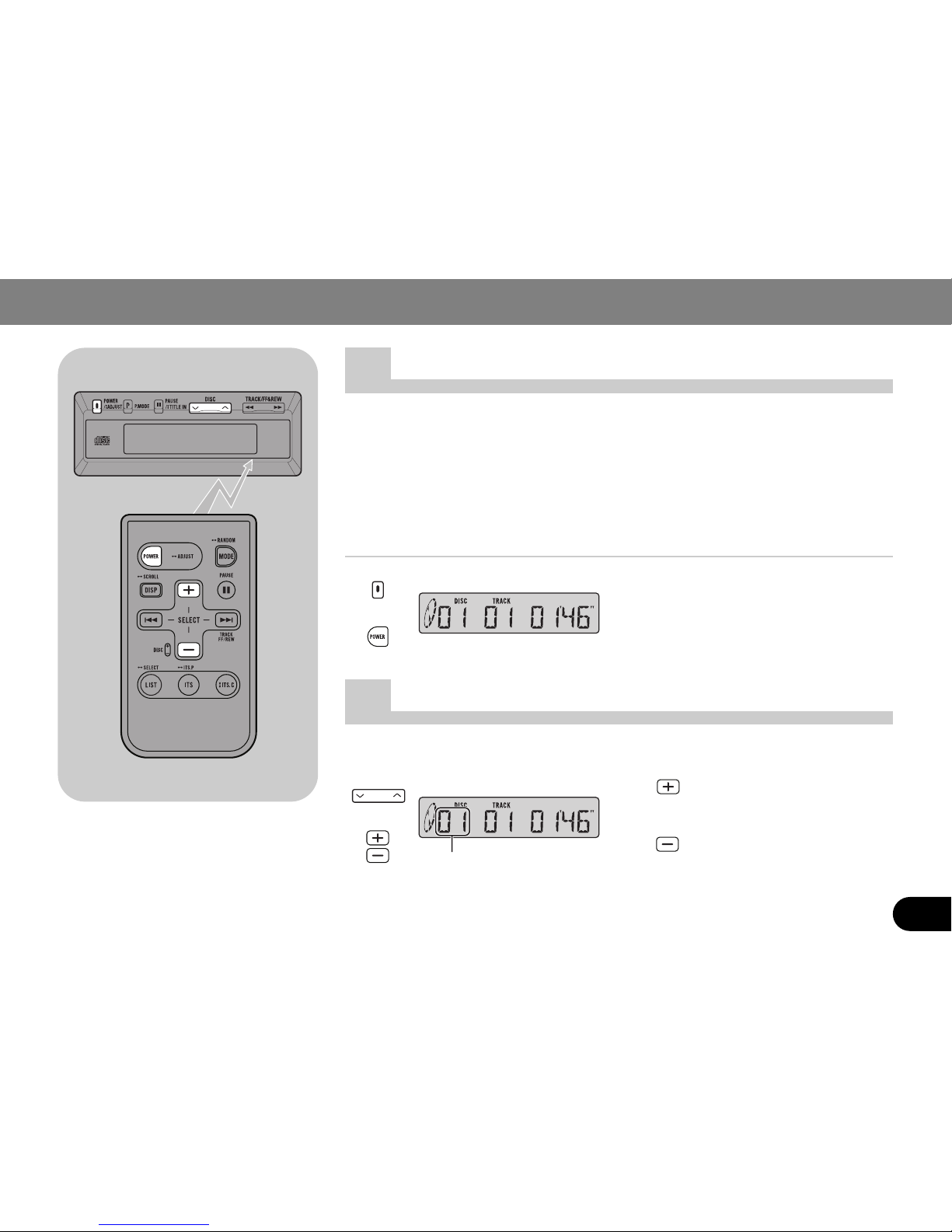

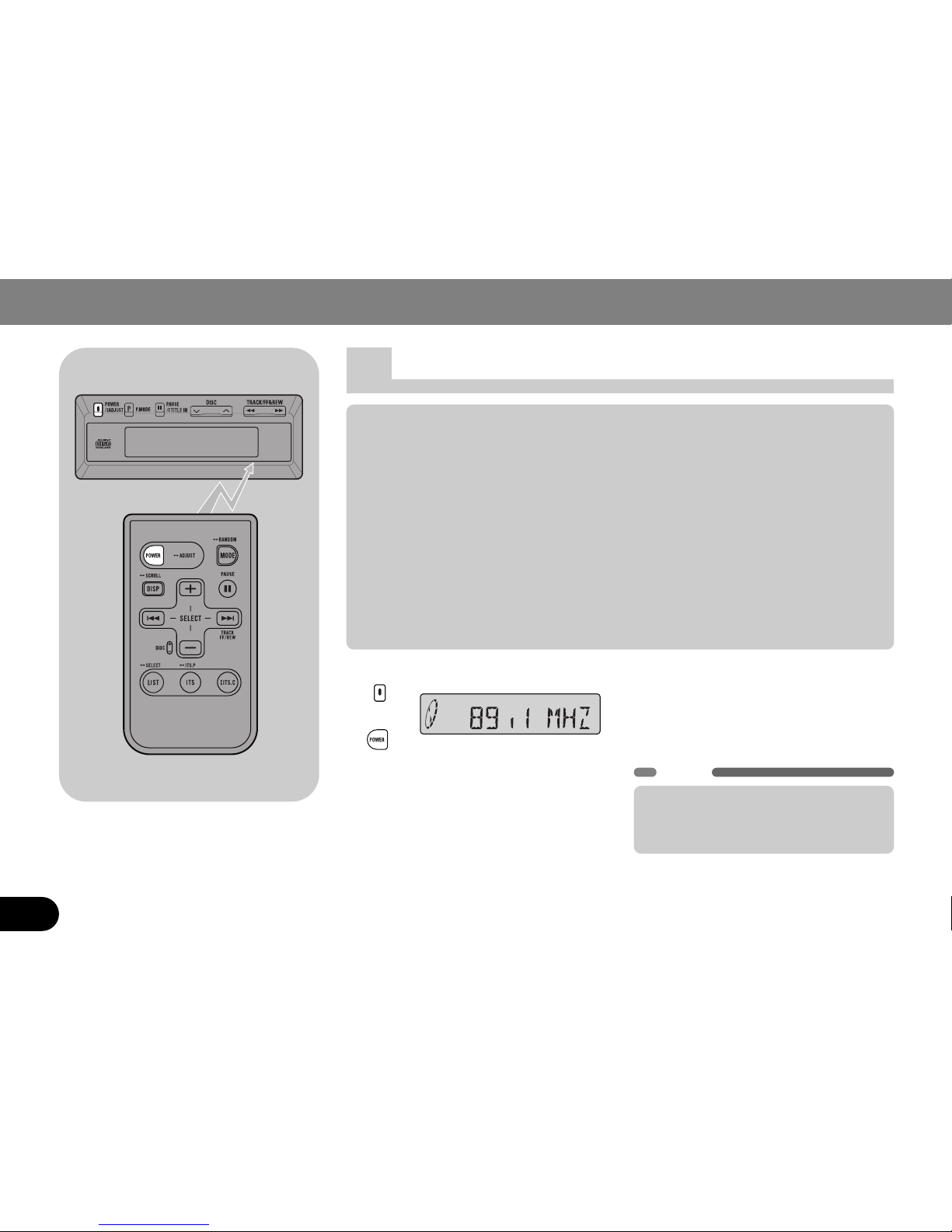

1.Switch the radio on and tune to
Modulating Frequencies.
•The initial value is 89.1 MHz.
( See Page 20 regarding switching CD
player transmission frequency.)
•If your radio does not have muting, there
may be some noise before power switch
of control unit is ON. If this happens, turn
down the volume of the radio.
: increase the number.
: decrease the number.
2.Press button to switch on and
start the player.
Start the CD player
Disc Number Search
or
or
Disc Number

10
Using Track Search/Fast Forward and Reverse
Playing Compact Discs
This product lets you select the
track search function or fast for-
ward/reverse function by changing
the length of the time you press
the button.
or
Track Number
Elapsed play time
Track search 0.5 seconds or less
Fast forward/Reverse Continue pressing
: decrease the number.
: Fast Reverse
: increase the number.
: Fast Forward

11
English
Press button to pause during disc
playback.
Press button again to release pause.
Pausing
Repeat
MEMO
You can select a track using the track
search during pause. (“PAUSE”is off
while a track is being searched.) When
the track search ends, the found track
is paused at its beginning.
MEMO
•Changing to a different song or using
fast forward or reverse during track
repeat will cause the mode to change
to disc repeat.
•Changing discs during track repeat or
disc repeat will cause the mode to
change to normal play.
or
Track Repeat
Play the current track repeatedly.
Disc Repeat
Play the same disc repeatedly.
Normal play
Play all disc loaded in the maga-
zine in the CD player repeatedly.
Each press of button, the mode
changes.
or

1.Select the desired repeat mode.
2.Hold down button for more than 2
second.
Once the current track has been played,
the microprocessor will randomly select
the next and subsequent tracks.
To cancel random play, hold down but-
ton for more than 2 seconds again.
Random Play
Playing Compact Discs
MEMO
If track repeat is selected as the repeat
mode in step 1, it will automatically
switch to disc repeat mode and
random play will begin.
12
Example: Disc Repeat (See Page 11.)
or
Displayed during random play.
Random play will be performed
within the selected repeat mode.
or

English
13
1. Play the track you want to program.
This function lets you program and play the tracks you want. You can listen to just your
favorite tracks.
2.Press button to program the track.
ITS (Instant Track Selection) [Page 13~15]
Programming
It will be displayed for about 2
seconds to indicate memory
storage.
MEMO
•The ADPS function* of the multi-play
CD player lets you program up to 100
discs.
* ADPS: Automatic Disc Program Selection.
•When the number of discs exceeds 100,
the oldest disc that has been played in
the past is overwritten by the newest.
•Up to 99 tracks can be programmed for
a single disc.
•Tracks are programmed for each disc.
Programmed tracks are not erased after
the disc is changed.

1.Select the desired repeat mode.
Playing Compact Discs
14
2.Hold down button for more than 2
seconds.
To cancel ITS play, hold down button
for more than 2 seconds again.
ITS Play
MEMO
•If track repeat is selected as the repeat
mode in step 1, it will automatically
switch to disc repeat mode and ITS play
will begin.
•When you play a disc that has no tracks
programmed, “EMPTY”will appear on
the display for about 2 seconds, indicat-
ing that ITS play is not possible.
•During ITS play, both disc and track
number search is performed only on
programmed tracks.
Example: Disc Repeat (See Page 11.)
or
Displayed during ITS play.
ITS play will be performed
within the selected repeat mode.

English
15
Erasing the ITS Play
It will be displayed for about 2
seconds to indicate deletion of
memory contents in play.
To erase a single track program:
To erase the disc program:
During ITS play, select the track
you wish to erase by using track
search.
Hold down button for more than 2
seconds to erase the program.
(When there are no more memo-
rized tracks, “EMPTY”is displayed,
and ITS play is canceled.)
During normal play, select the disc
you wish to erase by using disc
number search.
Hold down button for more than 2
seconds to erase the program.

Playing Compact Discs
16
1.Select the disc for which you want
to enter a title.
You can enter a title for the disc in the CD player. The title stored for the disc can be dis-
played.
2.Hold down button for more than 2
seconds to select title input mode.
Disc Title [Page 16~19]
Entering Title
MEMO
•You cannot switch to the Title Input
mode while playing a CD TEXT disc.
•The ADPS function* of the CD player
lets you enter titles for up to 100 discs.
(Up to 100 discs, including ITS, can be
programmed.)
*ADPS: Automatic Disc Program Selection.
•A disc title can consist of up to 10 char-
acters for a single disc.
•When the number of discs exceeds 100,
the oldest disc that has been played in
the past is overwritten by the newest.
•One title is stored for each disc. The title
stored for a disc is not erased after the
disc is changed.

English
17
5.Select the input position farthest
to the right and press the button
to memorize.
The title will appear on the display.
3.Press the or side of but-
ton to select the input position.
The input position moves continuously
when you hold down either side of the
button.
4.Select characters using the or
side of button.
When you hold down either side of the
button, the character changes continu-
ously.
or
or
or
MEMO
To interrupt title input, press the
button for 2 seconds or more.

Playing Compact Discs
18
Display Switching
Each press of the button switches
between display of track number
(elapsed play time) and disc title
indications.
MEMO
•When you perform any operation while
the disc title is being displayed, the nor-
mal operation display will appear for 8
seconds.
•If TEXT data is not recorded on a CD
TEXT disc, “NO ~”(e.g. NO TITLE) is
displayed.
Normal Operation
Disc Title
CD TEXT Title Scroll
Press the button for more than 2
seconds to scroll CD TEXT titles.
•Normal Operation
•Disc Title
•Disc Artist Name
•Track Title
•Track Artist Name
When playing a CD TEXT disc,
indications switch as shown on
the left.

English
19
Each press of button displays the
titles of the discs in magazine
being played in ascending order of
disc number.
MEMO
•The disc title is displayed for about 8
seconds, then the normal operation dis-
play returns.
•Nothing is displayed for discs having no
titles.
•Trays with no discs are skipped.
You can list all discs loaded in the magazine being played. This function is convenient for
checking discs in the magazine being played.
1.Press button to display the disc
title list.
Select the disc to be played from the disc list display
2.When the title of the disc you
want to listen to is displayed,
press button for more than 2 sec-
onds.
That disc is played.
Disc Title List

Playing Compact Discs
20
Modulating frequencies selector
This system can change the frequency at
which the FM car radio receives the CD
audio signals within the range of 87.9 to
90.1 MHz in 0.2 MHz increments. (The ini-
tial setting is 89.1 MHz.) If there is a
strong broadcast station signal near the
current frequency, radio interference may
occur. If it occurs, change the frequency.
Source level adjuster
When you play discs, if the volume is low
compared with that for FM increase the
volume level. If the volume is high and
there is distortion, decrease the volume
level. (The initial setting is “LEVEL-4”.)
Pre-emphasis selector
Normally, set the pre-emphasis selector to
“PRE-EMP 1”. (The initial setting is
“PRE-EMP 1”.)
Play a disc. If you feel the treble is insuffi-
cient, switch the selector to “PRE-EMP 2”
to boost the treble slightly.
•When the selector is set to “PRE-EMP 2”,
the sound may distort with some car
radios. In this case, switch it back to
“PRE-EMP 1”.
1.Hold down button for more than 2
seconds. The modulator setting
mode will be entered, and the fre-
quency will be displayed.
Setting Player to Play Discs via Radio [Page 20~21]
MEMO
If you do nothing within the next 8 sec-
onds, the modulator setting mode
returns to the normal mode without
changing the most recent settings.
or
