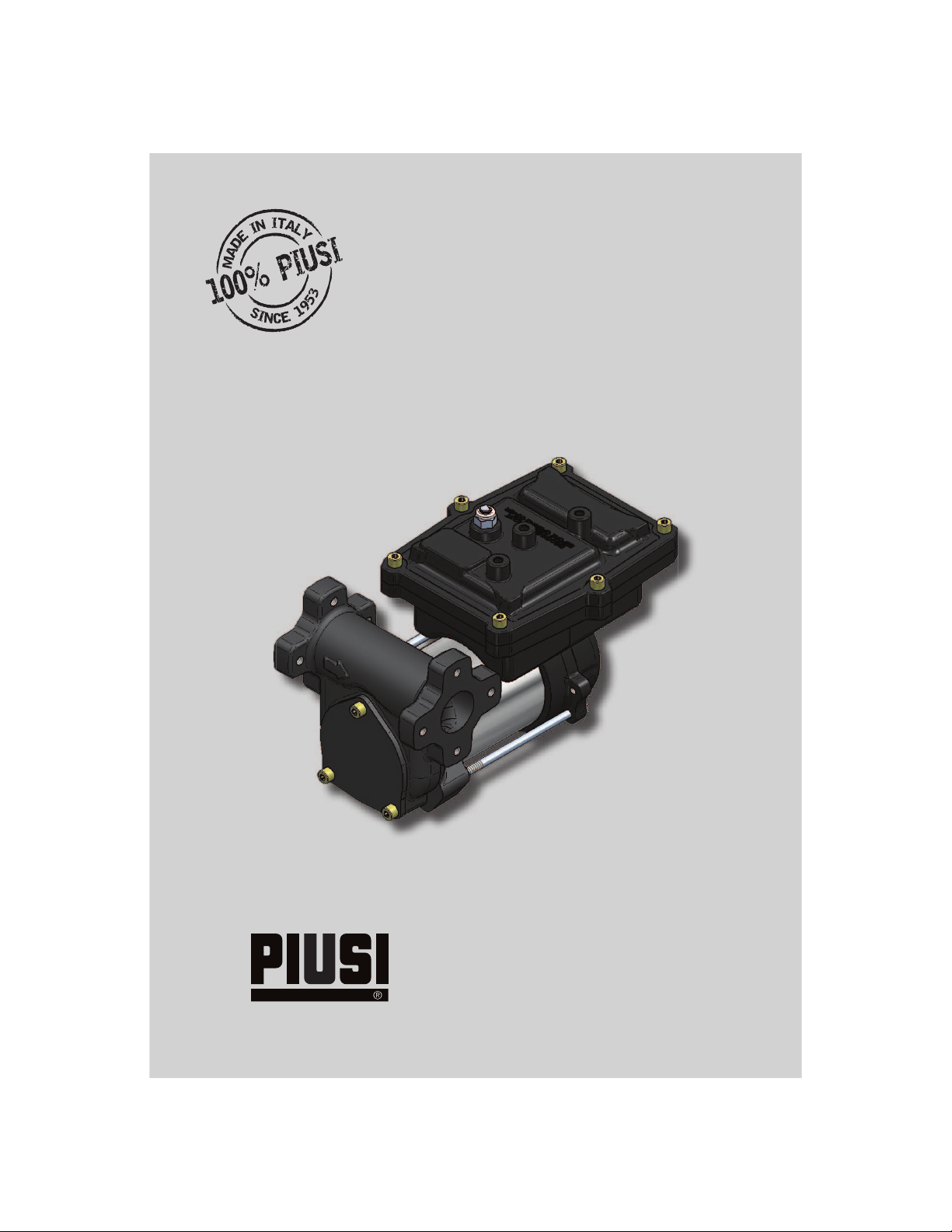

Piusi EX 50 12V User manual

M0217ITEN rev 00
EX 50 12V

M0217 EN 19
EN
A TABLE OF CONTENTS
A TABLE OF CONTENTS 19
B MACHINE AND MANUFACTURER IDENTIFICATION 20
C CONFORMITY 21
C1 DECLARATION OF CONFORMITY (94/9/CE, Annex X, lett. B) 21
C2 DECLARATION OF INCORPORATION OF PARTLY-COMPLETED MACHINERY 21
D MACHINE DESCRIPTION 22
D1 DEFINITION OF CLASSIFIED ZONES 22
D2 INTENDED USE 23
D3 HANDLING AND TRANSPORT 23
E GENERAL WARNINGS 24
F FIRST AID RULES 24
G GENERAL SAFETY RULES 25
H TECHNICAL DATA 26
H1 PERFORMANCE SPECIFICATIONS 26
I ELECTRICAL DATA 27
L OPERATING CONDITIONS 27
L1 ENVIRONMENTAL CONDITIONS 27
L2 ELECTRICAL POWER SUPPLY 27
L3 DUTY CYCLE 28
L.4 FLUIDS PERMITTED 28
M INSTALLATION 28
M1 POSITIONING, CONFIGURATIONS AND ACCESSORIES 29
M2 NOTES ON SUCTION AND DELIVERY LINES 29
N CONNECTIONS 30
N1 ELECTRICAL CONNECTIONS 30
N2 PIPING CONNECTIONS 31
O INITIAL START-UP 31
P EVERY DAY USE 32
Q MAINTENANCE 32
R NOISE LEVEL 33
S PROBLEMS AND SOLUTIONS 33
T DEMOLITION AND DISPOSAL 34
U EXPLODED VIEWS 34

20 M0217 EN
EN
B MACHINE AND MANUFACTURER IDENTIFICATION
AVAILABLE MODELS: 12V dc
MANUFACTURER: PIUSI S.p.A. ,
Via Pacinotti 16/A – z.i. Rangavino
46029 Suzzara - Mantova (Italy)

M0217 EN 21
EN
C CONFORMITY
C1 DECLARATION OF CONFORMITY (94/9/CE, Annex X, lett. B)
The manufacturer: PIUSI S.p.A.
Via Pacinotti, 16/A
46029 Suzzara (MN) Italy
Declares under its own responsibility that the machine:
Type: Pump
Model: 12V
Year of manufacture: refer to the year of production shown on the CE plate axed to the prod-
uct.
Tech. Ref. FileAd20_949.01.00
Notied body data: name, identication number and address
·1 Name: CESI S.p.A.
·2 Identication number: 0722
·3 Address:Via Rubattino, 134 - 20134 (Milano)
Number of the EC type-examination certicate: CESI 12 ATEX 033X
comply with all relevant provisions of the following directives:
- 94/9/CE
and the following harmonized standards, applied standards and/or technical specications:
UNI EN 1127-1:2008; UNI EN 13463-1:2010;
CEI EN 60079-0:2009; CEI EN 60079-1:2007
This equipment is classied as follows:
Group II, category 2 G Ex d IIAT = 135° C (T4)
Read the Use and Maintenance manual before using the pump..
Place: Suzzara (Mn)
Date: 22/02/2012
Legal Representative
C2 DECLARATION OF INCORPORATION OF PARTLY-COMPLETED MACHINERY
The undersigned
PIUSI S.p.A
Via Pacinotti 16/A- z.i.Rangavino
46029 Suzzara - Mantova - Italy
HEREBY STATES under its own responsibility, that the partly-completed machinery:
Description: Pump designed for the transfer of FUEL
Model: PUMPWITH ANTI-EXPLOSIVE HOUSING PROTECTION SYTEM
Serial No.: refer to Lot Number shown on CE plate axed to product
Year of manufacture: refer to the year of production shown on the CE plate axed to the prod-
uct.
Is intended to be incorporated in a machine (or to be with other machines) so as to create
a machine to which applies Machine Directive 2006/42/EC, may not be brought into service
before the machine into which it is to be incorporated has been declared in conformity with
the provisions of the directive 2006/42/EC.
Is in conformity with the legal provisions indicated in the directives:
- Machine Directive 2006/42/EC
- Electromagnetic Compatibility Directive 2004/108/EC
To which the essential safety requirements have been applied and complied with
what indicated on annex I of the machine directive applicable to the product and shown be-
low: 1.1.3 - 1.1.5 - 1.3.1 - 1.3.2 - 1.3.3 - 1.3.4 - 1.3.7 - 1.3.8 - 1.4.1 - 1.4.2.1 - 1.5.1 - 1.5.2 - 1.5.4 - 1.5.5
- 1.5.8 - 1.5.9 - 1.5.11 - 1.5.13 - 1.5.15 - 1.6.1 - 1.6.3 - 1.6.4 - 1.7.1 - 1.7.2 - 1.7.3 - 1.7.4.
The documentation is at the disposal of the competent authority following motivated request
at Piusi S.p.A. or following request sent to the email address: [e-mail]
The person authorised to compile the technical le and draw up the declaration is OttoVarini
as legal representative.
Suzzara, 22/02/2012 Legal Representative

22 M0217 EN
EN
D MACHINE DESCRIPTION
PUMP SELF-PRIMING, VOLUMETRIC, ROTATING ELECTRIC VANE PUMP,
EQUIPPED WITH BY-PASS VALVE.
MOTOR BRUSH MOTOR POWERED BY CONTINUOUS CURRENT, LOW
VOLTAGE, WITH INTERMITTENT CYCLE, CLOSED TYPE, IP55
PROTECTION CLASS ACCORDING TO CEI EN 60034-5, FLANGE-
MOUNTED DIRECTLYTOTHE PUMP BODY.
ATTENTION
MOTOR EQUIPPED WITH AUTOMATIC THERMAL
OVERLOAD PROTECTION. SHOULD THE PROTECTION
ACTIVATE, TURN OFF THE PUMP AND WAIT FOR IT TO
COOL DOWN.
D1 DEFINITION OF CLASSIFIED ZONES
FOREWORD
Denition of zones as shown in UNI EN 1127-1 standard
ZONE 0
Place where an explosive atmosphere made up of a mix of air and inam-
mable substances in the form of gas, vapour or mist is continuously pre-
sent, either for long periods or frequently.
Note: Generally speaking, said conditions, when they occur, involve the in-
side of tanks, pipes and containers, etc.
ZONE 1
Place where it is probable that an explosive atmosphere, made up of a mix
of air and inammable substances in the form of gas, vapour or mist, can
occur occasionally during normal operation.
Note: Said zone can also include:
- places in the immediate vicinity of zone 0;
- places in the immediate vicinity of supply openings;
- places in the immediate vicinity of lling and and emptying openings;
- places in the immediate vicinity of appliances, protection systems and fra-
gile glass and ceramic components, or components made of other similar
materials;
-placesintheimmediatevicinityofinadequatelysealedstungboxes,e.g.,
on pumps and valves with stung box.
ZONE 2
Place where it is improbable that an explosive atmosphere, made up of a
mix of air and inammable substances in the form of gas, vapour or mist,
can occur during normal operation, but which, if it does occurs, only per-
sists for a short time.
Note: Said zone can include, among others, places surrounding the zones
0 or 1.
ZONE 20
Place where an explosive atmosphere in the form of a cloud of combustible
powders in the air is continuously present, either for long periods or fre-
quently.
Note: Generally speaking, said conditions, when they occur, involve the in-
side of tanks, pipes and containers, etc.
ZONE 21
Place where it is probable that an explosive atmosphere, in the form
of a cloud of combustible powders in the air, can occur occasionally
during normal operation.
Note: Said zone can include, for example, among others, places in
the immediate vicinity of powder loading and emptying points and
places where powder layers form or which, during normal operation,
could produce an explosive concentration of combustible powders
mixed with the air.
ZONE 22
Place where it is improbable that an explosive atmosphere, in the form
of a cloud of combustible powders in the air, occur during normal ope-
ration but which, if it does occur, only persists for a short time.
Note: This zone can comprise, among others, places near appliances,
protections systems and components containing powder, out of
which the powder can come out due to leaks with the formation of
powder deposits (e.g., milling salt, where the powder comes out of the
mills and deposits).

M0217 EN 23
EN
D2 INTENDED USE
INTENDED
USE
PUMP FOR TRANFERRING FUEL SUITABLE FOR OPERATING IN
ZONES CLASSIFIED“1”AND “2”, ACCORDING TO DIRECTIVE 94/9/
CE
FORBIDDEN
USE
Using the appliance for uids other than those listed at para-
graph“L4 – Fluids permitted”and for uses other than those de-
scribed at the item“authorised use”is forbidden.
PLANT OPERATION RESTRICTIONS
IT IS FORBIDDEN:
1
To use the appliance in a construction conguration other than
that contemplated by the manufacturer
2
To use the appliance with xed guards tampered with or remo-
ved.
3
To use the appliance in places where there is risk of explosion
and/or res classied in the following zones:
0; 20; 21; 22
4
To integrate other systems and/or equipment not considered by
the manufacturer in the executive project.
5
To connect the appliance up to energy sources other than those
contemplated by the manufacturer
6
To use the commercial devices for purposes other than those
indicated by the manufacturer.
D3 HANDLING AND TRANSPORT
Due to the limited weight and dimensions of the pumps, special lifting equipment is not requi-
red to handle them.The pumps are carefully packed before dispatch. Check the packing when
receiving the material and store in a dry place.

24 M0217 EN
EN
E GENERAL WARNINGS
Important
precautions
To ensure operator safety and to protect the pump from po-
tential damage, workers must be fully acquainted with this
instruction manual before performing any operation.
Symbols used in
the manual
The following symbols will be used throughout the manual to
highlight safety information and precautions of particular im-
portance:
ATTENTION
This symbol indicates safe working practices for operators
and/or potentially exposed persons.
WARNING
This symbol indicates that there is risk of damage to the
equipment and/or its components.
NOTE
This symbol indicates useful information.
ATTENTION
Important note for guaranteed safety in classied zones
Manual preser-
vation
This manual should be complete and legible throughout.
It should remain available to end users and specialist instal-
lation and maintenance technicians for consultation at any
time.
Reproduction
rights
All reproduction rights are reserved by Piusi S.p.A. The text
cannot be reprinted without the written permission of Piusi
S.p.A.
© Piusi S.p.A.
THIS MANUAL ISTHE PROPERTY OF Piusi S.p.A.
ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN.
NOTE
THIS MANUAL ISVALID ONLY FOR DC PUMPS
ALWAYS USE THE RIGHT VOLTAGES TO CONNECT THE
PUMPS
ATTENTION
PUMP CANNOT BE USED FOR REFUELLING AIRCRAFTS
SUPPLIED BY AVGAS
ATTENTION
USE THE PUMP ONLY WITH FLUIDS PERMITTED.
DO NOT USE WITH FLUIDS NOT PERMITTED TO AVOID
DAMAGING THE PUMP. THE GUARANTEE LAPSES IN CASE
OF MISUSE OF THE FLUID.
DO NOT USE THE PUMP WITH LIQUID FOOD PRODUCTS
AND/OR WATER-BASED FLUIDS.
DO NOT OPERATE THE PUMP DRY TO AVOID DAMAGE.
Before connection, make sure that the piping and the suction
tank are free of dirt and solid residue that could damage the
pump and its accessories. NEVER COLLECTTHE FLUID FROMTHE
BOTTOM OFTHETANK SINCE IT MAY CONTAIN IMPURITIES
BEFORE USING THE PUMP SWITCH OFF ALL THE ELEC-
TRONIC DEVICES ( I.E. MOBILE PHONES, BEEPERS ETC.)
F FIRST AID RULES
Contact with
the product
In the event of problems developing following EYE/SKIN
CONTACT, INHALATION or INGESTION of the treated prod-
uct, please refer to the SAFETY DATA SHEET of the uid
handled.
Persons who
have suered
electric shock
Disconnect the power source, or use a dry insulator to pro-
tect yourself while you move the injured person away from
any electrical conductor. Avoid touching the injured person
with your bare hands until he is far away from any conduc-
tor. Immediately call for help from qualied and trained per-
sonnel. Do not operate switches with wet hands.
NOTE Please refer to the safety data sheet for the product
SMOKING
PROHIBITED
DO NOT SMOKE NEAR THE PUMP AND DO NOT USE THE
PUMP NEAR FLAMES.

M0217 EN 25
EN
G GENERAL SAFETY RULES
USER'S
RESPONSIBILITY IT IS ESSENTIAL TO GET TO KNOW AND UNDERSTAND
THE INFORMATION CONTAINED IN THIS MANUAL.
IT IS ESSENTIAL TO GET TO KNOW AND OBSERVE THE
SAFETY SPECIFICATIONS FOR FLAMMABLE LIQUIDS.
BEFORE USING THE PUMP IT’S IMPORTANT TO TRAIN
OPERATORS, INSTALLERS AND MAINTENANCE STAFF
TO LET THEM WORK IN A PARTICULAR AREA NO. 1 AS
MENTIONED BY DIRECTIVE 94/9/EC
Essential
protective
equipment
characteristics
IN CASE OF CONTACTWITHTHE PRODUCT AND FOR GOOD
STANDARD OF BEHAVIOUR, wear protective equipment
which is:
tTVJUFEUPUIFPQFSBUJPOTUIBUOFFEUPCFQFSGPSNFEtSFTJTUBOUUPQSPEVDUTVTFETO DO SO, PLEASE REFER TO THE RELEVANT TECHCNICAL
DATASHEETS OFTHE FLUID USED.
Personal
protective
equipment
that must be
worn
safety shoes close-tting clothing
protection gloves safety goggles
Necessary
safety
devices
instructions manual
Protective
gloves
Prolonged contact with the treated product may cause skin
irritation; always wear protective gloves during dispensing.
NOTE TO PREVENT ELECTRIC SHOCK AND DETONATION OF
SPARKS, ALL PUMPING SYSTEM MUST HAVE PROPER
GROUNDING, INCLUDING TANK AND ANY ACCESSORIES.
DANGER
ENFORCE REGULATIONS FOR ELECTRICAL INSTALLATION
ALL WIRING AND ELECTRICAL CONNECTIONS MUST
BE PERFORMED BY AUTHORIZED AND SUITABLY
TRAINED PERSONNEL.
Never touch the electric plug or socket with wet hands.
Do not switch the dispensing system on if the network
connection cable or important parts of the apparatus
are damaged, such as the inlet/outlet pipe, nozzle or
safety devices. Replace the damaged pipe immedi-
ately.
ATTENTION The electrical connection between the plug and
socket must be kept well away from water.
ATTENTION
NOTE
THE PUMP IS EQUIPPED WITH CURRENT-SENSING
PROTECTION. IF IT ACTIVATES TURN OFF THE PUMP
IMMEDIATELY.
THE PUMP IS EQUIPPED WITH PROTECTION AGAINST
OVERHEATING AND OVERLOAD RISKS. SHOULD SUCH
DEVICES ACTIVATE, THE PUMP SHUTS DOWN AUTO-
MATICALLY, BUT THE MASTER SWITCH IS NOT TURNED
OFF. IT IS IMPORTANT TO STOP THE PUMP USING ITS
SWITCH. THE PUMP RESTARTS AFTER
ITS NORMAL OPERATING CONDITIONS HAVE BEEN
RESTORED.
ATTENTION
FAILURE TO OBSERVE THE ABOVE MENTIONED RULES
CAN CAUSE SERIOUS ACCIDENTS
ATTENTION
SHOULD THE HEAT SENSOR ACTIVATE UNDER
NORMAL USE CONDITIONS, PLEASE CONTACT THE
TECHNICAL SUPPORT.

26 M0217 EN
EN
H TECHNICAL DATA
H1 PERFORMANCE SPECIFICATIONS
The performance diagram shows ow rate as a function of back pressure.
Functioning Point Absorption(A) Flow Rate
(l/min)
Back Pressure
(BAR)
Typical
delivery
conguration
4 meters of 3/4” tube automatic dis- pensing nozzle
A
(MaximumFlowRate)
15 52 0,2
B
(Basesystem) 17 40 0,5 tt
C
(By-Pass)24 0 1,1 Delivery
Closed
X
Y
AB
C
0P (bar)
ATTENTION The curve refers to the following operating conditions:
Fluid: PETROL,
Temperature: 20° C
Suction conditions: The pipe and the pump position relative
to the uid level is such that a low pressure of 0.3 bar is
generated at the nominal ow rate.
Under dierent suction conditions higher low pressure
values can be created that reduce the ow rate compared
to the same back pressure values. To obtain the best perfor-
mance, it is very important to reduce loss of suction pressu-
re as much as possible by following these instructions:
tTIPSUFOUIFTVDUJPOQJQFBTNVDIBTQPTTJCMFtBWPJEVTFMFTTFMCPXTPSUISPUUMJOHJOUIFQJQFTtLFFQUIFTVDUJPOöMUFSDMFBOtVTFBQJQFXJUIBEJBNFUFSFRVBMUPPSHSFBUFSUIBOindicated (see Installation).

M0217 EN 27
EN
I ELECTRICAL DATA
PUMP MODEL POWER SUPPLY CURRENT
Voltage (V) Frequency (Hz) Max (*) (A)
12V 12 DC 25
(*) Refers to functioning in by-pass mode.
POWER CORD INLET 1/2”NPT
L OPERATING CONDITIONS
L1 ENVIRONMENTAL CONDITIONS
AMBIENT
TEMPERATURE
min. +23 °F / max +104 °F
min. -10 °C / max +40 °C
FLUID
TEMPERATURE
min. +23 °F / max +104 °F
min. -10 °C / max +40 °C
RELATIVE HUMID-
ITY
max. 90%
LIGHTING The environment must conform to directive 89/654/EEC on
work environments.
In case of non-EU countries, refer to directive EN ISO 12100-2
§ 4.8.6.
ATTENTION The temperature limits shown apply to the pump compo-
nents and must be respected to avoid possible damage or
malfunction.
L2 ELECTRICAL POWER SUPPLY
NOTE The pump must be powered by DC line, the nominal values of
which are indicated on the table in the paragraph "I - ELECTRI-
CAL DATA".
The maximum acceptable variations from the electrical pa-
rameters are:
Voltage: +/- 5% of the nominal value
ATTENTION Power supply from lines with values that do not fall within
the indicated limits could cause damage to the ELECTRICAL
AND electronic components.

28 M0217 EN
EN
L3 DUTY CYCLE
NOTE The pumps have been designed for intermittent use and
a duty cycle of 30 min. ON and 60 min. OFF in conditions of
maximum A.TEMPERATURE (40 °C) AND AT NOMINALTRANS-
FER CONDITIONS.
ATTENTION Functioning under by-pass conditions is only allowed for
short periods of time (max. 3 minutes).
L.4 FLUIDS PERMITTED
ATTENTION THE PUMP CAN BE UESED ONLY WITH THE FOLLOWING FLU-
IDS:
- DIESEL - KEROSENE
- PETROL - PETROL ALCOHOL MIXED MAX 15%
M INSTALLATION
ATTENTION
BEFORE ANY OPERATION, ENSURE TO BE OUT OF
POTENTIALLY EXPLOSIVE AREAS
The pump must never be operated before the delivery and
suction lines have been connected.
TIGHTEN THE ELECTRICAL BOX TO ENSURE PROTECTION
AGAINST THE RISK OF EXPLOSION
THE RIGHT CLAMPING SCREWS COUPLE THAT GRANTS THIS
PROTECTION IS 10Nm
PRELIMINARY
INSPECTION
- Verify that all components are present. Request any missing parts
from the manufacturer.
$IFDLUIBUUIFQVNQIBTOPUTVòFSFEBOZEBNBHFEVSJOHUSBOTQPSUor storage.
- Carefully clean the suction and delivery inlets and outlets, removing
any dust or other packaging material that may be present.
- Check that the electrical data corresponds to those indicated on the
data plate.
- Install the pump at a height of min. 80 cm.
ATTENTION IF VALVES IN THE CIRCUIT ARE TO BE INSTALLED, MAKE
SURE THEY ARE EQUIPPED WITH OVERPRESSURE SYSTEM.
CLEAN THE TANK AND MAKE SURE IT IS WELL-
VENTILATED (RECOMMENDED OPENING
PRESSURE: 3 psi)
APPLY THE QUICK COUPLING TO THE TANK CORRECTLY
AND SAFELY
ATTENTION DO NOT BLOCK THE DRAINAGE HOLES

M0217 EN 29
EN
M1 POSITIONING, CONFIGURATIONS AND ACCESSORIES
NOTE The pump must be secured in a stable manner.
ATTENTION It is the installer's responsibility to provide the line acces-
sories necessary for the safe and proper functioning of the
pump. The accessories that are not suitable to be used with
the previously indicated material could damage the pump
and/or cause injury to persons, as well as causing pollution.
To maximise performance and prevent damage that could
aect pump operation, always demand original acces-
sories.
M2 NOTES ON SUCTION AND DELIVERY LINES
DELIVERY
The selection of the pump model must be made taking into account the characteristics of
the system.
The combination OF: the length of the pipe, the diameter of the pipe, as well as the accessories
installed, could create back pressure that are greater than the maximum predicted pressure,
thereby causing the pump's electronic controls to intervene and reducing the dispensed ow
considerably.
In these cases, to guarantee correct operation of the pump, it is necessary to reduce the re-
sistance of the system using pipes that are shorter or that have a greater diameter, as well as
line accessories with smaller resistances (e.g. an automatic dispensing nozzle with greater ow
rate capacity).
SUCTION
FOREWORD
Self-priming pumps are characterized by excellent suction capacity.
During the start-up phase, when the suction pipe is empty and the pump is wet with the uid,
the electric pump unit is able to suck liquid from a maximum vertical distance of 2m.
It is important to note that it could take up to 1 minute for the pump to prime and that the
presence of an automatic dispensing nozzle on the delivery side will prevent the air trapped
during the installation from being released and, therefore, the correct priming of the pump.
For this reason, it is always advisable to prime the pump without an automatic delivery nozzle,
verifying the proper wetting of the pump.
Always install a foot valve to prevent the suction pipe from being emptied and to keep the
pump wet at all times. In this way, the pump will always start up immediately the next times it
is used. When the system is in operation, the pump can operate with back pressures of up to
0.5 bars on the suction inlet; beyond this point, the pump may begin to cavitate resulting in a
drop of the ow rate and an increase in the noise levels of the system.
In light of this, it is important to guarantee small back pressures on the suction side, by using
short pipes with diameters that are equal to or larger than those recommended, reducing ben-
ds to a minimum, and using lters with a large cross-section and foot valves with minimum
possible resistance on the suction side. It is very important to keep the suction lters clean
because, when they become clogged, they increase the resistance of the system.
The vertical distance between the pump and the uid must be kept as short as possible, and
it must fall within the 2m maximum required for priming. If the distance is greater, a foot valve
must be installed to allow the suction pipes to ll up and the diameter pipes must be larger. It is
however recommended that pump not be installed if the vertical distance is greater than 3m.
ATTENTION
If the suction tank is higher than the pump, an
anti-siphon valve should be installed to prevent ac-
cidental diesel fuel leaks. Dimension the installation
in order to control the back pressures due to water
hammering
It is a good system practice to install vacuum and
air pressure gauges right at the inlets and outlets of
the pump, which allow verication that operating
conditions are within anticipated limits. To prevent
the suction pipes from being emptied when the pump
stops, a foot valve should be installed.
THE INSTALLER IS RECOMMENDED TO INSTALL A
SUCTION FILTER.

30 M0217 EN
EN
N CONNECTIONS
N1 ELECTRICAL CONNECTIONS
ATTENTION
BEFORE ANY OPERATION, ENSURE TO BE OUT OF
POTENTIALLY EXPLOSIVE AREAS
IT IS THE INSTALLER'S RESPONSIBILITY TO CARRY OUT THE
ELECTRICAL CONNECTIONS IN COMPLIANCE WITH THE
RELEVANT STANDARDS.
WARNING Comply with the following (not exhaustive) instructions to
ensure a proper electrical connection:
- During installation and maintenance make sure that power supply to
UIFFMFDUSJDMJOFTIBTCFFOUVSOFEPò- Use cables with minimum sections, rated voltages and installation type
that are suitable for the characteristics indicated in paragraph "I - ELEC-
TRICAL DATA" and the installation environment.
- Always make sure that the cover of the terminal strip box is closed be-
fore switching on the power supply, after having checked the integrity of
the seal gaskets that ensure the IP55 protection grade. For those screws
use a 10 nm clamping couple
ATTENTION All motors are equipped with a grounding terminal.
Make sure all the plant is properly grounded.
ATTENTION BE SURE TO USE A CABLE GLAND, WITH SUFFICIENT
PROTECTION GRADE (Exd)
NOTE IN THE EVENT OF INSTALLATION IN ZONES WHICH ARE
NOT CLASSIFIED, IT IS SUFFICIENT TO OBSERVE THE MINI-
MUM SAFETY STANDARDS ALREADY MENTIONED INTHIS
MANUAL.
- THE OWNER HAS THE RESPONSIBILITY TO VERIFY THAT
ALLTHE LOCAL AND NATIONAL REGULATIONS HAVE BEEN
OBSERVED.
- MAKE SURETHAT THE CABLE CONNECTINGTHE BATTERY
IS PROTECTED FROM HEAT SOURCES AND SHARP EDGES.
INSTALLTHE FUSE CLOSERTOTHE BATTERY.
ATTENTION
FAILURE TO OBSERVE THE ABOVE MENTIONED RULES
CAN CAUSE SERIOUS ACCIDENTS
Red Cable +
Black Cable -
GND
Switch
Motor
protector
t°C
1/2” NPT
INLET

M0217 EN 31
EN
N2 PIPING CONNECTIONS
FOREWORD - Before carrying out any connection, refer to the visual indications i.e.
arrow on the pump head, to identify suction and delivery.
ATTENTION Wrong connection can cause serious pump
damage.
PRELIMINARY
INSPECTION
- Before connection, make sure that the piping and the suction tank
are free of dirt and solid residue that could damage the pump and its
accessories. NEVER COLLECT THE FLUID FROM THE BOTTOM OF THE
TANK SINCE IT MAY CONTAIN IMPURITIES
- Before connecting the delivery pipe, partially ll the pump body, from
delivery side, with the liquid that needs to be pumped in order to faci-
litate priming.
- Do not use conical threaded ttings, which could damage the threa-
ded inlet or outlet openings of the pump if excessively tightened.
O INITIAL START-UP
FOREWORD
- Check that the quantity of uid in the suction tank is greater than the
amount you wish to transfer.
- Make sure that the residual capacity of the delivery tank is greater than
the quantity you wish to transfer.
- Make sure that the piping and line accessories are in good condition.
NOTE THIS PUMP IS NOT PROVIDED FOR FURTHER REGULATION
OF DELIVERY AND PRESSURE
ATTENTION Fluid leaks can damage objects and injure persons.
NOTE - Never start or stop the pump by connecting or cutting out
the power supply.
- Prolonged contact with some uids can damage the skin.
The use of goggles and gloves is recommended.
IF THE PUMP
DOES NOT
PRIME
Depending on the system characteristics, the priming phase
can last from several seconds to a few minutes. If this phase is
prolonged, stop the pump and verify:
- that the pump is not running completely dry (ll with uid
from the delivery line);
- that the suction pipe guarantees against air inltration;
- that the suction lter is not clogged;
- that the suction height is not higher than 2 mt.
- that all air has been released from the delivery pipe.
AT THE END
OF THE INITIAL
START-UP
When priming has occurred, verify that the pump is operating
within the anticipated range, in particular:
- thatunder conditionsof maximumbackpressure,thepow-
er absorption of the motor stays within the values shown
on the identication plate;
- that the delivery back pressure does not exceed the maxi-
mum back pressure for the pump.

32 M0217 EN
EN
P EVERY DAY USE
USE PROCE-
DURE
1If exible pipes are used, attach the ends of the piping to the tanks.
In the absence of an appropriate slot, solidly grasp the delivery pipe
before beginning dispensing.
2Before starting the pump make sure that the delivery valve is closed
(dispensing nozzle or line valve)
3Turn the ON/OFF switch on
4Open the delivery valve, solidly grasping the pipe
5While dispensing, do not inhale the pumped product
6IF ANY TREATED FLUID LEAKS OUT DURING DISPENSING, TAKE ALL
STEPS NECESSARY TO ENSURE THE LEAKED FLUID IS CLEANED UP
AND SAFE AS SPECIFIED ONTHE PRODUCTTECHNICAL SHEET.
7Close the delivery valve to stop dispensing
88IFOEJTQFOTJOHJTöOJTIFEUVSOPòUIFQVNQATTENTION
THE WORKING OPERATIONS MUST ALWAYS BE
GUARDED BY THE OPERATOR.
The by-pass valve allows functioning with delivery
closed only for short periods (max. 3 minutes).
To avoid damaging the pump, after use, make sure
the pump is o.
In case of a power break, switch the pump o
straight away.
Should any sealants be used on the suction and
delivery circuit of the pump, make sure that these
products are not released inside the pump.
Foreign bodies in the suction and delivery circuit of
the pump could cause malfunctioning and breakage
of the pump components.
Q MAINTENANCE
Safety instruc-
tions
The PUMP IS DESIGNED AND CONSTRUCTED TO require a minimum of
maintenance.
Before carrying out any maintenance work, DISCONNECTTHE PUMP from
any electrical and hydraulic power source.
During maintenance, the use of personal protective equipment (PPE) is
compulsory.
In any case always bear in mind the following basic recommendations for
a good functioning of the pump
ATTENTION BEFORE ANY OPERATION, ENSURE TO BE OUT OF
POTENTIALLY EXPLOSIVE AREAS
FOR SAFETY REASONS IT’S NOT ALLOWED TO DIS-
ASSEMBLE THESE PARTS : (1) BOTTOM (2) MOTOR
PIPE (3) PUMP BODY
Authorised
maintenance
personnel
All maintenance must be performed by qualied personnel. Tampering
can lead to performance degradation, danger to persons and/or prop-
erty and may result in the warranty and UL/ATEX CERTIFICATION being
voided.
Measures to be
taken
Check that the labels and plates found on the dispensing system do not
deteriorate or become detached over time.
ONCE A WEEK:
- Check that the pipe connections are not loose to prevent any leaks;
- Check and keep the lter installed on the suction line clean.
ONCE A
MONTH:
- Check the pump body and keep it clean and free of any impurities;
- Check that the electrical supply cables are in good condition.

M0217 EN 33
EN
R NOISE LEVEL
Under normal operating conditions, noise emission of all models does not exceed
74 dB at a distance of 1 metre from the electric pump.
S PROBLEMS AND SOLUTIONS
For any problems contact the authorised dealer nearest to you.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
THE MOTOR IS NOT
TURNING
Lack of electric power Check the electrical connections
and the safety systems.
Rotor jammed Check for possible damage
or obstruction of the rotating
components.
Motor problems Contact the Service Department
THE MOTORTURNS
SLOWLY WHEN START-
ING
Low voltage in the electric
power line
Bring the voltage back within
the anticipated limits
LOW OR NO FLOW RATE
Low level in the suction tank Rell the tank
Foot valve blocked Clean and/or replace the valve
Filter clogged Clean the lter
Excessive suction pressure Lower the pump with respect to
the level of the tank or increase
the cross-section of the piping
High loss of head in the delivery
circuit (working with the by-pass
open)
Use shorter piping or of greater
diameter
By-pass valve blocked Dismantle the valve, clean and/
or replace it
Air entering the pump or the
suction piping
Check the seals of the connec-
tions
A narrowing in the suction
piping
Use piping suitable for working
under suction pressure
Low rotation speed Check the voltage at the pump.
Adjust the voltage and/or use
cables of greater cross-section
The suction piping is resting on
the bottom of the tank
Raise the piping
INCREASED PUMP
NOISE
Cavitation occurring Reduce suction pressure
Irregular functioning of the
by-pass
Dispense until the air is purged
from the by-pass system
Presence of air in the uid Verify the suction connections
LEAKAGE FROMTHE
PUMP BODY
Seal damaged Check and replace the seal
THE PUMP DOES NOT
PRIMETHE LIQUID
Suction circuit blocked Remove the blockage from the
suction circuit
Malfunction of foot valve tted
on suction circuit
Replace foot valve
The suction chambers are dry Add liquid from pump delivery
side
The pump chambers are dirty
or blocked
Remove the blockages from the
suction and delivery valves
THE HEAT SENSOR
ACTIVATES UNDER
NORMAL OPERATING
CONDITIONS
Operating fault Contact thetechnical support..

34 M0217 EN
EN
T DEMOLITION AND DISPOSAL
Foreword If the system needs to be disposed, the parts which make it up must be
delivered to companies that specialize in the recycling and disposal of
industrial waste and, in particular:
Disposal of pack-
ing material
The packaging consists of biodegradable cardboard which can be deliv-
ered to companies for normal recycling of cellulose.
Disposal of metal
parts
Metal parts, whether paint-nished or in stainless steel, can be consigned
to scrap metal collectors.
Disposal of electric
and electronic
components
These must be disposed of by companies that specialize in the disposal
of electronic components, in accordance with the indications of directive
2002/96/CE (see text of directive below).
Information
regarding the envi-
ronment for clients
residing within the
European Union
European Directive 2002/96/EC requires that all equipment marked
with this symbol on the product and/or packaging not be disposed of
UPHFUIFSXJUIOPOEJòFSFOUJBUFEVSCBOXBTUF5IFTZNCPMJOEJDBUFTUIBUthis product must not be disposed of together with normal household
waste. It is the responsibility of the owner to dispose of these products
as well as other electric or electronic equipment by means of the spe-
cic refuse collection structures indicated by the government or the local
governing authorities.
Disposal of miscel-
laneous parts
Other components, such as pipes, rubber gaskets, plastic parts and wires,
must be disposed of by companies specialising in the disposal of indus-
trial waste.
U EXPLODED VIEWS
12
3

M0217ITEN rev 00
Piusi S.p.A
46029 Suzzara (Mantova) Italy
www.piusi.com
The Company reserves the right to modify the information contained in this user manual without any prior notice
