This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
INDEX
EC declaration of conformity 4
General warnings 5
Safety instructions and warnings 6
First aid rules 6
General safety rules 7
Dispensing system packaging 8
Package contents/pre-inspection 8
Position of important information 9
Machine and manufacturer identification 10
Technical specifications 10
Intended use 12
Installation 13
Operation 17
Maintenance 18
Troubleshooting 19
Demolition and disposal 21
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

4 /124
Installation, use and maintenance
M0352A EN
. EC DECLARATION OF CONFORMITY
The undersigned:
PIUSIS.p.A.
Via Pacinoi 16/A z.i. Rangavino
 Suzzara - Mantova - Italy
HEREBY STATES
under its own responsibility, that the equipment described below:
Description: double-acting pneumatic pump for oil dispensing
Model: PIUSI p 3.5 - PIUSI p 5.5
Serial number: refer to Serial Number shown on CE stamp on the product
Year of manufacture: refer to Serial Number shown on CE stamp on the product
is in conformity with the legal provisions indicated in the directives:
¦ Machine Directive //CE
The documentation is at the disposal of the competent authority following
motivated request at PIUSI S.p.A. or following request sent to the email address:
[e-mail]
The person authorised to compile the technical file and draw up the declaration
is Oo Varini as legal representative.
Suzzara, // Oo Varini
legal representative

5 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
.
To ensure operator safety and to protect the system from
potential damage, workers must be fully acquainted with this
instruction manual before aempting to operate the system.
The following symbols will be used throughout the manual to highlight
safety information and precautions of particular importance:
Warnings
Symbols used
in the manual
. GENERAL WARNINGS
This symbol indicates
a hazardous situation
which, if not avoided,
could result in death
or serious injury.
This symbol
indicates that there
is risk of damage to
the equipment and/
or its components.
This symbol
indicates useful
information.
WARNING ATTENTION NOTE
Manual
preservation This manual should be complete and legible throughout. It should
remain available to end users and specialist installation and maintenance
technicians for consultation at any time.
Reproduction
rights This manual belongs to PIUSI S.p.A., which is the sole proprietor of all
rights indicated by applicable laws, including, by way of example, laws on
copyrights. All the rights deriving from such laws are reserved to PIUSI
S.p.A.: the reproduction, including partial, of this manual, its publication,
change, transcription and notification to the public, transmission,
including using remote communication media, placing at disposal of the
public, distribution, marketing in any form, translation and/or processing,
loan and any other activity is reserved by the law to PIUSI S.p.A.
All reproduction rights are reserved by PIUSI S.p.A.
The text cannot be reprinted without the wrien permission
of PIUSI S.p.A.
© PIUSI S.p.A.
THIS MANUAL IS THE PROPERTY OF PIUSI S.p.A.
ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN.

6 /124
Installation, use and maintenance
M0352A EN
FIRST AID RULES
.
It is strictly forbidden to hold or transport the system by means of the hoses
connected to it.
The device is designed to pump fluid at high pressures. Directing the flow
towards any part of the body is strictly prohibited and may cause severe
injury.
WARNING
Poor ventilation, naked flames and sparks can give rise to hazardous
conditions, and cause fires, explosions and serious injuries.
The device is NOT anti-explosive type.
The device must be installed outside areas at risk of explosion.
Do not install in areas where inflammable vapors may be present.
Make sure that hoses are not routed close to high-traffic areas, sharp
edges, moving parts or hot surfaces. Use hoses within a temperature range
of -°C to +°C.
WARNING
Before proceeding, make sure you can install the product in a ventilated
area, free from hazards for operators and equipment.
Before carrying out any inspection or maintenance operations, always shut
off the air and discharge the pressure from the circuit by following the
decompression and draining procedure.
In the event of problems deriving from INJECTION, INHALATION,
INGESTION or contact of the handled product with the EYES or SKIN,
consult the respective SAFETY DATA SHEET.
Hazardous fluids and toxic fumes can cause serious or fatal injuries.
Preliminary
checks before
installation
Contact with
the product
SAFETY INSTRUCTIONS AND WARNINGS
.
Maintenance
control
Prohibitions

7 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
GENERAL SAFETY RULES
.
Refer to the safety data
sheets of the fluid in
question.
NOTE
Do not treat the area into which the fluid was injected as a simple wound.
Call for emergency medical aention.
WARNING
Wear protective equipment according to the info below:
¦ suited to the operations that need to be performed;
¦ resistant to cleaning products.
Essential
protective
equipment
characteristics
Personal
protective
equipment that
must be worn
safety shoes
close-fiing clothing
protective gloves
safety goggles
Use Instruction Manual
There is a risk that the handled fluid could be accidentally
injected into the operator’s body as a result of leaks, damaged
components or improper use.
Should this happen, the victim must
receive immediate emergency medical
aention from qualified personnel.
Inform medical personnel of the exact
nature of the injected fluid.
Fluid injection
hazard
Do not operate the device when tired or under the influence of drugs or alcohol. Do not leave the
work area while the device is operating. Do not alter or modify the device. Alterations or modifications
to the device may invalidate its type-approval and result in dangers to safety.
Keep children and animals far from the work area.
Observe all applicable safety regulations.
WARNING

8 /124
Installation, use and maintenance
M0352A EN
. PACKAGE CONTENTS/PRE-INSPECTION
. DISPENSING SYSTEM PACKAGING
The dispensing system comes packed in a
cardboard box bearing a label containing all the
information relating to the equipment (model,
weight, etc.).
Wall-mounting
pump unit.
Pump unit with
pick-up hose for
drum-mounting.
model
PIUSI P .ST
PIUSI P .ST
model
PIUSI P .
PIUSI P .
Prolonged contact with the treated product may cause skin irritation;
always wear protective gloves during dispensing.
Protective gloves
The device comprises moving parts capable of crushing, cutting and
amputation. Operate with care at all times.
¦ Do not approach moving parts during start-up or use of the device.
¦ Do not operate the device without its protective casings.
WARNING
Moving parts
hazard
~

9 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
Check that the data on the plate correspond to the
desired specifications. In the event of any anomaly,
contact the supplier immediately, indicating the
nature of the defects. Do not use equipment which
you suspect might not be safe.
WARNING
In the event that one or more of
the components described below
are missing from inside the package,
please contact PIUSI S.p.A.
technical support.
NOTE

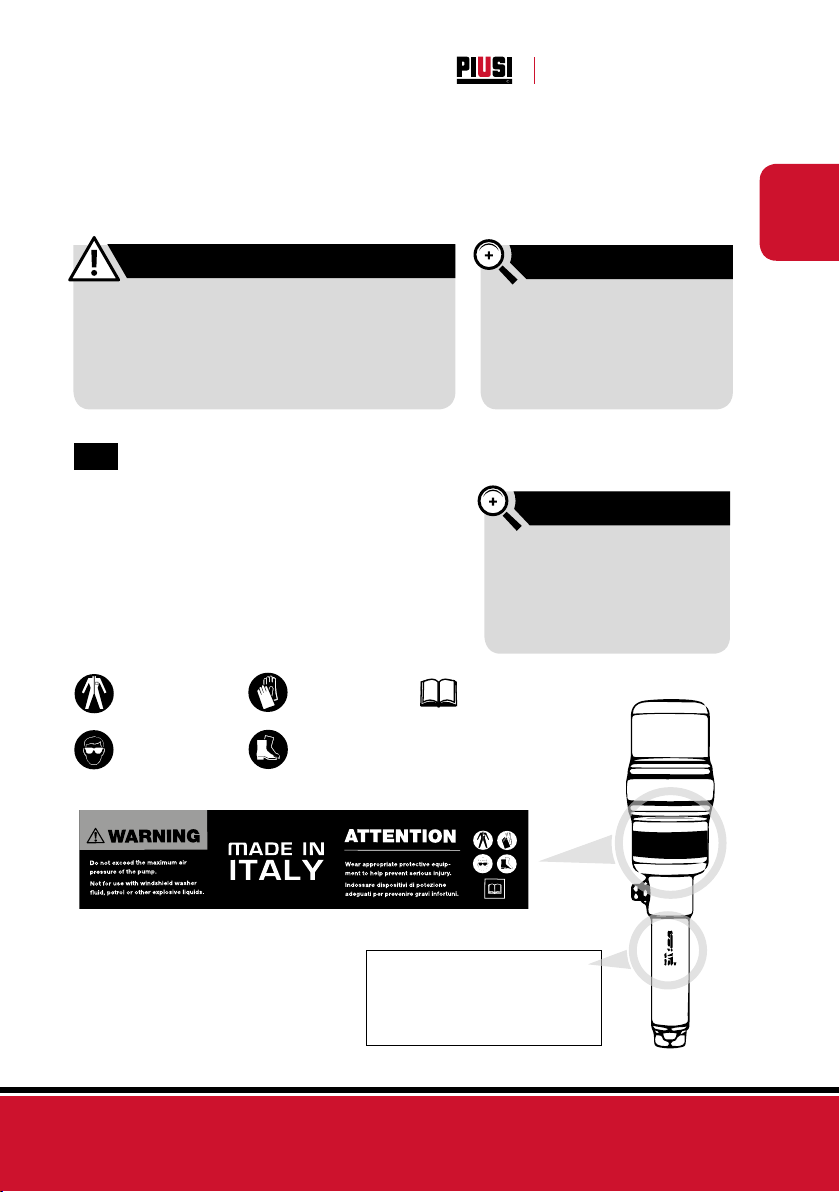

POSITION OF IMPORTANT INFORMATION
An adhesive label showing the operator the most
important information is affixed to the dispensing
system. Check that this label does not deteriorate
over time or come off. The label shows the
following information relating to use:
Stamp on the boom of the pump,
or on the pick-up hose, showing
information about the device.
.
If all or part of the label
deteriorates or comes off,
please contact our customer
care department to ask for a
replacement.
NOTE
PIUSI SPA - MADE IN ITALY
PIUSI P  - ST FA
SERIAL N. 
CE EAC
To open the cardboard packaging, use a pair of scissors or a cuer, being careful not to
damage the dispensing system or its components. Open the packaging and check that the
components provided as part of the equipment are available.
safety
shoes
close-fiing
clothing protective
gloves
safety
goggles
Consult
“Installation, use
and maintenance”
manual

10 /124
Installation, use and maintenance
M0352A EN
. TECHNICAL SPECIFICATIONS
. MACHINE AND MANUFACTURER IDENTIFICATION
The dispensing system comes with an
identification stamp aached to the pump
and contains the following information:
¦ type;
¦ product ID code;
¦ serial number.
.
Before installing, always make sure the
type of dispensing system is correct.
WARNING
PST
F
P
F
PST
F
P
F
Compression ratio    
Air pressure
- bar
- psi - bar - psi - bar - psi - bar - psi
Air intake thread /” G /” G /” G /” G
Oil intake thread ” G ” G ” G ” G
Oil outlet thread /” G /” G /” G /” G
Flow rate with
free outlet ( bar)
l/min
USgal/min
l/min
USgal/min
l/min
USgal/min
l/min
USgal/min
Pick-up hose diameter  mm   mm
Pick-up hose length  mm  mm  mm  mm
Total length  mm  mm  mm  mm
Retaining ring nut ” G ” G ” G ” G
Air pressure
3-7 bar
43.5-101.5 psi
3-7 bar
43.5-101.5 psi
3-7 bar
43.5-101.5 psi
3-7 bar
43.5-101.5 psi

11 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5

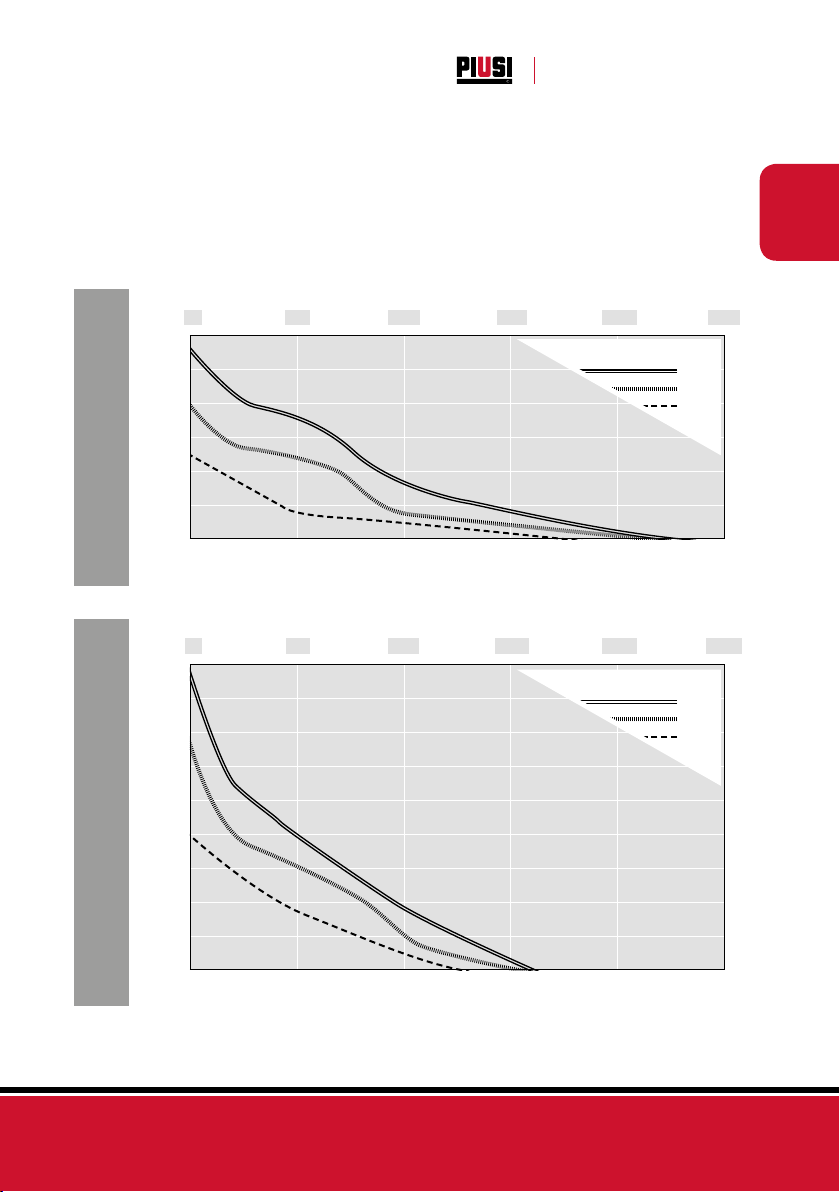

SAE 20 (ISO VG68) OIL
t=18°C
flow rate l/min
flow rate l/min
oil pressure (bar)oil pressure (bar)
cycles/min

















AIR PRESSURE
8 bar
5 bar
3 bar
     
     
     
cycles/min
AIR PRESSURE
8 bar
5 bar
3 bar
     
p 5.5 - ST p 5.5 - 940 p 3.5 - ST p 3.5 - 940

12 /124
Installation, use and maintenance
M0352A EN
INTENDED USE
.
Intended use The “PIUSI P .PIUSIP” dispensing system is designed and
manufactured for the sole purpose of dispensing lubricating oil.
Conditions
of use The “PIUSI P .PIUSIP” dispensing system must be used in
accordance with the following conditions:
¦ intake air pressure: - bar;
¦ maximum operating pressure:  bar;
¦ make sure that the pump operates within its nominal operating
parameters.
Flammable liquids
and explosive
atmosphere
Unintended use Do not operate the system for any purpose other than the purpose
described within this manual; all other use is considered “IMPROPER”
and will result in PIUSI S.p.A. disclaiming any responsibility for damage
to property, people, animals or to the system itself.
The system “PIUSI P .PIUSIP” was not designed for dispensing
of diesel, petrol, flammable liquids with flash point <°C (°F), or for
operation in environments with potentially explosive atmosphere. The use
in the above mentioned conditions is forbidden.
WARNING

13 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
INSTALLATION
.
¦ The “PIUSI P .PIUSIP” dispensing system is for professional use
only.
¦ According to the current legislation, the “PIUSI P .PIUSIP”
dispensing system must be installed in premises that are sufficiently well-lit.
¦ It is compulsory to adhere completely to the safety and fire regulations in
force in the place of installation.
ATTENTION
All installations must be carried out by authorised and competent
personnel only. Authorised persons must:
¦ install the system in dry and well-ventilated place;
¦ ensure the correct installation of equipment required for the
correct functioning of the pump.
Altering or modifying the dispensing device is strictly forbidden. PIUSI
S.p.A. accepts no responsibility for damage to persons, property or the
environment caused by failure to comply with this requirement.
The installer is responsible for equipping the system with the required
accessories for safe and correct operation of the device. The selection
of accessories unsuitable for use may cause serious damage/injury to the
device and/or individuals.
Do not use the device if important parts of the device, accessories or
safety devices are damaged. Make the necessary replacements and repairs
immediately.
WARNING
It is absolutely forbidden to replace the oil delivery nipple with other
commercial connectors
WARNING
Foreword The “PIUSI P .PIUSIP” dispensing system is designed and
predisposed for wall-mounting (ST versions) or mounting directly
on the oil drum ( versions). In both cases, however, it must be
mounted in a secure, stable manner.
Authorised
installation
personnel

14 /124
Installation, use and maintenance
M0352A EN

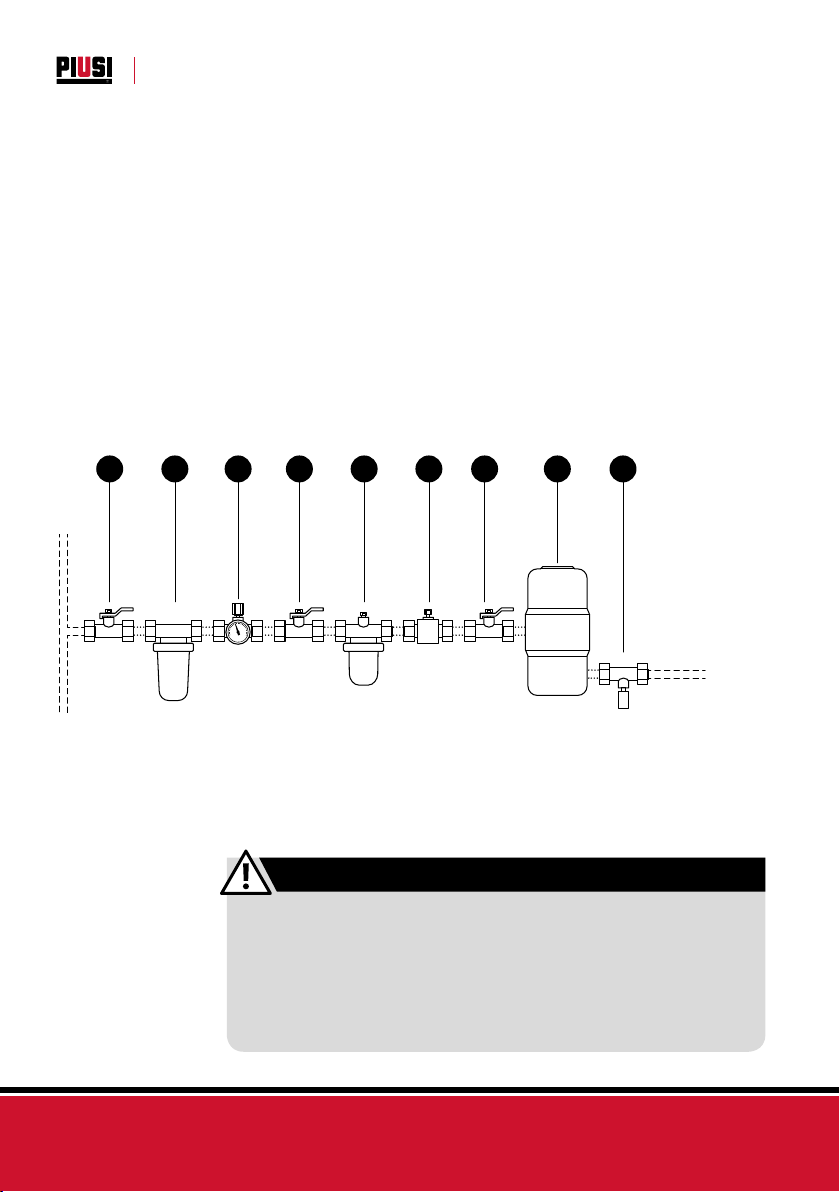

The diagram below provides an example of a possible
configuration for the installation of the “PIUSI P .PIUSIP”
system. For support in designing a system, you need to consult
qualified personnel.
Installation
example
1¦ Bleed ball valve
2¦ Filter
3¦ Pressure regulator with pressure gauge - Set to max. 7 bar (mandatory)
4¦ Lubricator
5¦ Safety valve (mandatory)
6¦ Pump casing
7¦ Max. pressure safety valve
1 2 3 1 4 5 1 76
air
line
user
Fix the pump casing securely to the wall (ST version) using a suitable bracket,
or fix it to the lid of the drum ( version), inserting it completely with pick-
up hose and tightening the fixing screws. Then connect the pump to the air
line, making sure that the components shown in the figure are present.
Fixing the
dispensing
system
¦ The air accessories must be fied with suitable support brackets. The
pump unit fiings can be damaged by the weight of the accessories in the
line.
¦ Installations which fail to comply with diagram do not guarantee correct
operation of the pump.
¦ Air delivery pressures over 7 bar may damage the pump and system.
WARNING

15 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
Never operate the pump if it is not correctly installed and fixed. Doing so can cause serious
damage to the device and fiings.
WARNING
For correct operation of the pump unit and to ensure operator safety,
it is obligatory to fit devices designed to reduce the risk of injury by
fluid injection, splashing, etc.
1The circuit MUST, OF NECESSITY, be equipped with bleed ball
valves upstream of the pump unit. These devices make it possible
to close stretches of line and discharge the compressed air trapped
in them. Trapped air can cause the pump to start suddenly and
unexpectedly, with the consequent risk of severe injuries.
7The circuit MUST NECESSARILY be equipped with a max.
pressure safety valve on the oil distribution system, immediately aer the
pump unit. The system makes it possible to discharge hazardous excess
pressure caused by the thermal expansion of the fluid.
3We recommend that you fit a pressure regulator with pressure
gauge, so that you can monitor pump speed and pressure with
complete ease.
5Running the pneumatic motor too fast can cause serious damage.
The presence of a safety valve ensures that the flow can be shut off if the
set pressure is exceeded.
4For applications involving intensive use, we recommend that you fit
an automatic lubricator in the line so as to maximise the service life of the
pneumatic motor. Use only oil for pneumatic tools or SAE engine oil.
Set the lubricator to dispense a maximum of one drop every  minutes.
2The presence of an air filter upstream of the pump unit helps remove
dirt and contaminants, thus extending the service life of the pneumatic
motor.
Accessories
required for
safe use
Max.
pressure
safety valve
Lubricator
Filter
Pressure
regulator with
pressure gauge
Safety valve
Bleed ball
valve
(necessary)

16 /124
Installation, use and maintenance
M0352A EN
CORRECT NIPPLE ASSEMBLY
10
14
14
10
NPT VERSION
INLET ADAPTOR
1/4”- 18 NPT Female
OUTLET ADAPTOR
1/2”- 14 NPT Male
BONDED SEAL 1/2”
DON’T REMOVE !!
1/2” BSP - Male
1/4” BSP Female

17 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
We recommend that you adjust the pressure to the minimum quantity of
air necessary to obtain the desired dispensing results. Take the utmost care
when adjusting the pressure.
Normal use
. OPERATION
Aer initial priming, if the air line is open, opening the dispensing valve will
immediately start the pneumatic pump. Closing the dispensing valve will stop
the pneumatic pump.
NOTE
First use To make optimum use of the pneumatic pump, we strongly
recommend that you follow the procedure set out below. This
reduces risks for the operator. Aer installation of the product, the
starting state must involve closure of all the ball valves in the air line,
and closure of the dispensing device and the pressure regulator
with pressure gauge.
Opening the
air line Keeping the pressure regulator in the closed position, open the air
line ball valves in sequence. Then keep the dispensing valve open
over a suitable metal container to receive the fluid from it once the
system is primed. Take extreme care and keep the dispensing nozzle
in contact with the wall of the container. We also recommend that
you wear personal protective equipment.
Opening the
pressure and
priming
Slowly open the pressure regulator with pressure gauge, as gradually
as possible. Monitor the pressure by means of the pressure gauge
indicator and wait until you hear the pneumatic pump come into
operation to allow priming. As soon as all the air in the fluid line has
been expelled and the dispensing valve has started dispensing, close
the dispensing valve.
The system supplies fluids at high pressure, such a pressure as to be a
source of danger for the operator. Supply with caution the first time, and in
conditions of maximum safety, in order to acquire a correct perception of
the operation of the system.
Interrupt supply immediately if there are sparks or electrical discharge.
WARNING

18 /124
Installation, use and maintenance
M0352A EN
Using the pump unit in a dry state, i.e. with no fluid or with insufficient fluid, can damage it
irreparably. Dry pumping increases the operating speed of the pneumatic motor, resulting
in overheating and possible failure.
If operating at low temperatures, we recommend that you use systems to protect against
the formation of ice.
Don’tshut off the airsupplywhile thepumpis working.Foritscorrectworkingnever go
downbelow thedeclared pressure.
ATTENTION
MAINTENANCE
.
Safety instructions The system is designed and manufactured to require minimal
maintenance. Before carrying out any maintenance operation, it is
imperative to decompress the dispensing system with the aid of the
bleed ball valves. It is strictly forbidden to carry out any maintenance
operation if the circuit contains compressed air capable of causing the
pump to start suddenly.
Personal protective equipment (PPE) must be worn when carrying out
maintenance work.
Take account of the following minimum recommendations for correct
operation of the pump.
Authorised
maintenance
personnel
All maintenance must be performed by qualified personnel. Tampering
can lead to performance degradation, danger to persons and/or
property and may result in the warranty being voided.
Measures to be
taken Make sure that the label affixed to the dispensing system does not
deteriorate over time or come off.
EVERY DAY:
¦ check that the hoses are in sound condition.
ONCE A YEAR:
¦ check the components of the air circuit.

19 /124
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
PIUSI P 3.5 - PIUSI P 5.5
. TROUBLESHOOTING
Pump does not
work
Intake air pressure too low Increase intake air pressure
Air lines obstructed Clean air lines
Dispensing valves closed or obstructed Open or clean dispensing valves
Fluid lines or other components obstructed Check that fluid lines and components are
clean
No fluid le in tank Fill tank
Pneumatic motor damaged Repair pneumatic motor
Pump runs
irregularly
Piston gaskets are worn Replace worn gaskets
No fluid le in tank Fill tank
Continuous air
leakage Motor gaskets not sealing properly Clean or replace motor gaskets
The pump
does not start
up and and
releases air
from silencers
Pump stalled Push the buon RESET (see diagram aer
the table)
Problem Possible cause Corrective action
Before carrying out any inspection or maintenance operations, shut off the air and discharge the
pressure from the circuit by following the decompression procedure.
ATTENTION

20 /124
Installation, use and maintenance
M0352A EN
PRESS
button
IF AIR
LOCKED!
