Planet ICA-8000 Series User manual

360-degree Fisheye IP Camera
ICA-8000 Series
Quick Installation Guide

Table of Contents
Chapter 1. Introduction .................................................................................... 3
1.1 Before Installation ............................................................................... 3
1.2 System Requirements .......................................................................... 3
Chapter 2. Physical Description and Installation.................................................. 4
2.1 Package Contents ................................................................................ 4
2.2 Physical Details ................................................................................... 4
2.3 Installation.......................................................................................... 6
2.4 Wall/Ceiling Mount Installation Procedure............................................... 7
Chapter 3. Camera Windows Utility ................................................................... 8
3.1 NetworkConguration ......................................................................... 8
3.2 Opening the Web-based UI .................................................................10
Further Information ........................................................................................12

3
Chapter 1. Introduction
Thank you for purchasing PLANET ICA-8000 Fish-Eye Panorama IP Camera series.
Its sh-eye lens has a 360-degree panoramic wide angle view without dead spots.
With user-friendly interface, it is an easy-to-use IP camera designed for security
application. The IP camera delivers a clear image, multiple H.264 streams and
Motion JPEG streams.
The IP camera supports digital pan/tilt and zoom functions can provide users with
10 different video modes. It applies perspective correction software to eliminate
the rounding normally associated with sh-eye lenses and thus saves lots of
traditional mechanical pan/tilt maintenance cost.
It has a built-in ICR (IR-cut lter removable) for day / night surveillance and
provides surveillance functions including DI/DO alarm, MicroSD card support
for local storage, and 2-way audio that enables audio communication between
local and remote sites by connecting the external microphone and speaker.
Moreover, the IP camera can be managed by PLANET Cam Viewer IP Surveillance
management software for multi-camera video surveillance application and provides
monitoring, recording and event management functions to secure your property
and life.
1.1 Before Installation
Before installation, please be sure to read this quick installation guide and user’s
manual (CD) carefully to complete machine installation. This guide shows how to
quickly set up the IP camera.
1.2 System Requirements
CPU Intel®Core™i32.4GHz
RAM 4GB
VideoRAM 1GB
Display Chip nVIDIAGeForce8500GTorATIRadeonHD4350orabove
Display Resolution 1366 x 768 24bits
Operating System WindowsXPwithSP3/Vista/Win7
DirectX 9.0corabove
Network Wired Ethernet 100Base-TX

4
Chapter 2. Physical Description and Installation
2.1 Package Contents
lIP Camera Unit x 1
lPower Adapter x 1
lQuick Installation Guide x 1
lUser’s Manual CD x 1
lWall Mount Kit x 1
lMounting Label x 1
lGPIO Connector x 1
2.2 Physical Details
Front Panel
Light Sensor
Reset Button
Speaker
Mic
Interface Description
Light Sensor
TheLightsensorisfordetectingtheIPcameraenvironment
illuminance, and if the IP camera is in the dark/night
environment,itwillletIRcutlteroffforaclearnightview.
Mic The IP camera has a built-in internal microphone which is
hidden in the pinhole located on the front panel.
Reset Button This button is hidden in the pinhole. Please refer to the user’s
manual for more information.
Speaker The IP camera has a built-in internal speaker which is hidden in
the pinhole located on the front panel.

5
Bottom Panel
MicroSD Card Slot
RJ-45 LAN
12V DC, 2A
GPIO
Audio In
Audio Out
Interface Description
Power Jack
Theinputpoweris12VDC,2A.
Note
ONLY use the power adapter that comes with the
package. Otherwise, the product may be damaged.
RJ-45LANSocket
ConnecttoPCorHub/Switch.
It connects to 10Base-T Ethernet or 100Base-TX Fast
Ethernet cabling. This Ethernet port built auto-negotiation
protocol can detect or negotiate the transmission speed of
thenetworkautomatically.PleaseuseCAT-5cabletoconnect
the Network Camera to a 100Mbps Fast Ethernet network
switch or hub.
Note
ONLY use one power source, either from DC
or from 802.3af Power over Ethernet. (For
ICA-8200/ICA-8500only)
MicroSD Card Slot The IP camera has a built-in MicroSD card slot for MicroSD
memorycardforimage/videoeventrecording.
Audio Out Connect a loud speaker to the IP camera. This is for voice
alert and two-way audio.
Audio In Connect a microphone to the IP camera.
GPIO The 7-pin terminal block includes 1 input port and 2 output
ports.

6
Terminal block for I/O connectors:
Pin Function Description
1GND Digital Input: Only one set is designed in this camera
model.Theinternaldeviceisalsoaphoto-coupledelectrical
relay, and the external device can be simply an On/Off
switch. Each set of On/Off switch can be connected as one
trigger source.
Digital Output: Each digital output pin to COM is a photo-
coupled relay on Normal Open status. External device can
directlyconnecttothe terminals.However,the currentthat
will go through the 2 nodes must not exceed 130mA. An
external “Relay” can also be connected to the terminals as
an implementation. In this case, current (or/and voltage)
limitationisspeciedbytheexternalRelay.
2DI
3GND
4DO_COM
5DO_NO2
6DO_COM
7DO_NO1
2.3 Installation
Step 1. Prepare a PC with Ethernet link to the network
Step 2. Connect an Ethernet cable
 Connect LAN port (RJ-45) of the IP camera to a network switch. For
ICA-8200/ICA-8500, when this switch is a PoE device, you can ignore
the next step.
Note
For ICA-8000 series, if there has an IEEE 802.3af PoE switch in your
network, you can connect the IP camera’s LAN cable to this PoE
switch to obtain power. The power adapter is unnecessary when the IP
camera is powered by PoE switch.

7
Step 3. Attach the power supply
Plug the power adapter in the IP camera and connect the other end to
the power outlet.
Note
Only use the power adapter supplied with the IP camera; otherwise,
the product may be damaged.
Step 4. Plug Power on 100V ~ 240V
 Ensurethepoweradaptor specicationmatchesthe powersystem(100 ~
110VACor220~240VAC)andconnecttheadaptortotheoutlet.
Step 5. Check LED status
 The Power LED is dened to identify the IP camera status. When the IP
camera is booting, the LED will ash, and while the IP camera is ready,
the LED will be green.
Step 6. Adjust lens focus
Clockwise or counter-clockwise rotation can be adjusted for the focus of
the IP camera lens.
2.4 Wall/Ceiling Mount Installation Procedure
Step 1.Stickthegivenmountinglabelattheinstallationlocation.
Step 2. Take the wall mount bracket,
put it on the target place and
xitwiththesuppliedscrews
(totalof2).
Step 3. Load the camera into the
wall mount. Be sure the
camera is mated with two
xedscrews,androtatethe
camera clockwise to lock it in
position.

8
Chapter 3. Camera Windows Utility
This chapter shows how to quickly set up your IP camera. The IP camera is with
the default settings. However, to help you nd the networked IP camera quickly,
the Windows utility (PLANET IPInstaller) can search the IP camera in the network
that can help you to congure some basic setting before you start advanced
management and monitoring.
Please insert the bundled CD disk into your CD/DVD-ROM drive. When the
welcome web page appears, please click your IP camera name on the IP camera
list, i.e. ICA-8000 series. Then click on the utility IPInstaller to start the program.
3.1 NetworkConguration
Please click the “Search Network Device” button. PLANET IPInstaller will list
the networked IP camera in the LAN. If the IP camera cannot be found, you may
check whether this IP camera is connected to the network properly and press the
search button again.
1. Click the menu bar Device SearchtosearchthedeviceintheLAN.
2. Select the IP camera with the MAC address corresponding to the IP camera that
istobecongured.

9
3. Double-click the item to open the Property Page or click the menu bar
Property.
4.After lling the desired settings in the properties, click on “Set” button to
completethecongurationsettings.

10

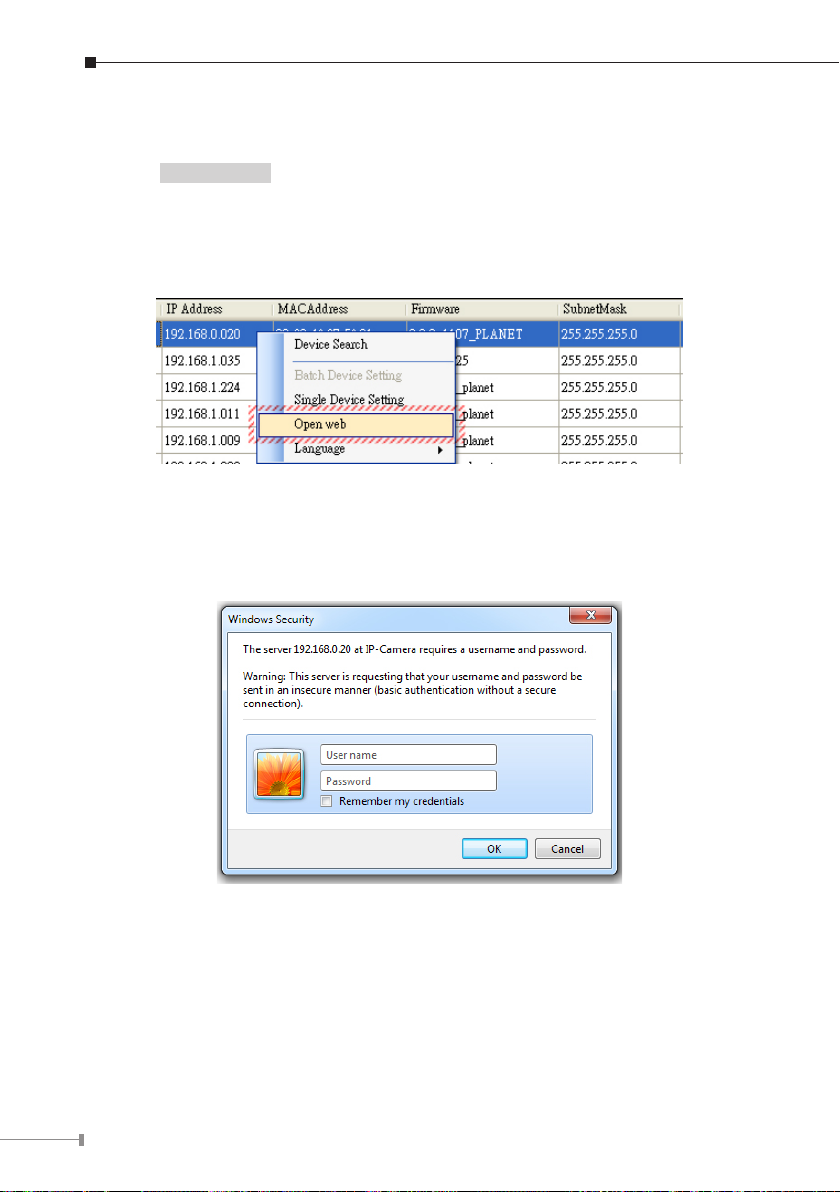

3.2 Opening the Web-based UI
If IPInstaller nds the IP camera, please select the device you want to view and
click the “Open Web” button. Then you could see the video from the IP camera
directly.
1. To access the Web-based UI of the selected unit, run the Open Web on the
menu bar.
2. After connecting to the IP camera, it will prompt for User Name and Password.
Pleaseenteradmin/admintocontinueWebManagement. Conrmtheinstallation
asitisrequiredtoviewthevideostreamandsomeoperations.
Ifdifcultyismet,pleaserefertothefollowingstepstoestablishtheconnection:
- The IP camera must be installed and powered ON.
- If the IP camera’s default IP address (192.168.0.20) is already used by
another device, the other device must be turned OFF until the device locates
anewIPaddressduringtheconguration.

11
3.Fortherstinstallation,therewillbeaprompttoinstalltheActiveXcontrol.
4.Ifthe devicehasbeen conguredcorrectly,thedefault Web browserwillopen to
thehomepageoftheselecteddevice.

12
Further Information
This guide is used to help you start-up your Fish-Eye IP Camera settings. It is also
recommended to check the user manual in CD disk for more details of the system
anduserconguration.
