Planet ICA-530 User manual

`
15 meter
IR Dome Internet Camera
ICA-530
User’s Manual
Version: 1.00
Date: Sep. 2007
1/68

Copyright
Copyright ©2007 by PLANET Technology Corp. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Any software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or
its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software. Further, PLANET reserves the
right to revise this publication and to make changes from time to time in the contents hereof
without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance. (example-use only shielded interface cables when connecting
to computer or peripheral devices). Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must
accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal
operation.
1/68

Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users
of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 15 meter IR Dome Internet Camera
Model: ICA-530
Rev: 1.0 (Sep. 2007)
Part No. EM-ICA530
2/68

Table of Content

1. Introduction................................................................................................................ 5
1.1 Overview............................................................................................................. 5
1.2 Features.............................................................................................................. 5
1.3 Package Contents............................................................................................. 6
2. Basic Setup............................................................................................................... 7
2.1 System Requirements....................................................................................... 7
2.2 Physical Details.................................................................................................. 8
2.3 Hardware Installation........................................................................................ 9

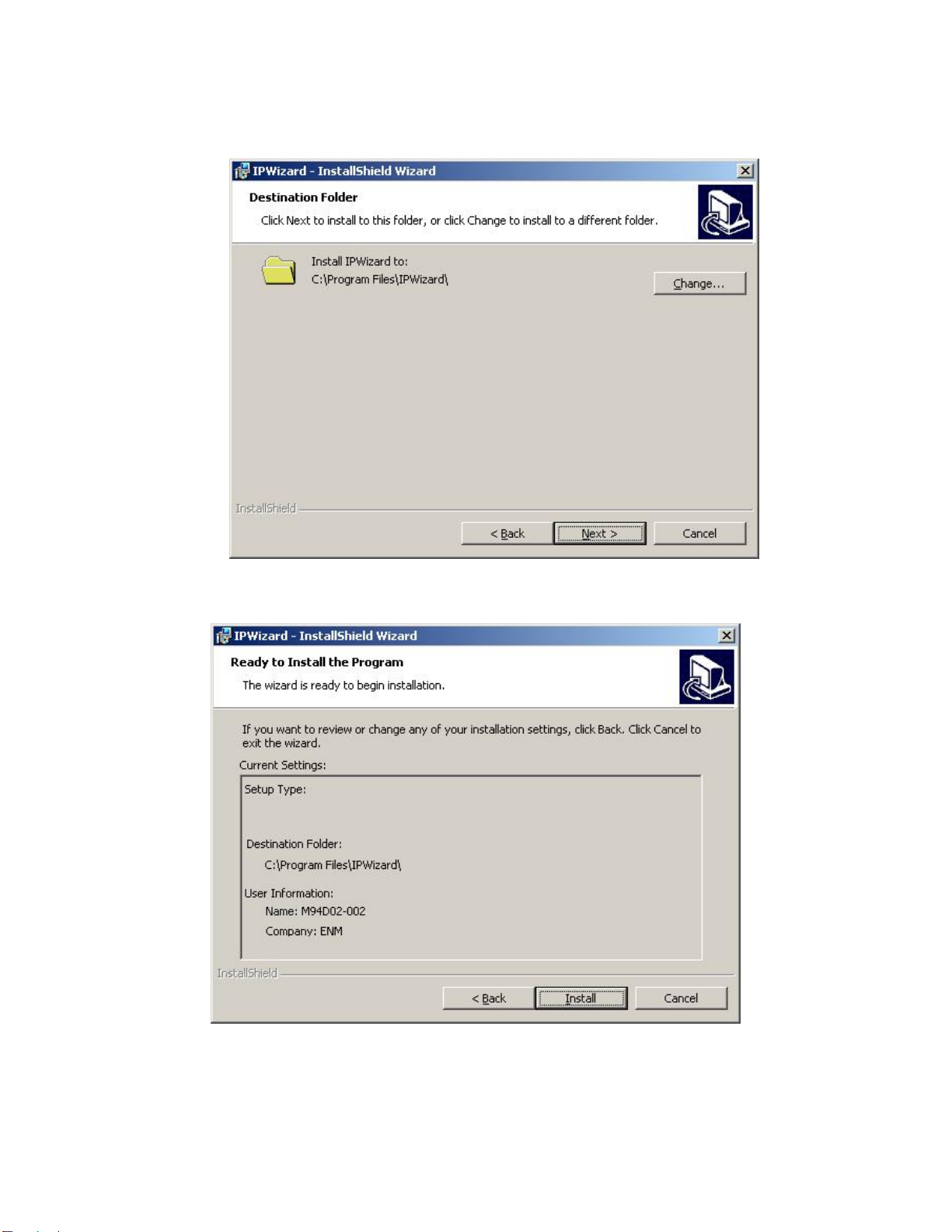

2.4 Initial Utility Installation ................................................................................... 10

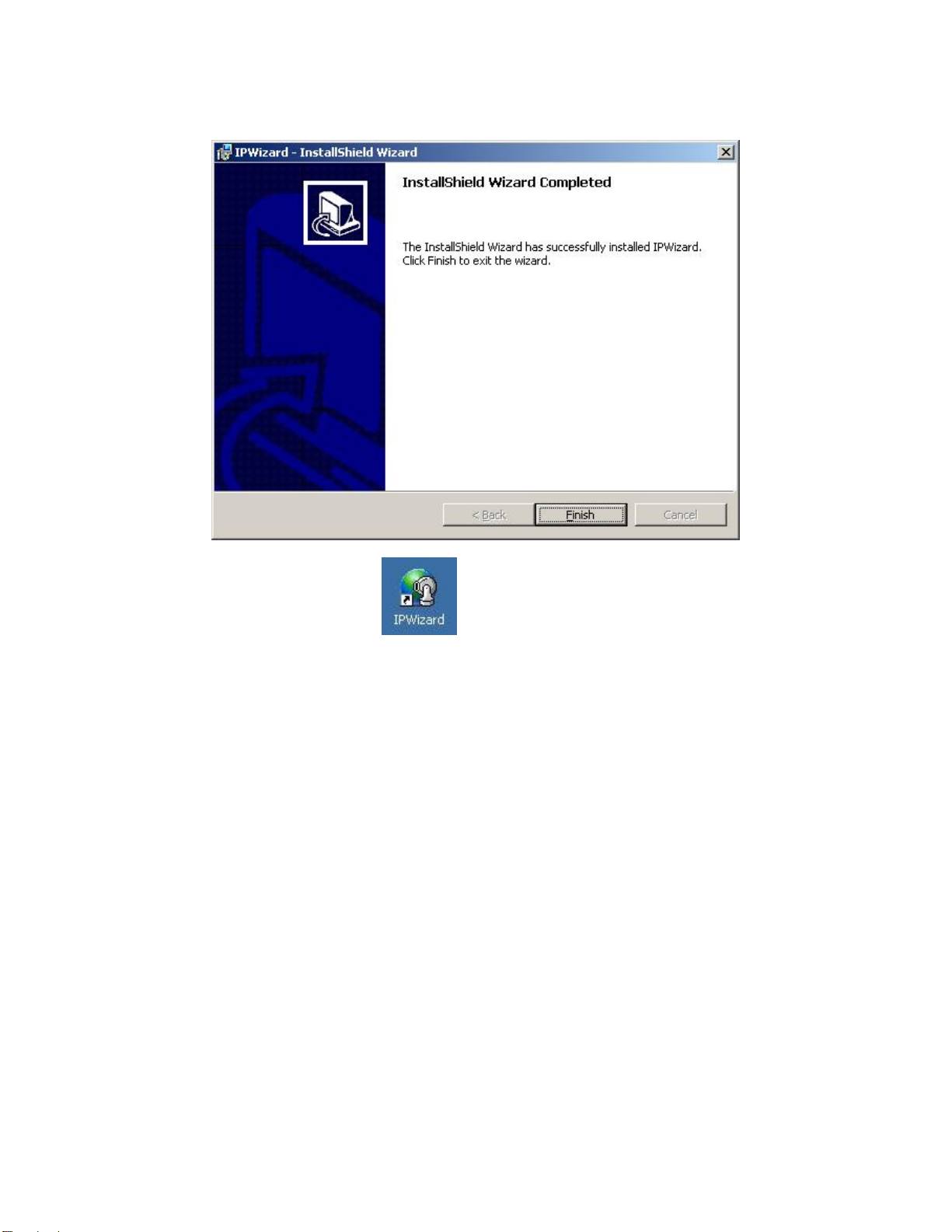

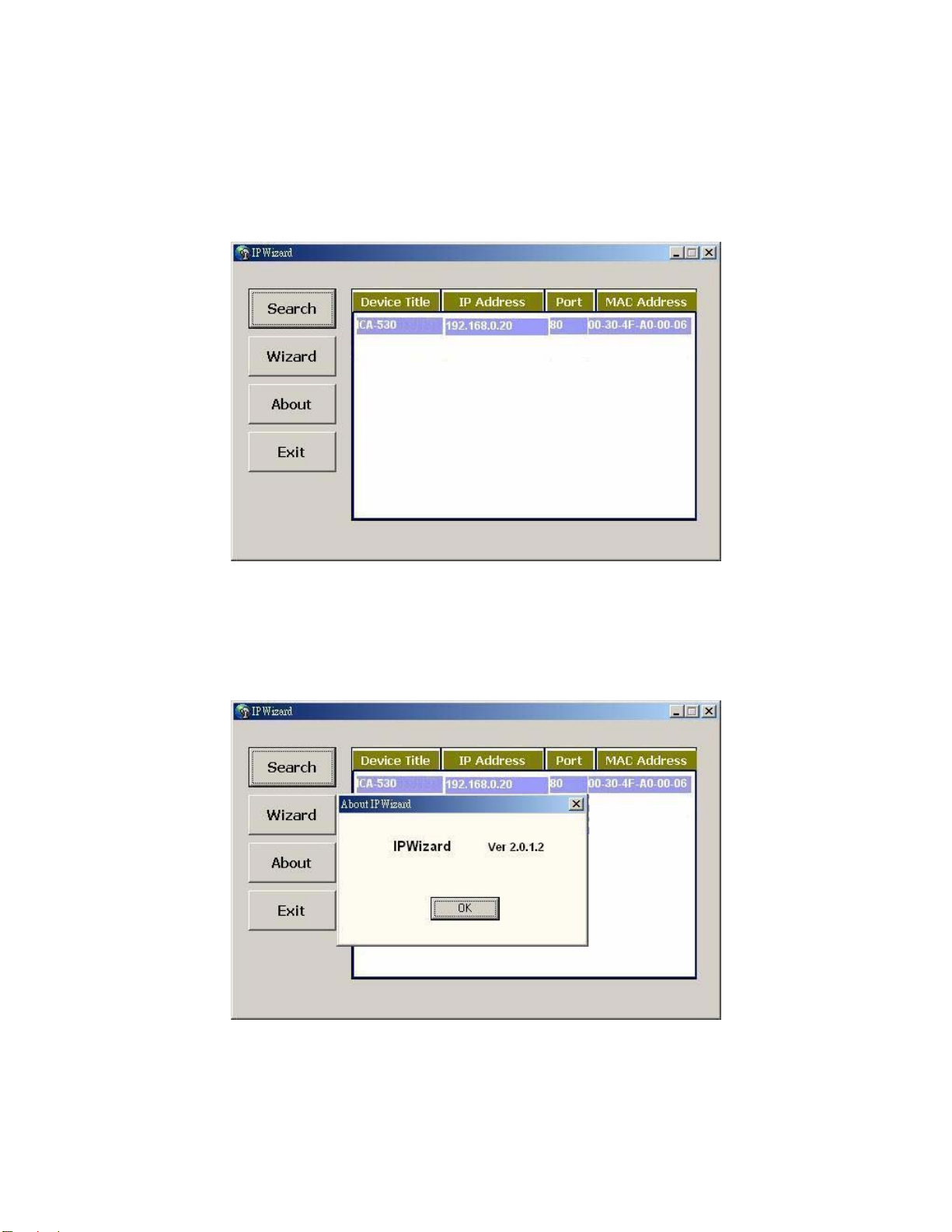

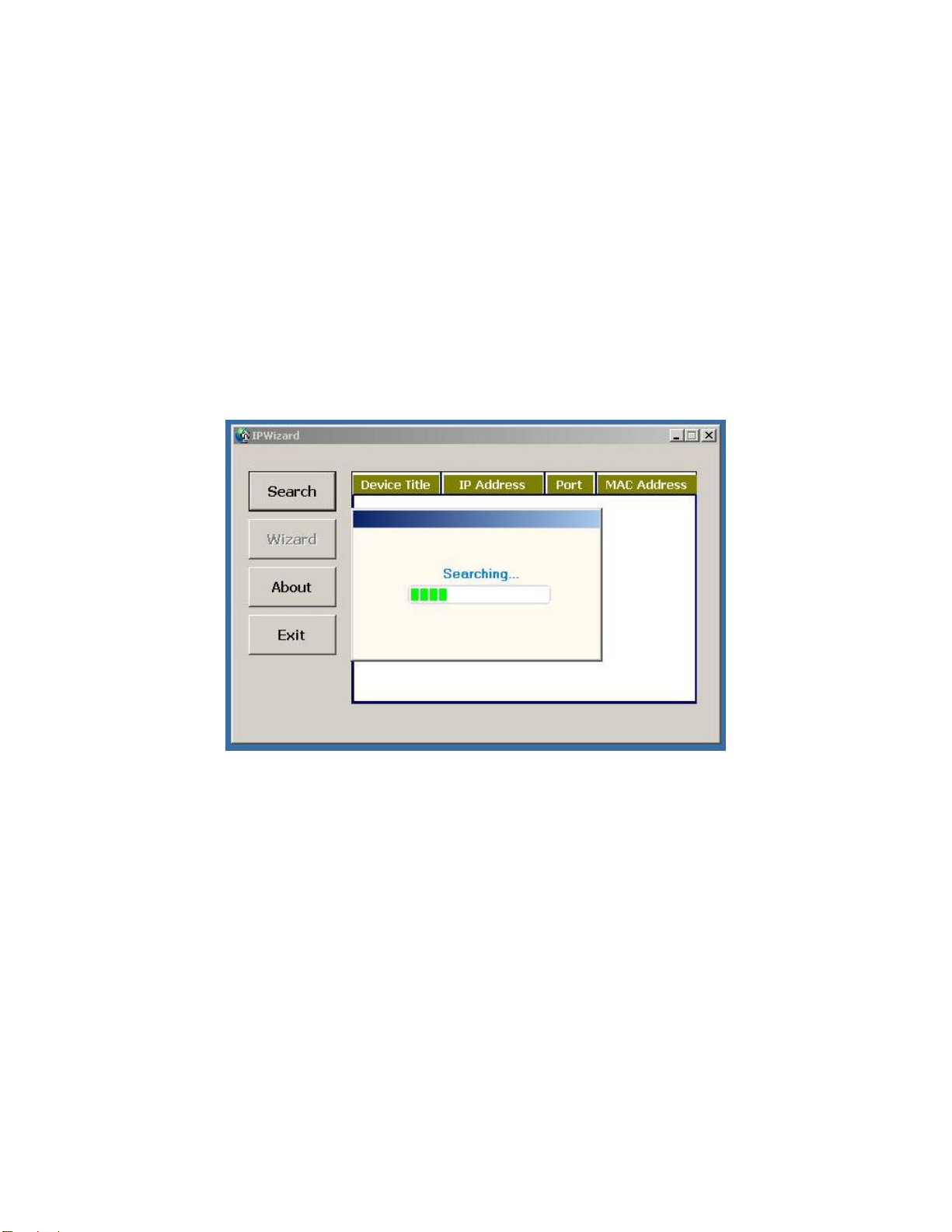

2.5 IPWizard............................................................................................................ 13
2.6 Configure With IPWizard................................................................................ 15
2.7 Using UPnP of Windows® XP™................................................................... 17
2.8 Setup ActiveX to use the ICA-530 ................................................................ 22
3. Web-based Management...................................................................................... 23
3.1 Introduction....................................................................................................... 23
3.2 Connecting to ICA-530 ................................................................................... 23
3.3 Live View........................................................................................................... 25
3.4 ActiveX Control ................................................................................................ 27
3.4.1 Digital Zoom.......................................................................................... 28
3.4.2 Record.................................................................................................... 28
3.4.3 Snapshot................................................................................................ 29
3.4.4 Voice....................................................................................................... 29
3.4.5 Statistics................................................................................................. 30
3.4.6 About...................................................................................................... 30
3.5 System Setting................................................................................................. 31
3.5.1 Network.................................................................................................. 32
3.5.2 DDNS server......................................................................................... 33
3.5.3 PPPoE.................................................................................................... 34
3.5.4 3GPP...................................................................................................... 36
3.5.5 UPnP...................................................................................................... 37
3.6 Camera.............................................................................................................. 38
3.6.1 Common................................................................................................ 38
3.6.2 Picture.................................................................................................... 39
3.6.3 Tour......................................................................................................... 40
3.7 System............................................................................................................... 41
3.7.1 System................................................................................................... 41
3.7.2 Date & Time........................................................................................... 42
3.7.3 Maintenance.......................................................................................... 43
3.8 Video.................................................................................................................. 44
3.8.1 MPEG4/VGA......................................................................................... 44
3.8.2 MPEG4/QVGA...................................................................................... 45
3/68

3.8.3 MPEG4/QQVGA................................................................................... 46
3.8.4 JPEG/QVGA......................................................................................... 47
3.9 Audio.................................................................................................................. 48
3.10 User................................................................................................................. 49
3.11 E-Mail............................................................................................................... 50
3.12 FTP.................................................................................................................. 51
3.13 Alarm output................................................................................................... 52
3.14 Voice alert....................................................................................................... 53
3.15 Object detection............................................................................................. 54
Appendix A: Troubleshooting & FAQ........................................................................... 56
Appendix B: PING IPAddress...................................................................................... 60
Appendix C: Bandwidth and Video Size Estimation................................................. 61
Appendix D: DDNS Application.................................................................................... 63
4/68

1. Introduction
The PLANET ICA-530 is 15 meter IR Dome Internet Camera. The ICA-530 has built-in 24 LEDs
that array of infrared illuminators can easily distinguish objects at a distance of 15 meter and

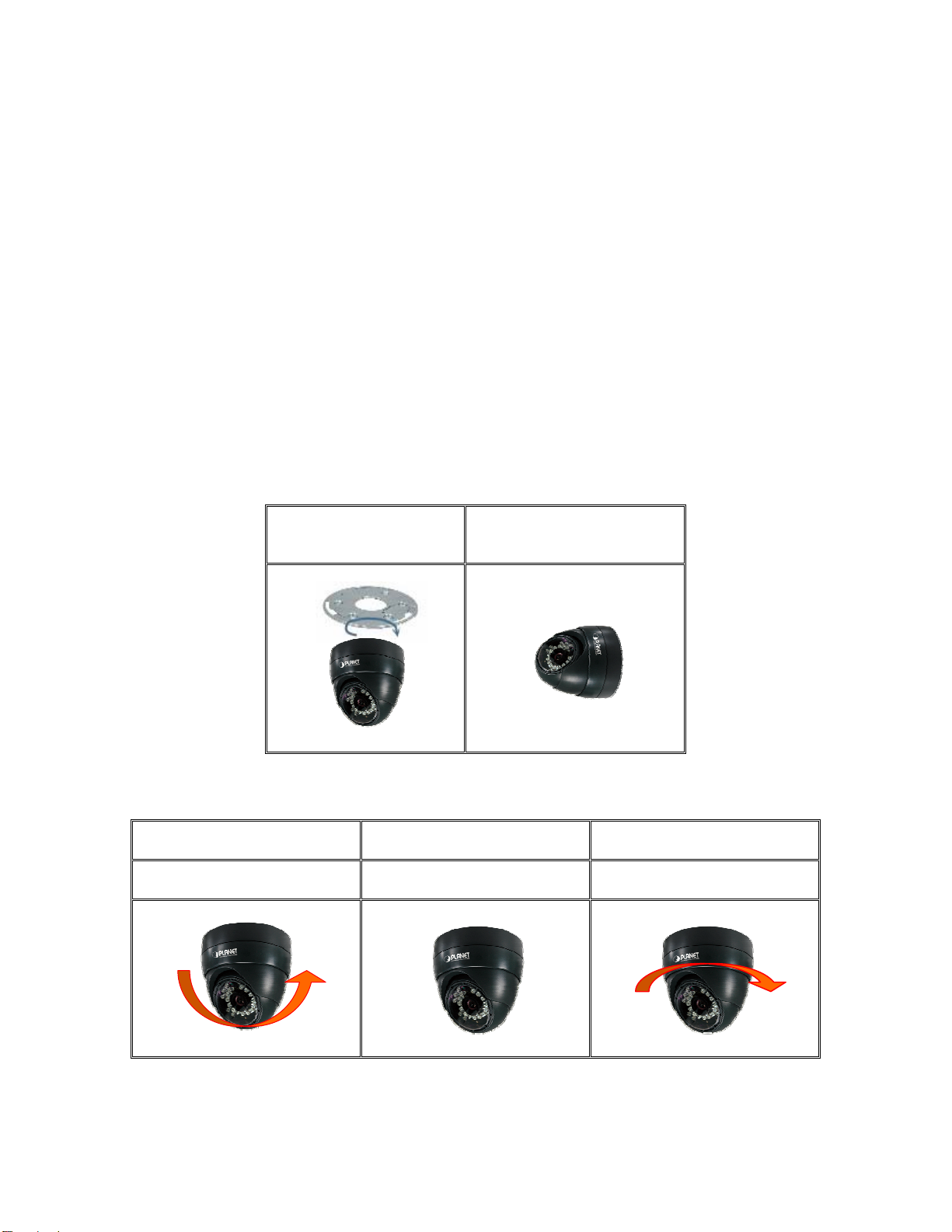

beyond. It contains excellent panning feature 360 degrees, tilting feature 180 degree and rotating
feature 360 degrees.
The ICA-530 can send video and audio via the internet to a web browser anywhere in the world.
The ICA-530 takes surveillance to use 2-way audio. It can remotely talk to anyone at ICA-530 site
when adding a speaker on ICA-530.
Multi-profile stands for video stream simultaneously. The ICA-530 can generate MPEG-4 and
M-JPEG streaming to different users in the meantime. Moreover, the resolution can differ from
one user to another. This state-of-art design is considerable to fit in various network environments.
Up to 10 users can have access to the ICA-530 simultaneously at any point in time.
1.1Overview
This user’s manual explains how to operate the 15 meter IR dome internet camera from a
computer. Basically, the user’s manual is written to be read on the computer display. However,
users might consider printing it out to access easily and read it before you operate the Network
Camera.
1.2 Features
•High quality of 1/3” SONY CCD
pictures for day and night
ED and visible distance up to 15
or 3G mobile remote applications
M-JPEG video compression simultaneously and
simplify system integration in existing network environment
ndards,
nage ICA-530 via
orts more alternatives in surveillance network
nt in
upported
dle
t filter, ICA-530 can get better video quality even in the
nighttime.
•Clear and high resolution quality
•LED used on ICA-530 are 4 times brighter than ordinary IR L
meter
•3GPP f
•Multi-profile encoder supports MPEG-4 and
30fps for all resolution
•Plug-N-Watch is able to
•Because of supporting TCP/IP networking, SMTP e-mail and HTTP public network sta
ICA-530 can be applied and utilized to a mixed IP network environment
•Easy configuration: Network administrators can configure and ma
Windows-based utility or web interface
•DDNS, PPPoE and FTP uploading supp
•Motion Detection: the motion detection feature can monitor any suspicious moveme
specific area
•2-way audio s
•Supports 3-axis camera cra
•Night & Day switch with IR-cu
5/68

1.3Package Contents
package for ICA-530:
uide x 2
x 1
N
. If any of the above items are missing, please contact your dealer immediately.
he power supply that is not the one included in ICA-530 packet will cause damage and
User can find the following items in the
ICA-530 x 1
Power Adapter x 1
Wrench x 1
Telephone box x 1
CD Disk x 1
Quick Installation G
Software CD
ote :
1
2. Using t
void the warranty for this product.
6/68

2. Basic Setup
This chapter provides details of installing and configuring the ICA-530
2.1 System Requirements
Network Interface 10/100MBase-TX Ethernet
Monitoring System Recommended for Internet Explorer 6.0 or later
System Hardware · CPU: Pentium 4, 1.5GHz or above
· Memory Size : 512 MB (512 MB or above Recommended )
· VGA card resolution : 1024 x 768 or above
· Sound card: Necessary
· Network bandwidth: In VGA resolution mode, minimum
upload bandwidth is 1Mbps.
System Requirement For Viewer & RecorderApplication
Support OS Win 2000 , Win XP
System Hardware 16 cameras surveillance application
· CPU: Pentium 4, 2.8GHz or faster
· Memory Size : 512 MB or above
· VGA card resolution : 1024 x 768 or above
· Sound card: Necessary
· Free space of hard disk: 10GB or higher
· Power Supply: 300W or higher
Note: The listed information is minimum system requirements only. Actual requirement will vary
depending on the nature of your environment.
7/68

2.2 Physical Details
Identification of ICA-530 cables
RJ-45LAN Videoout Linein
RS-485 & DI/DO (Connect to a TEL box) 12V DC in Line out
1. RJ45 LAN socket:
Connect to PC or Hub/Switch. For connections to 10Base-T Ethernet or 100Base-TX Fast
Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission
speed of the network automatically. Please use Category 5 “straight through” cable to connect the
ICA-530 to a 100Mbps Fast Ethernet network switch or hub.
Note that, in case you need to connect the device to PC or notebook directly, you should use
cross over cable instead.
2. RS-485 & DI/DO:
Connect to a local keyboard controller and connect to sensor in and alarm out devices
Inside the TEL box:
Name Function
12VDC DC 12V (50mAmaximum)
GND GND
D+ RS485 data +
D- RS485 data -
DI Digital signal input
DO Digital signal output
8/68

3. Local Video output (BNC port)
The Network Camera also provides composite video output. User can use BNC video cable to
connect the Network Camera with a TV monitor or VCR.
4. DC-in Jack
The input power is 12VDC. Note that supply the power to the Network Camera with standard
power adapter included in package. Otherwise, the improper power adapter may damage the unit
and result in danger.
5. Line in (audio in)
Connect an audio input source to the ICA-530.
6. Line out (audio out)
Connect a loud speaker to the ICA-530. This function is for voice alerting and two-way audio.
2.3 Hardware Installation
1. Drill 20mm (3/4") holes in the ceiling or wall and then align the mounting plate to the holes you
have made as below.
Ceiling Top Plate Directly install on any
horizontal or vertical surface
2. Camera Adjustment:
Tilting View Rotating View Panning View
Angle range is 0o~180oAngle range is 0o~360oAngle range is 0o~360o
4
3. Connect the necessary cables and connectors, for examples, Ethernet cable and power jack.
4. Done.
9/68

2.4 Initial Utility Installation
Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once completed, a
welcome menu screen will appear.
Click the “IPWizard” hyperlink, the below InstallShield Wizard dialog box will appear.
Note: If the welcome screen does not appear, click “Start” at the taskbar. Then, select “Run” and
type “D:\Utility\ setup.exe”, assume D is your CD-ROM drive.
The “Welcome to the InstallShield Wizard for IPWizard” will display on the screen and click “Next”
to continue.
10/68

Please click “Next” to install with original settings, or you may click “Change…” button to modify
the install folder then press “Next” to continue.
Please click “Install” to start the installation.
11/68

Please click “Finish” to complete the driver installation
Please double-click the utility icon on the desktop, and then you will see the ICA-530
initial utility - IPWizard. Please refer to the next section to operate this utility to finish the initial
configuration of your ICA-530.
12/68

2.5 IPWizard
NOTE: The following operates under ICA-530. The procedure also applies to ICA-530.
When you installed the ICA-530 on a LAN environment, you may execute IPWizard to discover
ICA-530’s IP address and set up related parameters in the ICA-530.
Search Button:
When click Search button, a searching window will pop up. IPWizard is starting to search ICA-530
on the LAN. The message “No Network Devices Is Found” will appear on this window if IPWizard
cannot find any camera on the LAN. Otherwise, existed cameras will be listed. If total quantity is
over, please move the cursor to Information Box. Click on the left button of the mouse and the
Information Box of the Listing Window will roll upward automatically; on the contrary, move the
cursor to the Information Box on the top of Listing Window and click on the left button of the mouse
and Listing Window will roll downward.
13/68

Wizard Button:
When IPWizard finds your camera, Wizard button will become available. Please select the device
you would like to configure in the Information Box. The device will turn into yellow which means
this device is selected, please press “Wizard” button. Or you could double click the mouse left key
on the selected camera. Relative settings will be carried out. Details of Install Wizard will be
specified as Section 2.6.
About Button:
When click “About” button, you will see the version information of IPWizard shown in the pop-up
dialog box.
Exit Button:
Click “Exit” button will close the IPWizard Program.
14/68

2.6 Configure With IPWizard
After pressing Installation Wizard, please key in Username and Password of the device when login
dialog box appears on the screen. You can login the setup page if authorized name and password
is correct. Default username/password for machine login: admin/<no password>
Wizard Page 1: Username and Password
This page is about the change of the authorized user name and password of the selected device. If
you don’t want to change them, please click “Next” to move to the next page. Press “Exit” button if
you don’t want to set up right now. If you want to change authorized name or password, you have
to check the box in front of ID or New Password.Authorized Username should contain at least 5~
20 characters and New Password should contain at least 4~8 characters.
15/68

Wizard Page 2: LAN Setting
This page is about the select of Static IP or DHCP ON.
LAN: You can configure this ICA-530 to obtain its address automatically or manually assign. If
there is a DHCP server in your network environment and you select “DHCP ON”, ICA-530 can
automatically obtain an IP address. If you don’t have DHCP server or you want to use fixed IP
address, please select “Static IP” and fill in the following fields with proper parameters.
IP Address: IP address is a unique number for identifies this device on the WAN or LAN. These
numbers are usually shown in groups separated by periods, for example: 192.168.0.200
Subnet Mask: Subnets allow network traffic between hosts to be separated based on the
network's configuration. In IP networking, traffic takes the form of packets. IP subnets advance
network security and performance to some level by organizing hosts into logical groups. Subnet
masks contain four bytes and usually appear in the same "dotted decimal" data. For example, a
very common subnet mask in its binary demonstration 11111111 11111111 11111111 00000000 will
usually be shown in the corresponding, more readable form as 255.255.255.0.
Def. Gateway: A gateway is a piece of software or hardware that passes information between
networks. You'll see this term most often when you either log in to an Internet site or when you're
transient email between different servers.
DNS1: When you send email or position a browser to an Internet domain such as xxxxx.com, the
domain name system translates the names into IP addresses. The term refers to two things: the
conventions for naming hosts and the way the names are control across the Internet.
DNS2: The same function as DNS1. It is optional, not necessary
Note: If no IP address is assigned after 30 seconds, the ICA-530 will work with its default IP
address 192.168.0.20. User may now open your web browser, and key in http://192.168.0.20 in
the address bar of your web browser to logon ICA-530’s web configuration page.
16/68

Wizard Page 3: Confirmation
This page shows the new configurations. If it is correct, please press “Submit” icon and the setting
information will be save to your ICA-530. Click on “Exit” to close this window.
2.7 Using UPnP of Windows® XP™
UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. This device is an UPnP
enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will
be very easy to configure. Use the following steps to enable UPnP settings only if your operating
system of PC is running Windows XP.
Note: Windows 2000 does not support UPnP feature.
Go to Start > Settings, and Click Control Panel
17/68

The “Control Panel” will display on the screen and double click Add or Remove Programs to
continue
The “Add or Remove Programs” will display on the screen and click Add/Remove Widows
Components to continue.
18/68

The following screen will appear, select Networking Services and click Details to continue.
The “Networking Services” will display on the screen, select Universal Plug and Play and click
OK to continue.
19/68
