Planet ICA-HM136 User manual

2 Mega-Pixel Outdoor IR IP Camera
ICA-HM136 / ICA-HM315W
Quick Installation Guide

Table of Contents
1. Introduction ............................................................................................... 3
1.1 Before Installation ............................................................................... 3
1.2 System Requirements .......................................................................... 3
2. Physical Description and Installation ............................................................. 4
2.1 ICA-HM136 2 Mega-Pixel 15M IR Vandal Proof Dome IP Cam.................. 4
2.1.1 ICA-HM136 Package Content ....................................................... 4
2.1.2 ICA-HM136 Physical Details......................................................... 4
2.1.3 ICA-HM136 I/O Control Instruction .............................................. 4
2.1.4 ICA-HM136 Installation ............................................................... 6
2.2 ICA-HM315W 2 Mega-Pixel Wireless Outdoor IR IP Camera..................... 7
2.2.1 ICA-HM315W Package Content .................................................... 7
2.2.2 ICA-HM315W Physical Details ...................................................... 7
2.2.3 ICA-HM315W Installation ............................................................ 8
3. Camera Windows Utility .............................................................................. 9
3.1 ICA-HM136 / ICA-HM315W IP Assignment............................................. 9
Further Information ........................................................................................12

3
1. Introduction
Thank you for purchasing the PLANET 2 Mega-Pixel Wired/Wireless IP-Camera. It
is versatile and high image solution of surveillance application for day and night.
The video can be stored in the SD card and playback remotely. With user friendly
interface, it is an easy-to-use IP camera which is designed for security application.
The PLANET IP Camera support Multi-Prole function can stands for simultaneously
video streams. These Network Cameras can generate H.264, MPEG-4 and M-JPEG
streaming simultaneously to different clients. Moreover, the resolution can be
different from one client to another. This state-of-art design is considerable to t in
various network environments.
1.1 Before Installation
Before installation, please be sure to read this quick installation guide and user’s
manual (CD) carefully to complete machine installation. This guide shows how to
quick set up the two cameras, unless model name specied terms “IP Camera” will
be used for these two models.
1.2 System Requirements
CPU Intel Dual Core 1.66G
RAM 1024MB
Graphic card 128MB
Display Resolution 1024 x 768 24bits
Operating System Windows 2000, XP, 2003, Vista 32bit, Win7 32bit
Network Ethernet 10/100 Base-T

4
2. Physical Description and Installation
2.1 ICA-HM136 2 Mega-Pixel 15M IR Vandal Proof Dome IP Cam
2.1.1 ICA-HM136 Package Content
Camera unit x 1
Power Adapter x 1
Accessories Kit x 1
User’s Manual CD-ROM x 1
Quick Installation Guide x 1

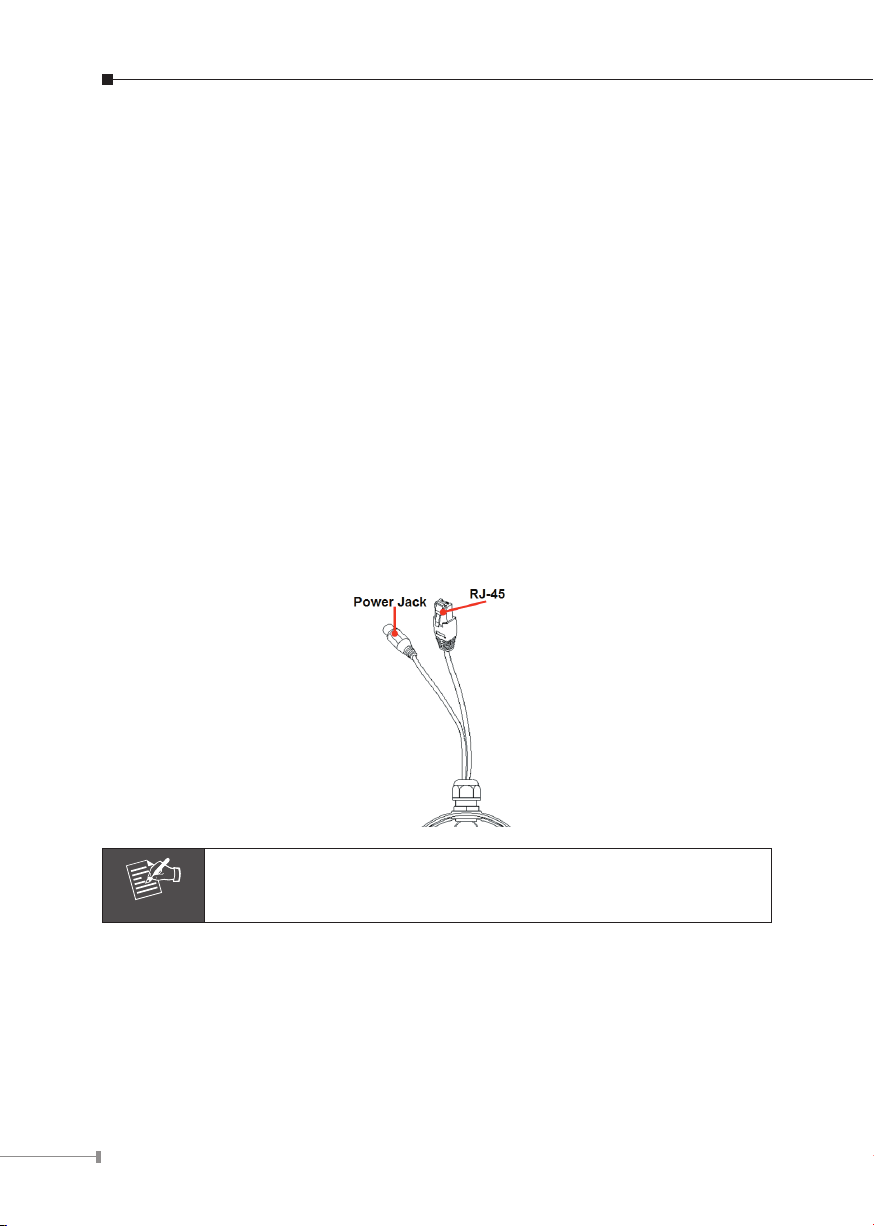

2.1.2 ICA-HM136 Physical Details
1. RJ-45 LAN socket: Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This
Ethernet port built N-Way protocol can detect or negotiate the transmission speed
of the network automatically. Please use CAT-5 cable to connect the Network
Camera to a 100Mbps Fast Ethernet network switch or hub.
2. Power Jack: The input power is DC 12V.
Note
ONLY use package power adapter supplied with the internet.
Otherwise, the product may be damaged.
2.1.3 ICA-HM136 I/O Control Instruction
I/O terminal connector – used in application, for e.g., motion detection, event
triggering,
Digital Input:l(GND+Alarm)
An alarm input for connecting devices that can toggle between an open and closed
circuit, for example: PIRs, door/window contacts, glass break detectors, etc. When
a signal is received the state changes and the input becomes active.

5
Relay output:l(COM +N.O.) / (COM+N.C.)
An output to Relay switch, for example: LEDs, Sirens, etc.
1. Digital Input/Alarm Input:
1) GND (Ground): Initial state is LOW
2) Alarm: Max. 50mA, DC 3.3V
2. Relay Output:
1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 125~240VAC
2) COM: (Common)
3) N.O. (Normally Open): Max. 1A, 24VDC or 0.2A, 125~240VAC
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
RELAY OUT
ALARM IN
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
Door/Window
Contacts IN

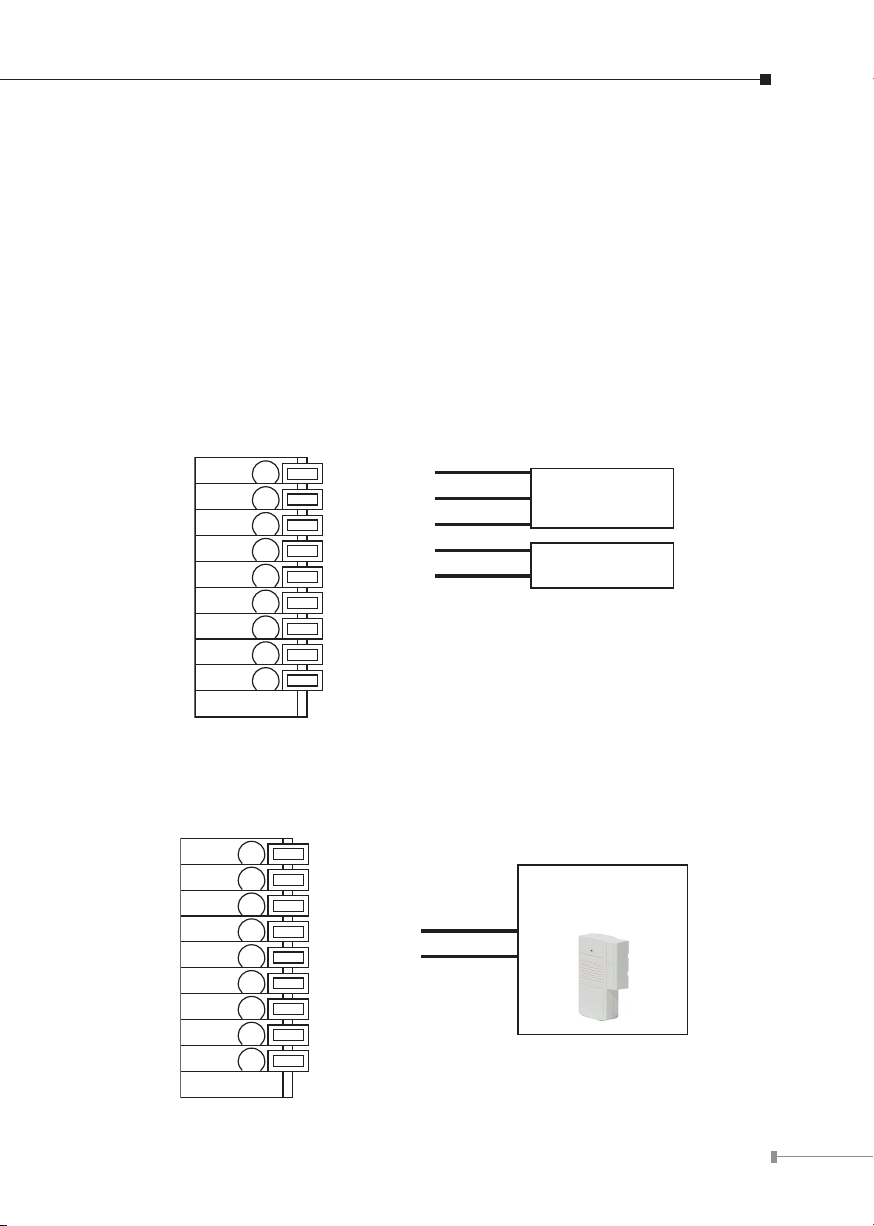

3. Relay Connection:
1) Digital Input connection
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
RELAY OUT
ALARM IN
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
Door/Window
Contacts IN

6

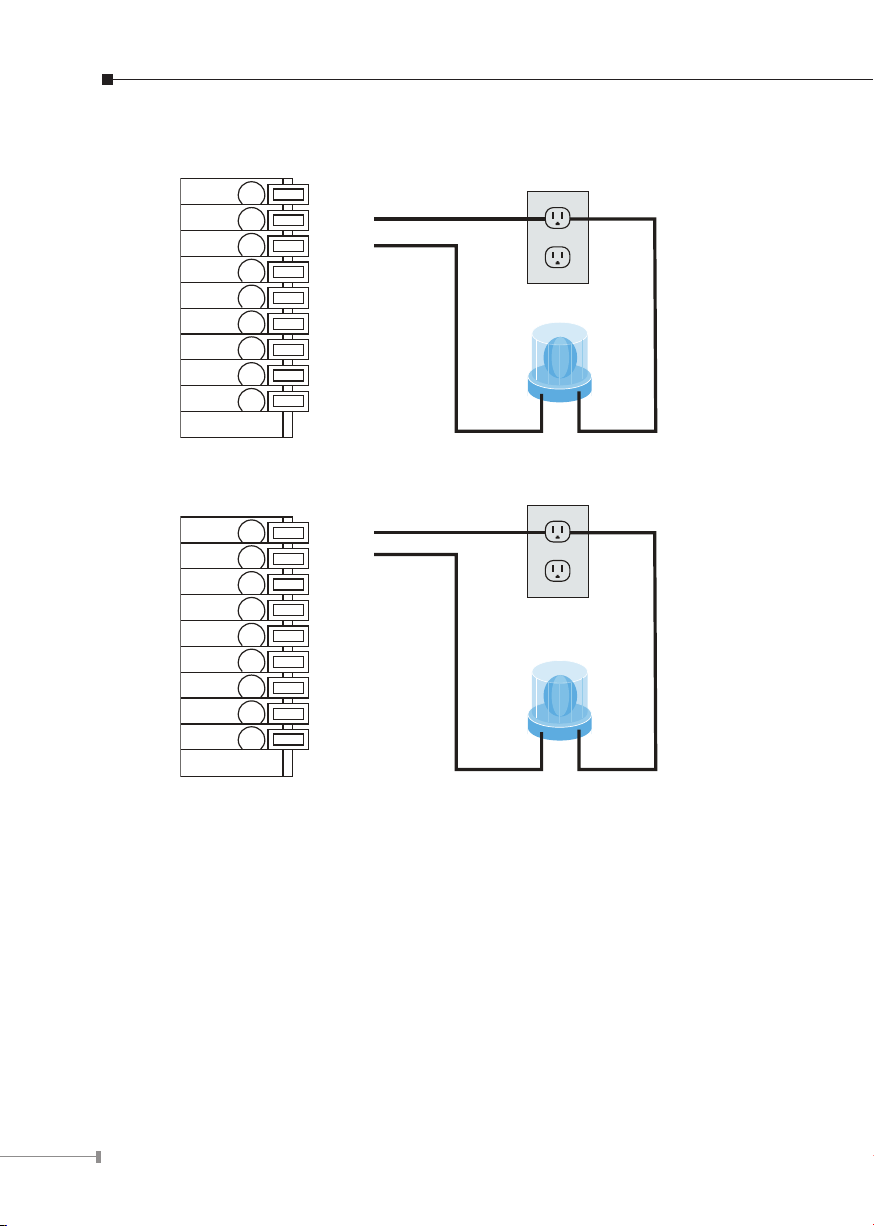

2) Relay Output Connection
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
RELAY OUT
ALARM IN
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
Door/Window
Contacts IN
Or
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
RELAY OUT
ALARM IN
N.O
COM
N.C
GND
ALARM IN
AUDIO OUT
MIC IN
GND
VIDEO OUT
Door/Window
Contacts IN
4.MIC_IN:
Connect a microphone to the network camera.
5.AUDIO_OUT
Connect a loud speaker to the network camera. This is for voice alerting and
two-way audio.
2.1.4 ICA-HM136 Installation
1. Fix IR camera to desired location with stand
2. Plug-in Ethernet Cable into RJ45 connector (LAN port)
3. Connect the attached power adapter to camera and plug-in this adapter into power
outlet

7
4. Connect Video BNC connector to a TV set if necessary (to check camera viewing
angle and focus)
5. Done.
2.2 ICA-HM315W 2 Mega-Pixel Wireless Outdoor IR IP Camera
2.2.1 ICA-HM315W Package Content
IP Camera Unit x 1
Power Adapter x 1
Screw package x 1
Stand x 1
Antenna x 1
User’s Manual CD-ROM x 1
Quick Installation Guide x 1

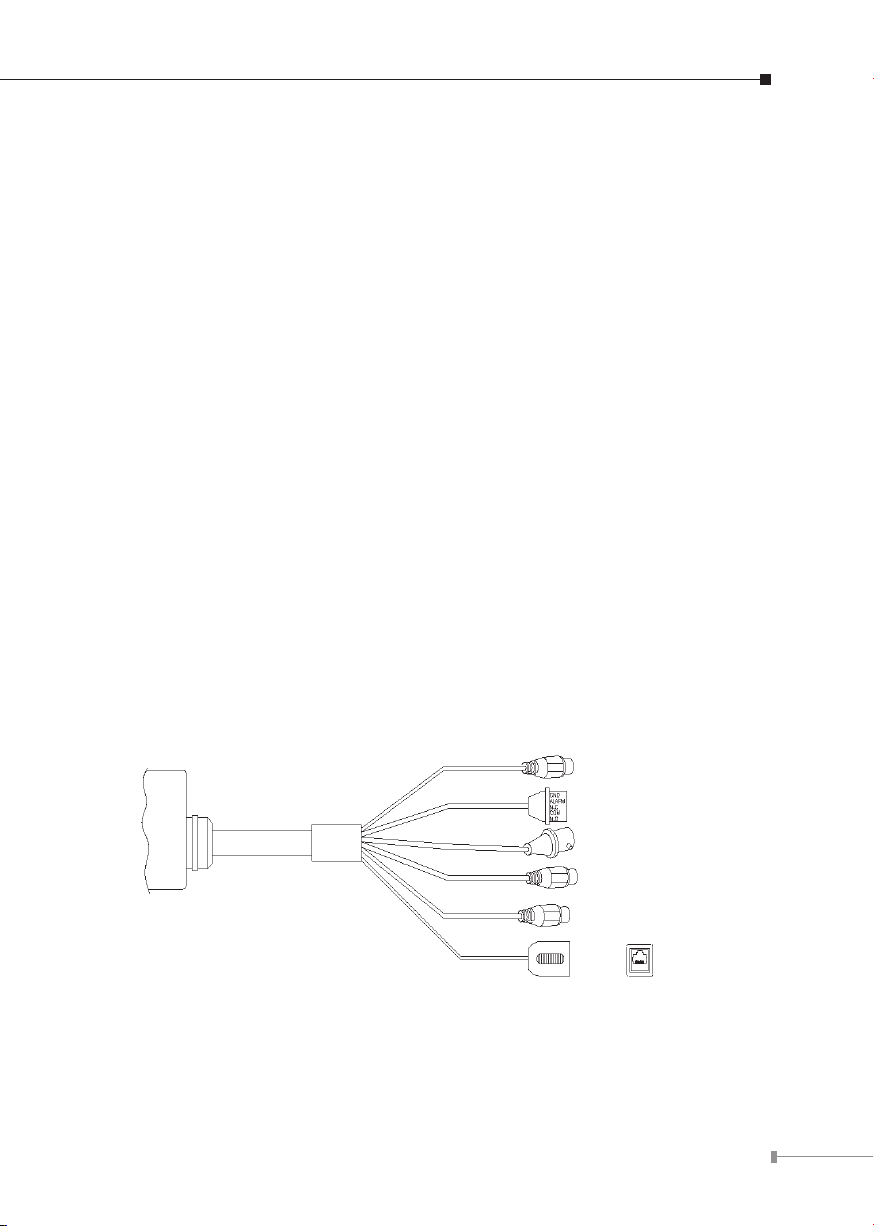

2.2.2 ICA-HM315W Physical Details
1. RJ-45 LAN socket: Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This
Ethernet port built N-Way protocol can detect or negotiate the transmission speed
of the network automatically. Please use CAT-5 cable to connect the Network
Camera to a 100Mbps Fast Ethernet network switch or hub.
DC 12V
I/O terming
Video output
Microphone input (RED)
Microphone output (Green)
Network
2. I/O Control Instruction
I/O terminal connector – used in application, for e.g., motion detection, event
triggering, alarm notications. It provides the interface to:

8
3. Digital Input (GND + Alarm)
An alarm input for connecting devices that can toggle between an open and closed
circuit, for example: PIRs, door/window contacts, glass break detectors, etc. When
a signal is received the state changes and the input becomes active.
4. Relay output (COM +N.O.) / (COM+N.C.)
An output to Relay switch, for example: LEDs, Sirens, etc
5. Digital Input/Alarm Input
1) GND (Ground): Initial state is LOW
2) Alarm: Max. 50mA, DC 3.3V
6. Relay Output
1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 125~240VAC
2) COM: (Common)
3) N.O. (Normally Open): Max. 1A, 24VDC or 0.2A, 125~240VAC
7. Power Jack
The input power is DC 12V.
Note
ONLY use package power adapter supplied with the internet.
Otherwise, the product may be damaged.
8. MIC in (audio in)
Connect a microphone to the network camera.
9. Line out (audio out)
Connect a loud speaker to the network camera. This is for voice alerting and
two-way audio.
2.2.3 ICA-HM315W Installation
1. Fix IR camera to desired location with stand
2. Plug-in Ethernet Cable into RJ45 connector (LAN port)
3. Connect the attached power adapter to camera and plug-in this adapter into
power outlet
4. Connect Video BNC connector to a TV set if necessary (to check camera viewing
angle and focus)
5. Done

9
3. Camera Windows Utility
This chapter shows how to quick set up your H.264 IP Camera. The H.264 IP
Camera is with the default settings. However to help you nd the networked
camera quickly the windows utility (PLANET IP Installer) can search the cameras in
the network that shall help you to congure some basic setting before you started
advanced management and monitoring.
Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome
web page appears, please click your IP camera name on the IP camera list. Then
click the PLANET IP Installer hyperlink to start the PLANET IP Installer.
3.1 ICA-HM136 / ICA-HM315W IP Assignment
1. Use “PLANET IP Installer” to assign an IP address of IP CAMERA.
The PLANET IP Installer software is in the attached CD.
2. IP Installer supports languages.
PLANET IP Installer.exe

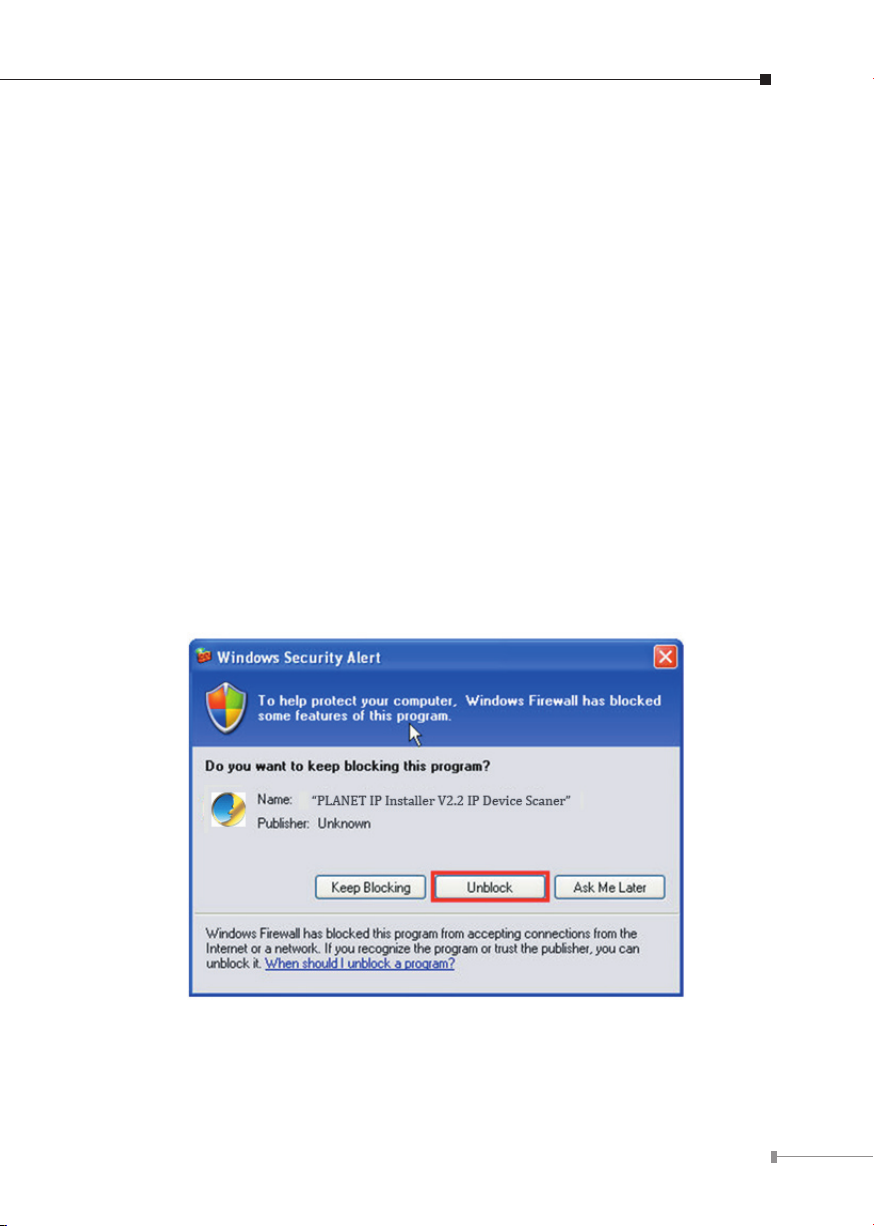

3. OS: Windows XP SP2 or above. If the following “Windows Security
Alert” popup, please click “Unblock”.

10

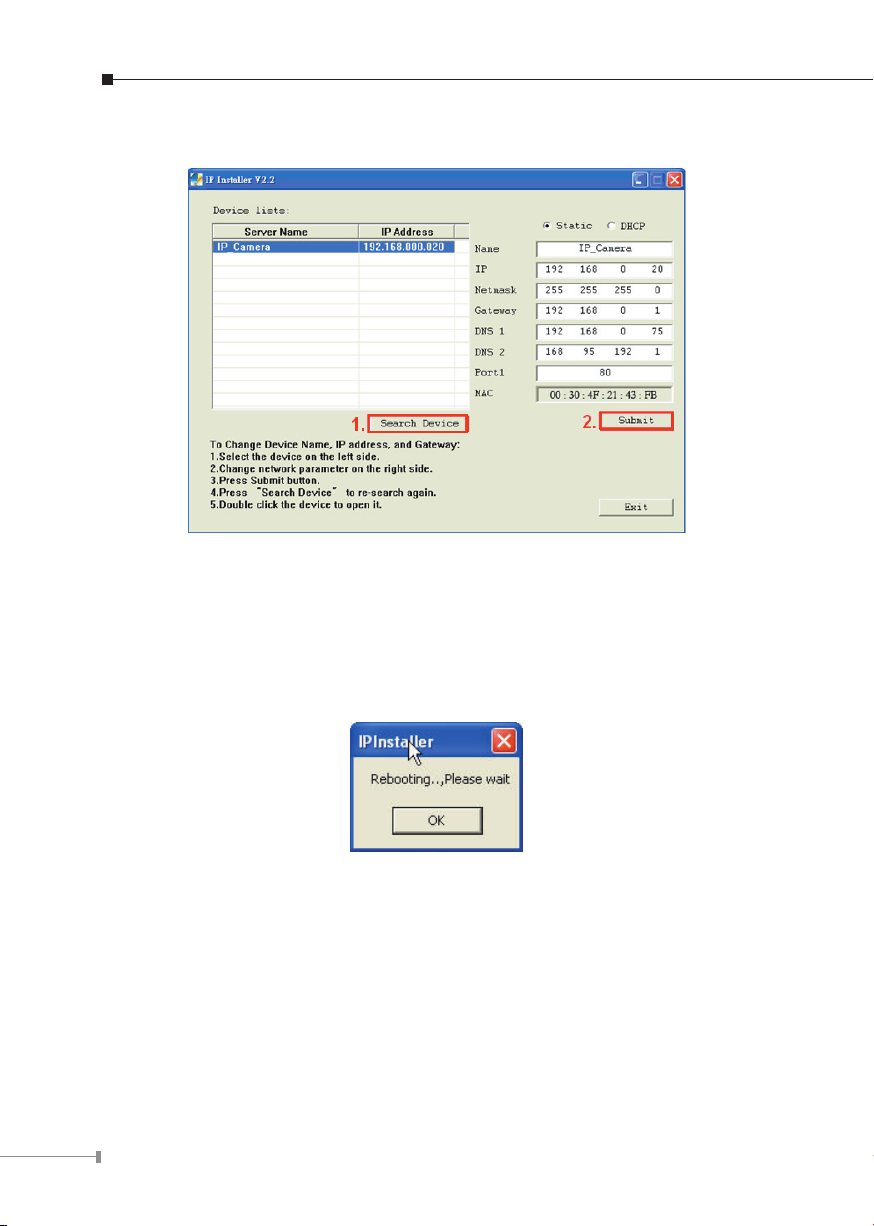

4.The GUI of IP Installer is as follows (Default IP: 192.168.0.20).
IP Installer will search all IP Cameras connected on LAN. The user can clickl
“Search Device” to search again.
Click one of IP Cameras listed on the left side of IP Installer, then the networkl
conguration of that IP Camera will be listed on the right side. If parameters
changed, click on “Submit”. Then, the network conguration will be changed.
Just click “OK” to reboot
Please make sure the subnet of PC IP address and IP CAM IP address are thel
same.
For Example:
IP CAM IP address: 192.168.0.20
PC IP address: 192.168.0.100

11

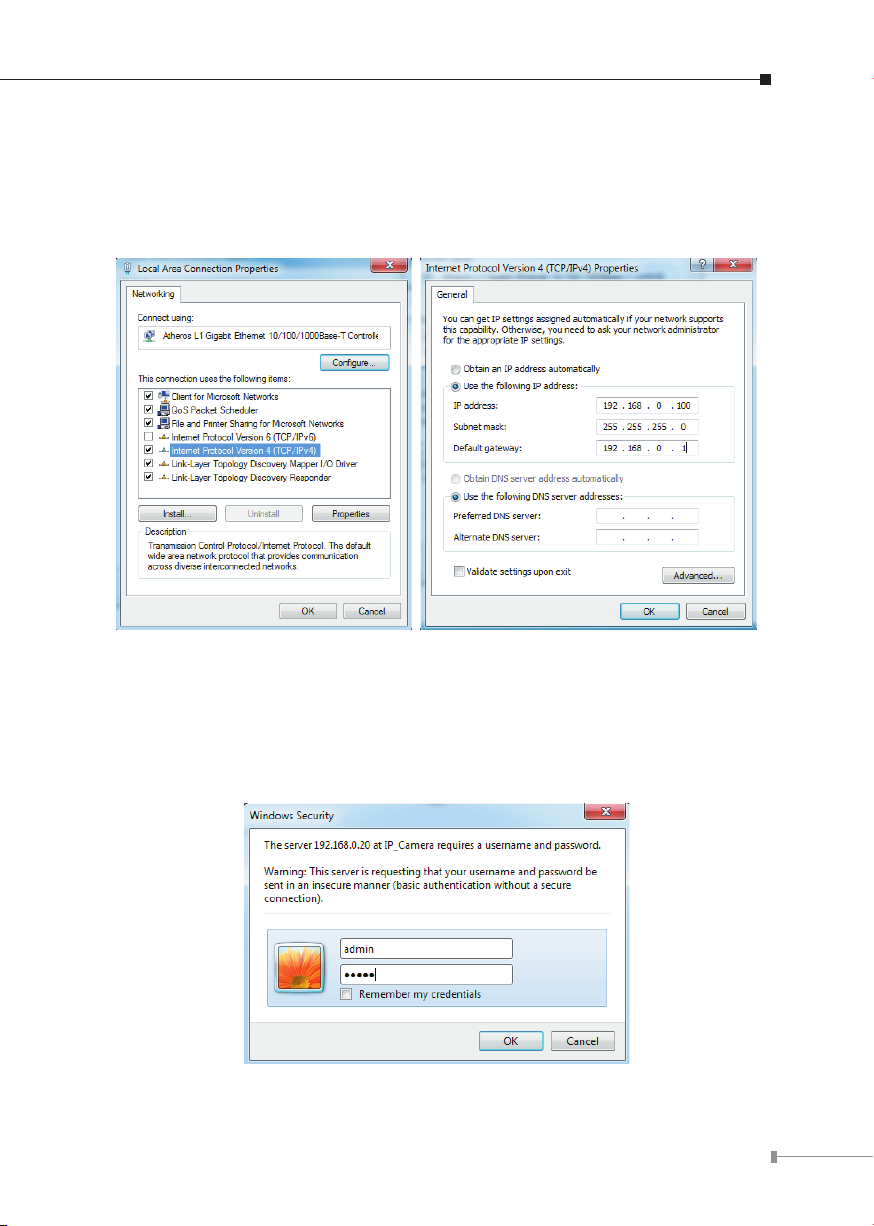

To Change PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet
Protocol (TCP/IP)Properties Please make sure your IP Camera and PC have
the same Subnet. If not, please change IP Camera IP subnet or PC IP subnet
accordingly.
A quick way to access remote monitoring is to left-click the mouse twice on al
selected IP Camera listed on “Device list” of IP Installer. An IE browser will be
opened.
Then, please key in the defaultl“Username: admin” and “Password: admin”
in the following message box.

12
If the user name and password are input correctly, the following web page willl
be displayed.
Further Information
This guide is used to help you startup your IP Camera settings. It is also
recommended to check the user manual in CD disk for more details of the system
and user conguration.
