Planet ICA-HM830 User manual

2 Mega-Pixel Fish-Eye Panorama
Outdoor / Indoor IP Camera
ICA-HM830 / ICA-HM830W
ICA-HM835
Quick Installation Guide

Table of Contents
Chapter 1. Introduction .................................................................................... 3
1.1 Before Installation ............................................................................... 3
1.2 System Requirements .......................................................................... 3
Chapter 2. Physical Description and Installation.................................................. 4
2.1 ICA-HM830 2Mega-Pixel Fish-Eye Panorama IP Camera .......................... 4
2.1.1 ICA-HM830 Package Content........................................................ 4
2.1.2 ICA-HM830 Physical Details ......................................................... 4
2.1.3 ICA-HM830 Installation................................................................ 6
2.1.4 Wall/Ceiling Mount Installation Procedure ...................................... 7
2.2 ICA-HM830W 2Mega-Pixel Fish-Eye Panorama IP Camera........................ 8
2.2.1 ICA-HM830W Package Content..................................................... 8
2.2.2 ICA-HM830W Physical Details....................................................... 9
2.2.3 ICA-HM830W Installation............................................................11
2.2.4 Wall/Ceiling Mount Installation Procedure .....................................12
2.3 ICA-HM835 2Mega-Pixel Vandal Proof Fish-Eye IP Camera .....................13
2.3.1 ICA-HM835 Package Content.......................................................13
2.3.2 ICA-HM835 Physical Details ........................................................13
2.3.3 ICA-HM835 Installation...............................................................15
Chapter 3. Camera Windows Utility ..................................................................16
3.1 NetworkConguration ........................................................................16
3.2 Open the Web-based UI......................................................................18
Further Information ........................................................................................20

3
Chapter 1. Introduction
Thank you for purchasing the PLANET 2Mega-Pixel Fish-Eye Panorama IP-Camera.
The Fish-Eye lens can view 360 degree panoramic wide angle view without blind
spot. With user friendly interface, it is an easy-to-use IP camera which is designed
for security application. The IP Cameras delivers clear image through Multi-
streaming H.264 and Motion JPEG video up to UXGA (1600 x 1200 pixels).
The IP-Camera supports digital Pan/Tilt and zoom function can provide users 9
different video modes. It’s applies perspective correction software to eliminate the
rounding normally associated with Fish-Eye lenses and thus save lots of traditional
mechanical Pan/Tilt maintenance cost.
It has built-in ICR (IR-cut lter Removable) for day / night surveillance and
provides surveillance functions including DI/DO alarm, MicroSD card support for
local storage, and 2-Way audio that enables audio communication between local
and remote IP Camera installed sites by connecting the external microphone and
speaker. Moreover, the IP camera can be managed by PLANET Cam Viewer 3 IP-
Surveillance management software for multi-camera video surveillance application
and provides monitoring, recording and event management functions to secure
your property and life.
1.1 Before Installation
Before installation, please be sure to read this quick installation guide and user’s
manual (CD) carefully to complete machine installation. This guide shows how to
quick set up the IP Cameras, unless model name specied terms “IP Camera” will
be used for this model.
1.2 System Requirements
CPU Intel®Core2 Duo E5300 2.6GHz
RAM 1 GB
Video RAM 128 MB
Display Chip nVIDIA GeForce 8500GT or ATI Radeon HD 4350 or
above
Display Resolution 1024 x 768 24bits
Operating System Windows 2000 SP4 / Windows XP Pro SP2 / Windows
2003 / Vista
DirectX 9.0c or above
Network Wired Ethernet 100Base-TX

4
Chapter 2. Physical Description and Installation
2.1 ICA-HM830 2Mega-Pixel Fish-Eye Panorama IP Camera
2.1.1 ICA-HM830 Package Content
IP camera unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s manual CD x 1
Wall Mount Kit x 1
GPIO Connector x 1
2.1.2 ICA-HM830 Physical Details
ICA-HM830 Front Panel:
Speaker
Light Sensor Reset Button
MIC
Interface Description
Light Sensor
The Light sensor is for detect IP Camera environment
illuminant, and if IP Camera in the dark/night environment that
willletIRcutlteroffforclearlynightview.
MIC The IP Camera has built-in an internal microphone. This
microphone is hidden in the pinhole located on the front panel.
Reset Button This button is hidden in the pinhole. Please refer to the user’s
manual for more information.
Speaker The IP Camera has built-in an internal speaker. This speaker is
hidden in the pinhole located on the front panel.

5
ICA-HM830 Bottom Panel:
DC 12V
MICRO SD
1 2 3 4 5 6 7
AUDIO
OUT
RJ 45
AUDIO
I N
DC 12V
RJ-45
MICRO SD
Audio Out
Audio In
GPIO
Interface Description
Power Jack
The input power is DC 12V, 2A.
Note: ONLY use package power adapter supplied with the
internet. Otherwise, the product may be damaged.
RJ-45 LAN socket
Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast
Ethernet cabling. This Ethernet port built auto-negotiation
protocol can detect or negotiate the transmission speed
of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub.
Note: ONLY use one power source, either from DC or from
802.3af Power over Ethernet.
MicroSD Card
Slot
The IP Camera has built-in a MicroSD card slot accepts
MicroSD memory card for image / video event recording.
Audio Out Connect a loud speaker to the IP Camera. This is for voice
alerting and two-way audio.
Audio In Connect a microphone to the IP Camera.
GPIO The 7 pin terminal block includes 4 input ports and 1
output ports.

6
Terminal block for I/O connectors:
Name Pin Function
GND 1Four sets of Digital Input, DI1 until DI4; the internal
device is also photo-coupled electrical relay. In practice,
the external device can be simply an On/Off switch.
Four sets of On/Off switch can be connected as different
trigger source.
Digital input 4 2
Digital input 3 3
Digital input 2 4
Digital input 1 5
DO_NO 6
Digital output implementation; Pin6 to COM (Pin7) is a
Photo-coupled relay on Normal Open status. External
device can directly connect to the terminals. However the
current that will go through the 2 nodes must not exceed
130mA.Anexternal“Relay”canalsobeconnectedtothe
terminals as an implementation. In this case, current (or/
andvoltage)limitationisspeciedbytheexternalRelay.
DO_COM 7
2.1.3 ICA-HM830 Installation

7
Step 1. Prepare a PC with Ethernet link to the network
Step 2. Connect an Ethernet cable
Connect LAN port (RJ-45) of the IP Camera to a network switch. When
this switch is a PoE device, you can ignore the next step.
Note
If there has an IEEE 802.3af PoE switch in your network, you can
connect the IP Camera’s LAN cable to this PoE switch to obtain
power. The power adapter is unnecessary when IP Camera is
powered by PoE switch.
Step 3. Attach the power supply
Plug in power adapter to IP Camera and connect another end to power
outlet.
Note
Only use the power adapter supplied with IP Camera otherwise, the
product may be damaged.
Step 4. Plug Power on 100V ~ 240V
 Ensurethepoweradaptorspecicationmatchesthepowersystem(100~
110VACor220~240VAC)andconnecttheadaptortotheoutlet.
Step 5. Check LED status
 The Power LED is dened to identify IP Camera status. When IP Camera
bootingtheLEDwillbeashingandwhileIPCameraisreadytheLEDwill
be green.
Step 6. Adjust lens focus
Clockwise or counter-clockwise rotation the IP Camera lens for adjust
focus.
2.1.4 Wall/Ceiling Mount Installation Procedure

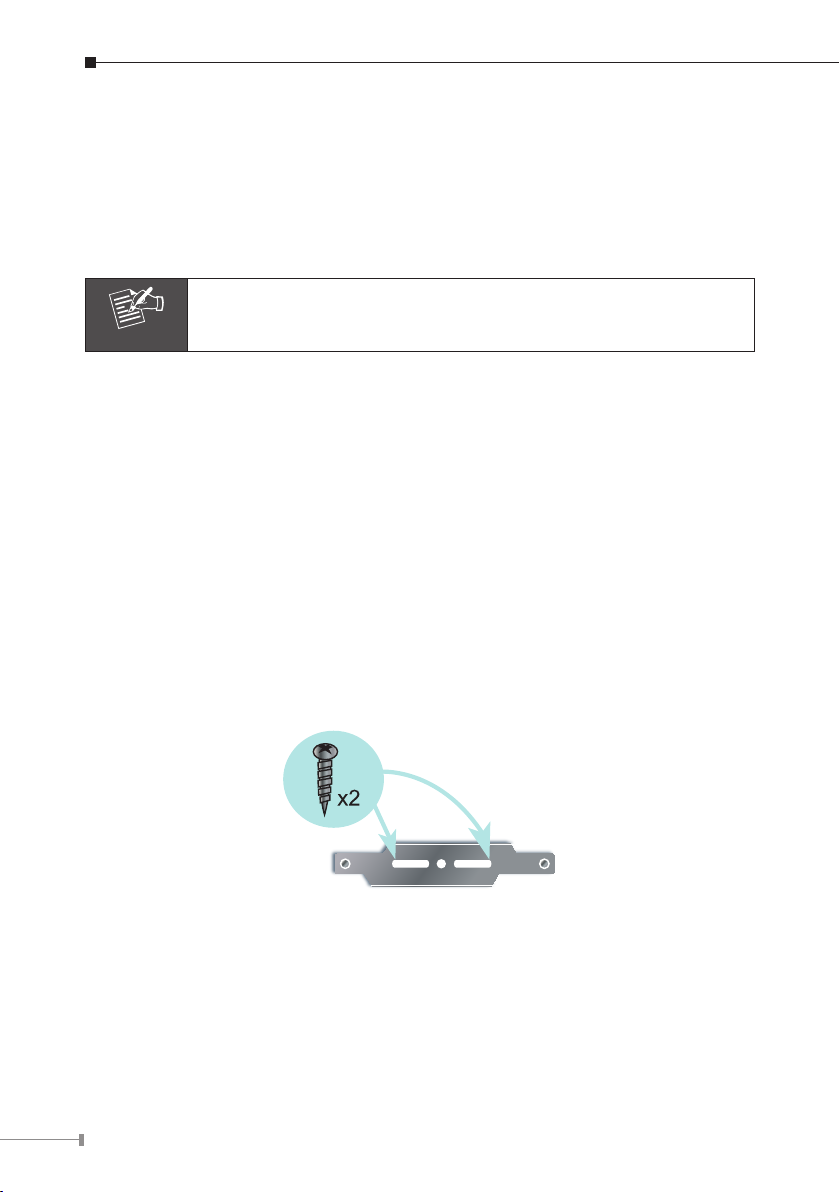

Step 1. Takethewallmountbracket,putitonthetargetplaceandxitwiththe
supplied screws (total of 2).

8

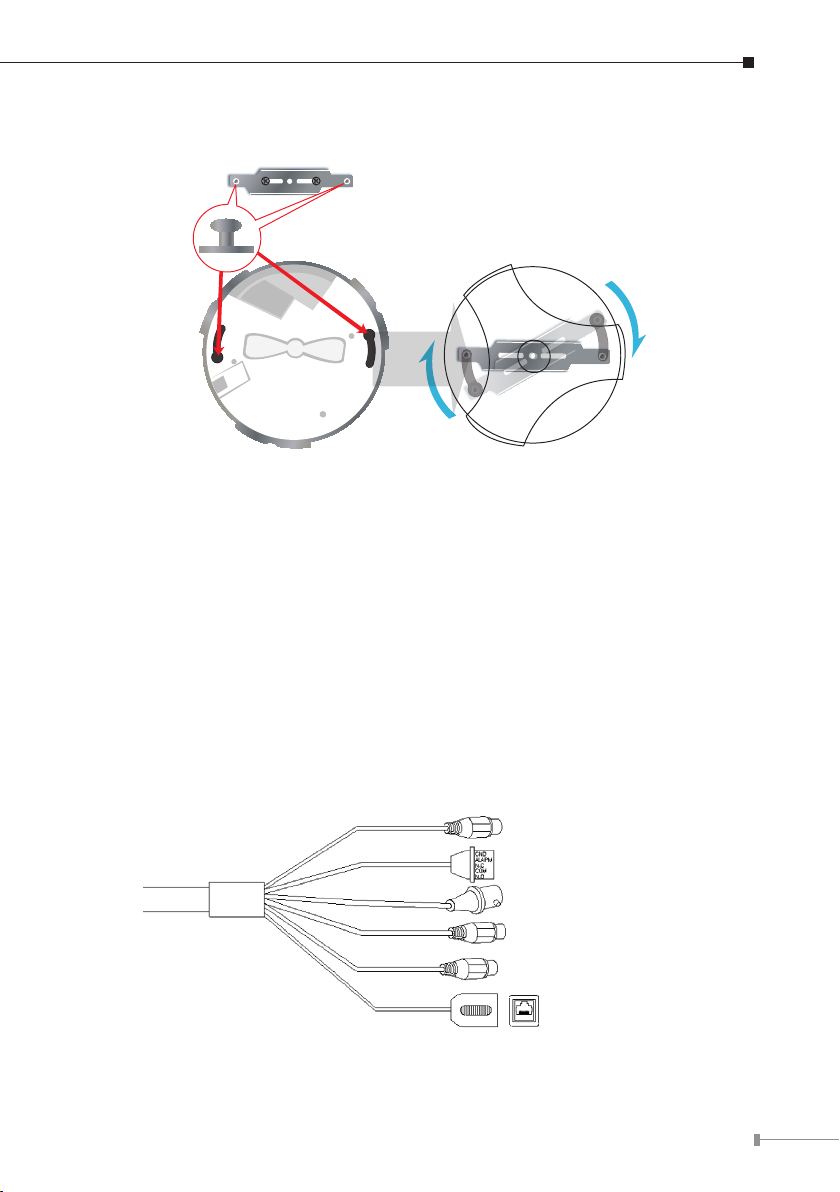

Step 2. Load the camera into the wall mount, be sure the camera is mated with
twoxedscrew,androtatethecameratolockitinposition.
2.2 ICA-HM830W 2Mega-Pixel Fish-Eye Panorama IP Camera
2.2.1 ICA-HM830W Package Content
IP camera unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s manual CD x 1
Wall Mount Kit x 1
GPIO Connector x 1

9
2.2.2 ICA-HM830W Physical Details
ICA-HM830W Front Panel:
Speaker
Light Sensor Reset Button
MIC
Interface Description
Light Sensor
The Light sensor is for detect IP Camera environment
illuminant, and if IP Camera in the dark/night environment that
willletIRcutlteroffforclearlynightview.
MIC The IP Camera has built-in an internal microphone. This
microphone is hidden in the pinhole located on the front panel.
Reset Button This button is hidden in the pinhole. Please refer to the user’s
manual for more information.
Speaker The IP Camera has built-in an internal speaker. This speaker is
hidden in the pinhole located on the front panel.

10
ICA-HM830W Bottom Panel:
DC 12V
MICRO SD
1 2 3 4 5 6 7
AUDIO
OUT
RJ 45
AUDIO
I N
DC 12V
RJ-45
MICRO SD
Audio Out
Audio In
GPIO
Interface Description
Power Jack
The input power is DC 12V,2A.
Note: ONLY use package power adapter supplied with the
internet. Otherwise, the product may be damaged.
RJ-45 LAN socket
Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast
Ethernet cabling. This Ethernet port built auto-negotiation
protocol can detect or negotiate the transmission speed
of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub.
MicroSD Card
Slot
The IP Camera has built-in a MicroSD card slot accepts
MicroSD memory card for image / video event recording.
Audio Out Connect a loud speaker to the IP Camera. This is for voice
alerting and two-way audio.
Audio In Connect a microphone to the IP Camera.
GPIO The 7 pin terminal block includes 4 input ports and 1
output ports.

11
Terminal block for I/O connectors:
Name Pin Function
GND 1Four sets of Digital Input, DI1 until DI4; the internal
device is also photo-coupled electrical relay. In practice,
the external device can be simply an On/Off switch.
Four sets of On/Off switch can be connected as different
trigger source.
Digital input 4 2
Digital input 3 3
Digital input 2 4
Digital input 1 5
DO_NO 6
Digital output implementation; Pin6 to COM (Pin7) is a
Photo-coupled relay on Normal Open status. External
device can directly connect to the terminals. However
the current that will go through the 2 nodes must
notexceed130mA.Anexternal“Relay”canalsobe
connected to the terminals as an implementation. In this
case,current(or/andvoltage)limitationisspeciedby
the external Relay.
DO_COM 7
2.2.3 ICA-HM830W Installation

12
Step 1. Prepare a PC with Ethernet link to the network
Step 2. Connect an Ethernet cable
Connect LAN port (RJ-45) of the IP Camera to a network switch.
Step 3. Attach the power supply
Plug in power adapter to IP Camera and connect another end to power
outlet.
Note
Only use the power adapter supplied with IP Camera otherwise, the
product may be damaged.
Step 4. Plug Power on 100V ~ 240V
 Ensurethepoweradaptorspecicationmatchesthepowersystem(100~
110VACor220~240VAC)andconnecttheadaptortotheoutlet.
Step 5. Check LED status
 The Power LED is dened to identify IP Camera status. When IP Camera
bootingtheLEDwillbeashingandwhileIPCameraisreadytheLEDwill
be green.
Step 6. Adjust lens focus
Clockwise or counter-clockwise rotation the IP Camera lens for adjust
focus.
2.2.4 Wall/Ceiling Mount Installation Procedure
Step 1. Takethewallmountbracket,putitonthetargetplaceandxitwiththe
supplied screws (total of 2).

13
Step 2. Load the camera into the wall mount, be sure the camera is mated with
twoxedscrew,androtatethecameratolockitinposition.
2.3 ICA-HM835 2Mega-Pixel Vandal Proof Fish-Eye IP Camera
2.3.1 ICA-HM835 Package Content
IP camera unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s manual CD x 1
Screw Package x 1
GPIO Connector x 1
2.3.2 ICA-HM835 Physical Details
DC 12V / 2A
I/O Terminal
Video Output
Microphone Input (Pink)
Line Out (Green)
Network

14
Interface Description
Power Jack
The input power is DC 12V, 2A.
Note: ONLY use package power adapter supplied with the
internet. Otherwise, the product may be damaged.
Network
(RJ-45 LAN
socket)
Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet
cabling. This Ethernet port built auto-negotiation protocol can
detect or negotiate the transmission speed of the network
automatically. Please use CAT-5 cable to connect the Network
Camera to a 100Mbps Fast Ethernet network switch or hub.
Note: ONLY use one power source, either from DC or from
802.3af Power over Ethernet.
Line Out
(Green)
Connect a loud speaker to the IP Camera. This is for voice
alerting and two-way audio.
Microphone
Input (Pink) Connect a microphone to the IP Camera.
Video Output
(BNC)
Connect Video BNC connector to a TV set if necessary (to check
camera viewing angle and focus).
GPIO The 6 pin terminal block includes 1 input ports and 1 output
ports.
Terminal block for I/O connectors:
Name Pin Description
Common 1Digital output implementation; Pin2 to COM (Pin1) is a
Photo-coupled relay on Normal Open status. External
device can directly connect to the terminals. However the
current that will go through the 2 nodes must not exceed
130mA.Anexternal“Relay”canalsobeconnectedtothe
terminals as an implementation. In this case, current (or/
andvoltage)limitationisspeciedbytheexternalRelay.
RELAY_NO 2
DGND 3ConnecttoGNDtoactivate,orleaveoating(or
unconnected) to deactivate.
DIGI Input 4
DGND 5PIN with a short wire connecting two revert to factory
default settings.
Load default 6

15
2.3.3 ICA-HM835 Installation
Step 1: Prepare a PC with Ethernet link to the network
Step 2: Connect an Ethernet cable
Connect LAN port (RJ-45) of the IP Camera to a network switch. When
this switch is a PoE device, you can ignore the next step.
Note
If there has an IEEE 802.3af PoE switch in your network, you can
connect the IP Camera’s LAN cable to this PoE switch to obtain
power. The power adapter is unnecessary when IP Camera is
powered by PoE switch.
Step 3: Attach the power supply
Plug in power adapter to IP Camera and connect another end to power
outlet.
Note
Only use the power adapter supplied with IP Camera otherwise, the
product may be damaged.
Step 4: Plug Power on 100V ~ 240V
 Ensurethepoweradaptorspecicationmatchesthepowersystem(100~
110VACor220~240VAC)andconnecttheadaptortotheoutlet.
Step 5: Check LED status
 The Power LED is dened to identify IP Camera status. When IP Camera
bootingtheLEDwillbeashingandwhileIPCameraisreadytheLEDwill
be green.
Step 6: Adjust lens focus
Clockwise or counter-clockwise rotation the IP Camera lens for adjust
focus.

16
Chapter 3. Camera Windows Utility
This chapter shows how to quick set up your IP Camera. The IP Camera is with
the default settings. However to help you nd the networked IP Camera quickly
the Windows utility (PLANET IPInstaller) can search the IP Cameras in the network
that shall help you to congure some basic setting before you start advanced
management and monitoring.
Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome
web page appears, please click your IP Camera name on the IP Camera list i.e.
ICA-HM830. Then click on the utility IPInstaller to start the program.
3.1 Network Conguration
Please click “Search Network Device” button. PLANET IPInstaller will list all
networked IP Camera in the LAN. If the IP Camera doesn’t be found, you may
check whether this IP Camera is connect to network properly and press the search
button again.
1. Click the menu bar Tool > Search Network Device to search the device in the
LAN.
2. Select IP Camera with the MAC Address corresponds to the IP Camera that is to
becongured.
Mac Address

17
3. Double click the item to open the Property Page or click the menu bar View >
Property.
4.After lling the desired settings in the properties, click on “Set” button to
completethecongurationsettings.

18
3.2 Open the Web-based UI
If IPInstaller nds IP Camera, please select the device you want to view and click
the “Open Web” button. Then you could see the video from IP Camera directly.
1. To access the Web-based UI of the selected unit, run the View > Open Web on
the menu bar.
2. After connected to IP Camera, it will prompt for User Name and Password,
please enter admin/admin to continue Web Management. Conrm the installa-
tion as it is required to view the video stream and some operations.
Ifdifcultyismet,pleaserefertothefollowingstepstoestablishtheconnection:
- The IP Camera must be installed and powered ON.
- If the IP Camera’s default IP Address (192.168.0.20) is already used by
another device, the other device must be turned OFF until the device is allocated
anewIPAddressduringconguration.

19
3.Fortherstinstallaiton,therewillbeaprompttoinstalltheActiveXcontrol.
4.Ifthedevicehasbeenconguredcorrectly,thedefaultWebbrowserwillopento
the home page of the selected device.

20
Further Information
This guide is used to help you startup your Fish-Eye IP Camera settings. It is also
recommended to check the user manual in CD disk for more details of the system
anduserconguration.
