Planet IGT-805AT User manual

Industrial 10/100/1000BASE-T to
100/1000BASE-X SFP Media Converter
IGT-805AT
Industrial 10/100/1000BASE-T to
2 100/1000BASE-X SFP Media Converter
IGT-1205AT
User's Manual

Trademarks
Copyright © PLANET Technology Corp. 2015.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty
and representation, either implied or expressed, with respect to
the quality, performance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions
that may have occurred.
Information in this User’s Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be contained in
this User’s Manual. PLANET makes no commitment to update or keep
current the information in this User’s Manual, and reserves the right
to make improvements to this User’s Manual and/or to the products
described in this User’s Manual, at any time without notice.
If you nd information in this manual incorrect, misleading, or
incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human
health as a result of the presence of hazardous substances
in electrical and electronic equipment, end users of electrical
and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET Industrial 10/100/1000BASE-T to 1/2 100/1000BASE-X SFP
Media Converter User's Manual
FOR MODELS: IGT-805AT / IGT-1205AT
REVISION: 1.0 (MARCH, 2015)
Part No: EM-IGT_805AT_1205AT_v1.0 (2350-AH1210-001)

Table of Contents
1. Introduction.............................................................................. 6
1.1 Package Contents ............................................................... 6
1.2 Product Overview................................................................ 6
1.3 Product Features................................................................. 7
1.4 Product Specications ......................................................... 9
2. Hardware Description................................................................11
2.1 Physical Dimensions ...........................................................11
2.2 Converter Front Panel ........................................................13
2.3 LED Indicators...................................................................14
2.4 Converter Upper Panel .......................................................16
3. INSTALLATION .........................................................................17
3.1 Quick Installation Steps......................................................17
3.2 Mounting Installation..........................................................18
3.2.1 DIN-rail Mounting......................................................18
3.2.2 Wall-mount Plate Mounting ........................................20
3.3 Wiring the Power Inputs.....................................................21
3.4 Wiring the Fault Alarm Contact ...........................................22
3.5 Cable Connection...............................................................23
3.6 Redundancy Overview (IGT-1205AT only) ............................27
4. Applications .............................................................................28

5. Troubleshooting........................................................................29
6. Cable Connection Parameters ....................................................30
Appendix A: Approved Planet SFP Transceivers.................................31
Appendix B: Networking Connection ................................................33
B.1 Converter’s RJ45 Pin Assignments........................................33
B.2 RJ45 Cable Pin Assignments................................................34

6
1. Introduction
1.1 Package Contents
The term “Industrial Gigabit Media Converter” mentioned in this
user’s manual also means the IGT-805AT / IGT-1205AT.
Check the contents of your package for the following parts:
zIndustrial Gigabit Media Converter x 1
zUser's Manual x 1
zDIN Rail Kit x 1
zWall Mount Kit x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.
1.2 Product Overview
Flexibility and Network Distance Extension Solution
The IGT-805AT / IGT-1205AT Industrial Gigabit Media Converter is
equipped with one 10/100/1000BASE-T auto-negotiation port and
one / two 100/1000X SFP slots. The SFP slots are compatible with
1000BASE-X or 100BASE-FX through SFP (Small Form Factor Pluggable)
ber-optic transceiver. The IGT-805AT SFP slot automatically detects the
100BASE-FX or 1000BASE-X SFP transceiver while the IGT-1205AT’s two
SFP slots allow changing the operation speed mode with its built-in DIP
switch. The ber optical uplink capability guarantees the throughput to
all nodes hooked into the network and the Gigabit Ethernet distance
can be extended from 550 meters (multi-mode ber cable) up to
10/20/30/40/50/60/70/120 kilometers (single-mode ber cable). Also,
the Fast Ethernet distance can be extended from 2km (multi-mode
ber cable) up to 20/40/60 kilometers (single-mode ber cable). They
are well suited for applications within the factory data centers and
distributions.

7
Environmentally Hardened Design
With IP30 industrial metal case, the Industrial Gigabit Media Converter
provides a high level of immunity against electromagnetic interference
and heavy electrical surges which are usually found on plant oors
or in curbside trafc control cabinets. It also possesses an integrated
power supply source with a wide range of voltages (12 to 48V DC or
24V AC) for worldwide high availability applications requiring dual or
backup power inputs. Being able to operate under the temperature
range from -40 to 75 degrees C, the Industrial Gigabit Media Converter
can be placed in almost any difcult environment. The compact IP30
standard metal case of Industrial Gigabit Media Converter allows either
DIN rail or wall mounting for efcient use of cabinet space.
Robust Gigabit Media Converter Performance
The IGT-805AT / IGT-1205AT offers wire-speed packets transfer
performance without risk of packet loss. The high data throughput
of the device makes it ideal for most Gigabit environments. With a
4/6Gbps internal fabric and featuring auto negotiation support in its
Gigabit port, the IGT-805AT / IGT-1205AT Industrial Gigabit Media
Converter can handle large amounts of data in a secure topology
linking to a backbone or high capacity servers.
Adjustable 3-Port Switch Mode or 2 Fiber Port Redundant Mode
(IGT-1205AT only)
Via the built-in DIP-switch, the two SFP ber interfaces of IGT-1205AT
can be congured as Ethernet switch mode or ber redundant mode.
With the Ethernet switch mode, it can operate Store-and-Forward
mechanism with high performance; with the 2-port ber redundant
mode, it provides redundancy of link for highly critical Ethernet
applications. The redundant mode supports auto-recover function. If
the destination port of a packet is link-down, it forwards the packet to
the other port of the backup pair.
1.3 Product Features
IGT-805AT Physical Port
1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP interface, 100/1000BASE-X dual mode (auto detection)

8
IGT-1205AT Physical Port
1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
2 SFP interfaces, 100/1000BASE-X dual mode (DIP switch control)
Layer 2 Features
IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
Supports auto-negotiation and 10/100Mbps half / full duplex and
1000Mbps full duplex mode
Prevents packet loss with back pressure (hjalf-duplex) and IEEE
802.3x pause frame ow control (full-duplex)
9K jumbo frame size support
Automatic address learning and address aging
Industrial Case / Installation
Slim type IP30 metal case
DIN rail and wall-mount design
Redundant power design
- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
Supports EFT protection for 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Fiber Port Redundancy (IGT-1205AT only)
Link status auto-detect and redundant on dual ports with the same
connector type
Only when primary port is activated, the backup port is blocked.
 When primary port link fails, the trafc will swap to backup port
automatically.
 Once the primary port status is back to link up, the trafc will swap
from backup port to primary port.

9
1.4 ProductSpecications
Model IGT-805AT IGT-1205AT
Hardware Specications
Copper Interface 1 x 10/100/1000BASE-T
RJ45
1 x 10/100/1000BASE-T
RJ45
Fiber Optic
Interfaces
1 x 1000BASE-SX/LX/
BX SFP interface.
Compatible with
100BASE-FX SFP
2 x 1000BASE-SX/
LX/BX SFP interfaces
(Port-1 and Port-2)
Compatible with
100BASE-FX SFP
Connector
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin
5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
Power
Requirements
DC 12~48V, Redundant power with polarity
reverse protection function.
AC 24V Power Adapter
Power
Consumption /
Dissipation
3.3 watts/11BTU 4.8 watts/16BTU
Dimensions
(W x D x H) 32 x 87 x 135mm 32 x 87 x 135mm
Weight 458g 505g
Enclosure IP30 type metal case
Installation DIN rail kit and wall-mount ear
ESD Protection 6KV DC
EFT Protection 6KV DC

10
Converter Specications
Processing
Scheme Store-and-Forward
Fabric 4Gbps 6Gbps
Throughput
(packet per
second)
2.97Mpps 4.46Mpps
Flow Control Back pressure for half duplex.
IEEE 802.3x pause frame for full duplex
Maximum
Transmission Unit 9216bytes
Standards Conformance
Standards
Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x full-duplex ow control
Regulation
Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)

11
2. Hardware Description
2.1 Physical Dimensions
IGT-805AT dimensions (W x D x H): 32 x 87 x 135mm
Side View
Bottom View
Front View
Top View
Mounting Kit Mounting Kit
DIN-Rail Kit
Rear View
P1 P2 FAULT
100/1000X
IGT-805AT
LNK/ACT
LNK/ACT
1000
10/100/1000T

12
IGT-1205AT dimensions (W x D x H): 32 x 87 x 135mm
Side View
Bottom View
Front View
Mounting Kit Mounting Kit
DIN-Rail Kit
Top View Rear View
1000 LNK/ACT 100 LNK/ACT
IGT-1205AT
1
10/100/1000T
P1 P2 FAULT
2
3
LNK/
ACT
SFP
1000X
LNK/
ACT
SFP
1000X
Input DC 12~48V, AC 24V
V1-
V1+
V2-
V2+
PWR1
Port 1
Port 2
Mode
Fault
PWR2
100FX
100FX
Redundant
1000X
ON OFF
1000X
Switch
1 2 3
ON
1 2 3 4 5 6

13
2.2 Converter Front Panel

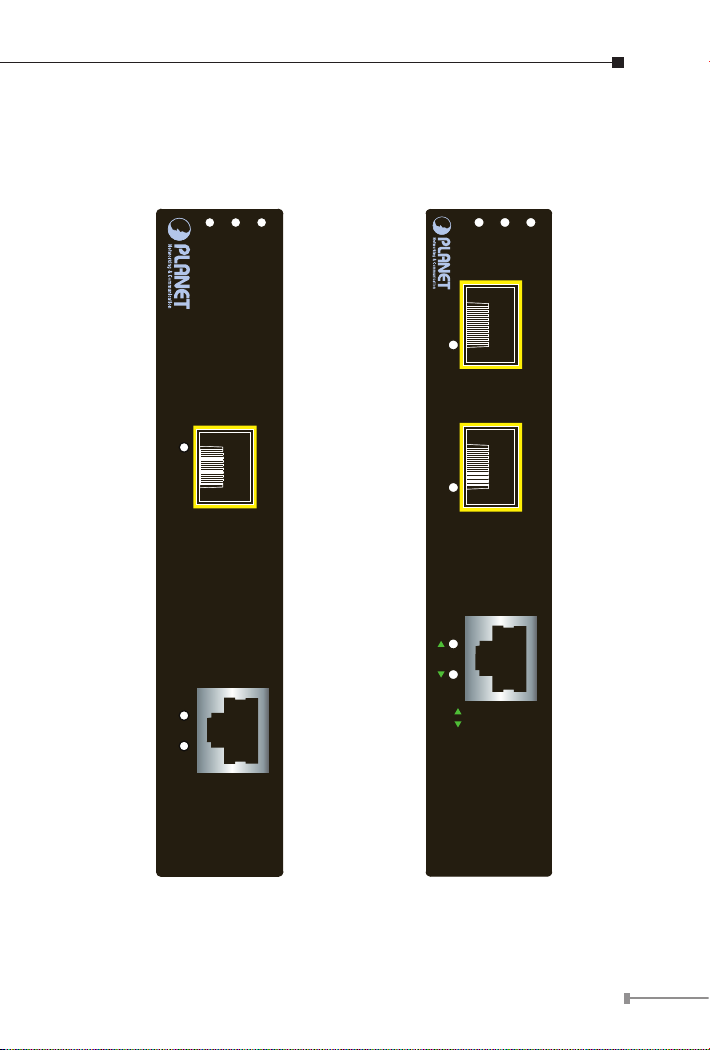

Figures 2-1 and 2-2 show the front panels of the Industrial Gigabit
Media Converter.
P1 P2 FAULT
100/1000X
IGT-805AT
LNK/ACT
LNK/ACT
1000
10/100/1000T
1000 LNK/ACT
100 LNK/ACT
IGT-1205AT
1
10/100/1000T
P1 P2 FAULT
2
3
LNK/
ACT
SFP
1000X
LNK/
ACT
SFP
1000X
Figure 2-1: IGT-805AT Front Panel Figure 2-2: IGT-1205AT Front Panel

14
2.3 LED Indicators
System
LED Color Function
P1 Green Lit: indicates power 1 has power.
P2 Green Lit: indicates power 2 has power.
FAULT Green Lit: indicates either power 1 or power 2 has no
power.
Per 10/100/1000BASE-T Port (IGT-805AT)
LED Color Function
LNK/ACT Green
Lit: indicates that the Gigabit Ethernet Port
is successfully connecting to the network at
10/100/1000Mbps.
Blinking: indicates that the Gigabit Ethernet Port
is actively sending or receiving data over that
port.
1000 Green
Lit: indicates the link through that port is
successfully established at 1000Mbps.
Off: indicates the link through that port is
successfully established at 10/100Mbps.

15
Per 10/100/1000BASE-T Port (IGT-1205AT)
LED Color Function
100
LNK/ACT Orange
Lit: indicates the link through that port is
successfully established at 100Mbps or 10Mbps.
Blinking: indicate that the Switch is actively
sending or receiving data over that port.
Off: indicates the link through that port is
successfully established at 1000Mbps.
1000
LNK/ACT Green
Lit: indicates the link through that port is
successfully established at 1000Mbps.
Blinking: indicates that the Switch is actively
sending or receiving data over that port.
Off: indicates the link through that port is
successfully established at 10/100Mbps.
Per 100 / 1000BASE-X SFP Slot
LED Color Function
LNK/ACT Green
Lit: indicates the link through that port is
successfully established at 100Mbps or 1000Mbps.
Blinking: indicates that the Converter is actively
sending or receiving data over that port.

16
2.4 Converter Upper Panel
The upper panel of the IGT-805AT and IGT-1205AT consist of one
terminal block connector within two DC power inputs, and the
IGT-1205AT also provides 3 DIP Switches for 100/1000X ber support
on two SFP slots and ber redundant function. Figure 2-3 shows the
upper panel of the IGT-1205AT
1 2 3 4 5 6
Input DC 12~48V, AC 24V
V1-
V1+
V2-
V2+
PWR1
Port 1
Port 2
Mode
Fault
PWR2
100FX
100FX
Redundant
1000X
ON OFF
1000X
Switch
1 2 3
ON
Figure 2-3: IGT-1205AT Upper Panel
The 3 DIP switch settings and descriptions
1 2 3
ON
ON OFF
Port 1 (DIP 1) 100FX 1000X
Port 2 (DIP 2) 100FX 1000X
Fiber Mode (DIP 3) Fiber Redundant Switch
The ber redundancy function explains in chapter 3.6 Redundancy
Overview.

17
3. INSTALLATION
This section describes the functionalities of the Industrial Gigabit Media
Converter’s components and guides you to how to install it on the
desktop. Basic knowledge of networking is assumed. Please read this
chapter completely before continuing.
3.1 Quick Installation Steps
Step 1: Unpack the Industrial Gigabit Media Converter.
Step 2: Check whether the DIN-rail is screwed on the Industrial
Gigabit Media Converter. (Please refer to DIN-rail Mounting
section for DIN-rail installation if the DIN-rail is not screwed
on the Industrial Gigabit Media Converter). If you want to
wall-mount the Industrial Gigabit Media Converter, then
please refer to the Wall-mount Plate Mounting section for
wall-mount plate installation.
Step 3: To hang the Industrial Gigabit Media Converter on the
DIN-rail track or wall, please refer to the Mounting
Installation section.
Step 4: Power on the Industrial Gigabit Media Converter. (Please refer
to the Wiring of the Power Inputs section for power input)
The power LED on the Industrial Gigabit Media Converter will
light up. Please refer to the LED Indicators section for the
functions of LED lights.
Step 5: Prepare the twisted-pair, straight-through Category 5 cable
for Ethernet connection.
Step 6: Insert one side of Category 5 cable into the Industrial Gigabit
Media Converter Ethernet port (RJ45 port) while the other
side of Category 5 cable into the network devices' Ethernet
port (RJ45 port), e.g., switch, PC or server. The UTP port
(RJ45) LED on the Industrial Gigabit Media Converter will
light up when the cable is connected with the network
device. Please refer to the LED Indicators section for the
functions of LED lights.
Step 7: When all the connections are all set and LED lights all show
normally, the installation is complete.

18
3.2 Mounting Installation
This section describes how to install the Industrial Gigabit Media
Converter and makes connections to it. Please read the following topics
and perform the procedures in the order being presented.
Note
In the installation steps below, this Manual uses
IGS-801 (PLANET 8-port Industrial Gigabit Switch) as
the example. However, the steps for PLANET Industrial
Switch and Industrial Media Converter are similar.
3.2.1 DIN-rail Mounting
The DIN-rail is screwed on the Industrial Gigabit Media Converter
when is out of factory. When replacing the wall-mount application with
DIN-rail application on Industrial Gigabit Media Converter, please refer
to the following gures to screw the DIN-rail on the Industrial Gigabit
Media Converter. To hang the Industrial Gigabit Media Converter, follow
the following steps:

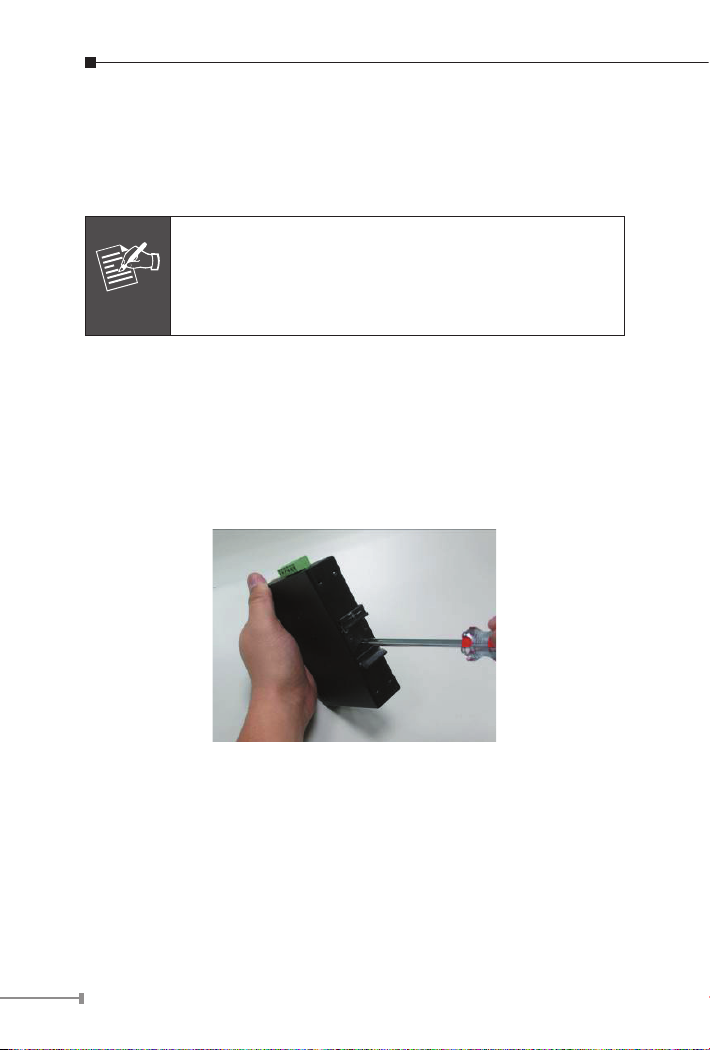

Step 1: Screw the DIN-rail on the Industrial Gigabit Media Converter.

19
1
2

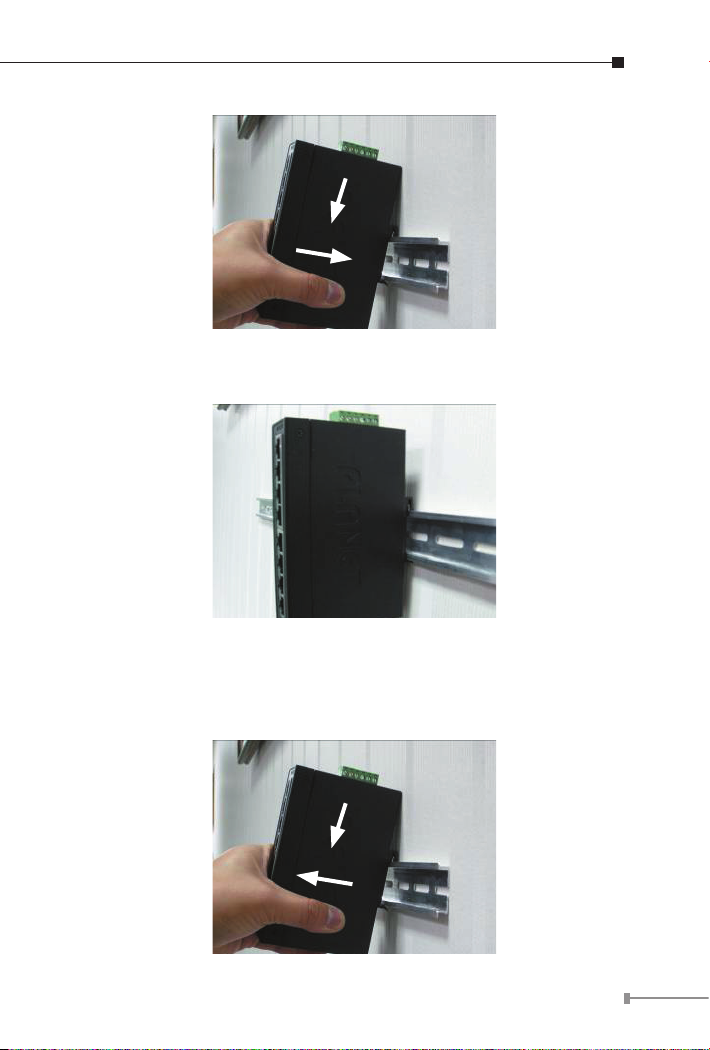

Step 2: Lightly insert the DIN-rail into the track.
Step 3: Make sure the DIN-rail is tightly secured on the track.
Step 4: Please refer to the following procedures to remove the
Industrial Gigabit Media Converter from the track.
1
2

20
Step 5: Lightly pull out the bottom of the DIN-Rail from the track to
remove.
3.2.2 Wall-mount Plate Mounting
To install the Industrial Gigabit Media Converter on the wall, please
follow the instructions described below.
Step 1: Remove the DIN-Rail from the Industrial Gigabit Media
Converter; loosen the screws to remove the DIN-rail.
Step 2: Place the wall-mount plate on the rear panel of the Industrial
Gigabit Media Converter.

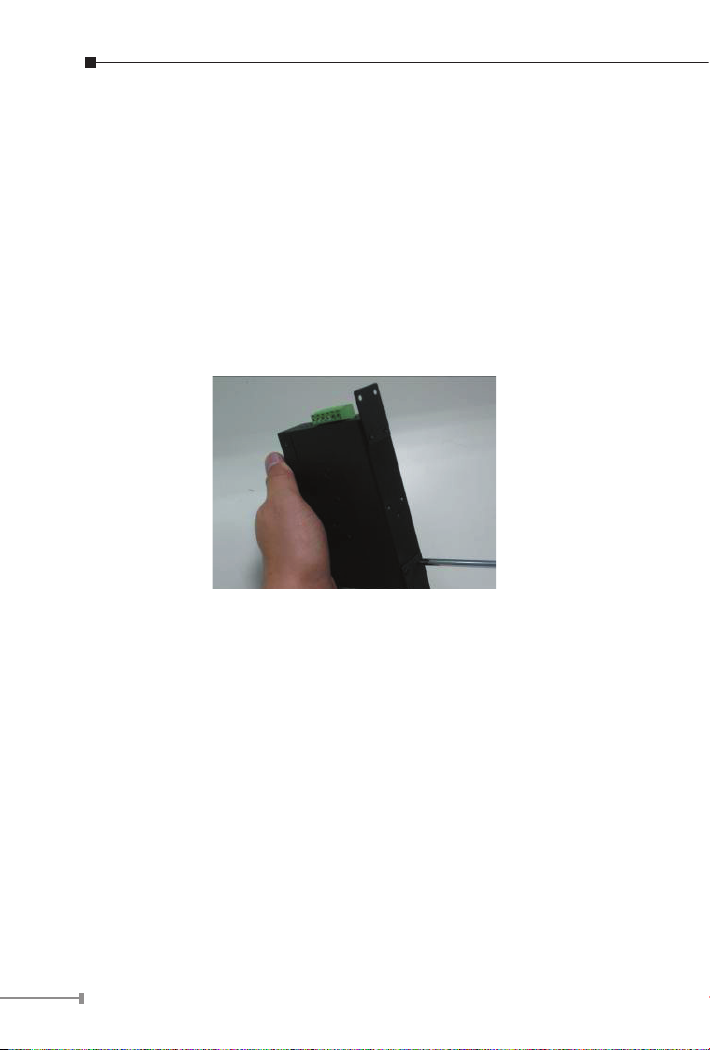

Step 3: Use the screws to screw the wall-mount plate on the
Industrial Gigabit Media Converter.
Step 4: Use the hook holes at the corners of the wall-mount plate to
hang the Industrial Gigabit Media Converter on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
