Planet POE-173S User manual

– 1 – – 2 –
– 3 – – 4 –

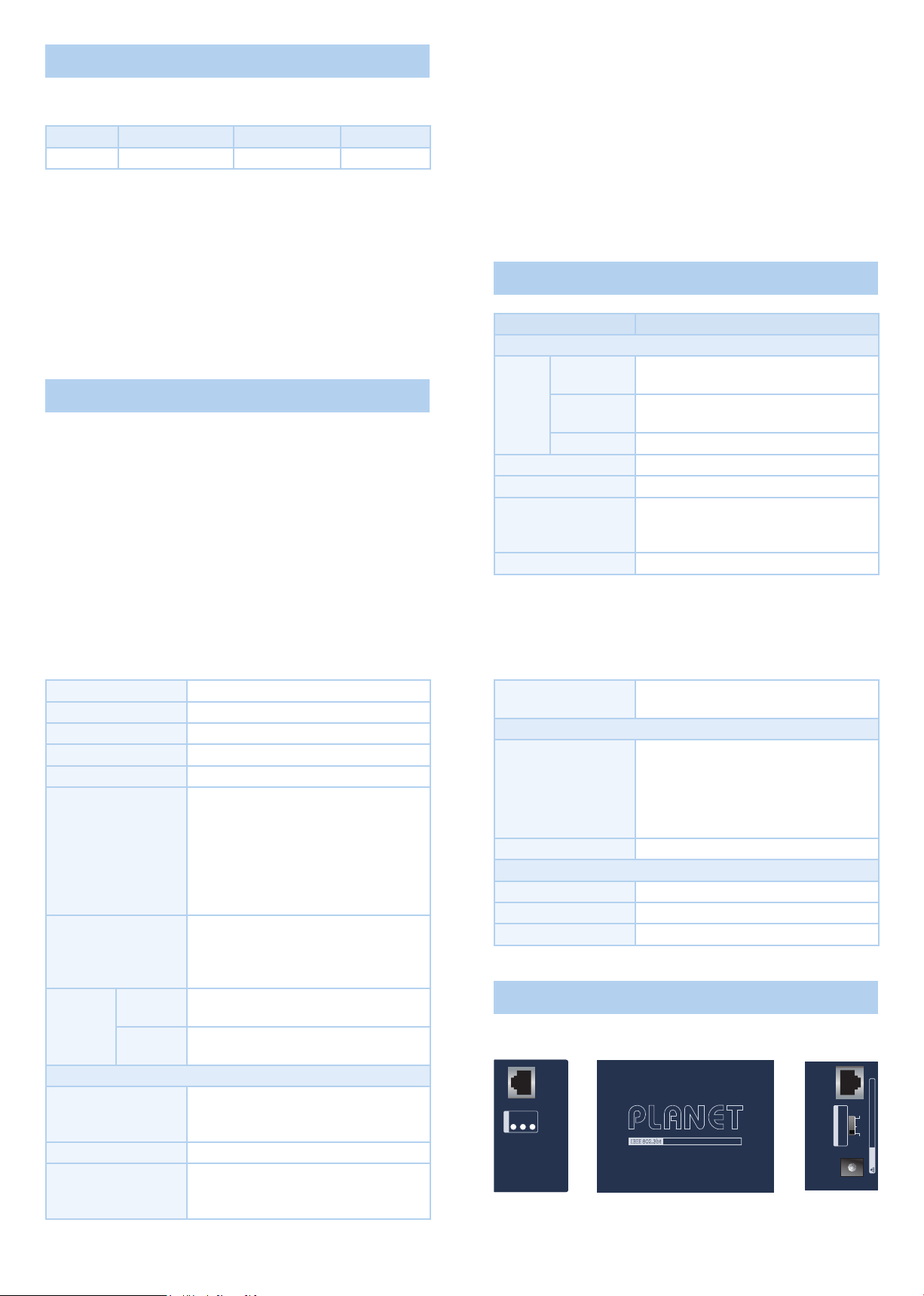

1. Package Contents
Thank you for purchasing PLANET POE-173S Single-Port
10/100/1000Mbps 802.3bt PoE++ Splitter.
Model LAN Port Speed PoE Standard DC Out
POE-173S 10/100/1000Mbps IEEE 802.3at/bt 12V/19V/24V
Please unpack the box of the POE-173S carefully, and the box should
contain the following items:
802.3bt PoE++ splitter x 1
User’s manual x 1
15cm RJ45 cable x 1
5.5/2.5mm to 5.5/2.5mm DC plug cable x 1
5.5/2.5mm to 5.5/2.1mm DC plug cable x 1
If any of these are missing or damaged, please contact your dealer
immediately.
2. Product Features
Interface
2 RJ45 interfaces
1-port data + power input
1-port data output
1-port DC plug-in
1 DC 12V/19V/24V DIP switch
Power over Ethernet
Complies with 802.3bt Power over Ethernet Plus Plus PD
Backward compatible with 802.3at PoE+ with up to 30-watt power
output
Splits the PoE power over RJ45 Ethernet cable into DC 12V/19V/24V
output
Distance up to 100 meters
Hardware
Metal case
All-in-one compact size design
PoE usage level LED indicators
Three-mode (12V/19V/24V) DC output DIP switch
3.ProductSpecications
Product POE-173S
Hardware Specications
Interface
Ethernet 1 x 10/100/1000BASE-T RJ45, Ethernet data
output port
PoE in 1 x 10/100/1000BASE-T RJ45, PoE power
input port
Power socket 1 x DC plug-in
DIP Switch 12V/19V/24V DC output
DC Socket DC receptacle 2.5mm
LED Indicators
PoE in: 30W (Green)
60W (Green)
90W+ (Green)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 94 x 70.3 x 39.2 mm
Weight 265g
Installation Desktop/wall mountable/DIN-rail
Enclosure Metal case
Power Requirements 48~56V DC PoE
Unit Output Current
(at 56VDC Input)
With 803.bt type 3 PoE++ input:
● 4.5A@12V DC
● 2.8A@19V DC
● 2.2A@24V DC
With 803.bt type 4 PoE++ input:
● 5A@12V DC
● 3.15A@19V DC
● 2.5A@24V DC
Power Consumption
Ethernet full loading without DC output:
6.5 watts
Full loading with maximum 12V DC, 5A
output: 70 watts
Network
Cable
803.bt PoE
(60W+) 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3at PoE
(30W) 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
Power over Ethernet
PoE Standard
802.3bt Type 3/4 Power over Ethernet
4-pair 802.3at PoE+
Compliant with voltage within 48-56V DC
Power Output DC 12V/19V/24V by DIP switch control
PoE Power Supply Type
End-span + Mid-span
End-span
Mid-span
Power Pin Assignment 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
Type 4
Regulatory Compliance FCC, CE
Environment
Operating Temperature 0~ 50 degrees C
Storage Temperature -10~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)
4. Hardware Introduction
4.1 Product Outlook
PoE In
POE-173S
802.3bt PoE++ Splitter
10/100/1000BASE-T
IEEE 802.3bt Power over Ethernet Splitter
90W+
60W 30W
PoE In
DC Out Ethernet
10/100/1000BASE-T
12V 19V 24V
Incorrect voltage might cause device damage
CAUTION
Disconnect “PoE In” cable before changing Voltage
Note
Figure 1: POE-173S Outlook

– 5 –
– 6 – – 7 –
Note
1. Please ensure the output voltage is correct for remote
device. Otherwise, it will damage your remote device.
2. Don’t change the DC-output voltage during operation.
Otherwise, it will damage your POE-173S and remote
device. If you want to change the DC-output voltage,
please plug out the “PoE In” cable and wait for 5
seconds until the “PoE In” LEDs are completely off.
5.2 The POE-173S Installation
Note
Please turn off the POE-173S before you change the
DC-output voltage.
1. Select the right DC power output and connect DC plug from "DC
Out" of the POE-173S to remote device.
DC Out Ethernet
10/100/1000BASE-T
12V 19V 24V
Incorrect voltage might cause device damage
CAUTION
Disconnect “PoE In” cable
before changing Voltage
Note
2. Connect standard UTP cable from “Ethernet” port of the POE-173S
to remote device.
3. Connect standard UTP cable from “PoE In” port of the POE-173S to
PoE switch/injector.
4.2 LED Indicators
LED Color Function
30W Green Lights to indicate the PoE splitter is connecting to
30W (or more) PoE power source.
60W Green Lights to indicate the PoE splitter is connecting to
60W (or more) PoE power source.
90W+ Green Lights to indicate the PoE splitter is connecting to
90W (or more) PoE power source.
5. Hardware Installation
The following section describes the hardware features of the POE-173S.
Before connecting any network device to them, please read this chapter
carefully.
Please refer to the following sections for detailed information about the
POE-173S.
5.1 Before Installation
Before installation, it is recommended to check your network
environment. If there is diculty in nding a power socket for AC-DC
adapter of your non-PoE IEEE 802.3bt networked device, the POE-173S
provides you with a way out to supply DC power to this Ethernet device
conveniently and easily.
PoE In
POE-173S
802.3bt PoE++ Splitter
10/100/1000BASE-T
90W+
60W
30W
PoE In
4. Power on the PoE switch/injector to enable the POE-173S and remote
device to be powered.
